DENON DN X400 Diagram
Professional Digital/Analog DJ Mixer
BOOTH/ZONE
LR
FREQ.
40Hz 200Hz
OPTICALCOAXIAL
DIGITAL OUT SUB WOOFER
POWER
OFF
ON
REC
OUT
RETURNSEND
EFFECT
L
R
UNBALANCEDBALANCED
RL
MASTER OUT
PHONO2/LINE7
CH4
L
LNPH
R
CH1CH2
LINE3
CH3
PHONO1/LINE5
L
R
LNPH
LINE1
FADERFADER
SIGNAL GND
LINE2LINE4LINE6LINE8
AUX MIC
MAIN MIC
Unique Features
• 2 Digital outputs (44.1kHz, Coaxial/Optical SPDIF)
- Simultaneous coaxial and optical outputs
- Both digital outputs incorporate high quality 20-bit A/D converters
• Track Mark (Worlds First!)
- When recording to a PRO CD-R/RW recorder such as our new DN-C550R, track markers can be added on the fly.
• Pre-Fader Level (PFL)
- All input channel levels can be pre-adjusted in advance to match the output level meter insuring a smooth transition between fades.
• Subwoofer Output
- Built in electronic cross-over allows adjustment from 40Hz to 200Hz
- The sub-out can also be used to trigger any lighting system that accepts an audio input.
• Fader Start (5V pulse)
- Cross and Channel Fader-Start Trigger is possible and compatible with our DN-1800F/2100F/2600F CD players.
Made in Japan

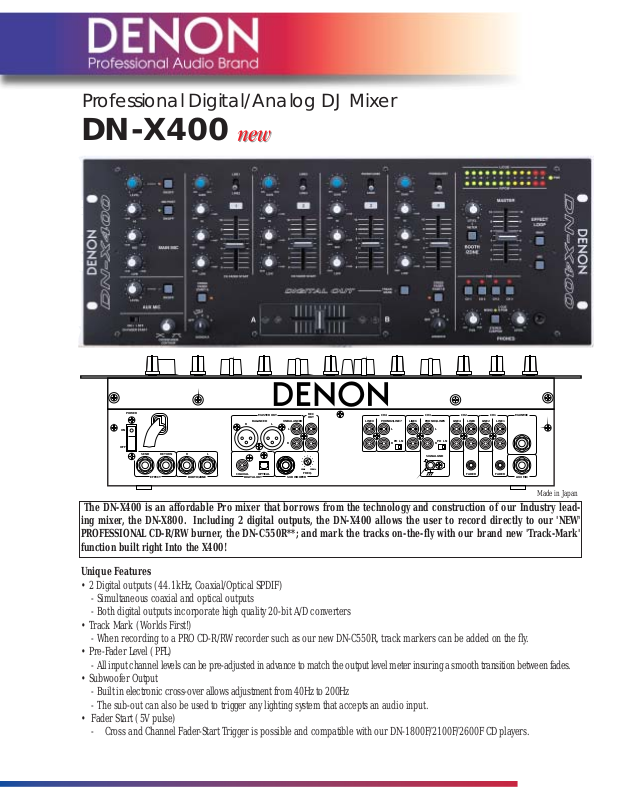

DN-X400
The DN-X400 is an affordable Pro mixer that borrows from the technology and construction of our Industry leading mixer, the DN-X800. Including 2 digital outputs, the DN-X400 allows the user to record directly to our 'NEW'
PROFESSIONAL CD-R/RW burner, the DN-C550R**; and mark the tracks on-the-fly with our brand new 'Track-Mark'
function built right Into the X400!
NIPPON COLUMBIA CO., LTD.
YUSHIMA BLDG. 2 ND FL, No. 3-16-11, YUSHIMA, BUNKYO-KU, TOKYO 113-0034, JAPAN
DENON ELECTRONICS.
DIVISION OF DENON CORPORATION (USA)
19 CHAPIN ROAD, PINE BROOK, NJ 07058-9777, USA
www.denon.com
TEL: (973) 396-0810
DENON CANADA INC.
17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5
www.denon.ca
TEL: (905)475-4085
60910801 A
* Features and Specifications are subject to change without notice.
Basic Features
• 4U Rack Space
• 8 Stereo Input Mixer including 2 Phono/Line Inputs
• 2 Microphone Inputs (2 x 1/4” TRS)
• 4-channel Assignable Cross-Fader (45 mm stroke) with Contour
Control
• 3-Band Line EQ (-26dB ~ +10dB) & 3-Band Mic EQ(-12dB ~ +12dB)
• VCA fader design for long life durability.
• Independent Gain Control for each Line on Front Panel.
• Split Cue Headphone Monitor and PFL Display
• Includes Master Output (Balanced and Unbalanced), Send/Return
Effect Loop (Stereo), Booth/Zone Output (Balanced), Tape (Rec)
Output (Unbalanced)
SPECIFICATIONS
GENERAL
Dimensions: 482 (W) x 105 (H) x 177 (D) mm (without feet)
19.0 (W) x 4.1 (H) x 7.0 (D) inch (without feet)
Weight: 5.5 kg, 12.1 lbs.
Power supply: 120 V AC±10%, 60 Hz
(U. S. A. and Canada models)
Power consumption: 26 W
AUDIO SECTION
Input Sensitivity & Impedance:
Main Mic -54 dBV (2.0 mV) 10 kΩ/kohms
Aux Mic -60 dBV (1.0 mV) 10 kΩ/kohms
Effect (Return) -10 dBV (316 mV) 50 kΩ/kohms
2-Phono -50 dBV (3.0 mV) 50 kΩ/kohms
8-Line -14 dBV (200 mV) 50 kΩ/kohms
Output level & Impedance:
Main (Balanced) 4 dBm (1.23 V) 600 Ω/ohms load
Main (Unbalanced) 0 dBV (1.0V) 1 kΩ/kohms
Booth/Zone (Balanced) 4 dBm (1.23 V) 600 Ω/ohms load
Rec (RCA) -10 dBV (316 mV) 1 kΩ/kohms
Effect (Send) -10 dBV (316 mV) 1 kΩ/kohms
Subwoofer -2 dBV (800 mV) 1 kΩ/kohms
Headphone -4 dBV (630 mV) 150 Ω/ohms
Frequency Response:
Line 20 to 20 kHz ±2 dB
Phono 20 to 20 kHz RIAA ±2 dB
Mic 20 to 20 kHz ±2 dB
Signal to Noise ratio:
Line 80 dB (0 dBm, 1 kHz, EQ flat)
Phono 75 dB (0 dBm, 1 kHz, EQ flat)
Main Mic 65 dB (0 dBm, 1 kHz, EQ flat)
Total harmonic distortion rate:
Line Below 0.05%
Phono Below 0.05%
Cross talk: Over 70 dB
Channel equalizer:
Hi +10 dB, -26 dB (13 kHz)
Mid +10 dB, -26 dB (1 kHz)
Low +10 dB, -26 dB (100 Hz)
Microphone equalizer:
Hi +12 dB, -12 dB (10 kHz)
Mid +12 dB, -12 dB (1 kHz)
Low +12 dB, -12 dB (100 Hz)
Digital output (COAXIAL):
Signal format IEC958 Type II
Output level 0.5 Vp-p 75 Ω/ohms
Output signal level -6 dB
Digital output (OPTICAL):
Signal format IEC958 Type II
ACD-36: Replacement Cross Fader for DN-X400/DN-X800
(accessory sold separately)
** DN-C550R PROFESSIONAL CD-R/RW burner:
Dual drive/zone playback capabilities & a Pro-use CD-R/RW
burner that can toggle between SCMS on/off, records to
Data[computer] CD-R or RW disc’ s & or music Disc’s, accepts
XLR balanced line in as well as SPDIF coax & optical digital signals. Can simultaneously record from an outside source & play
back from drive #1! At your local Authorized Denon dealer now.
DN-C550R PROFESSIONAL CD-R/RW Recorder
DN-X800 PROFESSIONAL Digital/Analog DJ Mixer with X-EFFECT
