AV SURROUND RECEIVER

AVR-3805

OPERATING INSTRUCTIONS

2 We greatly appreciate your purchase of the AVR-3805. 2 To be sure you take maximum advantage of all the features the AVR-3805 has to offer, read these instructions

carefully and use the set properly. Be sure to keep this manual for future reference, should any questions or problems arise.

“SERIAL NO. PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE CABINET FOR FUTURE REFERENCE”

SAFETY PRECAUTIONS

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTERODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOND.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION

• Avoid high temperatures. Allow for sufficient heat dispersion when installed on a rack.

• Eviter des températures élevées Tenir compte d’une dispersion de chaleur suffisante lors de l’installation sur une étagère.

• Handle the power cord carefully. Hold the plug when unplugging the cord.

• Manipuler le cordon d’alimentation avec précaution. Tenir la prise lors du débranchement du cordon.

• Keep the set free from moisture, water, and dust.

• Protéger l’appareil contre l’humidité, l’eau et lapoussière.

• Unplug the power cord when not using the set for long periods of time.

• Débrancher le cordon d’alimentation lorsque l’appareil n’est pas utilisé pendant de longues périodes.

* (For sets with ventilation holes)

• Do not obstruct the ventilation holes.

• Ne pas obstruer les trous d’aération.

• Do not let foreign objects in the set.

• Ne pas laisser des objets étrangers dans l’appareil.

• Do not let insecticides, benzene, and thinner come in contact with the set.

• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l’appareil.

• Never disassemble or modify the set in any way.

• Ne jamais démonter ou modifier l’appareil d’une manière ou d’une autre.

SAFETY INSTRUCTIONS

FIGURE A

EXAMPLE OF ANTENNA GROUNDING

AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

NEC - NATIONAL ELECTRICAL CODE

1. Read Instructions – All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Servicing – Do not attempt to service this product yourself as

20. opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21.

Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service

personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the

product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper

adjustment of other controls may result in damage and will

often require extensive work by a qualified technician to

restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance

– this indicates a need for service.

22. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

23. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

INTRODUCTION

rtyu

CH SEL ENTER

Thank you for choosing the DENON AVR-3805 Digital A / V Surround Receiver. This remarkable component has been engineered to provide superb surround sound listening with home theater sources such as DVD, as well as providing outstanding high fidelity reproduction of your favorite music sources. As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.

TABLE OF CONTENTS

z Before Using ...............................................................................................4

x Cautions on Installation...............................................................................4

c Cautions on Handling ..................................................................................5

v Features ..................................................................................................5, 6

b Connections..........................................................................................7~16

n Part Names and Functions .................................................................17~19

m Setting up the system ........................................................................20~49

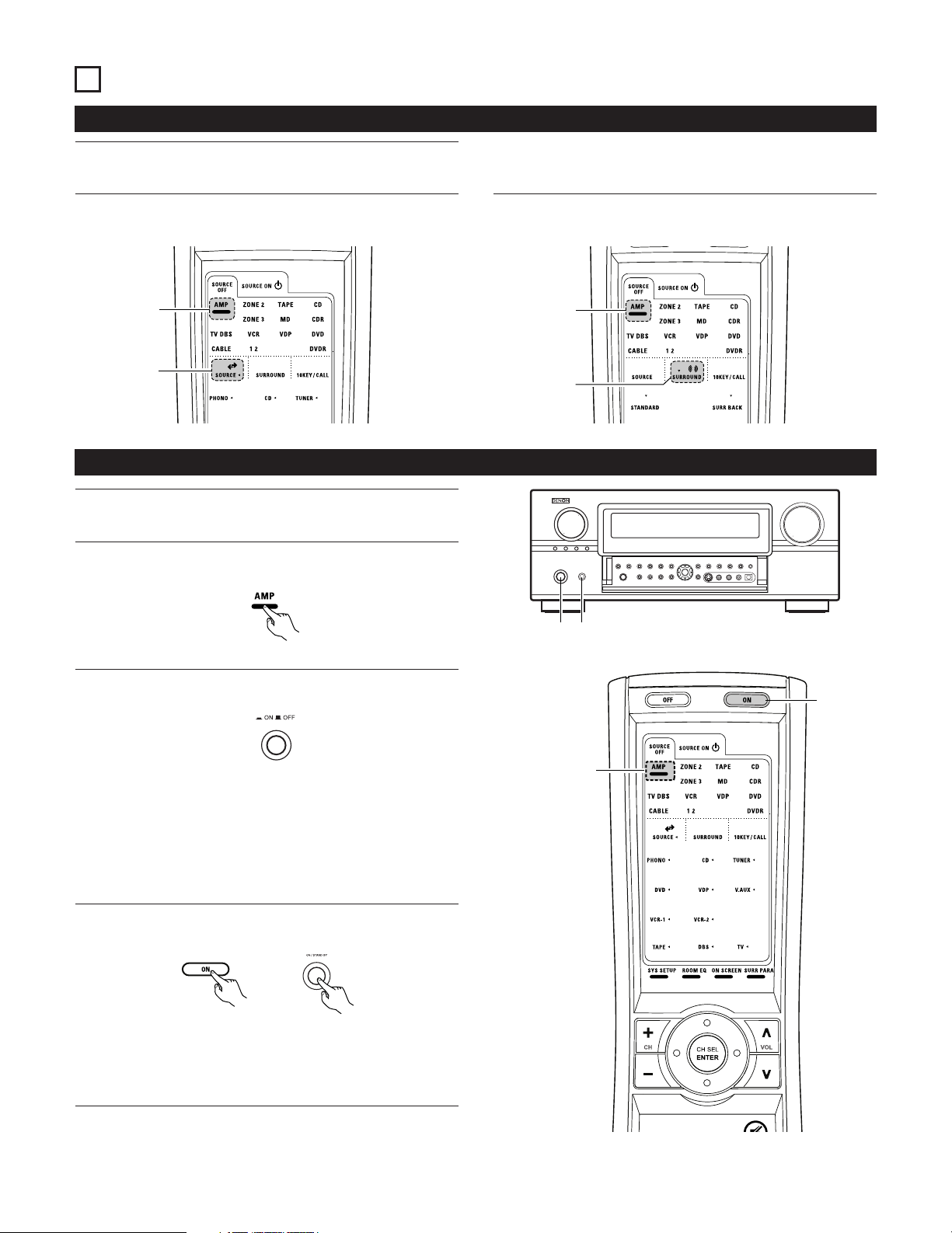

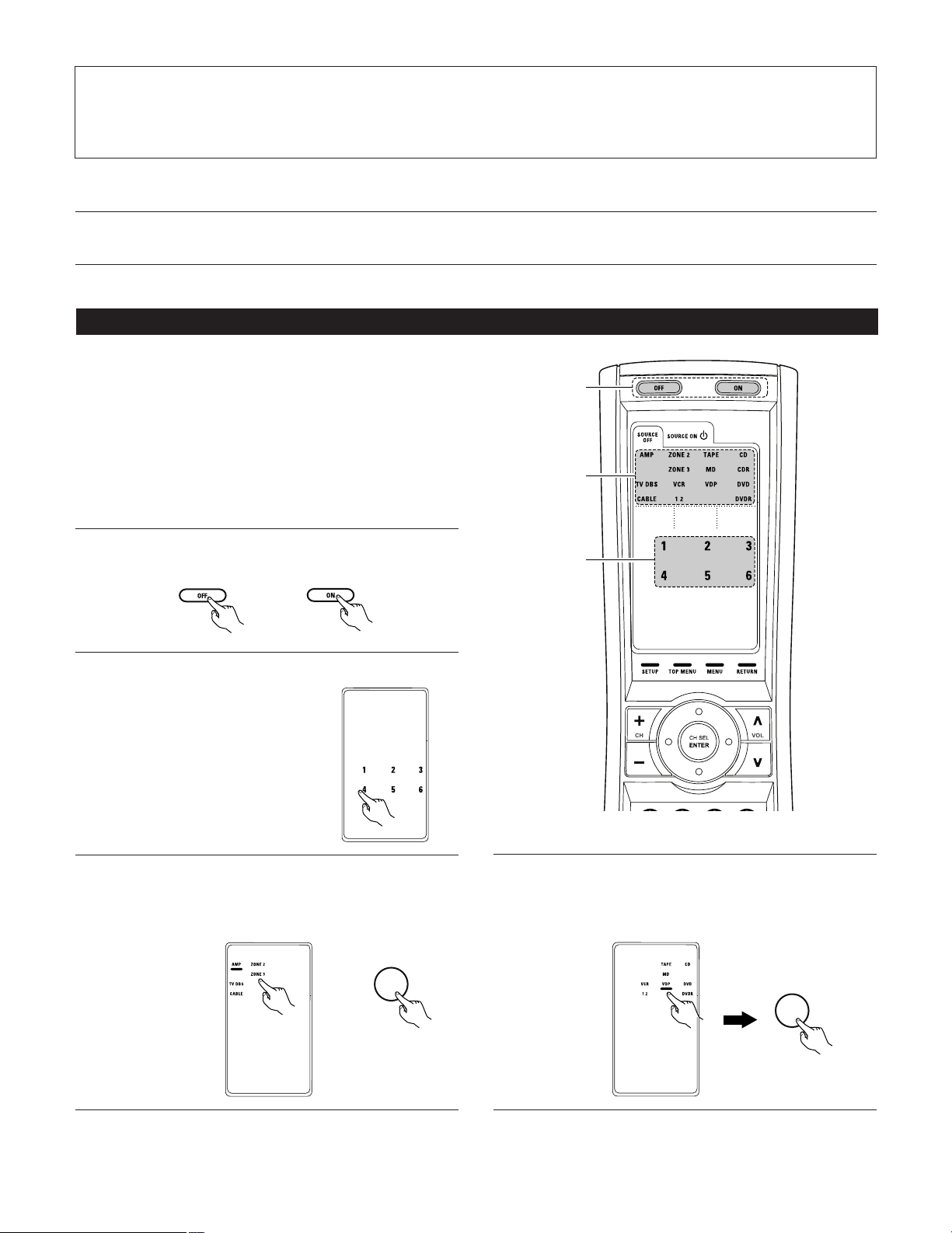

, Remote Control Unit...........................................................................50~61

. Operation ............................................................................................62~68

ACCESSORIES

Check that the following parts are included in addition to the main unit:

q Operating instructions…..1 w Warranty ( for North America model only )………...........1 e Service station list…….....1 r Remote control unit

t R03/AAA batteries .............4 y AM loop antenna…...............1 u FM indoor antenna…1 (RC-969)............…......1

BEFORE USING

Pay attention to the following before using this unit:

• Moving the set To prevent short circuits or damaged wires in the connection cords, always unplug the power cord and disconnect the connection cords between all other audio components when moving the set.

• Before turning the power switch on Check once again that all connections are proper and that there are not problems with the connection cords. Always set the power switch to the standby position before connecting and disconnecting connection cords.

⁄0 Multi Zone...........................................................................................69~71

⁄1 Surround .............................................................................................72~79

⁄2 DSP Surround Simulation ...................................................................80~84

⁄3 Listening to the Radio.........................................................................85~87

⁄4 Last Function Memory..............................................................................87

⁄5 Initialization of the Microprocessor ...........................................................87

⁄6 Troubleshooting.........................................................................................88

⁄7 Additional Information.......................................................................89~100

⁄8 Specifications ..........................................................................................101

• Store this instructions in a safe place. After reading, store this instructions along with the warranty in a safe place.

• Note that the illustrations in this instructions may differ from

the actual set for explanation purposes.

CAUTIONS ON INSTALLATION

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV. If this happens, take the following steps:

• Install this unit as far as possible from the tuner or TV.

• Set the antenna wires from the tuner or TV away from this unit’s power cord and input/output connection cords.

• Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ω/ohms feeder wires. We recommend using

outdoor antennas and 75 Ω/ohms coaxial cables.

For heat dispersal, leave at least 4 inch/10 cm of space between the top, back and sides of this unit and the wall or other components.

4 inch/10 cm or more

Wall

CAUTIONS ON HANDLING

• Switching the input function when input jacks are not connected A clicking noise may be produced if the input function is switched when nothing is connected to the input jacks. If this happens, either turn down the MASTER VOLUME control or connect components to the input jacks.

• Muting of PRE OUT jacks, HEADPHONE jack and SPEAKER

terminals

The PRE OUT jacks, HEADPHONE jack and SPEAKER terminals include a muting circuit. Because of this, the output signals are greatly reduced for several seconds after the power switch is turned on or input function, surround mode or any other-set-up is changed. If the volume is turned up during this time, the output will be very high after the muting circuit stops functioning. Always wait until the muting circuit turns off before adjusting the volume.

FEATURES

1. Dolby Digital

Using advanced digital processing algorithms, Dolby Digital provides up to 5.1 channels of wide-range, high fidelity surround sound. Dolby Digital is the default digital audio delivery system for DVD and North American DTV.

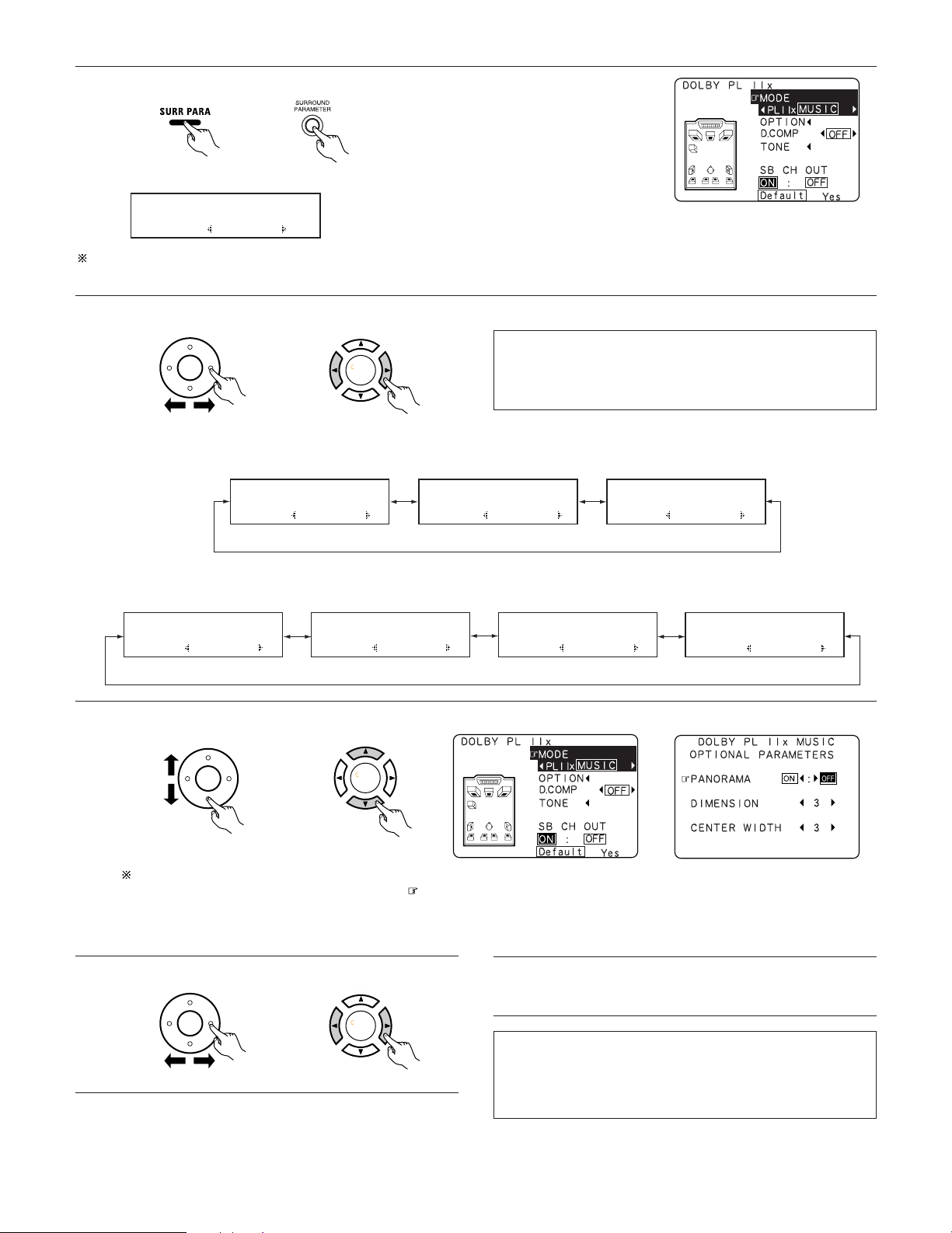

2. Dolby Pro Logic IIx compatibility

Dolby Pro Logic IIx furthers the matrix decording technology of Dolby Pro Logic II to decode audio signals recorded on two channels into up to 7.1 playback channels, including the surround back channel. Dolby Pro Logic IIx also allows 5.1-channel sources to be played in up to 7.1 channels. The mode can be selected according to the source. The Music mode is best suited for playing music,the Cinema mode for playing movies, and the Game mode for playing games. The Game mode can only be used with 2-channel audio sources.

3. Dolby Pro Logic II Game mode compatibility

In addition to the previously offered Music and Cinema modes, the AVR-3805 also offers a Game mode optimum for games.

4. DTS (Digital Theater Systems)

DTS provides up to 5.1 channels of wide-range, high fidelity surround sound, from sources such as laser disc, DVD and specially-encoded music discs.

5. DTS-ES Extended Surround and DTS Neo:6

The AVR-3805 can be decoded with DTS-ES Extended Surround, a multi-channel format developed by Digital Theater Systems Inc. The AVR-3805 can be also decoded with DTS Neo:6, a surround mode allowing 6.1 channels playback of regular stereo sources.

6. DTS 96/24 compatibility

The AVR-3805 can be decoded with sources recorded in DTS 96/24, a multi-channel digital signal format developed by Digital Theater Systems Inc. DTS 96/24 sources can be played in the multi-channel mode on the AVR-3805 with high sound quality of 96 kHz/24 bits or 88.2 kHz/24 bits.

7. HDCD decoder equipped

Connection with a player that supports HDCD playback allows the features of HDCD to be extracted, namely the characteristics of high resolution and low distortion, and fusion with the digital technology that is contained in the AVR-3805 allows for the exhibition of the high sound quality of HDCD.

8. DENON LINK

The connection of one cable to our DVD player, which supports digital transfer, permits the digital transfer of DVD audio, and DVD multi-channel audio for an enjoyable experience of higher sound quality digital sound with low transfer losses.

9. NEW D.D.S.C-Digital

New 32-bit floating point DSP is used for digital transfer processing. Furthermore, operation of D/A and DIR at up to 192 kHz supports the digital transfer of DVD audio by DENON LINK.

• Whenever the unit is in the STANDBY state, the apparatus is

still connected on AC line voltage. Please be sure to turn the power off ( home for, say, a vacation.

10.AL24 Processing for All Channels

DENON has further developed its proprietary AL24 Processing, an analog waveform reproduction technology, to support the 192-kHz sampling frequency of DVD-Audio,AL24 Processing Plus, thoroughly suppresses quantization noise associated with D/A conversion of LPCM signals to reproduce the low-level signals with optimum clarity that will bring out all the delicate nuances of the signals with optimum clarity that will bring out all the delicate nuances of the music. Equipped for not only the front left and right channels but also for the surround left and right, center and subwoofer channels.

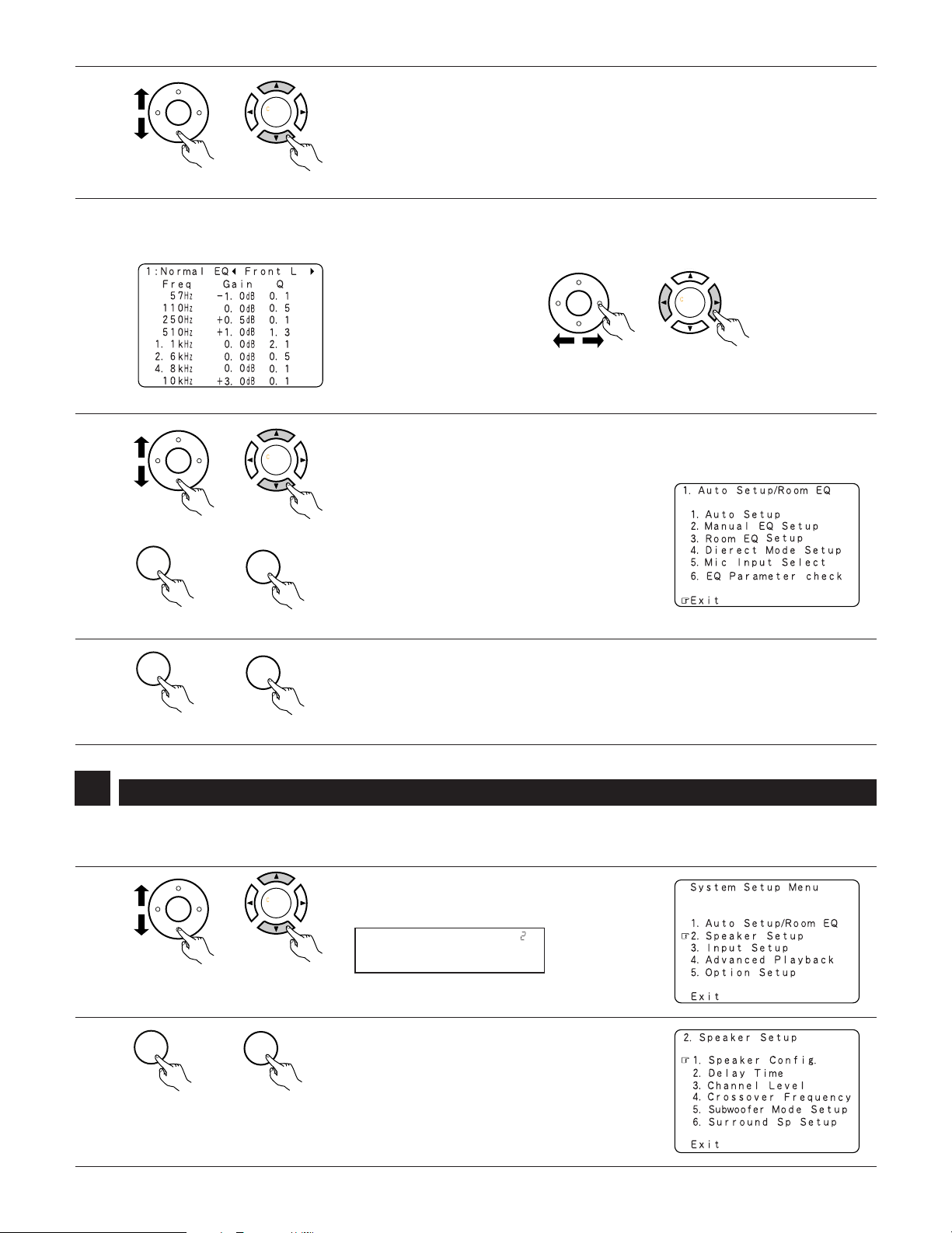

11.Auto Setup/Room EQ

£off) when you leave

Use of the optional microphone for setup applications measures the presence of speakers, the distance to the speakers, and other information, and permits automatic setup. The characteristics of each speaker can also be corrected. Auto setup requires an optional microphone for setup use.

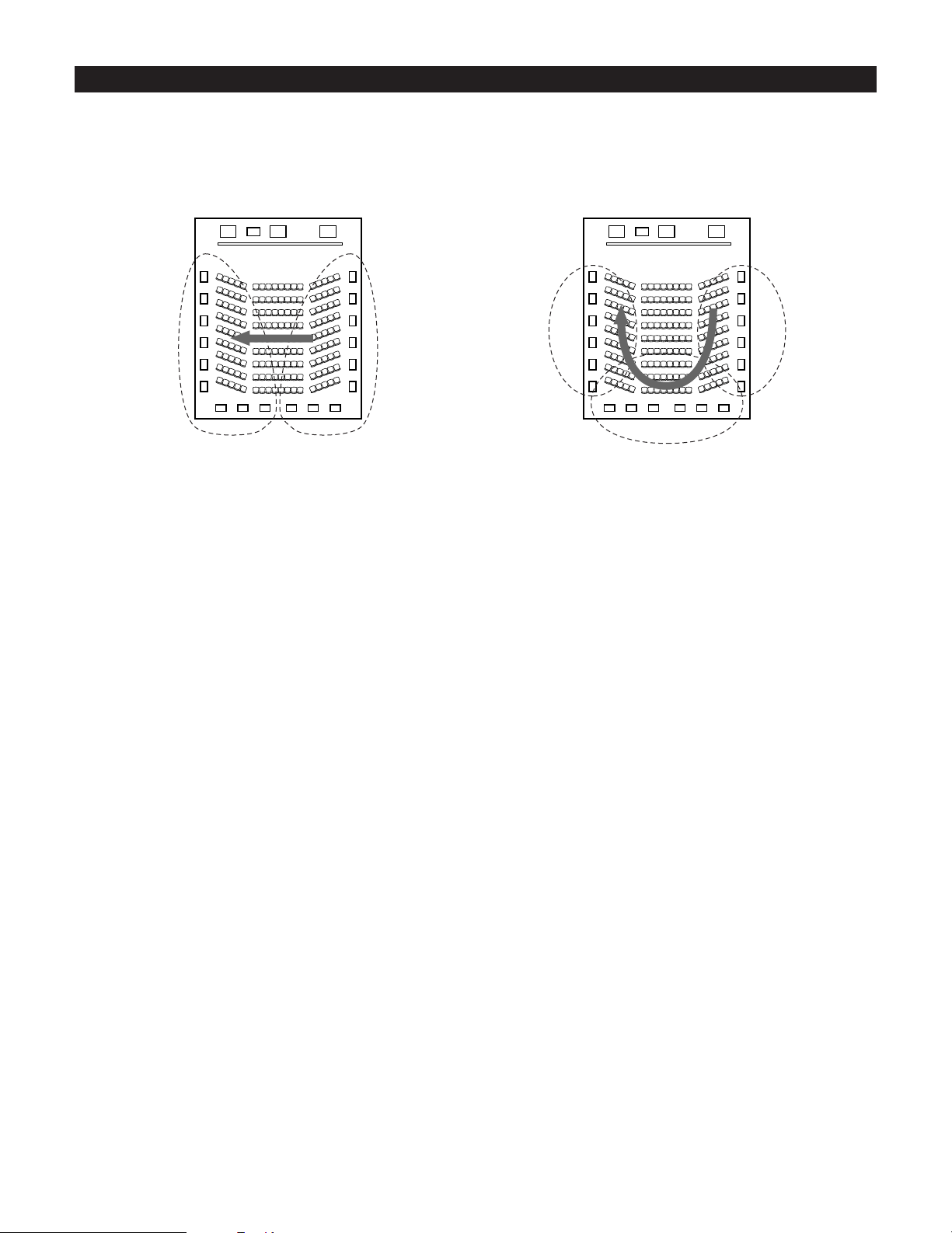

12.Dual Surround Speaker Mode

Provides for the first time the ability to optimize surround sound reproduction using two different types of surround sound speakers as well as two different surround speaker positions: (1) Movie Surround

Motion picture soundtracks use the surround channel(s) to provide the ambient elements of the acoustic environment they want the audience to realize. This is best accomplished by the use of specially-designed surround speakers that offer a wide diffusion pattern (bipolar dispersion) or by using surround speakers that provide broad dispersion with a minimum of onaxis localization (dipolar dispersion). Side wall mounting (closer to the ceiling) of the surround speakers provides the greatest envelopment, minimizing localization of direct sound from the speakers.

(2) Music Surround

With full range discrete surround channels, as well as three discrete full range front channels, digital formats such as Dolby and DTS offer thrilling surround sound music listening. Producers of multi-channel discrete digital music recordings almost always favor the use of direct radiating (monopolar) surround speakers, placed in the rear corners of the room, since that is how they configure their studios during the

mixing/creation process. The DENON AVR-3805 provides the ability to connect two different sets of surround speakers, and place them in the appropriate locations in your AV theater room, so that you can enjoy both movie soundtracks and music listening, with optimum results and no compromise.

13.Multi Zone Music Entertainment System

Multi Source Function: This unit’s Multi Source function lets you select different audio sources for listening Different sources can thus be enjoyed in the main room (MAIN) and the subroom (ZONE2 and ZONE3) simultaneously.

14.Future Sound Format Upgrade Capability via Eight Channel Inputs & Outputs

For future multi-channel audio format(s), the AVR-3805 is provided with 7.1 channel (seven main channels, plus one low frequency effects channel) inputs, along with a full set of 7.1 channel pre-amp outputs, controlled by the 8 channel master volume control. This assures future upgrade possibilities for any future multi-channel sound format.

15.Front input Terminal

The unit is equipped with a Front Input connector for the convenient connection of a video camera or other equipment.

16.Video Conversion Function

17.Component Video Switching

In addition to composite video and “S” video switching, the AVR3805 provides 3 sets of component video (Y, PB/C and one set of component video outputs to the television, for superior picture quality.

18.TRIGGER OUT

B, PR

/CR) inputs,

AVR-3805 is equipped with 2 systems of 12V TRIGGER OUT connections. Each output can be activated upon the selection of assigned. Main Zone inputs or zone2 inputs or zone3 inputs.

19.RS-232C Terminal

Includes a RS--232C port to support an AMX, Crestron integrated control system.

20.AC INLET

Detachable AC CORD is used.

21.Auto Surround Mode

This function stores the surround mode last used for an input signal in the memory and automatically sets that surround mode the next time that signal is input.

22.EL Foil Remote

An EL Foil remote with improved operational qualities is used which displays only the keys required by the device.

23.Large-sized fluorescent display

A large-sized fluorescent display is used which also permits a check of the input/output channels.

24.Audio delay

This is a function for delaying the audio signal with respect to the video signal. (0 to 200 msec)

25.Preset Memory Tuning

56-Station AM/FM Random Preset Memory tuning.

RLR

INPUT OUTPUT

LRL

OUTPUT

DIGITAL AUDIODIGITAL AUDIO

OUTPUT

OPTICAL COAXIAL

DIGITAL AUDIODIGITAL AUDIO

INPUT

OPTICAL

OUTPUT

CONNECTIONS

• Do not plug in the AC cord until all connections have been completed.

• Be sure to connect the left and right channels properly (left with left, right with right).

• Insert the plugs securely. Incomplete connections will result in the generation of noise.

• Note that binding pin plug cords together with AC cords or placing them near a power transformer will result in generating hum or other noise.

• Noise or humming may be generated if a connected audio equipment is used independently without turning the power of this unit on. If this happens, turn on the power of the this unit.

• Use the AC OUTLETS for audio equipment only. Do not use

them for hair driers, etc.

Connecting the audio components

• When making connections, also refer to the operating instructions of the other components.

CD player

Turntable (MM cartridge)

Connecting a turntable

Connect the turntable’s output cord to the AVR3805’s PHONO jacks, the L (left) plug to the L jack, the R (right) plug to the right jack.

NOTE:

This unit cannot be used with MC cartridges directly. Use a separate head amplifier or step-up transformer.

If humming or other noise is generated when the ground wire is connected, disconnect the ground wire.

Ground wire

Connecting a CD player

Connect the CD player’s analog output jacks (ANALOG OUTPUT) to this unit’s CD jacks using pin plug cords.

Connecting the AC OUTLETS

AC OUTLETS

• SWITCHED (total capacity – 120 W (1 A.))

The power to these outlets is turned on and off in conjunction with the POWER operation switch on the main unit, and when the power is switched between on and standby from the remote control unit. No power is supplied from these outlets when this unit’s power is at standby. Never connect equipment whose total capacity is above 120 W (1 A.).

NOTE:

Only use the AC OUTLETS for audio equipment. Never use them for hair driers, TVs or other electrical appliances.

Connecting the pre-out jacks

Use these jacks if you wish to connect external power amplifier(s) to increase the power of the front, center and surround sound channels, or for connection to powered loudspeakers.

To use Surround back with one speaker, connect the speaker to SURR. BACK L CH.

CD player or other component equipped with digital output jacks

MD recorder, CD recorder or other component equipped with digital input/output jacks

Connecting the DIGITAL jacks

Use these for connections to audio equipment with digital output. Refer to “Setting the Digital in Assignment”. (See page 39)

NOTES:

• Use 75 Ω/ohms cable pin cords for coaxial connections.

• Use optical cables for optical connections, removing the cap before connecting.

Route the connection cords, etc., in such a way that they do not obstruct the ventilation holes.

AC CORD

AC 120 V, 60 Hz

TRIGGER OUT

Turn the DC 12V voltage on and off for the individual functions. For details, see “Setting the Trigger Setup”. (See page 46)

CD recorder or Tape deck

NOTE:

If humming noise is generated by a tape deck, etc., move the tape deck away.

Connecting a tape deck

Connections for recording:

Connect the tape deck’s recording input jacks (LINE IN or REC) to this unit’s tape recording (CDR/TAPE OUT) jacks using pin plug cords.

Connections for playback:

Connect the tape deck’s playback output jacks (LINE OUT or PB) to this unit’s tape playback (CDR/TAPE IN) jacks using pin plug cords.

VIDEO

R OUT IN

AUDIO

VIDEO

OUT IN

LRL

RLR

R OUT IN

AUDIO

VIDEO

OUT IN

LRL

R OUT

VIDEO

OUT

AUDIO

R OUT

VIDEO

OUT

AUDIO

R L

Connecting the video components

• To connect the video signal, connect using a 75 Ω/ohms video signal cable cord. Using an improper cable can result in a drop in video quality.

• When making connections, also refer to the operating instructions of the other components.

• The AVR-3805 is equipped with a function for up-converting video signals.

• The signal connected to the video signal terminal is output to the S-Video and component video monitor out terminals.

• The REC OUT terminals have no conversion function, so when recording only connect the video terminals.

TV or DBS tuner

Connecting a TV or DBS tuner

TV or DBS

• Connect the TV’s or DBS tuner’s video output jack (VIDEO OUTPUT) to the

VIDEO

(yellow) TV or DBS IN jack using a 75 Ω/ohms video coaxial pin

plug cord.

• Connect the TV’s or DBS tuner’s audio output jacks (AUDIO OUTPUT) to

AUDIO

the TV or DBS IN jacks using pin plug cords.

DVD player or video disc player (VDP), etc.

Connecting a DVD player or a video disc player (VDP)

DVD

• Connect the video disc player’s video output jack (VIDEO OUTPUT) to the (yellow) DVD IN

VIDEO

jack using a 75 Ω/ohms video coaxial pin plug cord.

• Connect the video disc player’s analog audio output jacks (ANALOG AUDIO OUTPUT) to the

AUDIO

DVD IN jacks using pin plug cords.

• VDP can be connected to the VDP jacks in the same way.

Monitor TV

MONITOR OUT

• Connect the TV’s video input jack (VIDEO INPUT) to the MONITOR OUT jack using a 75 Ω/ohms video coaxial pin plug cord.

Video deck 2

Video deck 1

Note on connecting the digital input jacks

• Only audio signals are inputs to the digital input jacks. For details. (See page 7)

Connecting a video decks

• There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying.

Video input/output connections:

• Connect the video deck’s video output jack (VIDEO OUT) to the (yellow) VCR-1 IN jack, and the video deck’s video input jack (VIDEO IN) to the (yellow) VCR-1 OUT jack using 75 Ω/ohms video coaxial pin plug cords.

Connecting the audio output jacks

• Connect the video deck’s audio output jacks (AUDIO OUT) to the VCR-1 IN jacks, and the video deck’s audio input jacks (AUDIO IN) to the VCR-1

AUDIOAUDIO

OUT jacks using pin plug cords.

Connect the second video deck to the VCR-2 jacks in the same way.

VIDEO

VIDEOVIDEO

S-VIDEO

OUT

S-VIDEO

OUT

S-VIDEO

OUT IN

S-VIDEO

OUT IN

S-VIDEO

Connecting the video components equipped with S-Video jacks

• When making connections, also refer to the operating instructions of the other components.

• A note on the S input jacks

The input selectors for the S inputs and Video inputs work in conjunction with each other.

• The AVR-3805 is equipped with a function for converting video signals.

• The signal connected to the S-Video signal terminal is output to the composite video and component video monitor out terminals.

• The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.

Connecting a monitor TV

DVD player or video disc player (VDP)

MONITOR OUT

• Connect the TV’s S video input (S-VIDEO INPUT) to the MONITOR

S-VIDEO

OUT jack using a S jack connection cord.

Connecting a DVD player or a video disc player (VDP)

DVD

• Connect the DVD player’s S-Video output jack to the S-VIDEO DVD IN jack using a S-Video connection cord.

• VDP can be connected to the VDP jacks in the same way.

• It is also possible to connect a video disc player, DVD player, video camcorder, game machine, etc., to the V.AUX jacks.

Monitor TV

TV or satellite broadcast tuner

Connecting a TV or DBS tuner

• Connect the TV’s or DBS tuner’s S video output jack (SVIDEO OUTPUT) to the TV or DBS IN jack

S-VIDEO

using an S-Video connection cord.

Video deck 1

Connecting the video decks

• Connect the video deck’s S output jack (S-OUT) to the

S-VIDEO

VCR-1 IN jack and the video deck’s S input jack

(S-IN) to the VCR-1 OUT jack using S-Video

S-VIDEO

connection cords.

• Connect the video deck’s S output jack (S-OUT) to the

S-VIDEO

(S-IN) to the VCR-2 OUT jack using S-Video

VCR-2 IN jack and the video deck’s S input jack

S-VIDEO

connection cords.

Connect the components’ audio inputs and outputs as described. (See page 8)

Video deck 2

VIDEO OUT

CRCB

COMPONENT

VIDEO IN

CRCB

COMPONENT

Connecting the video component equipped with Color Difference (Component - Y, PR/CR,

(S-Video jack)

(Color Diffrence Video jack)

(Video jack) (Video jack)

(Color Diffrence Video jack)

(S-Video jack)

B/CB

) Video jacks

• When making connections, also refer to the operating instructions of the other components.

• The signals input to the color difference (component) video jacks are not outputs to the VIDEO output jack (yellow) or the S-Video output jack.

• Some video sources with component video outputs are labeled Y, CB, CR, or Y, Pb, Pr, or Y, R-Y, B-Y. These terms all refer to component video color difference output.

• The function assigned to the component video input can be changed at the system setup. For details, see “Setting the Video Input Mode”. (See page 41)

DVD player

Monitor TV

Connecting a DVD player

DVD IN jacks

• Connect the DVD player’s color difference (component) video output jacks (COMPONENT VIDEO OUTPUT) to the COMPONENT VIDEO-1 IN jack using 75 Ω/ohms coaxial video pin-plug cords.

• In the same way, another video source with component video outputs such as a TV/DBS tuner, etc., can be connected to the VIDEO-2 color difference (component) video jacks.

Connecting a monitor TV

MONITOR OUT jack

• Connect the TV’s color difference (component) video input jacks (COMPONENT VIDEO INPUT) to the COMPONENT MONITOR OUT jack using 75 Ω/ohms coaxial video pin-plug cords.

• The color difference input jacks may be indicated differently on some TVs, monitors or video components (“CR, CB and Y”, “RY, B-Y and Y”, “Pr, Pb and Y”, etc.). For details, carefully read the operating instructions included with the TV or other component.

MONITOR OUT jacks

The AVR-3805 is equipped with a function for up-converting video signals. Because of this, the AVR-3805’s MONITOR OUT jack can be connected to the monitor (TV) with a set of cables offering a higher quality connection, regardless of how the player and the AVR-3805’s video input jacks are connected. Generally speaking, connections using the component video jacks offer the highest quality playback, followed by connections using the S-Video jacks, then connections using the regular video jacks (yellow).

The Video Conversion Function

With the AVR-3805, the Video signal and the S-video signal which were inputted are converted mutually. And also the Video signal and the S-Video signal which were inputted are converted into a higher quality.

This unit’s input jacks This unit’s output jacks

The flow of the this unit’s internal signals.

NOTE:

Down-converting from the component video signal to the S-Video and composite video signal is not possible, so when not using the component video monitor output terminal connect the player using the S-Video or composite video input terminal.

Cautions on the video conversion function:

When the component video terminals are used to connect the AVR3805 with a TV (or monitor, projector, etc.) and the video (yellow) or S video terminals are used to connect the AVR-3805 with a VTR, depending on the combination of the TV and VTR the picture may flicker in the horizontal direction, be distorted, be out of sync or not display at all when playing video tapes. If this happens, connect a commercially available video stabilizer, etc., with a TBC (time base corrector) function between the AVR-3805 and the VTR, or if your VTR has a TBC function, turn it on.

Connecting the antenna terminals

DIRECTION OF BROADCASTING STATION

AM LOOP ANTENNA (Supplied)

AM loop antenna assembly

FM ANTENNA

75 Ω/ohms COAXIAL CABLE

AM OUTDOOR ANTENNA

FM INDOOR ANTENNA (Supplied)

GROUND

• An F-type FM antenna cable plug can be connected directly.

Connection of AM antennas

1. Push the lever. 2. Insert the conductor. 3. Return the lever.

Connect to the AM antenna terminals.

Remove the vinyl tie and take out the connection line.

a. With the antenna

on top any stable surface.

b. With the antenna

attached to a wall.

Mount

Installation hole Mount on wall, etc.

Bend in the reverse direction.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Notes:

• Do not connect two FM antennas simultaneously.

• Even if an external AM antenna is used, do not disconnect

the AM loop antenna.

• Make sure AM loop antenna lead terminals do not touch metal parts of the panel.

Connecting the external input (EXT. IN) jacks

• These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel decoder, such as a DVD Audio player, a multi-channel SACD player, or other future multi-channel sound format decoder.

• When making connections, also refer to the operating instructions of the other components.

Decoder with 8- or 6-channel analog output

Subwoofer

Front

Surround

Center

Surround back

For instructions on playback using the external input (EXT. IN) jacks. (See page 63)

OUTPUT

INPUT

AUX OUT

Connecting the MULTI ZONE jacks

OUTPUT

INPUT

AUX OUT

For instructions on operations using the MULTI ZONE FUNCTIONS. (See page 69 ~ 71)

[1] ZONE 2 preout CONNECTIONS

• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 preout (variable/fixed level) jacks can be used to play a different program source in ZONE2 the same time. (See page 71)

• The ZONE2 video out is only for the ZONE2.

ZONE2

Power amplifier

RC-617 INFRARED SENSOR

Extension jacks for future use.

CONTROL terminal

Perform the following operation before using an external controller connected to the RS--232C terminal:

1. Press the ON/STANDBY button on the main unit and set the unit to the operating mode.

2. Perform the operation to turn off the power from the external control.

3. Check that the product has been set to the standby mode.

After checking the above, check the connections of the external controller. Operation is possible.

RC-616 INFRARED RETRANSMITTER

[2] ZONE 3 FIXEDOUT CONNECTIONS

• If another pre-main (integrated) amplifier is connected, the ZONE3 Fixed-OUT jacks can be used to play a different program source in ZONE3 the same time. (See page 71)

RC-616

ZONE3

Pre-main amplifier

RC-617 INFRARED SENSOR

Extension jacks for future use.

INFRARED RETRANSMITTER

OUTPUT

INPUT

AUX OUT

(L) (

)

CH SEL ENTER

R VIDEO OUT S-VIDEO OUTOPTICALL

R VIDEO OUTL

OUTPUT

LINE OUT

DIGITAL OUT

VIDEO OUT

S-VIDEO OUT

VIDEO OUT

LINE OUT

S-VIDEO OUT

[3] ZONE2/ZONE3 SPEAKER OUT and PREOUT CONNECTIONS

• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2/ZONE3 output terminals can be used to play a different program source in ZONE2/ZONE3 the same time.

• ZONE2/ZONE3 SPEAKER OUT can be used when “ZONE2/ZONE3” is selected at System Setup Menu “Power Amp Assign”. In this case , Surround Back Speaker OUT cannot be used for MAIN ZONE. (See page 45)

RC-616

ZONE2/ZONE3

Power amplifier

RC-617 INFRARED SENSOR

Extension jacks for future use.

NOTE:

• The settings must be changed to use this speaker for ZONE2/ZONE3. (See page 45.)

INFRARED RETRANSMITTER

SURROUND BACK/ZONE2/ZONE3 SPEAKER SYSTEMS

Connecting the video component equipped with V. AUX jacks

To connect the video signal, connect using a 75 Ω/ohms video signal cable cord.

Video game

Video camera

Connecting a Video game component

• Connect the Video game component’s output jacks to this unit’s V. AUX INPUT jacks.

Connecting a video camera component

• Connect the video camera component’s output jacks to this unit’s V. AUX INPUT jacks.

DENON LINK connections

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

DVD : DLINK

*Digital In NoSig.: EXT.IN

*Digital In

High quality digital sound with reduced digital signal transfer loss can be enjoyed by connecting a separately sold DENON LINK compatible DVD Player.

2 Playback using the DENON Link connector

Digital transfer and multi-channel playback of DVD audio discs and other multi-channel sources is possible by connecting the AVR-3805 to a Denon DVD player equipped with a DENON LINK connector using the connection cable included with the DVD player.

2 DENON LINK Setting

When a DENON DVD player and the DENON LINK have been connected, be sure to make a setting to "DENON LINK" with the System Setup Digital In Assignment. (See page 39)

• Select the input for the playback of signals that cannot be transferred by DENON LINK.

• When the input mode is AUTO and DENON LINK has become unlocked, the unit automatically changes over to the set connector (ANALOG

or EXT. IN).

Select the digital input jack to be assigned to the input

source. q Select input source.

(Remote control unit)

(Main unit)

w Select input jack.

q Select DLINK setting.

(Remote control unit)

(Main unit)

w Select input signal.

(Remote control unit)

(Main unit)

(L) (

)

(L) (

) (L) (

)

(L) (

)

Speaker system connections

• Connect the speaker terminals with the speakers making sure that like polarities are matched ( result in weak central sound, unclear orientation of the various instruments, and the sense of direction of the stereo being impaired.

• When making connections, take care that none of the individual conductors of the speaker cord come in contact with adjacent terminals, with other speaker cord conductors, or with the rear panel.

NOTE: NEVER touch the speaker terminals when the power is on. Doing so could result in electric shocks.

1. Loosen by turning counterclockwise

≈ with ≈ , √ with √ ). Mismatching of polarities will

Connection the speaker terminals

2. Insert the cord. 3. Tighten by turning

Speaker Impedance

• Speakers with an impedance of from 6 to 16 Ω/ohms can be connected for use as front and center speakers.

• Speakers with an impedance of 6 to 16 Ω/ohms can be connected for use as surround speakers.

• Be careful when using two pairs of surround speakers (A + B) at the same time, since use of speakers with an impedance of less than 8 Ω/ohms will lead to damage.

• The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance are connected.

clockwise.

Connecting banana plugs

Either tightly twist or terminate the core wires.

Connections

• When making connections, also refer to the operating instructions of the other components.

Connection jack for subwoofer with built-in amplifier (super woofer), etc.

FRONT SPEAKER

SYSTEMS

CENTER SPEAKER SYSTEM

Turn clockwise to tighten, then insert the banana plug.

SURROUND SPEAKER SYSTEMS (A)

• Precautions when

banana plug

connecting speakers

If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the speaker’s magnetism. If this should happen, move the speaker away to a position where it does not have this effect.

NOTES:

• To use Surround back with one speaker, connect the speaker to SURR. BACK L CH.

• The settings must be changed to use this speaker for ZONE2/ZONE3. See page 45.

SURROUND BACK/MULTI ZONE SPEAKER SYSTEMS

SURROUND SPEAKER SYSTEMS (B)

Protector circuit

• This unit is equipped with a high-speed protection circuit. The purpose of this circuit is to protect the speakers under circumstances such as when the output of the power amplifier is inadvertently short-circuited and a large current flows, when the temperature surrounding the unit becomes unusually high, or when the unit is used at high output over a long period which results in an extreme temperature rise. When the protection circuit is activated, the speaker output is cut off and the power supply indicator LED flashes. Should this occur, please follow these steps: be sure to switch off the power of this unit, check whether there are any faults with the wiring of the speaker cables or input cables, and wait for the unit to cool down if it is very hot. Improve the ventilation condition around the unit and switch the power back on. If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON service center.

Note on speaker impedance

• The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4 Ω/ohms) are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the set’s power, wait for the set to cool down, improve the ventilation around the set, then turn the power back on.

CH SEL ENTER

œ!0

uot

q w

œ!3

œ!5

œ!4

œ!7

œ!6

œ!8

œ!9

œ@0

@4@5@6@7@8

#0#2

PART NAMES AND FUNCTIONS

Front Panel

• For details on the functions of these parts, refer to the pages given in parentheses ( ).

Power ON/STANDBY switch....................................................(62)

Power switch .....................................................................(62, 87)

Headphone jack (PHONES) ......................................................(67)

INPUT MODE button ...............................................................(63)

ANALOG button .......................................................................(63)

EXT. IN button ....................................................................(63, 65)

SYSTEM SETUP button ...............................................(22, 49, 78)

CURSOR button

CH SELECT/ENTER button

SURROUND BACK button .......................................................(76)

V.AUX input jacks .....................................................................(13)

PURE DIRECT button...............................................................(66)

DIRECT button .........................................................................(66)

STEREO button ........................................................................(66)

STANDARD button ..........................................................(73 ~ 77)

5CH/7CH STEREO button ........................................................(80)

DSP SIMULATION button..................................................(80, 81)

SURROUND PARAMETER button...................................(74 ~ 78)

TONE CONTROL button ..............................................(67, 82, 83)

TONE DEFEAT button..............................................................(67)

STATUS button .........................................................................(68)

ROOM EQ button ....................................................................(28)

SETUP MIC jack .......................................................................(23)

MASTER VOLUME control ......................................................(64)

MASTER VOLUME indicator....................................................(64)

Display

Remote control sensor (REMOTE SENSOR) ...........................(50)

FUNCTION knob ..............................................(63, 67, 68, 71, 87)

VIDEO SELECT button .............................................................(67)

ZONE2/3/REC SELECT button ...........................................(68, 71)

TUNING PRESET button ..........................................................(87)

SOURCE button .................................................................(63, 67)

POWER indicator......................................................................(62)

Display

y!6uio!0!1!2!3!4!5

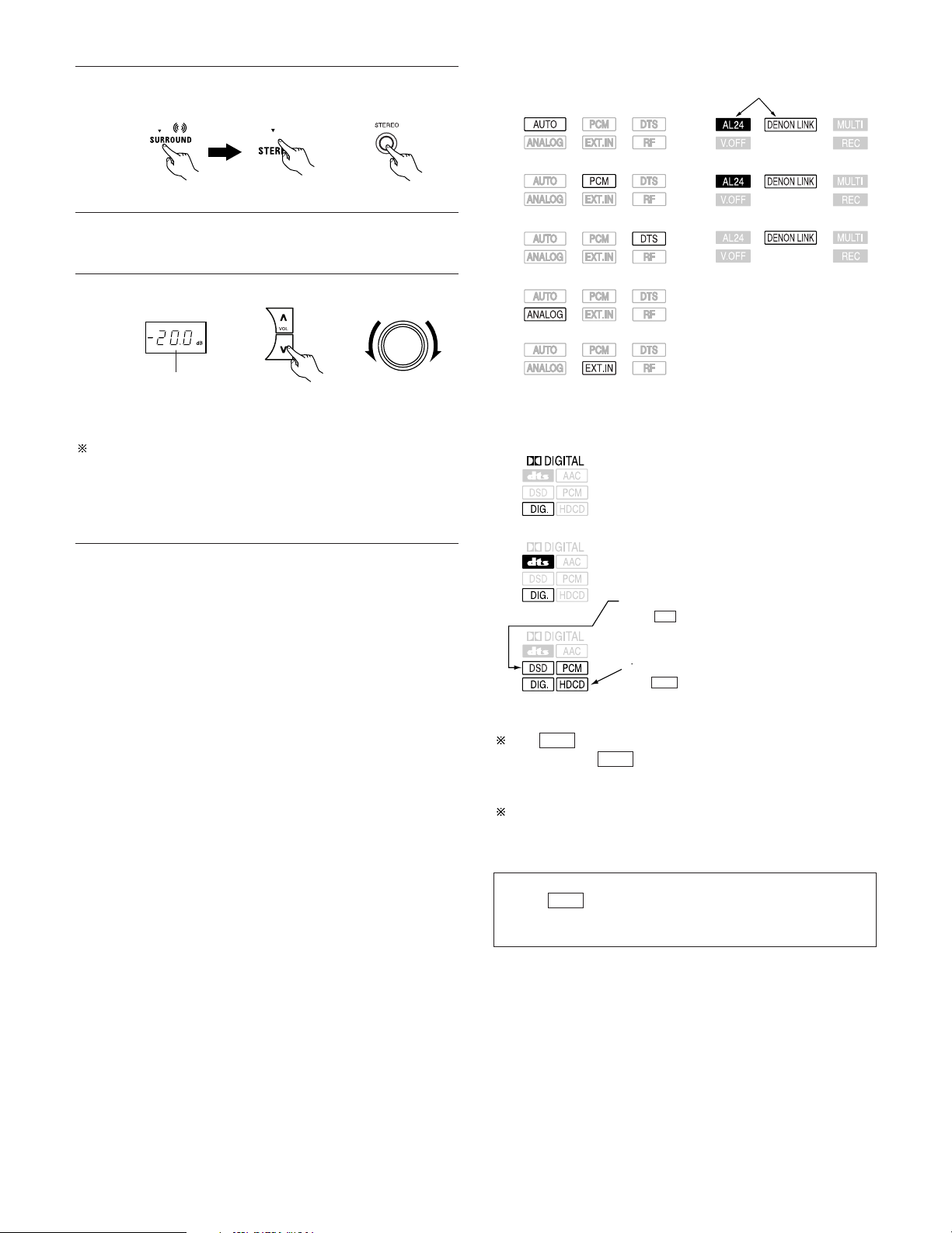

INPUT SIGNAL indicator

The respective indicator will light corresponding to the input signal.

INPUT SIGNAL CHANNEL indicator

The channels included in the input source will light.

Information display

This displays the surround mode, function name or setting value, etc.

Output signal channel indicator

The audio channels output from this unit will light.

SPEAKER indicator

This lights corresponding to the settings of the surround speakers of the various surround modes.

MASTER VOLUME indicator

This displays the volume level. The Setup item number is displayed in System Setup.

MULTI(ZONE) indicator

ZONE2 mode is selected in ZONE2/REC SELECT.

REC OUT SOURCE indicator.

REC OUT mode is selected in ZONE2/REC SELECT.

DENON LINK indicator

This lights during playback in a DENON LINK connection.

V.OFF indicator

This lights when the operation of the video circuit has been turned off.

AL24 indicator

The AL24 indicator lights when the PURE DIRECT, DIRECT, STEREO, MULTI PURE DIRECT , MULTI CH DIRECT, MULTI CH IN mode is selected in the PCM input signal.

Input mode indicator

This lights corresponding to the setting of the INPUT mode.

AUTO indicator

This lights when the broadcast station is selected in the AUTO tuning mode.

TUNED indicator

This lights when an FM/AM broadcast has been received.

STEREO indicator

This lights when an FM stereo broadcast has been received.

Decoder indicator

This lights when each decoder is operating.

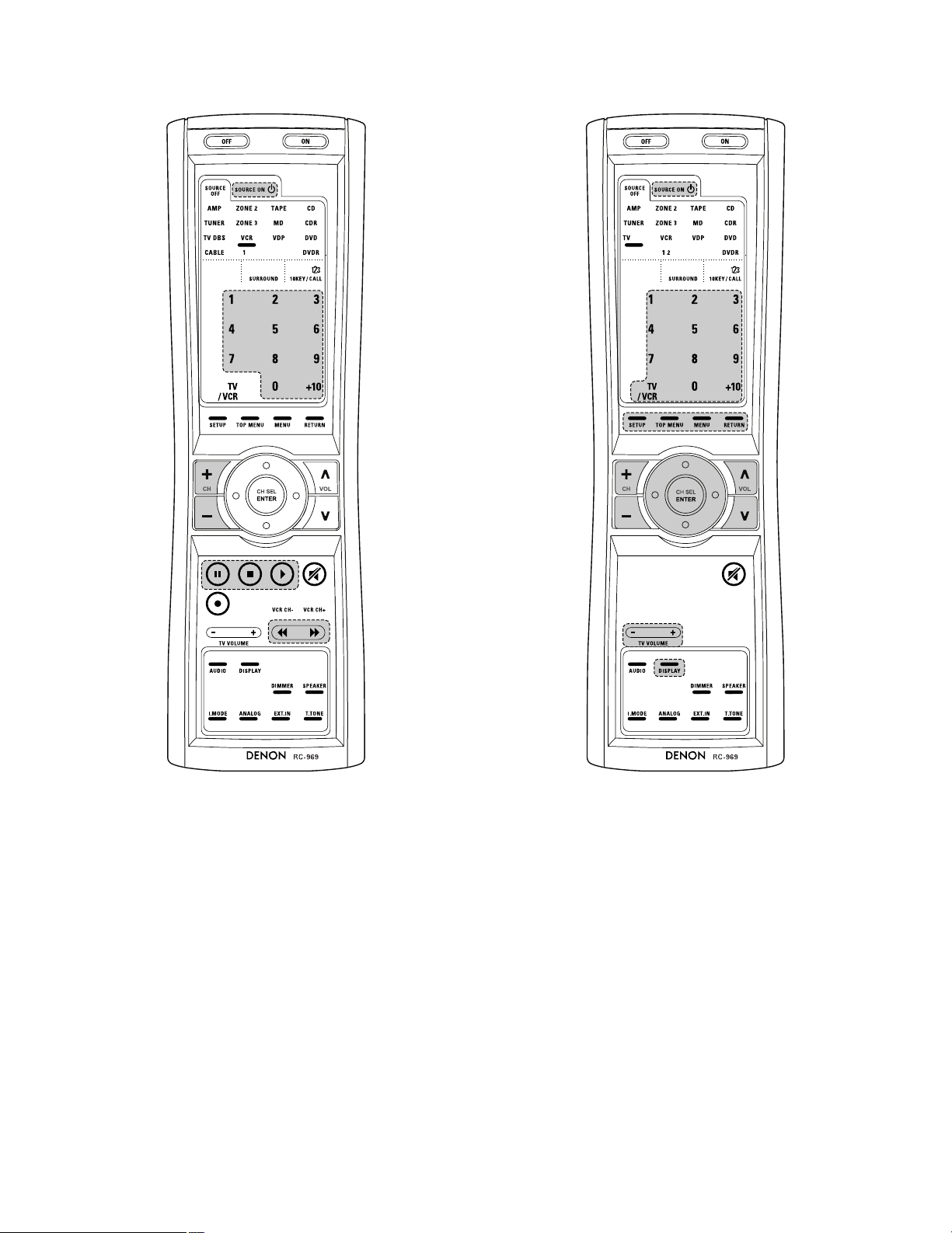

Remote control unit

• For details on the functions of these parts, refer to the pages given in parentheses ( ).

Power buttons ...............................(53 ~ 62)

SYSTEM buttons..............................(54, 71)

Mode selector

buttons.................................(20, 51, 54, 62)

Remote control signal

transmitter..............................................(50)

Input source button..........................(51, 62)

Surround mode button.........(51, 62, 66, 73)

SYSTEM buttons ...........................(51 ~ 55)

SYSTEM SETUP button ...................(20, 49)

ROOM EQ button ..................................(28)

Tuner system buttons..........(52, 59, 71, 85)

10KEY/SYSTEM CALL

button ............................................(51 ~ 61)

SURROUND PARAMETER button

...........................................(74 ~ 77, 81, 82)

ON SCREEN button .........................(68, 77)

Cursor buttons........................................(20)

Master volume control

buttons .............................................(64, 71)

CH SELECT/ENTER button ........(20, 72, 73)

MUTING button......................................(67)

VIDEO ON/OFF button...........................(66)

INPUT MODE selector buttons..............(63)

SYSTEM buttons ...........................(51 ~ 55)

DIMMER button.....................................(68)

SPEAKER button ....................................(68)

TEST TONE button.................................(72)

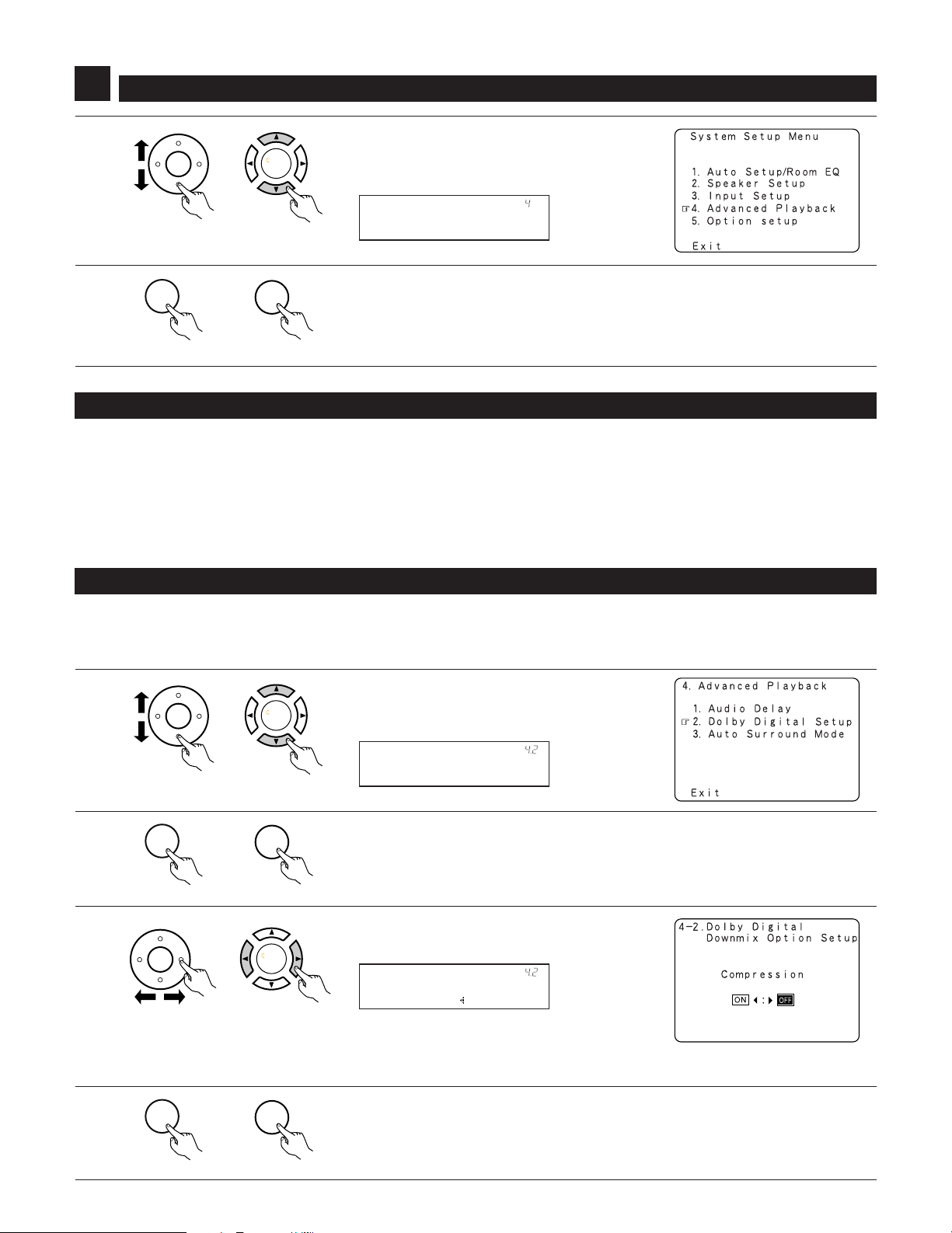

SETTING UP THE SYSTEM

• Once all connections with other AV components have been completed as described in “CONNECTIONS” (see pages 7 to 16), make the various settings described below on the monitor screen using the AVR-3805’s on-screen display function. These settings are required to set up the listening room’s AV system centered around the AVR-3805.

Use the following buttons to set up the system

• Use the following buttons to set up the system.

Check that the remote control unit set to AMP mode.

• System setup items and default values (set upon shipment from the factory)

1. Auto Setup/Room EQ

Auto Setup/Room EQ Default settings

Auto Setup

Manual EQ

Setup

Room EQ

Setup

Direct Mode

Setup

Mic Input Select

Power Amp

Assignment

This parameter is for optimizing the Room EQ with which the audio signals are produced from the speakers.

Set the Room EQ setting with All or Assign for each surround mode.

Set the ON/OFF setting of Room EQ, in the case of the surround mode is in Direct or Pure Direct.

Set this to switch the Mic Input jack for use for Mic or V.Aux Lchannel input jack.

Set this to switch the surround back channel’s power amplifier for use for zone2 or zone3.

SYSTEM SETUP button

Press this to display the system setup menu.

CURSOR buttons

Use these to move the cursors the left, right, up and down on the screen

ENTER button

Press this to switch the display. Also use this button to complete the setting.

SURROUND BACK

All Channel and Frequency=0dB

All

OFF

Mic

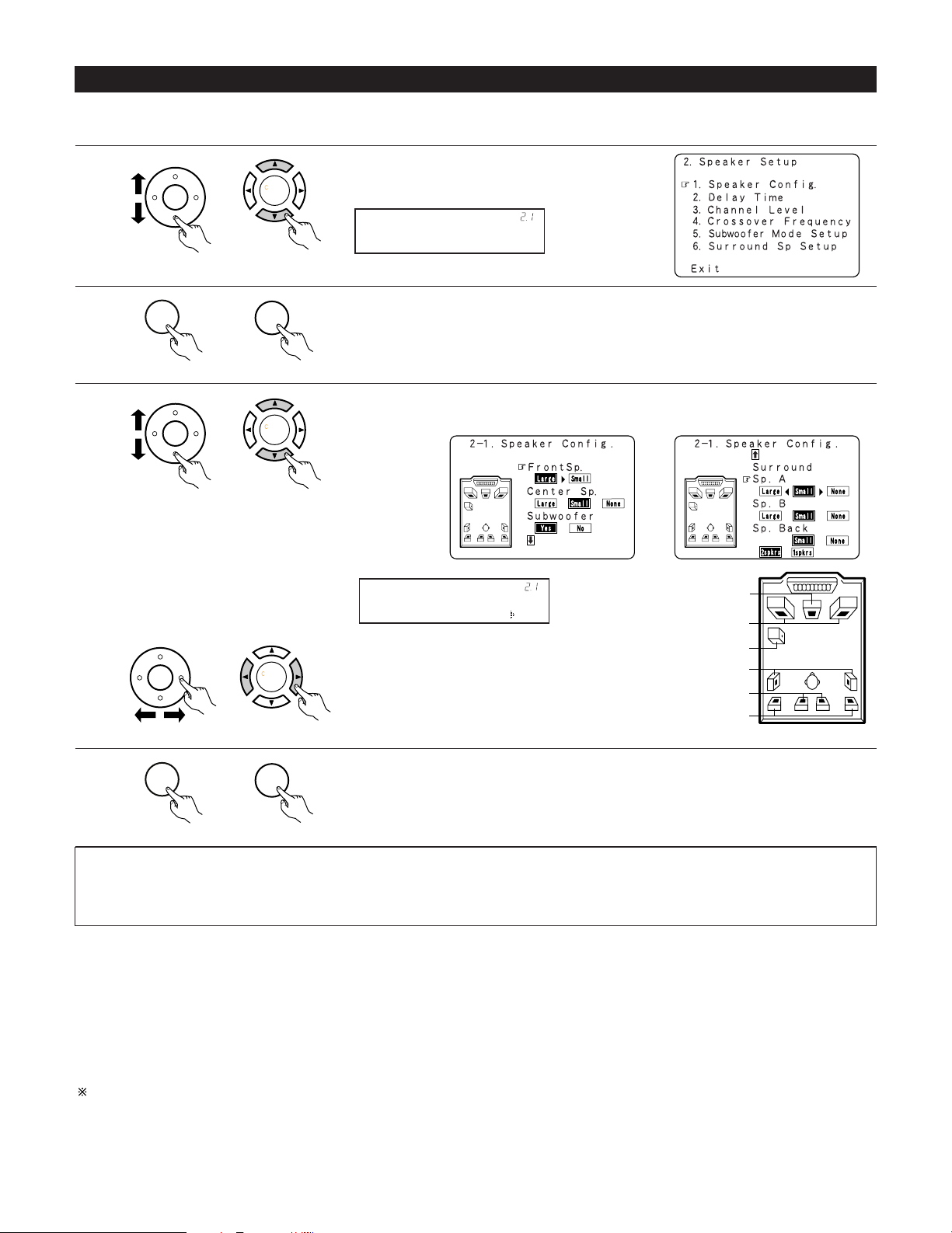

2. Speaker Setup

Speaker

Configuration

Delay Time

Channel

Level

Crossover

Frequency

Subwoofer mode

(Surround Speaker

Setting)

Speaker Setup Default settings

Input the combination of speakers in your system and their corresponding sizes (SMALL for regular speakers, LARGE for fullsize, full-range) to automatically set the composition of the signals output from the speakers and the frequency response.

This parameter is for optimizing the timing with which the audio signals are produced from the speakers and subwoofer according to the listening position.

This adjusts the volume of the signals output from the speakers and subwoofer for the different channels in order to obtain optimum effects.

Set the frequency (Hz) below which the bass so of the various speaker is to be output from the subwoofer.

This selects the subwoofer speaker for playing deep bass signals. LFE

Use this function when using multiple surround speaker combinations for more ideal surround sound. Once the combinations of surround speakers to be used for the different surround modes are preset, the surround speakers are selected automatically according to the surround mode.

Surround

mode

Surround

speaker

Front Sp.

Large

Front L & R Center Surround L & RSubwoofer

12 ft (3.6 m) 12 ft (3.6 m) 10 ft (3.0 m)12 ft (3.6 m)

Front L

CINEMA

Front R Center

0 dB 0 dB 0 dB 0 dB 0 dB 0 dB

DOLBY/

DTS

AAAAAAAA

DOLBY/

DTS

MUSIC

Center Sp.

Subwoofer

Small SmallYe s

Surround

0 dB

80Hz

DOLBY/

PL IIx

GAME

WIDE

SCREEN

Surround

5CH/7CH STEREO

Surround Sp.

A / B

Surround

Back L

0 dB

DSP

SIMULATION

Surround Back Sp.

Small / 2spkrs

SBL & SBR

10 ft (3.0 m)

Surround

Back R

MULTI CH

MODE

Subwoofer

EXT.IN

3.Input Setup

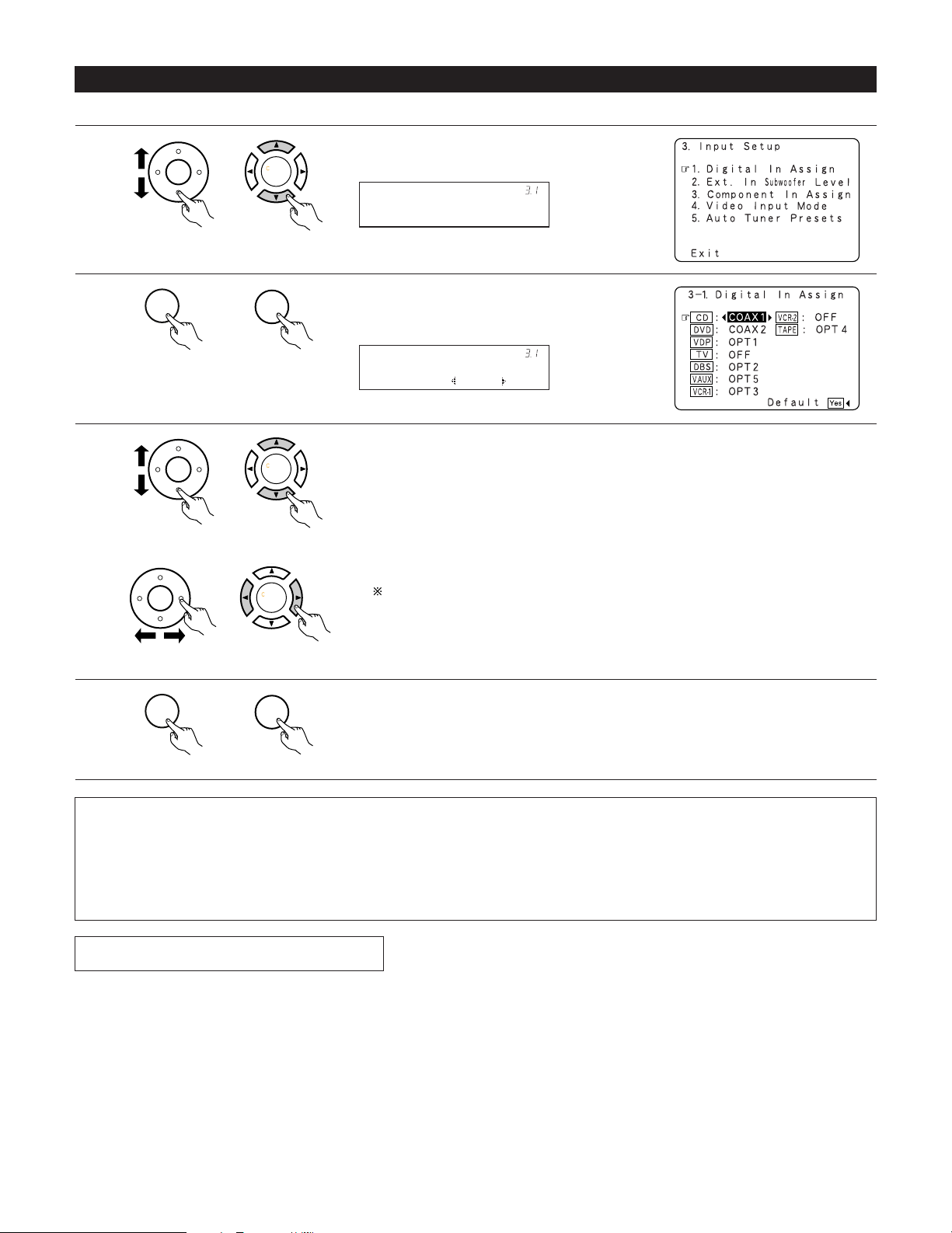

Digital In Assignment

Ext. In Subwoofer Level

Component In Assign

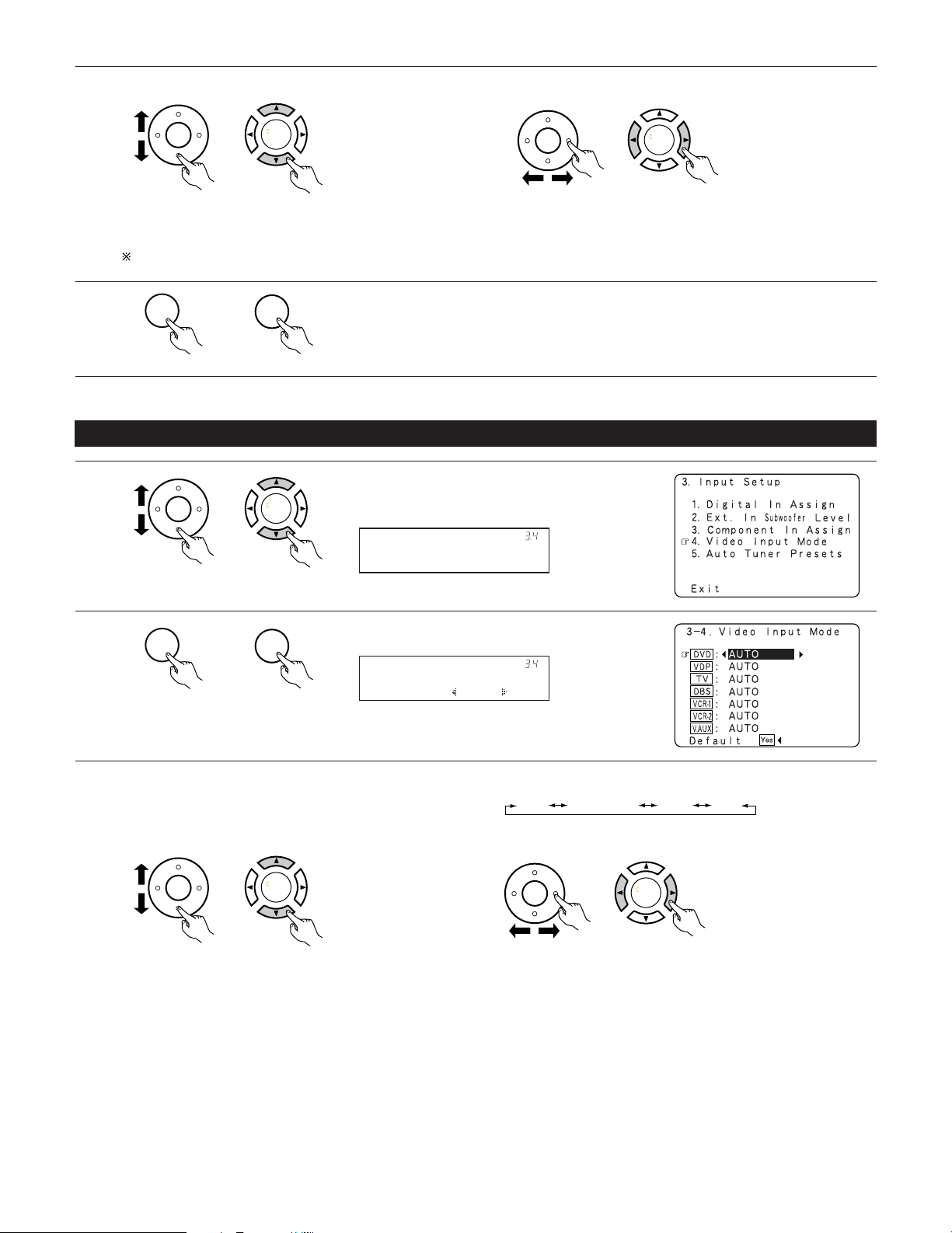

Video Input Mode

Auto Tuner Presets

This assigns the digital input jacks for the different input sources.

Set the Ext. In Subwoofer terminal playback level. Subwoofer = +15 dB

This assigns the color difference (component) video input jacks for the different input sources.

Set the input signal to be output from the monitor output terminal.

FM stations are received automatically and stored in the memory.

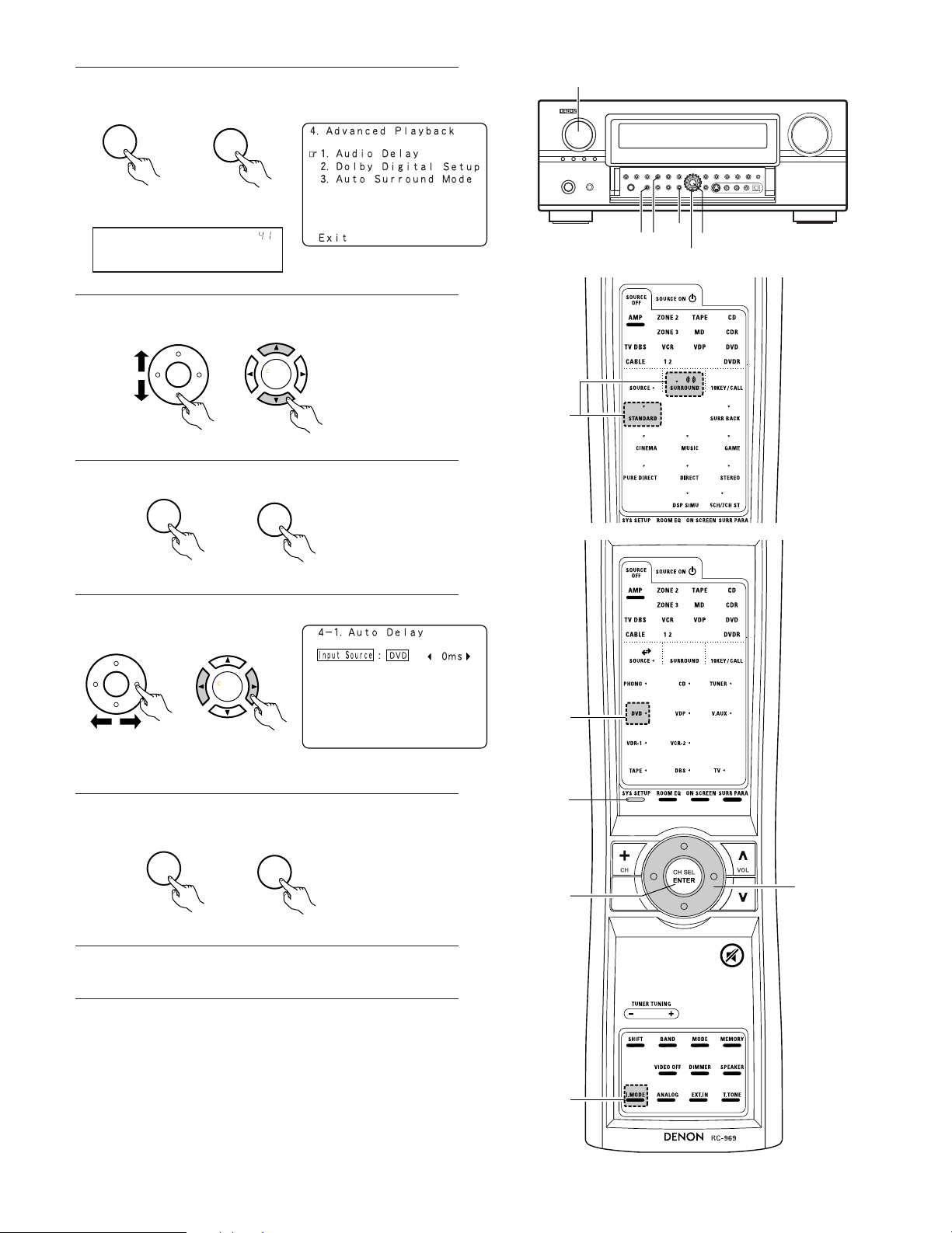

4.Advanced Playback

Audio Delay

Dolby Digital

Setup

Auto Surround

Mode

Set the audio delay to delay time the sound and synchronize it with the picture.

Turn the audio compression on or off when down-mixing Dolby Digital signals.

Set the Auto surround mode function.

Input Setup Default settings

Input

source

Digital Inputs

Advanced Playback Default settings

CD DVD VDP

COAX1 COAX2 OPT1 OFF OPT2 OPT5 OPT3 OFF

DVD VDP TV

VIDEO1 NONE VIDEO2 VIDEO3 NONE NONE NONE —

A1 ~ A8

B1 ~B8

C1 ~C8

D1 ~D8

E1 ~E8

F1 ~F8 90.1 MHz

G1 ~G8 90.1 MHz

87.5/89.1/98.1/107.9/90.1/90.1/90.1/90.1 MHz

520/600/1000/1400/1500/1710 kHz/90.1/90.1 MHz

90.1 MHz

DBS V. AUX VCR-1 VCR-2

DBS

VCR-1 VCR-2 V. AUX —

AUTO

0 ms

OFF

Auto Surround Mode = ON

CDR/TAPE

OPT4

—

5.Option Setup

Option Setup Default settings

Power AMP

Assignment

Zone2 vol.

Level

Trigger Out1

Setup

Trigger Out2

Setup

Muting Level

On Screen

Display

Setup Lock

NOTES:

• The on-screen display signals are output with priority to the S-VIDEO MONITOR OUT jack during playback of a video component. For example, if the TV monitor is connected to both the AVR-3805’s S-Video and video monitor output jacks and signals are input to the AVR-3805 from a video source (VDP, etc.) connected to both the S-Video and video input jacks, the on-screen display signals are output with priority to the S-Video monitor output. If you wish to output the signals to the video monitor output jack, do not connect a cord to the S-VIDEO MONITOR OUT jack. (For details, see page 49.)

• The AVR-3805’s on-screen display function is designed for use with high resolution monitor TVs, so it may be difficult to read small characters on TVs with small screens or low resolutions.

• The setup menu is not displayed when headphone are being used.

Set this to switch the surround back channel’s power amplifier for use for zone2 or zone3.

This sets the output level the zone2 output jacks. This menu is not displayed, when “ZONE2” is selected at Option Setup “Power Amp Assign”.

Set the Trigger Out1 output for the each input sources.

Set the Trigger Out2 output for the each input sources.

This sets the amount of attenuation at audio output muting. ---dB(minimum)

This sets whether or not to display the on-screen display that appears on the monitor screen when the controls on the remote control unit or main unit are operated. A setting to prevent flickering.

Set whether or not to lock the system setup settings so that they cannot be changed.

PHONO CD TUNER

OFF OFF OFF OFF ON ON ON ON

PHONO CD TUNER

ON ON ON ON ON ON ON ON

CDR/TAPE

Surround Back

Variable

ZONE=MAIN

DVD VDP TV VCR-1

ZONE=2

DVD VDP TV VCR-1

On Screen Display = ON / Mode 1

Setup Lock = OFF

DBS

VCR-2

V. A UX

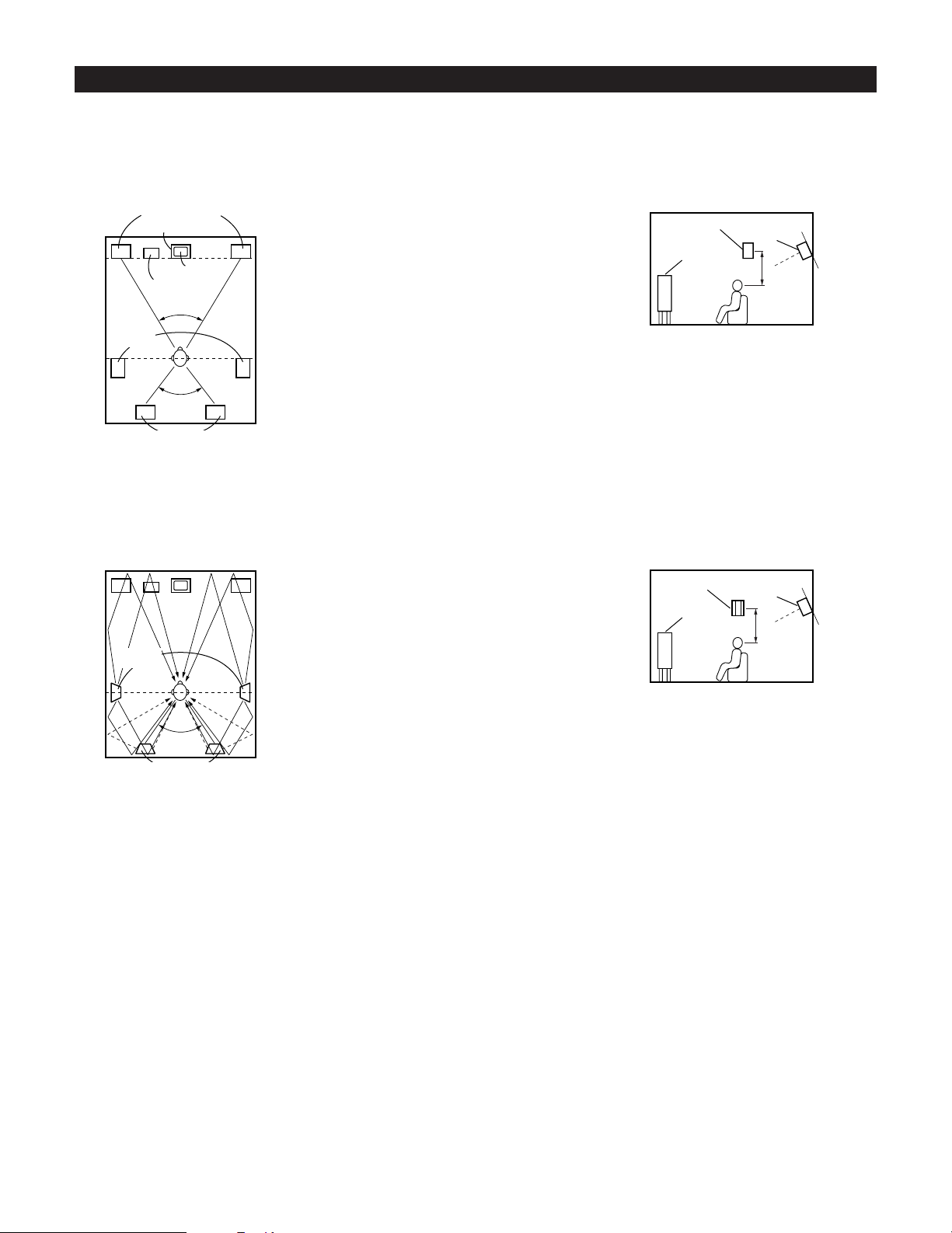

• Speaker system layout

SB SB SB SB

Auto Set/RoomEQ

*System Setup

Basic system layout

• The following is an example of the basic layout for a system consisting of eight speaker systems and a television monitor:

Subwoofer Center speaker system

Surround back speaker systems

Front speaker systems Set these at the sides of the TV or screen with their front surfaces as flush with the front of the screen as possible.

With the AVR-3805 it is also possible to use the surround speaker selector function to choose the best layout for a variety of sources and surround modes.

Surround speaker systems

• Surround speaker selector function

This function makes it possible to achieve the optimum sound fields for different sources by switching between two systems of surround speakers (A and B).

SB: SURROUND BACK SPEAKER

Using A only Using B only

Before setting up the system

Check that all the connections are correct, then turn on the main unit’s power. Setup will not be possible when the unit is set to Pure Direct ON, the Video Off mode, or when the headphones are plugged in. Therefore,

please cancel the mode or reverse the condition.

Display the System Setup Menu.

(Remote control unit)

(Main unit)

NOTES:

• The System Setup menu composition is of a layered design that includes the related items below the large table title as contained in the tables of Pages 20 and

21.

• Wherever your position in System Setup, one more press of the System Setup button permits a move to one level higher.

Auto setup/Room EQ

Listening position

CH SEL ENTER

CH SEL

ENTER

Auto Set/RoomEQ

*System Setup

CH SEL ENTER

CH SEL

ENTER

The Auto Setup function of this unit performs an analysis of the speaker system and measures the acoustic characteristics of your room to permit an appropriate automatic setting.

When performing Auto Setup, an optional microphone is required for the setup.

2 Measurement and setting details

q : This sets the speaker connection mode, polarity, and bass reproduction ability. w : This sets the optimum delay time from each speaker corresponding to the listening position. e : This sets the volume that is output from each speaker. r : This sets the frequency response of each speaker.

NOTE:

• A loud test tone is output during the measurement. Please consider this should you be planning night time measurements, and consider not allowing small children into the listening room at this time.

Connecting the microphone for Auto Setup

Connect the optional microphone for Auto Setup to the Setup Mic connector on the front panel of the unit.

CH SEL ENTER

Place the microphone for Auto Setup at the actual listening position which will be at the same height as your ears. Use a

tripod or level surface at positioning.

Setting the Auto Setup / Room EQ

Select “Auto Setup / Room EQ” at the System Setup Menu.

NOTES:

• The optional standard microphone is DENON DM-S305 sold separately.

• When using other microphone see page 30.

(Remote control unit)

(Main unit)

Display the Auto Setup / Room EQ menu.

(Main unit)

1-1 Setting the Auto Setup

CH SEL ENTER

CH SEL

ENTER

Auto Setup

*AutoSet/RoomEQ

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

CH SEL

ENTER

CH SEL ENTER

P.Amp: SB

*Auto Setup

CH SEL ENTER

CH SEL

ENTER

Start

*Auto Setup

CH SEL ENTER

Select “Auto Setup” at the Auto Setup / Room EQ Menu.

(Remote control unit)

Check the "Power Amp Assign" setting.

• When “Surround Back" is selected, the test tone during Auto Setup will be output from the Surround Back speaker.

• When “ZONE2” or “ZONE3” is selected, change the setting to "ZONE2” or "ZONE3". The test tone during Auto Setup is set so that

it will not be output to ZONE2 or ZONE3 (Another room).

q Select the Power Amp Assign setting.

(Remote control unit)

(Main unit)

Display the Auto Setup screen.

w Select “Surround Back”, “ZONE2” or “ZONE3”.

(Remote control unit)

(Main unit)

NOTE:

• When “ZONE2” or “ZONE3” is selected at System Setup Menu “Power Amp Assign”, surround back speaker is not displayed as the target of setup in “2-

1.setting the type of speakers. The results is reflected in “5-1.Power Amp Assign”.

(Remote control unit)

q Select the “Start”.

(Main unit)

w Press the Cursor left button.

(Main unit)

Start the measurements.

FR CSW

SLA

SRA SLB SRB SBL

SBR

Measurement of each channel is performed as follows.

Display

Subwoofer speaker is measured twice.

When “ZONE2” or ”ZONE3” is selected, this is not displayed.

After each channel is measured, “Calculating” appears. The display switches to Auto Setup check screen automatically.

NOTES:

• Measurement is canceled when MASTER VOLUME is operated while the Auto Setup is performed.

• Set the volume to halfway and set the crossover frequency to the maximum or Low pass filter off if your subwoofer speaker can adjust the output volume and the crossover frequency.

About automatic retry

Remeasurement starts automatically to receive proper result of measurement. Remeasurement is performed to 2 times, and “Retry1” or “Retry2” is displayed on screen during remeasurement.

About the error message

These error screens will be displayed when performing the measurements of Auto Setup/Room EQ and the automatic measurements can not be completed because of the speaker arrangement, measurement environment, or other factors. Please check the following matters, reset the pertinent items, and measure again. When there is too much noise in the room, the speakers may not be detected properly. Should this happen, perform the measurements when the noise level is low, or switch off the power of the equipment that is producing the noise for the duration of the measurements.

q This screen will be displayed when the speakers required for

producing suitable reproduction have not been detected.

• The front L and front R speakers were not properly detected.

• Only one channel of the surround (A) and surround (B) speakers

was detected.

• Sound was output from the R channel when only one surround back speaker was connected.

• The surround back or the surround (B) speaker was detected, but the surround (A) speaker was not detected.

Check that the pertinent speakers are properly connected. (see page 15)

w This screen will be displayed when the speaker polarity is

connected in reverse.

Check the polarity of the pertinent speakers.

e This screen will be displayed when accurate measurements

cannot be made due to the input level to the microphone being too high.

Set up the speakers so that their position is farther away from the listening position. Lower the volume of the subwoofer speaker.

r This screen will be displayed when the measurement microphone

is not connected, or when all of the speakers have not been detected.

Connect the measurement microphone to the microphone connector. Check the speaker connections.

Check of the measurement results

CH SEL ENTER

CH SEL

ENTER

Sp Config.Check

*Auto Setup

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

Store

*Auto Setup

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

Select the items. The measurement results of each item can be checked here.

(Remote control unit)

(Main unit)

Press the ENTER button and display the verification screen.

NOTE:

• When measurements have been made using the measurement microphone, speakers with a builtin filter such as subwoofers might be set with a value that differs from the physical distance

(Main unit)

because of the internal electrical delay.

[Speaker Config. Check] [Delay Time Check] [Channel Level Check]

(Remote control unit)

If the check ends, press the ENTER button again.

(Main unit)

Select from the following three items based on the measurement results.

• Set with the checked measurement value.

• Perform the measurement again.

• Cancel the checked measurement value.

(Main unit)

When the “Store” is selected, all parameters are stored up . When the “Retry” is selected, it measures again.

(Main unit)

1-2 Setting the Manual EQ Setup

CH SEL ENTER

CH SEL

ENTER

Channel : FL

*ManualEQ Setup

CH SEL ENTER

CH SEL

ENTER

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

Manual EQ Setup

*AutoSet/RoomEQ 63Hz : 0.0dB

*ManualEQ Setup

FR C

SLA

SLBSRB

SBL

SBR

1spkr

SRA

Channel : FL

*ManualEQ Setup

Adjust the tone of the various speakers except subwoofer speaker while listening to the sound (music).

Select “Manual EQ Setup” at the Auto Setup / Room

EQ Menu.

(Remote control unit)

(Main unit)

Display the Manual EQ Setup screen.

(Main unit)

Select the speaker to be set. The display changes as follows.

(Main unit)

Flashing

When the surround back speaker setting is set to

“1spkr” at “Speaker Configuration”, this is set to “SB”.

(Remote control unit)

Select the frequency

(Main unit)

Use the cursor left and right buttons to adjust the Gain level.

• Each frequency can be adjusted the range from –6dB to +6dB in 0.5dB step.

(Main unit)

Enter the setting. The Auto Setup / Room EQ Menu reappears.

(Main unit)

1-3 Setting the Room EQ Setup

CH SEL ENTER

CH SEL

ENTER

Room EQ Setup

*AutoSet/RoomEQ

CH SEL ENTER

CH SEL

ENTER

SurMode:ALL

*Room EQ Setup

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

RoomEQ Normal

*Room EQ Setup

OFF Normal

Manual Flat

Front

Select the setting of an Equalizer that has been set with Auto Setup or Manual EQ.

Select “Room EQ Setup” at the Auto Setup / Room

EQ Menu.

(Remote control unit)

(Main unit)

Display the Room EQ Setup screen.

Select All or Assign.

• All :The Equalizer to all Surround mode is set as once.

• Assign :The Equalizer to each surround mode is to set individually.

When the All is selected and press the ENTER button, display the Select the EQ Curve screen. Select the Equalizer setting.

• OFF :The Equalizer is not used.

• Normal :Adjust the frequency response of all

speaker suitable for general surround system.

• Flat :Adjust the frequency response of all speakers flat.

This is suitable for music reproduction like ITU-R speaker setting.

• Front :Adjusts the characteristics of each speaker to the characteristics of the front speakers.

• Manual :Selects the setting value that was set in the Manual EQ setup

Whenever the Room EQ button on Main unit or Remote control unit is pressed, the display switches as shown below.

NOTES:

• The Equalizer setting of Normal, Flat and Front can be selected after performing the Auto

Setup.

• When the speaker set as “None” with the Auto Setup is change to on manually, the

equalizer of “Normal”, “Front” and “Flat” cannot be used.

• The Equalizer setting can be selected directly by ROOM EQ button in Main unit or Remote

control unit.

• When headphone is connected, the Room EQ cannot be used.

Enter the setting. The Auto Setup / Room EQ Menu reappears.

1-4 Setting the Direct Mode

CH SEL ENTER

CH SEL

ENTER

Direct Mode

*AutoSet/RoomEQ

CH SEL ENTER

CH SEL

ENTER

CH SEL

ENTER

CH SEL ENTER

Room EQ : OFF

*Direct Mode

Perform the ON/OFF setting of Room EQ when the surround mode is Direct or Pure Direct.

Select “Direct Mode Setup” at the Auto Setup /

Room EQ Menu.

(Remote control unit)

(Main unit)

Display the Direct Mode Setup screen.

(Main unit)

Select ON or OFF.

(Main unit)

Enter the setting . The Auto Setup / Room EQ Menu reappears.

(Main unit)

1-5 Setting the MIC Input Select

CH SEL ENTER

CH SEL

ENTER

Mic In Select

*AutoSet/RoomEQ

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

CH SEL

ENTER

CH SEL ENTER

Mic

*Mic In Select

Sets whether the setup microphone is connected to the PIN JACK connector or the MINI JACK connector.

Please ask the DENON Authorized Service Center about the usable microphone other than the option setup.

Select “Mic Input Select” at the Auto Setup / Room

EQ Menu.

(Remote control unit)

(Main unit)

Display the Mic Input Select screen.

(Main unit)

Select the Mic input jack or V.AUX L jack.

(Main unit)

Enter The setting. The Auto Setup / Room EQ Menu reappears.

(Main unit)

1-6 Check the EQ parameter

• The frequency characteristic of each speaker is rectified and the tone of the speaker is unified. The EQ parameters that were set in Auto Setup can be checked. This item is automatically displayed, after the measurement result of the “Auto Setup/Room EQ” is decided.

(Remote control unit)

Select “EQ parameter check” at the Auto Setup / Room EQ Menu.

(Main unit)

Display the EQ Parameter check screen.

(Main unit)

+ 74 hidden pages
