DVP-EH

DVP04DA-H

Analog Input Module

Instruction Sheet

1 WARNING

Always read this manual thoroughly before using the DVP04DA-H.

The DC input power must be disconnected before any maintenance.

This is an OPEN-TYPE built-in DVP04DA-H, and the DVP04DA-H is certified to meet the safety

requirements of IEC 61131-2 (UL 508) when installed in the enclosure to avoid high temperature, high humidity, exceessive vibration, corrosive gases, liquids, airbome dust or metallic particles. Also, it is equipped with protective methods such as some special tool or key to open the enclosure, so as to avoid the hazard to users and the damage to the DVP04DA-H.

Do not connect the AC power to any of the input/output terminals, as it might cause damage to

the DVP04DA-H. Make sure that all the wiring is well conducted prior to power on.

Do not touch the internal circuit for at least 1 minute after the power supply is disconnected.

Make sure that the DVP04DA-H is properly grounded , to avoid any electromagnetic noise.

2 INTRODUCTION

2.1 Model Explanation and Peripherals

 Thank you for choosing DELTA’s PLC DVP Series. The analog output module of DVP04DA-H

series can read/write the data of analog output module by using commands FROM / TO via

DVP-PLC EH Series MPU program. The analog output module receives 12-bit digital data of 4

groups from PLC MPU and transforms it into 4 points analog output signal (voltage or current).

 DVP04DA-H analog output module can update software version by RS-485 communication.

 Users can select output from voltage or current via wiring. Voltage output range is 0V ~ +10V DC

(resolution is 2.5 mV). Current output range is 0mA ~ 20mA (resolution is 5 µA).

 Nameplate Explanation

20.4VDC ~ 28.8VDC

VX.XX

04DA-H0T4130001

0 ~ +10V or -0 ~+20mA

2.5mV or 5 A

Model Name

Input power supply spec.

Analog inp ut/output module spec.

Barcode

 Model Explanation

Serial Number

Model

Product Series

Input+Output point

Model type

AD: Analog input module DA: Analog output module PT: Platinum temperature sensors(PT-100) TC: Thermocouple sensors(Type J/K)

S: for SS series MPU P: for EP series MPU H: for EH series MPU

Production week

Production place (Taoyuan)

Production year (2004)

Production Model

XA: A/D , D/A Functions RT: Resistor Thermocouple HC: High speed count input module PU: single axis positioning unit

2.2 Product Profile and Outline

Unit:mm

1. DIN rail location (35mm) 6. Terminals

2. Mounting hole to connect expansion unit/expansion module

7. Expansion hole of the expansion unit mounting pins

3. Model name 8. Terminal layout

4. Indicator LED for power, error and run state

9. Mounting port to connect expansion unit/expansion module

5. DIN rail clip

2.3 External wiring

V+ I+

COM

V+ I+

COM

24+ 24-

DC/DC

+15V

-15V

CH1

0V~+10V

DC24V

CH2

AC drive, recorder, scale valve...

voltage output

shielding cable *1

current output

converter

terminal of power module

system grounding

class 3 grounding (100 or less)

Note 1: Please isolate analog output and

other power wiring.

Note 2: If wave of input terminal of loaded is

too big that noise interferes wiring,

please connect capacitance with

0.1~0.47µF 25V.

Note 3: Please connect

terminal of

power module and

terminal of

analog output module to system

earth point and make system earth

point be grounding or connects to

machine cover.

Warning: DO NOT wire to the No function

terminal ●.

3 STANDARD SPECIFICATIONS

3.1 Specifications

Digital/Analog (4D/A) Module Voltage Output Current Output

Power Supply Voltage 24 VDC(20.4VDC~28.8VDC) ( –15%~+20%)

Analog Output Channel 4 channels / each module

Analog Output Range 0~10V 0~20 mA

Digital Data Range 0~4000 0~4000

Resolution 12 bits (1

LSB

=2.5 mV) 12 bits (1

LSB

=5 µA)

Output Impedance 0.5Ω or lower

Overall Accuracy

±0.5% of full scale of 25℃(77℉)

±1% of full scale during 0~55℃ (32~131℉)

Response Time

3 ms ×channels

Max. Output Current

20 mA(1KΩ~2MΩ) －

Tolerance Carried Impedance

－ 0〜500Ω

Digital Data Format 2’s complementary of 16-bit, 13 Significant Bits Isolation Method It has isolation between digital area and analog area. There is no

isolation among channels.

Protection

Voltage output has short circuit protection but short circuit for a long time may cause inner wiring damage and current output break.

Communication mode (RS-485)

Yes, there are ASCII/RTU modes, communication rate can be 4800 /9600 /19200 /38400 /57600 /115200. Communication format of ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1). Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1). When connecting to PLC MPU in series, RS-485 can’t be used.

Connect to DVP-PLC MPU in series

The input point of the first analog expansion unit it connects from the near to the distant is from 0 to 7. The Max. is 8 modules and it won’t waste digital I/O point.

3.2 Other Specification

Power Specification

Max. Rated Consuming Power

24 VDC (20.4VDC~28.8VDC) (–15%〜+20%), 2W, supply from external power

Environment Condition Environment Condition It is the same with DVP-PLC MPU. Spec. of Prevent Static Electricity (all places between terminal and grounding)

4 CR (Control Register)

DVP04DA-H Analog Output Module Explanation

CR No.

RS-485

Parameters

Address

Latched Register Name b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

#0 H 4032 ○ R Model type

System used, DVP04DA-H model code=H 0401

Reserved CH4 CH3 CH2 CH1 #1 H 4033 ○ R/W Output mode setting

Output mode setting: factory setting is H0000.

Mode 0: output voltage mode (0V~10V). Mode 1: output voltage mode (2V~10V). Mode 2: output current mode (4mA~20mA). Mode 3: output current mode (0mA~20mA). Mode 4: none use.

#2 ~ #5 Reserved

DVP04DA-H Analog Output Module Explanation

CR No.

RS-485

Parameters

Address

Latched Register Name b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

#6 H 4038 ○ R/W CH1 output value #7 H 4039 ○ R/W CH2 output value #8 H 403A ○ R/W CH3 output value #9 H 403B ○ R/W CH4 output value

The output setting range of channel CH1~CH4 is K0~K4000. Factory setting is K0

#10~#17 Reserved

#18 H 4044 ○ R/W To adjust OFFSET

value of CH1

#19 H 4045 ○ R/W To adjust OFFSET

value of CH2

#20 H 4046 ○ R/W To adjust OFFSET

value of CH3

#21 H 4047 ○ R/W To adjust OFFSET

value of CH4

It is used to set the OFFSET value of CH1~CH4. The setting range is K-2000~K2000. The factory setting is K0 and unit is LSB.

#22 ~ #23 Reserved

#24 H 404A ○ R/W To adjust GAIN

value of CH1

#25 H 404B ○ R/W To adjust GAIN

value of CH2

#26 H 404C ○ R/W To adjust GAIN

value of CH3

#27 H 404D ○ R/W To adjust GAIN

value of CH4

It is used to set the GAIN value of CH1~CH4. The setting range is K-1600~K8000. The factory setting is K2000 and unit is LSB.

#28~#29 Reserved #30 H 4050 ╳ R Error status It is the data register to save all error status. Please refer to fault code chart for detail. #31 H 4051 ○ R/W Communication

address setting

It is used to set RS-485 communication address. The setting range is from 01 to 255 and the factory setting is K1.

#32 H 4052 ○ R/W Communication

Baud Rate setting

It is used to set communication baud rate (4800, 9600, 19200, 38400, 57600, 115200bps). Communication format: ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1). Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1).

b0: 4800 bps (bit/sec). b1: 9600 bps (bit/sec). (factory setting) b2: 19200 bps (bit/sec). b3: 38400 bps (bit/sec). b4: 57600 bps (bit/sec). b5: 115200 bps (bit/sec). b6-b13: reserved. b14: exchange low and high byte of CRC check code (only for RTU mode) b15: ASCII / RTU mode selection

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Reserved CH4 CH3 CH2 CH1

#33 H 4053 ○ R/W Reset to factory

setting and set characteristics adjustable priority

Factory setting H0000. Give CH1 setting for example:

1. When b0=0, user can set OFFSET and GAIN value of CH1 (CR#18, CR#24). When b0=1, inhibit user to adjust OFFSET and GAIN value of CH1 (CR#18, CR#24).

2. b1 means if characteristic register is latched. b1=0 (factory setting, latched), b1=1 (not latched).

3. When b2 is set to 1, all settings will reset to factory setting.

#34 H 4054 ○ R Software version. It is hexadecimal to display software version. For example: H 010A means 1.0A.

#35~#48 System used

○ means latched. ╳ means not latched.

R means can read data by using FROM command or RS-485. W means can write data by using TO command or RS-485. LSB (Least Significant Bit): 1. Voltage output: 1

LSB

=10V/8000=2.5mV. 2. Current output: 1

LSB

=20mA/4000=5µA.

Explanation:

1. The content of CR#0 is model type, user can read the data from program to know if there is expansion module.

2. CR#1 is used to set two inner channels working mode of analog output module. Every channel has four modes to set and can be set individually. For example: if setting CH1 to mode 2 (b2~b0=010), CH2 to mode 1(b5~b3=001). It needs to set CR#1 to H000A. The factory setting of CR#1 is H0000.

3. CR#2 ~ CR#5, CR#10 ~ CR#17, CR#22, CR#23, CR#28, CR#29 Reserved.

4. CR #6 ~ CR#9 display CH1~CH4 output signal. The setting range is K0~K4000. Factory setting is K0 and unit is LSB.

5. CR#18 ~ CR#21 means the value of adjusting OFFSET value of CH1~CH4. The factory setting is K0 and unit is LSB. If output value equal to 0 after calculating, the adjustable range of analog output voltage or current is -2000~+2000. Voltage adjustable range: -5V~+5V(-2000

LSB

~+2000

LSB

Current adjustable range: -10mA~+10mA (-2000

LSB

~+2000

LSB

6. CR#24 ~ CR#27 means the value of adjust GAIN value of CH1~CH4. The factory setting is K2000 and unit is LSB. If output value equal to 2000 after calculating, the adjustable range of analog output voltage or current is -1600~+8000. Voltage adjustable range: -4V~+20V(-1600

LSB

~+8000

LSB

Current adjustable range: -8mA ~+40mA (-1600

LSB

~+8000

LSB

But it needs to notice that GAIN VALUE – OFFSET VALUE = +400

LSB

~+6000

LSB

(voltage or

current). When

this value is under this range, the resolution of the output signal will be thin and the

variation of value will be larger. When this value exceeds this range, the resolution of output signal will be thick and the variation of value will be smaller.

7. CR#30 is fault code. Please refer to the following chart.

Fault Description

Content b15~b8 b7 b6 b5 b4 b3 b2 b1 b0

Power Source Abnormal

K1(H1) 0 0 0 0 0 0 0 1

Analog Input Value Error

K2(H2) 0 0 0 0 0 0 1 0

Setting Mode Error

K4(H4) 0 0 0 0 0 1 0 0

Offset/Gain Error

K8(H8) 0 0 0 0 1 0 0 0

Hardware Malfunction

K16(H10) 0 0 0 1 0 0 0 0

Digital Range Error

K32(H20) 0 0 1 0 0 0 0 0

Average Times Setting Error

K64(H40) 0 1 0 0 0 0 0 0

Command Error

K128(H80)

Reserved

1 0 0 0 0 0 0 0

Note: Each fault code will have corresponding bit (b0~b7). Two or more faults may happen at the same time. 0

means normal and 1 means having fault.

8. CR#31 is used to set RS-485 communication address. The setting range is from 01 to 255. The factory setting is K1.

9. CR#32 is used to set RS-485 communication baud rate: 4800, 9600, 19200, 38400, 57600, 115200 bps. b0: 4800bps. b1: 9600bps. (factory setting) b2: 19200bps. b3: 38400 bps. b4: 57600 bps. b5: 115200 bps. b6-b13: reserved. b14: exchange low and high byte of CRC check code. (only for RTU mode) b15=0: ASCII mode. b15=1: RTU mode. Communication format: ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1). Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1).

10. CR#33 is used to set the inner function priority. For example: characteristic register. Output latched

function will save output setting in the inner memory before power loss.

11. CR#34 is software version of model type.

12. CR#35~ CR#48 are used for system.

13. The corresponding parameters address H4032~H4063 of CR#0~CR#48 can provide user to

read/write data by RS-485.

A. Communication baud rate: 4800, 9600, 19200, 38400, 57600, 115200 bps. B. Communication format: ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1). Communication

format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1).

C. Function code: 03H—read data from register. 06H—write a WORD into register. 10H—write

many WORDs into register.

5 ADJUST D/A CONVERSION CHARACTERISTIC CURVE

5.1 Adjust D/A Conversion Characteristic Curve

Voltage output mode

Mode 0 of CR#1: GAIN = 5V(2000

LSB

OFFSET=0V (0

LSB

)

Mode 1 of CR#1: GAIN = 6V(2400

LSB

OFFSET=2V (800

LSB

GAIN: The setting range of voltage output value when

digital input value is K2000 should be

-4V~+20V(-1600

LSB

~+8000

LSB

OFFSET: The setting range of voltage output value when

digital input value is K0 should be

-5V~+5V(-2000

LSB

~ +2000

LSB

+2000 +4000

10V

OFFSET

GAIN

voltage output

Digital input

mode 0

mode 1

GAIN－OFFSET:

Setting range: +1V~+15V (+400

LSB

~ +6000

LSB

Current output mode

Mode 2 of CR#1: GAIN = 12mA(2400

LSB

OFFSET=4mA (800

LSB

Mode 3 of CR#1: GAIN = 10mA(2000

LSB

OFFSET=0mA (0

LSB

GAIN: The setting range of current output when digital

input value is K2000 should be -8mA~+40mA (-1600

LSB

~+8000

LSB

OFFSET: The setting range of current output when digital

input value is K0 should be -10mA ~+10mA (-2000

LSB

~+2000

LSB

+2000 +4000

20mA

OFFSET

GAIN

12mA 10mA

4mA

current output

digital input

mode 3

mode 2

GAIN－OFFSET:

Setting range: +2mA~+30mA (+400

LSB

~+6000

LSB

The above charts are D/A conversion characteristic curve of voltage output mode and current output mode. Users can adjust conversion characteristic curve by changing OFFSET values (CR#18~CR#21) and GAIN values (CR#24~CR#27) depend on application.

LSB(Least Significant Bit): 1.voltage output:1

LSB

=10V/4000=2.5mV. 2. current output:

LSB

=20mA/4000=5µA.

5.2 Program Example for Adjusting D/A Conversion Characteristics Curve

Example 1: Setting OFFSET value of CH1 to 0V(=K0

LSB

) and GAIN value is 2.5V(=K1000

LSB

K1000

K24

H10 K1

H0 K1

M1002

K33

K18

 Writing H10 into CR#1 of analog

output module#0. Setting CH1 to mode 0 (voltage output 0V~ +10V), and set CH2 to mode 2 (current output 4mA~+20mA).

 Writing H0 into CR#33 and allow

CH1~CH4 to adjust characteristics.

 When X0 switches from OFF to

ON, K0

LSB

of OFFSET value will be

wrote in CR#18 and K1000

LSB

GAIN value will be wrote in CR#24.

Example 2: Setting OFFSET value of CH2 to 2mA (=K400

LSB

) and GAIN value to 18 mA (=K3600

LSB

H0 K1

M1002

K33

H18

K19

K25

K400

K3600

 Writing H18 into CR#1 of analog

output module#0. Setting CH1 to mode 0 (voltage output 0V~+10V) and set CH2 to mode 3 (current output 0mA~ +20mA).

 Writing H0 into CR#33 and allow to

adjust characteristic of CH1~CH4.

 When X0 switches from OFF to

ON, K400

LSB

of OFFSET value will

be wrote in CR#19 and K3600

LSB

GAIN value will be wrote in CR#25.

6 INITIAL PLC START-UP

 Lamp display

1. When power is on, POWER LED will be lit and ERROR LED will be lit for 0.5 second.

2. It is normal that POWER LED should be lit and ERROR LED should turn off. When power supply is lower than 19.5V, ERROR LED will blink continuously till the power supply is higher than 19.5V.

3. When it connects to PLC MPU in series, RUN LED on MPU will be lit and A/D LED or D/A LED should blink.

4. After receiving the first RS-485 command during controlling by RS-485, A/D LED or D/A LED should blink.

5. After converting, ERROR LED should blink if input or output exceeds upper bound or lower than lower bound.

 Program example:

M1000

FROM

END

D0TOK0K1

D0CMP H401

INC D100

ADD D101 K5

LD= K4000 RST

H10

K2K6

M1013

D101

D100 D100

LD=

K4000

RST

D101D101

K1 K1 K1

D100

Explanation:  Reading the data of model type from expansion module K1 and distinguish if the data is H0401

(DVP04DA-H model type).

 D100 will increase K1 and D101 will increase K5 every second.  When value of D100 and D101 attain to K4000, they will be reset to 0.  If the model type is DVP04DA-H, M1 will be on and set the output mode: CH1 mode to 0, CH2 mode

to 2.

 Writing output setting CR#6 and CR#7 to D100 and D101. Analog output will change with D100 and

D101 value.

7 COMMAND EXPLANATION

API

Adaptive model ES EP EH

FROM

Read special module CR data

  

Bit device Word device

X Y M S K H KnX KnY KnM KnS T C D E F m1 ¼ ¼ m2 ¼ ¼

D ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼

n ¼ ¼

 Note: The usage range of operand m

is 0~7. The usage range of operand m2: ES/EP: 0-48, EH: 0-254. The usage range of operand n: ES/EP: n= 1~(49-m2), EH: 1~(255-m2).

ES series model doesn’t support pulse execution command (FROMP, DFROMP).

16-bit command (9 STEPS)

FROM

Continuous execution

FROMP

Pulse execution

32-bit command (17 STEPS)

DFROM

Continuous execution

DFROMP

Pulse execution

 Flag: When M1083=On, it allows to

insert interrupt during FROM/TO. Refer to following for detail.

Command

Explanation

 : the number for special module. : the number of CR (Control Register) of

special module that will be read.

: the location to save reading data. : the

data number of reading ONCE.

 DVP-series PLC uses this command to read CR data of special module. 

: When assigning bit operand, K1~K4 can be used for 16-bit and K5~K8 can be

used for 32-bit.

 Please refer the following footnote for calculating of special module number.

Program Example

 To read the content of CR#24 of special module#0 to D0 of PLC and to read the

content of CR#25 of special module#0 to D1 of PLC. It can read 2 data in one time

(n=2).

 The command will be executed when X0=ON. The command won’t be executed when

X0=OFF and the content of previous reading data won’t change.

FROM K0 K24 D0 K2

API

Adaptive model

ES EP EH

Special module CR data write in

  

Bit device Word device

X Y M S K H KnX KnY KnM KnS T C D E F

¼ ¼

¼ ¼ S ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼ ¼ n ¼ ¼

 Note: The usage range of operand m

is 0~7. The usage range of operand m2: ES/EP: 0-48, EH: 0-254. The usage range of operand n: ES/EP: 1~(49-m2), EH: 1~(255-m2).

For ES series, it doesn’t support pulse execution command (TOP, DTOP)

16-bit command (9 STEPS)

Continuous execution

TOP

Pulse execution

32-bit command (17 STEPS)

DTO

Continuous execution

DTOP

Pulse execution

 Flag: When M1083=On, it allows to

insert interrupt during FROM/TO. Refer to following for detail.

Command

Explanation

 : the number of special module. : the number of CR (Control Register) of

special module that will be wrote in.

: the data to write in CR. : the data

number to write in one time.

 DVP-series PLC uses this command to write data into CR of special module. 

: When assigning bit operand, K1~K4 can be used for 16-bit and K5~K8 can be

used for 32-bit.

Program

Example

 Using 32-bit command DTO, program will write D11 and D10 into CR#3 and CR#2 of

special module#0. It only writes a group of data in one time (n=1).

 The command will be executed when X0=ON and it won’t be executed when

X0=OFF. The data that wrote in previous won’t have any change.

K0 K2 D0DTO

Footnote

 The rule of command operand

 m1: arrangement number of special module. The number of special module

that connects to PLC MPU. The numbering order of special module from the near to the distant of MPU is from 0 to 7. The maximum is 8 special modules and won’t occupy I/O point.

 m2: the number of CR. Built-in 16-bit of 49 groups memory of special module

is called CR (Control Register). The number of CR uses decimal digital (#0~#48). All running status and setting values of special module have included.

 If using FROM/TO command, the unit of read/write of CR is one number for

one time. If using DFROM/DTO command, the unit of read/write of CR is two numbers in one time.

CR #10 CR #9

Upper 16-bit

Lower 16-bit

Spec ified C R number

 The number of transmission groups n. The meaning of n=2 of 16-bit

command and n=1 of 32-bit are the same.

D3 D4

CR #5

CR #6

CR #7

CR #8 CR #9

CR #10

D3 D4

CR #5

CR #6

CR #7

CR #8 CR #9

CR #10

Specified device

Speci fied C

Specified device

Speci fied CR

16-bit command when n=6

32-bit command when n=3

 In ES series models, flag M1083 is not provided. When FROM/TO command is

executed, all interrupts (including external or internal interrupt subroutines) will be disabled. All interrupts will be executed after completing FROM/TO command. Besides, FROM/TO command also can be executed in the interrupt subroutine.

 The function of the flag M1083 (FROM/TO mode exchange) provided in EP/EH

series models:

1. When M1083=Off, FROM/TO command is executed, all interrupts (including external or internal interrupt subroutines) will be disabled. All interrupts will be executed after completing FROM/TO command. Besides, FROM/TO command also can be executed in the interrupt subroutine.

2. When M1083=On, if an interrupt occurs while FROM/TO command has been programmed, FROM/TO command will be interruptted to execute the interrupt. However, FROM/TO command cannot be executed in the interrupt subroutine.

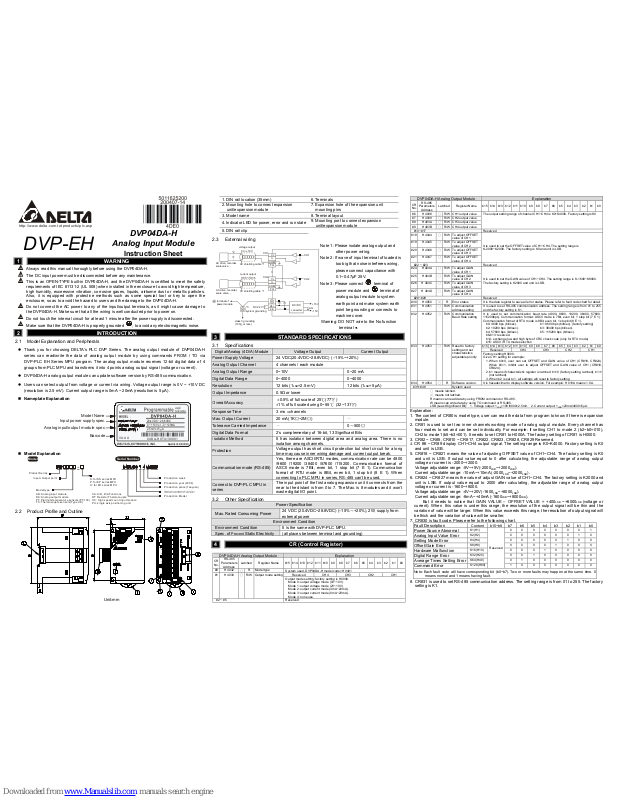

Delta DVP04DA-H Instruction Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
