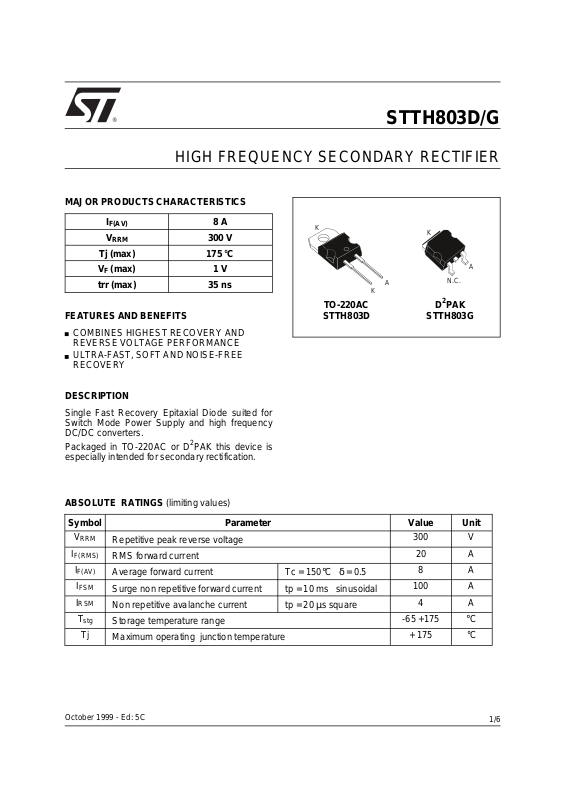

Datasheet STTH803G, STTH803D Datasheet (SGS Thomson Microelectronics)

®

HIGH FREQUENCY SECONDARY RECTIFIER

MAJOR PRODUCTS CHAR ACTERISTICS

STTH803D/G

I

F(AV)

V

RRM

8 A

300 V

Tj (max) 175 °C

V

(max) 1 V

F

trr (max) 35 ns

FEATURES AND BENE FITS

COMBINES HIGHEST RECOVERY AND
REVERSE VOLTAGE PERFORMANCE

ULTRA-FAST, SOFT AND NOISE-FREE
RECOVERY

DESCRIPTION

Single Fast Recovery Epitaxial Diode suited for
Switch Mode Power Supply and high frequency
DC/DC converters.

2

Packaged in TO-220AC or D

PAK this device is

especially intended for secondary r ectification.

K

TO-220AC

STTH803D

K

A

D

N.C.

2

PAK

A

K

STTH803G

ABSOLUTE RATINGS (limiting values)

Symbol Parameter Value Unit

V

RRM

I

F(RMS)

I

F(AV)

I

FSM

I

RSM

T

stg

Tj

October 1999 - Ed: 5C

Repetitive peak reverse voltage
RMS forward current
Average forward current Tc = 150°C δ = 0.5
Surge non repetitive forward current tp = 10 ms sinusoidal
Non repetitive avalanche current tp = 20 µs square
Storage temperature range
Maximum operating junction temperature

300 V

20 A

8A

100 A

4A

-65 +175 °C
+ 175 °C

1/6

STTH803D/G

THERMA L RE SISTA NC ES

Symbol Parameter Value Unit

R

th (j-c)

Junction to case

STATIC ELECTRICAL CHARACTE RISTICS (per diode)

Symbol Parameter Tests conditions Min. Typ. Max. Unit

2.5 °C/W

*

I

R

V

F

Reverse leakage
current

**

Forward voltage drop I

V

= 300 V Tj = 25°C

R

Tj = 125°C

= 8 A Tj = 25°C

F

IF = 8 A Tj = 125°C

20 200

0.85 1

20 µA

1.25 V

Pulse test : * tp = 5 ms, δ < 2 %
** tp = 380 µs, δ < 2%

To evaluate the maximum conduction losses use the following equation :
P = 0.75 x I

F(AV)

+ 0.031 I

F2(RMS )

RECOVERY CH ARACTE RIST ICS

Symbol Tests conditions Min. Typ. Max. Unit

25 ns
35

200 ns

3.5 V

8A

V

S

trr

tfr

FP

factor

I

RM

= 0.5 A Irr = 0.25 A IR = 1 A Tj = 25°C

I

F

I

= 1 A dIF/dt = - 50 A/µs VR = 30 V Tj = 25°C

F

I

= 8 A dIF/dt = 100 A/µs

F

V

= 1.1 x VF max.

FR

Vcc = 200V IF = 8 A
dI

/dt = 200 A/µs

F

Tj = 25 °C
Tj = 25 °C
Tj = 125°C

0.3 -

2/6

STTH803D/G

Fig. 1: Conduction losses versus average curr ent.

P1(W)

12
10

8

δ = 0.05

δ = 0.1

δ = 0.2

δ = 0.5

δ = 1

6
4

T

2

=tp/T

0

IF(av) (A)

012345678910

δ

tp

Fig. 3: Relative variation of thermal impedance
junction to case versus pulse duration.

Zth(j-c)/Rth(j-c)

1.0

0.8

δ = 0.5

0.6

δ = 0.2

0.4

δ = 0.1

0.2

0.0

Single pulse

tp(s)

1E-3 1E-2 1E-1 1E+0

δ

=tp/T

T

tp

Fig. 2: Forward voltage drop versus forward
current (maximum values).

IFM(A)

100.0

Tj=125°C

10.0

Tj=25°C

Tj=75°C

1.0

0.1

0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50

VFM(V)

Fig. 4: Peak reverse recovery current versus
dI

/dt (90% confidence).

F

IRM(A)

16

VR=200V

14

Tj=125°C

12
10

8
6
4
2
0

0 50 100 150 200 250 300 350 400 450 500

dIF/dt(A/µs)

IF=2*IF(av)

IF=IF(av)

IF=0.5*IF(av)

Fig. 5: Reverse recovery time ver sus dI

F

confidence).

trr(ns)

100

90
80
70
60
50

IF=2*IF(av)

40
30
20
10

0

0 50 100 150 200 250 300 350 400 450 500

IF=0.5*IF(av)

dIF/dt(A/µs)

VR=200V
Tj=125°C

IF=IF(av)

/dt (90%

Fig. 6: Softness factor versus dI

/dt (typical

F

values).

S factor

0.60

0.50

0.40

0.30

0.20

0.10

0.00
0 50 100 150 200 250 300 350 400 450 500

dIF/dt(A/µs)

VR=200V
Tj=125°C

3/6

STTH803D/G

Fig. 7: Re lative variati on of dynamic par ameters

versus junction temperature (reference: Tj = 125°C).

2.6

2.4

2.2

2.0

1.8

1.6

1.4

1.2

1.0

0.8

0.6

0.4

0.2

0.0
25 50 75 100 125

Fig. 9: Forward recovery time versus dI

S factor

IRM

Tj(°C)

/dt (90%

F

confidence).

tfr(ns)

300

VFR=1.1*VF max.

250
200

IF=IF(av)
Tj=125°C

Fig. 8: Transient peak forward voltage versus
dI

/dt (90% confidence).

F

VFP(V)

8

IF=IF(av)

7

Tj=125°C

6
5
4
3
2
1
0

0 50 100 150 200 250 300 350 400 450 500

dIF/dt(A/µs)

150
100

50

0

0 50 100 150 200 250 300 350 400 450 500

dIF/dt(A/µs)

4/6

PACKAGE ME CHANICAL D AT A

2

D

PAK

STTH803D/G

DIMENSIONS

L2

A

E

C2

REF.

A 4.40 4.60 0.173 0.181

Millimeters Inches

Min. Max. Min. Max.

A1 2.49 2.69 0.098 0.106

D

L

L3

A1

B2
B

C

R

A2 0.03 0.23 0.001 0.009

B 0.70 0.93 0.027 0.037

B2 1.14 1.70 0.045 0.067

C 0.45 0.60 0.017 0.024

C2 1.23 1.36 0.048 0.054

D 8.95 9.35 0.352 0.368
E 10.00 10.40 0.393 0.409

G

A2

G 4.88 5.28 0.192 0.208
L 15.00 15.85 0.590 0.624

L2 1.27 1.40 0.050 0.055

M

*

* FLAT ZONE NO LESS THAN 2mm

V2

L3 1.40 1.75 0.055 0.069

M 2.40 3.20 0.094 0.126

R 0.40 typ. 0.016 typ.

V2 0° 8° 0° 8°

FOOT PRINT DIMENSIONS (in millimeters)

2

D

PAK

16.90

10.30

1.30

8.90

3.70

5.08

5/6

STTH803D/G

PACKAGE MECHANICAL DAT A

TO-220AC

H2

L5

Ø I

L6

L2

L9

F1

L4

F

G

DIMENSIONS

A

C

REF.

Millimeters Inc hes

Min. Max. Min. Max.

A 4.40 4.60 0.173 0.181

L7

C 1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107

E 0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034

F1 1.14 1.70 0.044 0.066

G 4.95 5.15 0.194 0.202

D

H2 10.00 10.40 0.393 0.409
L2 16.40 typ. 0.645 typ.
L4 13.00 14.00 0.511 0.551
L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620

M

E

L7 6.20 6.60 0.244 0.259
L9 3.50 3.93 0.137 0.154

M 2.6 typ. 0.102 typ.

Diam. I 3.75 3.85 0.147 0.151

Ordering code Marking Package Weight Base qty Delivery mode

STTH803D STTH803D TO-220AC 1.86g 50 Tube

2

STTH803G STTH803G D

PAK 1.48g 50 Tube

Cooling method: by conduction (C)
Recommended torque value (TO-220AC): 0.55 N.m.
Maximum torque value (TO-220AC): 0.70 N.m.
Epoxy meets UL 94, V0
