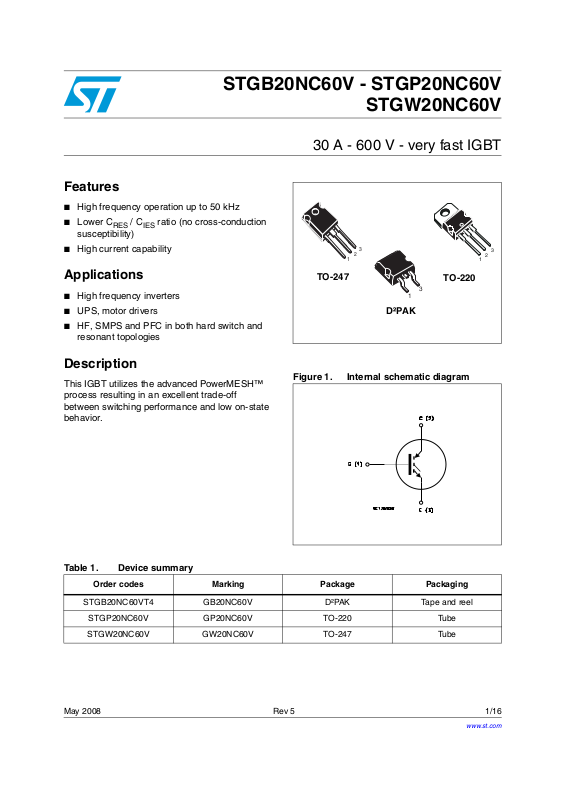

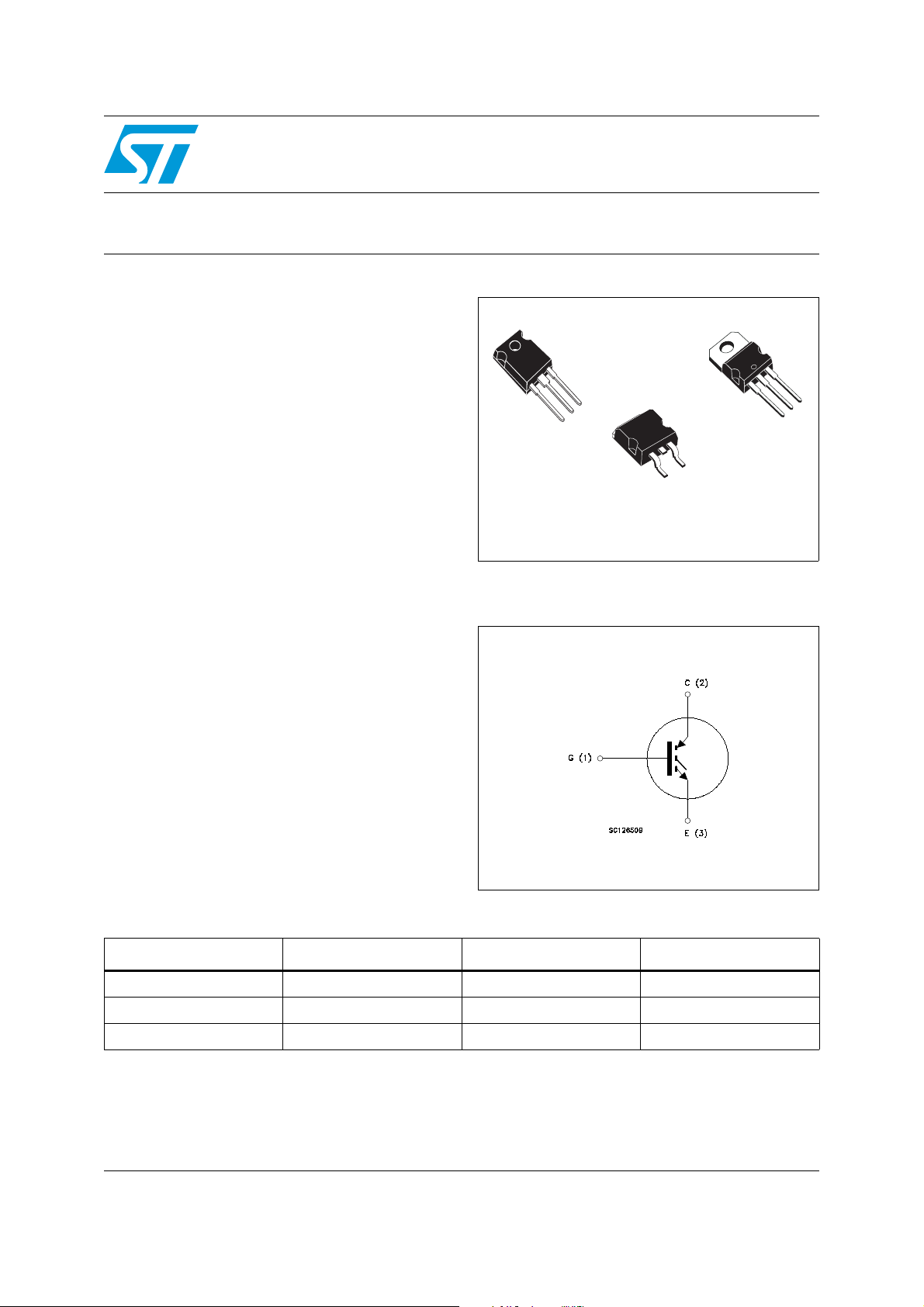

STGB20NC60V - STGP20NC60V
Features
■ High frequency operation up to 50 kHz
■ Lower C
susceptibility)
■ High current capability
RES
/ C
ratio (no cross-conduction
IES
STGW20NC60V
30 A - 600 V - very fast IGBT
3
2
1
3
2
1
Applications
■ High frequency inverters
■ UPS, motor drivers
■ HF, SMPS and PFC in both hard switch and
resonant topologies
Description
This IGBT utilizes the advanced PowerMESH™
process resulting in an excellent trade-off
between switching performance and low on-state
behavior.
TO-247
1
TO-220
3
D²PAK
Figure 1. Internal schematic diagram
Table 1. Device summary
Order codes Marking Package Packaging
STGB20NC60VT4 GB20NC60V D²PAK Tape and reel
STGP20NC60V GP20NC60V TO-220 Tube
STGW20NC60V GW20NC60V TO-247 Tube
May 2008 Rev 5 1/16
www.st.com
16
Page 2
Contents STGB20NC60V - STGP20NC60V - STGW20NC60V
Contents
1 Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Electrical characteristics (curves) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Packaging mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2/16
Page 3
STGB20NC60V - STGP20NC60V - STGW20NC60V Electrical ratings
1 Electrical ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
CES
I
C
I
C
I
CL
I
CP
V
P
TOT
T
1. Calculated according to the iterative formula:
2. Vclamp = 80%(V
3. Pulse width limited by max junction temperature allowed
Collector-emitter voltage (VGE = 0)
(1)
Collector current (continuous) at 25 °C 60 A
(1)
Collector current (continuous) at 100 °C 30 A
(2)
Turn-off latching current 100 A
(3)
Pulsed collector current 100 A
Gate-emitter voltage ± 20 V
GE
Total dissipation at TC = 25 °C
Operating junction temperature – 55 to 150 °C
j
T
ICTC()
---------------------------------- --------------------------------------------- -----------------------=
R
THJ C–VCESAT MAX()TCIC
), Tj =150 °C, RG=10 Ω, VGE=15 V
CES
JMAXTC
Table 3. Thermal resistance
Symbol Parameter
600 V
200 W
–
,()×
Val ue
Unit
TO-247
TO-220
D²PAK
R
thj-case
R
thj-amb
Thermal resistance junction-case max 0.62 °C/W
Thermal resistance junction-ambient max 50 62.5 °C/W
3/16
Page 4
Electrical characteristics STGB20NC60V - STGP20NC60V - STGW20NC60V
2 Electrical characteristics
(T
=25°C unless otherwise specified)
CASE
Table 4. Static electrical characteristics
Symbol Parameter Test conditions Min. Typ. Max. Unit
Collector-emitter
V
(BR)CES
V
CE(sat)
V
GE(th)
I
CES
I
GES
gfs
1. Pulse duration = 300 µs, duty cycle 1.5%
breakdown voltage
= 0)
(V
GE
Collector-emitter saturation
voltage
Gate threshold voltage
Collector-emitter cut-off
current (V
GE
= 0)
Gate-emitter cut-off
current (VCE = 0)
(1)
Forward transconductance
= 1 mA
I
C
=15 V, IC= 20 A
V
GE
=15 V, IC= 20 A,TC= 125 °C
V
GE
V
= VGE, IC= 250 µA
CE
V
= 600 V
CE
V
= 600 V, Tc=125 °C
CE
VGE = ±20 V
= 15 V, IC= 20 A
V
CE
600 V
1.8
2.5 V
1.7
3.75 5.75 V
101µA
± 100 nA
15 S
Table 5. Dynamic electrical characteristics
V
mA
Symbol Parameter Test conditions Min. Typ. Max. Unit
C
C
C
Q
Q
Q
Input capacitance
ies
Output capacitance
oes
Reverse transfer
res
capacitance
g
Total gate charge
Gate-emitter charge
ge
Gate-collector charge
gc
VCE = 25 V, f = 1 MHz,
=0
V
GE
V
= 390 V, IC = 20 A,
CE
= 15 V,
V
GE
(see Figure 17)
2200
225
50
100
16
45
pF
pF
pF
nC
nC
nC
4/16
Page 5
STGB20NC60V - STGP20NC60V - STGW20NC60V Electrical characteristics
Table 6. Switching on/off (inductive load)
Symbol Parameter Test conditions Min. Typ. Max. Unit
t
d(on)
t
(di/dt)
t
d(on)
t
(di/dt)
t
r(Voff
t
d(off
t
t
r(Voff
t
d(off
t
Turn-on delay time
Current rise time
r
Turn-on current slope
on
Turn-on delay time
Current rise time
r
Turn-on current slope
on
)
Off voltage rise time
)
Turn-off delay time
Current fall time
f
)
Off voltage rise time
)
Turn-off delay time
Current fall time
f
= 390 V, IC = 20 A
V
CC
= 3.3 Ω, VGE= 15 V,
R
G
(see Figure 16)
VCC = 390 V, IC = 20 A
= 3.3 Ω, VGE= 15 V,
R
G
T
= 125 °C (see Figure 16)
C
= 390 V, IC = 20 A,
V
cc
= 3.3 Ω, VGE = 15 V
R
G
(see Figure 18)
= 390 V, IC = 20 A,
V
cc
=3.3 Ω, VGE =15 V,
R
G
=125 °C (see Figure 18)
T
C
31
11
1600
31
11.5
1500
28
100
75
66
150
130
Table 7. Switching energy (inductive load)
Symbol Parameter Test conditions Min. Typ. Max. Unit
E
on
Turn-on switching losses
(1)
E
off
E
E
E
off
E
1. Turn-off losses include also the tail of the collector current
Turn-off switching losses
Total switching losses
ts
on
Turn-on switching losses
(1)
Turn-off switching losses
Total switching losses
ts
VCC = 390 V, IC = 20 A
=3.3 Ω, VGE= 15 V,
R
G
(see Figure 18)
= 390 V, IC = 20 A
V
CC
=3.3 Ω, VGE= 15 V,
R
G
= 125 °C (see Figure 18)
T
C
220
330
550
450
770
1220
ns
ns
A/µs
ns
ns
A/µs
ns
ns
ns
ns
ns
ns
µJ
µJ
µJ
µJ
µJ
µJ
5/16
Page 6
Electrical characteristics STGB20NC60V - STGP20NC60V - STGW20NC60V
2.1 Electrical characteristics (curves)

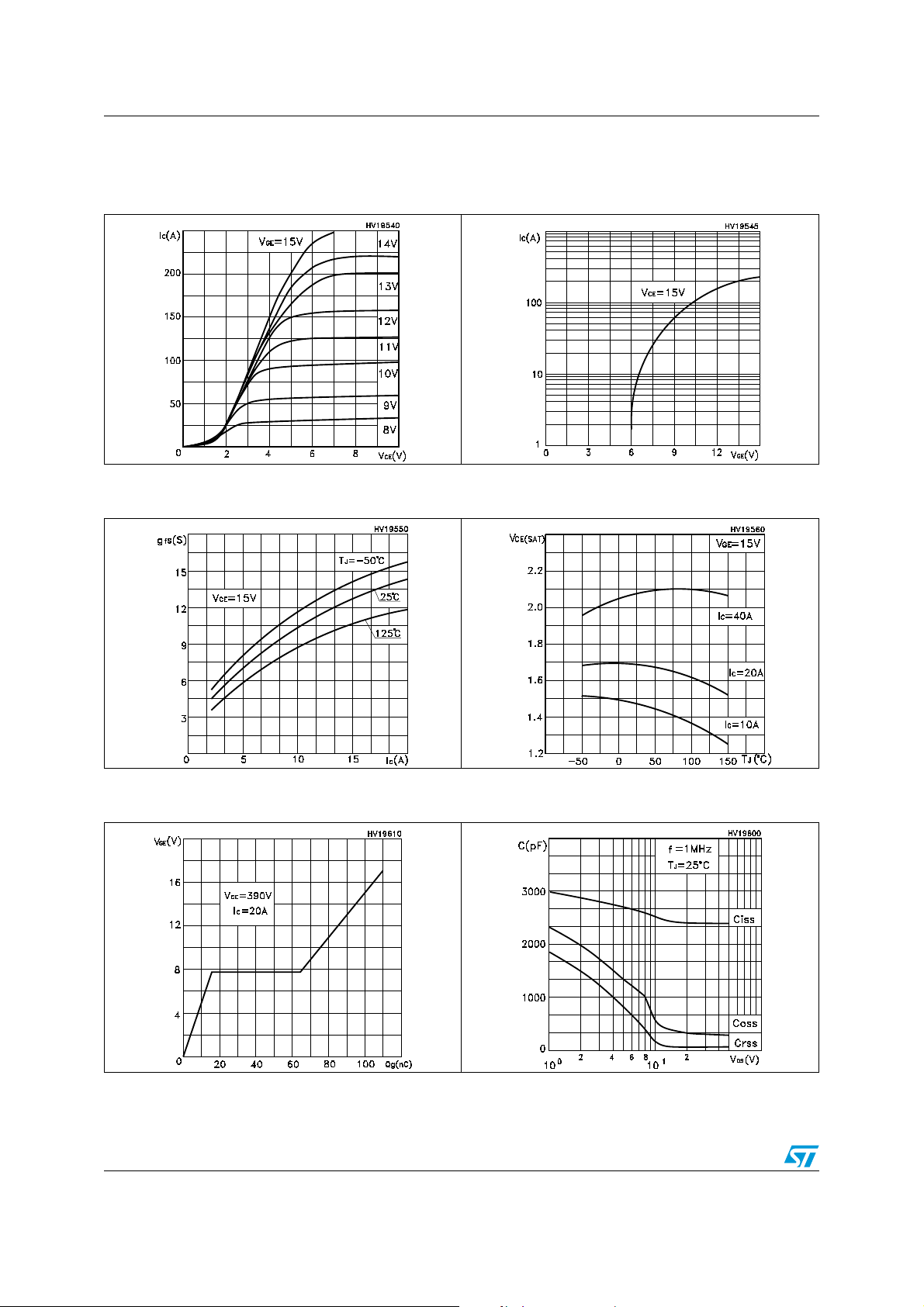

Figure 2. Output characteristics Figure 3. Transfer characteristics
Figure 4. Transconductance Figure 5. Collector-emitter on voltage vs
temperature
Figure 6. Gate charge vs gate-source voltage Figure 7. Capacitance variations
6/16
Page 7
STGB20NC60V - STGP20NC60V - STGW20NC60V Electrical characteristics

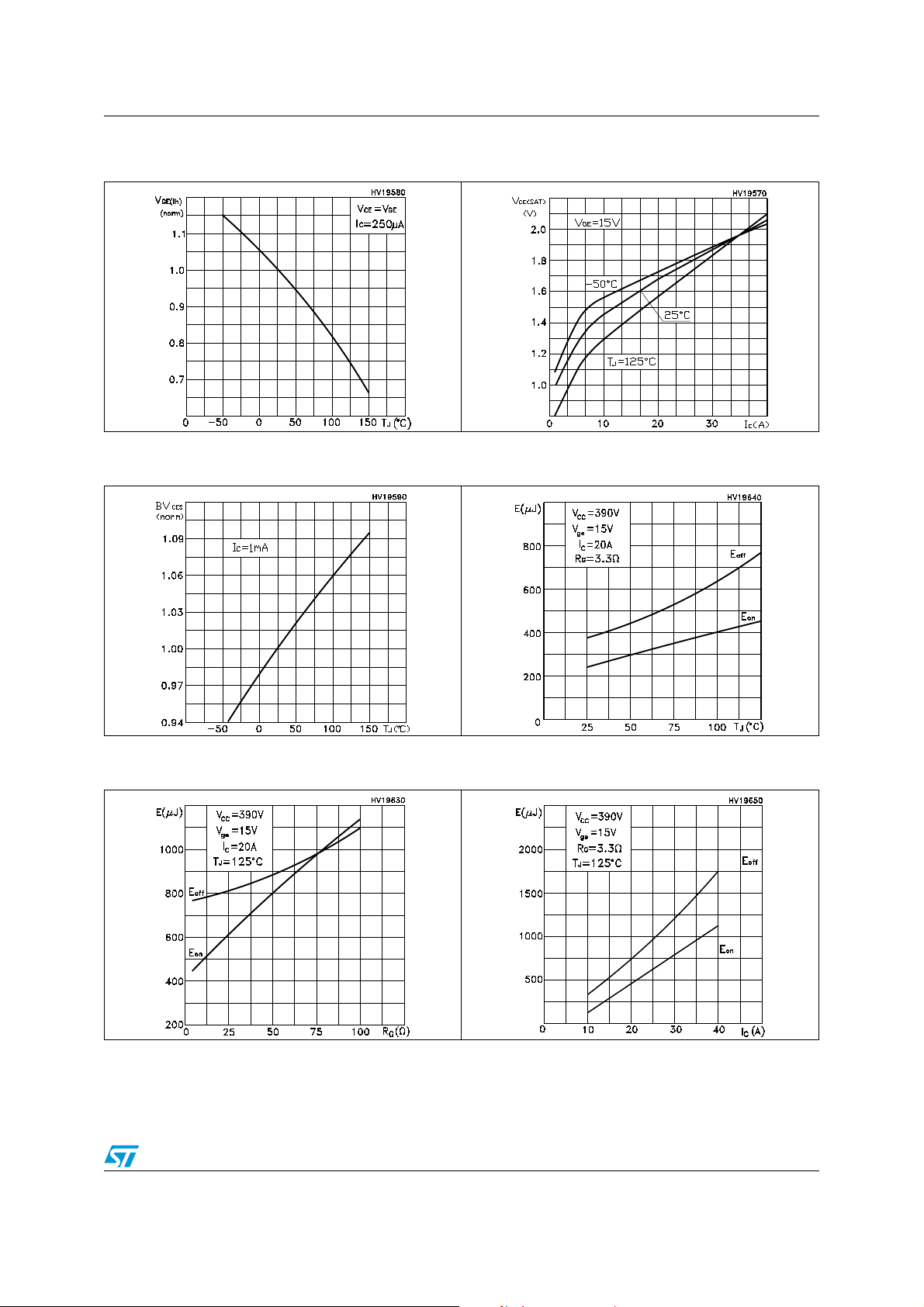

Figure 8. Normalized gate threshold voltage
vs temperature
Figure 10. Normalized breakdown voltage vs
temperature
Figure 9. Collector-emitter on voltage vs
collector current
Figure 11. Switching losses vs temperature
Figure 12. Switching losses vs gate resistance Figure 13. Switching losses vs collector
current
7/16
Page 8
Electrical characteristics STGB20NC60V - STGP20NC60V - STGW20NC60V

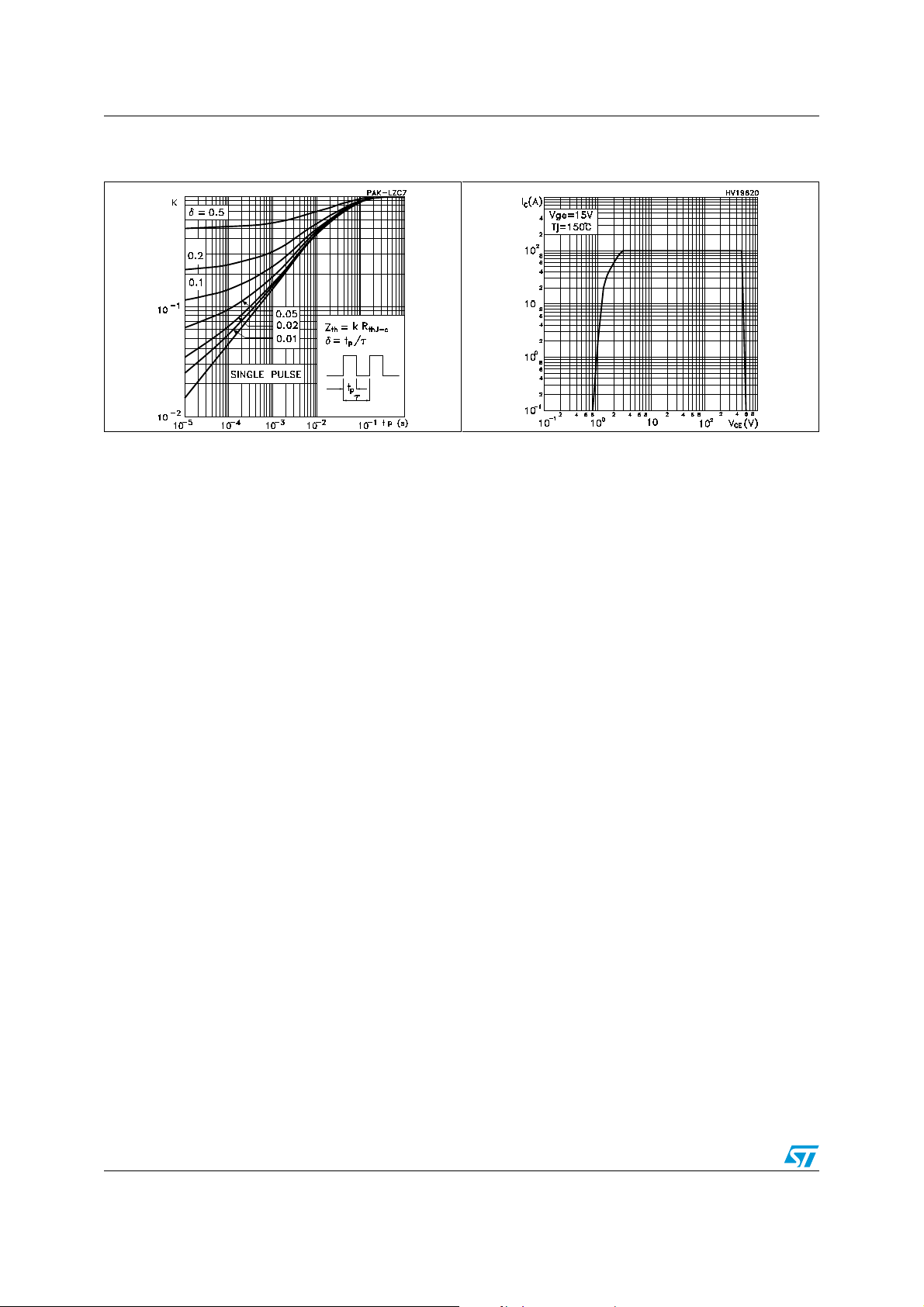

Figure 14. Thermal impedance Figure 15. Turn-off SOA
8/16
Page 9
STGB20NC60V - STGP20NC60V - STGW20NC60V Test circuit
3 Test circuit

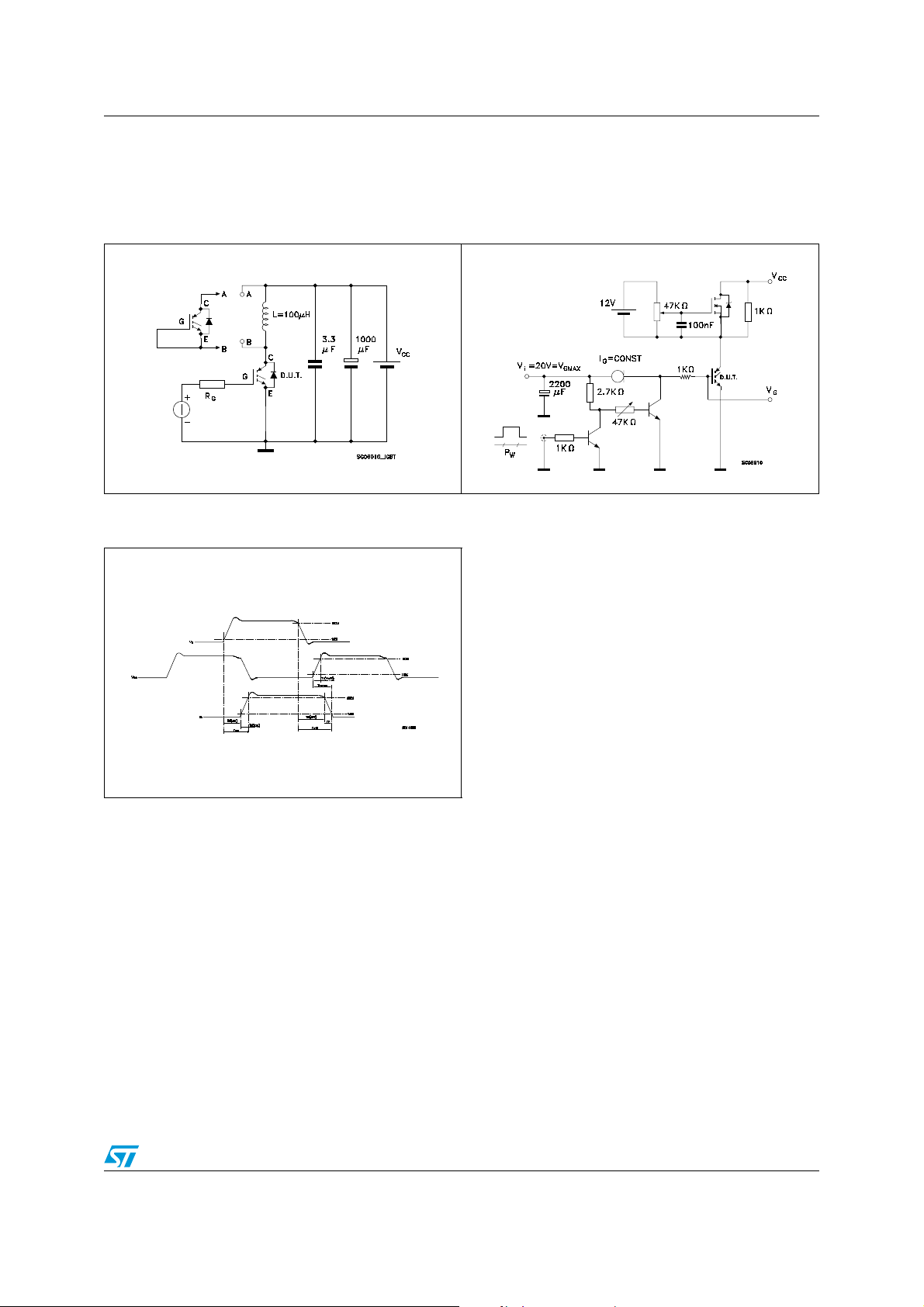

Figure 16. Test circuit for inductive load
switching
Figure 18. Switching waveform
Figure 17. Gate charge test circuit
9/16
Page 10
Package mechanical data STGB20NC60V - STGP20NC60V - STGW20NC60V
4 Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
10/16
Page 11
STGB20NC60V - STGP20NC60V - STGW20NC60V Package mechanical data

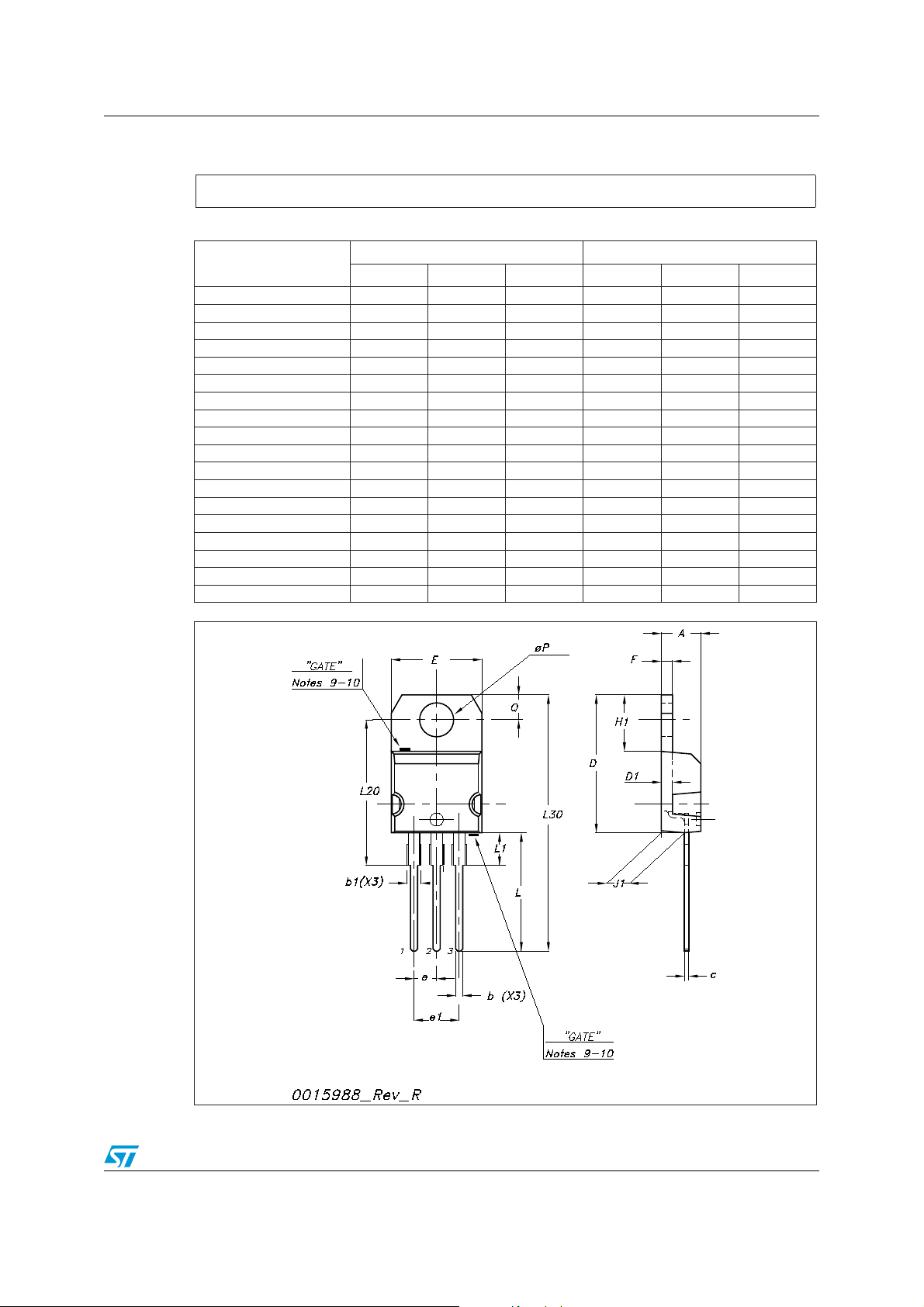

TO-220 mechanical data
Dim
Min Typ Max Min Typ Max
mm inch
A 4.40 4.60 0.173 0.181
b 0.61 0.88 0.024 0.034
b1 1.14 1.70 0.044 0.066
c0.48 0.70 0.019 0.027
D 15.25 15.75 0.6 0.62
D1 1.27 0.050
E 10 10.40 0.393 0.409
e 2.40 2.70 0.094 0.106
e1 4.95 5.15 0.194 0.202
F1.23 1.32 0.048 0.051
H1 6.20 6.60 0.244 0.256
J1 2.40 2.72 0.094 0.107
L13 14 0.511 0.551
L1 3.50 3.93 0.137 0.154
L20 16.40 0.645
L3028.90 1.137
∅P 3.75 3 .8 5 0.147 0.151
Q2.65 2.95 0.104 0.116
11/16
Page 12
Package mechanical data STGB20NC60V - STGP20NC60V - STGW20NC60V
Dim.
mm.
Min. Typ Max.
A4.855.15
A1 2.20 2.60
b 1.0 1.40
b1 2.0 2.40
b2 3.0 3.40
c0.40 0.80
D19.85 20.15
E 15.45 15.75
e5.45
L 14.20 14.80
L1 3.70 4.30
L2 18.50
øP 3.55 3.65
øR 4.50 5.50
S 5.50

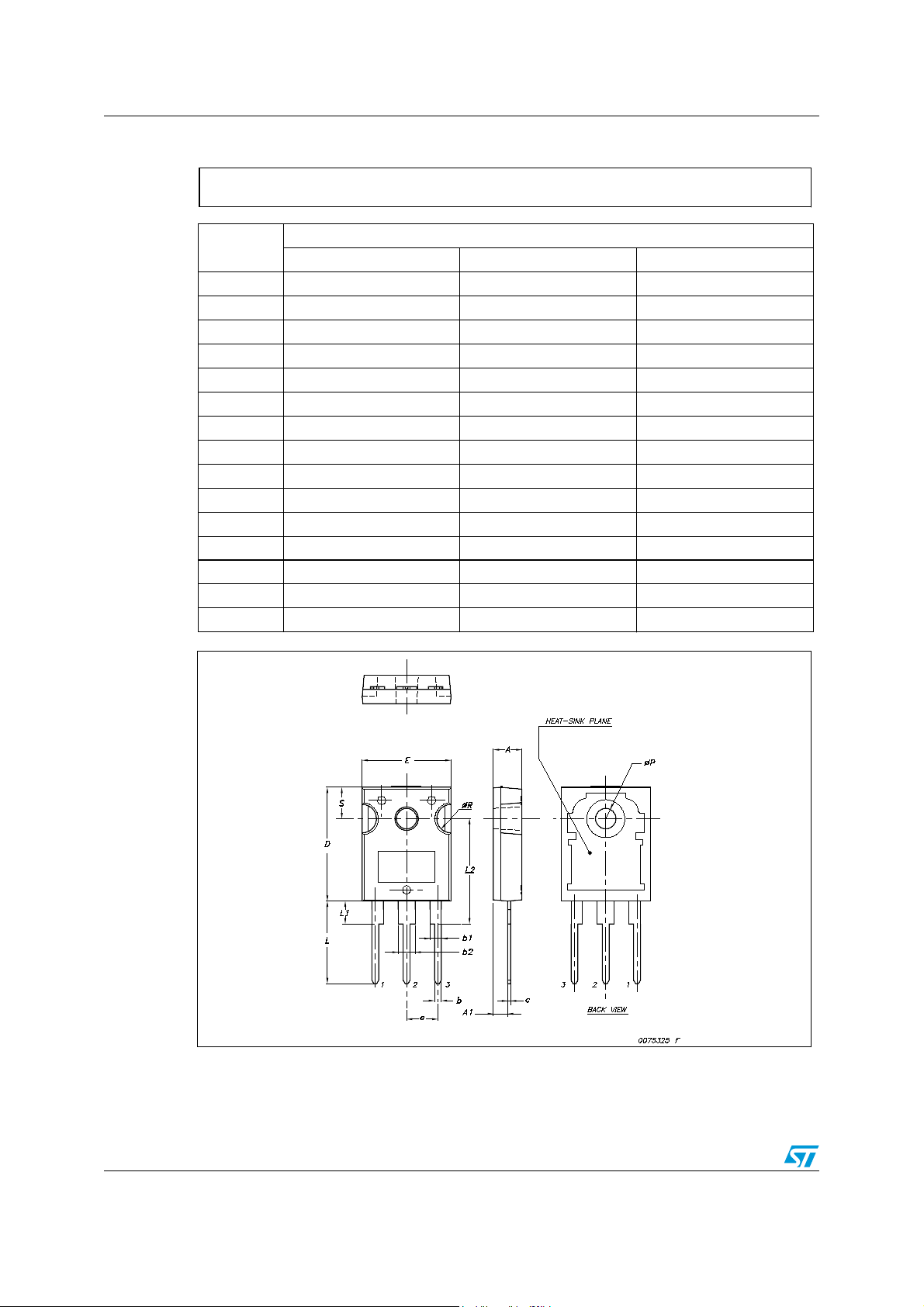

TO-247 Mechanical data
12/16
Page 13
STGB20NC60V - STGP20NC60V - STGW20NC60V Package mechanical data

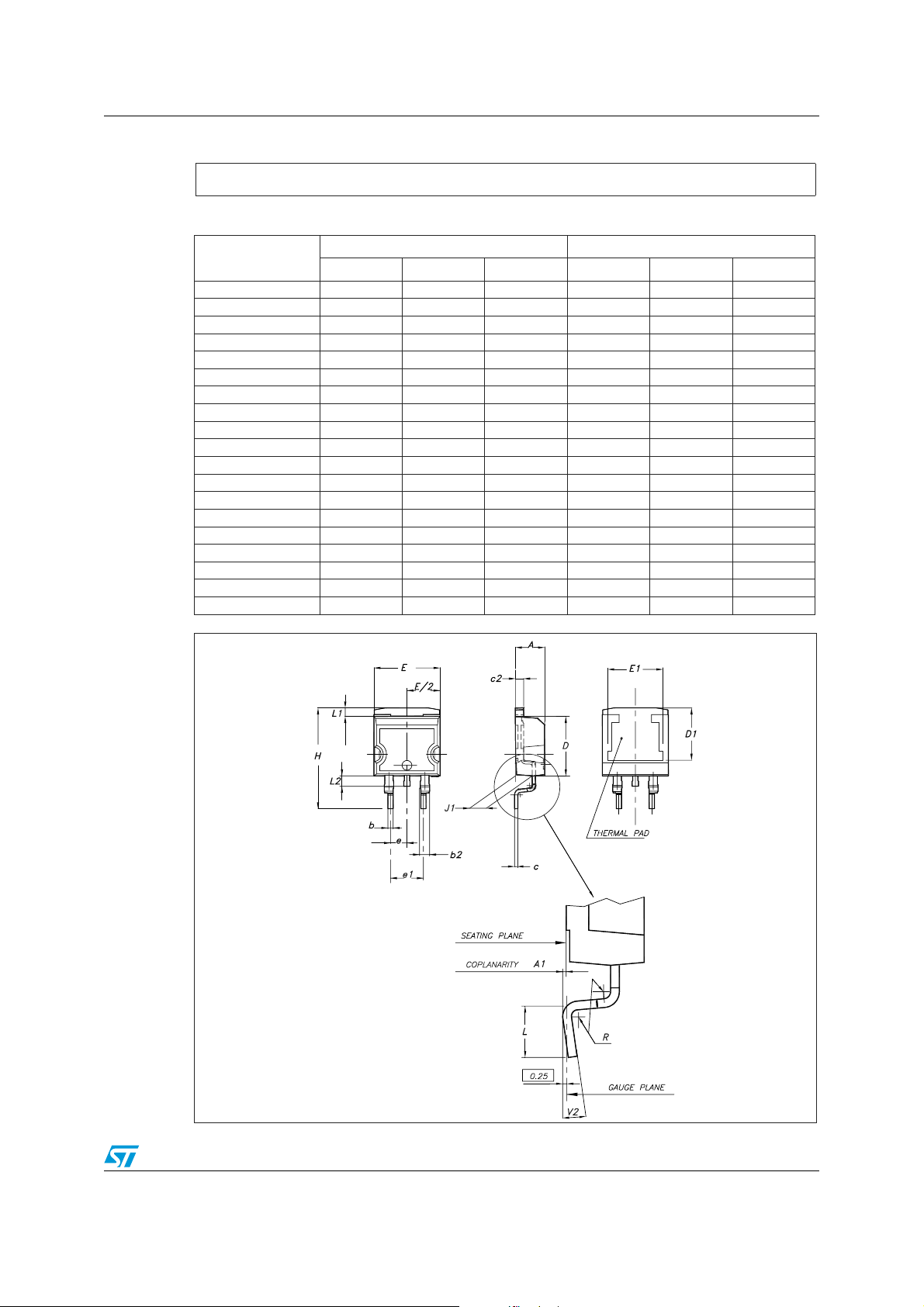

D²PAK (TO-263) mechanical data
Dim
Min Typ Max Min Typ Max
mm inch
A 4.40 4.60 0.173 0.181
A1 0.03 0.23 0.001 0.009
b 0.70 0.93 0.027 0.037
b2 1.14 1.70 0.045 0.067
c 0.45 0.60 0.017 0.024
c2 1.23 1.360.048 0.053
D 8.95 9.350.352 0.368
D1 7.50 0.295
E 10 10.40 0.3940.409
E1 8.50 0.334
e 2.54 0.1
e1 4.88 5.28 0.1920.208
H15 15.850.5900.624
J1 2.49 2.69 0.099 0.106
L2.29 2.79 0.090 0.110
L1 1.27 1.40 0.05 0.055
L2 1.30 1.75 0.051 0.069
R 0.4 0.016
V2 0° 8°0° 8°
0079457_M
13/16
Page 14
Packaging mechanical data STGB20NC60V - STGP20NC60V - STGW20NC60V
5 Packaging mechanical data

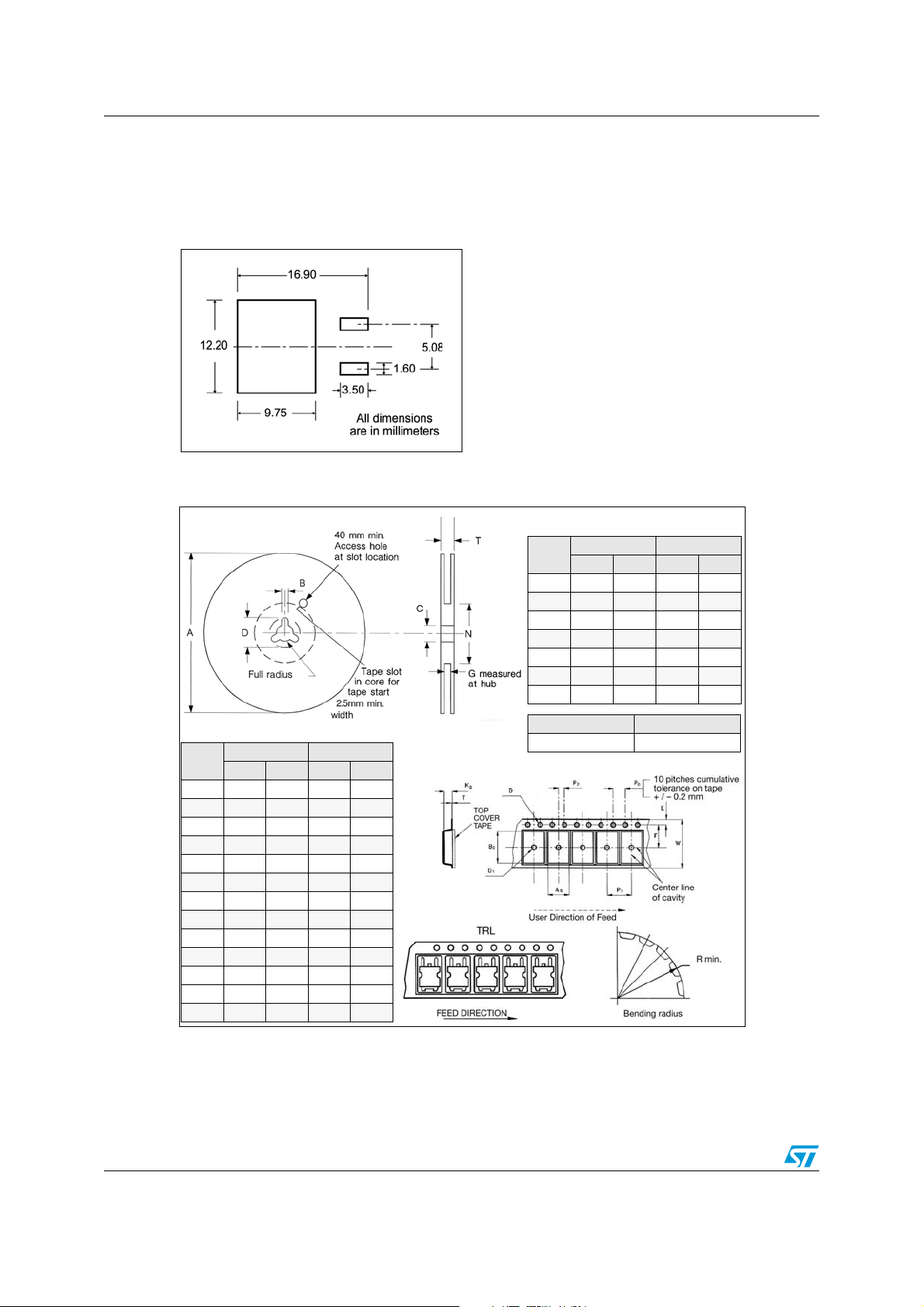

D2PAK FOOTPRINT
TAPE AND REEL SHIPMENT
REEL MECHANICAL DATA
DIM.
A 330 12.992
B 1.5 0.059
C 12.8 13.2 0.504 0.520
D 20.2 0795
G 24.4 26.4 0.960 1.039
N 100 3.937
T 30.4 1.197
mm inch
MIN. MAX. MIN. MAX.
TAPE MECHANICAL DATA
DIM.
A0 10.5 10.7 0.413 0.421
B0 15.7 15.9 0.618 0.626
D 1.5 1.6 0.059 0.063
D1 1.59 1.61 0.062 0.063
E 1.65 1.85 0.065 0.073
F 11.4 11.6 0.449 0.456
K0 4.8 5.0 0.189 0.197
P0 3.9 4.1 0.153 0.161
P1 11.9 12.1 0.468 0.476
P2 1.9 2.1 0.075 0.082
R 50 1.574
T 0.25 0.35 0.0098 0.0137
W 23.7 24.3 0.933 0.956
* on sales type
mm inch
MIN. MAX. MIN. MAX.
14/16
BASE QTY BULK QTY
1000 1000
Page 15
STGB20NC60V - STGP20NC60V - STGW20NC60V Revision history
6 Revision history
Table 8. Document revision history
Date Revision Changes
07-Jun-2004 4 Stylesheet update. No content change
14-May-2008 5 Inserted D²PAK
15/16
Page 16
STGB20NC60V - STGP20NC60V - STGW20NC60V
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2008 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
16/16
Loading...
