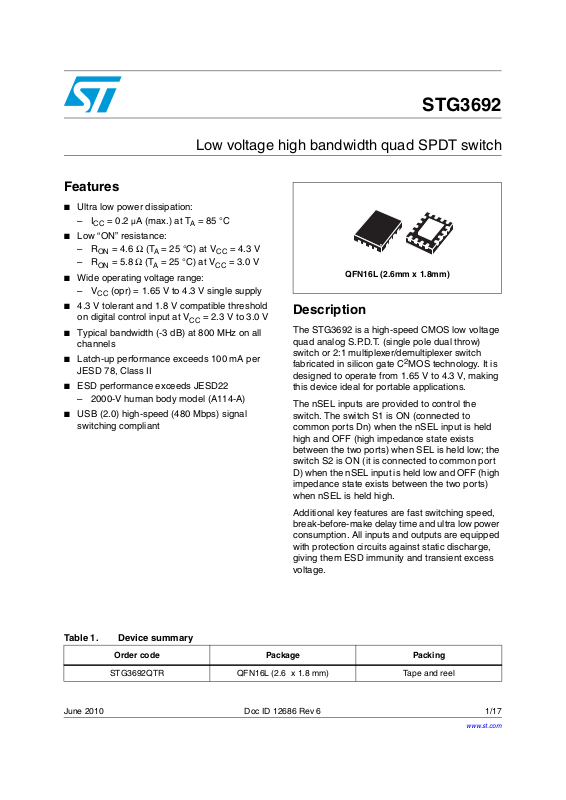

Page 1
Low voltage high bandwidth quad SPDT switch
Features
■ Ultra low power dissipation:
–I
= 0.2 µA (max.) at TA = 85 °C
CC
■ Low “ON” resistance:
–R
–R
■ Wide operating voltage range:
–V
■ 4.3 V tolerant and 1.8 V compatible threshold
on digital control input at V
■ Typical bandwidth (-3 dB) at 800 MHz on all
channels
■ Latch-up performance exceeds 100 mA per
JESD 78, Class II
■ ESD performance exceeds JESD22
– 2000-V human body model (A114-A)
■ USB (2.0) high-speed (480 Mbps) signal
switching compliant
= 4.6 Ω (TA = 25 °C) at VCC = 4.3 V
ON
= 5.8 Ω (TA = 25 °C) at VCC = 3.0 V
ON
(opr) = 1.65 V to 4.3 V single supply
CC
= 2.3 V to 3.0 V
CC
STG3692
QFN16L (2.6mm x 1.8mm)
Description
The STG3692 is a high-speed CMOS low voltage
quad analog S.P.D.T. (single pole dual throw)
switch or 2:1 multiplexer/demultiplexer switch
fabricated in silicon gate C
designed to operate from 1.65 V to 4.3 V, making
this device ideal for portable applications.
The nSEL inputs are provided to control the
switch. The switch S1 is ON (connected to
common ports Dn) when the nSEL input is held
high and OFF (high impedance state exists
between the two ports) when SEL is held low; the
switch S2 is ON (it is connected to common port
D) when the nSEL input is held low and OFF (high
impedance state exists between the two ports)
when nSEL is held high.
2
MOS technology. It is
Additional key features are fast switching speed,
break-before-make delay time and ultra low power
consumption. All inputs and outputs are equipped
with protection circuits against static discharge,
giving them ESD immunity and transient excess
voltage.
Table 1. Device summary
Order code Package Packing
STG3692QTR QFN16L (2.6 x 1.8 mm) Tape and reel
June 2010 Doc ID 12686 Rev 6 1/17
www.st.com
17
Page 2
Contents STG3692
Contents
1 Pin settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Maximum rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Test circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2/17 Doc ID 12686 Rev 6
Page 3
STG3692 Pin settings
1 Pin settings
1.1 Pin connection
Figure 1. Pin connection (top through view)
1.2 Pin description
Table 2. Pin description
Pin number Symbol Name and function
15,1,
4,6,
7,9,
12,14
16,5,8,13 D1, D2, D3, D4 Common channels
3, 10 1-2SEL,
2V
Note: Exposed pad must be soldered to a floating plane. Do NOT connect to power or ground.
1S1, 1S2,
2S1, 2S2,
3S1, 3S2,
4S1, 4S2
3-4SEL
CC
Independent channels
Control
Positive supply voltage
Doc ID 12686 Rev 6 3/17
Page 4
Device summary STG3692
2 Device summary
Figure 2. Input equivalent circuit
D
SEL
Table 3. Truth table
SEL Switch S1 Switch S2
HON
L
1. High impedance.
OFF
(1)
S2
OFF
ON
S1
(1)
4/17 Doc ID 12686 Rev 6
Page 5
STG3692 Maximum rating
3 Maximum rating
Stressing the device above the rating listed in the absolute maximum ratings table may
cause permanent damage to the device. These are stress ratings only and operation of the
device at these or any other conditions above those indicated in the operating sections of
this specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
Table 4. Absolute maximum ratings
Symbol Parameter Value Unit
V
CC
V
V
IC
V
O
I
IKC
I
IK
I
OK
I
O
I
OP
ICC or I
P
D
T
stg
T
L
1. Derate above 70 °C by 18.5 mW/C.
Supply voltage -0.5 to 5.5 V
DC input voltage
I
-0.5 to V
CC
DC control input voltage -0.5 to 5.5 V
DC output voltage
DC input diode current on control pin (V
DC input diode current (V
SEL
<0 V)
SEL
<0 V)
-0.5 to V
CC
-50 mA
±50 mA
DC output diode current ±20 mA
DC output current ±128 mA
DC output current peak (pulse at 1 ms, 10% duty
cycle)
DC VCC or ground current
GND
Power dissipation at TA = 70 °C
(1)
±300 mA
±100 mA
1120 mW
Storage temperature -65 to 150 °C
Lead temperature (10 sec) 300 °C
+ 0.5
+ 0.5
V
V
3.1 Recommended operating conditions
Table 5. Recommended operating conditions
Symbol Parameter Value Unit
V
CC
Supply voltage
V
Input voltage 0 to V
I
V
V
T
dt/dv
1. Truth table guaranteed: 1.2 V to 4.3 V.
Control input voltage 0 to 4.3 V
IC
Output voltage 0 to V
O
Operating temperature -40 to 85 °C
op
Input rise and fall time control
input
(1)
V
= 1.65 V to 2.7 V
CC
V
= 3.0 to 4.3 V
CC
Doc ID 12686 Rev 6 5/17
1.65 to 4.3 V
CC
CC
0 to 20
ns/V
0 to 10
V
V
Page 6
Electrical characteristics STG3692
4 Electrical characteristics
Table 6. DC specifications
Val ue
Symbol Parameter
V
CC
(V)
Test conditions
= 25°C -40 to 85°C
A
Min Typ Max Min Max
UnitT
R
R
ΔR
R
I
V
IH
V
IL
PEAK
ON
ON
FLAT
OFF
High level
input voltage
Low level
input voltage
Switch ON
peak
resistance
Switch On
resistance
ON
resistance
match
between
channels
(1)
ON
resistance
flatness
(2)
OFF state
leakage
current
(SN), (D)
1.65 – 1.95
0.65V
––
CC
0.65V
CC
2.3 – 2.5 1.2 – – 1.2 –
2.7 – 3.0 1.3 – – 1.3 –
3.3 – 3.6 1.4 – – 1.4 –
4.3 1.6 – – 1.6 –
1.65 – 1.95 – – 0.25 – –
2.3 – 2.5 – – 0.25 – –
2.7 – 3.0 – – 0.25 – –
3.3 – 3.6 – – 0.30 – –
4.3 – – 0.40 – –
1.8
2.7 – 6.3 8.0 – –
3.0 – 5.8 7.5 – –
= 0 V to V
V
S
IS = 8 mA
CC
– 12.0 16.0 – –
3.7 – 5.0 6.5 – –
4.3 – 4.6 6.0 – –
= 3 V
V
3.0
3.0
S
= 8 mA
I
S
V
S
V I
S
= 0.8
= 8 mA
1.8
2.7 – – – – –
3.0 – 0.3 – – –
3.7 – – – – –
V
at RON max
S
= 8 mA
I
S
–4.05.2– –
–5.06.5– –
–––– –
4.3 – – – – –
1.8
2.7 – 2.0 – – –
3.0 – 1.7 – – –
V
= 0 V to V
S
IS = 8 mA
CC
–6.6– – –
3.7 – 1.5 – – –
4.3 – 1.6 – – –
= 0.3 or 4 V
4.3
V
S
– – ±20 – ±100 nA
–
V
V
Ω
Ω
Ω
Ω
6/17 Doc ID 12686 Rev 6
Page 7
STG3692 Electrical characteristics
Table 6. DC specifications (continued)
Val ue
V
Symbol Parameter
CC
(V)
Input
I
IN
leakage
0 to 4.3
current
Quiescent
I
CC
supply
1.65 to 4.3
current
Quiescent
supply
I
CCLV
current low
4.3
voltage
driving
1. Note 1: ΔRon = max |mSN-nSN|, where m = 1..4 and n = 1..4, N = 1..2
2. Flatness is defined as the difference between the maximum and minimum value of on-resistance as measured over the
specified analog signal ranges.
Test conditions
V
= 0 to 4.3 V
SEL
= VCC or GND
V
SEL
V
1-2SEL,
V
V
V
V
V
3-4SEL
1-2SEL,
3-4SEL
1-2SEL,
3-4SEL
= 1.65 V
= 1.80 V
= 2.60 V
= 25°C -40 to 85°C
A
UnitT
Min Typ Max Min Max
––±0.1–±1µA
––±0.1–±1.0µA
– ±37 ±50 – ±100
–±33±40–±50
µA
–±11±20–±30
Table 7. AC electrical characteristics (CL = 35 pF, RL = 50 Ω, tr = tf ≤ 5ns)
Val u e
Test conditions
V
Symbol Parameter
Propagation
, t
t
PLH
PHL
delay
ON
Tu r n- O N
time
Tu r n- O FF
time
t
t
OFF
Break-
t
before-make
D
time delay
CC
(V)
= 25°C -40 to 85°C
A
Min Typ Max Min Max
1.65 – 1.95 – 0.30 – – –
2.3 – 2.7 – 0.30 – – –
3.0 – 3.3 – 0.25 – – –
3.6 – 4.3 – 0.25 – – –
V
1.65 – 1.95
2.3 – 2.7
3.0 – 3.3 – 15 20 – 26
= 0.8 V
S
VS = 1.5 V
–31–––
–2026 –34
3.6 – 4.3 – 12 15 – 20
= 0.8
1.65 – 1.95
V
S
2.3 – 2.7
V
3.0 – 3.3 – 11 14 – 18
= 1.5 V
S
–22–––
–1418 –23
3.6 – 4.3 – 10 13 – 17
1.65 – 1.95
2.3 – 2.7 1 5 – – –
3.0 – 3.3 1 4 – – –
CL = 35 pF
= 50 Ω
R
L
VS = 1.5 V
17–––
3.6 – 4.3 1 3 – – –
UnitT
ns
ns
ns
ns
Doc ID 12686 Rev 6 7/17
Page 8
Electrical characteristics STG3692
Table 7. AC electrical characteristics (CL = 35 pF, RL = 50 Ω, tr = tf ≤ 5 ns) (continued)
Val u e
Test conditions
V
Symbol Parameter
Charge
Q
injection
Table 8. Analog switch characteristics (CL = 5 pF, RL = 50 Ω, TA = 25 °C)
Symbol Parameter
O
X
OFF isolation
IRR
Crosstalk 1.65 - 4.3
talk
B
-3dB bandwidth 3.0 - 4.3
W
D
Differential gain 3.0 - 4.3
G
D
Differential phase 3.0 - 4.3
P
Control pin input
C
IN
capacitance
(1)
Sn port
C
capacitance when
ON
switch is enabled
Sn port
C
capacitance when
OFF
switch is disabled
1. Off isolation = 20Log10 (VD/VS), VD = output. VS = input to off switch.
CC
(V)
= 25°C -40 to 85°C
A
Min Typ Max Min Max
1.65
= 100 pF
C
2.3 – 3.5 – – –
3.0 – 3.8 – – –
4.3 – 5.0 – – –
V
R
L
GEN
GEN
= 0 V
= 0 Ω
–2.8–––
Test conditions Value
Vcc (V)
T
A
-40 to 85°C
= 25°C
Min Typ Max Min Max
1.65 -4.3
= 1V
V
S
Signal = 0 dBm
V
= 1V
S
Signal = 0 dBm
= 1V
V
S
Signal = 0 dBm
V
= 1V
S
Signal = 0 dBm
RL = 50Ω
Signal = 0 dBm
= 150 Ω
R
L
R
= 150 Ω
L
= 0 V
V
CC
RMS,
RMS,
RMS,
RMS,
f = 1 MHz
f = 10 MHz
f = 1 MHz
f = 10 MHz
–-79 – – –
–-60 – – –
–-78 – – –
–-61 – – –
– 800 – – – MHz
–0.64 – – – %
–0.1– – – deg
–6.2 – – –
3.3 f = 1 MHz – 12 – – –
3.3 f = 1 MHz – 5 – – –
UnitT
pC
Unit
dB
dB
pF
8/17 Doc ID 12686 Rev 6
Page 9
STG3692 Electrical characteristics
Table 9. USB related AC electrical characteristics
Symbol Parameter
t
SK(0)
t
SK(P)
T
J
VCC
(V)
Channel-to-channel skew 3.0 to 3.6
Skew of opposite transition
of the same output
3.0 to 3.6
Total jitter 3.0 to 3.6
Tes t
conditions
C
=10 pF
L
CL=10 pF
R
= 50 Ω,
L
= 10 pF,
C
L
tR = tF = 750 ps
at 480 Mbps
Val ue
T
= 25°C
A
-40 to 85°C
Unit
Min Typ Max Min Max
–26–––ps
–60–––ps
– 130 – – – ps
Doc ID 12686 Rev 6 9/17
Page 10
Test circuits STG3692

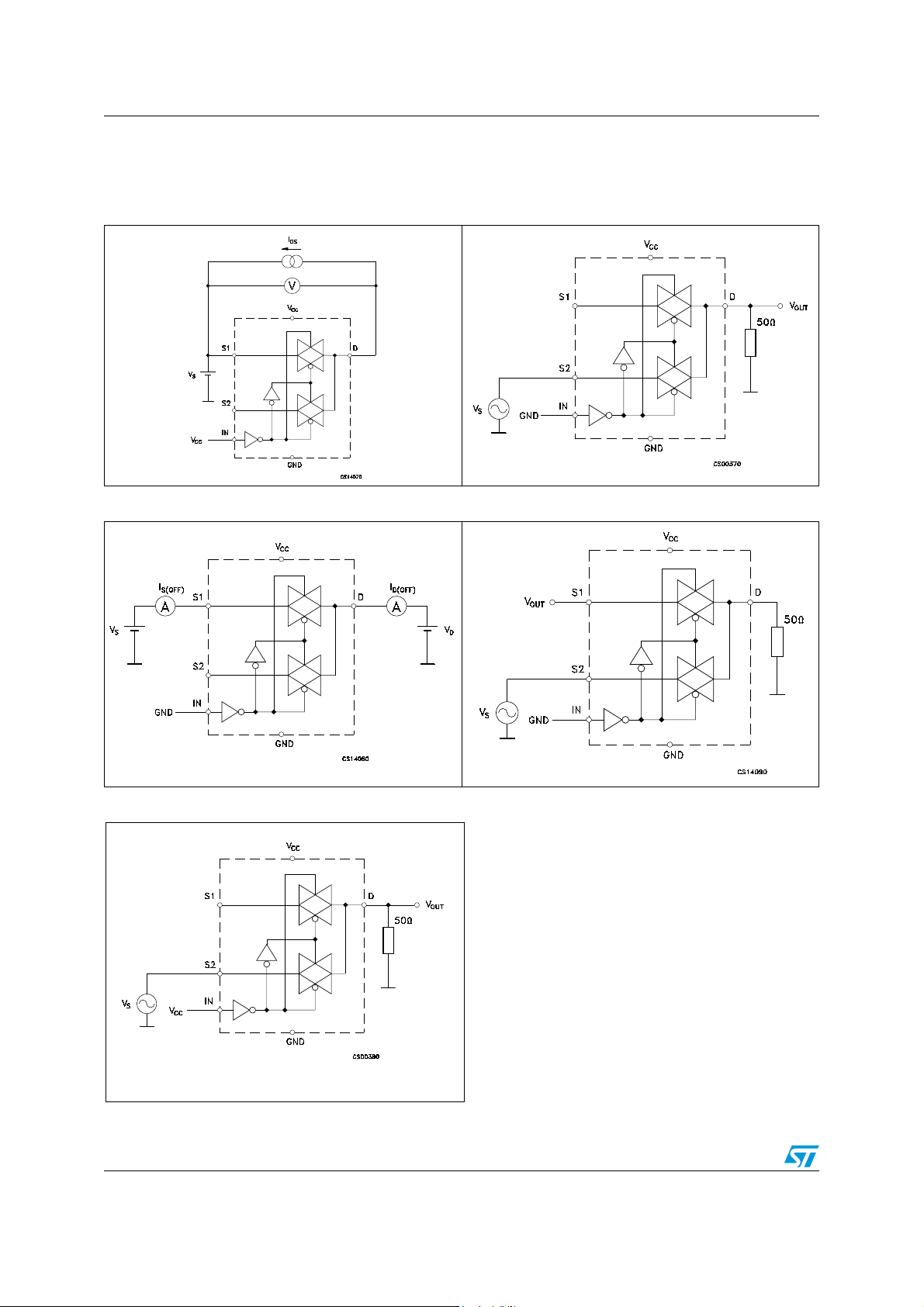

5 Test circuits
Figure 3. ON-resistance Figure 4. Bandwidth
Figure 5. OFF leakage Figure 6. Channel to channel crosstalk
Figure 7. OFF isolation
10/17 Doc ID 12686 Rev 6
Page 11
STG3692 Test circuits

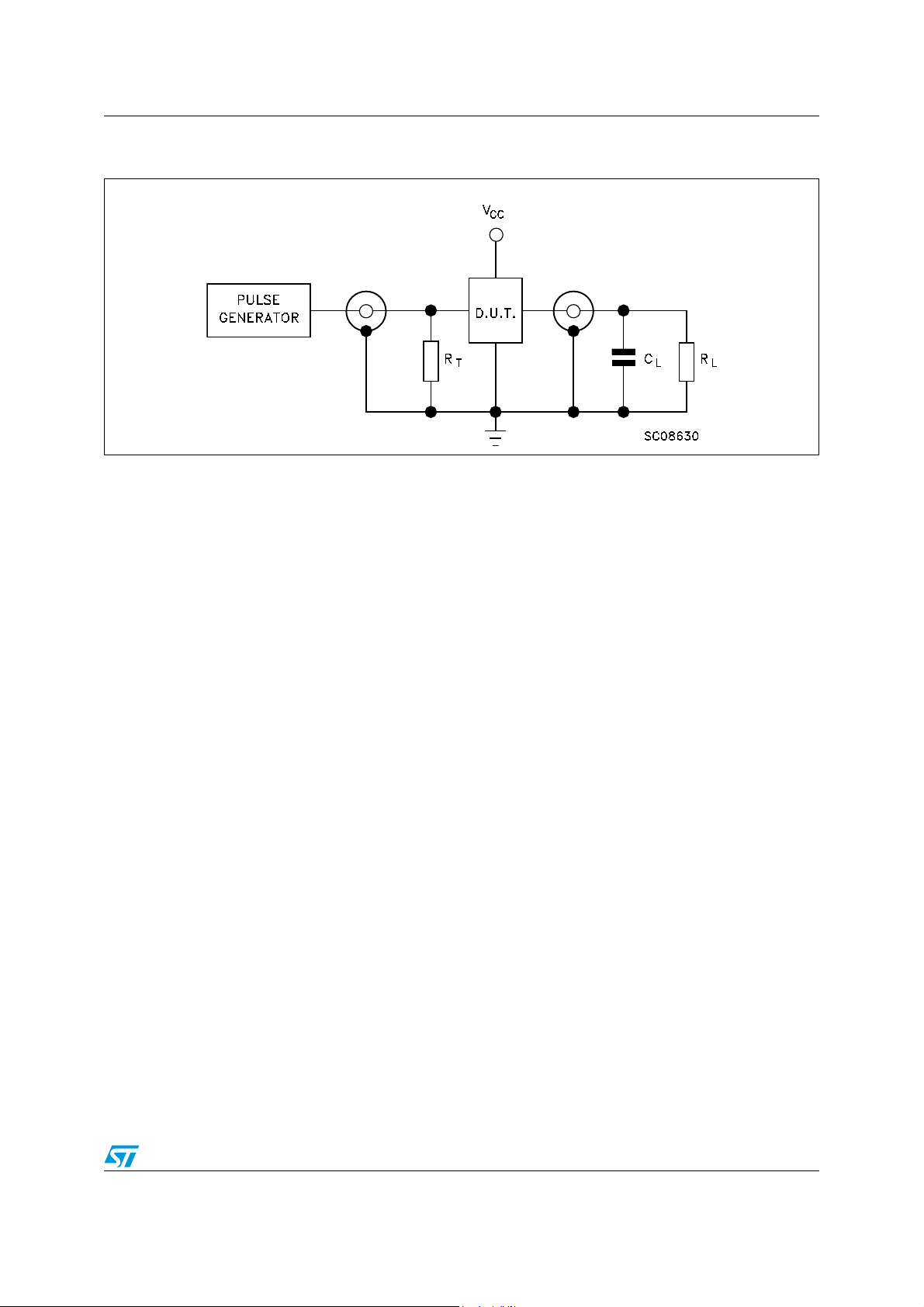

Figure 8. Test circuit
Note: 1 CL = 5/35 pF or equivalent: (includes jig capacitance)
2R
3R
= 50 Ω or equivalent
L
= Z
T
of pulse generator (typically 50 Ω)
OUT
Doc ID 12686 Rev 6 11/17
Page 12
Test circuits STG3692
Figure 9. Break-before-make time delay
Figure 10. Switching time and charge injection
(V
= 0 V, R
GEN
= 0 Ω, RL = 1MΩ, CL = 100 pF)
GEN
Figure 11. Turn ON, turn OFF delay time
12/17 Doc ID 12686 Rev 6
Page 13
STG3692 Package mechanical data
6 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK
Figure 12. Package outline for QFN16L (2.6 x 1.8 mm)
®
packages, depending on their level of environmental compliance. ECOPACK®
®
is an ST trademark.
Doc ID 12686 Rev 6 13/17
Page 14
Package mechanical data STG3692
Table 10. QFN16L (2.6 x 1.8 mm) mechanical data
Symbol
Min Typ Max
A 0.45 0.50 0.55
A1 0 0.02 0.05
A3 0.127
b 0.15 0.20 0.25
D 2.50 2.60 2.70
D2 1.40 1.50 1.60
E 1.70 1.80 1.90
E2 0.60 0.70 0.80
e 0.40
L 0.25 0.30 0.35
Millimeters
Note: 1 VFQFPN - Standard for thermally enhanced vey fine pitch quad flat package no leads.
2 The leads size is comprehensive of the thickness of the leads finishing material.
3 Dimensions do not include mold protusion.
4 Package outline exclusive of metal burrs dimensions.
5 Shipping media tape and reel units: 3000
Figure 13. Footprint recommendation
14/17 Doc ID 12686 Rev 6
Page 15
STG3692 Package mechanical data
Figure 14. QFN16L (2.6 x 1.8 mm) tape & reel
Doc ID 12686 Rev 6 15/17
Page 16
Revision history STG3692
7 Revision history
Table 11. Document revision history
Date Revision Changes
11-Oct-2006 1 Initial release.
08-Nov-2006 2 Added feature in cover page.
08-Jan-2007 3 Mechanical data updated.
03-Jul-2007 4 C
ON
and C
05-May-2010 5 Document reformatted no content change.
30-Jun-2010 6 Update of product maturity.
values updated on Table 8 on page 8.
OFF
16/17 Doc ID 12686 Rev 6
Page 17
STG3692
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 12686 Rev 6 17/17
Loading...
