FULL-FACE HELMET
V161
Instruction Manual
1
1. Upper ventilation
2. Inside padding
3. Chin straps with snap fastener
4. Chin ventilation
5. Chin-wind deflector
5
2
3
4
9
8
5
6
7
8
9
2
6. Visor
7. Sun Shield
8. Acoustic damping
9. Cheek pads
10. Sun shade slider
11. Visor mechanism
12. Air exhaust
13. Winter Collar
9
8
3 4 13
FULL-FACE HELMET V161
We hereby congratulate you on the purchase of this motorcycle helmet. Please read the following instructions and information carefully before using your new helmet and keep these
operating instructions in a safe place for later reference!
helmet. Only use water and pH balanced soap. The padding can be cleaned using soap
and a small brush. The visor should be cleaned with soap and water only, leave it to air-dry.
Do not expose the visor to any source of heat!
- Only use genuine spare parts for your helmet.
Important information
Our helmets are manufactured in accordance with the latest technology and are specifically
designed for motorcycling. Whether the owner deems them to be suitable for any other use,
is up to him. Wearing a helmet does not exclude the possibility of injury should an accident
occur.
To guarantee adequate protection this helmet must be well fitting and securely fastened. Every
helmet that is exposed to a hard blow must be replaced.
We guarantee that this item is free of production and material defects. The guarantee does
not apply to normal wear and tear and or in case of improper use.
Scope of Delivery
The scope of delivery for your helmet consists of the following:
- Additional pair of cheek pads for individual size adjustment
- Replacement visor
- Acoustic damping
- Winter Collar
Instructions for use
Safety advice
- The helmet features a tilting sun shield that may only be used in combination with the visor.
- The retention system must always be carefully set and locked.
- Never wear scarves or other headgear underneath the retention system.
- Always ensure that there is no airflow restriction inside the helmet.
- Ensure that your visor is clean and scratch-free at all times. Never use smoked visors at night
or when visibility is poor. Exchange damaged visors for a genuine replacement immediately.
Your safety is at risk.
You are able to obtain replacement visors from the stipulated service address for a period of
5 years from the purchase date. Visor type: V160
- Never make any changes to any part of your helmet. Do not make any alterations to the
outer shell, do not insert screws.
- The helmet may not be painted or have stickers or labels.
- The helmet is designed to absorb the energy of a blow or a collision by destroying some
of its components. In case of a further blow it wouldn’t protect you any longer. After an accident, the helmet must be replaced even though it doesn’t show external damages.
- Refrain from transporting your helmet by hanging it onto any part of your motorcycle. Keep
it away from exhaust pipes and other sources of heat.
- Never use solvents, petrol or other detergents when cleaning the shell and interior of your
Product Characteristics
ECE-R 22 Homologation
This helmet is in compliance with ECE-R 22.05 standards and is homologised
accordingly. The ECE-R 22.05 standard consists of uniform conditions for the
approval of protective helmets and its visors for drivers and passengers of motorcycles and mopeds. The basic principles for these tests are the so called ECERegulations of the Economic Commission for Europe.
Significant Tests of the ECE-Regulation 22.05
- Shock absorbance
- Dynamic test of wear features
- Field of vision test
- Design strength
- Sustainability test (Strip-off test)
- Chin straps and lock test
- Shear test for outside edges
- Friction performance test of the outer shell
- Visor test (mechanical and visual characteristics)
- Chin bar, chin part damping test
Toxproof
The Toxproof-sign of the Technical Inspection Authority (TÜV) Rhineland identifies products that have been tested for toxic substances
where no health hazards can be expected according to the perception of today.
Inside Padding with Coolmax Inserts
Coolmax® by INVISTA is a high-performance fabric fibre that supports
its wearers during sport activities. Based on the patented DuPont-fibre
technology, Coolmax® transports moisture from the body to the fabric
surface where it dries quicker than with any other fabric.
The specially developed fibres of INVISTA that are used for Coolmax®-fabrics transport the
moisture away from the body to the surface of the fabric where it has the opportunity to evaporate quickly. At the same time the uniquely formed fibres offer maximum breathing activity,
even in wet conditions. In addition the breathing activity improves the heat regulating effect.
5 6
Pure by HeiQ®
The inside padding is made with newly developed Pure Technology.
Pure is an anti-bacterial odour inhibitor featuring silver microcomposite particles
for sports and recreational garments developed and manufactured by the Swiss
High-Tech company HeiQ®.
The micro fibres of the helmet lining are made with an innovative, anti-bacterial
effective silver-technology. The anti-bacterial effect of silver has already been
well-established for centuries. HeiQ® has further fortified these characteristics to
effectively and permanently prevent an odour formation.
A n t i F o g
The visor and the sun shade feature an anti-fog coating.
The anti-fog coating is the result of a special surface treatment that is used for
motorcycle visors among other things. This special coating prevents that the visor
fogs up quickly with breathable air. For these products this increases user safety.
Anti Scratch
To reduce the risk of scratching, the built-in visor and the replacement visor
feature a special coating. This coating prevents rapid scratching of the external
part of the visor.
Removable Inner Lining
The inner lining can be completely removed and
cleaned separately (see care instructions).

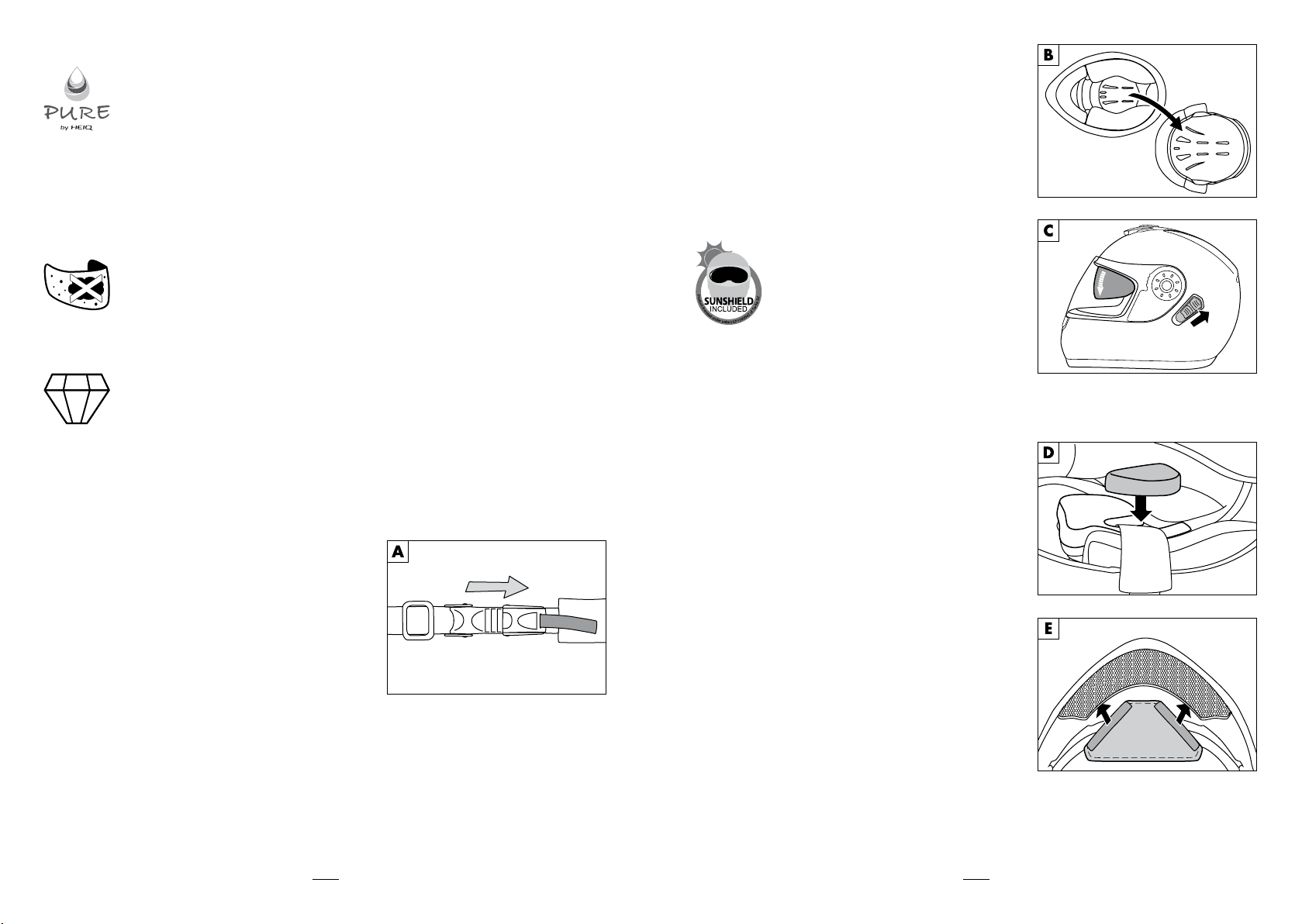

To remove the inner lining, firstly remove the helmet
collar and the cheek pads. Then undo the back pressstuds of the inner lining and pull the clips of the inner
lining from the front side of the helmet ( see Fig. B ).
Sun Shield
The integrated sun shield will enable you to quickly
and easily react to changed light conditions with the aid of the patent mechanism.
Using the slider ( 10 ) you can slide the
sun shield down ( see Fig. C ).
Note:
- Please take care that the edge of the sun shield does
not block your field of vision.
- The sun shield may only be used in combination
with the visor.
Spectacle Wearers
The helmet is also suitable for spectacle wearers.
The wearing comfort for spectacle wearers improves with the passage formation in the
padding (spectacle wearer passage).
Snap-Fastener System
The snap-fastener enables an individual and quick
vernier adjustment of the chin strap.
Press the snap-fastener together until the helmet is
sitting comfortably but firm ( see Fig. A ).
7 8
Acoustic Damping
The acoustic damping is for noise reduction, in particular when driving at high speeds.
Press the acoustic damping into the cavity of the
cheek pads ( see Fig. D ). The smooth, darker side of
the pad always points to the inside of the helmet.
Chin-Wind Deflector
The chin-wind deflector is attached to the helmet padding with a Velcro-strip.
This can be removed and re-attached as required
( see Fig. E ).
Cheek Pads
You will receive two different pairs of cheek pads for
individual size adjustment.
The thinner cheek-pads are already pre-mounted as
standard. The thicker cheek pad is enclosed with the
helmet separately.
If the helmet is too loose and therefore is not sitting
firmly on your head, you can replace the thin cheek
pad with the thicker ones.
The cheek pads are affixed via three press-studs
respectively in the helmet. You can easily remove the
pads ( see Fig. F ). The thicker cheek pads can now
also be affixed in the helmet with three press-studs.
You need to be able to hear that each press-stud
locks-in.
Winter Collar
To reduce the wind intake at the bottom side of the
helmet during extremely cold temperatures, the premounted helmet-collar can be replaced by the broad
winter collar which is included.
Removal of Helmet Collar
The three-piece collar is affixed to the helmet with a
strong Velcro-strip. Remove the three collar parts by
pulling them off ( see Fig. G ).
Inserting the Winter Collar
First attach the plastic clip in the centre at the back
part of the helmet in the groove between the outer
shell and the padding.
Once the plastic clip is completed locked-in, press the
complete winter collar again firmly onto the padding
of the helmet.
Visor Replacement
If the pre-mounted visor is damaged or severely
scratched, you can exchange it with the replacement
visor.
Removal of the Visor
- Slide the visor to the uppermost position ( fully
opened ).
- Press down on the visor securing button on both
sides of the helmet and slide the visor down out of
the visor holding device ( see Fig. H ).
Inserting the Visor
- Place the visor onto the visor fixture whilst making
certain that you maintain the correct positioning
( fully opened ).
- Slide the visor up on both sides of the helmet onto
the visor holding device until it is completely fixed.
Maintenance and Care
Regular maintenance and care contributes to safety and maintaining the helmet.
Cleaning of the Helmet
- Never use solvents, petrol or other detergents when cleaning the shell and interior of your
helmet.
- Only use water and pH balanced soap.
Visor care and cleaning
- After using the helmet, with a soft cloth, lightly wipe off any grime (e.g. dead insects, dirt,
sand, dust etc.) from the visor and then fully wipe it clean using a dry soft cloth.
- When the visor gets wet (e.g. rainwater) it should always be wiped with a soft cloth.
- When cleaning the visor, never use any petroleum-based solvents or detergents containing
abrasives.
Cleaning of the Cheek Pads, Acoustic Pads and Inside Pads
- Hand wash below 30° C.
- Allow to dry at room temperature.
- Avoid sources of heat.
- When not in use, store in a dry, well ventilated place.
9 10
Storage
When not in use, store the helmet in a dry and well ventilated place at room temperature.
Avoid sources of heat.
Disposal instructions
Dispose of the product and all its components through a licensed disposal company or your
municipal disposal facilities. Please observe the current regulations. If in doubt, consult your
disposal facility about an environmentally friendly disposal.
Selecting the correct helmet size
- Choose your helmet by measuring the circumference of your head with a flexible tape measure. Always try on a couple of different sizes before buying a close fitting helmet. When
wearing the helmet, the skin of your temples should ideally move with it.
- Make sure that the helmet does not move around when the retention system is open.
- The retention system must be set securely. The chinstrap must sit comfortably under the chin
as far back towards the neck as possible. Fasten it as tight as possible. The right degree of
tension is reached once you find it difficult to insert your finger between the chinstrap and
neck, yet finding it easy to breath and swallow. Make sure that the helmet sits securely once
the retention system is on. Make sure that the helmet does not restrict your movements, e.g.
when turning your head to look behind you.
- Make sure the helmet carries a sticker certifying homologation.
Size table
Size Head circumference
S 55 – 56 cm
M 57 – 58 cm
L 59 – 60 cm
XL 61 cm
11 12
