CREATOR CROSS User Manual

CROSS

CROSS

Series

Series

Mixed

Mixed

Matrix

Matrix

Switcher

Switcher

User

User

's

's

Manual

Manual

V1.0 Version

CREATOR CORPORATION CHINA

CREATOR CORPORATION(CHINA)

The meaning of symbols

This is A level product, which may cause radio
interference in the living environment. In this
case, users may need to take the feasible
measures to get around the interference.

CE certification means that the product has
reached the directive safety requirements
defined by the European Union. Users can be
assured about the use of it

Warning: in order to avoid electrical shock, do
not open the machine cover, nor is the useless
part allowed to be placed in the box. Please
contact the qualified service personnel.

■Safety instructions
For your safe and correct use of equipments, we use a lot of symbols on the equipments and in the
manuals, demonstrating the risk of body hurt or possible damage to property for the user or others.
Indications and their meanings are as follow. Please make sure to correctly understand these
instructions before reading the manual.

Remind users that the dangerous voltage
without insulation occurring within the
equipment may cause people suffer from shock

SGS certification means that the product has
reached the quality inspection standards
proposed by the world's largest SGS.
This product passed the ISO9001 international
quality certification (certification body: TUV
Rheinland, Germany).

■General information instructions

It lists the factors leading to the unsuccessful
operation or set and the relevant information to
pay attention to.

Important note

Warning

In order to ensure the reliable performance of the
equipment and the safety of the user, please
observe the following matters during the process
of installation, use and maintenance:

The matters needing attention of installation

◆Please do not use this product in the following
places: the place of dust, soot and electric
conductivity dust, corrosive gas, combustible gas;
the place exposed to high temperature,
condensation, wind and rain; the occasion of
vibration and impact . Electric shock, fire, wrong
operation can lead to damage and deterioration
to the product, either;

◆In processing the screw holes and wiring,
make sure that metal scraps and wire head will
not fall into the shaft of controller, as it could
cause a fire, fault, or incorrect operation;

◆When the installation work is over, it should be
assured there is nothing on the ventilated face,
including packaging items like dust paper.
Otherwise this may cause a fire, fault, incorrect
operation for the cooling is not free;

◆Should avoid wiring and inserting cable plug in
charged state, otherwise it is easy to cause the
shock, or electrical damage;

◆The installation and wiring should be strong
and reliable, contact undesirable may lead to
false action;

◆For a serious interference in applications,
should choose shield cable as the high frequency
signal input or output cable, so as to improve the
anti-jamming ability of the system.

Attention in the wiring

◆Only after cutting down all external power
source, can install, wiring operation begin, or it
may cause electric shock or equipment damage;

◆This product grounds by the grounding
wires .To avoid electric shocks, grounding wires
and the earth must be linked together. Before the
connection of input or output terminal, please
make sure this product is correctly grounded;

◆Immediately remove all other things after the
wiring installation. Please cover the terminals of
the products cover before electrification so as to
avoid cause electric shock.

Matters needing attention during operation

and maintenance

◆Please do not touch terminals in a current
state, or it may cause a shock, incorrect
operation;

◆Please do cleaning and terminal tighten work
after turning off the power supply. These
operations can lead to electric shock in a current
state;

◆Please do the connection or dismantle work of
the communication signal cable , the expansion
module cable or control unit cable after turning
off the power supply, or it may cause damage to
the equipment, incorrect operation;

◆Please do not dismantle the equipment, avoid
damaging the internal electrical component;

◆Should be sure to read the manual, fully
confirm the safety, only after that can do program
changes, commissioning, start and stop
operation.

Matters needing attention in discarding

product

◆Electrolytic explosion: the burning of
electrolytic capacitor on circuit boards may lead
to explosion;

◆Please collect and process according to the
classification, do not put into life garbage;

◆Please process it as industrial waste, or
according to the local environmental protection
regulations.

Preface

CROSS series mixed matrix switcher User 's Manual mainly introduces the operation methods of

CROSS-MAX0808,CROSS-MAX1616,CROSS-MAX3232,their main performance parameters and

common fault solutions.

This manual is only used as user instruction, not for a repair service usage. The functions or related
parameters may be changed since the date of issue, please inquire the supplemental information from
CREATOR Electronics or local distributors.

The copyright of this manual belongs to CREATOR Electronics. Without permission, no unit or
individual shall adopt part or all of its content for commercial use.

The manual is protected by of the Copyright Law of the Peoples Republic of China and other
regulations about intellectual property rights. Without written permission shall not be copied or
distributed.

Catalog

Chapter 1 Summary................................................................................................................................................ 1

1.1 Equipment............................................................................................................................................... 1

1.2 Features Characteristics....................................................................................................................... 1

1.3 Specifications..........................................................................................................................................2

1.4 Controller Installation.............................................................................................................................3

1.5 System Connection Diagram............................................................................................................... 4

Chapter 2 Hardware Description...........................................................................................................................5

2.1 CROSS-MAX0808 Panel View............................................................................................................ 5

2.2 CROSS-MAX1616 Panel View............................................................................................................ 6

2.3 CROSS-MAX3232 Panel View............................................................................................................ 7

2.4 Matrix’s Connection with Peripherals................................................................................................. 9

2.4.1 Input Interface Description........................................................................................................ 9

2.4.2 Output Interface Description.....................................................................................................9

2.4.3 Communication Port and Its Connection Method................................................................. 9

2.4.4 Control Interface of Matrix RS-232.......................................................................................... 9

2.4.5 The Connection between Matrix and Control Computer..................................................... 9

2.4.6 Matrix KEYBOARD Interface....................................................................................................9

2.4.7 The Connection between Matrix and Extended Keyboard................................................10

2.4.8 Matrix Network Interface......................................................................................................... 10

2.4.9 The Connection Between Matrix and Computer Signal Input and Output Devices...... 11

2.4.10 DB15 Male Socket Transfer Line (S terminal, RCA head).............................................. 12

2.4.11 PB-900 Power Supply Box................................................................................................... 12

Chapter 3 Control Panel Operating Instructions...................................................................................... 14

3.1 Matrix Panel Description.....................................................................................................................14

3.2 Controller Panel Buttons Instructions...............................................................................................18

3.2.1 Switching Operation Example................................................................................................ 18

3.2.2 Save and Call Operation Example........................................................................................ 19

3.3 “Matrix Net Tool” Software Description.............................................................................................19

3.3.1 Software Running Environment............................................................................................. 19

3.3.2 Software Startup....................................................................................................................... 20

3.3.3 Open Program...........................................................................................................................20

3.3.4 The Main Interface................................................................................................................... 20

3.4 Remote Control Description...............................................................................................................20

3.4.1 Functionality.............................................................................................................................. 20

3.4.2 System components................................................................................................................ 20

3.4.3 Connection Diagram................................................................................................................ 21

3.4.4 Instructions................................................................................................................................ 21

Chapter 4 Input, Output Card Instructions........................................................................................................ 23

4.1 Card Type.............................................................................................................................................. 23

4.2 Input Card..............................................................................................................................................23

4.2.1 Xin-HDMI8 Input Card Function Characteristics.................................................................23

4.2.2 Xin-DVI8 Input Card Function Characteristics.................................................................... 23

4.2.3 Xin-CAT8 Input Card Function Characteristics................................................................... 24

4.2.4 Xin-COMP8 Input Card Function Characteristics............................................................... 24

4.2.5 Xin-SF8 Input Card Function Characteristics......................................................................24

4.3 Output Card.......................................................................................................................................... 24

4.3.1 Xout-HDMI8 Output Card Function Characteristics........................................................... 24

4.3.2 Xout-DVI8 Output Card Function Characteristics...............................................................24

4.3.3 Xout-CAT8 Output Card Function Characteristics..............................................................24

4.3.4 Xout-SF8 Output Card Function Characteristics................................................................ 24

4.4 Optional Accessories...........................................................................................................................24

4.4.1 FAN ASSEMBLY Function Characteristics.......................................................................... 24

4.4.2 BC-100 Blank Card Function Characteristics......................................................................24

4.4.3 PB-900 Power Supply Box Function Characteristics.........................................................25

4.5 Specifications........................................................................................................................................25

Chapter 5 Instruction sets.................................................................................................................................... 31

CROSS Series Mixed Matrix Switcher User 's Manual

1

Chapter 1 Summary

CROSS series mixed matrix switcher is a matrix
signal switcher with flexible configuration. With
high-performance hardware design, it perfectly
supports a variety of high-definition digital /
analog signal switching process, and supports
bi-directional RS-232, bidirectional IR signal
distribution switching function. By providing
one-stop solution to all sectors of video and
control signal distribution switch processing, it
can be widely used in radio and TV broadcasts,
multimedia conference room, large screen display
engineering, television education, command and
control centers and other places.
CROSS series mixed matrix switcher provides
local direct input of HDMI, DVI, VGA, CVBS,
S-Video, YPbPr signals, as well as HDMI, DVI
signals’ direct output. In addition, it provides the
twisted pair (HDBaseT) input-output card, which
with the twisted pair can prolong the transmission
distance of input and output signals of the
CAT5e/6 twisted-pair cable to 100M.And it
provides fiber input-output card, which with the
optical transmitter can extend the input and
output distance to 300M by a single core signal
transmission multimode fiber. Digital signal
processing technology can ensure the signal
without distortion, the best quality image is sent to
the display terminal.
By custom configuration, the same or different
types of input /output cards can be consist of a
single interface type or multi-interface type matrix,
such as fiber matrix, HDMI matrix, DVI matrix,
CAT5 matrix, VGA matrix, YUV matrix, S-Video
matrix, Video matrix and so on.
CROSS series mixed matrix switcher has a
variety of control modes, supports crystal keys
panel operation and RS-485 extended keyboard
operation. It provides two standard RS-232
communication interfaces and network ports as
well to facilitate the user’s conjunction operation

with a variety of remote control devices (such as
Crestron ,AMX, CREATOR, etc.).

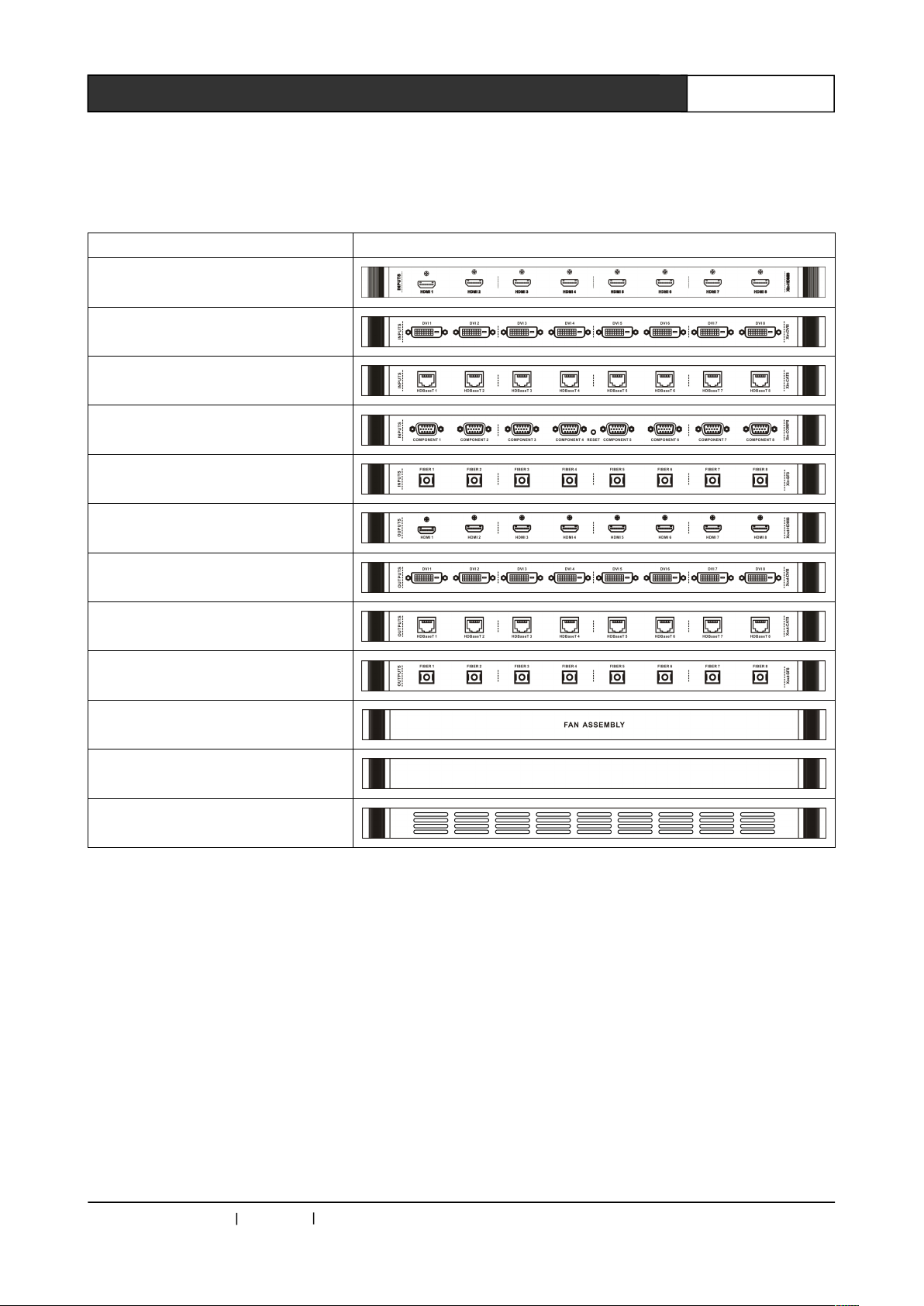

1.1 Equipment

CROSS-MAX0808
CROSS-MAX1616
CROSS-MAX3232
The mixing matrix can be composed of any of the
following output cards.
Input card:
Xin-HDMI8 input card (HDMI input)
Xin-DVI8 input card (DVI input)
Xin-CAT8 input card (HDBaseT signal input)
Xin-COMP8 input card (support for CV, SV,
YPbPr, VGA signal input)
Xin-SF8 input card (FIBER signal input)
Output card:
Xout-HDMI8 output card (HDMI output)
Xout-DVI8 output card (DVI output)
Xout-CAT8 output card (HDBaseT signal output)
Xout-SF8 output card (FIBER signal output)
Optional accessories:
FAN ASSEMBLY card (auxiliary fan card)
BC-100 blank card (shield)
PB-900 power supply box (redundant power
supply box)
Cooling card (inhale air)

1.2 Features Characteristics



Full digital switching;



Support switching function of any positive

fast channel signal and embedded control
signal



Support positive fast channel and the

embedded control signal separation switching
mode;



Supports bidirectional RS-232 and

bidirectional IR signal switching function of
HD embedded signal;

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

2

CROSS Series Mixed Matrix Switcher User 's Manual



The positive fast channel signal support fast

channel support DVI 1.0 protocol, 3D
protocol of HDMI 1.4, HDCP 1.3 protocol;

◆ Flexible control mode, key panel operation,

RS-485 extended keyboard operation, also offers
2 standard RS-232 communication interface and
network port, convenient for users to work with a
variety of remote control equipment;

◆ Plug-in card design, flexible for configuration

with different input and output signal type and
signal channel number.

1.3 Specifications

Parameters

Equipment Model 8 series 16 series 32 series

Chassis height 3U 5U 10U

Input slot 1 2 4

Effective number of slots

Input (maximum signal road

number)

Output (maximum signal road
number)

Fan assembly card FAN ASSEMBLY 1 1 2

Output slot 1 2 4

Xin-HDMI8 8 16 32
Xin-DVI8 8 16 32
Xin-CAT8 8 16 32
Xin-COMP8 8 16 32
Xin-SF8 8 16 32
Xout-HDMI8 8 16 32
Xout-DVI8 8 16 32
Xout-CAT8 8 16 32
Xout-SF8 8 16 32

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

3

CROSS Series Mixed Matrix Switcher User 's Manual

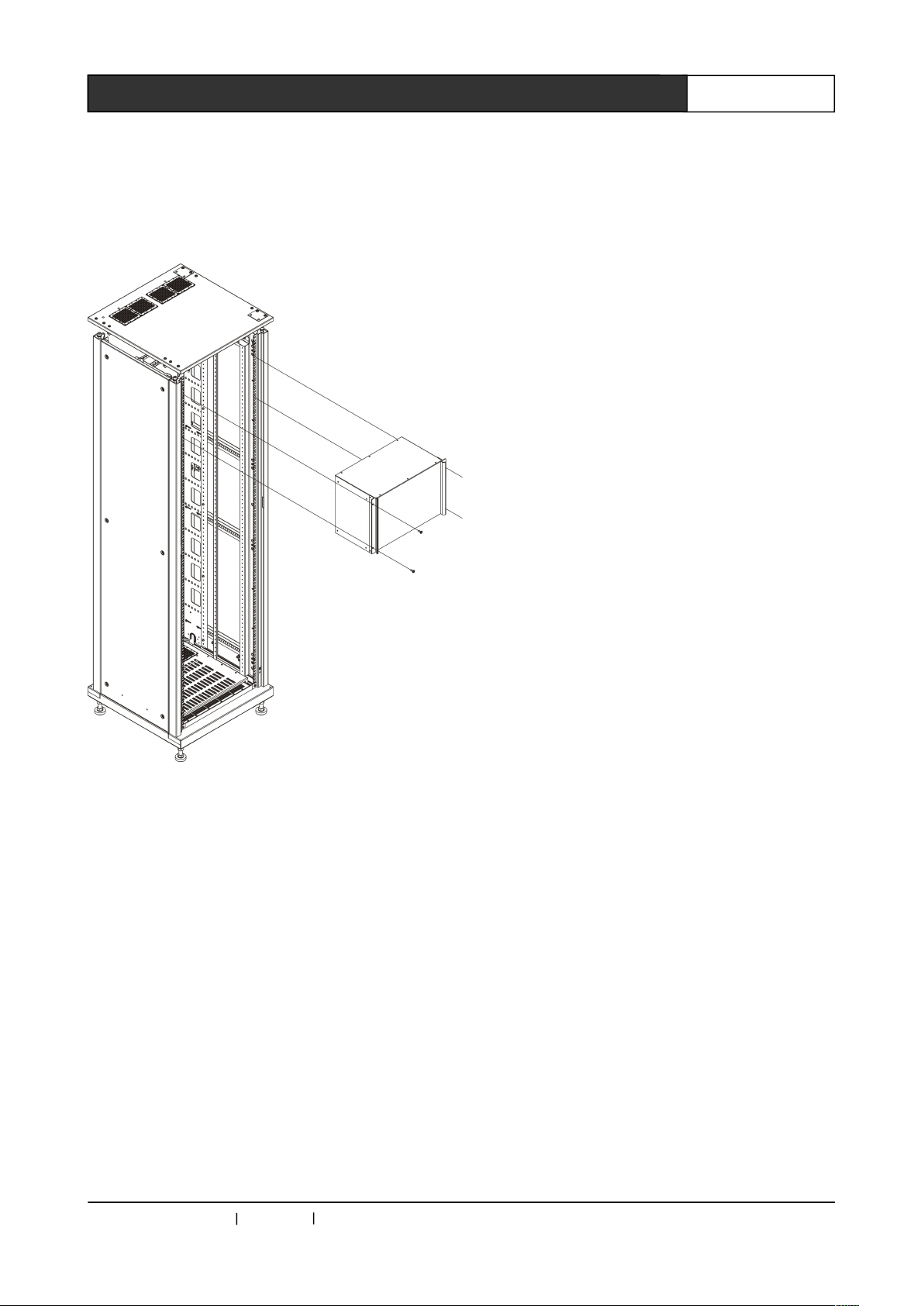

1.4 Controller Installation

The matrix controller uses all metal box ,it can be
mounted on a standard19inch cabinet, steps are
as follows:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

4

CROSS Series Mixed Matrix Switcher User 's Manual

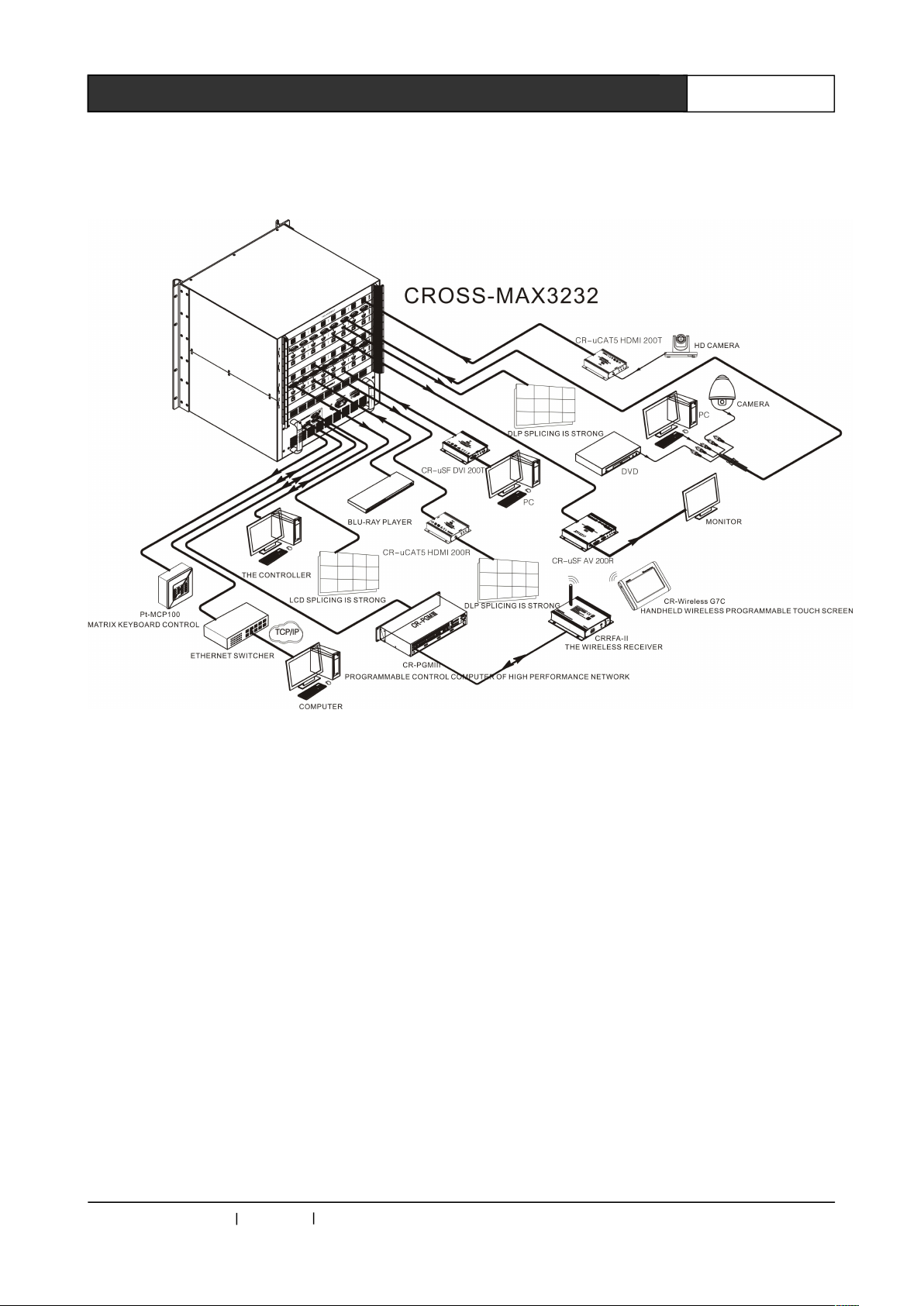

1.5 System Connection Diagram

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

5

CROSS Series Mixed Matrix Switcher User 's Manual

Chapter 2 Hardware Description

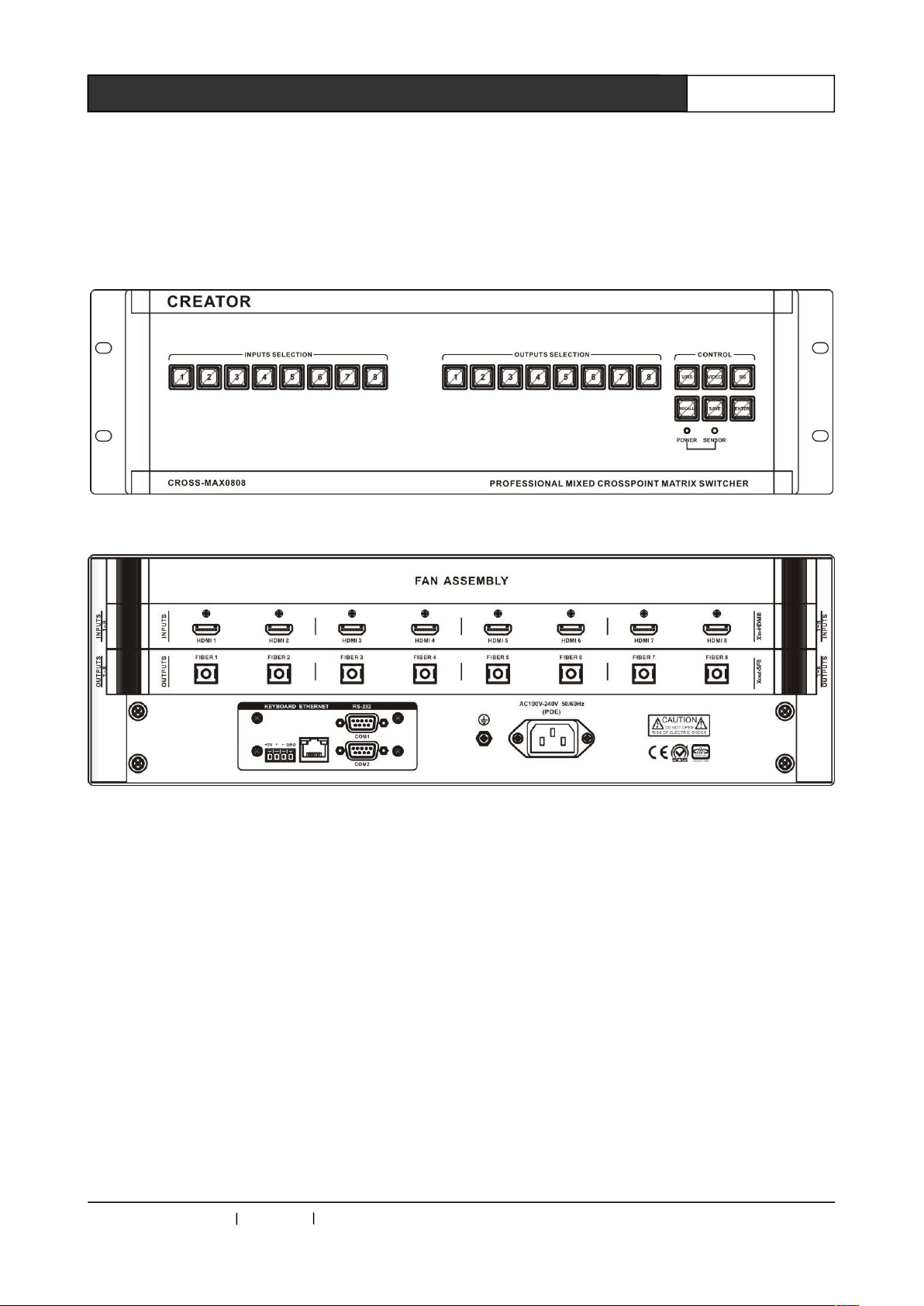

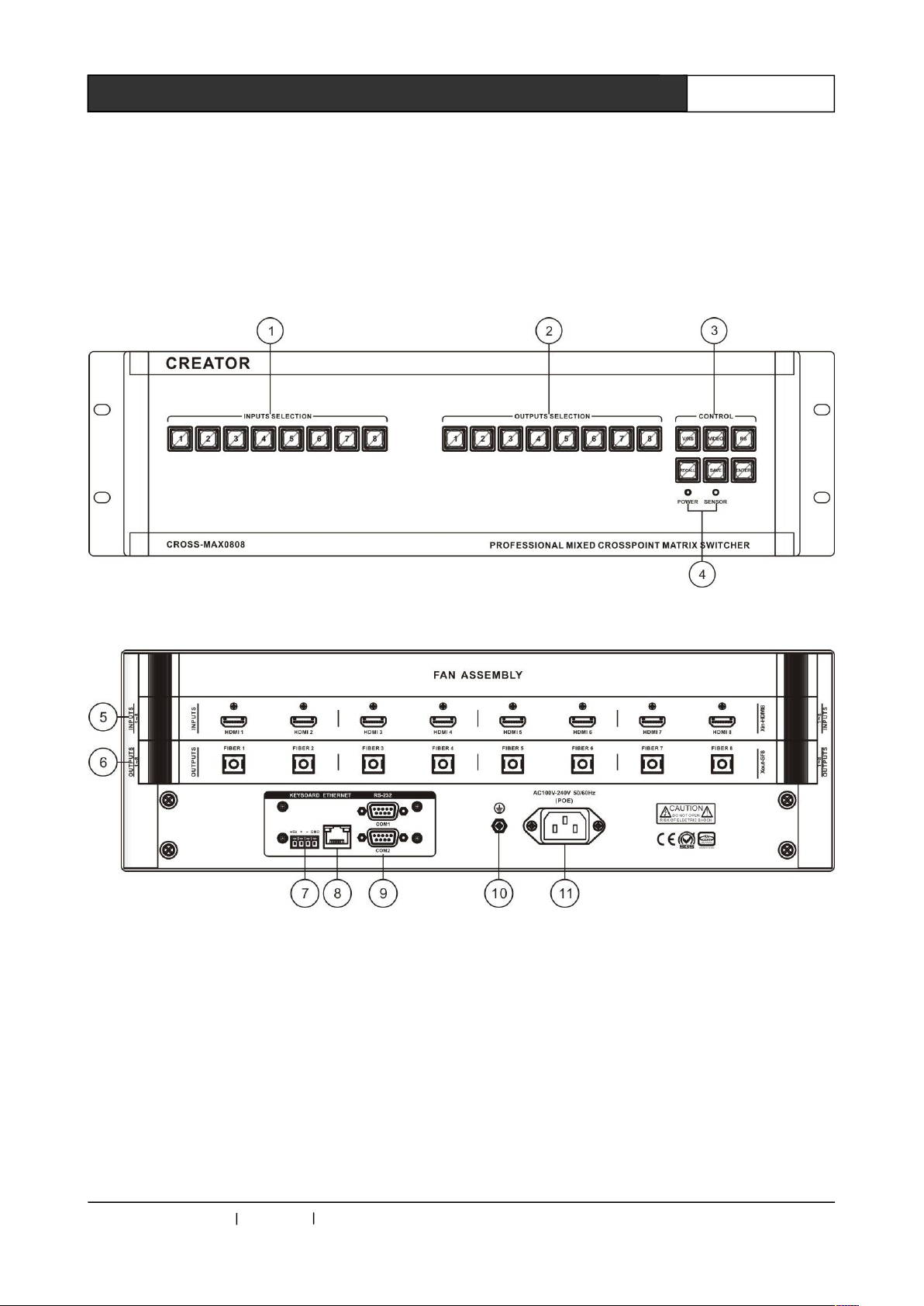

2.1 CROSS-MAX0808 Panel View

front panel:

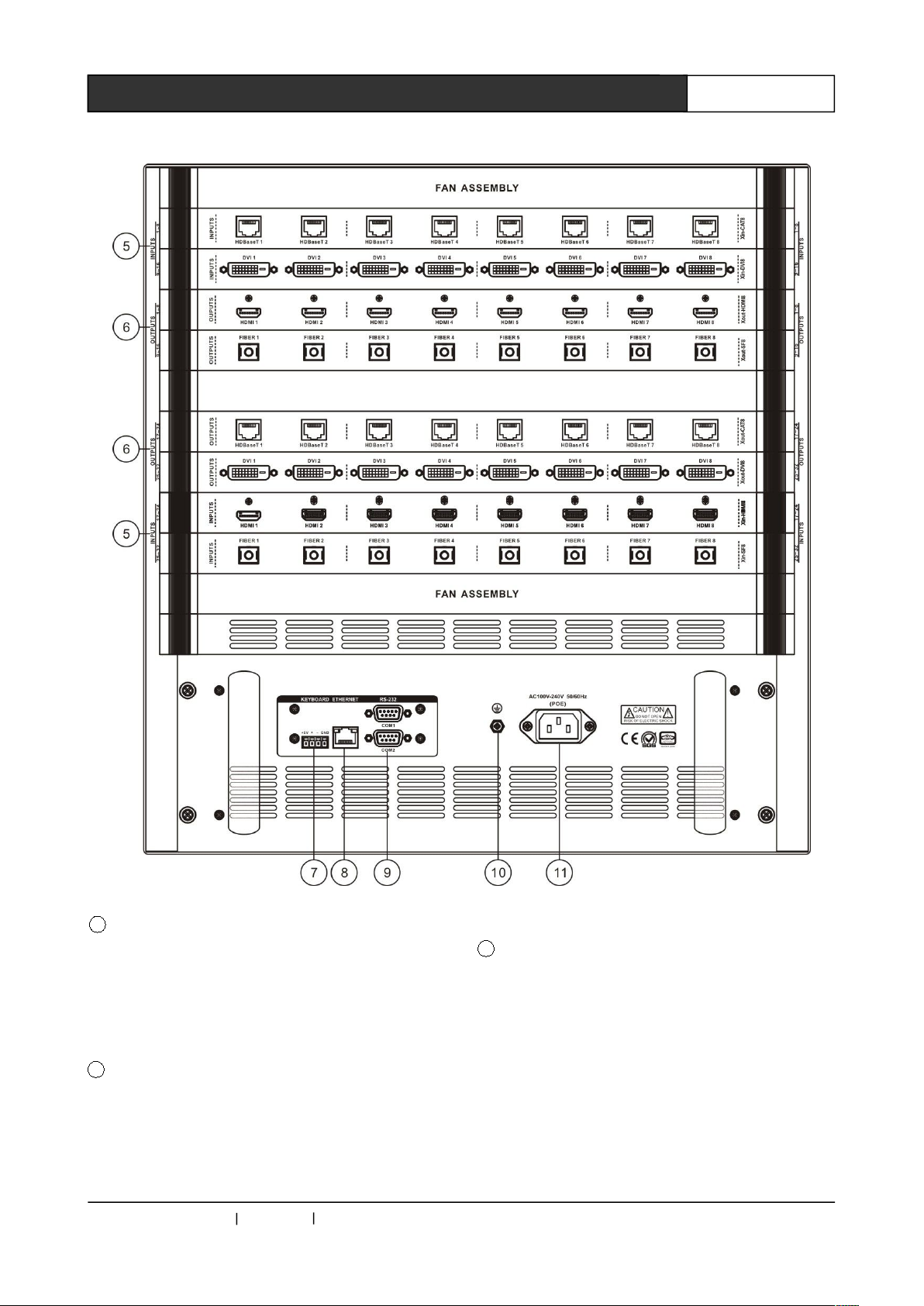

rear panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

6

CROSS Series Mixed Matrix Switcher User 's Manual

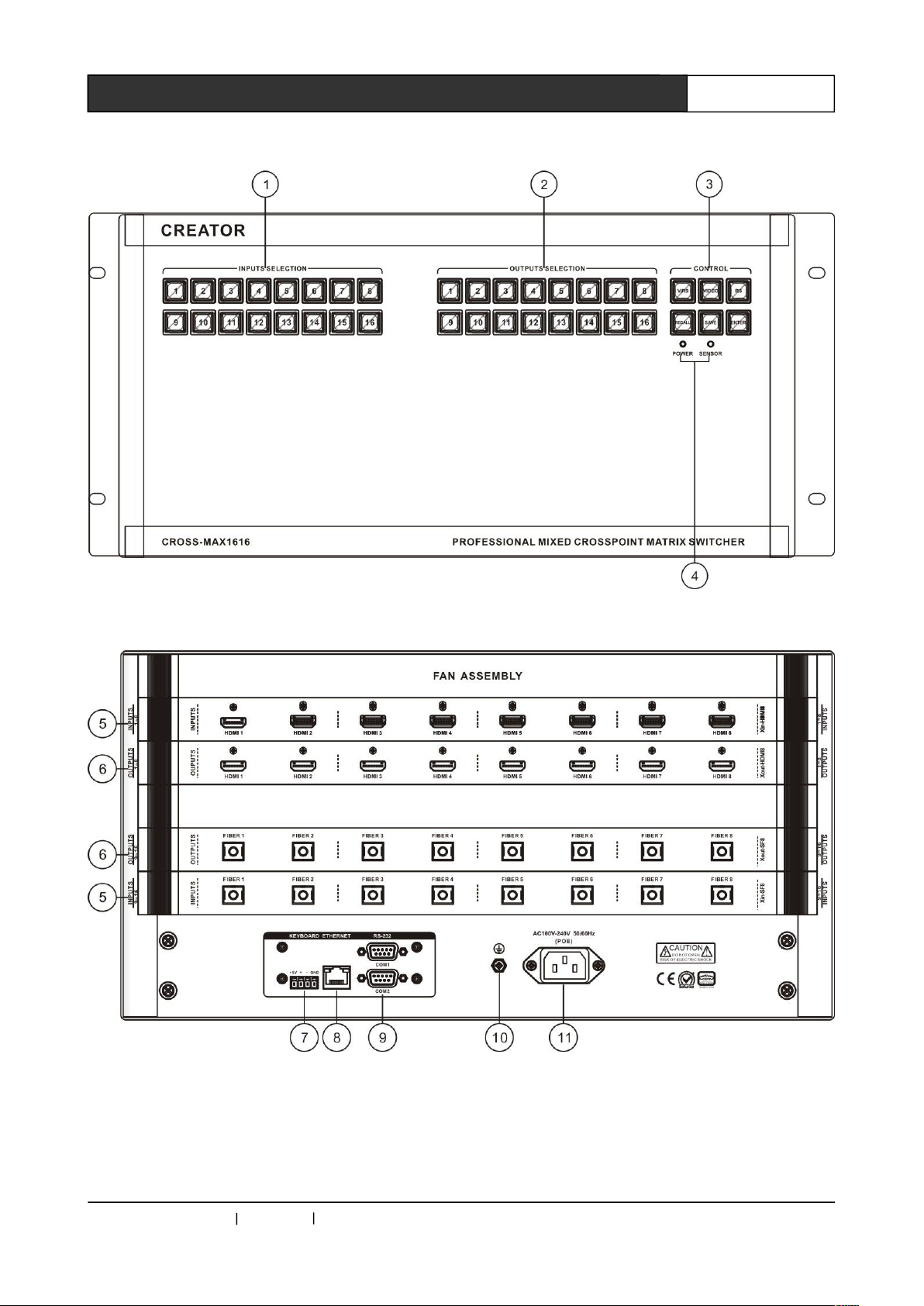

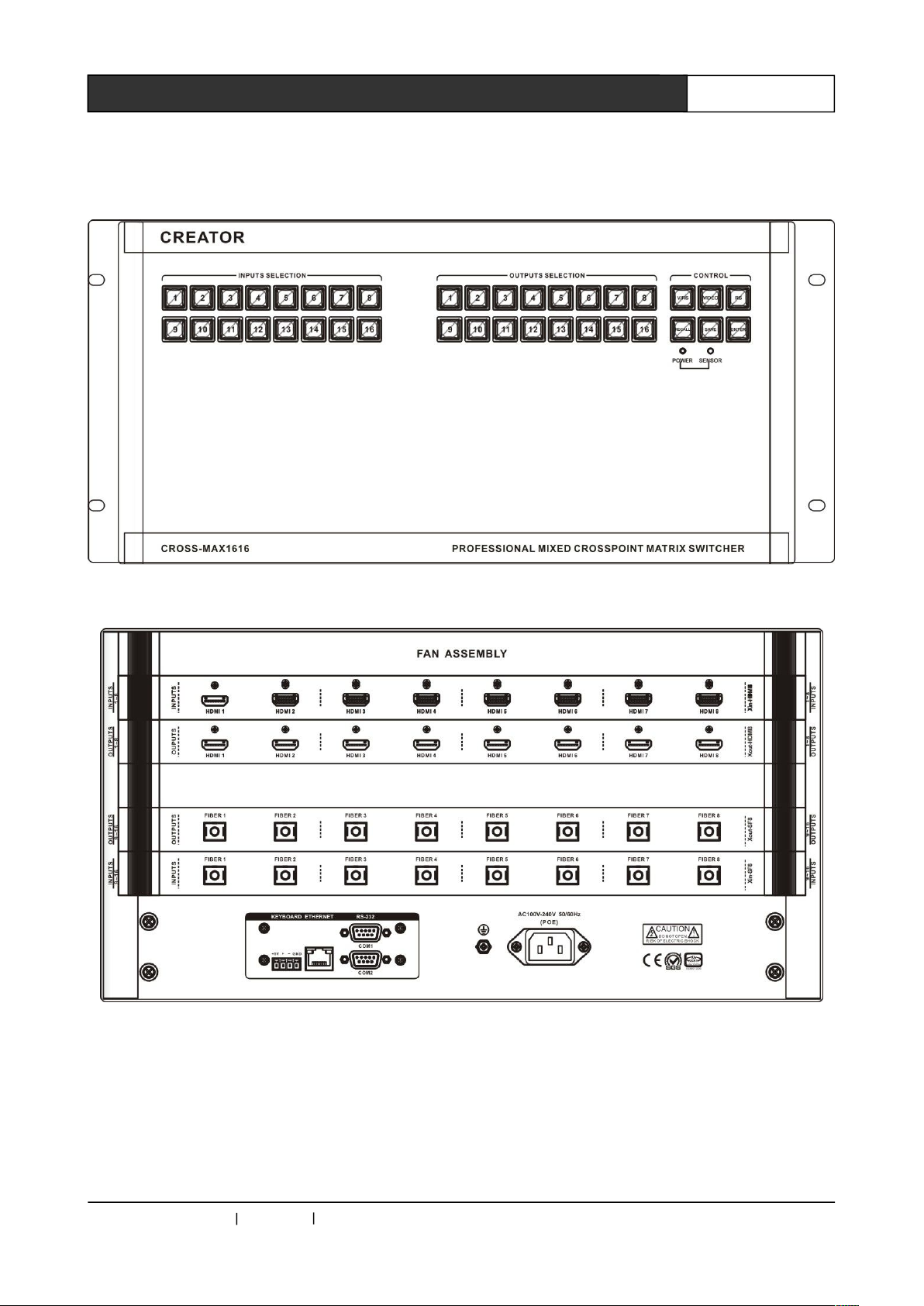

2.2 CROSS-MAX1616 Panel View

front panel:

rear panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

7

CROSS Series Mixed Matrix Switcher User 's Manual

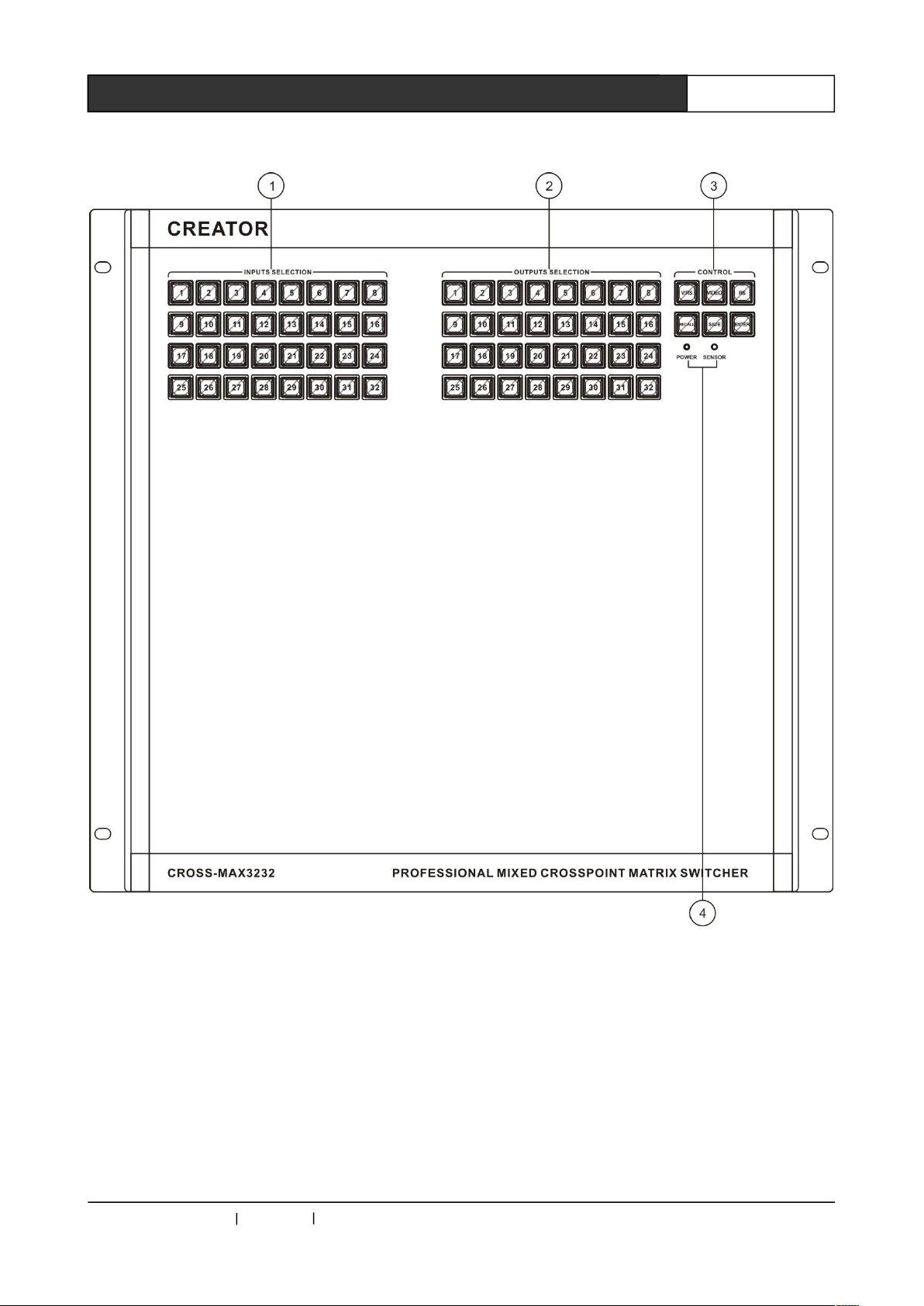

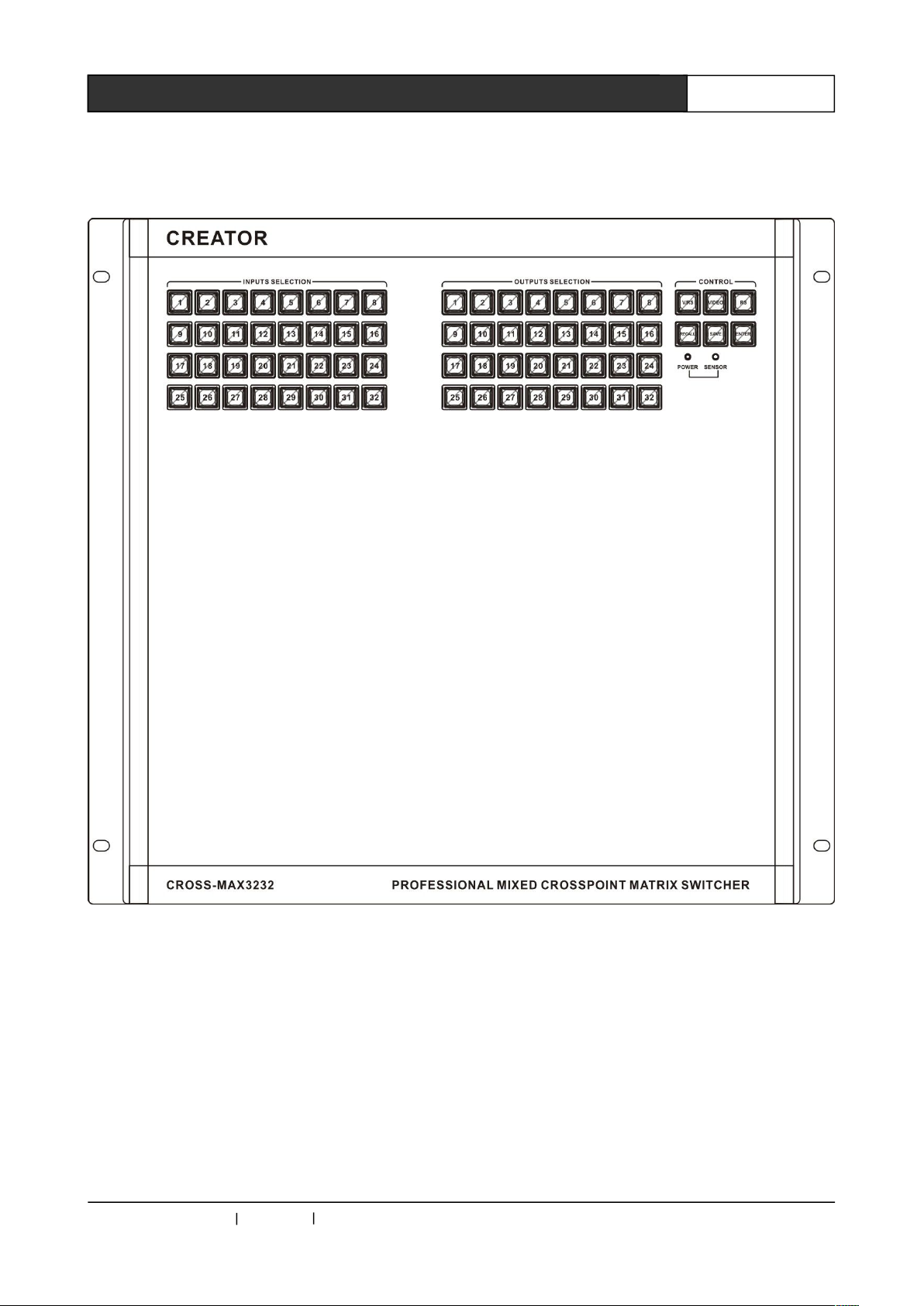

2.3 CROSS-MAX3232 Panel View

front panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

8

CROSS Series Mixed Matrix Switcher User 's Manual

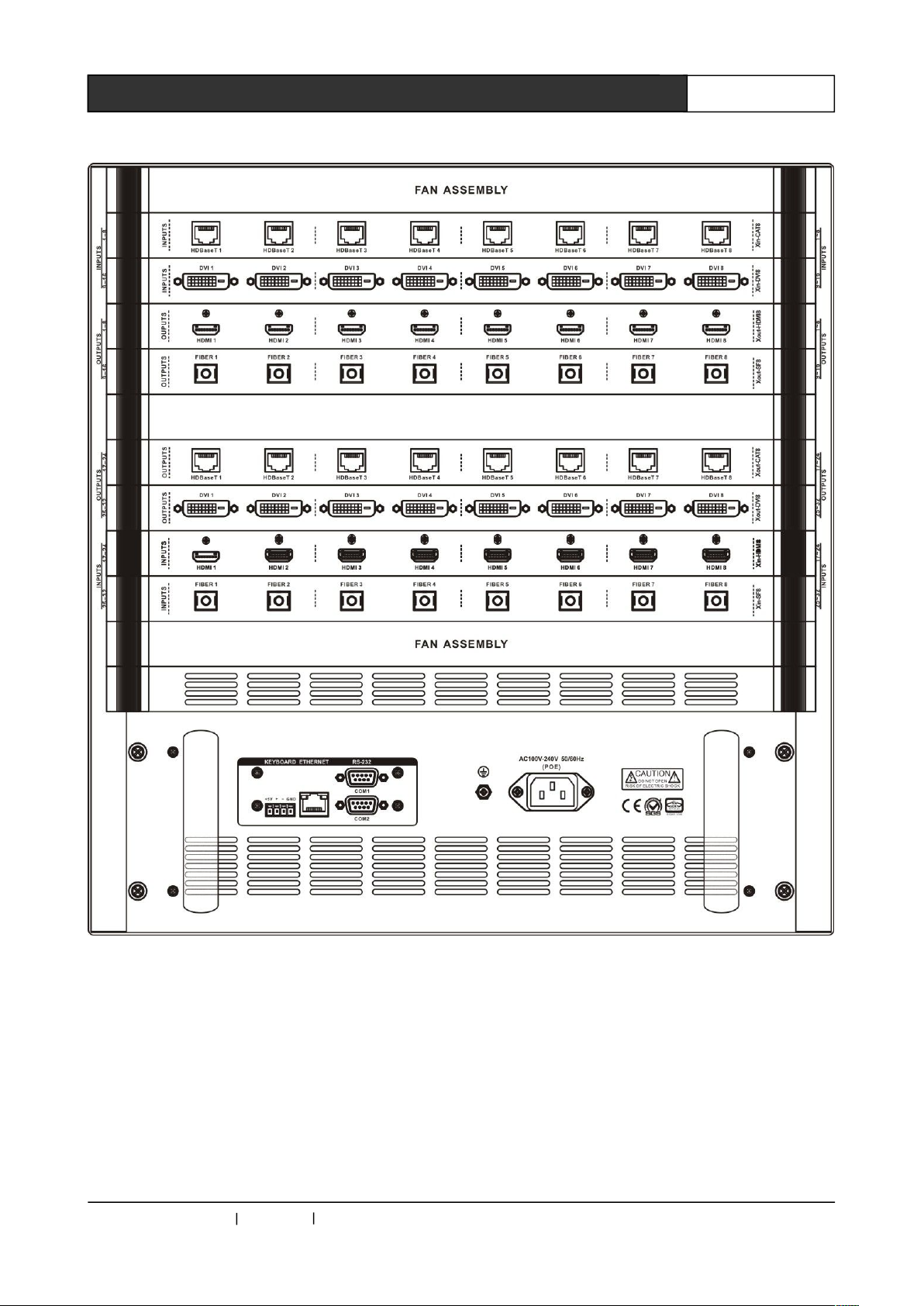

rear panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

9

CROSS Series Mixed Matrix Switcher User 's Manual

2.4 Matrix’s Connection with

Peripherals

2.4.1 Input Interface Description

Xin-DVI8, Xin-HDMI8, Xin-CAT8, Xin-COMP8,
Xin-SF8 input card can be combined into any
input signal type.

2.4.2 Output Interface Description

Xout-DVI8, Xout-HDMI8, Xout-CAT8, Xout-SF8
output cards can be combined into any output
signal type.

2.4.3 Communication Port and Its
Connection Method

Digital seamless switching matrix provides
standard RS-232 serial communication ports.
Addition to switch operation by the front panel
keys, it also can be used in various control
systems (such as personal computers,
CREATOR control systems, control systems from
other manufacturers) to control.

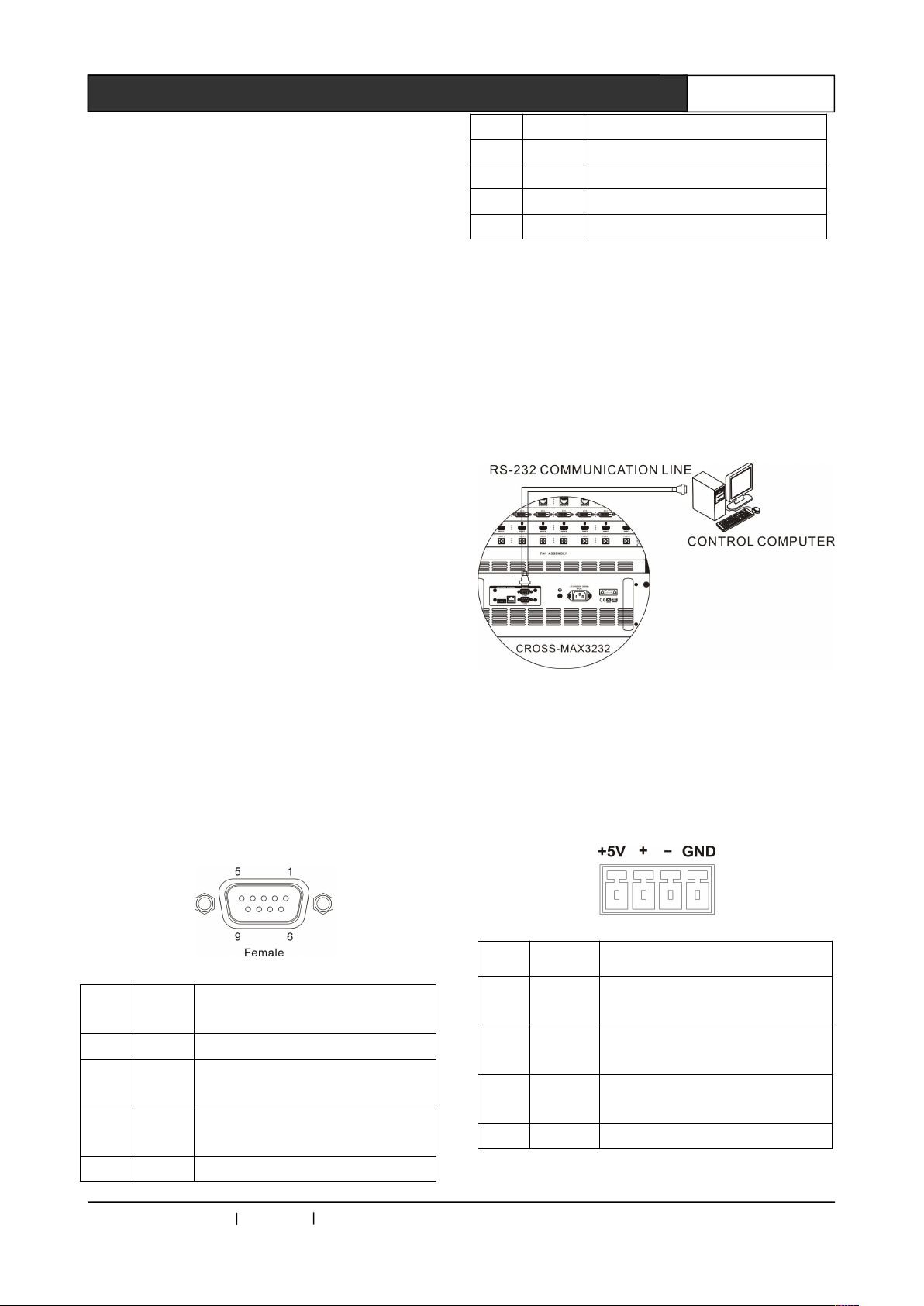

2.4.4 Control Interface of Matrix
RS-232

Digital seamless switching matrix provides 2-way
RS-232 serial interface, you can control the
matrix through the interface. The RS-232 port is a
DB9 female connector. Pins as follows::

Pin

Signa

l

Description

1 - -

2 TXD

Used for RS-232 protocol,send
data

3 RXD

Used for RS-232
protocol,receive data

4 - -

5 GND Signal ground
6 - ­7 - ­8 - ­9 - -

2.4.5 The Connection between Matrix
and Control Computer

Connecting the computer's serial communication
port (COM1 or COM2) with the matrix controller
RS-232 communication port by RS-232 cable,
user can control the matrix with corresponding
instructions. Refer to the "Chapter 5 instruction
sets" for details.

2.4.6 Matrix KEYBOARD Interface

Matrix provides 1-way KEYBOARD interface,
through which you can connect to extended
keyboard MCP100, and do channel switching
operation of the matrix. KEYBOARD has 4 3.8mm
Phoenix interface pins as follows:

Pin Signal Description

1 +5V

Put out DC5V/1A,provide
working power for MCP100

2 +

Used in
RS-485Protocol,DATA+

3 -

Used in
RS-485Protocol,DATA-

4 GND Signal ground

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

10

CROSS Series Mixed Matrix Switcher User 's Manual

2.4.7 The Connection between Matrix
and Extended Keyboard

Connect the matrix controller KEYBOARD
interfaces with matrix interfaces of extended
keyboard MCP100 one by one according to silk
screen with line, you can control the matrix.
Details can be found in CR-MCP100 matrix
keyboard user’s manual.

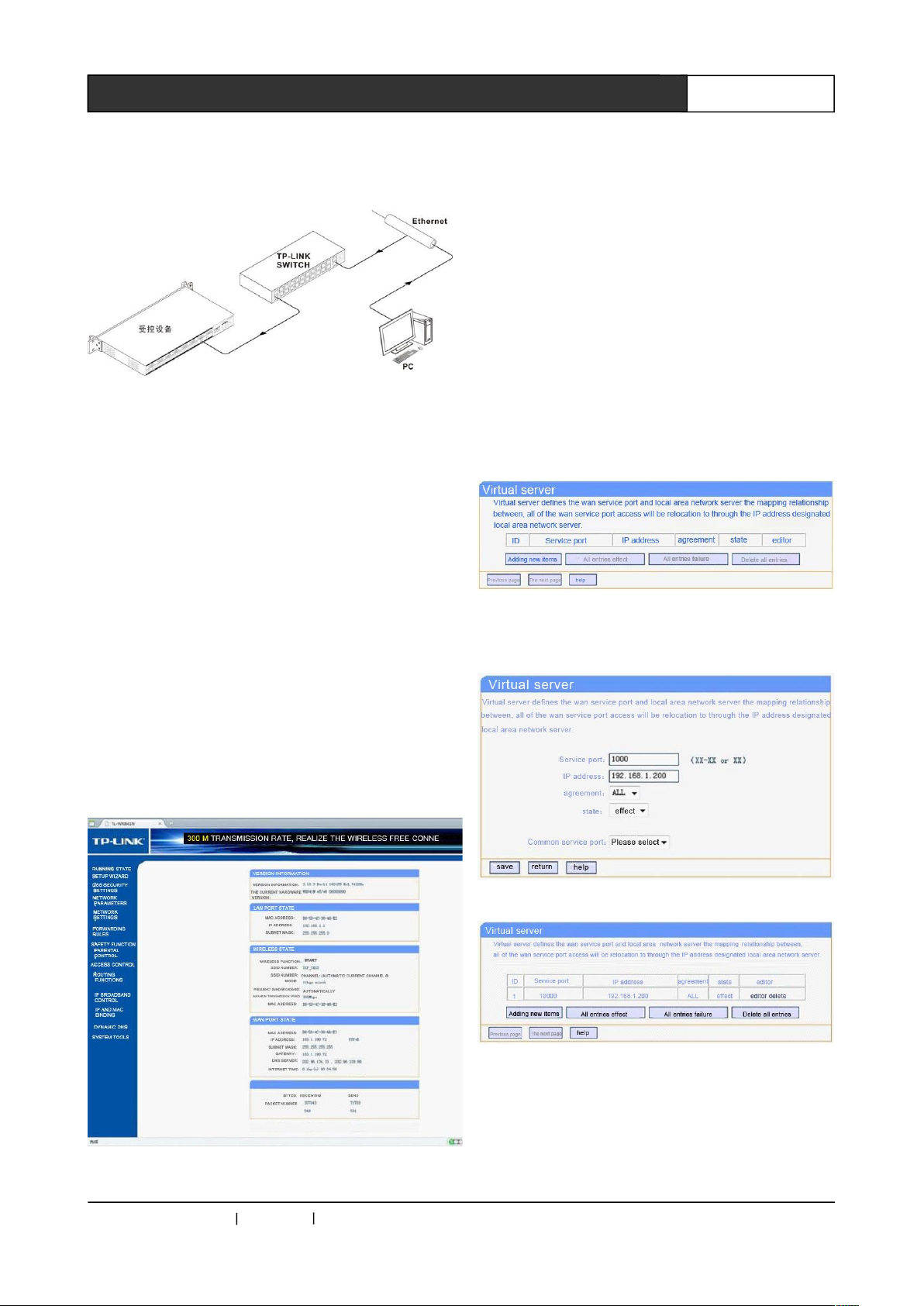

2.4.8 Matrix Network Interface

2.4.8.1 Hardware Connection

Matrix connects to Ethernet adapter hardware in
two ways:

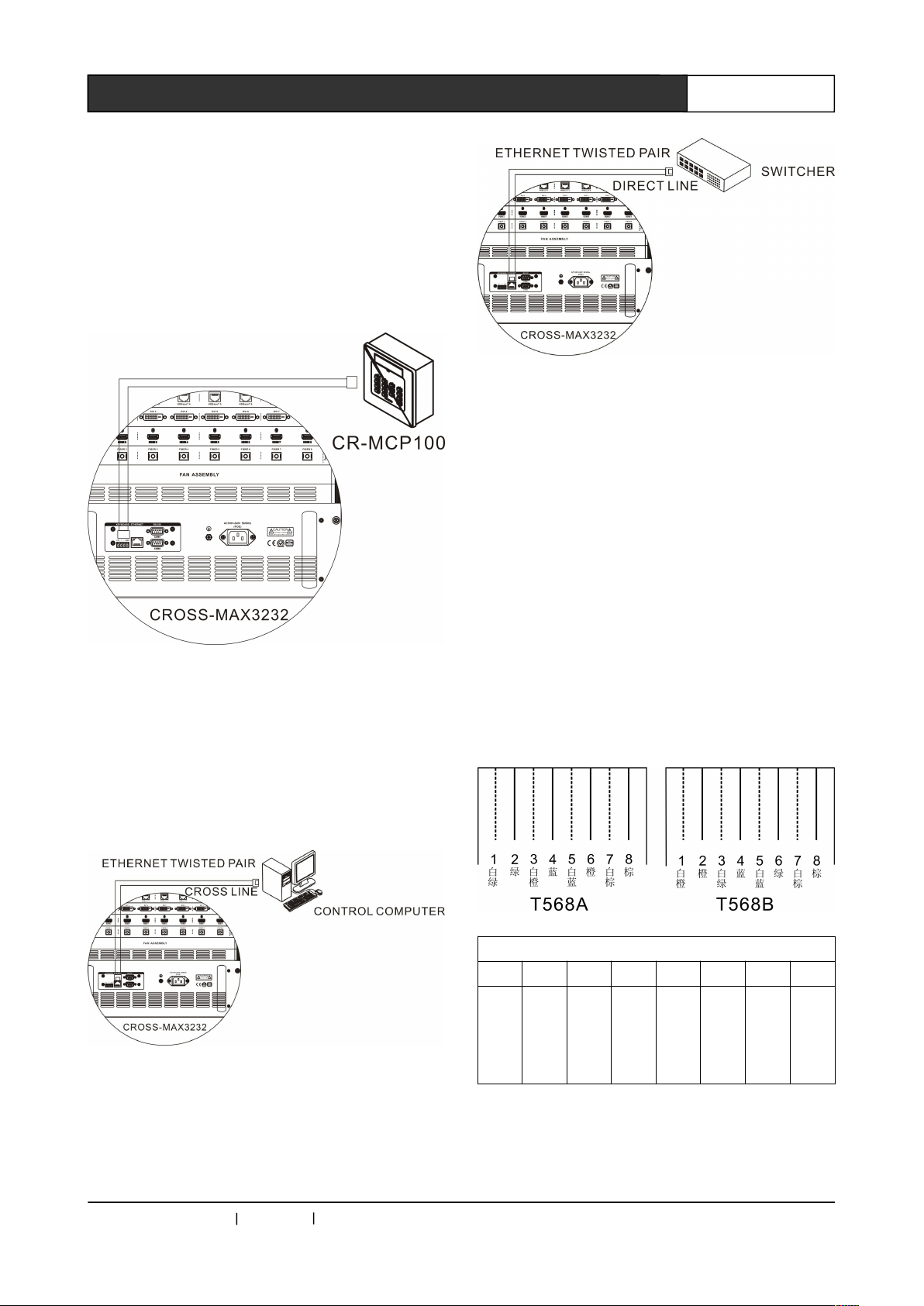

1) Cross-connection
Matrix directly connects to control computers via
CAT-5 crossover cable.

2)Direct connection method
Matrix connects to an Ethernet switcher or hub

via CAT-5 straight-through cable.

2.4.8.2 Connection Description of RJ45

Network Port Direct Line and Cross-line:

The system adopts the CAT-5 (super 5 cable) as
the wire. Install RJ45 connector (commonly
known as crystal head) at both ends of the CAT-5
to connect network devices. The standard
connection of twisted pair cable is not
predetermined. The purpose is to ensure the
symmetry of the layout of cable splice, so you can
make the interference between the joint inner
cables cancel each other. General UTP line has
four pairs of twisted thin line, and marked with
different colors.
Twisted pair line has two configurations: EIA / TIA
568B standard and EIA / TIA 568A
standard.

T568A linear order

1 2 3 4 5 6 7 8

whi

te

gre

en

gre

en

Wh

ite

ora

nge

blu

e

Wh

ite

blu

e

ora

nge

Wh

ite

bro

wn

bro

wn

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

11

CROSS Series Mixed Matrix Switcher User 's Manual

T568B linear order

1 2 3 4 5 6 7 8

Wh

ite

ora

nge

ora

nge

Wh

ite

gre

en

blu

e

Wh

ite

blu

e

gre

en

Wh

ite

bro

wn

bro

wn

Direct line: two ends connected according to
T568B wire order standard.
Cross-line: One end connected according to
T568A line order, the other connected according
toT568B linear order standard.

2.4.9 The Connection Between Matrix

and Computer Signal Input and Output
Devices

It connects various computer signal, audio and
video signal device according to different
occasions. Such as disc machine, desktop
computer, workstation, digital display table, etc..
Output terminal can be connected to the projector,
recorder, computer monitors, power amplifier etc..

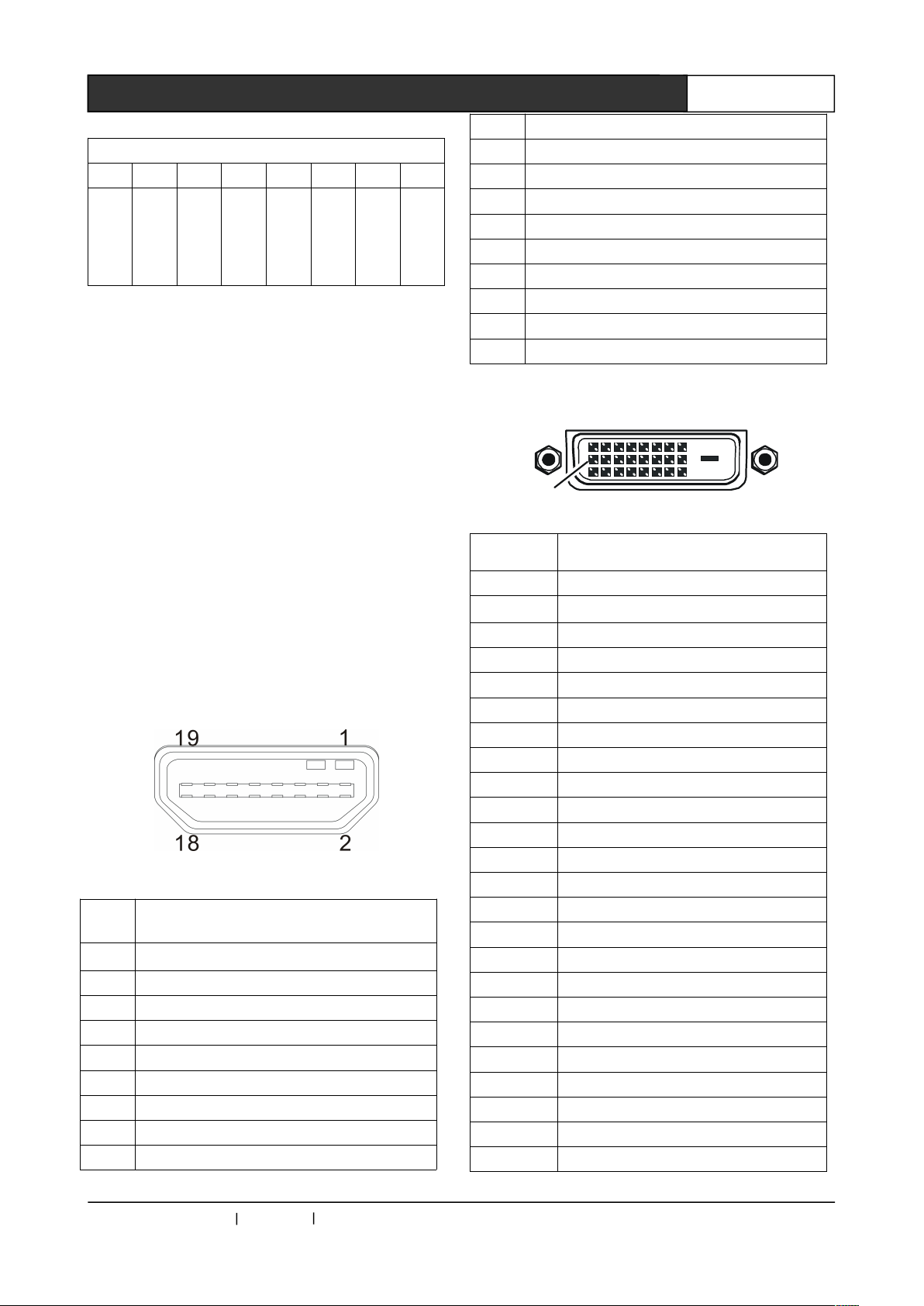

2.4.9.1 HDMI-A Type Link

HDMI-A pinout table

PIN Description

1 TMDS Data2+

2 TMDS Data2 Shield
3 TMDS Data2–
4 TMDS Data1+
5 TMDS Data1 Shield
6 TMDS Data1–
7 TMDS Data0+
8 TMDS Data0 Shield
9 TMDS Data0–

10 TMDS Clock+

11 TMDS Clock Shield
12 TMDS Clock–
13 CEC
14 Reserved (in cable but N.C. on device)
15 SCL
16 SDA
17 DDC/CEC Ground
18 +5V Power
19 Hot Plug Detect

2.4.9.2 DVI Port Description

1

9

8

17 24

PIN Description

1 T.M.D.S.Data2-

2 T.M.D.S.Data2+

3 T.M.D.S. Data 2/4 Shield
4 T.M.D.S. Data 4­5 T.M.D.S. Data 4+
6 DDC Clock
7 DDC Data
8 No Connect

9 T.M.D.S.Data1­10 T.M.D.S.Data1+
11 T.M.D.S.Data1/3 Shield
12 T.M.D.S.Data3­13 T.M.D.S.Data3+
14 +5V Power
15 Ground (for +5V)
16 Hot Plug Detect
17 T.M.D.S. Data 0­18 T.M.D.S. Data 0+
19 T.M.D.S. Data 0/5 Shield
20 T.M.D.S.Data5­21 T.M.D.S.Data5+
22 T.M.D.S. Clock Shield
23 T.M.D. S. Clock +
24 T.M.D.S .Clock-

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

12

CROSS Series Mixed Matrix Switcher User 's Manual

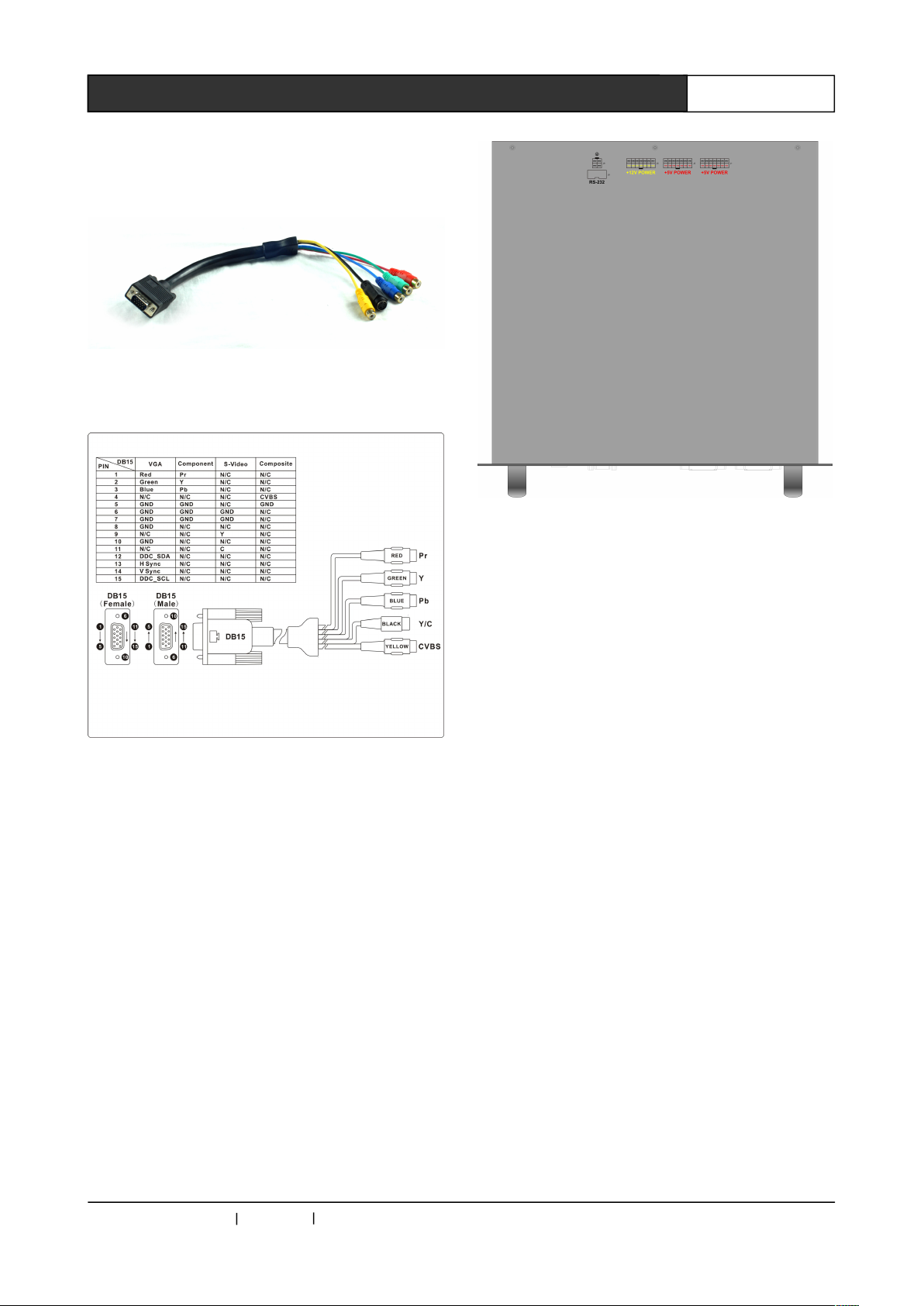

2.4.10 DB15 Male Socket Transfer Line
(S terminal, RCA head)

2.4.10.1 DB15 Male Socket Transfer Line

Definitions

2.4.11 PB-900 Power Supply Box

Note:Optional accessory power supply box

PB-900 is used for CROSS-MAX3232 redundant
power cold backup, and supports quick change
on scene. The power supply box can provide
+5VDC (420W) +12VDC (480W), a total of 900W
rated power. The power supply box adopts the
international first-class brand high-quality
switching power supply, ensuring that no problem
will appear in five years. And once failure occurs,
it can be replaced fast and conveniently.

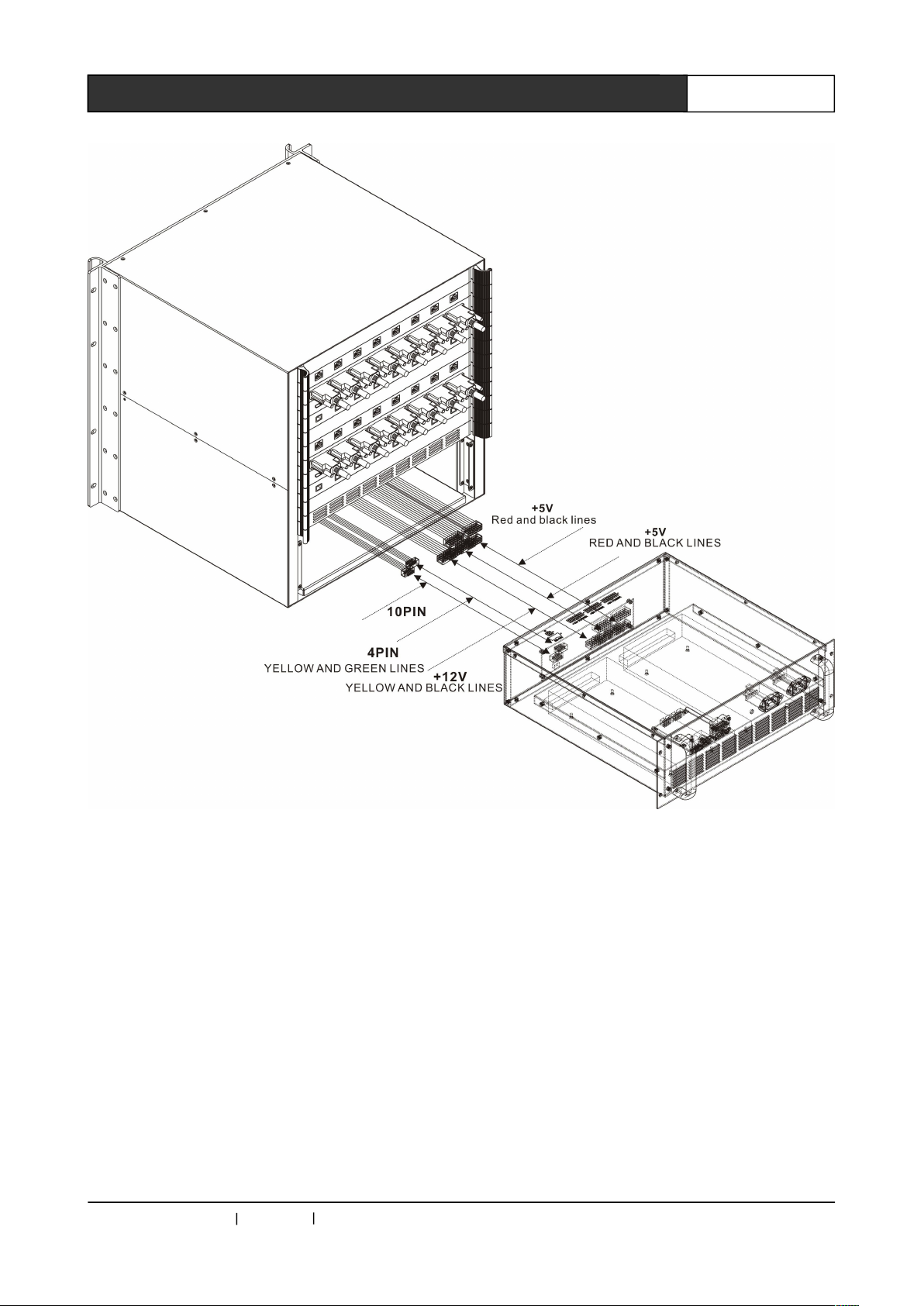

Methods to replace the power supply box:

1.Open the screws at the left and right side of
power supply box, hold the corresponding
handles, pull it out slowly.

2.Press the hook besides the wire, pull off the
connector inserted in the power supply box back
one by one, put on the new power supply box,
reconnect the related interface printing line in
accordance with the note on the power supply
box. Special attention should be paid to the
position and color matching of the corresponding
lines. There are 5 connecting lines. Including a
grounding interface connecting line (4PIN white
power socket corresponds with yellow green line),
a control interface connecting line (10PIN flat gray
line), a +12V POE power connecting line (14PIN
white power socket corresponds with yellow and
black line), two +5V main power connection lines
(14PIN white power socket corresponds with red
and black lines). Schematic diagram as follows:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

13

CROSS Series Mixed Matrix Switcher User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

14

CROSS Series Mixed Matrix Switcher User 's Manual

Chapter 3 Control Panel Operating

Instructions

3.1 Matrix Panel Description

CROSS-MAX0808 front panel:

CROSS-MAX0808 rear panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

15

CROSS Series Mixed Matrix Switcher User 's Manual

CROSS-MAX1616 front panel:

CROSS-MAX1616 rear panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

16

CROSS Series Mixed Matrix Switcher User 's Manual

CROSS-MAX3232 front panel:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CROSS Series Mixed Matrix Switcher User 's Manual

17

CROSS Series Mixed Matrix Switcher User 's Manual

CROSS-MAX3232 rear panel:

1 INPUTS SELECTION——Input channel

selection key

Signal input channel selection key is used to
select input channel of mixed-signals of audio and
video, infrared and serial, corresponding to
8/16/32 input ports on rear panel.

2 OUTPUTS SELECTION——Output

channel selection key

Signal output channel selection key is used to
select output channel of mixed-signals of audio
and video, infrared, and serial, corresponding to

8/16/32 output ports on rear panel.

3 CONTROL——Signal control area

V/RS:For audio and video signals switcher with
forward RS-232 and IR control signals
VIDEO:For separate switch of audio and video
signals
RS: Separate switch of forward RS-232 and IR
control signals
RECALL:Used in CROSS-MAX0808/1616/3232
controller to call the switching status of the preset
group.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

18

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

SAVE:Used in CROSS-MAX0808/1616/3232
controller to save the current switching state to
specified default group.
ENTER:Short Press to confirm the switching
selection , perform switching action.

1.RS-232 and IR panel operation are forward

(forward: input connect RS-232 or IR sender,
output connect RS-232 or IR receiver);

2.RS-232 and IR reverse switch to toggle through
the machine's serial instruction (reverse: input
connected to RS-232 or IR receiver, output
connected to the RS-232 or infrared sender)
please View serial instructions for serial switcher
instruction.

3. Whether forward or reverse switch of infrared
and serial signal, one way can be switched to
another or more ways, multiple ways cannot be
switched at the same time to one way.

4 POWER:Power indicator

SENSOR:Infrared receiver window

5 INPUTS——signal input port

Using a variety of card as the input source signal,
provide the 8/16/32/ input port, the input source
device for connecting the corresponding

6 OUTPUTS—signal output port

Using a variety of card as the output source signal,
provide the 8/16/32/ output port, the output
source device for connecting the corresponding

7 KEYBOARD——extended keyboard

interface
One KEYBOARD interface to work with MCP100
keyboard

8 ETHERNET——RJ45 network interface

Ethernet ports can be used to connect local area
networks and the Internet, the green light
indicates the connection is normal, orange lights’
flashing suggests receiving or transmitting data.

9 RS-232——RS-232 serial port

2 independent RS-232 ports can be used to
connect PC or control equipment to realize the
central control of system

10 Ground column.

11 Power input port

The system supports AC100 ~ 240V 50/60Hz
input

3.2 Controller Panel Buttons

Instructions

Use the front panel buttons to quickly switch the
signals of the matrix (detailed description of the
functions of each button, please refer to the “front
panel keys function instruction”), and its operation
method is as follows:
Switching mode "+" input channels "+" output
channel "+ command confirmation key" ENTER "
Among them:
Switching mode
Audio and video, infrared, serial signals are
synchronously or separately switched by V / RS
"," VIDEO "," RS "buttons. V / RS key is used
when audio and video signal switch together with
RS-232 and IR control signal. VIDEO key is for
audio and video separate switcher. The RS key is
for RS-232 and IR control signals’ separate
switcher.
Input channels
The current connected channel of signal source
to be switched. For instance, the "1 ~ 8" keys on
the Pt-CAT0808 panel, represents 1 to 8
channels respectively. Other models are similar to
this, please refer to the schematic diagram of the
front panel of the corresponding models.
Output channels
The channel external display device connected to.
For instance, the "1 ~ 8" keys on the Pt-CAT0808
panel, represents 1 to 8 channels respectively.
Other models are similar to this, please refer to
the schematic diagram of the front panel of the
corresponding models.

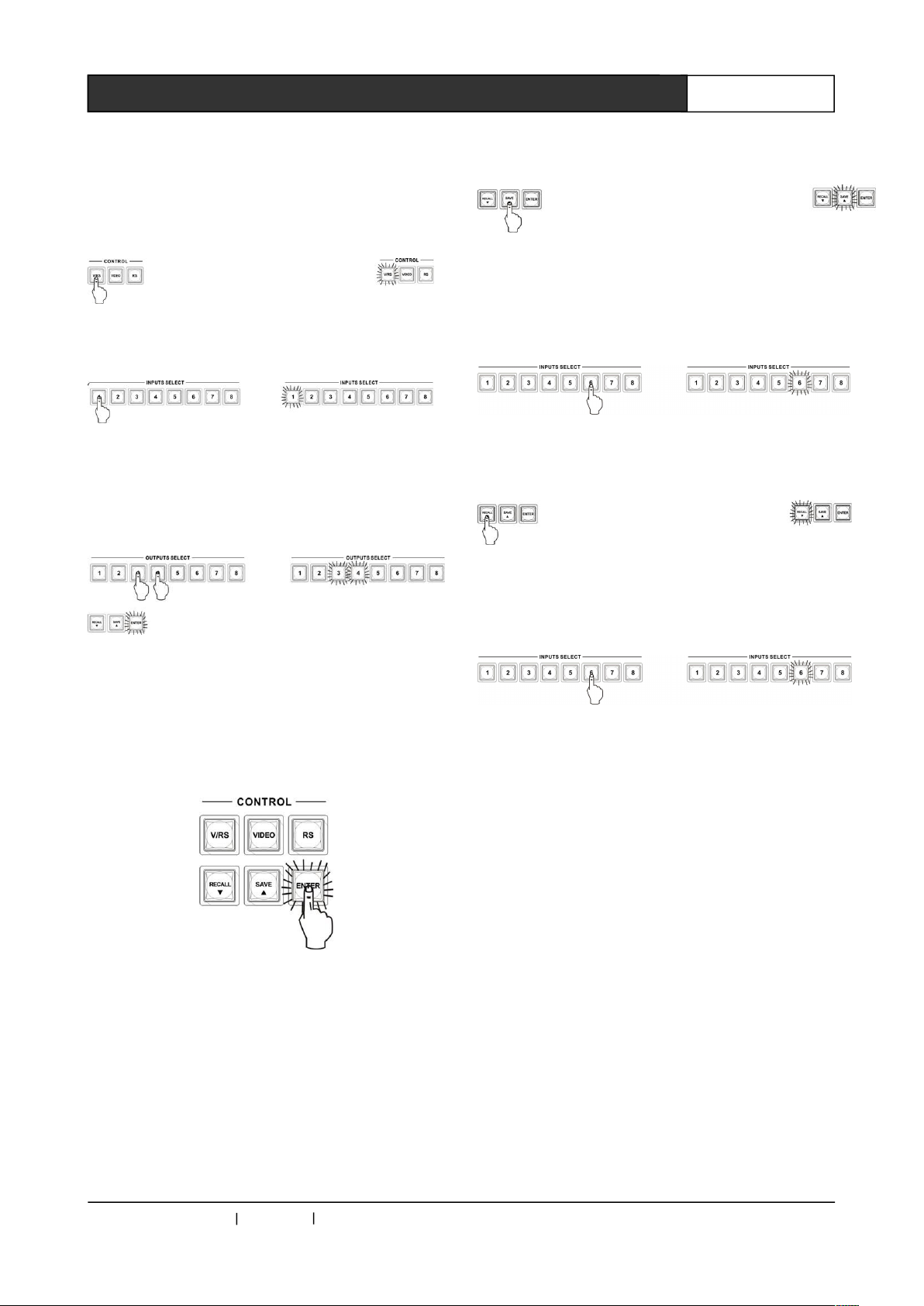

3.2.1 Switching Operation Example

Example: synchronously switch the first channel
audio and video, and RS-232 and IR control

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

19

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

signals to the output channels of no.3, no.4
channel
The steps are as follows:
1, Press switching mode "V / RS” button, lamp is
lit.

2. Press input channel "1" key, the key lamp is
lit.

3 Press output channels "3,4" keys, the key
lamps are lit. Key light "ENTER" has been in a
flashing state, suggest whether to confirm the
operation.

4.Press the command key "ENTER" to perform
operations, all the lit key lamps are closed. At the
same time, output device will display
corresponding information to indicate that
operation was successful.

The operation methods of button "VIDEO" and
"RS" are as described above, no longer elaborate
here.

3.2.2 Save and Call Operation Example

Example: synchronously input the audio and
video, and RS-232 and IR control signal of the
current 1st channel, the 3rd and 4th output
channels are saved as No. 6, and call.

The steps are as follows:

1.Press the "SAVE" button, the button lamp is lit.

2.Press input channels key "6" , key lamp is lit,
indicating the operation is successful, the current
input, the output state is saved to the 6th storage
unit

3.Press the "RECALL" button, the button lamp is
lit.

4.Press the input channel key "6", key lamp is lit,
call up the input and output state of the 6th
storage unit.

3.3 “Matrix Net Tool” Software

Description

"Matrix Net Tool" matrix control software is used
with CAT-5 digital matrix switcher to set the
network parameters of the matrix.

3.3.1 Software Running Environment

Window98/2000/NT/XP/Vista/Win7 operating
system
32M or more memory
10M or more hard disk space
CD-ROM
At least one serial communication port

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

20

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

3.3.2 Software Startup

Turn off the matrix and computer power. The
matrix RS-232 interface and the computer's
RS-232 communication port are connected with a
randomly distributed communication line;
Power on matrix and computer; run the Matrix Net
Tool Setup.exe of randomly distributed CD-ROM
on the control computer, after installation, you can
enter the control software interface.

3.3.3 Open Program

The "Start” on the left bottom of windows →
Programs → Matrix Net Tool → the Matrix Net
Tool to enter the main program screen.

3.3.4 The Main Interface

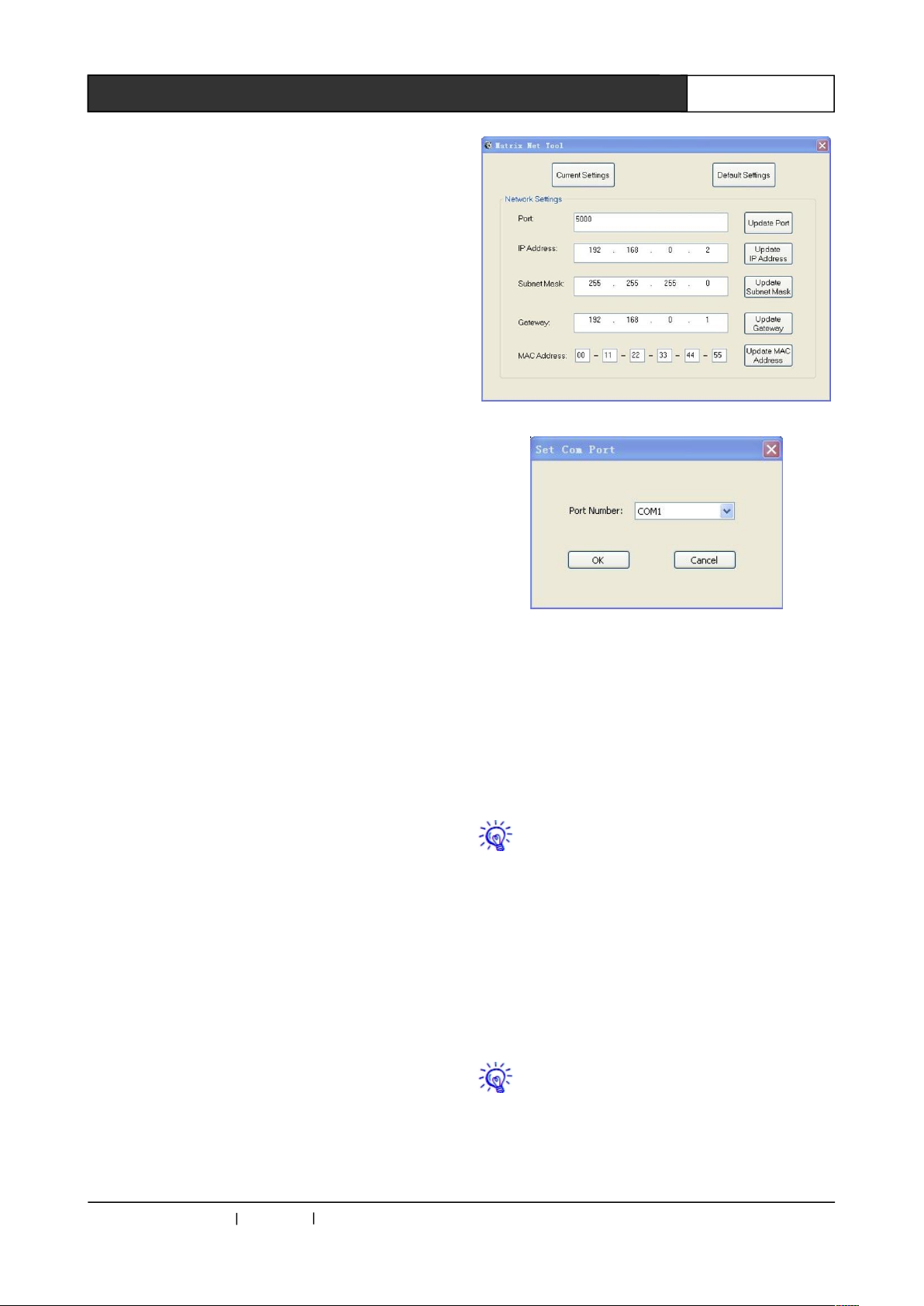

The main interface of "Matrix Net Tool" is shown
in Figure 2-1.
Right-click an empty space in the main interface,
then pop-up
"Set Com Port" window, shown in Figure 2-2, you
can choose different computers COM ports to
communicate with matrix.
Can set network port, IP address, subnet mask,
gateway and MAC address of matrix through the
main interface.
"Current Settings" reads the current network port
parameters of the matrix; “Default Settings "to
restore the matrix network port parameters to the
factory defaults. The factory default value is as
follows:
Port number: 5000
IP address: 192.168.0.2
Subnet Mask: 255.255.255.0
Gateway: 192.168.0.1
Hardware address: 0x00: 0x11: 0x22: 0x33: 0x44:
0x55

Figure 2-1

Figure 2-2

3.4 Remote Control Description

3.4.1 Functionality

Realize remote control in the Ethernet
environment, namely, remote client control local
matrix device via the Internet.

Local matrix devices and remote clients in

the following description will be respectively
represented by server and client.

3.4.2 System components

1. Controlled device (matrix controller)

2. Network switcher or router

3. Internet accessible PC

4. Straight-through cable

These system components merely refer to

system installation equipment needed by server
(matrix controller), the client simply need a
computer which can access the Internet.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

21

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

3.4.3 Connection Diagram

System Connection is simple. Connect interface
one-to-one, as shown in the following diagram:

Figure 2-3

3.4.4 Instructions

The following instructions will choose "TP-link"
router as an example to illustrate, as follows:

3.4.4.1 Mapping Setup

A. After connecting system, open the IE browser,
enter the IP address of TP-link and enter into the
TP-link setup page. If the access is
password-protected, enter the default user name:
admin, password admin to enter.
For the first time into the TP-link setup interface, it
default display the status of the TP-link
information, see Figure 2-4 below.
Remote control system, TP-link routers only do
port mapping settings, i.e. forwarding rules
(common routers have this feature).

Figure 2-4

B. Select “forwarding rules "option on the left
column of TP-link setting page, click on the"
virtual server”, and enter mapping settings page,
as shown in Figure 2-5, this set operated as
follows:
Click adding a new entry→fill the service port
number, IP address, protocol, state→ save and
exit, the setup is complete.
Service port number is the port number of the
controlled device (matrix controller); IP address is
the IP address of the controlled device (matrix
controller);
Agreement can choose ALL or TCP protocol;
state effective.

Figure 2-5

Figure 2-6

Figure 2-7

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

22

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

3.4.4.2 Remote Bind Controlled Device

Settings

Before you can make the remote bind to the
matrix controller, first you should know IP of
public network connected by the matrix controller,.
Only then, can you start setting. Set as follows:
The client PC run TCP / UDP debugging software,
create a TCP Client connection, fill in the IP
address (i.e. the IP of public network connected
by the matrix controller,), port number (i.e. the
port number of matrix controller). After the
successful setting, you can realize remote control
of the matrix.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

23

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Chapter 4 Input, Output Card Instructions

FAN ASSEMBLY fan assembly
card

4.2 Input Card

4.2.1 Xin-HDMI8 Input Card Function
Characteristics

 8 HDMI-A bus interface input;

 The longest input distance is up to 20M;

 Support EDID editing function;

 Is compatible with the HDMI1.4 standard,

HDCP1.3 protocol, DVI1.0 protocol;

 Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV: 1920x1080P@60_36bit;

4.2.2 Xin-DVI8 Input Card Function
Characteristics

 8 DVI-D bus interface input;

 The longest input distance is up to 20M;

 Support EDID editing function;

 Is compatible with the HDMI1.4 standard,

HDCP1.3 protocol, DVI1.0 protocol;

 Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV: 1920x1080P@60_36bit.

4.1 Card Type

Name / Model Appearance

Xin-HDMI8 input card

Xin-DVI8 input card

Xin-CAT8 input card

Xin-COMP8 input card

Xin-SF8 input card

Xout-HDMI8 output card

Xout-DVI8 output card

Xout-CAT8 output card

Xout-SF8 output card

BC-100 blank card

Radiating card

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

24

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

4.2.3 Xin-CAT8 Input Card Function
Characteristics



8 high-speed RJ45 port input;



The longest input distance is up to 100M

byCAT5e/6 wire;



Support EDID editing function;



Is compatible with the HDBaseT protocol;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.

4.2.4 Xin-COMP8 Input Card Function
Characteristics



8 DB15 port input;



Can choose any kind of VGA, CVBS, YPbPr,

S-Video signal input;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.



Upscale output resolution can be set to up to

1920x1080P@60Hz.

4.2.5 Xin-SF8 Input Card Function
Characteristics



8 high-speed single core SC fiber interface

output;



Using multimode fiber OM3 input, the longest

distance up to300M;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.

4.3 Output Card

4.3.1 Xout-HDMI8 Output Card
Function Characteristics



8 HDMI-A female interface output;



The longest input distance is up to 7M;



Is compatible with the HDMI1.4 standard,

HDCP1.3 protocol, DVI1.0 protocol;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.

4.3.2 Xout-DVI8 Output Card Function
Characteristics



8 DVI-D female interface output;



The longest input distance is up to 7M;



Is compatible with the HDMI1.4 standard,

HDCP1.3 protocol, DVI1.0 protocol;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.

4.3.3 Xout-CAT8 Output Card Function
Characteristics



8 high-speed RJ45 port output;;



The longest input distance is up to 100M

byCAT5e/6 wire;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.

4.3.4 Xout-SF8 Output Card Function
Characteristics



8 high-speed single core SC fiber interface

output;



Using multimode fiber OM3 input, the longest

distance up to300M;



Maximum support resolution:

HDPC: 1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit.

4.4 Optional Accessories

4.4.1 FAN ASSEMBLY Function
Characteristics

8 high-quality fans, replacing single fan or the
whole fan card is optional, applicable to all series
of CROSS-MAX matrix

4.4.2 BC-100 Blank Card Function
Characteristics



Blank card is used to fill the blank missing

audio and video input / output card
installation.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

25

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

4.4.3 PB-900 Power Supply Box
Function Characteristics



Universal full range AC input (AC100V-240V

50/60Hz);



AC inrush current suppression circuit;



With short / over load / over voltage / over

temperature protection function;
Can provide 5V (425W), +12V (480W) power to
the internal system;
Support redundant power cold backup, rapid
replacement on scene.

4.5 Specifications

Model

Xin-DVI8(DVI input card) Xout-DVI8(DVI input card)

Specifications

Protocol
Compatible with HDM11.3 standard, HDCPl.3 protocol, DVI l.0 protocol;.
Video
Gain 0 dB
Pixel bandwidth 165MHz, Full digital
Interface bandwidth 2.25Gbps, Full digital(a total of 6.75Gbps, each color is 2.25Gbps)
Maximum support
resolution
Clock Jitter <0.15T bit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum
transmission delay
Interface 8 DVI-D female interface / card
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance 50 Ω
EDID Optional default EDID and load

Maximum DC offset
error

Normal-PC:1600x1200P@60_24bit,HDPC: 1920x1200P@60_24bit,
HDTV:1920x1080P@60_36bit,

5nS(±1nS)

T.M.D.S. 2.9V/3.3V

function

15mV

N/A

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

26

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Model

Less than 20 meters, in the 1920x1200@60
(recommended the use of certified DVI special wire.
Such as Molex TM wire)

Less than 7 meters, in
the 1600x1200@60
(recommended the use
of certified DVI special
wire. Such as Molex TM
wire)

Complete support for the HDMI1.4 protocol of 3D, including support for the mainstream of 3D display
mode in HDM11.4 protocol, but does not include the 3D_1080P@120Hz downward compatible with
HDM11.3 standard, HDCPl.3 protocol, DVIl.0 protocol.

Xin-DVI8(DVI input card) Xout-DVI8(DVI input card)

Specifications

The recommended
maximum input /
output distance

weight About 0.5KG About 0.5KG
Maximum power
dissipation

12W 10W

Model

Specifications

Protocol

Video
Gain 0 dB
Pixel bandwidth 165MHz, Full digital
Interface bandwidth 2.25Gbps, Full digital(a total of 6.75Gbps, each color is 2.25Gbps)

Maximum support
resolution

Clock Jitter <0.15T bit
Rise time <0.3Tbit (20%--80%)
Fall time <0.3Tbit (20%--80%)
Maximum
transmission delay
Interface 8 HDMI-A female interface / card
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance 50 Ω
EDID Optional default EDID and load

Maximum DC offset
error

Xin-HDMI8(HDMI input card) Xout- HDMI 8(HDMI output card)

HDPC: 1920x1200P@60_24bit,
HDTV:1920x1080P@60_36bit,
3D Format: 1920x 1080P@24_36bit;

5nS(±1nS)

T.M.D.S. 2.9V/3.3V

function

15mV

N/A

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

27

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Model

Less than 20 meters, in the
1920x1200@60 (recommended the
use of certified DVI special wire. Such
as Molex TM wire)

Cable transmission
power

With PoE power supply (+12V); for
CAT5 series transmitter of our
company needing PoE power supply,
this card can provide it power via
cable. Note that this card cannot be
connected to the transmitting device
with PoE power.

Less than 20 meters, in
the1600x1200@60 (recommended
the use of certified HDMI special wire.
Such as Molex TM wire)

Less than 7 meters, in
the1600x1200@60 (recommended
the use of certified HDMI special wire.
Such as Molex TM wire)

Specifications

The recommended
maximum input /
output distance

Weight About 0.5KG About 0.5KG
Maximum power
dissipation

Xin-HDMI8(HDMI input card) Xout- HDMI 8(HDMI output card)

Less than 7 meters, in the
1920x1200@60 (recommended use
certified HDMI special wire, such as
Molex TM wire)

12W 10W

Model

Xin-CAT8(Twisted pair input card)

Specifications

Interface 8
Link port input/output
Interface high-speed RJ45 Socket
Supported protocols HDBaseT protocol.
Pixel bandwidth 165MHz ,full digital
Interface bandwidth 2.25Gbps, full digital(a total of 6.75Gbps, each color is 2.25Gbps)

Maximum support
resolution

Signal type High speed differential signal defined in HDBaseT protocol

HDPC:1920x1200P@60_24bit;
HDTV:1920x1080P@60_36bit;
3D Format:1920x 1080P@24_36bit.

Xout-CAT8(Twisted pair output

card)

With PoE power supply (+12V); for
CAT5 series receiver of our company
needing PoE power supply, this card
can provide it power via cable. Note
that this card cannot be connected to
the receiving device with PoE power.

The recommended
maximum input /
output distance
Impedance 50 Ω
EDID Optional default EDID and load

Maximum DC offset
error
The recommended
maximum input /
output distance

Weight About 0.5KG About 0.5KG

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

Maximum distance is up to 100 meters, in 1920x1080p@60(Recommend the
use of NEXANS CAT5e/6 special wire)

function

15mV

N/A

28

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Model

The
recommend
ed maximum
input / output
distance

OM3 multimode optical fiber:less than 300 meters,Single-mode fiber: 2~20
km, at 1920x1080p@60

Maximum
support
resolution

Xin-CAT8(Twisted pair input card)

Specifications

Maximum power
dissipation
The recommended
maximum input /
output distance
Weight About 1.0KG About 1.0KG
Maximum power
dissipation

12W 10W

The maximum distance is up to 100 meters, in 1920x1080p@60(Recommend
the use of NEXANS CAT5e/6/7 special wire)

40W 21W

Xout-CAT8(Twisted pair output

card)

Model

Specifications

interface 8 high-speed single core SC optical fiber interface input

Optical
interface
Fiber type Multimode/Single Mode(Optional)
Wavelength Multimode 850nm/Single Mode: 1310 –1620nm(Optional)
Interface
bandwidth
Clock Jitter <0.15Tbit
Rise time <0.3Tbit (20%--80%)

Video

Fall time <0.3Tbit (20%--80%)

Xin-SF8( Optical fiber input card )

SC connector

Positive:6.25Gbps, reverse:3.125Gbps

HDPC: 1920x1200P@60_24bit,
HDTV:1920x1080P@60_36bit,

Xout-SF8( Optical fiber output

card )

Weight About 0.9KG
Maximum power
dissipation

Model

Specifications

Interface HD-15 Interface

Signal type

Gain 0dB 0dB 0 dB 0 dB

bandwidth

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

24W

Composite

video CV

150MHz @

-3dB

Xin-COMP8

Y/C video

150MHz @ -3dB

350MHz @ -3dB 380 MHz

Component

video YPbPr

VGA video

29

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Model

1V p-p:S

Terminal video

(Y/C)

Specifications

Model

The serial control port
structure

Specifications

Differential phase error

Differential gain error

Signal strength

Minimum / maximum

level

Input impedance 75 Ω 75 Ω 75Ω 75Ω
Echo loss <-30dB@5MH

Weight About 1.2KG
Maximum power
dissipation

0.1°,3.58-4.43
MHz

0.1% ,

3.58-4.43 MHz

1V p-p :

composite

video(CVBS)

Analog signal:

-2V/+2V

z

50W

0.1°,3.58-4.43
MHz

0.1% , 3.58-4.43
MHz

Analog signal:

-2V/+2V

<-30dB@5MHz <-30dB@5MHz <-30dB@5MHz

Xin-COMP8

0.1°,3.58-4.43

0.1% , 3.58-4.43

p-p :(Component

video in Y)

(Component

PbPr/CbCr )

Analog signal:

MHz

MHz

1V

0.3Vp-p:

video in

-2V/+2V

0.63V p-p to 0.9 V
p-p

RGB
signal:0V/1.0V
HV signal:0V/5.0V

CROSS-MAX0808 CROSS-MAX1616 CROSS-MAX3232

Interface
Input card number /
input channels
Output card number /
output channels
Input card model Xin-DVI8; Xin-HDMI8; Xin-CAT8; Xin-FB8; Xin-COMP8
Output card model Xout-DVI8; Xout-HDMI8; Xout-CAT8; Xout-FB8
Interface bandwidth 6.75Gbps
Serial port control
Serial control
interface
The baud rate and
protocol

KEYBOARD control
KEYBOARD control 4 bit 3.8mm Phoenix interface

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

RS-232, 9- pin female D interface

Baud rate: 9600, data bits: 8,stop bit : 1, no parity

2 = TX,3 = RX,5 = GND

1/8 2/16 4/32

1/8 2/16 4/32

30

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Specifications

Model

CROSS-MAX0808 CROSS-MAX1616 CROSS-MAX3232

Ethernet control
Interface:

Ethernet control
protocol

Storage, use
temperature

Maximum power

dissipation(studded

with maximum power

IO card)

Use Use with the expansion keyboard MCP100
KEYBOARD Control
structure
Ethernet control

Ethernet Rate control Adaptive 10m/100m, in full or half duplex
Specifications
Power supply 100VAC ~ 240VAC,50/60 Hz,The adaptive power supply

+5V=DC5V , + = DATA+, -=DATA- GND = signal ground

RJ-45 female interface

TCP/IP

-20°~ +70°C

Storage, use
humidity

Dimension

Weight

Mean time between
failures
Warranty 1 year free warranty, life-long maintenance

10% ~90%

3U[483mm(L)X354mm(

W)X132.5mm(H)]

About 5.3KG(without any
card)

107W 208W 383W

30,000 hours

5U[483mm(L)X354

mm(W)X221.5mm(H

)]

About

9.0KG(without any
card)

10U[483mm(L)X404mm(

W)X443.6mm(H)]

About 19KG(without any
card)

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

31

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Chapter 5 Instruction sets

Audio and video input [X1] connected to audio
and video output [Y1]

Audio and video input [X1] connected to audio
and video output [Y1]

Audio and video input [X1] connected to audio
and video output [Y1]

Infrared receiving channel input port [RX1]
connected to the infrared transmitting channel
output port [TY1] (IR forward channel switching)

Serial Input port / infrared receiving channel
[RX1] connected to the serial output port/
infrared transmitting channel [TY1] (RS232/IR
forward and reverse channel switching)

Audio and video input [X1] connected to audio
and video output [Y1] serial Input port / infrared
receiving channel [RX1] connected to the serial
output port/ infrared transmitting channel

Communication protocol
Baud rate :9600 bps(default)
Data bits:8bits
Stop bits:1bit
Parity:None

Flow control: None
Instruction symbols description

[Y1], [Y2],... , [Yn] represent the corresponding output ports
[TX1], [TX2],... , [TXn] represent the corresponding input serial port / infrared transmitting channels;
[RX1], [RX2],... , [RXn] represent the corresponding input serial port / infrared receiving channels;
[TY1], [TY2],... [TYn] represent the corresponding output serial port / infrared transmitting channels;

[RY1], [RY2],... [RYn] represent the corresponding output serial port / infrared receiving channels;
n represents the input / output interface quantity of corresponding model , such as CROSS-MAX3232, n
is up to 32

Instruction classification descriptions

Version:CREATOR 2.9

Build channel connection

ASCII

Instructions

(Computer to

the matrix)

Establish a single connection

Command functions

Return(matrix to

computer)

For

example

[X1]V[Y1].

[X1]A[Y1].

[X1]B[Y1].

[RX1]R[TY1].

[RX1]Q[TY1].

[RX1]T[TY1].

[X1]W[Y1].

Serial receiving channel input port [RX1]
connected to the serial port transmitting
channel output [TY1] (RS232 forward channel
switching)

AV:[X1]->[ Y1] 1V1.

AV:[X1]->[ Y1] 1A1.

AV:[X1]->[ Y1] 1B1.

RS:[RX1]->[TY1] 1R1.

IR:[RX1]->[TY1] 1Q1.

RS:[RX1]->[TY1]
IR:[RX1]->[TY1]

AV:[X1]->[ Y1]
RS:[RX1]->[TY1]
IR:[RX1]->[TY1]

1T1.

1W1.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

32

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

Audio and video input [X1] connected to audio
and video output [Y1]

Audio and video input [X1] connected to audio
and video output [Y1]

Audio and video input [X1] connected to audio
and video output [Y1]

Audio and video input [X1] connected to audio
and video output [Y1]

Audio and video input [X1] connected to audio
and video output [Y1] serial input port / infrared
receiving channel[RX1]connected to the
corresponding serial output port / infrared
transmitting channel [TY1] serial output port /
infrared receiving channel [RY1] connected to
the corresponding serial input port / infrared
transmitting channel [TX1]

Instructions

(Computer to

the matrix)

[RY1]~R[TX1].

[RY1]~Q[TX1].

[RY1]~T[TX1].

Command functions

[TY1](AV forward,RS232/IR forward and
reverse channel switching)

Serial receiving channel Output port[RY1]
connected to the serial transmitting channel
input port[TX1] (RS232 reverse channel
switching)
Infrared receiving channel output port[RY1]
connected to the infrared transmitting channel
input port [TX1] (IR reverse channel switching)
Serial output port / infrared receiver channel
[RY1] connected to the serial input port /
infrared transmitting channel [TX1] (RS232/IR
reverse channel switching)

Return(matrix to

computer)

~RS:[RY1]->[TX1] 1~R2.

~IR: [RY1]->[TX1] 1~Q2.

~RS:[RY1]->[TX1]
~IR: [RY1]->[TX1]

For

example

1~T2.

[X1]*[ Y1]&

[X1]*[ Y1]%

[X1]*[ Y1]$

[X1]*[ Y1]!

[X1]#.

Quickly establish multiplex connections

[X1]V[Y1],[Y2],…

,[Yn].

[X1]A[Y1],[Y2],…

,[Yn].

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

One-way audio and video input[X1]
connected to the multi-channel audio and video
output [Y1],[Y2],…,[Yn]

One-way audio and video input[X1]
connected to the multi-channel audio and video
output [Y1],[Y2],…,[Yn]

AV:[X1]->[ Y1] 1*1&

AV:[X1]->[ Y1] 1*1%

AV:[X1]->[ Y1] 1*1$

AV:[X1]->[ Y1] 1*1!

[X1] A/V/R/I
Through. 1#.

AV:[X1]-> [Y1]
AV:[X1]-> [Y2]
…
AV:[X1]-> [Yn]
AV:[X1]-> [Y1]
AV:[X1]-> [Y2]
…
AV:[X1]-> [Yn]

1V1,2,3.

1A1,2,3.

33

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

One-way serial receiving channel input port
[RX1] connected to the multi-channel serial port
transmitting channel output [TY1],
[TY2],…,[TYn] (RS232 forward multi-channel
switching)

One-way infrared receiving channel input port
[RX1] connected to the multi-channel infrared
transmitting channel output port[TY1],
[TY2],…,[TYn] (IR forward multi-channel
switching)

One-way audio and video input[X1]
connected to the multi-channel audio and video
output [Y1],[Y2],…,[Yn] one-way serial Input
port / infrared receiving channel [RX1]
connected to the multi-channel serial output
port/ infrared transmitting channel [TY1],
[TY2],…,[TYn] (AV forward,RS232/IR forward
and reverse multi-channel switching)

One-way serial receiving channel output
port[RY1] connected to the multi-channel serial
transmitting channel input
port[TX1],[TX2],…,[TXn] (RS232 reverse
channel switching)

One-way infrared receiving channel output
port[RY1] connected to the multi-channel
infrared transmitting channel input port
[TX1] ,[TX2],…,[TXn](IR reverse channel

Instructions

(Computer to

the matrix)

[X1]B[Y1],[Y2],…

,[Yn].

[RX1]R[TY1],

[TY2],…,[TYn].

[RX1]Q[TY1],

[TY2],…,[TYn].

[RX1]T[TY1],

[TY2],…,[TYn].

[X1]W[Y1],

[Y2],…,[Yn].

Command functions

One-way audio and video input[X1]
connected to the multi-channel audio and video
output [Y1],[Y2],…,[Yn]

One-way serial Input port / infrared receiveing
channel [RX1] connected to the multi-channel
serial output port/ infrared transmitting channel
[TY1], [TY2],…,[TYn] (RS232/IR forward and
reverse multi-channel switching)

Return(matrix to

computer)

AV:[X1]-> [Y1]
AV:[X1]-> [Y2]
…
AV:[X1]-> [Yn]

RS:[RX1]-> [TY1]
RS:[RX1]-> [TY2]
…
RS:[RX1]-> [TYn]

IR:[RX1]-> [TY1]
IR:[RX1]-> [TY2]
…
IR:[RX1]-> [TYn]

RS:[RX1]->[TY1]
IR:[RX1]->[TY1]
RS:[RX1]-> [TY2]
IR:[RX1]-> [TY2]
…
RS:[RX1]-> [TYn]
IR:[RX1]-> [TYn]
AV:[X1]-> [Y1]
RS:[RX1]->[TY1]
IR:[RX1]->[TY1]
AV:[X1]-> [Y2]
RS:[RX1]-> [TY2]
IR:[RX1]-> [TY2]
…
AV:[X1]-> [Yn]
RS:[RX1]-> [TYn]
IR:[RX1]-> [TYn]

For

example

1B1,2,3.

1R1,2,3.

1Q1,2,3.

1T1,2,3.

1W1,2,3.

[RY1]~R[TX1],[T

X2],…,[TXn].

[RY1]~Q[TX1],[T

X2],…,[TXn].

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

~RS:[RY1]->[TX1]
~RS:[RY1]->[TX2]
…
~RS:[RY1]->[TXn]

~IR:[RY1]->[TX1]
~IR:[RY1]->[TX2]
…
~IR:[RY1]->[TXn]

1~R1,2,3.

1~Q1,2,3.

34

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

One-way serial output port / infrared receiver
channel [RY1] connected to the serial
multi-channel input port / infrared transmitting
channel [TX1],[TX2],…,[TXn] (RS232/IR
reverse multi-channel switching)

Audio and video input [X1] connected to all
audio and video output
one-way serial input port / infrared receiving
channel[RX1]connected to all serial output
port / infrared transmitting channel [TYn]

Multi-channel audio and video input
[X1],[X2],…,[Xn] connected to multi-channel
audio and video output [Y1],[Y2],…,[Yn]
multi-channel serial input port / infrared
receiving channel[RX1],[RX2],…,[RXn]
connected to the multi-channel corresponding
serial output port / infrared transmitting channel
[TY1],[ TY2],…,[ TYn] multi-channel serial
output port / infrared receiving channel
[RY1],[RY2],…,[RYn] connected to the
multi-channel corresponding serial input port /
infrared transmitting channel
[TX1],[TX2],…,[TXn]

All audio and video input [Xn] connected to all
corresponding audio and video output [Yn
all serial input port / infrared receiving
channel[RXn]connected to the all
corresponding serial output port / infrared
transmitting channel [TYn] all serial output port /
infrared receiving channel [RYn] connected to
the all corresponding serial input port / infrared
transmitting channel [TXn]

Instructions

(Computer to

the matrix)

[RY1]~T[TX1],[T

X2],…,[TXn].

Command functions

switching)

Return(matrix to

computer)

~RS:[RY1]->[TX1]
~IR:[RY1]->[TX1]
~RS:[RY1]->[TX2]
~IR:[RY1]->[TX2]
…
~RS:[RY1]->[TXn]
~IR:[RY1]->[TXn]

For

example

1~T1,2,3.

[X1]All.

[X1],[X2],…,[Xn]#

.

[X1] A/V/R/I To
All

[X1] A/V/R/I
Through.
[X2] A/V/R/I
Through.
…
[Xn] A/V/R/I
Through.

1All.

1,2,3#.

All#.

Note: All the switching instructions can be sent in multi-items and multi-types at the same time, such as
(1V1.1R1.1Q2.2~R1.), matrix will first cache and then execute one by one

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

All A/V/R/I

Through.

All#.

35

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Disconnect the channel connection

Disconnect one-way audio and video
output[Y1]and serial output port / infrared
transmitting channel[TY1]

Disconnect multiplex audio and video output
[Y1],[Y2],…,[Yn]

ASCII

Instructions

(Computer to

the matrix)

Disconnect one-way connection

0V[Y1].

0A[Y1].

0B[Y1].

0R[TY1]. Disconnect one-way serial output port [TY1] RS:OFF->[TY1]! 0R1.

0Q[TY1].

0T[TY1].

0W[Y1].

0~R[TX1]. Disconnect one-way serial input port [TX1] ~RS:OFF->[TX1]! 0~R1.

0~Q[TX1].

0~T[TX1].

0*[Y1]&

0*[Y1]%

0*[Y1]$

0*[Y1]!

[Y1]$.

Quickly disconnect multiplex connections

[Y1],[Y2],…,[Y

n]$.

[TY1],[TY2],…,

[TYn]R$.

Command functions

Ddisconnect one-way audio and video
output[Y1]
Disconnect one-way audio and video
output[Y1]
Disconnect one-way audio and video
output[Y1]

Disconnect one-way infrared receiving
channel output port [TY1]
Disconnect one-way serial output port /
infrared transmitting channel [TY1]

Disconnect one-way infrared transmitting
channel output port [TX1]
Disconnect one-way serial input port /
infrared transmitting channel [TX1]
Disconnect one-way audio and video output
[Y1]
Disconnect one-way audio and video output
[Y1]
Disconnect one-way audio and video output
[Y1]
Disconnect one-way audio and video output
[Y1]
Disconnect one-way audio and video output
[Y1]

Disconnect multi-channel serial output port
[TY1],[TY2],…,[TYn]

Return(matrix to

computer)

B:OFF->[Y1]! 0V1.

B:OFF->[Y1]! 0A1.

B:OFF->[Y1]! 0B1.

IR:OFF->[TY1]! 0Q1.

RS:OFF->[TY1]!
IR:OFF->[TY1]!
B:OFF->[ Y1]!
RS:OFF->[TY1]!
IR:OFF->[TY1]!

~IR:OFF->[TX1]! 0~Q1.

~RS:OFF->[TX1]!
~IR:OFF->[TX1]!

B:OFF->[Y1]! 0*1&

B:OFF->[Y1]! 0*1%

B:OFF->[Y1]! 0*1$

B:OFF->[Y1]! 0*1!

B:OFF->[Y1]! 1$.

B:OFF->[Y1]!
B:OFF->[Y2]!
…
B:OFF->[Yn]!
RS:OFF->[TY1]!
RS:OFF->[TY2]!

For example

0T1.

0W1.

0~T1.

1,2,3$.

1,2,3R$.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

36

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

[TY1],[TY2],…,

Disconnect multi-channel serial output port/
infrared transmitting channel
[TY1],[TY2],…,[TYn]

Disconnect multiplex audio and video output
[Y1],[Y2],…,[Yn]
Disconnect multi-channel serial output port/
infrared transmitting channel
[TY1],[TY2],…,[TYn]

Disconnect multi-channel serial Input port /
infrared transmitting channel
[TX1],[TX2],…,[TXn]

[TYn]Q$.

[TY1],[TY2],…,

[TYn]T$.

[Y1],[Y2],…,[Y

n]W$.

[TX1],[TX2],…,

[TXn]~R$.

[TX1],[TX2],…,

[TXn]~Q$.

[TX1],[TX2],…,

[TXn]~T$.

All$.

Disconnect multi-channel infrared
transmitting channel output port
[TY1],[TY2],…,[TYn]

Disconnect multi-channel serial transmitting
channel input port [TX1],[TX2],…,[TXn]

Disconnect multi-channel infrared
transmitting channel input
port[TX1],[TX2],…,[TXn]

Disconnect all audio and video[Yn] and
serial input/output port / nfrared transmitting
channel [TXn],[TYn]

…
RS:OFF->[TYn]!
IR:OFF->[TY1]!
IR:OFF->[TY2]!
…
IR:OFF->[TYn]!
RS:OFF->[TY1]!
IR:OFF->[TY1]!
RS:OFF->[TY2]!
IR:OFF->[TY2]!
…
RS:OFF->[TYn]!
IR:OFF->[TYn]!
B:OFF->[Y1]!
RS:OFF->[TY1]!
IR:OFF->[TY1]!
B:OFF->[Y2]!
RS:OFF->[TY2]!
IR:OFF->[TY2]!
…
B:OFF->[Yn]!
RS:OFF->[TYn]!
IR:OFF->[TYn]!
RS:OFF->[TX1]!
RS:OFF->[TX2]!
…
RS:OFF->[TXn]!
IR:OFF->[TX1]!
IR:OFF->[TX2]!
…
IR:OFF->[TXn]!
RS:OFF->[TX1]!
IR:OFF->[TX1]!
RS:OFF->[TX2]!
IR:OFF->[TX2]!
…
RS:OFF->[TXn]!
IR:OFF->[TXn]!

All A/V/R/I Closed. All$.

1,2,3Q$.

1,2,3T$.

1,2,3W$.

1,2,3~R$.

1,2,3~Q$.

1,2,3~T$.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

37

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

Inquire channel connection

Inquire connection status of one-way or
multiplex audio and video
input[X1],[X2],…,[Xn]

Inquire connection status of serial input port
/infrared receiving channel
[RX1],[RX2],…,[RXn] and transmitting
output channel[TY1],[TY2],…,[TXn] and
serial output port/infrared receiving channel
[RY1],[RY2],…,[RYn]and transmitting input
channel[TX1],[TX2],…,[TXn] (inquire
connection status of RS232/IR bidirectional
channels)

ASCII

Instructions

(Computer to

the matrix)

Status[X1],[X2]

,…,[Xn].

Inquire[X1],[X2]

,…,[Xn].

Status.

Inquire.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

Command functions

Inquire connection status of all audio and
video output

Inquire connection status of all bidirectional
serial / infrared channels

Return(matrix to

computer)

A:[X1]->[Yn]
V:[X1]->[Yn]
…
A:[X2]->[Yn]
V:[X2]->[Yn]
…
A:[Xn]->[Yn]
V:[Xn]->[Yn]
…
RS:[RX1]->[TYn]
IR:[RX1]->[TYn]
…
RS:[RX2]->[TYn]
IR:[RX2]->[TYn]
…
RS:[RXn]->[TYn]
IR:[RXn]->[TYn]
…
~RS:[RY1]->[TXn]
~IR:[RY1]->[TXn]
…
~RS:[RY2]->[TXn]
~IR:[RY2]->[TXn]
…
~RS:[RYn]->[TXn]
~IR:[RYn]->[TXn]
…
A:[X1]->[Yn]
V:[X1]->[Yn]
…
A:[X2]->[Yn]
V:[X2]->[Yn]
…
A:[Xn]->[Yn]
V:[Xn]->[Yn]
…
RS:[RX1]->[TYn]
IR:[RX1]->[TYn] Inquire.

For example

Status1,2,3.

Inquire1,2,3.

Status.

38

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

Recall from the N global pre-set as the
current connection state

Instructions

(Computer to

the matrix)

Command functions

Return(matrix to

computer)

…
RS:[RX2]->[TYn]
IR:[RX2]->[TYn]
…
RS:[RXn]->[TYn]
IR:[RXn]->[TYn]
…
~RS:[RY1]->[TXn]
~IR:[RY1]->[TXn]
…
~RS:[RY2]->[TXn]
~IR:[RY2]->[TXn]
…
~RS:[RYn]->[TXn]
~IR:[RYn]->[TXn]
…

For example

Global pre-set instructions

ASCII

Instructions

(Computer to

the matrix)

Save[N].

Recall[N].

Clear[N]. Clear the N global default and its name Clear F[N] Clear2.

Security Settings instructions

ASCII

Instructions

(Computer to

the matrix)

/%Lock; Lock the control panel keyboard System Locked! /%Lock;

/%Unlock; Unlock the control panel keyboard System Unlocked! /%Unlock;

Note: the panel can be locked or unlocked only by serial command.

System Settings instructions

Command functions

N=1,2,3,…,8. Save the connection state of all
audio and video / serial / infrared to the N
global setting

Command functions Return(matrix to computer) For example

Return(matrix to

computer)

Save To F[N] Save2.

Recall From F[N] Recall2.

For example

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

39

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

Closed The Message Return.

Audio and video input [X1] prohibit to
output from[Y1],[Y2],…[Yn] channel

Audio and video input [X1] prohibit to
output from[Y1],[Y2],…[Yn] channel

Query the status that one-way or
multiplex audio and video cannot be
output from which output channel.

Query the status that one-way or
multiplex audio and video cannot be
output from which output channel

Instructions

(Computer to

the matrix)

/:BellOff; Close the bell Closed The Bell. /:BellOff;

/:BellOn; Open the bell Opened The Bell. /:BellOn;

/:MessageOff; Closed the message return

/:MessageOn; Enabled the message return.

Permission instruction

ASCII

Instructions

(Computer to

the matrix)

[X1]H[Y1],[Y2],

…[Yn].

[X1]F[Y1],[Y2],

…[Yn].

QueryH[X1],[X

2],…[Xn].

QueryF[X1],[X

2],…[Xn].

EliminateH[X1]

, [X2],…[Xn].

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

Command functions Return(matrix to computer) For example

Enabled The Message
Return.

Command functions Return(matrix to computer)

AV: [X1]!>[Y1] SetForbidOK!
AV: [X1]!>[Y2] SetForbidOK!
…
AV: [X1]!>[Yn] SetForbidOK!
AV: [X1]!>[Y1] SetForbidOK!
AV: [X1]!>[Y2] SetForbidOK!
…
AV: [X1]!>[Yn] SetForbidOK!
A: [X1]!>[Yn] !
V: [X1]!>[Yn] !
…
A: [X2]!>[Yn] !
V: [X2]!>[Yn] !
…
A: [Xn]!>[Yn] !
V: [Xn]!>[Yn] !
…
A: [X1]!>[Yn] !
V: [X1]!>[Yn] !
…
A: [X2]!>[Yn] !
V: [X2]!>[Yn] !
…
A: [Xn]!>[Yn] !
V: [Xn]!>[Yn] !

…
Cancel the corresponding output
inhibition of audio and video input

AV:[X1]

InputEliminateForbidOK!

/:MessageOff
;
/:MessageOn
;

For

example

1H1,2,3.

1F1,2,3.

QueryH1,2,

3.

QueryF1,2,

3.

EliminateH1
,2,3.

40

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

All audio and video input channel
permissions restore to their default
values, hey can be put out from any
output channel.

All audio and video input channel
permissions restore to their default
values, hey can be put out from any
output channel.

<#GAR [192].
[168]. [0]. [1]>

Restore the default
network configuration

Instructions

(Computer to

the matrix)

EliminateF[X1]
, [X2],…[Xn]..

Command functions Return(matrix to computer)

channels[X1], [X2]…[Xn],namely,
[X1], [X2],... [Xn] are designated to
be output from any output channels

Cancel the corresponding output
inhibition of audio and video input
channels[X1], [X2]…[Xn],namely,
[X1], [X2],... [Xn] are designated to
be output from any output channels

AV:[X2]

InputEliminateForbidOK!

…

AV:[Xn]

InputEliminateForbidOK!

AV:[X1]

InputEliminateForbidOK!

AV:[X2]

InputEliminateForbidOK!

…

AV:[Xn]

InputEliminateForbidOK!

For

example

EliminateF1
,2,3.

EliminateHAll.

EliminateFAll.

Network Settings

ASCII

Instructions

(Computer to the

matrix)

<#SPORT[5000]> Set matrix port SPORT:[5000] <#SPORT5000>

<#SIPR[192].
[168]. [0]. [2]>

<#SUBR [255].
[255]. [255]. [0]>
<# SHAR 0x[00].
0x[11]. 0x[22].
[0x33]. [0x44].
[0x55]>

Command functions

Set matrix IP

Set matrix gateway

Set matrix subnet
mask
Set network hardware
address (network
hardware address 16
hex)

Return(matrix to

computer)

SIPR:[192].[168].[0].[
2]
GAR:[192].[168].[0].[
1]
SUBR:[255].[255].[25
5].[0]

0x[00]. 0x[11]. 0x[22].
[0x33]. [0x44].
[0x55]>

AllVEliminateForbidOK!

AllAEliminateForbidOK!

For example

<#SIPR192.168.0.2>

<#GAR192.168.0.1>

<#SUBR255.255.255.0>

<#SHAR0x00.0x11.0x22.0x33.
0x44.0x55>

EliminateH
All.

EliminateFA
ll.

<#NETDEFAULT>

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

NETDEFAULT:[OK] <#NETDEFAULT>

41

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

Read the monitor EDID connected to port
[Y1] to the input port [X1], [X2],... , [Xn].
When the output port [Y1] equals 0,it
means that restores the default EDID to
the corresponding input port

Instructions

(Computer to the

matrix)

Note: it will return to "Out of range!" when set network error and returns "NETSET: OK." when set

network successfully

System inquiry instructions

ASCII

Instructions

(Computer to

the matrix)

/^Version;

/*Type; Inquiry matrix type [X5] /*Type;
<^SPORT> Inquiry matrix port SPORT:[X12] <^SPORT>
<^SIPR> Inquiry matrix IP SIPR:[X12].[X13].[X14].[X15] <^SIPR>

<^SUBR>

<^GAR> Inquiry matrix gateway GAR:[X12].[X13].[X14].[X15] <^GAR>

<^SHAR>

Command functions

Set network error Out of range!

Set network
successfully

Command functions Return(matrix to computer) For example

Inquiry matrix system
version

Inquiry matrix subnet
mask

Inquiry matrix hardware
address

Return(matrix to

computer)

NETSET:OK

[X4] /^Version;

SUBR:[X12].[X13].[X14].[X15] <^SUBR>

SHAR:[X12].[X13].[X14].[X15].[X16].[X1
7]

For example

<^SHAR>

Common settings command

ASCII

Instructions

(Computer to

the matrix)

Standardswitch. Switch to standard mode

Fastswitch. Switch to a fast mode (default) FASTSWITCH! Fastswitch.

RWEDID.

DefaultEDID.

[Y1]D[X1],
[X2],…[Xn].

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

Command functions

Load the first output port of the EDID to all
input port
Restore the system default EDID to all
input port

Return(matrix to

computer)

STANDARDSWITCH!Standardswit

EDID-OK!( success)
EDID-FAIL!(Failure)

EDID-OK! DefaultEDID.

EDID-OK!( success)
EDID-FAIL!(Failure)

For example

ch.

RWEDID.

1D1,2,3,8.

42

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

1D1,2,3,4,5,6,7,8.) As input ports [Xn] are
required in the same layer of the input
card, so only 8 roads can be written at one
time (for example: 1D1,2,3,4,5,6,7,8.)

Return(matrix to

computer)

Enter the input card debugging mode,
activate the port of COMP8 input card (the
maximum number is up to 40) and it will
automatically exit debugging mode without
any operation in 10 minutes.
Note: Only one input port can be activated
during query; output card debugging mode
automatically exit after the use of the
command, and the port activated by input
card debugging mode automatically become
invalid .

Enter the output card debugging mode,
activate the port of COMP8 output card (the
maximum number is up to 40) and it will
automatically exit debugging mode without
any operation in 10 minutes.
Note: Only one output port can be activated
during query; input card debugging mode
automatically exit after the use of the
command, and the port activated by output
card debugging mode automatically become
invalid .

Instructions

(Computer to

the matrix)

COMP8 input and output card control instruction table

ASCII

Instructions

(Computer to

the matrix)

COMP8 card commands - set active command to card port

(Note: Activate the card port before the corresponding port parameter settings)

Command functions

Command functions

Return(matrix to

computer)

For example

For example

[X1],[X2],…,[Xn]
SETIN.

[Y1],[Y2],…,[Yn]
SETOUT.

EXITSET. Exit component card debugging mode state Command OK! EXITSET.

COMP8 card commands - video switching operation instruction

01C02. Set the active port to CV video mode Command OK! 01C02.

03C02. Set the active port to YPbPr video mode Command OK! 03C02.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

Command OK!

Command OK!

1,2,3,4SETI
N.

1,2,3,4SETO
UT.

43

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

Return(matrix to

computer)

Set the active port resolution to custom
resolution

Instructions

(Computer to

the matrix)

05C02. Set the active port to VGA video mode Command OK! 05C02.

12C02. Set the active port to YC video mode Command OK! 12C02.

COMP8 card command -output the resolution operation instruction

Command functions

For example

01C08.

02C08.

03C08.

04C08.

05C08.

07C08.

08C08.

09C08.

011C08.

012C08.

Set the active port resolution to 800 x
600@60Hz
Set the active port resolution to
1024x768@60Hz
Set the active port resolution to
1280x720@60Hz
Set the active port resolution to
1280x800@60Hz
Set the active port resolution to
1280x1024@60Hz
Set the active port resolution to
1400x1050@60Hz
Set the active port resolution to
1440x900@60Hz
Set the active port resolution to
1600x900@60Hz
Set the active port resolution to
1680x1050@60Hz
Set the active port resolution to
1920x1080@60Hz

RESOLUTION:1 01C08.

RESOLUTION:2 02C08.

RESOLUTION:3 03C08.

RESOLUTION:4 04C08.

RESOLUTION:5 05C08.

RESOLUTION:7 07C08.

RESOLUTION:8 08C08.

RESOLUTION:9 09C08.

RESOLUTION:11 11C08.

RESOLUTION:12 12C08.

013C08.

COMP8 card commands - OSD menu operation instruction output to the screen

01C15. Enter the OSD menu settings Command OK! 01C15.

02C15. Exit the OSD menu settings Command OK! 02C15.

03C15. The OSD menu leftward setting Command OK! 03C15.

04C15. The OSD menu rightward setting Command OK! 04C15.

07C15. Automatically adjust the screen settings Command OK! 07C15.

08C15. Automatically adjust function enable Command OK! 08C15.

09C15. Automatically adjust function inhibition Command OK! 09C15.

xxC21.

xxC22. Adjust the contrast parameter Command OK! xxC22.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

Adjust the brightness parameter
(00<=xx<=99)

RESOLUTION:13 13C08.

Command OK! xxC21.

44

CROSS series mixed matrix switch User 's Manual

CROSS Series Mixed Matrix Switcher User 's Manual

ASCII

Return(matrix to

computer)

Query the input channel corresponding to
the current video output

Restore the current active port to factory
settings

Instructions

(Computer to

the matrix)

Command functions

(00<=xx<=99)

For example

xxC23.

xxC24. Adjust the phase parameter (00<=xx<=99) Command OK! xxC24.

xxC25. Adjust the clock parameters (00<=xx<=99) Command OK! xxC25.

xxC26.

xxC27.

COMP8 card commands - query recovery operation instruction

01C30.

06C30. Query the current active port resolution RESOLUTION:xx 06C30.

09C30.

Network default parameters

Matrix port:5000
Matrix IP:192.168.0.2
Matrix gateway:192.168.0.1
Matrix subnet mask:255.255.255.0
Matrix hardware address:0x00.0x11.0x22.0x33.0x44.0x55;

Note: The network parameters come into effect only after restarting the matrix system.

Adjust the parameters of saturation
(00<=xx<=99)

Adjust the horizontal position parameter
(00<=xx<=99)
Adjust the vertical position parameter
(00<=xx<=99)

Command OK! xxC23.

Command OK! xxC26.

Command OK! xxC27.

Video Source:xx 01C30.

Command OK! 09C30.

1.RS-232 and IR panel operation are forward (forward: input connect RS-232 or IR sender, output
connect RS-232 or IR receiver);

2.RS-232 and IR reverse switch to toggle through the machine's serial instruction (reverse: input
connected to RS-232 or IR receiver, output connected to the RS-232 or infrared sender) please View
serial instructions for serial switcher instruction.

3.NO matter forward or reverse switch of infrared and serial signal, one way can be switched to another
or more ways, multiple ways cannot be switched at the same time to one way.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CREATOR CORPORATION(CHINA)

Copyright by CREATOR

Last Revision:08/2013
