CREATOR CAT5 User Manual

The

The

Second

Second

Generation

Generation

Digital

Digital

CAT5

CAT5

Transmitter

Transmitter

User

User

's

's

Manual

Manual

V1.1 Version

CREATOR CORPORATION CHINA

CREATOR CORPORATION(CHINA)

The meaning of symbols

This is A level product, which may cause radio
interference in the living environment. In this
case, users may need to take the feasible
measures to get around the interference.

CE certification means that the product has
reached the directive safety requirements
defined by the European Union. Users can be
assured about the use of it

Warning: in order to avoid electrical shock, do
not open the machine cover, nor is the useless
part allowed to be placed in the box. Please
contact the qualified service personnel.

■Safety instructions
For your safe and correct use of equipments, we use a lot of symbols on the equipments and in the
manuals, demonstrating the risk of body hurt or possible damage to property for the user or others.
Indications and their meanings are as follow. Please make sure to correctly understand these
instructions before reading the manual.

Remind users that the dangerous voltage
without insulation occurring within the
equipment may cause people suffer from shock

SGS certification means that the product has
reached the quality inspection standards
proposed by the world's largest SGS.
This product passed the ISO9001 international
quality certification (certification body: TUV
Rheinland, Germany).

■General information instructions

It lists the factors leading to the unsuccessful
operation or set and the relevant information to
pay attention to.

Important note

Warning

In order to ensure the reliable performance of the
equipment and the safety of the user, please
observe the following matters during the process
of installation, use and maintenance:

The matters needing attention of installation

◆Please do not use this product in the following
places: the place of dust, soot and electric
conductivity dust, corrosive gas, combustible gas;
the place exposed to high temperature,
condensation, wind and rain; the occasion of
vibration and impact . Electric shock, fire, wrong
operation can lead to damage and deterioration
to the product, either;

◆In processing the screw holes and wiring,
make sure that metal scraps and wire head will
not fall into the shaft of controller, as it could
cause a fire, fault, or incorrect operation;

◆When the installation work is over, it should be
assured there is nothing on the ventilated face,
including packaging items like dust paper.
Otherwise this may cause a fire, fault, incorrect
operation for the cooling is not free;

◆Should avoid wiring and inserting cable plug in
charged state, otherwise it is easy to cause the
shock, or electrical damage;

◆The installation and wiring should be strong
and reliable, contact undesirable may lead to
false action;

◆For a serious interference in applications,
should choose shield cable as the high frequency
signal input or output cable, so as to improve the
anti-jamming ability of the system.

Attention in the wiring

◆Only after cutting down all external power
source, can install, wiring operation begin, or it
may cause electric shock or equipment damage;

◆This product grounds by the grounding
wires .To avoid electric shocks, grounding wires
and the earth must be linked together. Before the
connection of input or output terminal, please
make sure this product is correctly grounded;

◆Immediately remove all other things after the
wiring installation. Please cover the terminals of
the products cover before electrification so as to
avoid cause electric shock.

Matters needing attention during operation

and maintenance

◆Please do not touch terminals in a current
state, or it may cause a shock, incorrect
operation;

◆Please do cleaning and terminal tighten work
after turning off the power supply. These
operations can lead to electric shock in a current
state;

◆Please do the connection or dismantle work of
the communication signal cable , the expansion
module cable or control unit cable after turning
off the power supply, or it may cause damage to
the equipment, incorrect operation;

◆Please do not dismantle the equipment, avoid
damaging the internal electrical component;

◆Should be sure to read the manual, fully
confirm the safety, only after that can do program
changes, commissioning, start and stop
operation.

Matters needing attention in discarding

product

◆Electrolytic explosion: the burning of
electrolytic capacitor on circuit boards may lead
to explosion;

◆Please collect and process according to the
classification, do not put into life garbage;

◆Please process it as industrial waste, or
according to the local environmental protection
regulations.

Preface

The second generation Digital CAT5 transmitter User 's Manual mainly introduces the operation methods
of CR-uCAT5 AV 200T transmitter,CR-uCAT5 DVI 200T transmitter,CR-uCAT5 DVI 200R
receiver,CR-uCAT5 HDMI 200T transmitter,CR-uCAT5 HDMI 200R receiver,CR-uCAT5 VGA 200R
receiver,their main performance parameters and common fault solutions.

This manual is only used as user instruction, not for a repair service usage. The functions or related
parameters may be changed since the date of issue, please inquire the supplemental information from
CREATOR Electronics or local distributors.

The copyright of this manual belongs to CREATOR Electronics. Without permission, no unit or individual
shall adopt part or all of its content for commercial use.

The manual is protected by of the Copyright Law of the Peoples Republic of China and other regulations
about intellectual property rights. Without written permission shall not be copied or distributed.

Catalog

Chapter 1 Summary.................................................................................................................................................. 1

1.1 Classification of Digital CAT5 Transmitter............................................................................................1

1.1.1 Digital uCAT5 transmitter.............................................................................................................1

1.1.2 Accessories.................................................................................................................................... 1

1.2 System Connection Diagram................................................................................................................. 2

Chapter 2 Digital uCAT5 Transmitter...................................................................................................................... 3

2.1 Controller Installation............................................................................................................................... 3

2.2 CR-uCAT5 AV 200T Digital Mixed Twisted-Pair Transmitter............................................................ 3

2.2.1 Function Characteristics.............................................................................................................. 3

2.2.2 Panel Features.............................................................................................................................. 3

2.2.3 Operating Instructions..................................................................................................................5

2.2.4 Connection Diagram.....................................................................................................................6

2.3 CR-uCAT5 DVI 200T&R Digital Twisted-Pair Transmitter.................................................................6

2.3.1 Function Characteristics.............................................................................................................. 6

2.3.2 Panel Features.............................................................................................................................. 6

2.3.3 Connection Diagram.....................................................................................................................8

2.4 CR-uCAT5 HDMI 200T&R Digital Twisted-Pair Transmitter............................................................. 8

2.4.1 Function Characteristics.............................................................................................................. 8

2.4.2 Panel Features.............................................................................................................................. 8

2.4.3 Connection Diagram.................................................................................................................. 10

2.5 CR-uCAT5 VGA 200R Digital Twisted-Pair Transmitter.................................................................. 10

2.5.1 Features Characteristics........................................................................................................... 10

2.5.2 Panel Features............................................................................................................................10

2.5.3 Connection Diagram...................................................................................................................11

2.6 RJ45 Network Port................................................................................................................................. 11

2.7 Technical Parameters............................................................................................................................13

2.7.1 CR-uCAT5 AV 200T Technical Parameters............................................................................13

2.7.2 CR-uCAT5 DVI 200T Technical Parameters..........................................................................15

2.7.3 CR-uCAT5 DVI 200R Technical Parameters......................................................................... 16

2.7.4 CR-uCAT5 HDMI 200T Technical Parameters...................................................................... 17

2.7.5 CR-uCAT5 HDMI 200R Technical Parameters......................................................................18

2.7.6 CR-uCAT5 VGA 200R Technical Parameters........................................................................19

2.7.7 CR-uCAT5 AV 200T Transmitter Engineering Serial Instruction Sets............................... 20

Chapter 3 Accessories............................................................................................................................................22

3.1 Infrared Transmitter CR-IR/T............................................................................................................... 22

3.2 Infrared Receiver CR-IR/R................................................................................................................... 22

3.3 3.5mm Headset Connector to DB9 Male Socket Connecting Line............................................... 22

3.4 3.5mm Headset Connector to DB9 Female Socket Connecting Line...........................................22

3.5 DB15 Male Socket to RCA Terminal, SV Terminal Connection Line (VGA to CV video, Y/C

video, YPbPr video).........................................................................................................................................22

3.6 3.5mm Headset Connector to DB9 Male (Female) Socket Definition.......................................... 23

3.7 DB15 Male Socket Connection Line Definition................................................................................. 23

Chapter 4 Common Fault Solutions..................................................................................................................... 24

1

The second generation Digital CAT5 transmitter User 's Manual

1

Chapter 1 Summary

The second generation uCAT5 series digital
transmitter is a new generation twisted-pair
transmitter upgrading the first generation product.
It transmits integrated CAT5 audio, video, control
signals. By increasing the transmission end
monitoring output interface, it can monitor the
video input state and backup output. Adopting the
advanced HDBaseT technology, based on single
CAT5e/6 shielding cable, its maximum
transmission distance is up to 100M.
Focus on the market application and current
video interfaces, CR-uCAT5 AV 200T transmitter
integrates Video, S-video, YPbPr (YCbCr), VGA
(RGBHV) into a unified DB15 (VGA Female
socket) interface input and HDMI, DVI input.
Together with one analog audio input (except
HDMI input mode), it can directly select
corresponding input signal source through the
channel selecting button the serial command. Any
video input of Video, S-video, YPbPr, VGA, DVI
can simultaneously transmit analog audio input
and directly output HDMI signal by HDMI
monitoring interface. Support color space
conversion, eliminate flicker, support noise
reduction and scaling, resolution can be upscale
to 1080P.
The second generation uCAT5 series transmitter
is increased with the sending end video
surveillance function. It can monitor the output
state of receiving end in real-time, so as to meet
the different application needs of users. It can be
widely used in fields like network flat panel
display and large screen splicing wall display,
advertising project, industrial automation control,
medical equipment, security monitoring,
multimedia teaching etc.

1.1 Classification of Digital

CAT5 Transmitter

1.1.1 Digital uCAT5 transmitter

AV digital video twisted pair transmitter
CR-uCAT5 AV 200T

DVI digital video twisted pair transmitter
CR-uCAT5 DVI 200T CR-uCAT5 DVI 200R

HDMI digital video twisted pair transmitter
CR-uCAT5 HDMI 200T CR-uCAT5 HDMI 200R

VGA video twisted-pair receiver
CR-uCAT5 VGA 200R

3 types of transmitters and 3 types of receivers
can be in any arbitrary combinations.

1.1.2 Accessories



Infrared transmitter CR-IR/T.



Infrared receiver CR-IR/R.



3.5mm headphones socket to DB9 male

socket.



3.5mm headphones socket to DB9 female

socket.



DB15 male socket transfer line (S terminal,

RCA head.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

2

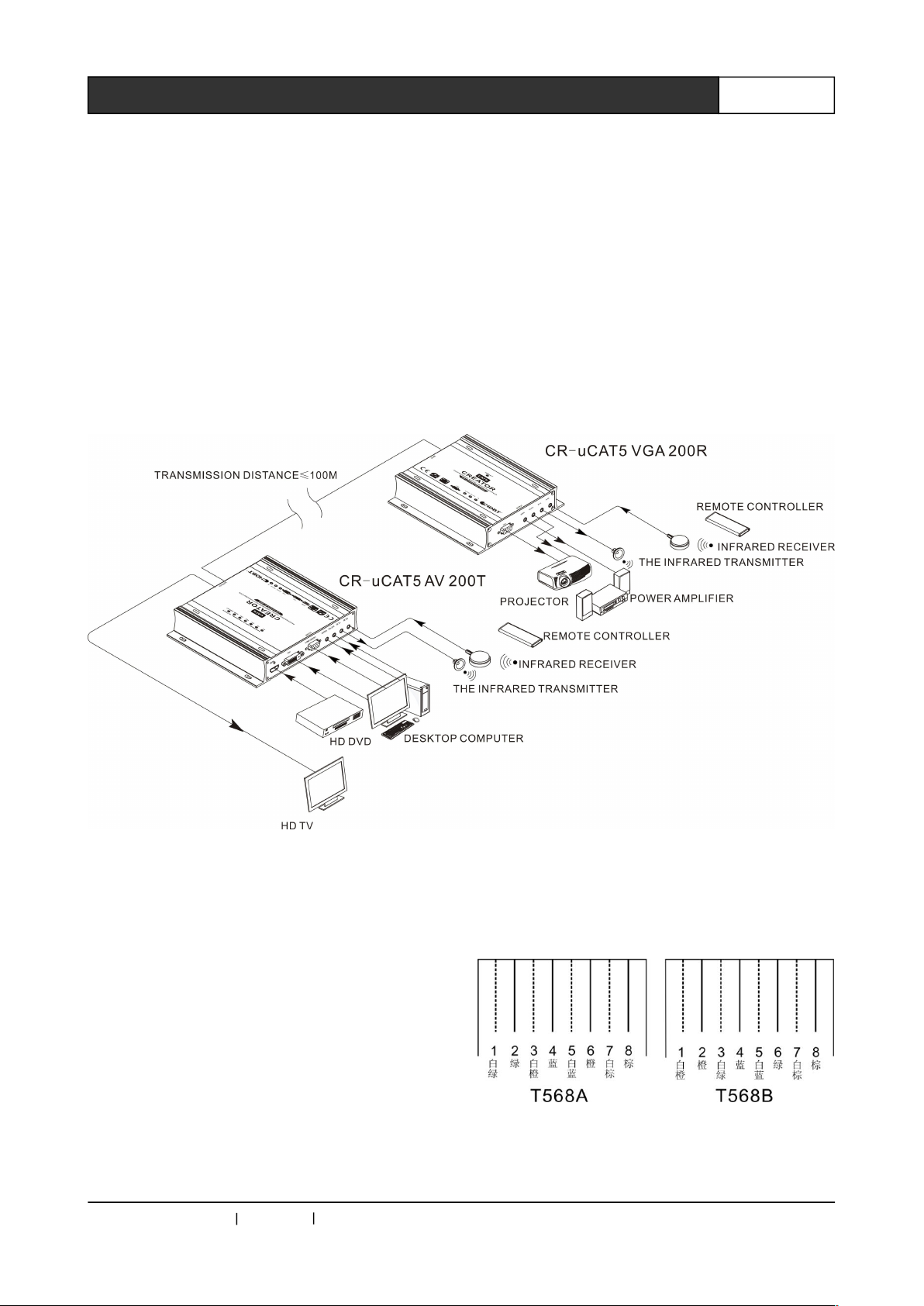

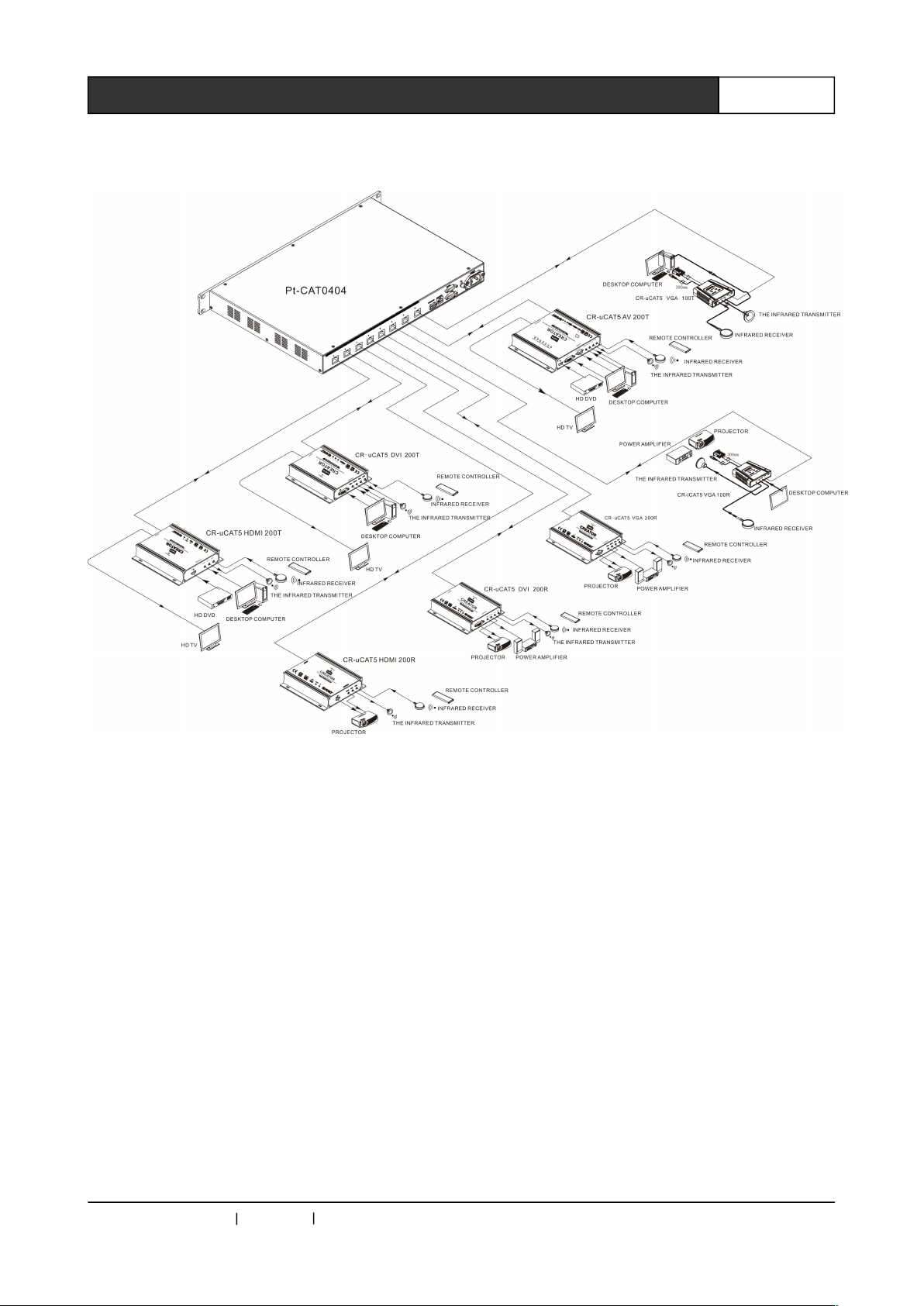

1.2 System Connection Diagram

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

3

Chapter 2 Digital uCAT5 Transmitter

2.1 Controller Installation

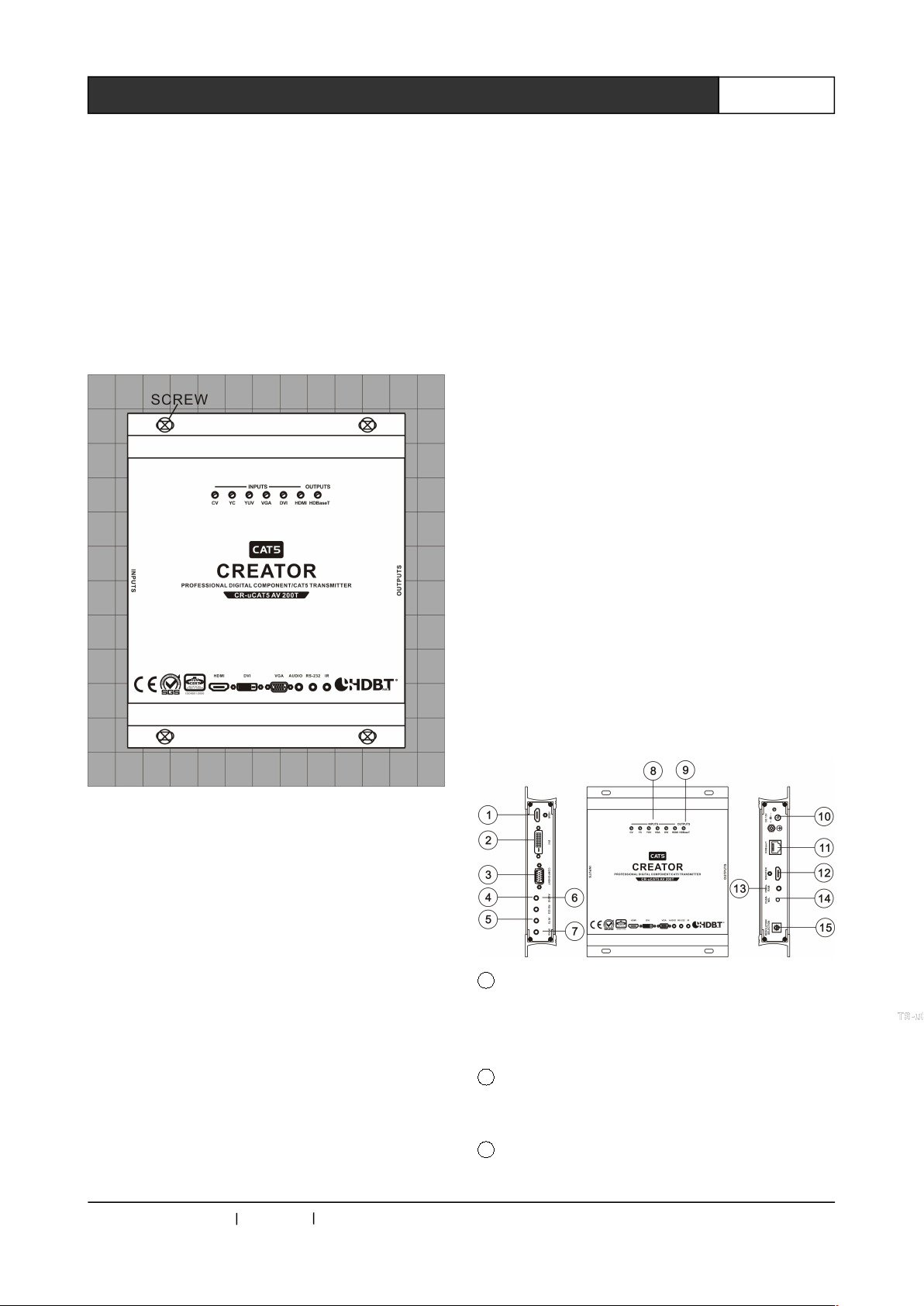

Digital video twisted pair transmitter controller has
small size, light weight, and can be easily
installed in any place, for example, as the
following figure shows, the transmitter is mounted
on the wall, can be fixed with 4PCS screws.

2.2 CR-uCAT5 AV 200T Digital

Mixed Twisted-Pair Transmitter

AV mixed twisted-pair transmitter through a single
CAT5e/6 shielding cable transmits video signals
up to 100m, and can transfer two-way digital
signals like IR, serial, so as to meet the needs of
different types of video interfaces and control
equipments

2.2.1 Function Characteristics



Supports HDM11.3a, compatible with

HDCPl.3;



Support DVI-D input, compatible with DVI1.0;



Supports Video, S-video, YPbPr (YCbCr),

VGA (RGBHV) input;



Support analog stereo input, output, HDMI

digital audio input, output;



Support two-way infrared, RS-232

transmission;



Through serial command or panel code to

change the output resolution;



Through serial command or panel button to

select a video source;



Support video scaling, noise reduction,

de-interlacing, adjustment of brightness and
contrast, resolution can be up-scaled to
1920x1080P@60;



Support simultaneous transmission of video,

audio, IR, and RS-232. The maximum
transmission distance of CAT5e/6 shielding
cable is up to 100M.

2.2.2 Panel Features

CR-uCAT5 AV 200T:

1 HDMI——HDMI audio and video input

HDMI interface is used to connect the input
from HDMI interface, HD video source such as
PC, Blu-ray DVD, HD Player, etc.

2 DVI——DVI video signal input

DVI-D interface is used to connect the DVI
HD video signal source.

3 COMPONENT——Hybrid video input port is

used for VGA video input. Through the conversion

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

4

line, it can input RGBHV, Video, S-video, YPbPr
(YCbCr)

4 AUDIO——Audio signal input

Provides 1 channel of non-equilibrium, stereo
audio input, and input for any video (except
HDMI)

5 IR TX——Infrared transmitter port

Using 3.5MM earphone socket infrared
transmitter

6 RS-232——RS-232 control port

3.5MM earphone socket and DB9 male
(female) socket are used for long distance serial
control. The sending end with 3.5MM connected
to DB9 socket, receiver with 3.5MM connected to
DB9 socket, both ends are set to a consistent
baud rate, and baud rate ranges from 110bps to
115200bps

7 IR-RX——Infrared receiver port

Using 3.5MM earphone socket connected to

infrared receiver.

8 INPUTS——The lamp indicating input

channel state

9 OUTPUTS——The lamp indicating output

channel state

10 DC 12V——Power input port

Support DC 12V input, with a power

indicating lamp

11 HDBaseT——CAT5e/6 network transmission

interface
Use RJ45 interface for long distance transmission
of HDBaseT signals.

12 MONITOR——HDMI video output interface

It is used by HDMI to monitor the signal of current
selected video channel and one analog audio
input.

When HDMI signal inputs, analog audio can

not input simultaneously. Analog audio can output
HDMI signal together with any arbitrary video of
CV, YC, YUV, VGA, DVI.

13 PROGRAM——Serial port debugging

interface

3.5MM earphone connector to DB9 female

socket connection line is used to connect PC so
as to realize serial port control.

14 CHANNEL——Video channel selection

For selecting the video input interface, the
corresponding video indicator will be lit. Optional
Videos: CV, YC, YUV, VGA, DVI, HDMI.

When switch from VGA input state to YUV

channel, user needs re-power the device and
then perform the channel selection.

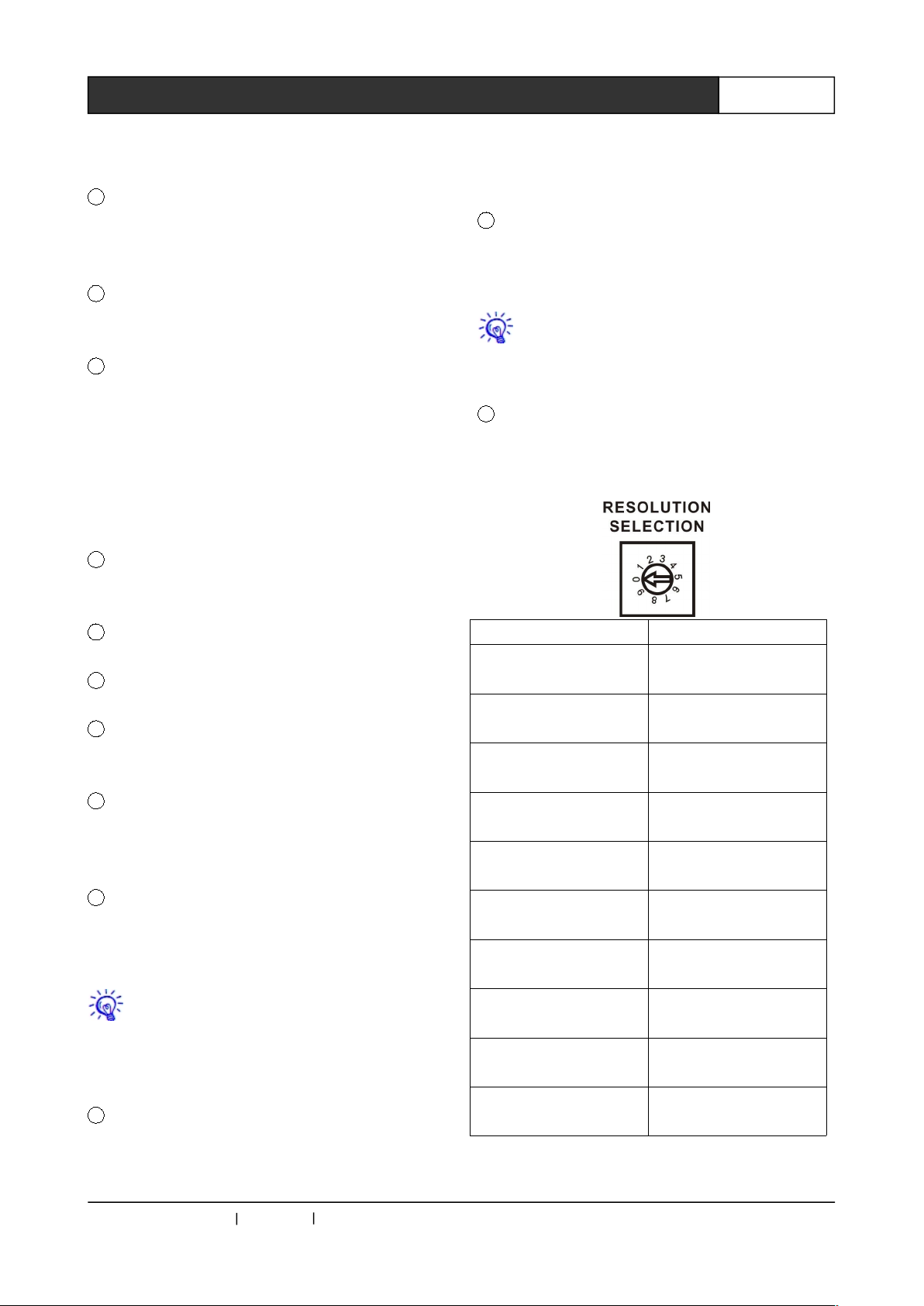

15 RESOLUTION SELECTION

Provide DIP setting, rotate the arrow on the
DIP switch to select the desired output resolution,
specific parameters are as follows:

DIP switch selectable Resolution

The arrows point to

the number 0

800x600@60Hz

The arrows point to

the number 1

1024x768@60Hz

The arrows point to

the number 2

1280x720@60Hz

The arrows point to

the number 3

1280x800@60Hz

The arrows point to

the number 4

1280x960@60Hz

The arrows point to

the number 5

1280x1024@60Hz

The arrows point to

the number 6

1366x768@60Hz

The arrows point to

the number 7

1440x900@60Hz

The arrows point to

the number 8

1600x900@60Hz

The arrows point to

the number 9

1920X1080@60Hz

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

5

2.2.3 Operating Instructions

The VGA interface supports CV, YC, YUV, VGA,
RGBHV five kinds of video signal input. The
RGBHV input needs to match a RGB to VGA
connecting line by user. There is a VGA to RCA
female, S terminal female connecting line in
factory configuration. User should connect the
terminals with the same color, namely: RCA red
terminal is connected to Pr (Cr), RCA green
terminal is connected to Y, RCA blue terminal to
Pb (CB).

1 In the VGA input state, if user wants to

replace the connecting line and switch to any
channel among CV, YC, YUV, he should re-power
the device after changing the connecting line

2 The engineering serial interface of device is

only for project debugging, does not support the
transmission. It can be connected to control
device via 3.5MM earphone socket to DB9 female
socket connecting line.

3 The device supports power-off memory

function. Either with the engineering serial
instruction or operation panel code, key button,
the device will preserve the last operation.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

6

The second generation Digital CAT5 transmitter User 's Manual

6

2.2.4 Connection Diagram

2.3 CR-uCAT5 DVI 200T&R

Digital Twisted-Pair Transmitter

DVI digital video twisted-pair transmitter through
a single CAT5e/6 shielded twisted pair cable
transmits HD video 1080P to 100m. It can
simultaneously transmit bidirectional RS-232 and
two-way infrared signal. High resolution video
digital signal channel guarantees the
transmission effect of image. The sending end
has a DVI monitor output, which can be used for
DVI input signal expansion or monitoring.
DVI digital transmitter perfectly transmits DVI
signal source. It provides a low cost solution for
remote video transmission and two-way control of
signal source device and the display device

2.3.1 Function Characteristics



Support DVI-D input, compatible with DVI1 0;



Supports two-way infrared, RS-232

transmission;



The transmitter supports DVI monitor output;



Support for simultaneous transmission of

video, audio, IR and RS-232. The maximum
transmission distance of CAT5e/6 shielding

cable is up to 100M.

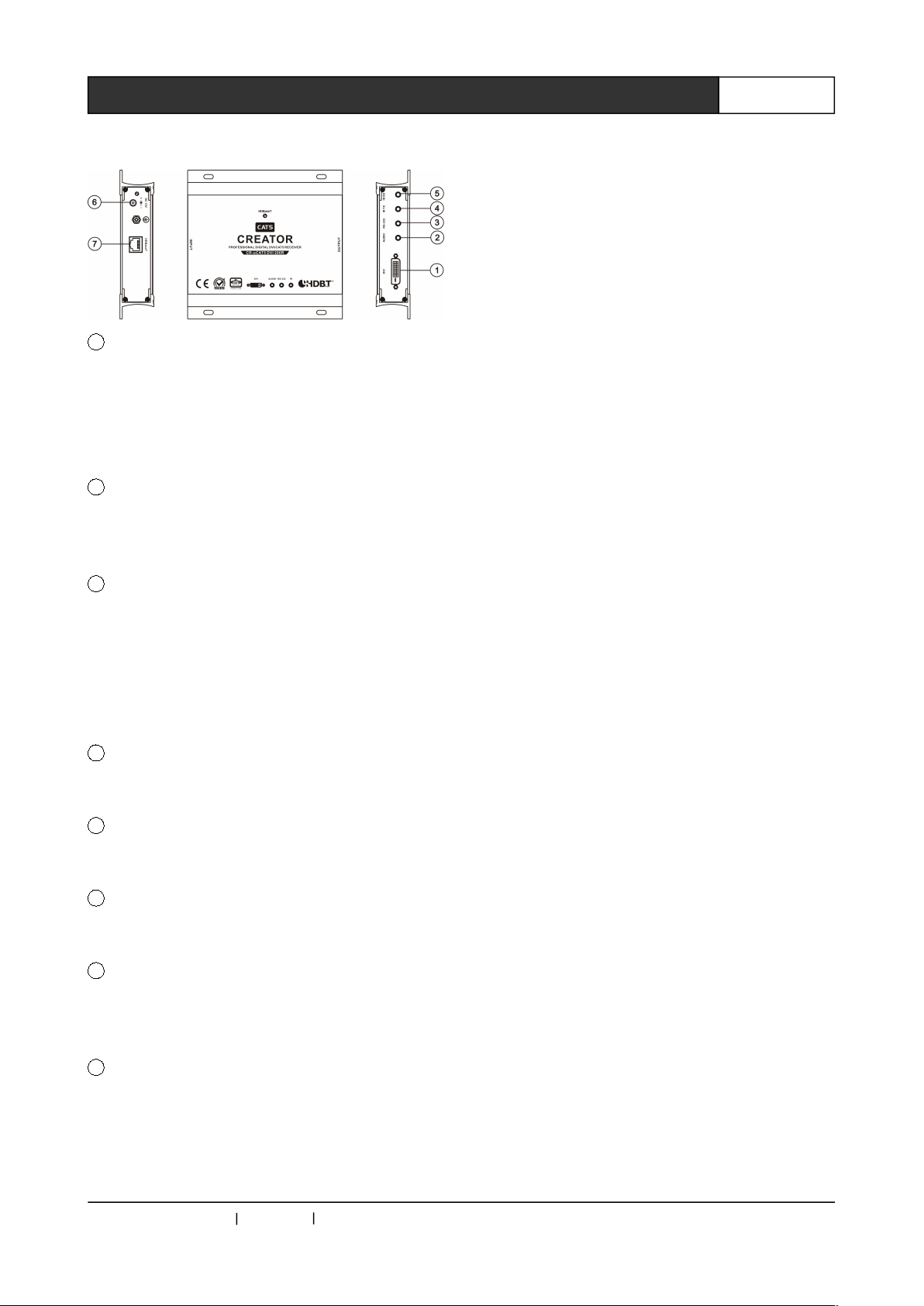

2.3.2 Panel Features

CR-uCAT5 DVI 200T:

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

7

CR-uCAT5 DVI 200R:

1 DVI——video signal input / output port

Using DVI-D interface, connect to the DVI HD
video signal source and display terminal
equipment or other peripheral equipments like
signal converter. Such as PC, DVI HD video
player, DVI display etc.

2 AUDIO——audio signal input / output port

Provides one-way non-equilibrium, stereo audio
input and output port, and connects to PC and
other peripheral equipments.

3 RS-232——RS-232 serial control

Using DB9 to 3.5MM earphone socket, for the
remote control, can be connected with PC. The
sending end with 3.5MM to DB9 female socket,
receiver with 3.5MM to DB9 male socket, both
ends are set to a consistent baud rate, ranging
from 110bps to 115200bps.

4 IR TX——infrared transmitting port

Using 3.5MM earphone socket to infrared
transmitter

5 R-RX——infrared receiving port

Using 3.5MM earphone socket to infrared
receiver

6 DC 12V——power input port

Support DC 12V input and side with the power
indicator.

7 HDBaseT—— CAT5e/6 network

transmission interface
It uses RJ45 interface for long distance
transmission of HDBaseT signals.

8 MONITOR——video monitoring output

interface
Be capable of monitoring DVI signal input.
When DVI input port receives HDMI signals of
blue-ray DVD and so on, the monitoring output

port does not support the output of HDMI signal.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

8

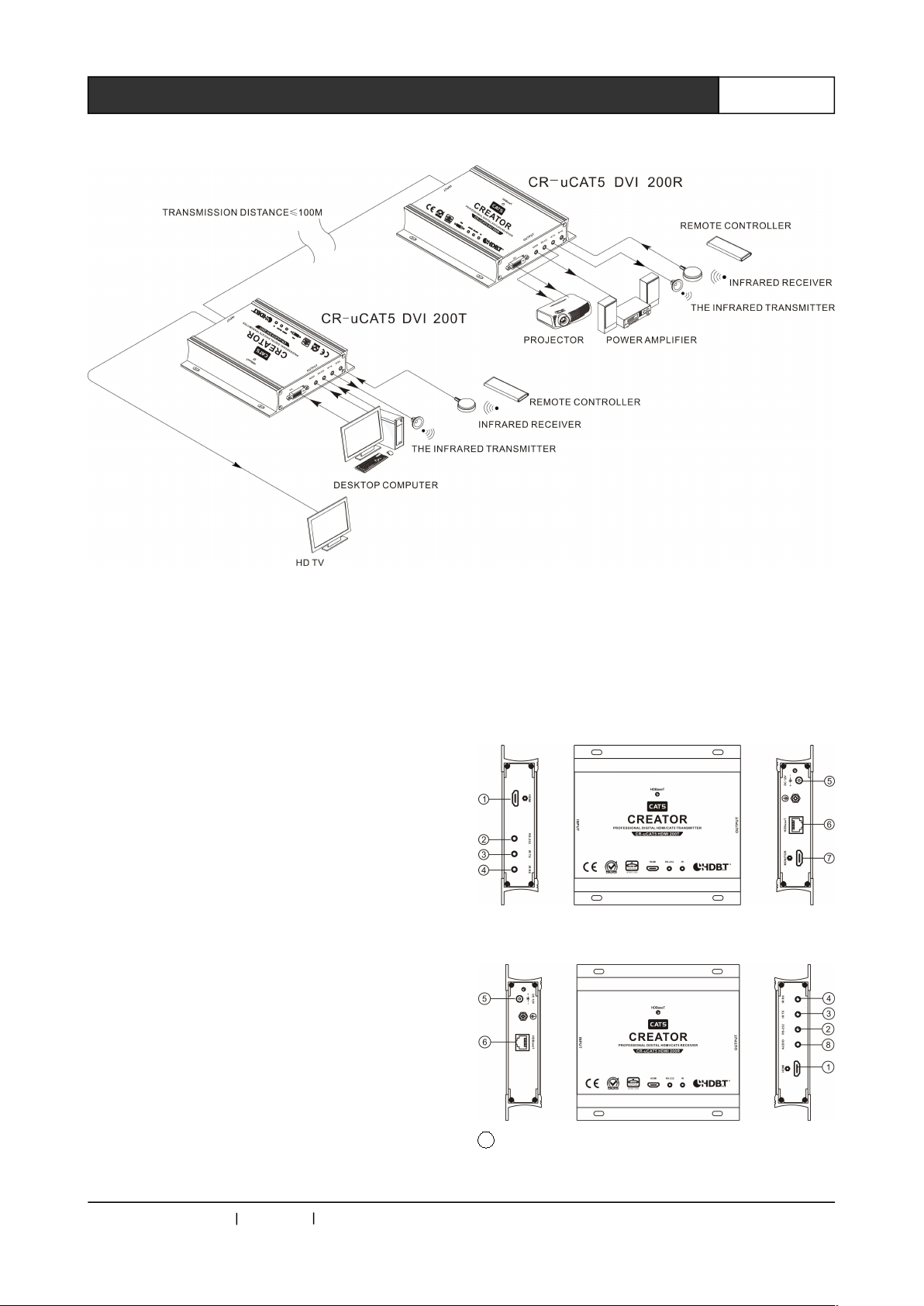

2.3.3 Connection Diagram

2.4 CR-uCAT5 HDMI 200T&R

Digital Twisted-Pair Transmitter

HDMI digital twisted-pair transmitter through a
single CAT5e/6 shielded twisted pair cable
transmits HD video 1080P to 100m. And can
simultaneously transmit bidirectional RS-232,
two-way infrared signal.

HDMI digital twisted-pair transmitter perfectly
transmits HDMI l.3a signal source. It provides a
low cost solution for remote video transmission
and two-way control of signal source device and
the display device.

2.4.1 Function Characteristics

◆Support HDMl1.3a, compatible with HDCP
DVI1.0

◆ HDMI comes with digital audio input; support
analog stereo output;

◆Support two-way infrared, RS-232
transmission;

◆Sender support HDMI monitor output;

◆ Support simultaneous transmission of video,

audio, IR and RS-232. The maximum
transmission distance of CAT5e/6 shielding cable
is up to 100M.

2.4.2 Panel Features

CR-uCAT5 HDMI 200T:

CR-uCAT5 HDMI 200R:

1 HDMI——HDMI audio and video input /

output interface

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

9

HDMI interface for connecting input / output
devices with HDMI interface, such as PC
computer, Blu-ray DVD, monitor, LCD TV, etc.

② RS-232——RS-232 control port

Using DB9 to 3.5MM earphone socket, for the
remote control, can be connected with PC. The
sending end with 3.5MM to DB9 female socket,
receiver with 3.5MM to DB9 male socket, both
ends are set to a consistent baud rate, ranging
from 110bps to 115200bps.

③ IR TX——Infrared transmitting port

3.5MM earphone socket infrared transmitter is
adopted.

④ IR RX -- Infrared receiving port

3.5MM earphone socket infrared transmitter is
adopted.

⑤ DC 12V -- Power input port

Support DC 12V input and side with a power
indicator.

⑥ HDBaseT—CAT5e/6 network transmission

interface

Uses RJ45 interface for long distance
transmission of HDBaseT signals.

⑦MONITOR—Video monitoring output

interface

It can monitor HDMI signals of the input end.

⑧ AUDIO——Audio signal input / output port

Provides one-way non-equilibrium, stereo audio
input and output port and connects to PC and
other peripheral equipments.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

10

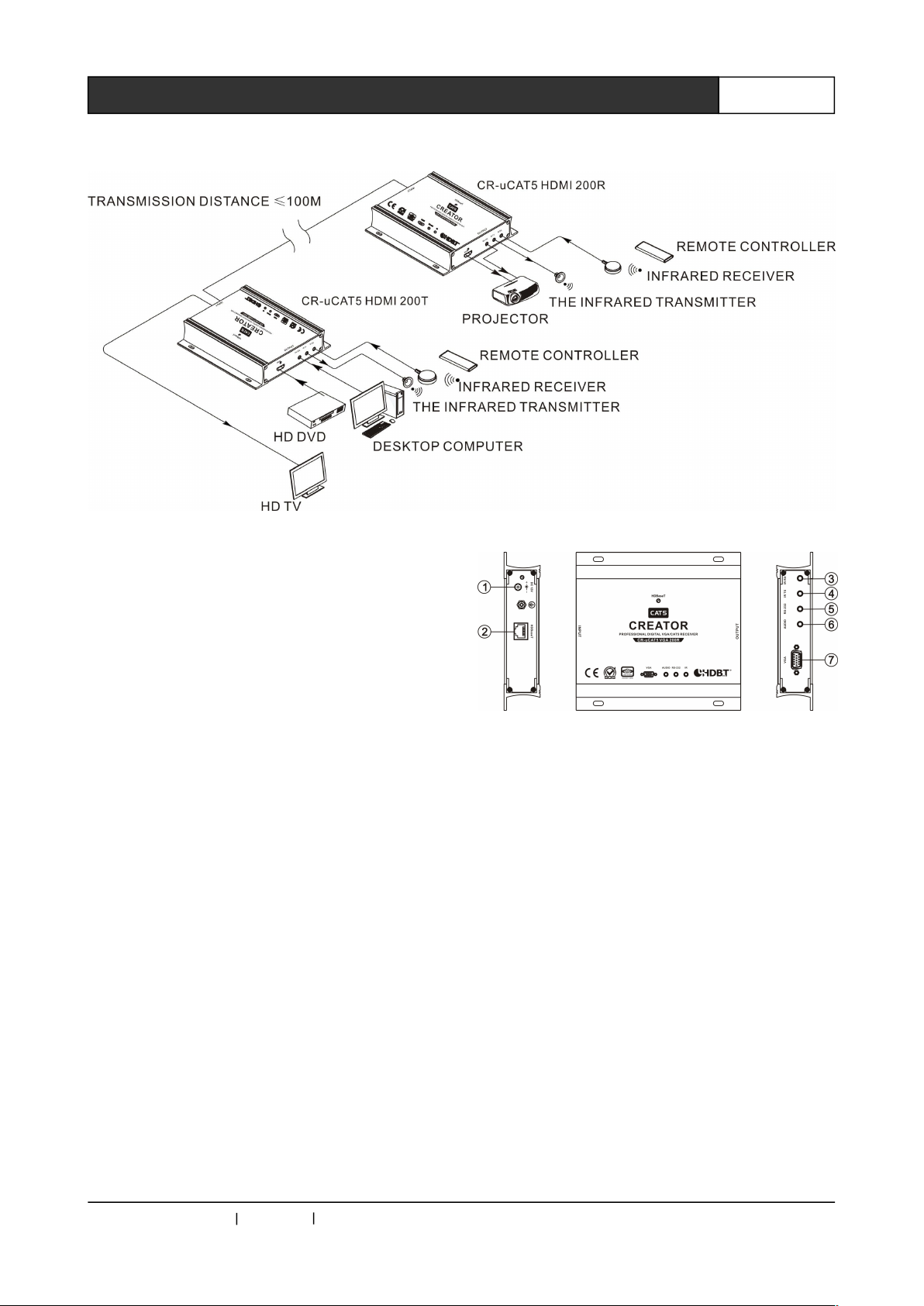

2.4.3 Connection Diagram

2.5 CR-uCAT5 VGA 200R

Digital Twisted-Pair Transmitter

VGA video twisted-pair transmitter transmits high
bandwidth video signal up to 100m via a single
CAT5e/6 shielding cable. Resolution ranges from
SVGA (800X600) to WUXGA (1920x1200). And it
can simultaneously transmit analog stereo audio,
bidirectional RS-232, and two-way infrared
signals.

2.5.1 Features Characteristics



Support high bandwidth analog video output;



Supports analog stereo output;



Support two-way infrared, RS232

transmission;



Support simultaneous video, audio, IR, and

RS232 transmission;



The maximum transmission distance of

CAT5e/6 shielding cable is up to 100M.

2.5.2 Panel Features

CR-uCAT5 VGA 200R:

① DC 12V—Power input port

Support DC 12V input and side with a power
indicator.

② HDBaseT—CAT5e/6 network transmission

interface

It uses RJ45 interface for long distance
transmission of HDBaseT signals.

③ IR RX—Infrared receiving port

3.5MM earphone socket infrared receiver is
adopted.

④ IR TX—Infrared transmitting port

3.5MM earphone socket infrared receiver is
adopted.

⑤ RS-232—RS-232 serial control

Using DB9 to 3.5MM earphone socket, for the
remote control, can be connected with PC. The
sending end with 3.5MM to DB9 socket, receiver
with 3.5MM to DB9 socket, both ends are set to a

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

11

consistent baud rate, ranging from 110bps to
115200bps.

⑥ AUDIO—Audio signals input

It provides one-way non-equilibrium, stereo audio
output.

⑦ VGA——VGA video signal input / output

port

Via DB15 socket, it connects to VGA video
display terminal device or other peripheral
equipments like signal converter and so on.

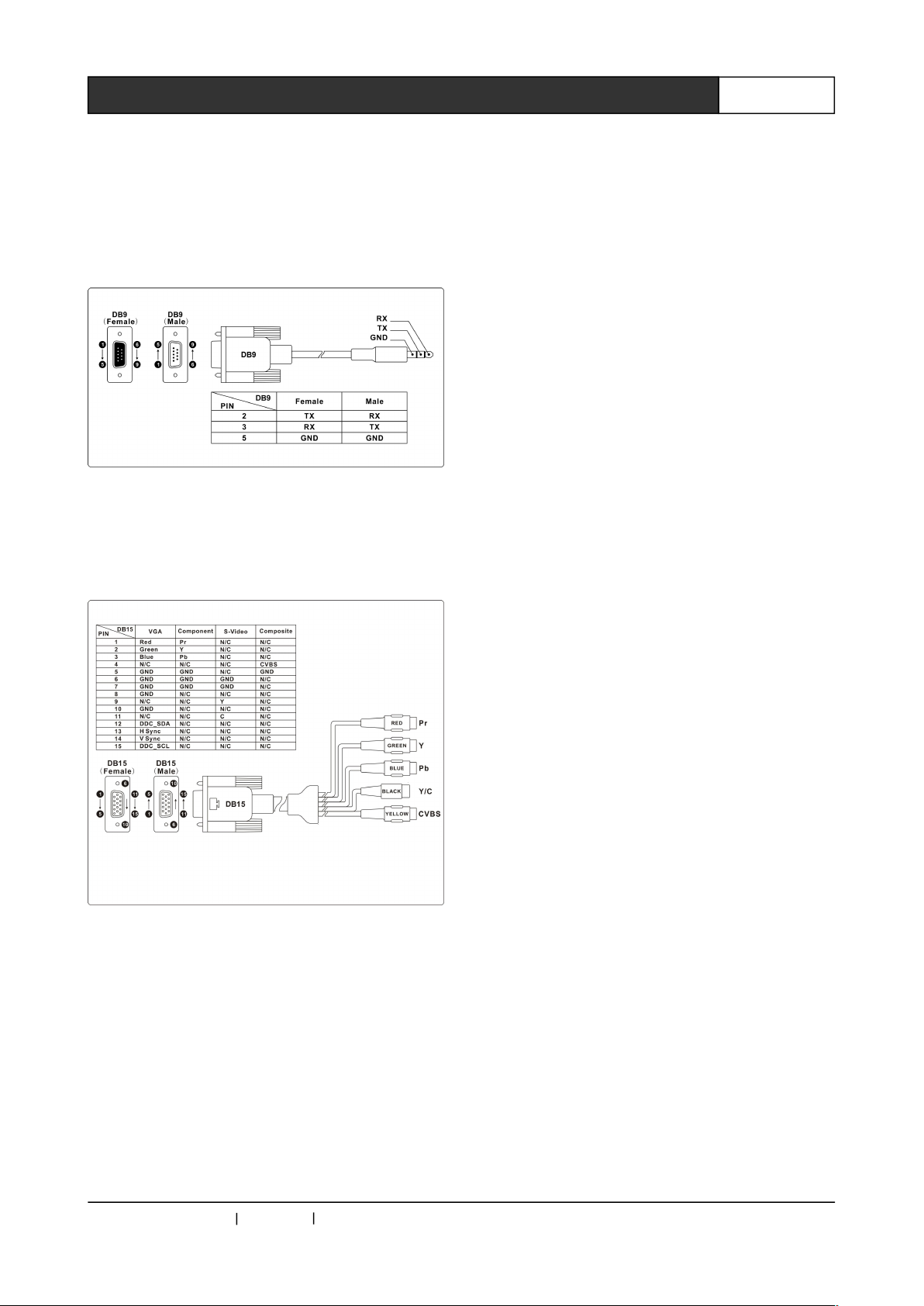

2.5.3 Connection Diagram

2.6 RJ45 Network Port

The system recommends using CAT-6 (cable) as
wire, and via the RJ45 connector (commonly
known as crystal head) which was installed at
both ends of CAT-6 to connect network
equipment. Standard connection of twisted-pair
cable is not arbitrarily prescribed. The purpose is
to ensure that the symmetry of the shielded cable
connector layout, so that interference between
the connector shielded cable can cancel each
other. The general five lines have four pairs of thin
wire twisted together, and marked with different

colors.
Twisted pair cable has two configurations: EIA /
TIA 568B standards and EIA / TIA 568A
standard.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

12

T568A linear order

1 2 3 4 5 6 7 8

whi

te

gre

en

gre

en

Wh

ite

ora

nge

blu

e

Wh

ite

blu

e

ora

nge

Wh

ite

bro

wn

bro
wn

T568B linear order

1 2 3 4 5 6 7 8

Wh

ite

ora

nge

ora

nge

Wh

ite

gre

en

blu

e

Wh

ite

blu

e

gre

en

Wh

ite

bro

wn

bro
wn

Direct line: two ends connected according to
T568B wire order standard.
Cross line: one end connected according to
T568B wire order, the other T568A line order.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

13

2.7 Technical Parameters

The maximum
supported resolution

The maximum
supported resolution

2.7.1 CR-uCAT5 AV 200T Technical Parameters

Model

Parameters

HDMI video input

Supported protocols HDMI1.3a, HDCP1.3,EDID1.4

Bandwidth

Interface bandwidth

Signal type HDMI 1.3a / T.M.D.S. full digital signal

Interface HDMI-A Interface

Signal strength

Minimum / maximum

level

Impedance

Video cable maximum

input / output distance

DVI video input

Supported protocols DVI1.0,EDID1.4

Bandwidth

Interface bandwidth

Signal type

Interface DVI-D Interface

Maximum input

distance of video

cable

Signal strength

Minimum / maximum

level

Impedance

CV analog video input

Format NTSC,PAL,SECAM

Signal type

Interface DB15 male to RCA female (custom line)

Signal strength 1V p-p : composite video(CVBS)

Minimum / maximum

level

Impedance

Pixel bandwidth 165MHz, full digital

6.75Gbps

Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz

T.M.D.S. +/- 0.4Vpp

T.M.D.S. 2.9V/3.3V

Differential 100Ω
Less than 7 meters, in the 1920x1080P@60 (recommended the use of
certified HDMI special wire, as Molex TM wire)

Pixel bandwidth 165MHz, full digital

6.75Gbps

Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz
DVI-D T.M.D.S. full digital signal

Less than 7 meters, in the 1920x1080P@60 (recommended the use of
certified HDMI special wire, as Molex TM wire)

T.M.D.S. +/- 0.4Vpp

T.M.D.S. 2.9V/3.3V

Differential 100Ω

Composite video(CVBS)

Analog signal: -2V/+2V

75Ω

CR-uCAT5 AV 200T Transmitter

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

14

Model

Parameters

Supported video input

format

YC analog video input

Format NTSC,PAL,SECAM

Signal type

Interface DB15 male to S terminal (custom line)

Signal strength 1VPP(standard),0.7VPP-1.6VPP

Minimum / maximum

level

Impedance

Supported video

input format

YUV analog video input

Format NTSC,PAL,SECAM

Signal type

Interface Interface DB15 male to RCA female head (custom line)

Supported video

input format

Signal strength 1V p-p :(Y in component video) 0.3Vp-p: (PbPr/CbCr in component video)

Minimum / maximum

level

Impedance

VGA analog video input

Signal type

Interface DB15 female Interface

Impedance

Supported input

resolution

VGA horizontal and vertical synchronous signal input

Input level

Output Impedance

Control interface

Serial port control

Baud rate

Infrared control

IR frequency

Audio input 1 analog stereo input,3.5MM earphone socket

Frequency response 20Hz——20KHz ±0.05db

Audio input level 2Vrms(1 analog stereo input)

480i/NTSC;480P/NTSC;576i/PAL;576P/PAL

S-VIDEO

0.7VPP-1.6VPP

75Ω

480i/NTSC;480P/NTSC;576i/PAL;576P/PAL

Component video(YPbPr/YCbCr)

480i/NTSC;480P/NTSC;576i/PAL;576P/PAL;720P/NTSC;1080i/PAL

Analog signal: -2V/+2V

75Ω

RGBHV

75Ω
640x480@60Hz;800x600@60Hz;1024x768@60Hz;1280x720@60Hz;1280x7
68@60Hz;1280x960@60Hz;1280x1024@60Hz;1400x1050@60Hz;1440x90
0@60Hz;1600x1200@60Hz;1920x1080@60Hz;1920x1200@60Hz;

4.0V-5.0V p-p

75Ω

RS232 (3.5MM earphone socket)

110-115200bps
IR (3.5MM earphone socket)

38K

CR-uCAT5 AV 200T Transmitter

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

15

Model

Maximum output
distance of video
cable

Maximum power
dissipation

Parameters

HDMI monitoring output port

Supported protocol HDMI1.3a, HDCP1.3,EDID1.4

Bandwidth Pixel bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps
The maximum
supported resolution
Signal type HDMI 1.3a / T.M.D.S. full digital signal

Interface HDMI-A Interface
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω
Supported resolution 800X600@60Hz;1024X768@60Hz;1280X720@60Hz;1280X800@60Hz;128

Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz

T.M.D.S. 2.9V/3.3V

0X960@60Hz;1280X1024@60Hz;1366X768@60Hz;1440X900@60Hz;1600
X900@60Hz;1920X1080@60Hz;

Less than 7m,when the resolution is 1920X1080P@60 (recommended to use
certified HDMI cable,such as Molex TM cable)

CR-uCAT5 AV 200T Transmitter

HDBaseT output port
Interface High speed RJ45
Transmission
distance
Power supply DC 12V/1.5A

Up to 100m via CAT5e/6 shielding cable

11.5W

2.7.2 CR-uCAT5 DVI 200T Technical Parameters

Model

Parameters

DVI VIDEO INPUT
Supported protocol DVI1.0, EDID1.4
Bandwidth Pixel Bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps
The maximum
Supported resolution
Signal type DVI1.0 / T.M.D.S. full digital signal
Interface DVI-D Interface
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω

Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz

T.M.D.S. 2.9V/3.3V

CR-uCAT5 DVI 200T transmitter

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

16

Model

Maximum output
distance of video
cable

Maximum power
dissipation

Parameters

Audio input 1 analog stereo input,3.5MM earphone socket
Frequency response
Input level

Control interface

Serial port control
Baud rate

Infrared control

IR frequency 38K
DVI monitoring output
supported protocol DVI1.0 EDID1.4
Bandwidth Pixel Bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps

The maximum
supported resolution

Signal type DVI 1.0 / T.M.D.S. full digital signal
Interface DVI-D Interface
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω

20Hz——20KHz ±0.05db

2Vrms(maximum)

RS232 (3.5MM earphone socket)

110-115200bps
IR (3.5MM earphone socket)

Normal PC: 1600x1200@60Hz
HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz

T.M.D.S. 2.9V/3.3V

CR-uCAT5 DVI 200T transmitter

Less than 7m,when the resolution is 1920x1080P@60 (recommended to use
certified HDMI cable,such as Molex TM cable)

HDBaseT Output
Interface
Interface High speed RJ45
Transmission
distance
Power supply DC 12V/1.5A

Up to 100m via CAT5e/6 shielding cable

7.5W

2.7.3 CR-uCAT5 DVI 200R Technical Parameters

Model

Parameters

DVI video output

Supported protocol DVI1.0,EDID1.4
Bandwidth Pixel Bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps
Output resolution Support any resolution output by sending end

CR-uCAT5 DVI 200R Receiver

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

17

Model

Maximum output
distance of video
cable

Less than 7m,when the resolution is 1920x1080P@60(recommended to use
certified HDMI cable,such as Molex TM cable)

Maximum power
dissipation

Maximum output
distance of video
cable

Less than 7m,when the resolution is 1920x1080P@60(recommended to use
certified HDMI cable,such as Molex TM cable)

Parameters

Signal type DVI1.0 / T.M.D.S. full digital signal
Interface DVI-D Interface
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω
Control interface
Serial port control RS232 (3.5MM earphone socket)
Baud rate: 110-115200bps
Infrared control IR (3.5MM earphone socket)
IR frequency 38K
Audio output 1 analog stereo input,3.5MM earphone socket
Frequency response 20Hz——20KHz ±0.05db
Input level 2Vrms(maximum)

T.M.D.S. 2.9V/3.3V

CR-uCAT5 DVI 200R Receiver

HDBaseT Input
Interface
Interface High speed RJ45
Transmission
distance
Power supply 12V/1.5A DC adapter

Up to 100m via CAT5e/6 shielding cable

8.5W

2.7.4 CR-uCAT5 HDMI 200T Technical Parameters

Model

Parameters

HDMI video input
Supported protocol HDMI1.3a, HDCP1.3,EDID1.4
Bandwidth Pixel Bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps

The maximum
supported resolution

Normal PC: 1600x1200@60Hz
HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz

CR-uCAT5 HDMI 200Ttransmitter

Signal type HDMI 1.3a / T.M.D.S. full digital signal
Interface HDMI-A Interface

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

18

Model

Maximum output
distance of video
cable

Less than 7 m, when the resolution is 1920x1080P@60 (recommended the
use of certified HDMI cable, as Molex TM cable)

HDBaseT output
interface

Maximum power
dissipation

Parameters

Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω
Audio input HDMI embedded digital audio
Control interface
Serial port control RS232(3.5MM earphone socket)
Baud rate 110-115200bps
Infrared control IR (3.5MM earphone socket)
IR frequency 38K
HDMI monitoring output interface
Supported protocol HDMI1.3a, HDCP1.3,EDID1.4
Bandwidth Pixel Bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps
The maximum
supported resolution
Signal type HDMI 1.3a / T.M.D.S. full digital signal
Interface HDMI-A Interface
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω

T.M.D.S. 2.9V/3.3V

Normal PC: 1600x1200@60Hz HDPC: 1900x1200@60Hz
HDTV: 1920x1080P@60Hz

T.M.D.S. 2.9V/3.3V

CR-uCAT5 HDMI 200Ttransmitter

Interface High speed RJ45
Transmission
distance
Power supply DC 12V/1.5A

Up to 100m via CAT5e/6 shielding cable

7.5W

2.7.5 CR-uCAT5 HDMI 200R Technical Parameters

Model

Parameters

HDMI video output
Supported protocol HDMI1.3a, HDCP1.3,EDID1.4
Bandwidth Pixel Bandwidth165MHz , full digital
Interface bandwidth 6.75Gbps

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CR-uCAT5 HDMI 200R Receiver

The second generation Digital CAT5 transmitter User 's Manual

19

Output resolution Support any resolution output by sending end

Maximum output
distance of video
cable

Less than 7 m, when the resolution is 1920x1080P@60 (recommended the
use of certified HDMI cable, as Molex TMcable)

Maximum power
dissipation

The maximum rise/
fall time

Signal type HDMI 1.3a / T.M.D.S. full digital signal
Interface HDMI-A Interface
Signal strength T.M.D.S. +/- 0.4Vpp
Minimum / maximum
level
Impedance Differential100Ω
Serial port control RS232 (3.5MM earphone socket)
Baud rate 110-115200bps
Infrared control IR (3.5MM earphone socket)
IR frequency: 38K
Audio input HDMI embedded digital audio

HDBaseT input
interface

Interface High speed RJ45
Transmission
distance
Power supply 12V/1.5A DC adapter

T.M.D.S. 2.9V/3.3V

Up to 100m via CAT5e/6 shielding cable

8.5W

2.7.6 CR-uCAT5 VGA 200R Technical Parameters

Model

Parameters

VGA video output

Interface 15-pin DB female Interface
Bandwidth 330 MHz
Signal type RGBHV
Gain 0 dB
Signal strength 0.7V pp
Impedance 75 Ω
Output resolution Support any resolution output by sending end
VGA Synchronous output signal
Output signal type RGBHV, RGBS, RGsB, RsGsBs,
The maximum
transmission delay

Horizontal:90ns vertical:160ns

4ns

CR-uCAT5 VGA 200R Transmitter

Audio output
Output interface 3.5mm unbalanced stereo audio output

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

20

Model

Maximum power
dissipation

Parameters

Gain 0dB
Frequency response 20Hz~20KHz
Total harmonic
distortion + noise
S/N ratio(S/N) >80dB at Vin=0V
CMRR >75dB @:20 Hz~20 kHz
Signal type Stereo (unbalanced connection)

Impedance

Maximum input level +19.5dBu, (balanced or unbalanced connection)
Gain error ±0.1dB @20 Hz~20 kHz
Port control
Serial port control RS-232(3.5MM earphone socket)
Baud rate 110-115200bps
Infrared control
Infrared control IR(3.5MM earphone socket)
IR frequency 38KHz
HDBaseT input interface

Interface High speed RJ45
Transmission
distance
Specification
Power supply 12V/1.5A DC adapter

0.01%@1kHz( under constant voltage)

Input:>10kΩ(balanced or unbalanced connection)
Output:50Ω(unbalanced connection)

Up to 100m via CAT5e/6 shielding cable

CR-uCAT5 VGA 200R Transmitter

11.5W

CR-uCAT5 VGA 200R receiver supports any resolution of the transmitter output. In order to achieve

the best display effect, we suggest set its resolution the same as the recommended resolution of the
terminal display device. If it is used together with CR-uCAT5 AV 200T transmitter, user can adjust the
output resolution of transmitter. With HDMI,DVI transmitter, user can directly regulate the output
resolution of the source.

2.7.7 CR-uCAT5 AV 200T Transmitter Engineering Serial Instruction Sets

Model

Parameters

Serial protocol:Baud rate:9600 Data bits:8 Stop bit:1 Parity:no
Instructions Function description
Video Switch Command:
01$01! CV video switch out
02$01! YC video switch out
03$01! YUV video switch out

CR-uCAT5 AV 200T Transmitter

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

21

04$01! VGA video switch out
05$01! DVI video switch out
06$01! HDMI video switch out
Audio Volume Command:
XX$52! Volume(00<=xx<=70)
01$53! MUTE ON
02$53! MUTE OFF
Video Output Command:
01$03! 800x600@60Hz

02$03! 1024x768@60Hz

03$03! 1280x720@60Hz
04$03! 1280x800@60Hz
05$03! 1280x960@60Hz
06$03! 1280x1024@60Hz
07$03! 1366x768@60Hz
08$03! 1440x900@60Hz
09$03! 1600x900@60Hz
10$03! 1920x1080@60Hz
11$03! 1360x768@60Hz Reserved for future use
12$03! 1600x1200@60Hz Reserved for future use
13$03! 1920x1200@60Hz Reserved for future use
OSD Command:
01$04! Enter menu
02$04! Exit menu
03$04! Select menu options to the left
04$04! Select menu options to the right
05$04! Select menu options upwards
06$04! Select menu options downwards
07$04! Confirm menu option
01$05! Restore factory settings

1. The function of reserving resolution for future use only supports serial instruction selection,

cannot be selected by DIP

2. The function of reserving resolution for future use needs monitor’s support. If it does not support,

may lead to abnormal screen display.

Model

Parameters

XX$12! Adjust brightness(00<=XX<=99)
XX$13! Adjust contrast(00<=XX<=99)
XX$14! Adjust saturation(00<=XX<=99) The VGA input is invalid
XX$15! Adjust sharpness(00<=XX<=24) The VGA input is invalid
XX$16! Adjust hue(00<=XX<=99) The VGA input is invalid

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CR-uCAT5 AV 200T Transmitter

The second generation Digital CAT5 transmitter User 's Manual

22

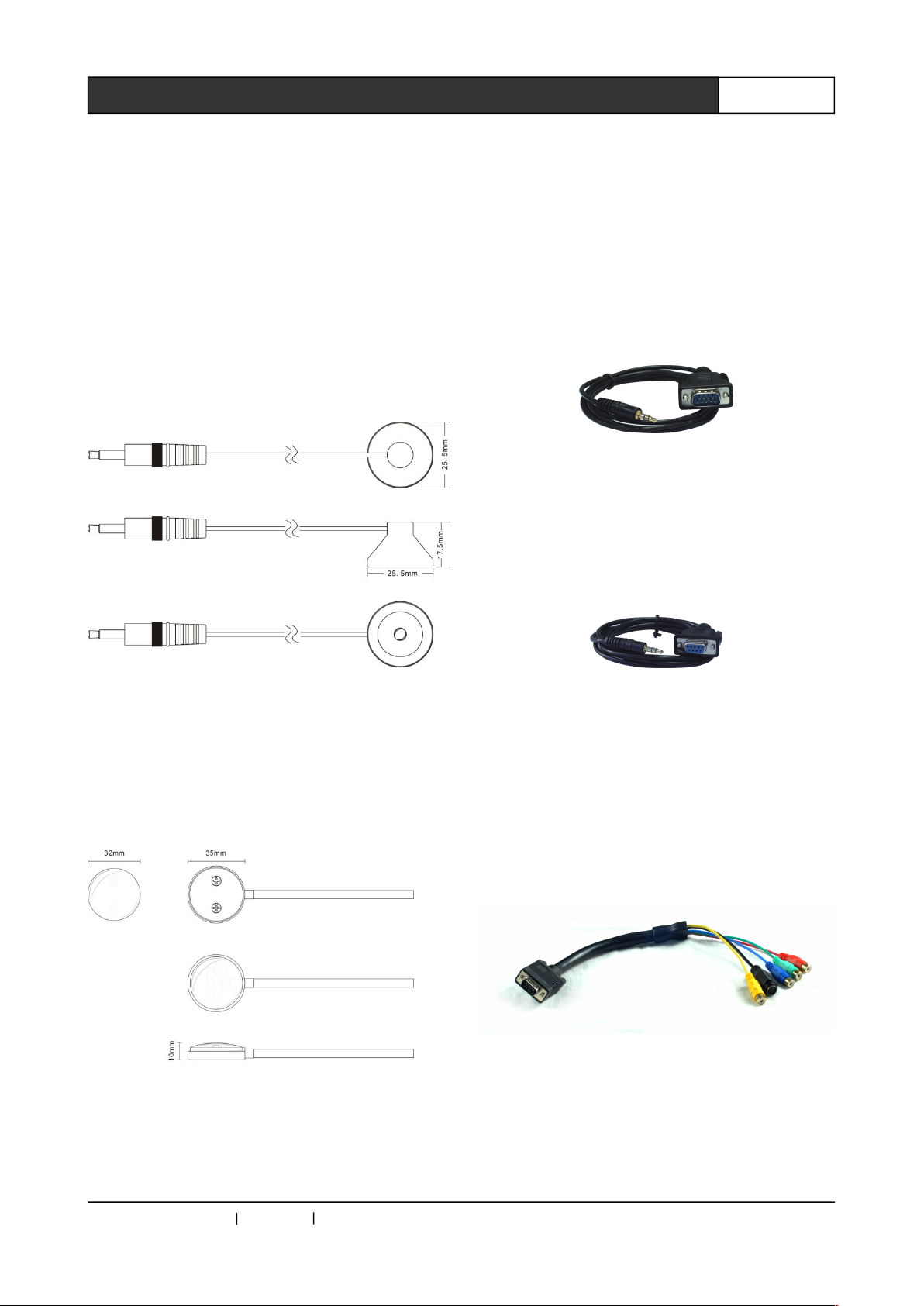

Chapter 3 Accessories

3.1 Infrared Transmitter

CR-IR/T

The infrared transmitter CR-IR / T is used to
transmit infrared signals to the infrared receiver,
infrared emission frequency ranging from 20 KHz
to 100KHz.

CR-IR/T Dimensions:

3.2 Infrared Receiver CR-IR/R

Infrared receiver CR-IR / R is for receiving
the infrared signal to the infrared device, infrared
receiver frequency is38KHz.

CR-IR/R Dimensions:

3.3 3.5mm Headset Connector

to DB9 Male Socket Connecting

Line

3.4 3.5mm Headset Connector

to DB9 Female Socket

Connecting Line

3.5 DB15 Male Socket to RCA

Terminal, SV Terminal

Connection Line (VGA to CV

video, Y/C video, YPbPr video)

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

The second generation Digital CAT5 transmitter User 's Manual

23

3.6 3.5mm Headset Connector

to DB9 Male (Female) Socket

Definition

3.7 DB15 Male Socket

Connection Line Definition

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

24

The second generation Digital CAT5 transmitter User 's Manual

24

Chapter 4 Common Fault Solutions

 Check whether the cable length is out the range

 Check whether the cable is in straight-through

connection

 Check crystal head of cable is plugged in tight or



Check the cable length and whether it is



Check if video terminal like display supports the



If there is a strong interference in line groove

 Check if there is a electromagnetic interference

 Check the length and quality of video display

 Please make sure power supply input of device



Internal fault, please send for professional repair

When contact the metal parts of the controller,
can clearly feel the electrostatic.



Please make sure equipment grounding pillars

are well grounded, otherwise may cause
damage to the equipment or shorten the service
life of the equipment

Video display is regular, but infrared and
serial ports are out of control



Check whether the Baud rates of devices are

 Check if the serial line is used correctly

 Check if the infrared receiver and transmitter are

Equipment communication serial ports are out
of control

 Check the connection, should pay attention to

In blue-ray DVD input status, some display
devices cannot display



The equipment is compatible with HDCP1.4 for



Check if HDMI cable or HDMI interface is

Fault phenomenon Solutions

After connecting the network cable status
indicator flashes

of 100m

in poor contact

CAT5e/6 shielded cable

The video of receiver will flash screen or
sometimes be unstable

Controller POWER light does not shine, no
reaction for monitor, receiving end and video
output operation

output resolution

in power supply

terminal cable

is in good contact

consistent

connected properly

the use of DB9 male and female sockets

content encryption. Some display devices do not
support HDCP encryption, then change brand
display in this case.

damaged.

CREATOR CHINA 2013-08 WWW.CREATOR1997.COM

CREATOR CORPORATION(CHINA)

Copyright by CREATOR

Last Revision:08/2013
