CREATOR SC-PIP202 User Manual

CREATOR CORPORATION（CHINA）

Muullttii--ssiiggnnaall UUppssccaalliinngg

M

Miixxeedd

M

Maattrriixx

M

User's Manual

Version 1.1

Creator Corporation China

Warning

To remind user to conduct according to the
attached operation and maintenance
instructions. If ignore these information, death or
injury could possibly happen

Caution

To remind the user that the risky uninsulated
voltage in the device could caused electric
shock to human.

Caution: To avoid electric shock, please don't
open the case, nor put the useless parts in it.
Please contact with qualified service staff.

CE authentication indicates the product is in line
with the EU safety regulation, and for assurance
of safety use.

SGS Authentication indicates the product has
reached the QC standard of the global-biggest
Swiss universe surveyor.

This product has acquired the ISO9001
International Quality Authentication
(Authentication authority: Germany Rheinland
TUV)

List the situation of causing unsuccessful
operation or setup, and relevant information
needed to notice.

Lead to the page with detailed information on
relevant topic.

Meaning of the symbols

■ Safety Instruction
Symbols are used in the Manual and devices, referring to the possible risk to users or others，as

well as the damage to property, for helping you to safely and properly use the devices. The instruction
and the implications are as follows. Please make sure your correct understanding of these instructions
before using the Manual.

■ General Information Instruction

Important Notice

system.

Caution

To ensure the device in reliable use and

personal safety, please abide by the following
items when in installation, use and maintenance:

Notice in installation

◆ Please DO NOT use the product in following

places: the places with dust, oily smoke,
electrical conductive dust, corrosive gas,
inflammable gas; the places with high
temperature, due, rain and wind exposures; the
places endangered by shock and vibration.
Electric shock, fire and incorrect operation could
also cause damage and deterioration to the
product.

◆ When conducting screw drilling and wiring

process, DO NOT let metal irons and wire lead
drop into the controller and air vent, which could
possibly cause fire, failure and accidental
operation.

◆ After finishing the installation, it is necessary

to ensure there is no foreign matter including the
packing material like contact paper on the
ventilation surface, otherwise, it could cause
poor heat dissipation while running, as well as
fire, failure and accidental operation.

◆ Avoid conducting wiring and plugging in/out

cable socket with electricity, otherwise, electric
shock, circuit damage could easily happen.

◆ Installation and wiring should be firm and

reliable. Poor contact could cause malfunction.

◆ With regard to the application situations with

strong interference, shielded cable should be
used for the input and output of HF signal, to
improve the anti-interference performance of the

Note in Wiring

◆ Installation and wiring shouldn't be
conducted until external electric power is cut off,
otherwise, electric shock or device damage could
happen.

◆ The product is grounded by the earth lead of
the power cable. To avoid electric shock, the
earth lead is necessary to be connected with the
ground. Before making connection with the
output end or input end of the product, please
ensure it is correctly grounding.

◆ Upon finish wiring, remove the sundries.
Please cover up the terminal plate for avoiding
electric shock.

Note for Operation and Maintenance

◆ Please DO NOT touch the terminal when with
electricity, otherwise, electric shock could
happen.

◆ Don't clean up and screw the terminal tight
before power is off. Such operation could cause
electric shock when with electricity.

◆ Please turn off the power before connecting
or disconnecting the communication signal cable,
peripheral modules or control units, otherwise,
device could be damaged and accidental
operation could happen.

◆ Please DO NOT disassemble the device, so
as to avoid internal electric components damage.

◆ It is necessary to read through the Manual
and fully ensure the safety, before altering the

program, trial running, starting and stopping
operation.

◆ Button battery shouldn't be replaced before

the power is off. If it has to be replaced when
the device is running, it should be conducted by
professional electric technician wearing insulated
gloves.

Note for declaration of worthless.
When declaring of worthless, please note

◆ Explosion of electrolytic capacitor on the

circuit board could happen when burning it.

◆ Please classify and dispose it. Don't dispose

it into household garbage.

◆ Please deal it as industrial waste, or in

accordance with local environmental protection
regulation.

Forward

User's Manual of Multi-signal PIP Upscaling Switcher mainly introduces the operation of

SC-PIP202 Switcher, primary parameters and general troubles shooting.

The Manual serves as user's operation instruction, rather than for maintenance service purpose.

Since the date of release, any function or relevant parameter alteration will be in supplement instruction.
Please refer to the manufacturer or dealers for inquiry.

CREATOR Electronics own the copyright of the Manual. Without permission, any unit or person

shall not take part or total of the Manual for business purpose.

The copyright of the Manual is protected by Copyright Law and other Intellectual Property Law.

Without written permission, any copy or distribution is prohibited.

Contents

Chapter 1 Overview .................................................................................................................................... 1

1.1 About Multi-signal PIP Upscaling Switcher .................................................................................... 1

1.2 Functions and Features ................................................................................................................. 1

1.3 System Device ............................................................................................................................... 1

1.4 Installation of the Host ................................................................................................................... 2

Chapter 2 Panel Instruction ........................................................................................................................ 3

2.1 Front Panel of SC-PIP202 ............................................................................................................. 3

2.2 SC-PIP202 Rear Panel .................................................................................................................. 4

Chapter 3 OSD Menu Setup ...................................................................................................................... 5

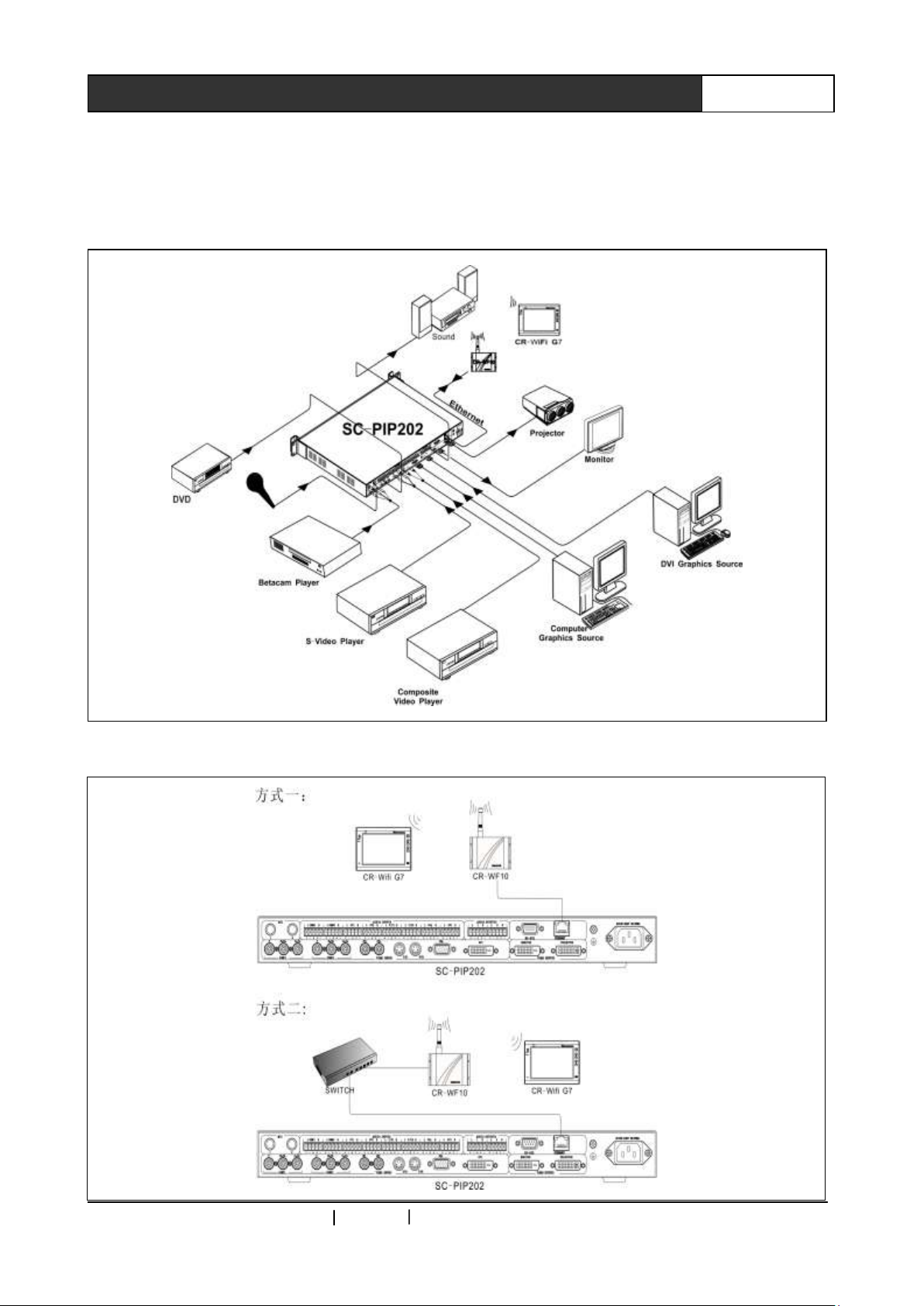

Chapter 4 System Connection Diagram .................................................................................................. 8

4.1 System Connection Overview ........................................................................................................ 8

4.2 SC-PIP202 Matrix System and WiFI G7 Wireless Touch Screen ................................................. 8

Chapter 5 Wifi G7 Touch Screen ................................................................................................................ 8

5.1 Introduction to the functions of Wifi G7 Touch Screen .................................................................. 8

5.2 Features of Wifi G7 Touch Screen ................................................................................................. 8

5.3 Wifi G7 Wireless Touch Screen Panel Diagram .......................................................................... 10

5.4 Operation on Wifi G7 Wireless Touch Screen ............................................................................. 10

5.4.1 SIGNAL SOURCE ........................................................................................................... 11

5.4.2 PIP SETTING .................................................................................................................. 11

5.4.3 SWITCH EFFECT .......................................................................................................... 12

5.4.4 OUTPUT CONTROL ...................................................................................................... 12

5.4.5 MAIN AUDIO .................................................................................................................. 13

5.4.6 OTHER INSTRUCTIONS .............................................................................................. 13

Chapter 6 Wireless Access Point ............................................................................................................. 15

6.1 CR-WF 10 Wireless AP ................................................................................................................ 15

6.1.1 CR-WF10 Setup Instruction ........................................................................................... 15

6.1.2 Connection ..................................................................................................................... 18

Chapter 7 Instructions Set ........................................................................................................................ 19

Chapter 8 Technical Parameters .............................................................................................................. 22

Chapter 9 General Troubles Shooting ..................................................................................................... 25

1

Users Manual of Multi-signal PIP Upscaling Switcher

Chapter 1 Overview

1.1 About Multi-signal PIP Upscaling
Switcher

PIP202 is specially designed and applicable for
different signals switching and high-resolution
image display. It is a high performance AV
switcher with functions of DVI output, monitor, line
doubler and PIP. LCD monitor and luminous
operation keyboard design make the operation
more explicit.

It support a variety of controls of panel keyboard,
RS-232 and Ethernet remote, compatible to
multiple signal sources like component video
signal (COMP), composite video (CV), S-Video
(Y/C), VGA and DVI, with high definition display
under SVGA, XGA, SXGA signal modes.

The product is mainly applied in multimedia
conference room, command control center,
classroom church, hospital and stage etc.

1.2 Functions and Features

◆ Support and self-adapt to multiple
component video signal (COMP) formats
including NTST, PAL, SECAM, composite video
(CV), S-Video (Y/C), VGA and DVI and other
signal sources.

◆ Support HDTV compatible component

◆ Support output resolutions:

800X600@60Hz 、 1024X768@60Hz 、
1280X720@60Hz 、 1280X1024@60Hz 、
1366X768@60Hz 、 1400X1050@60Hz 、
1920X1080@60Hz。

◆ To conduct real-time seamless switching
within the screens, including special effects of
fade in/out, pull-and-push and stretch

◆ With PIP function, any video image can be
inserted into PC display signal.

◆ Use port and touch screen to adjust the size
and location of PIP

◆ Support frozen screen, audio output mute
control

◆ Support color, hue, sharpness, contrast and
brightness adjustment, satisfying your different
need for screen visual effect.

◆ High quality 3:2 and 2:2 line doubling
process.

◆ Support panel keyboard, RS-232 and
Ethernet remote control, in convenient and
flexible operation.

◆ With front panel lock function, avoiding
accidental operation.

◆ Standard 19'' case design

1.3 System Device

◆ SC-PIP202

Multi-signal Upscaling PIP Mixed Matrix System
Host
Auxiliary and Compatible Devices

◆ Wireless Touch Screen
CR-Wifi G7 Wireless programmable touch screen

◆ Wireless Transmitter and Receiver.
CR-WF10 Wireless Access Point

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

2

Users Manual of Multi-signal PIP Upscaling Switcher

1.4 Installation of the Host

The host of the SC-PIP202 Multi-signal PIP
Upscaling Switcher can be installed in a standard
19'' cabinet, with accessory of a pair of cabinet
brackets. See
installation as follows:

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

3

Users Manual of Multi-signal PIP Upscaling Switcher

Chapter 2 Panel Instruction

2.1 Front Panel of SC-PIP202

Front Panel:：

① LCD Monitor

Display current status and operation

information of the main screen.

② INPUTS SELECTOR

Selection of monitor signal include 8-way signal
choices of COMP1、COMP2、CV1、CV2、Y/C1、
Y/C2、VGA and DVI

③ PIP:Switch the monitor screen in PIP way in
main screen.

BLANK:Blank screen switch

MUTE:Main output audio mute switcher

FREEZE:Main screen frozen switcher

MENU:OSD menu display

ENTER:Select and move to the lower tier

menu of OSD menu

RESET TO VGA:Press and hold it for 3
seconds to restore the output resolution to factory
default （1024X768）

PANEL LOCK:Keyboard lock: To make all
keyboard operation invalid.

④ ADJUST: Control the left and right move
within the same tier menu under OSD menu.

⑤ VOLUME:Volume adjustment knob

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

4

Users Manual of Multi-signal PIP Upscaling Switcher

2.2 SC-PIP202 Rear Panel

Rear Panel:

① MIC

Microphone input, support dynamic MIC and
condenser MIC.

② AUDIO INPUTS

Audio input port is corresponding 8-way video
inputs.

③ AUDIO OUTPITS

Audio output port is with 2-way balanced audio
output. Port 1 is for projector audio output, with
changeable channels and volume. Volume is for
separate adjustment. Port 2 is for monitor audio
output, with channels changeable only.

④ RS-232

Serial port is for connection to PC or the third
party control devices (For example: CREATOR,
CRESTRON, AMX control host etc.)

ETHERNET

Ethernet port is for connection to external
network or direct connection to CR-WF10 to
finalize touch screen remote control.

⑤ Ground Polar

⑥ VIDEO INPUTS

Video input port is with 8-way video input
(COMP 1 COMP2、CV1、CV2、Y/C1、Y/C2、
VGA、DVI）, connecting to video signal sources
and a variety of external devices, like DVD, PC,

high-resolution player etc.

⑦ VIDEO OUTPUTS

Video output port is for connection to video
monitor with DVI port, like high-resolution monitor,
projector or the devices connecting to video
player.

⑧ System Power Input Port
System power input supports AC 100V-240V
50/60Hz

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

5

Users Manual of Multi-signal PIP Upscaling Switcher

Chapter 3 OSD Menu Setup

Press the MENU button on the panel, the main
output connecting to Multi-signal PIP Upscaling
Switcher will disappear the OSD menu of the
product.

Note: Under the output resolution of
800x600@60Hz, OSD menu control is not for
access.

1. When the big screen is displaying the signal
from CV 、 YC 、 YPBPR or DVI, PICTURE,
ADVANCE, OSD are for you to set up.

After accessing to the screen, move the ADJUST
button left or right to set up the needed value,
while the monitor will display the status in
real-time.

After finishing the setup, press the ENTER button
on the panel to access to the lower tier menu, and
then conduct relevant setup.

For example: OSD H-POSITION option should be
set as 50.

Step 1: After accessing to setup screen, turn
the ADJUST knob and move the cursor to OSD
setup options. With yellow frame, it indicates
successful selection. Press ENTER button to
confirm it and access to OSD setup. See 3-1

setup option with the font of OSD H-POSITION
turning into yellow, indicating the value is ready
for setup. Press ENTER button to confirm it.

Step 3: After confirming it, the current
status of OSD H-POSITION option will turn to
yellow. Turn the ADJUST knob on the panel to 50,
press ENTER to confirm it, then the job is done.

If not accessing to the setup sub-screen, turn
the ADJUST knob to access to next setup option
with the operation as above.

After finishing setup, press ENTER to return
to upper tier menu.

If no need to conduct setup, wait for a few
seconds（adjustable time frame), OSD menu
setup will automatically exit.

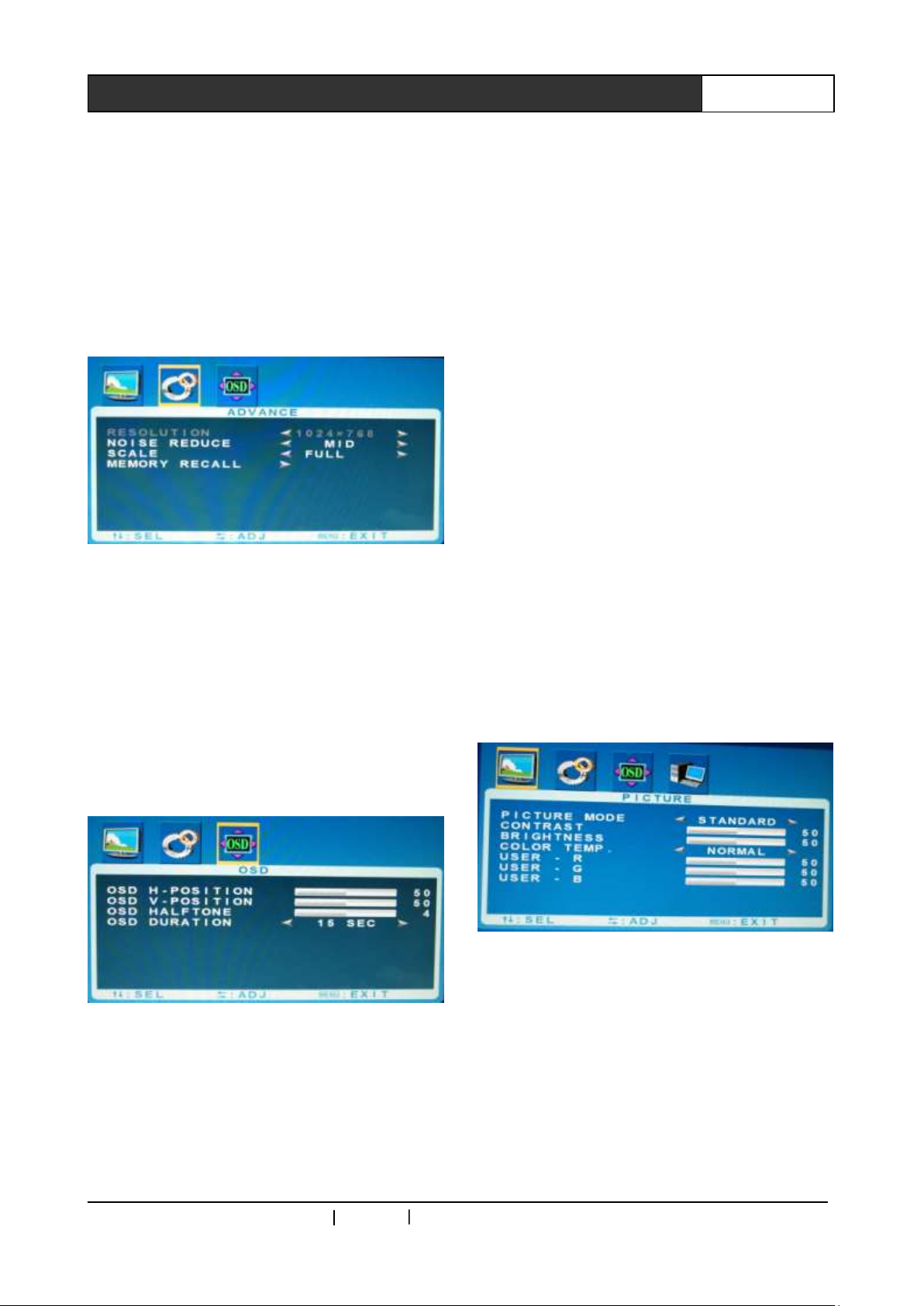

A: PICTURE Setup Options

See 3-2. From top to bottom, they are:

PICTURE MODE:Select picture display
modes including STANDARD, Dynamic, Sofe and
Personal

CONTRAST:Contrast adjustment

BRIGHTNESS: Brightness adjustment

HUE:Hue adjustment

SATURATION:Saturation adjustment

SHARPNESS:Sharpness adjustment

COLOR TEMP:Color temperature selections

include normal, warm, cold and user.

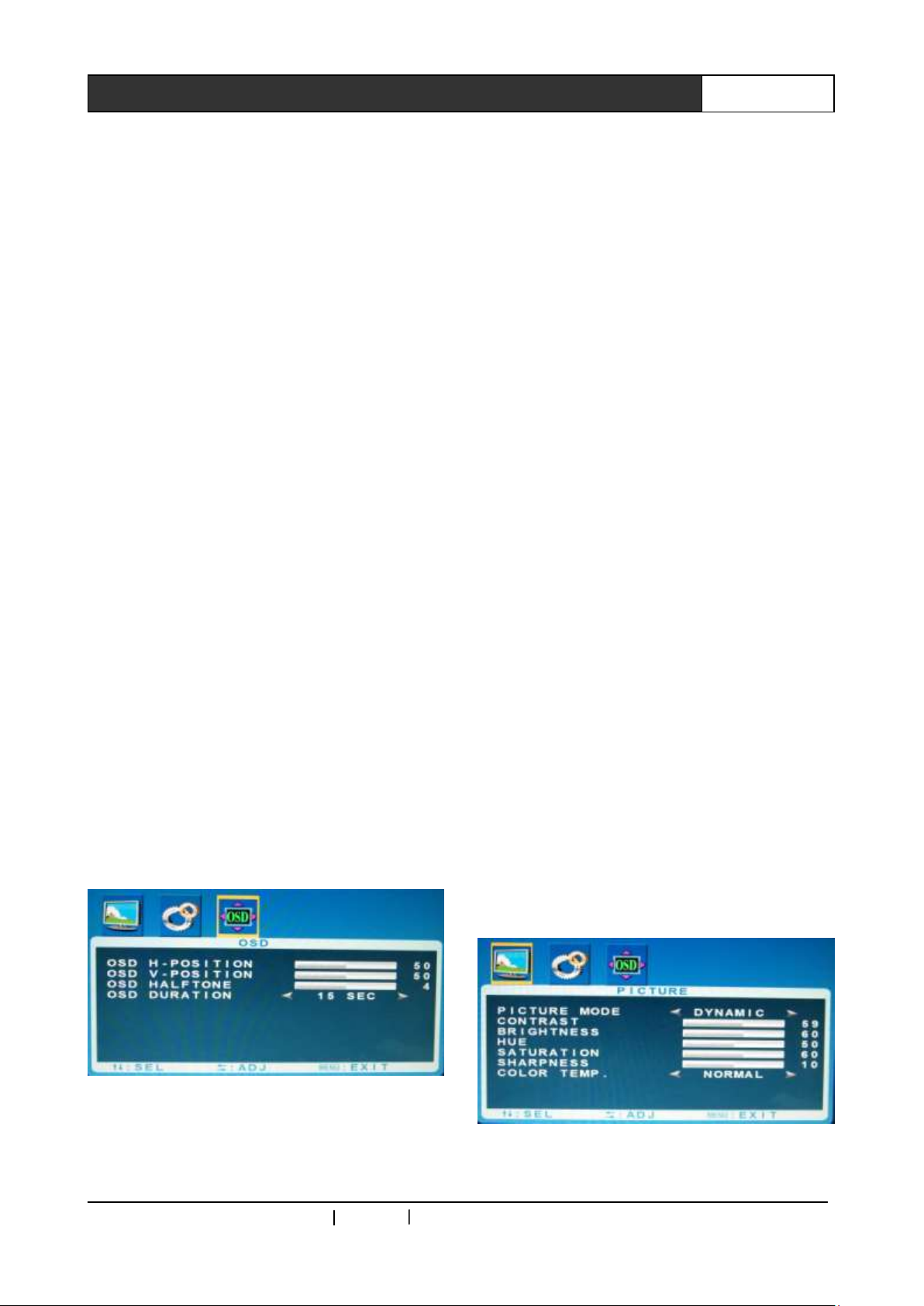

Picture 3-1

Step 2: After accessing to the setup screen,

the cursor will stay on OSD H-POSITION, the first

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

Picture 3-2

6

Users Manual of Multi-signal PIP Upscaling Switcher

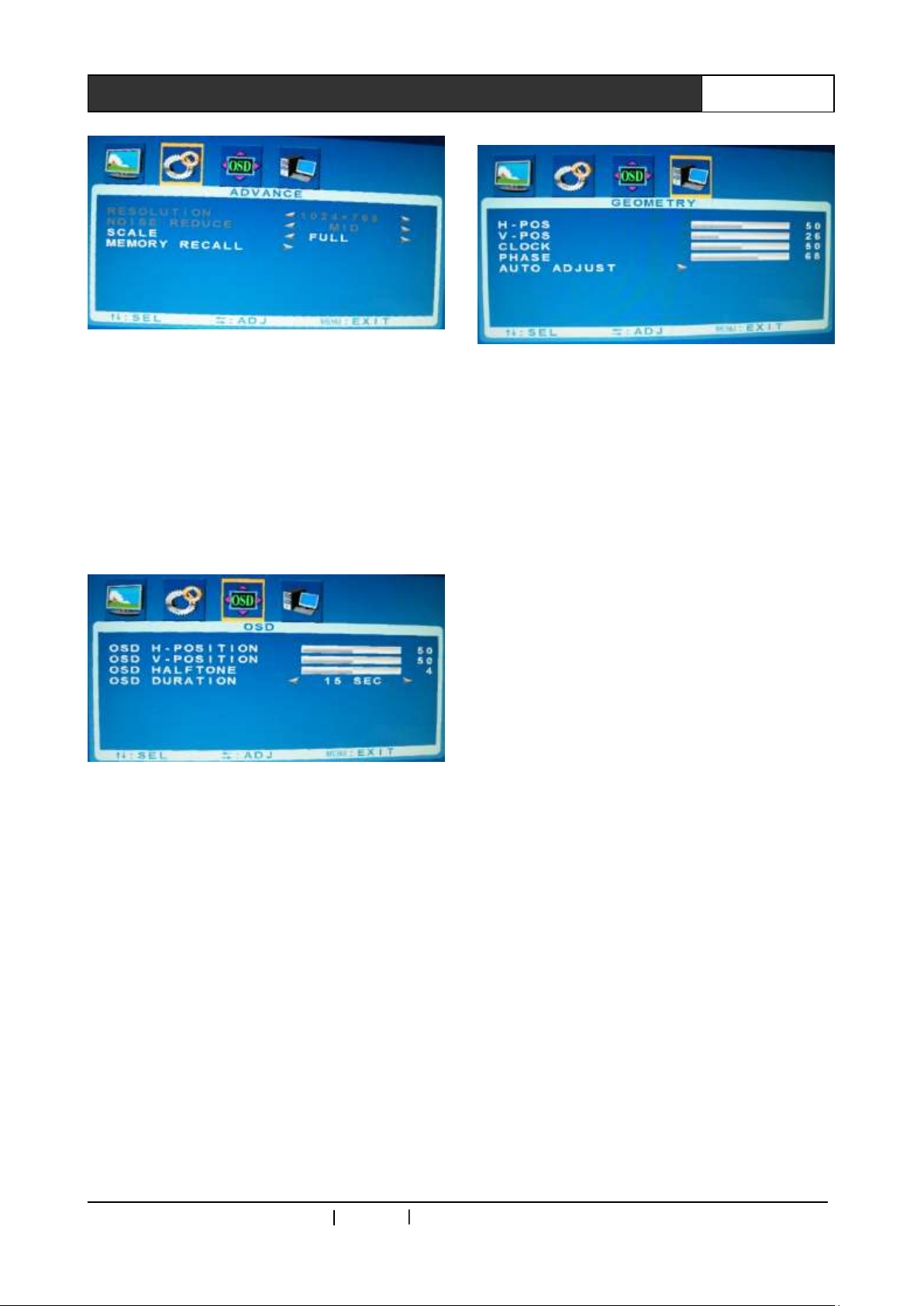

B:ADVANCE Setup Option

RESOLUTION:Display resolution

information.

NOISE REDUCE:Selection of noise

reduction include off, low, mid, high and auto.

SCALE:Selection of screen zoom in/out

modes include full, normal and auto.

MEMORY RECALL:Restore factory default.

Picture 3-3

C:OSD Setup Options

OSD H-POSITION:OSD horizontal position

adjustment

OSD V-POSITION:OSD vertical position

adjustment

OSD HALFTON:OSD transparency

adjustment

OSD DURATION:OSD display duration

adjustment

button on the panel to setup the needed value,
while the monitor will display the status in real
time.

After finishing the setup, press the ENTER button
on the panel to access to the lower tier menu for
relevant setup with the operation as above.

A:PICTURE Setup Options（See 3-5）

PICTURE MODE:select picture display

modes including standard, dynamic, sofe and
personal.

CONTRAST:Contrast adjustment

BRIGHTNESS: Brightness adjustment

COLOR TEMP:Color temperature modes

selection, including normal, warm, cold and user.

USER-R:When the COLOR TEMP is under
the User mode, parameter R is ready for setup
USER-G:When the COLOR TEMP is under the
User mode, parameter G is ready for setup

USER-B:When the COLOR TEMP is under
the User mode, parameter B is ready for setup

B:ADVANCE Setup Options（See 3-6）

Picture 3-4

2、When the big screen is displaying the signal
from VGA, its OSD menu setup options include
PICTURE、ADVANCE、OSD、GEOMETRY

After accessing to the screen, move the ADJUST

reduction include off, low, mid, high and auto

modes includes full, normal and auto

default.

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

Picture 3-5

RESOLUTION:Option of Display resolution

NOISE REDUCE:Selection of noise

SCALE:Selection of screen zoom in/out

MEMORY RECALL: Restore factory

7

Users Manual of Multi-signal PIP Upscaling Switcher

Picture 3-6

C:OSD Setup Options（See 3-7）
OSD H-POSITION:OSD horizontal position
adjustment
OSD V-POSITION: OSD vertical position
adjustment
OSD HALFTONE: OSD transparency adjustment
OSD DURATION: OSD display duration
adjustment

Picture 3-7

D:GEOMETRY Setup Options（See 3-8）

H-POS: Manual adjustment for screen

horizontal position

V-POS: Manual adjustment for screen

vertical position

CLOCK: Manual adjustment for clock
PHASE: Manual adjustment for phase
AUTO ADJUST: Auto adjustment for screen

Picture 3-8

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

8

Users Manual of Multi-signal PIP Upscaling Switcher

Chapter 4 System Connection Diagram

4.1 System Connection Overview

4.2 SC-PIP202 Matrix System and WiFI G7 Wireless Touch Screen

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

8

Users Manual of Multi-signal PIP Upscaling Switcher

Chapter 5 Wifi G7 Touch Screen

5.1 Introduction to the functions of
Wifi G7 Touch Screen

To have easy and quick operation, CREATOR
specially designs WiFi G7 wireless touch screen
in application together with SC-PIP202. Wifi G7
touch screen adopts high-end Touch Lens craft,
realizing perfect combination of Lens and touch
panel, making full smooth surface in touch screen
and the case, and excellent whatever the touch
and appearance, with the advantages of long
lifetime, quick respond and advanced structure
and beautiful. Also, the high light transmission
brings great visual effect to the screen.

It supports bi-lingual display, 802.11b/g Ethernet
dual communication, TFT true color LCD, 16:9
high definition color (18-digit color depth), wide
screen high resolution display, intelligent human
sense identify technology, luminousness sensor
function. Besides for embedded installation, it
could be used at desktop on the foundation.

5.2 Features of Wifi G7 Touch Screen

◆ Adopt high-end touch lens craft of touch

◆ Delicate appearance

Fashion and compact design, perfect combination
of high-light and frosted texture, sbq quality
aluminum alloy wiredrawing, making it in distinct
gradations.

◆ Low power consumption, large capacity Li-ion
battery
Dual CPU, Smart pbw power management,
built-in dual bt Li-ion battery, 95 days super-long
stand-by time, normal working for 2.5 days or
above (relevant with power management and
brightness setup)

◆ Intelligent Core
Powered by dual CPU with 667MHz, intelligent
human sensor technology, our life is benefited by
technology. The close-range sense function can
wake up the touch screen when human gets
close to the screen. LCD contrast can be
automatically adjusted in daytime and evening.

◆ Adopt wince system
Move your finger tips on the screen whatever you
want. Everything is so simple like that.

◆ Dual-channel download mode
Support both USB and network download modes
(802.11b/g wireless Ethernet dual
communication)

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

10

Users Manual of Multi-signal PIP Upscaling Switcher

5.3 Wifi G7 Wireless Touch Screen Panel Diagram

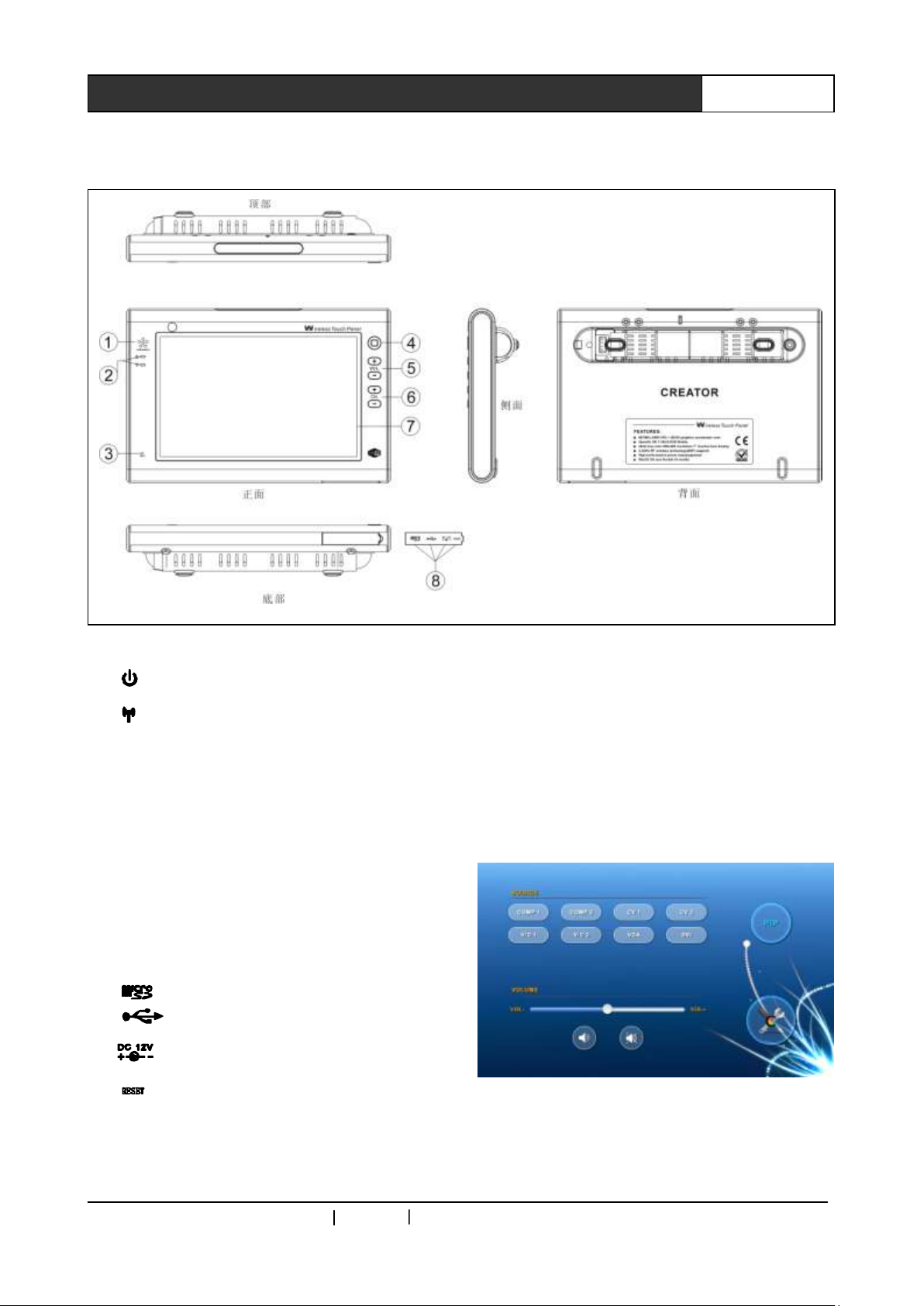

① SPEAKER: Loudspeaker
② Power indicator

Signal indicator

③ MIC: MIC indicator

④ MENU: Menu button

⑤ Volume +/- adjustment button

⑥ Channel selection button

⑦ Monitor

⑧ USB port

USB port

5.4 Operation on Wifi G7 Wireless
Touch Screen

Turn on the power or the touch screen at stand-by

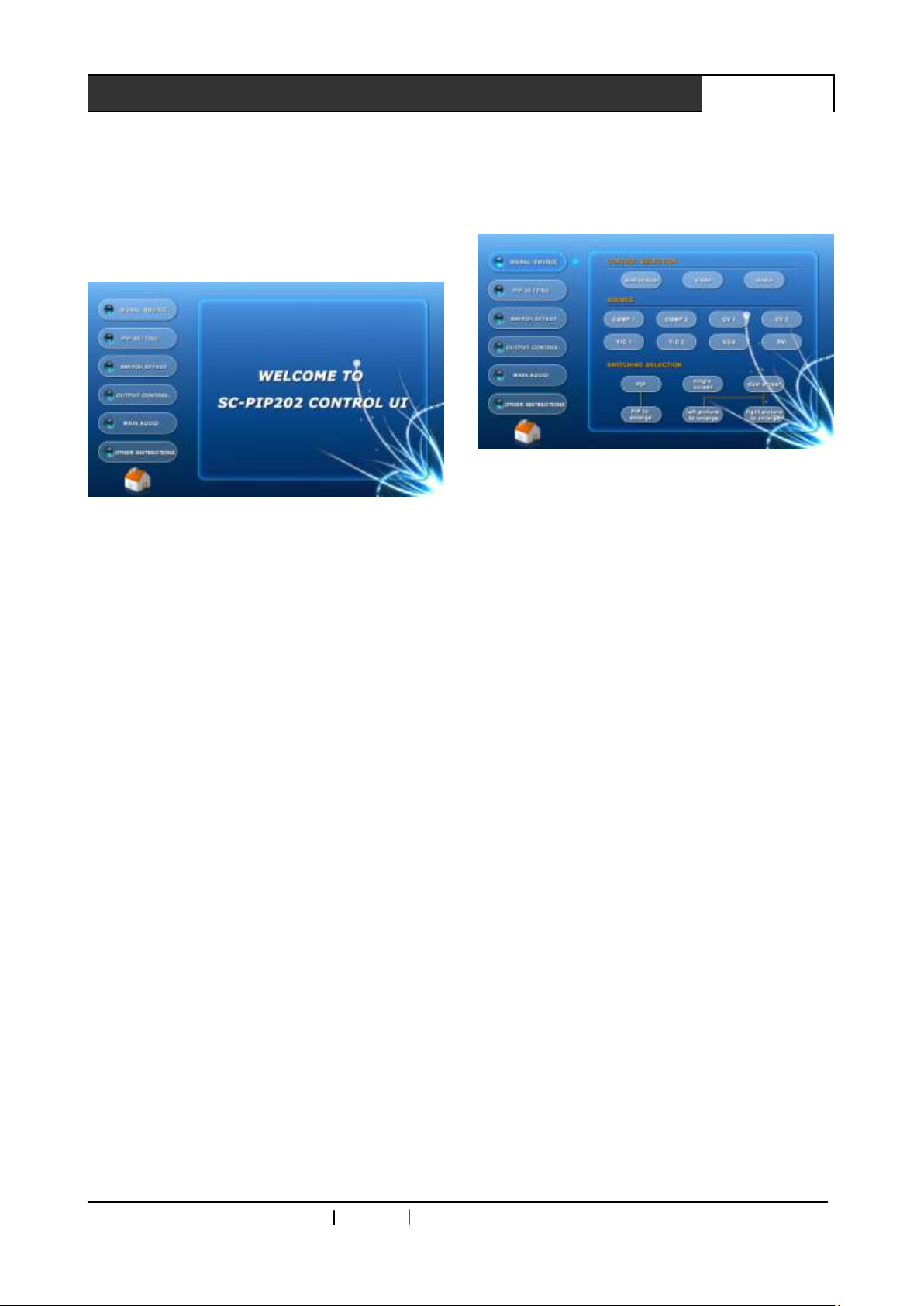

mode, the system displays PIP202 simple
operation screen. Under such circumstance,
PIP202 video signal is ready to be switched, and
the volume is ready for setup. See as following
picture, touch setup button to access to PIP2002
detailed setup screen.

Power input port, support DC 12V input

Restore system to default

Detailed setup screen is shown as picture 5-2,
split into two columns, with left as main control

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

Picture 5-1

11

Users Manual of Multi-signal PIP Upscaling Switcher

zone. From the top to bottom, they are SIGNAL

SOURCE (signal source switching), PIP
SETTING (PIP setup), SWITCH EFFECT
(switching effect setup), OUTPUT CONTROL,
MAIN AUDIO (main volume) and other
instructions. The right is operation zone.

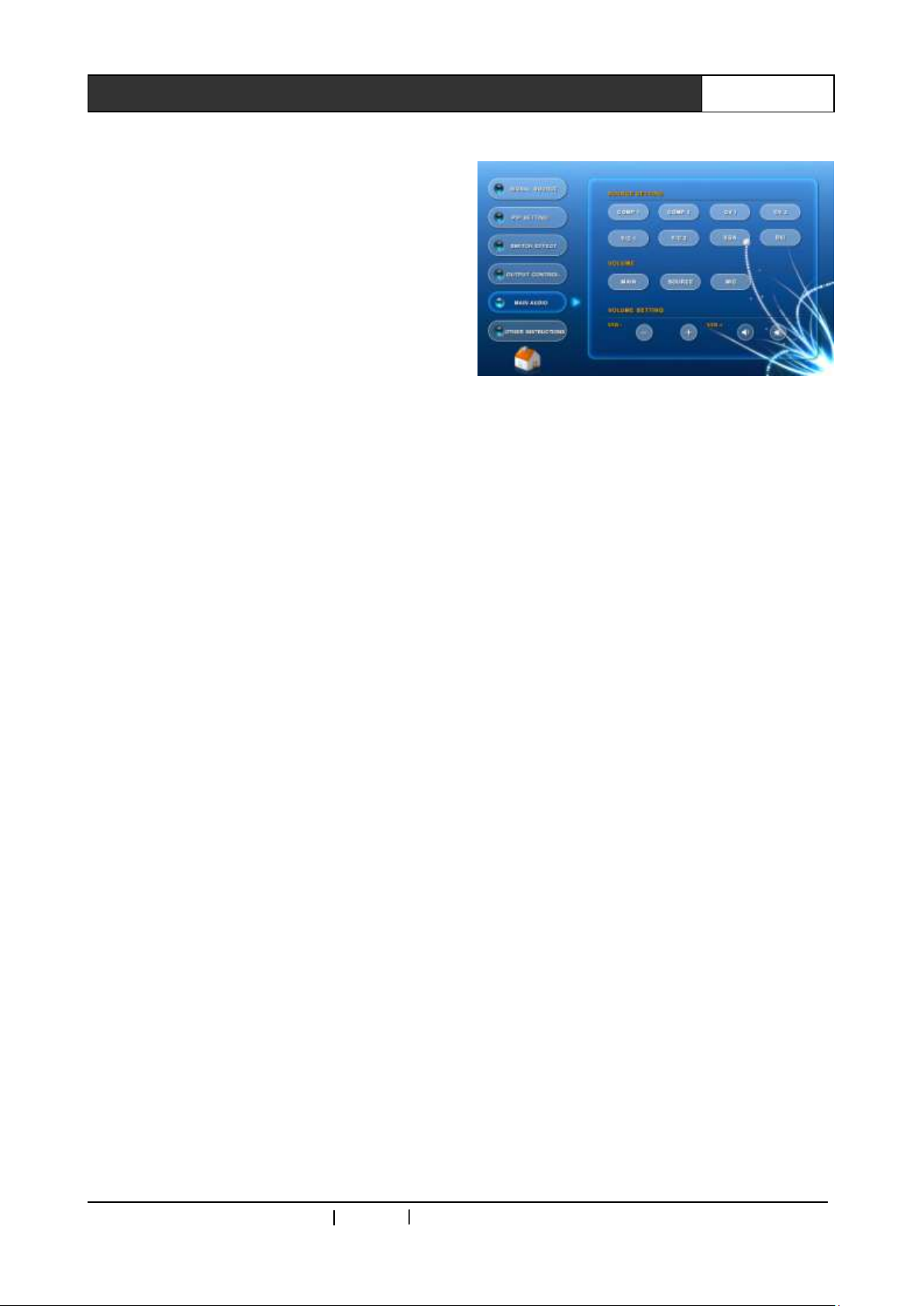

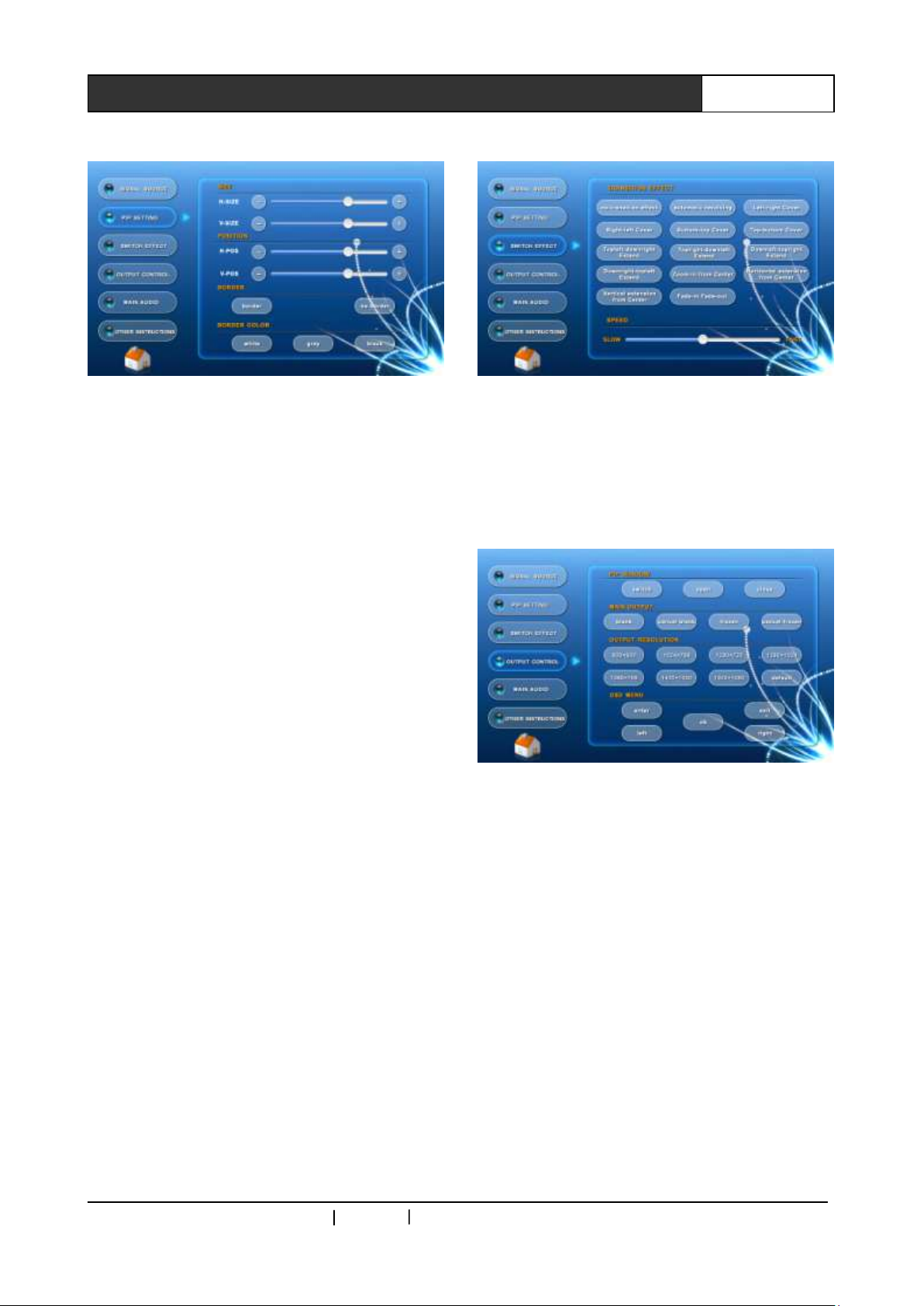

Picture 5-2

5.4.1 SIGNAL SOURCE

SIGNAL SOURCE includes CONTROL
SELECTION, SOURCE and SWITCHING
SELECTION.

Touch corresponding setup to select the
parameters. See 5-3.

CONTROL SELECTION Setup Options

Audiovisual: Control AV and AV input.
Video: Control video input only.
Audio: Control audio input only.

SOURCE Setup Option
Control 8 video sources of COMP1, COMP2,
CV1,CV2,Y/C1,Y/C2, VGA and DVI

SWITCHING SELECTION Setup Option

PIP: Switch the preview monitor AV to small

screen of main output in picture-in-picture way.

Single screen: Switch the preview monitor AV

to main output in single screen way.

dual screen: Switch the AV to main screen,

and being as a sub-screen.

PIP to enlarge: Enlarge the PIP screen to full

screen.

left picture to enlarge: Enlarge the main

screen (left picture) to full screen.

right picture to enlarge: Enlarge the
sub-screen (right picture) to full screen.

Picture 5-3

5.4.2 PIP SETTING

PIP SETTING includes SIZE, POSITION,
BORDER, and BORDER COLOR. Touch
corresponding setup to select the parameters.
See picture 5-4.

SIZE Setup Option

H-SIZE: Horizontal position H-SIZE
adjustment

V-SIZE: Vertical position V-SIZE adjustment

POSITION Setup Option
H-POS: Horizontal position H-POS setup

V-POS: Vertical position V-POS setup

BORDER Setup Options
Border decoration could make the picture more
beautiful with white, grey and black border colors
available.

border: with border
no border: without border

BORDER COLOR Setup Options

white: White border

grey: Grey border

black: Black border

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

12

Users Manual of Multi-signal PIP Upscaling Switcher

Picture 5-4

5.4.3 SWITCH EFFECT

SWITCH EFFECT could setup filtering effect in
big and small screen and with following 16
options available:

no transition effect: automatic cycle
automatic revolving: No switch effect

Left-right Cover: drag from left to right
Right-left Cover: drag from right to left
Buttom-top Cover: drag from bottom up
Top-buttom Cover: drag from top buttom
Topleft-downright Extend: stretch from top

left to down right

Topright-downleft Extend: stretch from top

right to down left

Downleft-topright Extend: stretch from down

left to top right

Downright-topleft Extend: stretch from down

right to top left

Zoom-in from Center: enlarge from center
Horizontal extension from Center:

stretch to left and right from center

Vertical extension from Center: Stretch from

center to top and bottom

Fade-in Fade-out: Fade in and fade out
Also the speed of big screen transition can

be set as slow and fast. See 5-5.

图 5-5

5.4.4 OUTPUT CONTROL

OUTPUT CONTROL includes PIP WINDOW,
MAIN OUTPUT, OUTPUT RESOLUTION and
OSD MENU, touch corresponding setup to select
the parameters. See picture 5-6.

Picture 5-6

PIP WINDOW Setup Options

switch:Inter-switch the sub-screen and main
screen

open: Open preview PIP function

close: Close preview PIP function

MAIN OUTPUT Setup Options

blank: Output blank screen, close the picture
on monitor, display blank screen (blue screen),
with same BLANK button function on the main
host front panel.

cancel blank: Cancel blank output, i.e. close
the output of blank screen (blue screen)

frozen: The displaying picture is frozen. i.e.

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

13

Users Manual of Multi-signal PIP Upscaling Switcher

temporary stop playback. It is the same as

FREEZE button on the front panel of the host.

cancel frozen: Cancel frozen picture.

OUTPUT RESOLUTION Setup Options
Support the following resolutions output:
800x600@60H 、 1024x768@60H 、
1280x720@60H 、 1280x1024@60H 、
1366x768@60H 、 1400x1050@60H 、
1920x1080@60H and default（Reset to factory
default resolution) optional。

OSD MENU Setup Option
OSD menu has enter, exit, left ,right, and OK
options.

5.4.5 MAIN AUDIO

MAIN AUDIO (audio control of the main output)
includes SOURCE SETTING (signal option) and
VOLUME (target audio) and VOLUME SETTING.

SOURCE SETTING Setup Options

Control 8-way video sources of COMP1, COMP2,
CV1, CV2, Y/C1, Y/C2, VGA and DVI

VOLUME Setup Options

main: Setup the audio source and MIC

volume in the same time.

source: Separate control on the volume from

audio sources

MIC: Separate control on MIC volume

VOLUME SETTING Setup Option

Setup volume and mute of the selected

target

Picture 5-7

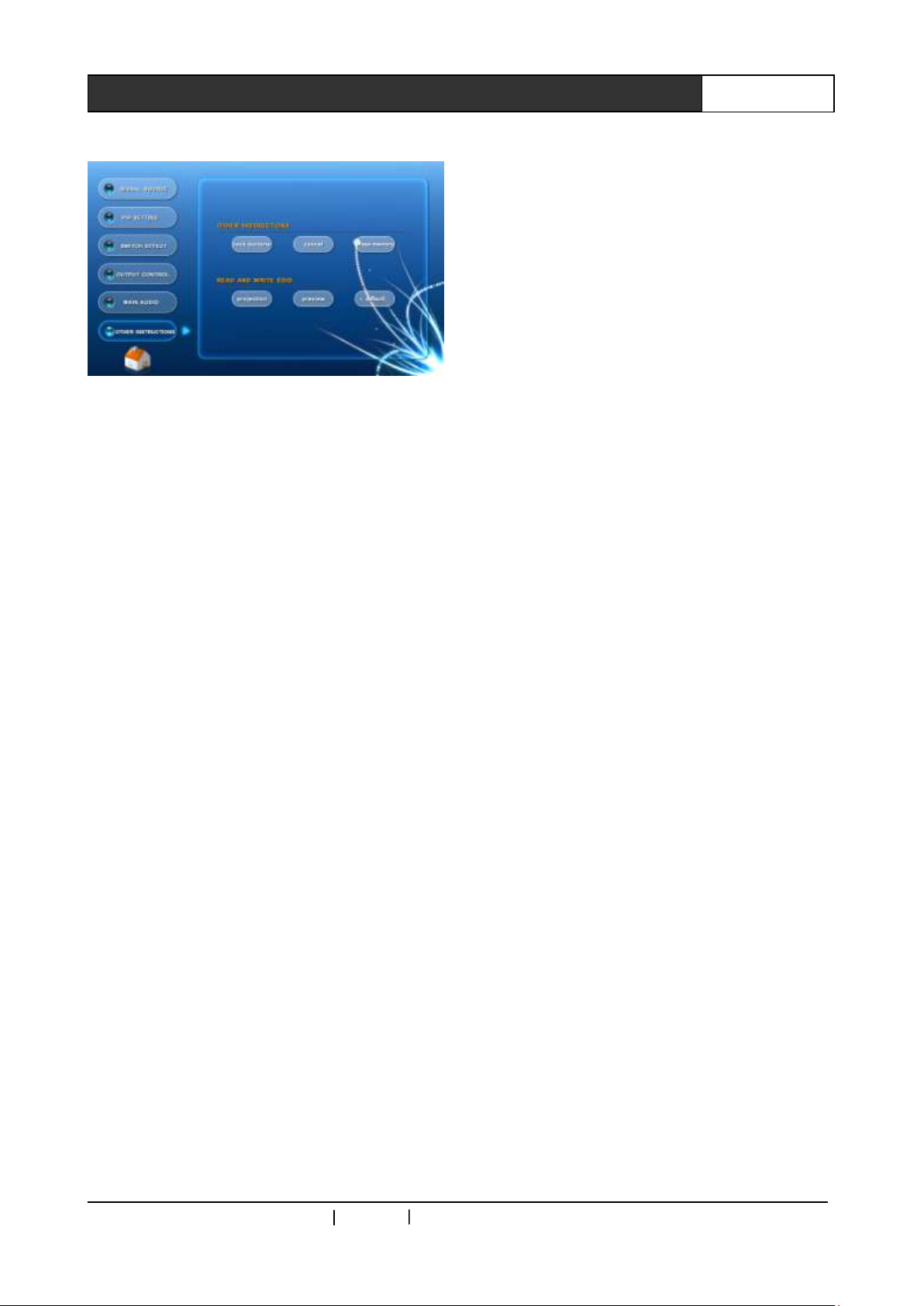

5.4.6 OTHER INSTRUCTIONS

OTHER INSTRUCTIONS include OTHER
INSTRUCTIONS and READ AND WRITE EDID
(EDID).

OTHER INSTRUCTIONS Setup Options
lock buttons: To avoid accidence, lock the
buttons on the front panel of the host after setting
up necessary values.

cancel: Open up the buttons function on the
front panel of the host.

Erase memory: Delete the information
automatically saved after powered off.

READ AND WRITE EDID Setup Option

Projection: Read and write the EDID from the
monitor connected to the projector and transfer it
to the device.

Preview: Read and write the EDID from the
monitor connected to preview and transfer it to
the device.

Default: Restore default EDID.

Note: When reading and writing EDID, DVI input
signal is not for connection.

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

14

Users Manual of Multi-signal PIP Upscaling Switcher

Picture 5-8

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

15

Users Manual of Multi-signal PIP Upscaling Switcher

Chapter 6 Wireless Access Point

CR-WF10 Wireless Access Point is a WiFi
connector for communication between
SC-PIP202 host and WiFi G7 Wireless Touch
Screen.

6.1 CR-WF 10 Wireless AP

CR-WF 10 Wireless (WiFi) AP is a brand new
wireless point, and a mediate of resolving the
communication between CREATOR Wireless
(WiFi) Dual Touch Screen and control host.

Tiny and concise in appearance, the product
supports IEEE802.11b/g protocol, with maximum
transmission rate of 54Mbps, supporting
high-speed wireless internet connection,
providing stable wireless connection for an area
of 40 square meters, supporting multiple cascade
connections, wireless connection mode, wireless
AP/relay mode, and bridging mode.

Functions and Features

◆ Flexible and reliable WAP support makes
any model of touch screen working in an
extensive covered area or region.

◆ Support multiple VLAN (Visual local-area
network), single WAP can be used for
establishing inter-independent and safe network.
And it can be operated separately.

◆ With 3 configuration modes: wireless access
point mode, wireless access point/relay mode
and bridging mode.

◆ Support computer high speed internet
connection.

◆ Support IEEE 802.11b/g international protocol.

◆ Support remote control as far as 40m (without

obstacle) indoor, and 305m (without obstacle)
outdoor.

◆ Support maximum transmission rate of
54Mbps.

Socket Instruction

① POWER:Power indicator.

② RESET:Reset button is for restoring factory

default setting. Press it slightly to reset, press and
hold it for 10 seconds to restore factory default
setting.

③ ETHERNET: Connect to internet.

④ Power socket: Self-adapt to DC 12V power

6.1.1 CR-WF10 Setup Instruction

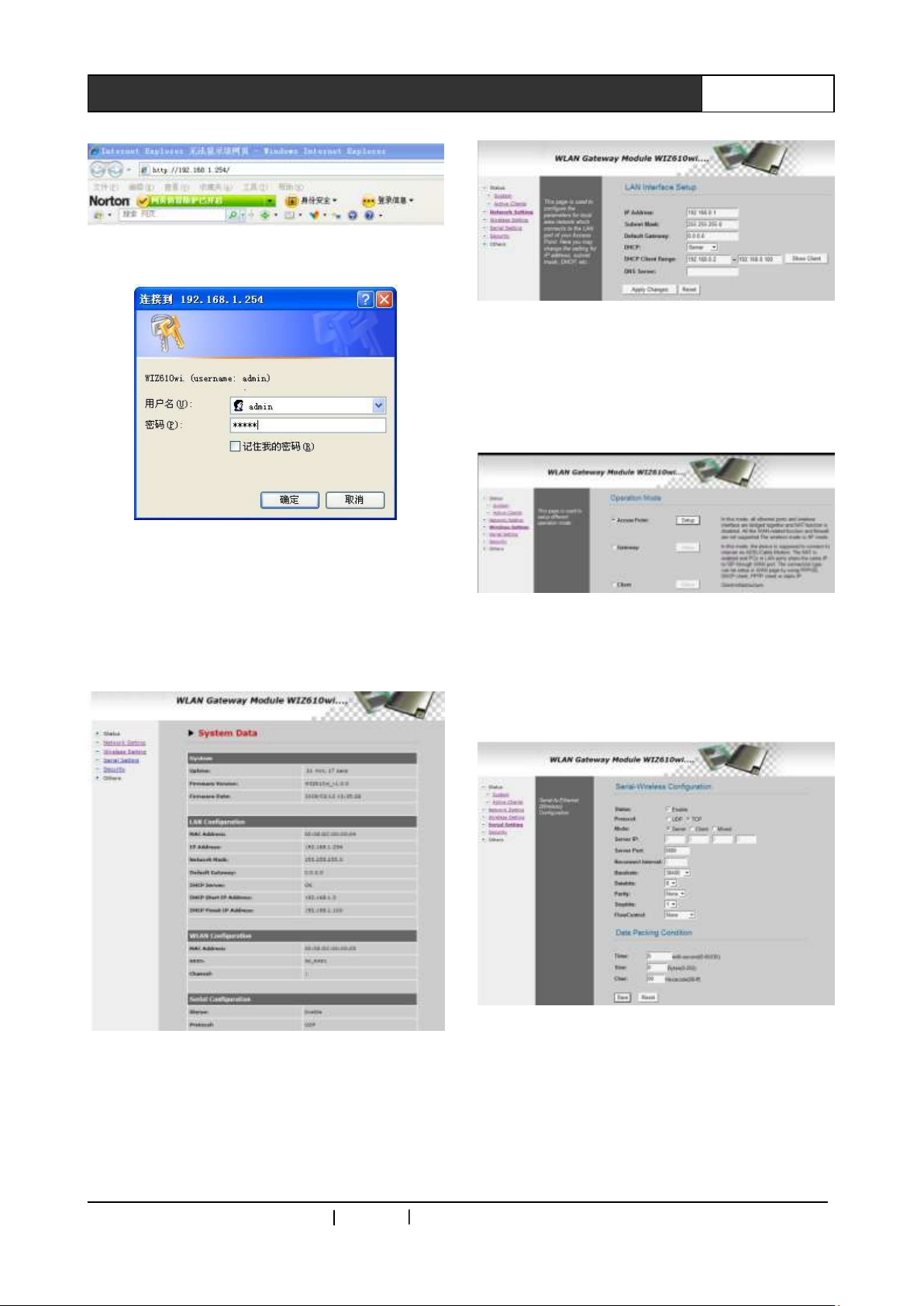

1、 Connect CR-WF10 Wireless (WiFi) Access
Point to PC with a standard network cable.

2、 Connect to power and turn it on.

3、 Open Explorer, and input 192.168.1.254
(default). See picture 6-1.

4、 Input user name: admin and password:
admin (default) in the pop-up window.

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

16

Users Manual of Multi-signal PIP Upscaling Switcher

Picture 6-1

Picture 6-2

5、 Having accessed to module setup window,
user may setup some network information of the
module.

Status displays the configuration information

of the current device, as following picture 6-3.

Picture 6-4

Working Mode Setup

Wireless Setting displays working mode
setup window, please make necessary setup, as
picture 6-5.

Picture 6-5

Wireless Serial Setting

Serial Setting displays wireless serial setting
window, please make necessary setup, as picture
6-6.

Picture 6-3

Network Setting

Network Setting displays the configuration of
the network, such as IP address, gateway, range
of dhcp connection etc. (See picture 6-4)

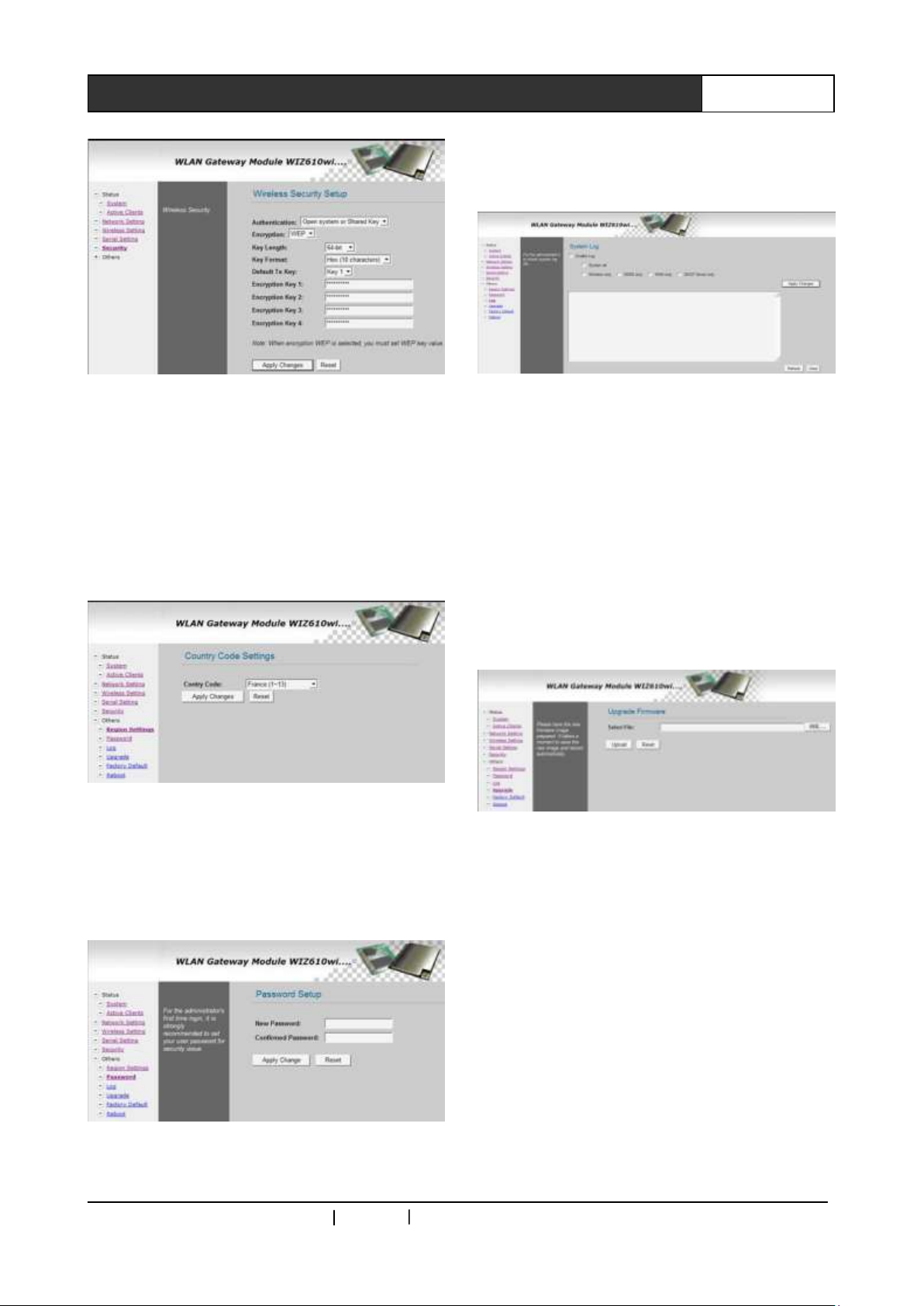

Security Setup

Please set up the likes of information of network
encryption, as picture 6-7.

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

Picture 6-6

Security displays safety setting window.

17

Users Manual of Multi-signal PIP Upscaling Switcher

图 6-7

Other Setting

Others displays other settings, with following
options available.

A:Code Setting

Region Settings display code setting window.
Please make relevant selections, as picture 6-8.

C:Identification Setting.

Log displays identification setting window, as

picture 6-10.

Picture 6-10

D: Firmware Upgrade

Upgrade displays the window of firmware

upgrade, as picture 6-11.

In the process of upgrade, please do not
disconnect the power. Otherwise the upgrade will
be failed. The process of upgrade takes about 2
minutes. After finishing the upgrade, the system
will automatically jump to the front page. Please
be patient to wait.

Picture 6-8

B:Password Management Setting

Password displays the window of password
management setting. Please make relevant
password management setting, as picture 6-9.

Picture 6-9

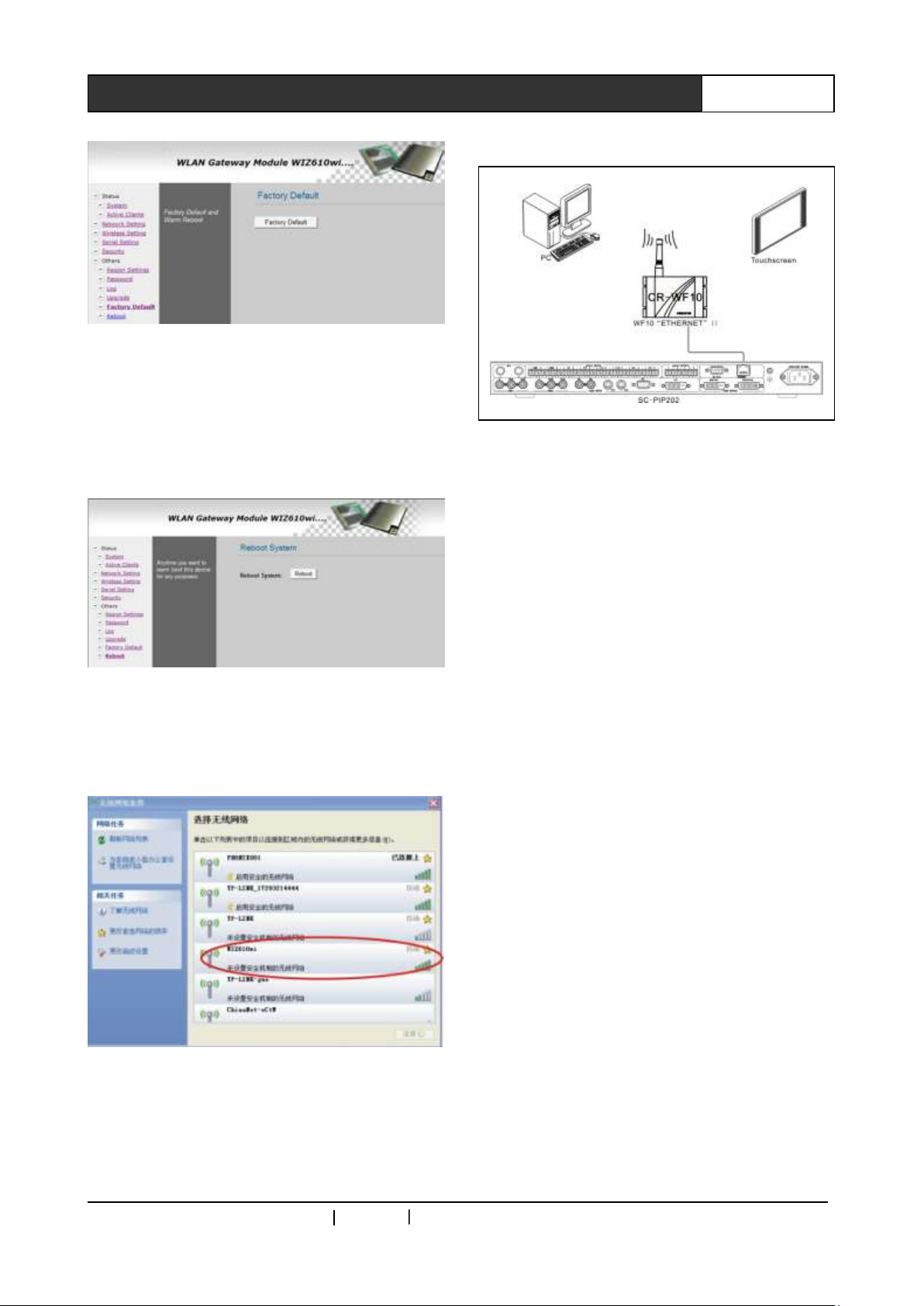

E: Restore Factory Default Setting

Factory Default displays the option window of

restoring to factory default, as picture 6-12.

After restoring to factory default, all user
configurations will be deleted. If necessary,
please use the function of Backup Configuration
to save current router configuration. You may
access to http://192.168.1.254 to re-setup the
router using "admin" as both user name and
password.

Picture 6-11

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

18

Users Manual of Multi-signal PIP Upscaling Switcher

图 6-12

F: Reboot Router

Reboot displays the option window of restarting
the router, as picture 6-13.
Network will be suspended for a short time
when router reboot is in progress.

Picture 6-13

6 、 Connect to power, and open wireless
connection, double click the location indicated in
picture 6-14 to connect to the selected network.

Picture 6-14

6.1.2 Connection

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

19

Users Manual of Multi-signal PIP Upscaling Switcher

Order

Function Description

AV Switch

xx*01!

Switch xx audio input to preview output xx= [01,08]

xx*02!

Switch xx video input to preview output xx = [01,08]

xx*03!

Switch xx audio input to main output xx= [01,08]

xx*04!

Switch xx audio input to preview output xx = [01,08]

01*06!

Switch preview AV to main output in PIP small screen

02*06!

Switch preview AV to main output in single screen

03*06!

Switch AV to the sub-screen from main output in dual-screen mode.

Order

Function Description

Audio/Video Switch

xx*01!

Switch the XX way audio input to preview output xx = [01,08]

xx*02!

Switch the XX way video input to preview output xx = [01,08]

xx*03!

Switch the XX way audio input to main output xx = [01,08]

xx*04!

Switch the XX way audio input to preview output xx = [01,08]

01*06!

Switch the preview AV to the small screen of the main output in PIP way.

02*06!

Switch the preview AV to main output in single screen way.

03*06!

Switch the AV to the sub-screen of the main output in dual screen way.

Main menu
control

01*07!

Swap the main screen of main output with small PIP screen in (instant, no effect)

02*07!

Open PIP screen

03*07!

Close PIP screen

04*07!

Freeze main screen

05*07!

Cancel main screen frozen

06*07!

Blank screen output from main

07*07!

Cancel blank screen output from main

08*07!

Zoom in to full screen, for PIP or dual-screen display mode only.

09*07!

Zoom in to full screen, for dual-screen display mode only.

OSD

Menu

01*08!

Menu display

02*08!

Left move on the menu

03*08!

Right move on the menu

04*08!

Menu confirmation

05*08!

Menu exit

Chapter 7 Instructions Set

Baud Rate:9600 Data Bit:8 Stop Bit:1 Parity Check: None
Remarks:xx = [mm，nn] indicates the number area of xx is mm~nn, with nn-mm+1 values in total
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity: none
Note: xx = [mm，nn] indicates the value range of xx is mm~nn, with nn-mm+1values all together

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

20

Users Manual of Multi-signal PIP Upscaling Switcher

Output

Resolution

Setting

01*09!

800 x 600(SVGA) at 60Hz

02*09!

1024 x 768(XGA) at 60Hz

03*09!

1280 x 720(HDTV 720p) at 60Hz

04*09!

1280 x 1024(SXGA) at 60Hz

05*09!

1366 x 768(HDTV 768p) at 60Hz

06*09!

1400 x 1050 at 60 Hz

07*09!

1920 x 1080(HDTV 1080p) at 60 Hz

Order

Function Description

Preview small screen setup

xx*16!

H_POS in PIP screen is xx. Xx=[00,99]
Note: H_SIZE number area [0,99], current XX setup range [0,100-H_SIZE]

xx*17!

V_POS in PIP screen is xx, xx = [00,99]
Note: V_POS number area [0,99], current XX setup range [0,100-V_SIZE]

xx*18!

H_SIZE in PIP screen is xx+1, xx = [00,99]
Note: H_SIZE number area [1,100], current XX setup range [1,100-H_POS]

xx*19!

V_SIZE in PIP screen is xx+1, xx= [00,99]
Note: V_SIZE number area [1,100], current XX setup range[1,100-V_POS]

00*20!

Horizontal position H-POS in PIP screen reduces 1 unit.

01*20!

Horizontal position H-POS in PIP screen increases 1 unit.

10*20!

Vertical position V-POS in PIP screen reduces 1 unit

11*20!

Vertical position V-POS in PIP screen increases 1 unit

20*20!

Horizontal size H-SIZE in PIP screen reduces 1 unit

21*20!

Horizontal size H-SIZE in PIP screen increases 1 unit

30*20!

Vertical size V-SIZE in PIP screen reduces 1unit

31*20!

Vertical size V-SIZE in PIP screen increases 1 unit

09*14!

Transition effect when switching PIP to main screen. Switching is done instantly.

10*14!

Screen transition effect: dragging from left to right

11*14!

Screen transition effect: dragging from right to left

12*14!

Screen transition effect: dragging from the bottom up

13*14!

Screen transition effect: dragging from top to bottom

14*14!

Screen transition effect: Stretching from top left to down right.

15*14!

Screen transition effect: Stretching from top right to down left.

16*14!

Screen transition effect: Stretching from down left to top right

17*14!

Screen transition effect: Stretching from down right to top left

18*14!

Screen transition effect: Zoom from center

19*14!

Screen transition effect: Stretching from center to both left and right

20*14!

Screen transition effect: Stretching from center to both top and bottom

21*14!

Screen transition effect: fade in and fade out

31*14!

Automatically using transition effects in rotation of above sequence.

32*14!

Close PIP border

33*14!

Display PIP border

34*14!

Set up PIP border color: black

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

21

Users Manual of Multi-signal PIP Upscaling Switcher

35*14!

Set up PIP border color: Grey

36*14!

Set up PIP border color: White

xx*15!

Set up the speed PIP transition effect (total frames) xx=[01,99]

Order

Function Description

Volume
Control

xx*10!

Direct set up main audio output volume xx = [00,83]

84*10!

Increase main audio output to one higher level

85*10!

Decrease main audio output to one lower level

86*10!

Mute main audio output

87*10!

Cancel mute, restore volume of the main volume output

xx*11!

Volume setup of audio input from main audio output, xx = [00,83]

84*11!

Increase one level of volume in audio input from main audio output

85*11!

Decrease one level of volume in audio input from main audio output

86*11!

Mute in audio input from main volume output

87*11!

Cancel mute of audio input from main volume output and restore volume

xx*12!

Setup of the volume in MIC input from main audio output, xx=[00,83]

84*12!

Increase one level of volume in MIC input from main audio output

85*12!

Decrease one level of volume in MIC input from main audio output

86*12!

Mute in MIC input from main audio output

87*12!

Cancel Mute in MIC input from main audio output, restore volume

Other

orders

01*13!

Front panel button lock

02*13!

Cancel front panel lock

03*13!

Remove power-down memory (remove when power is on next time)

04*13!

Read EDID from PROJECT and input to DVI

05*13!

Read EDID from PREVIEW and input to DVI

06*13!

Read default EDIT and input to DVI

Note: When reading EDID, DVI input signal is not for connection.

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

22

Users Manual of Multi-signal PIP Upscaling Switcher

Type

Spec

SC-PIP202

Video

Gain

0 dB

Pixel bandwidth

Video, S-video, YPbPr/YCbCr:6MHz，VGA video:250 MHz， DVI video:165MHz。

Differential phase/OS

<1.28°，3.58 MHz

Differential phase
error

0.1°， 3.58-4.43 MHz
Differential gain error

0.1%， 3.58-4.43 MHz

Switching speed

100 ns(Longest time)

Signal Type

VGA，S-video，COMP component video(YPbPr/YCbCr)，composite video（CVBS）， DVI。

Video input

CV

S-Video

VGA

COMP

DVI

Port

RCA female

connector

S-Video terminal

(Y-C terminal)

24-pin HD female

connector

RCA female

connector

DVI-D

Signal Intensity

1V p-p : Y component video, S-video，Composite video； 0.7V p-p: VGA（PC signal）；

0.3V p-p: Component video、 C of S-video ，HDMI/DVI video

Min/max Electric
Level

Analogue signal: -2V/+2V
Impedance

75 Ω

Return Loss

<-30dB@5MHz

Horizontal Frequency
Response

60-200KHZ

Vertical Frequency
Response

100Hz-200Hz
VGA Video Output

Port

DVI-I port

Min/max Electric
Level

-2.0V / +2.0V
Impedance

75 Ω

Return Loss

<-40dB@5MHz

DC Compensation

Max ±5mV

VGA Sync Signal

I/O Signal Type

RGBHV, RGBS, RGsB, RsGsBs, Composite Video, Component Video, S-Video

Video System

NTSC 3.58，NTSC 4.43，PAL，SECAM

Input Level

0.5V- 5.0V p-p,: 4.0V p-p Normal

Output Level

AGC-TTL: 5Vp-p, unterminated

Input Impedance

510 Ω

Output Impedance

75 Ω

Chapter 8 Technical Parameters

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

23

Users Manual of Multi-signal PIP Upscaling Switcher

Type

Spec

SC-PIP202

Max Transmission
Delay

Horizontal :90ns Vertical:160ns

Max ascend/descend
time

4ns
Polar

Positive or negative (same as input)

Audio Signal

I/O Port

8-way 10pin jack/every way of unbalanced audio input, 1way 2RCA jack unbalanced output

Gain

0 dB

Frequency
Response

20 Hz ~ 20 kHz,

Total harmonic
distortion + noise

0.05% @ 1 kHz （Under rated voltage）

Signal to Noise

ratio（S/N ）

>58dB

Stereo Channels
Crosstalk

>80dB @ 1 kHz

Common-mode

Rejection Ratio

（CMRR）

>75dB @: 20 Hz ~ 20 kHz

Signal type

Stereo (non-patched audio)

Impedance

Input:>10 kΩ（Balanced or imbalanced connection)
Output:50 Ω （imbalanced connection）, 100 Ω（Balanced connection）

Max Input Level

+19.5dBu, （Balanced or imbalanced connection)

Gain Error

±0.1dB @20 Hz ~ 20 kHz

Max Output Level

+19.5dBu, （Balanced or imbalanced connection)

MIC

MIC Type

Moving Coil Response

Input Sensitivity

25mV

Frequency Response

50Hz-16K Hz

Jack Type

Mono input

Control Type

Serial Control Port

RS-232, 9-pin D-type port

Baud Rate and
Protocol

Baud rate:9600, Data Bit:8 bit, Stop bit:1, No parity bit

Serial Control Port
Structure

2 = TX, 3 = RX, 5 = GND
Specification

Power

100VAC-240VAC～50/60 Hz, International self-adapted power

Temperature

Storage and use temperature: -20°～ +70°C

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

24

Users Manual of Multi-signal PIP Upscaling Switcher

Type

Spec

SC-PIP202

Humidity

Storage and use humidity:10% ～90%

Case Size

1U

Product Height

1.9kg

Average failure
interval time

30,000 Hours
Warranty

1 year warranty, lifetime maintenance

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

25

Users Manual of Multi-signal PIP Upscaling Switcher

Troubles

Solutions

The peripheral devices like projector connected to
SC-PIP202 Matrix has ghosting or blur images

Possibly the projector is not properly adjusted or
unqualified cable is in use. The projector should be
well-adjusted and the cables should be replaced.

Color is lost or no video signal output

● Possibly both ends of VGA signal cable are not
correspondingly connected or the cable is short-circuited.

Touch screen cannot control SC-PIP202 Matrix

● Battery is possibly running out, please replace it.

● Possibly the remote controller is out of order, please fix

it.

The serial port (generally PC serial port) cannot control
SC-PIP202 Matrix

●Inspect and see if the communication port configured by
control software is corresponding to the serial port.

● Inspect and see if the communication port of the PC is
in good condition and communication protocol is correct.

When switching the SC-PIP202 Matrix, there is return
code, but no corresponding images output.

●Check if respective input terminals are with signal
(inspect by oscilloscope or multi-meter). If there is no
signal input, input cable could be broken or the joint is
loose. Please replace it.

POWER indicator is off. No LCD display. No reaction to
operation

● Please check if power input is in good contact
Output image is interfered

● Possibly input or output device is not well-grounded.

Feel distinct static electricity when plugging the AV ports.

● Possibly the ground wire of the device is not
well-grounded. Please ground it in correct way.
Otherwise, the host could be damaged, and the lifetime
would be shortened.

LCD is in normal display. There is return code for
communication port, but no image or audio output.

● Possibly AV port is loose, just replace it.

● Possibly the wiring is short-circuited, just replace it.

● Possibly the wiring is with broken circuit, just replace it.

When the panel button, communication port, touch screen of the SC-PIP202 are all out of control, possibly the internal
of the host is damaged. Please ask professional staff for maintenance.

Chapter 9 General Troubles Shooting

CREATOR CORPORATION (CHINA) 2010-06 WWW.CREATOR1997.COM

CREATOR CORPORATION（CHINA）

Copyright by CREATOR

Last Revision:06/2010
