Z603AU
Bluetooth®CD/USB/MP3/WMA RECEIVER
English
Warranty Information:
For detailed information regarding warranty conditions, please see the separate warranty card
enclosed with your product. There you will also find information regarding how to register your
product for Clarion’s “Free Extended Warranty” program.
• “Free Extended Warranty” subject to terms and conditions.
You can also view the warranty conditions at any stage by visiting the Clarion webiste and
clicking on the “warranty information” link.
http://www.clarion.com.au
Contents
Thank you for purchasing this Clarion product.
• Please fully read this owner’s manual before operating this equipment.
• Check the contents of the enclosed warranty card and store it in a safe place with this manual.
1. FEATURES .......................................................................................................................3
2. PRECAUTIONS ................................................................................................................3
Front Panel / Generalities .............................................................................................. 4
USB Port ........................................................................................................................4
Remove the DCP ...........................................................................................................4
Attach the DCP .............................................................................................................. 4
Storing the DCP in the DCP Case ................................................................................. 4
3. CONTROLS ......................................................................................................................5
Operational Panel .......................................................................................................... 5
Names of Buttons........................................................................................................... 5
Notes of remote control using ........................................................................................5
Remote Control (RCX001) ............................................................................................. 6
4. CAUTIONS ON HANDLING ............................................................................................. 6
Handling Discs ...............................................................................................................6
5. OPERATIONS................................................................................................................... 7
Basic Operations............................................................................................................ 7
System Setup................................................................................................................. 8
Audio Setup.................................................................................................................... 9
Radio Operations .........................................................................................................10
CD/MP3/WMA Operations ...........................................................................................
USB Operations ...........................................................................................................
iPod & iPhone Operations............................................................................................
Pandora® Operations ..................................................................................................
Bluetooth Operations ...................................................................................................
AUX Operations ...........................................................................................................
6. TROUBLE SHOOTING................................................................................................... 15
7. ERROR DISPLAYS......................................................................................................... 16
8. SPECIFICATIONS ..........................................................................................................16
9. INSTALLATION / WIRE CONNECTION GUIDE ............................................................17
10
11
12
12
13
14
2
1. FEATURES
2. PRECAUTIONS
English
Compatible with iPod® / iPhone® with Pandora® internet radio App
5V/6ch RCA Out put with Digital Time Alignment, 3-way Crossove r and 5 Band
Parametric Equalizer
728 Variable Color Illumination Control
Expanding Systems
Expanding audio features
iPod® / iPhone
Bluetooth
cellular phone
Note:
• .dlos yllareneg stcudorp laicremmoc eht era semarf eht fo edistuo detsil smeti ehT
®
®
USB Memory
Portable Player
(Connect via AUX IN Jack)
WARNING
For your safety, the driver should not operate the controls while driving.
Also, while driving, keep the volume to a level at which external sounds can be heard.
1. When the int erior of the car is extremely
cold and the player is used s oon after
swit ching on the heat er, moistu re may
form on the disc or the optical parts of the
player an d proper playbac k may not be
possibl e. If moisture forms on t he disc,
wipe it o ff with a soft cloth. I f mois ture
forms on the optical parts of the player, do
not use the player for about one hour.
The condensation will disappear naturally
allowing normal operation.
2. Driving on ext remely bumpy or rough
roads can cau se the disc to skip during
playback.
3. Th is u ni t use s pr ec isi on p ar ts an
components for its operation. In the event
that t rouble arises, never open the case,
disassemble the uni t, or lubricate the
rotating parts. Contact your Clarion dealer
or service center.
4. “Made for iPod, ” and “Made for iPhone ”
mean tha t an elect ronic ac ces sor y has
been designed to c onnect specif ically to
iPod, or iPhone, respectively, and has been
cert ified b y the developer to m eet Apple
performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards. Please note that the
use of this accessory with iP od or iPhone
may affect wireless performance.
iPhone and iPod are trademarks of Apple Inc.,
registered in the U.S. and other countries.
5. Pandora , the P andora logo and ot he r
d
P andor a mark s a r e
registered t rademarks of Pandora Medi a,
Inc. or its subsidiaries worldwide.
“If you hav e a ny issues with t he Pandora
application on you r mobile phone, please
direct them to pandora-support@pandora.
com.”
6. The Bluetooth
registered trademarks owne d by Bluetooth
SIG, Inc. and a ny use o f such m arks b y
Clarion Co.,Ltd, is under license.
®
wor d mark and logo s are
t rademar k s o r
3
English
CZ603AU
531-1629kHz 87.5-108MHz
This product includes technology owned by Microsoft Corporation and
cannot be used or distributed without a license from MSLGP.
051 722 877
QDID NO.: B017789
PN:127071003544TX-1096K-C
Cleaning the body
• Use a soft, dry cloth and gently wipe off
any dirt or dust.
• For tough dirt, apply some neutral
detergent diluted in water to a soft cloth,
wipe off the dirt gently, then wipe again
with a dry cloth.
• Do not use benzene, thinner, car cleaner,
etc., as these substances may damage
the body or cause the paint to peel. Also,
CHINA
leaving rubber or plastic products in
contact with the body for long periods of
time may cause stains.
Remove the DCP
The control panel can be detached to prevent
theft. When detaching the control panel, keep
it in the safety place and prevent scratches.
We r e c o mmend taking the DCP
(DETACHABLE CONTROL PANEL) with you
when leaving the car.
1. Press the [SRC /
off the power.
2. D eeply pus h in [OPEN] button to unlock
the DCP.
3. H old the side popped out, remove the
DCP.
] button (1 sec.) to turn
INFORMATION FOR USERS:
Changes or modificat ions to this product
unapproved by the manufacturer will void the
warranty.
Front Panel / Generalities
For a longer service life, be sure to read the
following cautions.
• Do not allow any liquids on the unit from
drinks, umbrellas, etc. Doing so may
damage the internal circuitry.
• Do not disassemble or modify the unit in
any way. Doing so may result in damage.
• Do not let cigarettes burn the display. Doing
so may damage or deform the body.
• If a problem should occur, have the unit
inspected at your store of purchase.
• The remote control unit may not work if the
remote control sensor is exposed to direct
sunlight.
4
USB Port
• T he USB memory st icks must b e
recognized as “USB mass storage class“
to work properly . Some models may not
operate correctly.
When the memorized data i s lost or
damaged by any chance, Clarion shall
not be liable for any damage.
When using an USB memory stick, w e
recommend that you backup your data
st ored on it before using a personal
computer etc.
• Dat a files may be brok en when using
USB memory sticks in t he following
situation: When disconnecting the U SB
memory stick or turning t he power off
during reading data.
When affected by static electricity or
electric noise.
Connect/disconnect t he USB memory
stick when it is not accessed.
• Connecting with the computer is not
covered.
Attach the DCP
1. H old the DCP and ensure that the panel
faces towards you. Set the right side of the
DCP into the DCP bracket.
2. Press the left side of the DCP until it locks.
Storing the DCP in the DCP Case
and put it into the supplied DCP case.
DCP
DCP case
Note:
If the DCP is dirty, wipe off the dirt with a soft,
dry cloth only.
• The DCP can easily be damaged by
CAUTION
shocks. After removing it, be carefully not
to drop it or subject it to strong shocks.
• Once the [OPEN] button is pres sed and
DCP is unlocked, car vibrations can cause
the DCP to fall
• The co nnector for the m ain unit a nd
DCP is extremely important. Be careful
not to dam age it by pressing on it with
3. CONTROLS
Operational Panel
[MENU / ][BAND / ][MIC]
[ SRC / ]
[OPEN]
[ / ]
Names of Buttons
[SRC / ] Button
• Power / Toggle the audio source
[BAND /
] Button
• RADIO mode – Select tuner band
• BT mode – Dial/Answer / Transfer call /
Redial (long press)
• PANDORA mode – Skip song
[MENU /
] Button
• MP3/WMA mode – Search function.
• CD mode – No function.
• RADIO mode – No function.
• BT mode – Terminate call
• AUX mode – No function.
• iPod mode – iPod menu
• USB mode – Search function
• PANDORA mode – Station select
[
] Button
• Press to eject disc.
[PS/AS]
[VOLUME]
Disc Slot
[DISP]
[1~6]
, ] Buttons
[
• Previous / next track
• Search (long press)
• Station up/down
[Open] Button
• Unlock the front panel.
[PS / AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
] Button
[
• Sound effect setting
[VOLUME] Knob
•
• PANDORA mode – Bookmark song /
Artist (long press)
[ISR]
[ ]
AUX Jack
Names of Buttons
[ISR] Button
• Recall ISR station stored in memory and
store current station in ISR memory (long
press)
[1~6] Buttons
• [1] Button: Scan play / Preset station 1 /
• [2] Button: Repeat play / Preset station 2.
• [3] Button: Random play / Preset station 3.
• [4] Button: Play / Pause / Top play (long
• [5] Button: Previous folder / Preset station 5.
10 tracks down (long press)
• [6] Button: Next folder / Preset station 6.
10 tracks up (long press) /
Create new station
(PANDORA mode)
press) / Preset station 4.
/ Thumbs down (PANDORA
mode)
Thumbs up (PANDORA mode)
Notes of remote control using
1. Aim the remote control at the remote sensor
on the unit.
2. Remove the battery from the remote control
or insert a battery insulator if the battery has
not been used for a month or longer.
3. D O NOT store the remote cont rol under
direc t sunlight o r in high temperat ure
environment, or it may not function properly.
4. U se “butt on shaped” li thium b at te ry
“CR2025” (3V) only.
5. D O NO T subject bat tery to recharge,
disassemble, heat or dis pose in fire or
water.
6. I nsert th e ba tte ry i n proper direct io n
according to the (+) and (-) polarities.
the battery in a place where children
7. Store
cannot reach to avoid the risk of accident.
[DISP] Button
• Display switch
• System setup (long press)
[ MIC ] Hole
• Internal microphone
Inserting the Battery
1. S lide remo te control unit’s rear cover in
the direction shown.
2. I nsert battery (CR2025 ) into inserti on
guides with printed side (+) up.
3. Press battery into compartment as shown.
4. Replace and slide cover until it clicks into
place.
Insertion guide
English
5
Remote Control (RCX001)
English
[SRC / ] Button
• Toggle the audio source
• Power on / Power off (long press)
, ] Buttons
[
• Preset station up/down
• Previous / next track
• Search (long press)
[SCN/PS/AS] Button
• Scan play / Preset scan
• Auto memory store (long press)
• PANDORA mode – Thumbs down
[BAND/TOP] Button
• CD /MP 3/WMA mode
Top play (long press)
• RADIO mode – Select tuner band
• PANDORA mode – Skip song
[
, ] Buttons
• Volume up / down
] Button
[
• Play / Pause
[ISR] Button
• Recall ISR stati on stor ed in me mory and
store current s tation in ISR memory
(long press)
[DISP] Button
• Display switch
[RDM] Button
• Random play
• PANDORA mode – Thumbs up
[RPT] Button
• Repeat play
• PANDO RA mode
Bookmark song / Artist (long press)
[MUTE] Button
• Mute the volume
[SRC / ]
[ , ]
[MUTE]
[SCN/
PS/AS]
[BAND/TOP]
[ , ]
[ ]
[ISR]
[DISP]
[RDM
]
TPR[ ]
4. CAUTIONS ON HANDLING
Handling Discs
Handling
• New discs may have some roughness
around the edges. If such discs are used,
the player may not work or the sound may
skip. Use a ball-point pen or the like to
remove any roughness from the edge of
the disc.
Ball-point pen
Roughness
• Never stick labels on the surface of the
disc or mark the surface with a pencil or
pen.
• Never play a disc with any cellophane
tape or other glue on it or with peeling off
marks. If you try to play such a disc, you
may not be able to get it back out of the
player or it may damage the player.
• Do not use discs that have large
scratches, are misshapen, cracked, etc.
Use of such discs may cause
misoperation or damage.
• To remove a disc from its storage case,
press down on the center of the case and
lift the disc out, holding it carefully by the
edges.
• Do not use commercially available disc
protection sheets or discs equipped with
stabilizers, etc. These may damage the
disc or cause breakdown of the internal
mechanism.
Storage
• Do not expose discs to direct sunlight or
any heat source.
• Do not expose discs to excess humidity or
dust.
• Do not expose discs to direct heat from
heaters.
Cleaning
•
use a soft cloth and wipe in a straight
line from the center of the disc to the
circumference.
• Do not use any solvents, such as
commercially available cleaners, antistatic spray, or thinner to clean discs.
• After using special disc cleaner, let the
disc dry off well before playing it.
On Discs
• Never turn off the power and remove the
unit from the car with a disc loaded.
For your safet y, the driver should not
insert or eject a disc while driving.
CAUTION
6
5. OPERATIONS
Basic Operations Basic Operations
Note:
• Refer to the diagrams in “3. CONTROLS”
when reading this chapter.
CAUTION
When the unit is turned on, starting and
stopping the engine with its volume raised
to the maximum level may harm your
hearing.
Be careful about adjusting the volume.
Power on / off
Notes:
• Start the engine before using this unit.
• Be careful about using this unit for a long
time without running the engine. If you
drain the car’s battery too far, you may not
be able to start the engine and this can
reduce the service life of the battery.
1. Start the engine. The power button / knob
illumination on the unit will light up.
2.
initial speaker system. (Refer to “Audio
Setup”)
• INITIAL …. When powering on the unit
system. Check your speaker system,
choose it on the unit, and then, set your
desired sound quality referring to “Audio
Setup”.
• LOAD …. When powering on the unit for
it allows you to select a speaker system.
“NORMAL” ….
FRONT 2ch / REAR / 2ch / SUBWOOFER 2ch
“2WAY” ….
HIGH 2ch / MID 2ch / REAR 2ch
“3WAY” ….
HIGH 2ch / MID 2ch / SUBWOOFER 2ch
Engine ON
position
LOAD” is not selected.
Note:
If you press the RESET button or
disconnect the back-up line after
completing the audio setup, “INITIAL /
LOAD” is displayed. In this case, the unit
functions as follows.
• INITIAL …. When powering on the
unit after RESET or the backup line is
disconnected, the audio setup in the
memory is cleared and you will need to
start from selecting a speaker system.
Choose your desirable speaker system
and set your desired sound quality
referring to “Audio Setup”.
• LOAD …. When powering on the unit
after RESET or the backup line is
disconnected, the preset speaker system
and other settings are called.
If you changed the speaker system, reset
from INITIAL.
3. Press the [SRC /
panel or the remote control to turn on
the power under standby mode. The unit
goes back to the last status after power
on.
4. Press and hold the [SRC /
the front panel or the remote control to
turn off the power.
] button on the front
] button on
Mute
Press the [MUTE] button on the remote
control to mute the volume from the unit.
Note:
Doing the operation above again or adjusting
volume will release muting.
Volume adjustment
Rotate the [VOLUME] knob on the front panel
or press the [
control.
The adjustable range of volume is 0 to 40.
] or [ ] button on the remote
CAUTION
While driving, keep the volume level at
which external sounds can still be heard.
Playing source selection
Press [SRC / ] button on the front panel or
remote control repeatedly to choose desired
playing source.
Note:
Playing source selection means selecting
which mode, such as DISC mode, RADIO
mode and AUX mode.
Display system time
Press the [DISP] button on the front panel or
[DISP] button on the remote control to switch
the display information from clock, station
information (radio mode), or track information
(CD mode).
RESET
Note:
* When the [RESET] button is pressed, preset
radio stations, titles, etc. stored in memory
are cleared.
RESET
To keep the current sound settings, when
[VOLUME] knob to select “LOAD”, press the
English
7
System Setup
English
In any mode, press and hold [ DISP ] button
to enter system setup. Press [
button to select options, rotate the [VOLUME]
knob to adjust.
CLOCK
Press the [VOLUME ] knob to enter clock
setting mode, rotate the [VOLUME] k nob
to s et clock, press [ ] or [ ] button to
select hour or minute, press and hold the
[VOLUME
DX/LO (RADIO mode)
Rotate the [VOLUME] knob to choose radio
local or distant at radio mode.
• LO: Only st ations with strong signal can
be received.
• DX: Stations with strong and weak signals
can be received.
AUX SENS (AUX mode)
Rotate the [VOLUME] knob to choose AUX
Input sensitivity LOW, MID or HIGH at AUX
mode.
SELECT (BT mode)
This ” SELECT ” menu is int ended to
automatically paired by selecting a mobile
phone was stored.
This unit can store three mobile phones. The
mobile phone will be stored in paired order
to the unit. The mobile phone can be stored
up to three. The fourth mobile phone can not
be stored. If you want to store a fourth mobile
phone, please delete unwanted mobile phone
from ”DELETE” menu.
1. Rotate the [VOLUME] knob to choose the
pair mobile phone name from the pairing
list.
2. Press and hold the [VOLUME] knob to
DELETE (BT mode)
1. Rotate the [VOLUME] knob to choose the
paired mobile phone name from the pairing
list.
2. Press and hold the [VOLUME] knob to
] or [ ]
DISCON (BT mode)
Disconnect currently connected mobile phone.
1. Rotate the [VOLUME] knob, mobile phone
displays are currently connected.
2. Press and hold the [VOLUME] knob to
disconnect.
MIC GAIN (BT mode)
Rotate the [VOLUME] knob to choos e Mic
gain: -5,-4,-3,-2,-1,0,1, 2, 3, 4, 5.
You can change the gain of MIC when a
telephone partner cannot hear your voice.
You can listen to your telephone calls from
the speakers connected to this unit.
*When listening to your calls on your car
speakers, you can adjust the volume by
turning the [VOLUME] knob.
MIC SEL (BT mode)
Rota te t he [VOLUME] knob t o choose
Microphone EXTERNAL or INTERNAL.
TONE SEL (BT mode)
You can get mobile phone ring tone from the
speaker.
Rotate the [VOLUME] knob to choose AUTO
or INTERNAL.
• AUTO:
Mobile phone ring tone from the speaker.
• INTERNAL:
The unit original ring tone from the speaker.
AUTO ANS (BT mode)
To answer incoming calls automatically.
Rotate the [VOLUME] knob to choose AUTO
ANS ON or OFF.
AUTO CON: ON/OFF (BT mode)
Automatically connects the mobile phone was
last connected.
Rotate the [VOLUME] knob to choose AUTO
CON ON or OFF.
PIN CODE
Rota te and press the [ VOLUME] k nob
to choose a 4- digit password. Press the
[VOLUME ] knob more than 1 sec onds to
The PIN CODE default setting is “ 0000 “.
System Setup
COLOR
Rota te t he [VOLUME] knob t o choose
backlight color.
• SCN: The backlight change circularly.
• COLOR 01~09: Select a preset color.
• USER1~3: Select your favorite color. Press
the knob to enter color setting mode, press
[
] or [ ] button to select GREEN, BLUE
or RED, t he rotate t he [VOLUME] knob to
select a color.
Press and hold [ VOLUME ] knob to memory.
SCRN SVR: ON/OFF
Rotate the [VOLUME] knob to choose SCRN
SVR (screen saver) ON or OFF.
SCROLL: ON/OFF
For track information that is longer than the
display panel:
When SCROLL is ON, the LCD will display
ID3 TAG information cyclely, e.g: TRAC K>FOLDER->FILE->ALBUM->TITLE->ARTIST>TRACK->...
When S CROLL is OFF , the LCD will display
one o f the I D3 TAG information, t he def ault
is TRACK, but user can adjust it to other ID3
TAG information by press [ DISP ] button.
S-CTRL (IPOD mode) : ON/OFF
Rotate the [VOLUME] knob to choose S-CTRL
(Simple Control) ON or OFF.
* Refer to P14.
PANDORA: ON/OFF
Select OFF if t he Pandora application has
not been installed on your iPod touch or
iPhone.
TEL-SW
Rotate the [ VOLUME ] knob to choos e
MUTE, ON or OFF.
• MUTE:
The sound from this unit is muted during
telephone calls.
• OFF:
This unit continues normal operation even
when the cellular phone is used.
• ON:
You c
an listen to your telephone calls from
the speakers connected to this unit.
*When listening to your calls on your car
speakers, you can adjust the volume by
turning the [VOLUME] knob.
A-CANCEL: ON/OFF
Rota te the [VOLUME ] knob to choose
If you don’t use internal amplifier, set it to
ON.
DIMMER: ON/OFF
Rota te the [VOLUME ] knob to choose
DIMMER ON or OFF.
• ON: LCD dimmer is active when small light
of vehicle is turned ON.
• OFF: LCD always maximum bright ness
regardless of the vehicle small light.
BEEP: ON/OFF
Rotate the [VOLUME] knob to choose button
beep sound ON or OFF.
12/24H
Rotate the [VOLUME] knob to choose time
format: 12 or 24 hours.
8
Audio Setup
Selecting speaker
When this product is turned on for the first
time or reset, user can select “LOAD” or
“INITIAL” depending on the speaker system.
Select “ LOAD” for Norm al speaker system
(full range) or select “INITIAL” for 2-Way or
3-Way systems.
Speaker system
NORMAL Front 2ch Rear 2ch Subwoofer 2ch
2-WAY Mid 2ch High 2ch Rear 2ch
3-WAY Mid 2ch High 2ch Subwoofer 2ch
• Normal speaker system (NORMAL)
Front speaker
(left)
Rear speaker
(left)
Subwoofer
• 2way speaker system (2WAY)
High (Tweeter)
(left)
Mid speaker
(left)
Rear speaker
(left)
• 3way speaker system (3WAY)
High (Tweeter)
(left)
Mid speaker
(left)
Subwoofer
Setting the X-OVER(Crossover)
This function allows you to adjust the speaker
setting such as cutoff frequencies or slope
matched to the speakers you are using.
(Crossover).
Press and hol d the [
amplifier setting mode. Use the [
] button to select an option.
or [
Press [ VOLUME
Front speaker
(right)
Rear speaker
(right)
High ( Tweeter)
(right)
Mid speaker
(right)
Rear speaker
(right)
High (Tweeter)
(right)
Mid speaker
(right)
] button to enter
To return to the previous settings, press the
[ VOLUME ] knob again.
1. When speaker system is “NORMAL”.
• TIME ALIGNMENT
FRONT L/R: 0-----501.4cm
REAR L/R: 0-----501.4cm
SW L/R: 0-----501.4cm
• HPF/LPF FRONT
- FR HPF
CUT: THROUGH / 60 / 90 / 120HZ
SLOP: -12DB
PHASE: NOR / REV
• HPF/LPF REAR
- REAR HPF
CUT: THROUGH / 60 / 90 / 120HZ
SLOP: -12DB
PHASE: NOR / REV
• HPF/LPF S-WOOFER
- SW LPH
CUT: THROUGH / 60 / 90 / 120HZ
SLOP: -12DB
PHASE: NOR / REV
2. When speaker system is “2WAY”.
• TIME ALIGNMENT
HIGH L/R: 0-----501.4cm
MID L/R: 0-----501.4cm
REAR L/R: 0-----501.4cm
• 2W XOVER
- HIGH HPF
CUT: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / 12.5K / 16K /
20K / THROUGH
SLOP: -6 / -12DB
- HIGH SPK: PHASE NOR/PHASE REV
- MID LPF
CUT: 630HZ / 800HZ / 1K / 1.25K / 1.6K
/ 2K / 2.5K / 3.15K / 4K / 5K / 6.3K / 8K /
10.0K / THROUGH
SLOP: -6 / -12DB
- MID HPF
CUT: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ /1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K/ 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- MID SPK: PHASE NOR/PHASE REV
]
- REAR LPF
CUT: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ
Audio Setup
/ 250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- REAR HPF
CUT: 16HZ / 20HZ / 25HZ / 31.5HZ / 40HZ
/ 50HZ / 63HZ / 80HZ / 100HZ / 125HZ /
160HZ / 200HZ / 250HZ / THROUGH
SLOP: -6 / -12DB
- REAR SPK: PHASE NOR/PHASE REV
• SP GAIN
HIGH: -20-----0DB
MID: -20-----0DB
REAR: -20-----0DB
3. When speaker system is “3WAY”.
• TIME ALIGNMENT
HIGH L/R: 0-----501.4cm
MID L/R: 0-----501.4cm
SW L/R: 0-----501.4cm
• 3W XOVER
- HIGH HPF
CUT: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / 12.5K / 16K /
20K / THROUGH
SLOP: -6 / -12DB
- HIGH SPK: PHASE NOR/PHASE REV
- MID LPF
CUT: 630HZ / 800HZ / 1K / 1.25K / 1.6K
/ 2K / 2.5K / 3.15K / 4K / 5K / 6.3K / 8K /
10.0K / THROUGH
SLOP: -6 / -12DB
- MID HPF
CUT: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ /
315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- MID SPK: PHASE NOR/PHASE REV
- SW LPH
CUT: 25HZ / 31.5HZ / 40HZ / 50HZ / 63HZ
/ 80HZ / 100HZ / 125HZ / 160HZ / 200HZ /
250HZ / 315HZ / 400HZ / 500HZ / 630HZ /
800HZ / 1K / 1.25K / 1.6K / 2K / 2.5K / 3.15K
/ 4K / 5K / 6.3K / 8K / 10.0K / THROUGH
SLOP: -6 / -12DB
- SW HPF
CU T: T HROUGH / 16HZ / 20HZ / 5HZ /
31.5HZ / 40HZ / 50HZ / 63HZ / 80HZ /
100HZ/ 125HZ / 160HZ / 200HZ /250HZ
SLOP: -6 / -12DB
- SW SPK: PHASE NOR/PHASE REV
• SP GAIN
HIGH: -20-----0DB
MID: -20-----0DB
S-WOOFER: -20-----0DB
STORE/RECALL (NORMAL, 2W AY and 3WAY
mode)
Rotate the [VOLUME] knob to choose ”STORE /
RECALL”. Press the [VOLUME
• STORE
Rotate the [VOLUME] knob to select a position
among ”MEMORY 1, 2 and 3”. Then press and
hold the [VOLUME] knob to store.
• RECALL
Rotate the [VOLUME] knob to select a position
among ”MEMORY 1, 2 and 3”. Then press the
[VOLUME] knob to recall.
Adjusting Sound Mode
Short-press the [ ] button to enter sound effect
setting mode. First press shows current EQ.
Rotate the [VOLUME] knob to change the BEAT
EQ in this order:
OFF -> B-B OOST -> IMPACT - > E XCITE ->
CUSTOM
Rota te the [VOLUME] knob to choose t he
CUSTOM, and press the [VOLUME] knob, then
] or [ ] button to select it including:
press [
BAND 1 G -> BAND 1 F -> BAND 1 Q -> BAND
2 G -> BAND 2 F -> BAND 2 Q -> BAND 3 G ->
BAND 3 F -> BAND 3 Q -> BAND 4 G -> BAND
4 F -> BAND 4 Q -> BAND 5 G -> BAND 5 F ->
BAND 5 Q, rotate the [VOLUME] knob to select a
value.
BAND 1/2/3/4/5 G: (-12) - (+12)
BAND 1/2/3/4/5 F: 20HZ - 20.0K, THROUGH
BAND 1/2/3/4/5 Q: 1, 3, 5, 7, 20
Press the [
or [
BALANCE -> FADER -> SUBW VOL(Subwoofer
Volume), rotate the [ VOLUME] knob to select a
value.
BALANCE: LEFT 1-12->CENTER->RIGHT 1-12
FADER: LEFT 1-12->CENTER->RIGHT 1-12
SUBW VOL: (-6) - (+6)
Note:
The setting items below are not stored in memory.
After RESET or the back-up line is disconnected,
redo these settings. We recommend you to take a
note to keep the records.
] button, then press [ ]
] button to select USER preset including:
English
9
Radio Operations
English
Select tuner as playing source
Press [SRC / ] button once or more to enter
RADIO mode.
Selecting the radio band
Press the [BAND / ] button on the panel or
on the remote control to select one radio band
among FM1, FM2, FM3, AM.
Manual tuning
During manual tuning, the frequency will be
changed in steps.
Press the [ ] or [ ] button on the panel
to tune in a higher / lower station.
Press the [
control to select preset stations.
] or [ ] button on the remote
Auto tuning
Press and hold the [ ] or [ ] button to
seek a higher / lower station.
To stop searching, repeat the operation above
or press other buttons having radio functions.
Note:
When a station is received, searching stops
and the station is played.
Preset scan
Pr ese t s can rec eiv es the sta tions st ored
in preset memory in order. This function is
useful when searching for a desired station in
memory.
1. Press the [PS/AS] button.
2. When a desired s tation is tuned in, press
th e [PS/AS ] button again to continu e
receiving that station.
Note:
Be careful not t o press and hold the [PS/
AS] button for 1 second or longer, otherwise
the auto store function will begin and the unit
starts storing stations.
Auto store
be detected and stored in the memory.
Press and hold the [PS/AS] button (1 sec.) to
start automatic station search.
10
To stop auto store, press other buttons
having radio functions.
Notes:
1. After auto store, the previous stored
stations will be overwritten.
2. The unit has 4 bands, such as FM1, FM2,
FM3 and AM. FM3 and AM can store
by AS function. Each band can store 6
stations, CZ603AU can store 24 stations
in total.
Manual store
When one expected radio station has been
detected, press and hold number button 1-6
to store it in the memory.
Recall the stored stations
Press one numeric button among 1 to 6 on
the panel to select the corresponding stored
station.
Local seeking
When LOCAL seeking is ON, only those
radio stations with strong radio signal could
be received.
To select LOCAL function, press and hold
the [ DISP ] button on the front panel, then
press [
] button repeatedly until LO or
DX displays on the screen, and rotate the
[VOLUME] knob to select Local or Distant
mode.
Note:
The number o f radio stat ions that c an be
received will decrease after the local seeking
mode is ON.
CD/MP3/WMA Operations
Playback of MP3/WMA files
Notes:
• If you p lay a WMA file with active DRM
(Digital Rights Management), there will be
no audio.
To disable DRM
(Digital Rights Management)
When using Windows Media Player 9/10/11,
click on Tool -> Options -> Copy Music tab,
then under Copy settings, unclick the Check
box for copy project music. Then, reconstruct
Personally constructed WMA files are used
at your own responsibility.
Precautions when creating
MP3 / WMA files
Usable sampling rates and bit rates
1. MP3: Sampling rate 8 kHz-48 kHz,
Bit rate 8 kbps-320 kbps / VBR
2. WMA: Bit rate 8 kbps-320 kbps
File extensions
1. Always
to MP3 , WMA file by using single byte
2. Files without MP3/WMA data will not play.
att empt to play files without MP 3/W MA
data.
* When
display may differ the play location.
* W
no sound part is caused between tunes.
Logical format (File system)
1. W hen wri ting MP3/W MA file on a C D-R
disc or CD-RW disc, please select “ISO9660
level 1, 2 o r Joliet” or Apple ISO as the
writing software f ormat. Normal play may
not be possible i f t he disc is recorded on
another format.
2. T he folder name and file name c an be
displayed as the title during MP3/WMA play
but the ti tle mus t be within 32 single byte
alphabetical letters and numerals (including
an extension).
3. Do
having the same name.
Folder structure
A dis c with a fo lde r h avin g more th an 8
hierarchical levels will be impossible.
1. Up to 999 files ca n be rec ognized per
folder.
2. Tracks are played i n the order tha t they
were recorded onto a disc. (Tracks m ay
not always be played in the order displayed
on the PC.)
3. Some noise may occur depending on
the type of encoder s oftware used while
recording.
Eject function
Just pressing the [ ] button, ejects the disc.
Notes:
• I f y ou forc e a C D i nt o be fore a ut o
reloading, this can damage the CD.
• If a CD (12 cm) is lef t eject ed for 15
seconds, the CD is automatically reloaded
(Auto reload).
Listening to a disc already loaded
in the unit
Press the [SRC / ] button to select the CD/
MP3/WMA mode.
When th e unit ent ers the CD /MP 3/WM A
mode, play starts automatically.
Loading a CD
Inser t a CD i nt o the cen ter o f the CD
SLO T with label facin g up. The CD play s
automatically after loading.
Notes:
• Neve r inser t foreign objects in to the CD
SLOT.
• If t he CD is not inserted easily, there may
be another C D in the me chanism or the
unit may require service.
CD/MP3/WMA Operations
or
• Discs without t he
CD-ROMs cannot be played by this unit.
• Some CD-R/CD-RW discs may not be usable.
Pausing play
1. Press the [ 4 ] button to pause play.
“PAUSE” appears in the display.
2. To resume CD play, press the [ 4 ] button
again.
Displaying CD titles
This unit can display title data for MP3/WMA
disc.
When SCROLL is OFF, each time you press
the [ DISP ] button to change the title display.
MP3/WMA disc
Track -> Folder -> File title -> Album -> Title
-> Artist -> Track ...
Notes:
• If MP3/WMA disc has no ID3 TAG,, “NO
TITLE” appears in the display.
• Only ASCII characters can be displayed in
Tags.
Selecting a track
Track-up
1. Press the [
the beginning of the next track.
2. Each time you press the [
track advances ahead to the beginning of
the next track.
3. For MP3/WMA disc, press and hold the
[ 6 ] button (1 sec.) to move ahead to +10
tracks.
Track-down
1. Press the [
beginning of the current track.
2. Press the [
to the beginning of the previous track.
3. For MP3/WMA disc, press and hold the [ 5 ]
button (1 sec.) to move back to -10 tracks.
] button to move ahead to
] button to move back to the
] button twice to move back
mark and
TEXT
] button, the
Fast-forward/Fast-reverse
Fast-forward
Press and hold the [
Fast-reverse
Press and hold the [
* F or MP3/WMA discs, it takes some time
until the start o f searching and bet ween
tracks. In addition, some errors may occur
in the play time.
Folder Select
This function allows you to select a folde r
1. Press the [ 5 ] or [ 6 ] button.
Press the [ 6 ] button to move the next
folder. Press the [ 5 ] button to move the
previous folder.
2. To select a track, press the [
button.
Search Function
1. Press the [MENU / ] button to enter
FOLD SCH mode. Press the [VOLUME]
button to enter the folder list search mode.
2. Turn the [VOLUME] knob to select a folder.
3. Press t he [VOLUME] button to enter the
file list searc h mode. And then the track
list appears in the display.
4. Turn the [VOLUME] knob to select a track.
5. Press the [VOLUME] knob to play.
* When play back MP3 / WMA file, this
function is performed in the current folder.
Top function
The top function resets the CD player to the
1) on the disc.
* In case of MP3/WMA, the first track of the
current folder will be played.
] button .
] button .
] or [ ]
Press and hold the [ 4 ]
CD/MP3/WMA Operations
Other various play functions
Scan play
This function allows you to locate and play
on a disc.
Press the [ 1 ] button to perform scan play.
Repeat play
This f unction allows you to play the current
track repeatedly or play a track currently
being played in the MP3/WMA folder
repeatedly.
CD:
1. Press the [ 2 ] button once or more until
“RPT ON” appears on the LCD to perform
repeat play.
2. Press [ 2 ] button again to cancel repeat
playback, “RPT OFF” appears on the LCD.
USB Operations
1. Insert an U SB device int o the US B
connector.
When connecting a USB device, the unit
2. To remove the USB device, you should
first select anot her sourc e or turn off the
power, in order to avoid damaging the USB
device. Then take off the USB device.
3. Operation is same as MP3/WMA operation.
MP3/WMA:
1. P ress the [ 2 ] button once or more until
“TRACK RPT” appears o n the dis play to
perfor m repeat play, and “RPT” segmen t
lights on.
2. F or MP3/WMA files, press [ 2 ] button
repeatedly until “FOLD RPT” appears on
the display for folder repeat play.
3. P ress [ 2 ] button repeatedly until “RPT
OFF” appears on the display to cancel
repeat playback, and “RPT” segment goes
Random play
This function allows y ou to play all tracks
recorded on a disc in a random order.
Press the [ 3 ] button t o perform random
play.
English
11
iPod & iPhone Operations
English

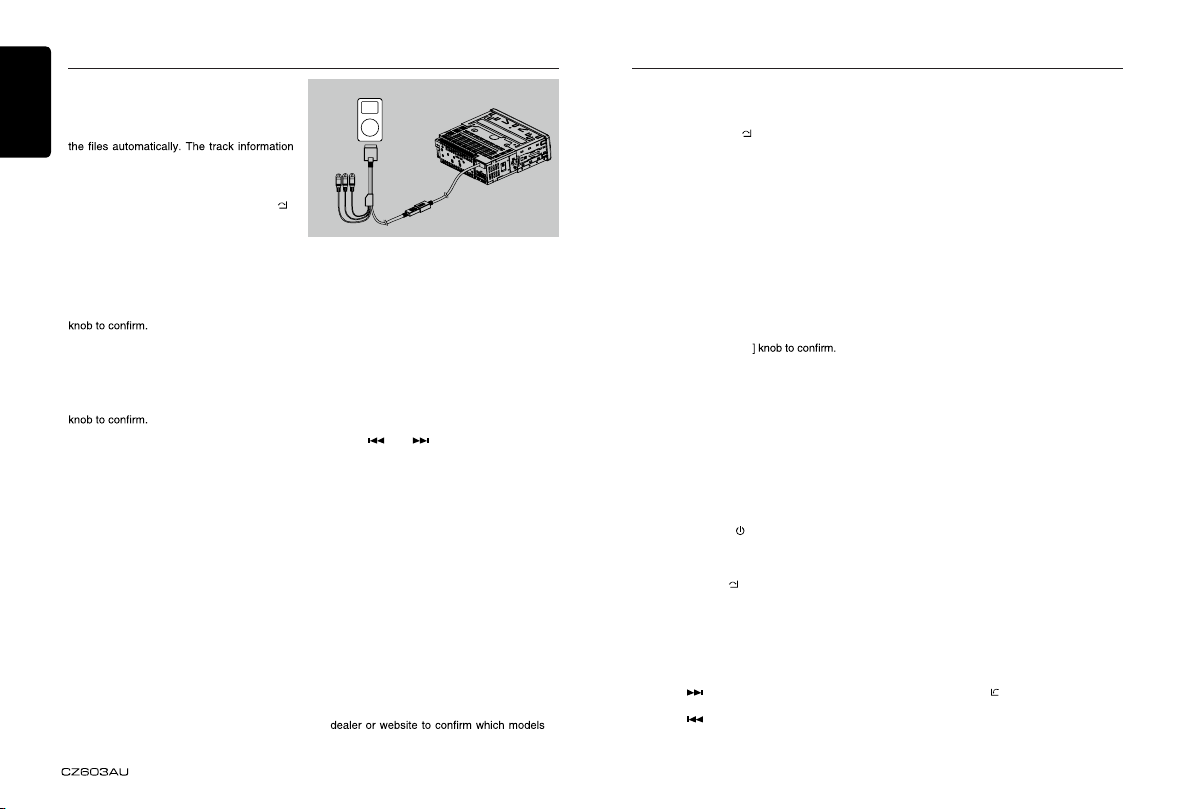

Connect
Connec t an iPo d o r iP hone to the USB
connector via CCA-750 cable.
When connecting a device, the unit will read
displays on the screen once playback start.
MENU
In the S-CTRL OFF mode, press [MENU / ]
button, rotat e t he [VOL UME] knob select
“MUSIC” or “VIDEO”.
Sele ct “M US IC” , pre ss t he [VOLU ME ]
knob, then rotat e the [VOLUM E] knob to
show PLAY LISTS / ARTISTS / ALBUMS /
GENRES / SONGS / COMPOSE RS, press
and rotate the [V OLUME] knob to select a
desired o ption, t hen press the [VOLUME]
Select “ VIDEO”, press the [VOLUME] knob,
then rota te the [VOLUM E] knob to show
MOVIES / MUSIC VIDEO / TV SHOWS /
VI DEO PODCAS TS / REN TALS , pr es s
and rotate the [V OLUME] knob to select a
desired o ption, t hen press the [VOLUME]
Note:
• VI DEO ME NU ite m is differen t b y the
model of connected iPod and language
setting.
Repeat play
This function allows you to play the curren t
track repeatedly or play all t racks in your
iPod/iPhone repeatedly.
1. Press the [ 2 ] button once or more until
“RPT ON” appears on the LCD to perform
repeat play.
2. Press [ 2 ] butto n repeatedly until “ RPT
OFF” appears on the LCD to cancel repeat
playback.
Random play
This function allows you to play all tracks
recorded on a disc in a random order.
1. Press [ 3 ] button repeatedly until “ALBUM
RDM” appears on the LCD for album random
play.
2. Press the [ 3 ] button once or more until
12
to monitor
CCA-750
“S ON G
RD M” appears on the LCD to
perform random play.
3. Press [ 3 ] button repeatedly until “RDM
OF F” appears on th e LCD to c ance l
random playback.
Setting iPod simple control mode
Us e this funct ion if you wish t o operate
through your i Pod connected to this unit via
the USB cable.
* The factory default setting is “ OFF “.
1. Press and hold [ D ISP ] button to e nter
system setup.
2. Press [
3. Rotate the [VOLUME] knob to select
• O N: Operations a re made through your
• OFF: Operations cannot be made through
Notes:
• When performi ng iPod operatio ns using
• When performi ng iPod operatio ns using
• Some iPod models do not support thi s
] or [ ] button to select
“ S-CTRL“.
“ ON “ or “ OFF “ .
iPod.
your iPod.
simple control mode, make the operations
slowly. If repe ti tive operat ions ar e
perform ed too quickly, unforeseen e rrors
may occur.
simple control mode, please do not operate
the iPod and th e unit at the same t ime,
otherwise there may be unexpected event
happened.
fun ction. Consult y our nea rest Clario n
do not support this function.
iPod & iPhone Operations
iPod menu alphabet search
This f unct ion searches the subfolders for
desired alphabetical letters.
1. Press the [MENU /
iPod menu mode.
2. Pres s the [VOL UME ] knob to sw itc h
between categories.
MUSIC: PLAYLIST, ARTISTS, ALBUMS,
GENRES, SONGS, COMPOSERS
VIDEO: MOVIES, MUSIC VIDEOS,
TV SHOWS, VIDEO PADCASTS,
RENTALS
3. Press the [VOLUME] knob. (The contents
of the category are displayed.)
4. Press and hold the [DISP] button (1 sec.).
5. Rotate the [VOLUME] knob to select the
desired letter to search.
6. Pre ss the [DISP] butto n again to next
perform search.
7. Press the [ VOLUME
Listening to Pandora®
You can stream Pandora internet radio by
connecting an iPhone/iPod that has the Pandora
mobile application already installed.
To start streaming, connect the iPhone/iPod
with Pandora already launched.
When the unit displays “PLEASE LAUNCH
PANDORA APPLICATION ON MOBILE
DEVICE” in Pandora mode, please launch
the Pandora mobile application by operating
the iPhone/iPod connected.
1. Press the [ SRC/
Pandora mode.
Selecting a station from list
Press the [MENU /
DATE” or ”A- Z” by rotating t he [VOLUME ]
knob and press the [ VOLUME ] knob.
• BY DATE: List in an created date order
• A-Z: List in an alphabetical order
Go to next station or previous station(an
alphabetical order)
Press the [
control to go to next station.
Press the [
control to go to previous station.
] button to select the
] button to ente r the
] button and select ”BY
] button on the panel or remote
] button on the panel or remote
Thumbs up/down
Thumbs up:
press the [ 6 ] button on the panel or the [RDM]
button on th e remo te control for thumbs up.
Giving a track the thumbs up will tell Pandora to
play more tracks like that one.
Thumbs down:
press the [ 5 ] button on the panel or the [SCN]
button on the remote control for thumbs down.
Giving a track the thumbs down will skip to the
next track (subject to skip limit), and Pandora
will remember not to play t hat track on t h
station again.
Notes:
• Yo u ca n personali se your sta tions by
“thumbs up” or “thumbs down”.
If you give a track the thumbs down after the
•
skip limit has been exceeded, your feedback
will be saved but the current track will continue
to play.
BOOKMARK artist or song
Short-press the [VOLUME] knob or the [RPT]
buton on the remote control to Bookmark artist.
Long-press the [VOLUME] knob or the [R PT]
but ton on the remote control to Bookmark
current artist of the track.
Creating new stations
Short -press the [1] button o n the panel to
create a new station from the current artist.
Long-press t he [1 ] button o n the panel to
create a new track.
Note:
If the name of the station you wish to create for
a track title or an artist name is the same as the
station name currently playing, “NOW PLAY”
appears on the display and the station will not
be created.
Skip
Press the [BAND /
on the remot e control for t he next trac ks in
station.
] button on the panel or
e
iPod & iPhone Operations
Note:
• Pandora limits the number of skips allowed
on their service. If you attempt to skip tracks
beyond the limit, ”SKIP LIMIT” is displayed.
Play/Pause
Press the [ 4 ] button on the panel or the [
button on the remote control for play/ pause.
Connect
Co nne ct an iPod or iPh on e to the USB
connector via CCA-750 cable.
When c onnecting a device, the unit will read
the f iles automatically. The track information
displays on the screen once playback start.
MENU
In the S-CTRL OFF mode, press
[MENU /
knob select “MUSIC” or “VIDEO”.
Select “MUSIC”, press the [VOLUME] knob,
then rotate the [VOLUME] knob to show PLAY
LISTS / A RTISTS / A LBUMS / GENRES /
SONGS / COMPOSERS, press
and rotate the [VOLUME] knob to select a
desired option, then press the [VOLUME ]
] button,rotate the [VOLUME]
Bluetooth Operations
The Bluetooth allows you to utilize your car’s
bui lt-i n audio system for wirel ess mobile
phone or music handsfree communication.
Some Bluetooth mobile phones have t he
audio features, and some portable audio
players support Bluetoot h f eature. This
system can play aud io data stored in a
Bluetooth audio device. The car stereo with
Bluetooth will be able to retrieve phonebook
contacts, received call, dialed call, missed
call, incoming calls, outgoing call and listen
to music.
Notes:
• Do not leave the microphone of Bluetooth
handsfree in the places with wind passing
Select “VIDEO”, press the [VOLUME] knob,
then rotate the [ VOLUME] knob t o show
VIDEO PODCASTS / REN TALS, press
and rot ate t he [VOLUME ] knob to select a
desired option, then press the [VOLUME ]
]
Note:
• V IDEO MENU item is different by the
model of connected iP od and language
setting.
Repeat play
This function allows you to play the current
track repeatedly or play all tracks in your
iPod/iPhone repeatedly.
1. Press the [ 2 ] button once or more until
“RPT ON” appears on the LCD to perform
repeat play.
2. Pres s [ 2 ] button repeatedly until “RPT
OFF” appears on the LCD to cancel repeat
playback.
such as air outlet of the air conditioner,
etc. This may cause a malfunction.
• If leave it in the places subjected to direct
sun, high temperature can cause distortion,
discoloration which may result in a
malfunction.
• This system will not operate or may operate
improperly with some Bluetooth audio
players.
• Clarion cannot guarantee the compatibility
of all mobile phones together with unit.
• Audio playback will be set to t he same
volume level as set d
This might cause problems, if extrem e
volume level is set during telephone call.
uring telephone call.
Bluetooth Operations
Handsfree Operations
/SWOHS VT / SOEDIV CISUM / SEIVOM
Pairing
1. Turn on Bluetooth function of your mobile
phone.
2. Ent er mobile phone’s B luetooth setu p
menu.
3. Search for new Bluetooth devices.
4. Select CZ603AU from the pairing list on the
mobile phone.
5. En ter “0000” as the password
(The password default setting is “0000”)
6. After pairing successfully, the unit will
enter Bluetooth mode automatically, and
“BLUETOOTH C ONNECTED” will appear
on the LCD.
7. The unit can store 3 mobile phones.
* D uring pairing, depending on type o f
mobile phone, a six digit PIN code will be
shown on both the source unit’s display
and the mobile phone.
In this ca se, please make sure t hat you
have the same PIN code on both devices,
and then confirm on the mobile phone.
Making a call
Operation from Bluetooth menu
Press the [SRC /
source to “BLUETOOTH”. Press [MENU /
button to select a way to make outgoing call:
• Dial Number
1. Press the [MENU /
2. Rotate the [VOLUME] knob on t he front
panel to switch: , “DIAL NUMBER”.
3. Press the [VOLUME]
selection.
4. Rotate the
number, press the k nob to conrm and
ready to input the next digit. Repeat the
above until all numbers inputted.
5. Press the [VOLUME] knob to dial.
6. Press [MENU /
• Dialled / Missed / Received
You can search any Dialled/Missed/Received.
1. Ro ta te th e [VOLUME] knob to select
“DIALLED”, “MISSED” , “RECEIVED”.
2. Press the [ VOLUME] knob to enter the
selected call history.
] button t o switch the
] button.
[VOLUME]
knob to select a
] to terminate call.
3. Rotate the [VOLUME] knob to scroll the
contacts.
4. When the cont act name or mobile phone
No. is displayed, press t he [VOLUME]
knob to call the mobile phone No. of that
contact.
* Press the [MENU /
call.
• Call from Phonebook
User can search the contact name in the
phonebook and make call.
1. Rotate the [VOLUME ] knob to select
“USER PHONEBOOK” .
2. Press the [VOLUME ] knob to enter the
selected phonebook.
3. Rotate the [ VOLUME] knob to scroll the
contacts.
4. The phone number and the name t o
scroll display.When the contact name is
displayed, press the [VOLUME] knob to
call the mobile phone No. of that contact.
* Press the [MENU / ] button to end the
call.
Note:
• Som e mobile phones may not be able to
transfer data of Phonebook.
• A fter RESET, please wait few minutes
until data transferred following to the
]
Bluetoot h mode selection. During that,
“PHONEBOOK UPDATING” is on the
display.
• Redial
You can call last dialed number.
Press and hold the [BAND /
• Transfer Call
You can switch Handsfree call and mobile
phone call.
Press the [BAND /
• Answering a call
You can answer an incoming call by pressing
the [BAND /
* Press the [MENU /
incoming call.
] button during call.
] button.
] button to end the
] button to reject an
] button (1sec).
English
13
Bluetooth Operations
English
Audio Streaming Operations
What is audio streaming?
Audio streaming is a technique for transferring
audio data such that it can be processed as
a steady and continuous stream. Users can
stream music from their external audio player
to their car stereo wirelessly and listen to the
tracks through the car’s speakers. Please
consult your nearest Clarion dealer for more
information on the product of wireless audio
streaming transmitter offered.
CAUTION
Please avoid operating your connected
mobile phone while audio streaming as
this may cause noise or sound choppy on
the song playback.
Audio streaming may or may not resume
after telephone interrupt as this is
dependent on mobile phone.
System will always return to Radio mode
if audio streaming is disconnected.
Note:
Be sure to read the chapter “Pairing” before
proceeding.
Play / Pause a track
1. Press the [ 4 ] button to pause audio
playback.
2. To resume audio playback, press the [ 4 ]
button again.
Selecting a track
Track-up
1. Press the [
beginning of the next track.
2. Each time the [
playback proceeds to another track in the
advancing direction.
Track-down
1. Press the [
beginning of the previous track.
2. Each time the [ ] button is pressed,
playback proceeds to previous track in the
reverse direction.
] button to m ove to the
] button is pressed,
] button to move to the
Note:
Playing order will depend on Bluetoot h audio
player. When [
A2DP devices will restart t he current track
depends on the duration of playback.
During musi c streami ng playback, “A2D P
and HFP” will be shown on the display. When
A2DP devic e is disconnected, “BLUETOOTH
DISCONNECT” will be shown on the display
and return t o previously selected audio
source. Some Bluetooth audio players may
not have play / pause synchronized with this
unit. Please make sure both device and main
unit are in the same play / pause status in BT
MUSIC mode.
ID3 display
During music st reaming playback, for music
information that is longer than the display
panel:
When SCROLL is ON, the LCD will display
ID3 TAG information cyclely, e.g: TRACK>ALBUM->TITLE->ARTIST->TRACK->...
When S CROLL is OFF , the LCD will display
one o f the I D3 TAG information, t he def ault
is TRACK, but user can adju
TAG information by press [ DISP ] button.
] button is pressed, some
st it to other ID3
AUX Operations
Press [SRC /
“AUX”.
AUX is just for audio content with 3.5mm Jack
connector plugged into audio-in socket on the
front panel.
AUX Input sensitivity setting
1. Press and hold the [DISP] button (1 sec.).
2. Turn the [VOLUME] knob to select
“AUX SENS”.
3. If the output level of connected e xternal
audio player is “HIGH ”, rotate [VOLUME]
knob and choose “LOW”. And if the output
level is “LOW”, choose “HIGH”.
] button on the panel to select
14
6. TROUBLE SHOOTING
GENERAL
Problem Cause Measure
Unit can not power on.
Unit can not power on.
Nothing happens
when buttons are
pressed.
Display is not
accurate.
No/low audio output.
Poor sound quality or
distortion.
Unit resets itself when
engine is off.
DISC Player
Problem Cause Measure
Disc cannot be
loaded.
Sound skips or is
noisy.
Sound is bad when
on.
Unit fuse blown. Replace with new fuse of correct rating.
Car battery fuse blown. Replace with new fuse of correct rating.
Press the [RESET] button with a thin rod.
The microprocessor has
malfunctioned due to noise, etc.
Improper audio output connection. Check wiring and correct.
Volume set too low. Increase volume level.
Speakers damaged. Replace speakers.
Heavily biased volume balance. Adjust the channel balance to center position.
Speaker wiring is in contact with
metal part of car.
Non-standard disc used. Use a standard disc.
Speaker power rating does not
match unit.
Wrong connections. Check wiring and correct.
Speaker is shorted. Check wiring and correct.
Incorrect connection between ACC
and Battery.
Another disc is already loaded. Eject the disc before loading the new one.
There is an object install installed
the unit.
Compact disc is dirty. Clean the compact disc with a soft cloth.
Compact disc is heavily scratched
or warped.
Condensation may form on the internal
lens when the car is parked in a
humid place.
Note:
When the [RESET]
the ACC power.*
* When the [RESET] button is pressed,
frequencies of radio stations, titles, etc. stored in
memory are cleared.
Insulate all speaker wiring connections.
Replace speakers.
Check wiring and correct.
Remove the object inside the unit.
Replace with a compact disc with no
scratches.
Let dry for about 1 hour with power on.
USB Devices
Problem Cause Measure
USB device cannot be
inserted.
USB device is not
recognized.
No sound heard with the
display “No File” shown.
Sound skips or is noisy.
The USB device has been
inserted with wrong direction.
The USB connector is broken. Replace with a new USB device.
The USB device is damaged. Disconnect the USB device and reconnect. If the
Connectors are loose.
USB device.
properly.
Reversing the connection direction of the USB
device, try it again.
device is still not recognized, try replacing with a
different USB device.
Bluetooth
Problem Cause Measure
Cannot pair the
Bluetooth enabled
device with the car
audio system.
The audio quality
is poor after
connection with a
Bluetooth-enabled
device.
The device does not support the
The Bluetooth function of the
device is not enabled.
The internal microphone gain is
not set correctly.
The external microphone is
not set co rrectly nor properly
positioned.
Use another device to connect.
Refer to the user manual of t he device f or how t o
enable the function.
Adjust the gain of the internal microphone in System
Setup.
Adjust t he gain and position of t he external
microphone.
For example, stick the microphone onto the dashboard
so it is close to the driver.
English
15
English
7. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Take the measures described below to solve the problem.
Display Cause Measure
ERROR 3
ERROR 5 This is a failure of deck’s mechanism. Consult your store of purchase.
If an error display other than the ones described above appears, press the
problem persists, turn off the power and consult your store of purchase.
* W hen the
memory are cleared.
Disc is inserted incorrectly. Eject the disc then reload it properly.
The disc format is not supported. Try another disc.
[RESET ]
b utton is pre ssed, frequencies of radio stations , t itles, e tc. stored in
[RESET]
button. If the
8. SPECIFICATIONS
FM Tuner
Frequency range: 87.5-108MHz
Usable sensitivity: 8dBf
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
AM Tuner
Frequency range: 531-1629kHz
Usable sensitivity (S/N=20dB): 30dBμ
CD Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >94dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
Logical format: ISO9660 level 1,2
USB
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Bluetooth
A2DP (Advanced Audio Distribution
Send/Receive Sensitivity: Class 2
Input
Audio input sensitivity:
High: 320mV (at 2.5V output)
Mid: 650mV (at 2.5V output)
Low: 1.3V (at 2.5V output)
(input impedance 10 k
Aux-in level: ≤2V
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
5.0V (CD play mode: 1kHz, 0dB, 10k
Fuse: 15A
Dimensions of the Main Unit:
188mm Width × 58mm Height × 190mm Depth
7-2/5(width) × 2-7/25(Height) × 7-12/25(Depth)
Weight of the Main Unit: 3.1lb. (1.40kg)
Dimensions of the Remote Control unit:
43mm Width × 11mm Height × 113mm Depth
1-2/3(Width) × 2/5(Height) × 4-2/5(Depth)
Weight of the Remote Control Unit:
1.16oz. (36g) (including battery)
7” 178mm
7-12/25” 190mm
6-2/3” 170mm
7-2/5”
Note:
• S
without notice for further improvement.
188mm
or greater)
6-2/5” 163mm
m
1/2” 14 m
load)
2” 50mm
1-4/5” 46mm
2-7/25” 58mm
16
Maximum power output:
200W (50W x 4)
Speaker impedance: 4
(4 to 8 allowable)
9. INSTALLATION /
WIRE CONNECTION GUIDE
CONTENTS
1) Before Starting ................................................................................. 19
2) Package Contents............................................................................ 19
3) General Cautions ............................................................................. 19
4) Cautions on Installation.................................................................... 19
5) Installing the Source Unit ................................................................. 19
6) Removing the Source Unit ............................................................... 22
7) Wiring and Connections ................................................................... 21
8) Connecting the accessories ............................................................. 22
1) Before Starting
1. This set is exclusively for use in cars with a
negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnct the battery “terminal” before
starting. This is to prevent short circuits during
installation. (Figure 1)
Figure 1
2) Package Contents
Source unit ..................................................1
Front panel ..................................................1
Trim ring ......................................................1
Mounting bracket......................................... 1
Screws M5x6 mm........................................ 4
L-key............................................................ 2
3) General Cautions
1. Do not open the case. There are no
user serviceable parts inside. If you
drop anything into the unit during
installation, consult your dealer or an
authorized Clarion service center.
Wire connector ............................................1
Remote control unit (with battery)................ 1
DCP case ....................................................1
Owner’s manual........................................... 1
Special screw (Front panel lock) .................1
Warranty card.............................................. 1
2. Use a soft, dry cloth to clean the case.
Never use a rough cloth, thinner,
benzine, or alcohol etc. For tough dirt,
apply a little cold or warm water to a
soft cloth and wipe off the dirt gently.
Car battery
4) Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before
starting.
2. Install the unit within 30° of the
horizontal plane. (Figure 2)
3. If you have to do any work on the car
body, such as drilling holes, consult
Max 30
˚
Figure 2 Figure 3
your car dealer beforehand.
4. Use the enclosed screws for
installation.
Using other screws can cause
damage.
(Figure 3)
Chassis Chassis
Damage
Max. 6 mm (M5 screw)
5) Installing the Source Unit
1. Place the mounting bracket into the instrument panel, use a screwdriver to bend
each stopper of the mounting bracket inward, then secure the stopper.
2. Wire as shown in Section 7) .
3. Insert the source unit into the mounting bracket until it locks.
4. Take care of the top and bottom of the trim ring and mount it so that all the hooks
are locked.
Notes:
1. Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.
2. Fasten the front stopper securely to prevent the source unit from coming loose.
• Console opening dimensions
(182 mm)
Hole
53 mm
English
17
Notes of installation
English
1. Before installation, please make sure
proper connections are conducted and
the unit operates normally. Improper
connection may result in damage to the
unit.
2. Use only accessories designed and
manufactured for this unit and other
unauthorized accessories may result in
damage to the unit.
3. Before installation, please fasten all power
cables.
4. DO NOT install the unit in the place where
close to hot area to prevent damage to
electrical components such as the laser
head.
5. Install the unit horizontally. Installing the
unit more than 30 degree vertically may
result in worse performance.
Dashboard
6. To prevent electric spark, connect the
pole.
7. DO NOT block the cooling fan exit to
unit, or it may result in damage to this unit.
Unit Installation
Method A
1. Insert mounting bracket into dash board,
choose appropriate mounting tab according
to the gap width, bending the mounting
mounting bracket in place.
2. Slide the unit into the bracket until you hear
a click sound.
Screwdriver
Method B
M5x6
Mounting Frame
1. Insert this unit directly to the opening of
the dashboard.
2. Place M5×6 cylindrical screw through the
holes of the mounting frame located inside
the opening to holes of the unit and fasten
the screws to left & right.
Dashboard
Trim Ring Installation
Attach the trim ring around the front panel.
Take care of the top and bottom of the trim
ring and mount it so that all the hooks are
locked.
6) Removing the Source Unit
Disassemble trim ring
1. Push the trim ring to right and pull out the
right part.
2. Push the trim ring to left and pull out the
left part.
Disassemble the unit
1. Switch off the power.
2. Remove the panel.
3. Remove the trim ring.
4. Insert the removal keys straight back until
they lock, then pull the unit out.
18
Mounting Bracket
5. Disconnect all the wires.
Top
Bottom
7) Wiring and Connections
• Normal mode • 2 Way mode
Purple
SUB OUT 1
REAR OUT L
Subwoofer output 1
Monaural output
Purple
SUB OUT 1
REAR OUT L
English
Rear audio output(Left)
Purple
SUB OUT 2
REAR OUT R
Black Black
REAR OUT
HIGH OUT
Black Black
Black Black
External microphone External microphone
(RCB-199:Sold by separately) (RCB-199:Sold by separately)
Steering wheel
control terminal
Black Black
USB Connector USB Connector
MIC
Black Black
SW
C
USB
iPod/iPhone
Gray Gray
FRONT OUT
MID OUT
Subwoofer output 2
Monaural output
White White
Left Left
Rear audio
output terminal
Right Right
Red Red
White White
Left Left
Front audio
output terminal
Right Right
Red Red
Steering wheel
control terminal
Refer to next page Refer to next page
(Black) (Black)
Antenna Antenna
MIC
SW
C
iPod/iPhone
Purple
SUB OUT 2
REAR OUT R
REAR OUT
HIGH OUT
FRONT OUT
MID OUT
USB
Rear audio output(Right)
High audio
output terminal
Mid audio
output terminal
19
• 3 Way mode
English
External microphone
(RCB-199:Sold by separately)
Steering wheel
control terminal
USB Connector
(Black)
Black
Black
Black
Black
MIC
SWC
USB
iPod/iPhone
Antenna
Purple
SUB OUT 1
REAR OUT L
Purple
SUB OUT 2
REAR OUT R
Black
REAR OUT
HIGH OUT
Gray
FRONT OUT
MID OUT
White
Red
White
Red
Subwoofer output 1
Monaural output
Subwoofer output 2
Monaural output
Left
High audio
output terminal
Right
Left
Mid audio
output terminal
Right
Refer to the right
16-Pin Connector Extension Lead
(attached to the source unit)
Gray
Front Right
Front Left
Rear Right
Rear Left
Gray/Black
White
White/Black
Purple
Purple/Black
Green
Green/Black
Brown wire (Phone mute lead)
Connect to cellular phone mute lead.
Yellow wire (Memory back-up lead)
Red wire (Power lead)
FUSE 15A
Connect directly to battery
Accessory
12V
4-Speaker system
or
Front Right
Front Left
2-Speaker system
Gray
Gray/Black
White
White/Black
Black wire (Ground lead)
Connect to vehicle chassis ground
Orange/White wire (Illumination lead)
Connect it to the car power supply terminal
for illumination
Purple
Blue wire (Auto antenna lead)
Connect it to the car power supply terminal
for antenna
Not used.
Insulate each wire
Purple/Black
Green
Green/Black
8) Connecting the accessories
•
output
connections. Ensure that the connectors are not grounded or shorted to prevent
damage to the unit.
20
Clarion Co., Ltd.
All Rights Reserved. Copyright © 2013: Clarion Co., Ltd.
Printed in China
PN: 127075005057
Loading...
