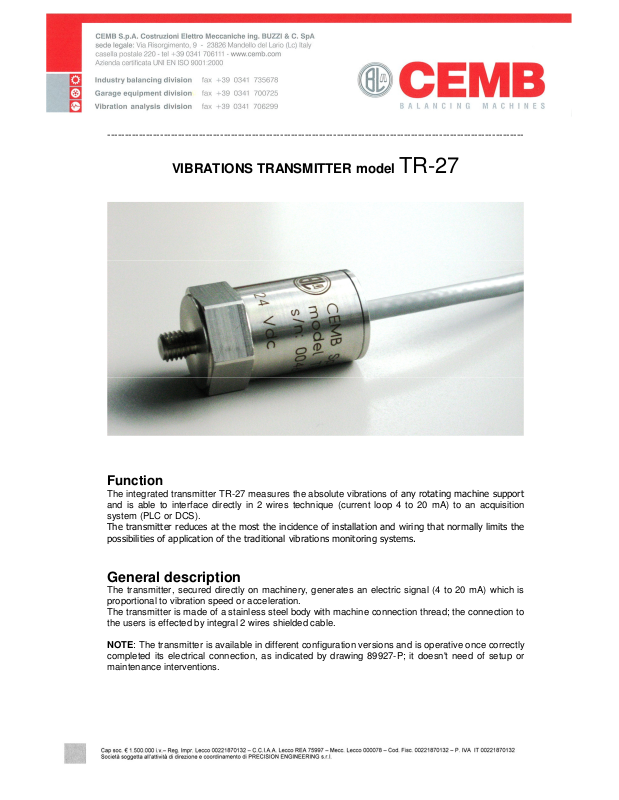

VIBRATIONS TRANSMITTER model TR-27
Function
The integrated transmitter TR-27 measures the absolute vibrations of any rotating machine support
and is able to interface directly in 2 wires technique (current loop 4 to 20 mA) to an acquisition
system (PLC or DCS).
The transmitter reduces at the most the incidence of installation and wiring that normally limits the
possibilities of application of the traditional vibrations monitoring systems.
General description
The transmitter, secured directly on machinery, generates an electric signal (4 to 20 mA) which is
proportional to vibration speed or acceleration.
The transmitter is made of a stainless steel body with machine connection thread; the connection to
the users is effected by integral 2 wires shielded cable.
NOTE: The transmitter is available in different configuration versions and is operative once correctly
completed its electrical connection, as indicated by drawing 89927-P; it doesn't need of setup or
maintenance interventions.
Page 2
2
Technical characteristics
Composition
• Integrated transmitter body in stainless steel material AISI 316L
Power supply
• 24 Vdc (10 to 35 Vdc) current loop 4 to 20 mA (2 wires)
• maximum load, as per figure 1
External connections
• Integral 2 wires 2x0,35 shiekded cable L= 5m
Environmental use field
• - 50°C to + 120°C
• IP 65 EN 60529/10.91 standard
Measure type
• Omnidirectional Seismic (absolute vibrations)
Dynamic field
• ± 18 g
Transversal sensitivity
• < 5 %
Linearity
• ± 2% - 75 Hz
Dynamic performances
• ±3% / 10Hz-1kHz
• -3db / 1,5Hz – 2kHz
Insulation
• ≥ 108 Ω between signal and container
Application axis
• any
Standard machine connection thread
• M8x1,25
• ¼’’ – 18NPT
• ¼’’ – 28UNF
Maintenance
• nothing
Possible arrangements to the order
• measuring field
• fastening
Mounting torque
• 5÷10 N-m
Page 3
3
0 0 to 10 mm/s RMS
1 0 to 20 mm/s RMS
2 ¼’’ –
28UNF
Figure 1 – Maximum permissible load on current loop
900
800
700
600
500
400
Max load [Ohm]
300
200
100
0
0 5 10 15 20 25 30 35
Pow er supply [V ]
Order information
A B
TR – 27 / /
where
A : measuring field
2 0 to 50 mm/s RMS
3 0 to 100 mm/s RMS
4 0 to 1 g RMS
5 0 to 5 g RMS
6 0 to 10 g RMS
S special, to be defined
B : machine connection thread
0 M8x1,25
1 ¼’’ – 18NPT
Purchase order example
TR – 27 / 1 / 0
TR – 27 measuring field 0 to 20 mm/s RMS, machine connection thread M8x1,25
Page 4
4
TR-27 05 gb ASTM24520
