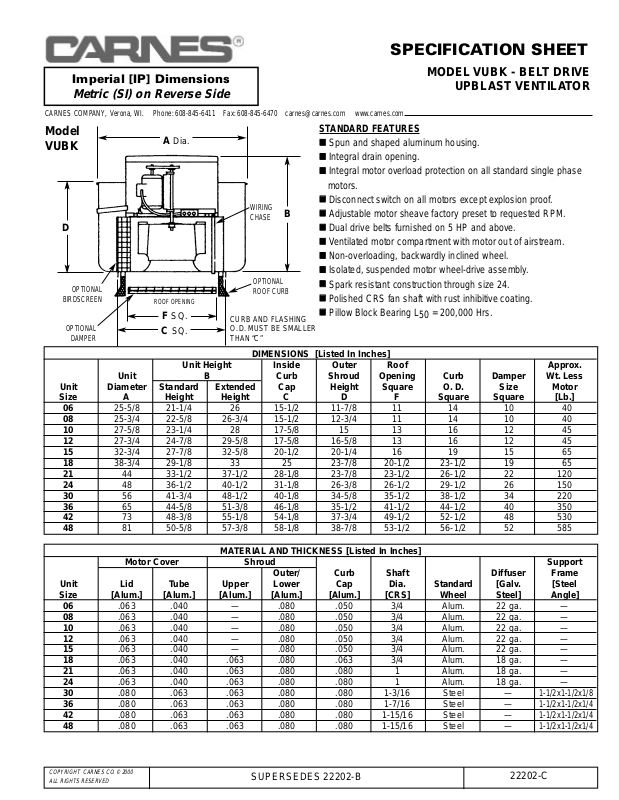

Carnes VUBK User Manual
MODEL VUBK - BELT DRIVE
UPBLAST VENTILA T OR
CARNES COMPANY, Verona, WI. Phone: 608-845-6411 Fax:608-845-6470 carnes@carnes.com www.carnes.com
COPYRIGHT CARNES CO.© 2000
ALL RIGHTS RESERVED
SUPERSEDES 22202-B
22202-C
Imperial [IP] Dimensions
Metric (SI) on Reverse Side
SPECIFICATION SHEET
WIRING
CHASE
OPTIONAL
ROOF CURB
ROOF OPENING
OPTIONAL
DAMPER
Model
VUBK
CURB AND FLASHING
O.D. MUST BE SMALLER
THAN “C”
DIMENSIONS [Listed In Inches]
Unit Height Inside Outer Roof Approx.
Unit B Curb Shroud Opening Curb Damper Wt. Less
Unit Diameter Standard Extended Cap Height Square O. D. Size Motor
Size A Height Height C D F Square Square [Lb.]
06 25-5/8 21-1/4 26 15-1/2 11-7/8 11 14 10 40
08 25-3/4 22-5/8 26-3/4 15-1/2 12-3/4 11 14 10 40
10 27-5/8 23-1/4 28 17-5/8 15 13 16 12 45
12 27-3/4 24-7/8 29-5/8 17-5/8 16-5/8 13 16 12 45
15 32-3/4 27-7/8 32-5/8 20-1/2 20-1/4 16 19 15 65
18 38-3/4 29-1/8 33 25 23-7/8 20-1/2 23-1/2 19 65
21 44 33-1/2 37-1/2 28-1/8 23-7/8 23-1/2 26-1/2 22 120
24 48 36-1/2 40-1/2 31-1/8 26-3/8 26-1/2 29-1/2 26 150
30 56 41-3/4 48-1/2 40-1/8 34-5/8 35-1/2 38-1/2 34 220
36 65 44-5/8 51-3/8 46-1/8 35-1/2 41-1/2 44-1/2 40 350
42 73 48-3/8 55-1/8 54-1/8 37-3/4 49-1/2 52-1/2 48 530
48 81 50-5/8 57-3/8 58-1/8 38-7/8 53-1/2 56-1/2 52 585
A
Dia.
D
B
F SQ.
C SQ.
OPTIONAL
BIRDSCREEN
STANDARD FEATURES
nn
Spun and shaped aluminum housing.
nn
Integral drain opening.
nn
Integral motor overload protection on all standard single phase
motors.
nn
Disconnect switch on all motors except explosion proof.
nn
Adjustable motor sheave factory preset to requested RPM.
nn
Dual drive belts furnished on 5 HP and above.
nn
Ventilated motor compartment with motor out of airstream.
nn
Non-overloading, backwardly inclined wheel.
nn
Isolated, suspended motor wheel-drive assembly.
nn
Spark resistant construction through size 24.
nn
Polished CRS fan shaft with rust inhibitive coating.
nn
Pillow Block Bearing L50= 200,000 Hrs.
MATERIAL AND THICKNESS [Listed In Inches]
Motor Cover Shroud Support
Outer/ Curb Shaft Diffuser Frame
Unit Lid Tube Upper Lower Cap Dia. Standard [Galv. [Steel
Size [Alum.] [Alum.] [Alum.] [Alum.] [Alum.] [CRS] Wheel Steel] Angle]
06 .063 .040 — .080 .050 3/4 Alum. 22 ga. —
08 .063 .040 — .080 .050 3/4 Alum. 22 ga. —
10 .063 .040 — .080 .050 3/4 Alum. 22 ga. —
12 .063 .040 — .080 .050 3/4 Alum. 22 ga. —
15 .063 .040 — .080 .050 3/4 Alum. 22 ga. —
18 .063 .040 .063 .080 .063 3/4 Alum. 18 ga. —
21 .063 .040 .063 .080 .080 1 Alum. 18 ga. —
24 .063 .040 .063 .080 .080 1 Alum. 18 ga. —
30 .080 .063 .063 .080 .080 1-3/16 Steel —
1-1/2x1-1/2x1/8
36 .080 .063 .063 .080 .080 1-7/16 Steel —
1-1/2x1-1/2x1/4
42 .080 .063 .063 .080 .080 1-15/16 Steel —
1-1/2x1-1/2x1/4
48 .080 .063 .063 .080 .080 1-15/16 Steel —
1-1/2x1-1/2x1/4
MODEL VUBK - BELT DRIVE
UPBLAST VENTILA T OR
CARNES COMPANY, Verona, WI. Phone: 608-845-6411 Fax:608-845-6470 carnes@car nes.com www.carnes.com
COPYRIGHT CARNES CO.© 2000
ALL RIGHTS RESERVED
SUPERSEDES 22202-B
22202-C
Metric (SI) Dimensions
Imperial [IP] on Reverse Side
SPECIFICATION SHEET
WIRING
CHASE
OPTIONAL
ROOF CURB
ROOF OPENING
OPTIONAL
DAMPER
Model
VUBK
CURB AND FLASHING
O.D. MUST BE
SMALLER THAN “C”
DIMENSIONS (Listed In Millimeters)
Unit Height Inside Outer Roof Approx.
Unit B Curb Shroud Opening Curb Damper Wt. Less
Unit Diameter Standard Extended Cap Height Square O. D. Size Motor
Size A Height Height C D F Square Square [Kgs.]
06 651 540 660 394 302 279 356 254 18
08 654 575 679 394 324 279 356 254 18
10 702 591 711 448 381 330 406 305 20
12 705 632 752 448 422 330 406 305 20
15 832 708 829 521 514 406 483 381 30
18 984 740 838 635 606 521 597 483 39
21 1118 851 953 714 606 597 673 559 55
24 1219 927 1029 791 670 673 749 660 68
30 1422 1060 1232 1019 879 902 978 864 100
36 1651 1133 1305 1172 902 1054 1130 1016 159
42 1854 1229 1400 1375 959 1257 1334 1219 241
48 2057 1286 1457 1476 987 1359 1435 1321 266
A Dia.
D
B
F SQ.
C SQ.
OPTIONAL
BIRDSCREEN
STANDARD FEATURES
nn
Spun and shaped aluminum housing.
nn
Integral drain opening.
nn
Integral motor overload protection on all standard single phase
motors.
nn
Disconnect switch on all motors except explosion proof.
nn
Adjustable motor sheave factory preset to requested RPM.
nn
Dual drive belts furnished on 5 HP and above.
nn
Ventilated motor compartment with motor out of airstream.
nn
Non-overloading, backwardly inclined wheel.
nn
Isolated, suspended motor wheel-drive assembly.
nn
Spark resistant construction through size 24.
nn
Polished CRS fan shaft with rust inhibitive coating.
nn
Pillow Block Bearing L50= 200,000 Hrs.
MATERIAL AND THICKNESS (Listed In Millimeters)
Motor Cover Shroud Support
Outer/ Curb Shaft Diffuser Frame
Unit Lid Tube Upper Lower Cap Dia. Standard [Galv. [Steel
Size [Alum.] [Alum.] [Alum.] [Alum.] [Alum.] [CRS] Wheel Steel] Angle]
06 1.6 1.0 — 2.0 1.3 19 Alum. 22 ga. —
08 1.6 1.0 — 2.0 1.3 19 Alum. 22 ga. —
10 1.6 1.0 — 2.0 1.6 19 Alum. 22 ga. —
12 1.6 1.0 — 2.0 1.6 19 Alum. 22 ga. —
15 1.6 1.0 — 2.0 1.6 19 Alum. 22 ga. —
18 1.6 1.0 1.6 2.0 1.6 19 Alum. 18 ga. —
21 1.6 1.0 1.6 2.0 1.6 25 Alum. 18 ga. —
24 1.6 1.0 1.6 2.0 1.6 25 Alum. 18 ga. —
30 2.0 1.6 1.6 2.0 2.0 30 Steel — 38x38x3
36 2.0 1.6 1.6 2.0 2.0 37 Steel — 38x38x6
42 2.0 1.6 1.6 2.0 2.0 49 Steel — 38x38x6
48 2.0 1.6 1.6 2.0 2.0 49 Steel — 38x38x6
