Carnes WC-AT User Manual

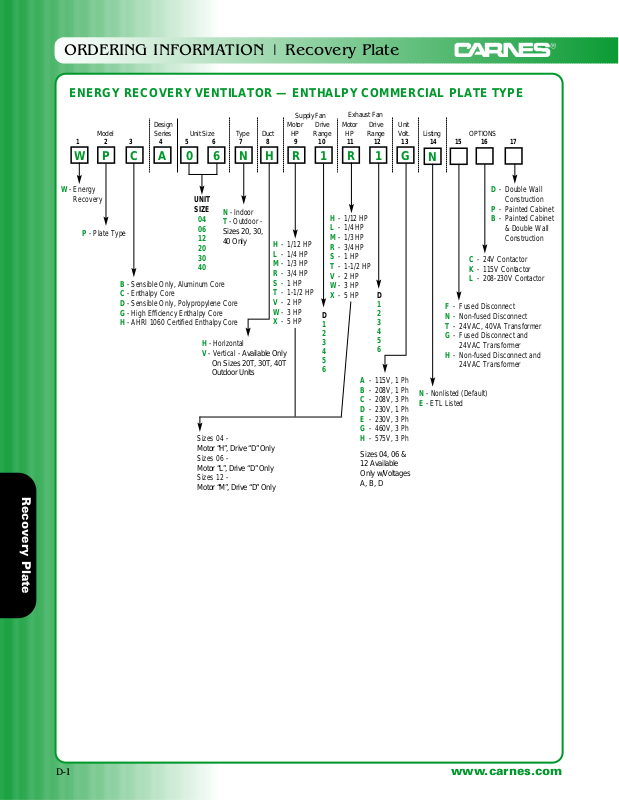

ORDERING INFORMATION | Recovery Plate

Recovery Plate

D-1 www.carnes.com

Design Motor Drive Motor Drive Unit

Model Series Unit Size Type Duct HP Range HP Range Volt. Listing OPTIONS

1 2 3 4 5 6 7 8 910 111213141516 17

W P C A 0 6 N H R 1 R 1 G

N

W - Energy

Recovery

N - Nonlisted (Default) E - ETL Listed

D

1 2 3 4 5 6

P - Plate Type

B - Sensible Only, Aluminum Core C - Enthalpy Core D - Sensible Only, Polypropylene Core G - High Efficiency Enthalpy Core H - AHRI 1060 Certified Enthalpy Core

UNIT SIZE

04 06 12 20 30 40

N - Indoor T - Outdoor -

Sizes 20, 30, 40 Only

H - Horizontal V - Vertical - Available Only

On Sizes 20T, 30T, 40T Outdoor Units

H - 1/12 HP L - 1/4 HP M - 1/3 HP R - 3/4 HP S -1 HP T - 1-1/2 HP V -2 HP W -3 HP X -5 HP

ENERGY RECOVERY VENTILATOR — ENTHALPY COMMERCIAL PLATE TYPE

Supply Fan

Exhaust Fan

A - 115V, 1 Ph B - 208V, 1 Ph C - 208V, 3 Ph D - 230V, 1 Ph E - 230V, 3 Ph G - 460V, 3 Ph H - 575V, 3 Ph

Sizes 04, 06 & 12 Available Only w/Voltages A, B, D

D

1 2 3 4 5 6

H - 1/12 HP L - 1/4 HP M - 1/3 HP R - 3/4 HP S -1 HP T - 1-1/2 HP V -2 HP W -3 HP X -5 HP

F - Fused Disconnect N - Non-fused Disconnect T - 24VAC, 40VA Transformer G - Fused Disconnect and

24VAC Transformer

H - Non-fused Disconnect and

24VAC Transformer

C - 24V Contactor K - 115V Contactor L - 208-230V Contactor

D - Double Wall

Construction

P - Painted Cabinet B - Painted Cabinet

& Double Wall Construction

Sizes 04 -

Motor “H”, Drive “D” Only

Sizes 06 -

Motor “L”, Drive “D” Only

Sizes 12 -

Motor “M”, Drive “D” Only

Recovery Plate

www.carnes.com D-2

RECOVERY PLATE | WPDB07B Sensible Recovery

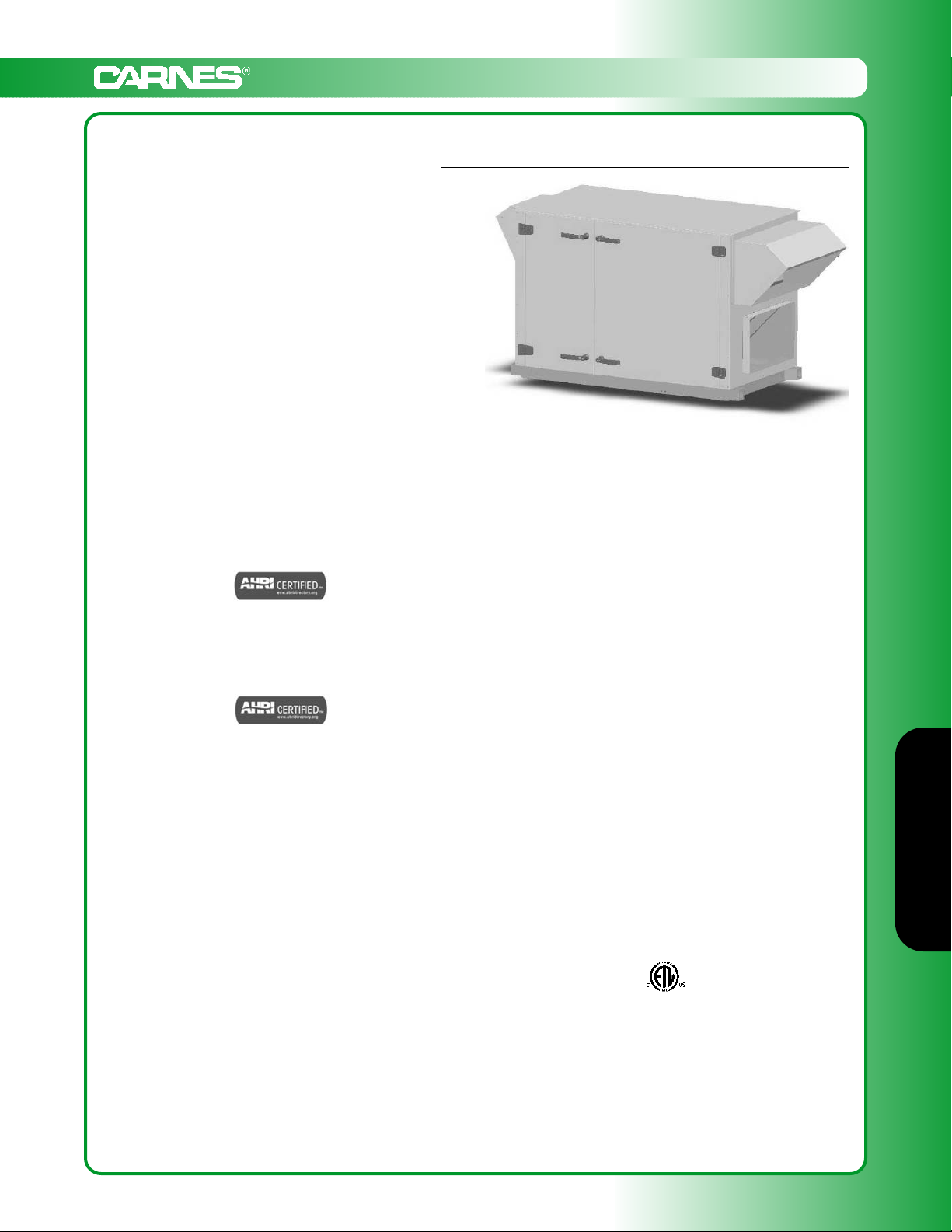

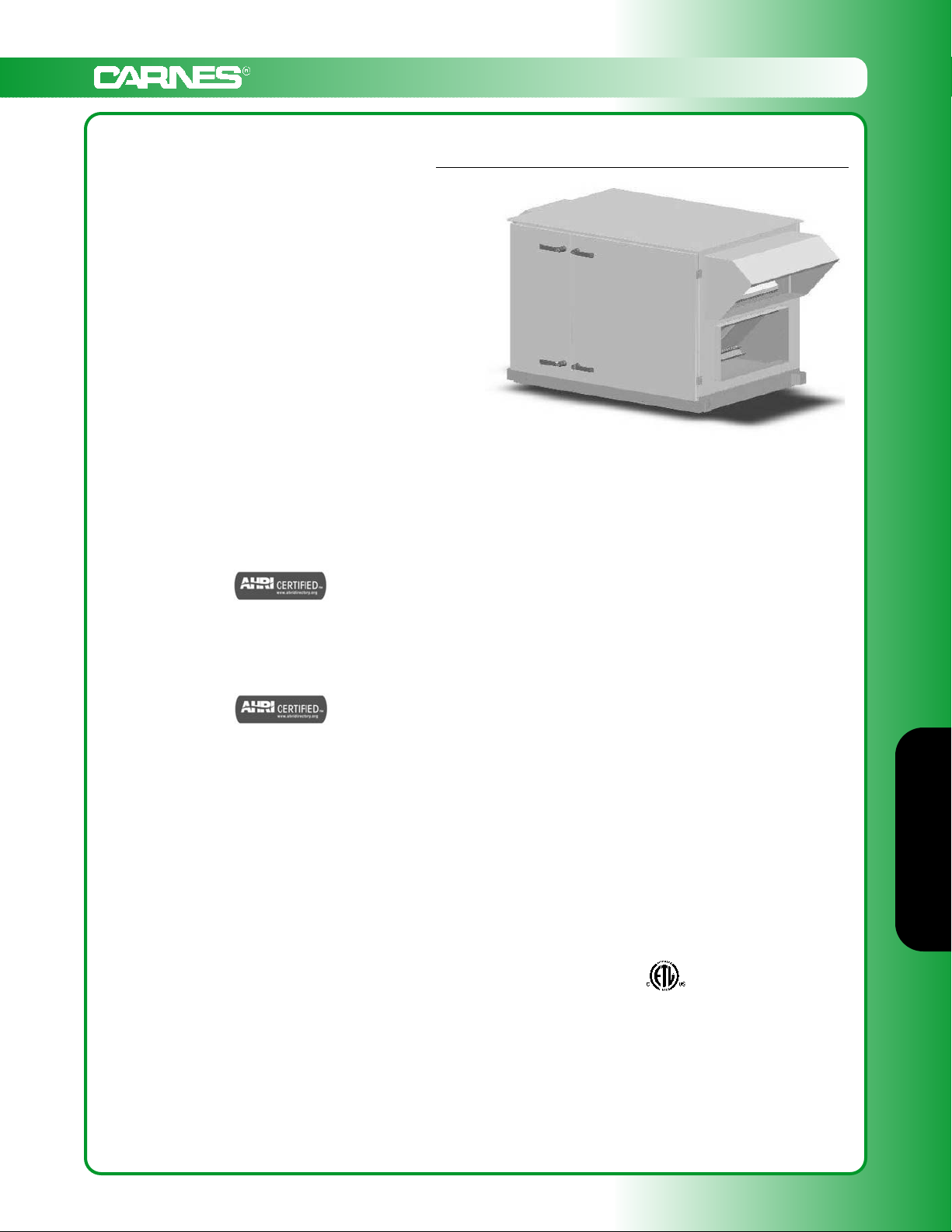

WPDB07B

The Carnes WPDB07B is a heat recovery ventilator of 700 CFM. This heat recovery ventilator is the ideal powerful unit for spacious homes, businesses, daycare centers, clinics, bars, restaurants, etc.

The Carnes WPDB07B is the ultimate solution to prevent excess humidity and improve air quality. Optional version with air recirculation system is available.

• High performance air flow

• Silent

• Highly cost effective and cost efficient

• ETL certified

LISTINGS AND CERTIFICATIONS

AHRI 1060 Certified

• C22.2 no113

• UL 507

Certified

CASING

Material: prepainted 22 ga steel Insulation: 1” foil faced fiberglass Drain Connection: 3/8” or 1/2” dia. Duct Diameter: 8” x 14” Height: 23-7/8” Width: 36-1/4” Depth: 32-1/4” Weight: 150 lbs.

FANS

Qty: 2 Type: backward curved centrifugal fans

MOUNT

Suspended by chains with anti-vibration springs or on a shelf.

ELECTRICAL SPECIFICATIONS

Voltage: 120 VAC — 230 VAC Frequency: 60 Hz Amperage: 5.5 A - 2.9 A Power: 660 watt Electrical Wiring:

• Extension cord with a 3 prong plug (115V)

• Field wired (230V)

CONTROL

Low voltage dry contact (24 VAC 20VA) for:

• Occupancy control (start/stop)

• Speed selection

HEAT RECOVERY VENTILATOR Technical Data

• Exchange /recirculation

24VAC 10VA output for:

• Supply air damper

• Exhaust air damper

Compatible with:

• Liquid crystal display electronic humidistat

• Mode control (exchange or recirculation)

• Humidity control

•

Speed control (intermittent, high or low speed)

• Timer

DEFROST

Cycles controlled by temperature sensor

• Recirculation

• Exhaust only

DEFROST CYCLE TEMPERATURE

Outside Temperature Standard min. Extended min.

Celsius Fahrenheit Defrost/Outside Air Defrost/Outside Air

t > -5 t > 23 n.a. n.a.

-5 > t > -25 23 > t > -13 7/25 10/20

-25 > t -13 > t 10/22 10/15

FILTERS

Qty: 4 Type: Washable, aluminum Type Options: charcoal or high efficiency Dimensions: 13-3/4” x 15” x 7/8”

RECOVERY CORE

Material: aluminum (sensible recovery) Performance Certified: Qty: 2 Dimensions: 12”x12”x15” Step: 3.0 mm

WARRANTY

Appliance — limited two-years. Core Assembly — limited life time.

RECOVERY PLATE | WPDB07B

Recovery Plate

D-3 www.carnes.com

WPDB07B

HEAT RECOVERY VENTILATOR Technical Data

tt

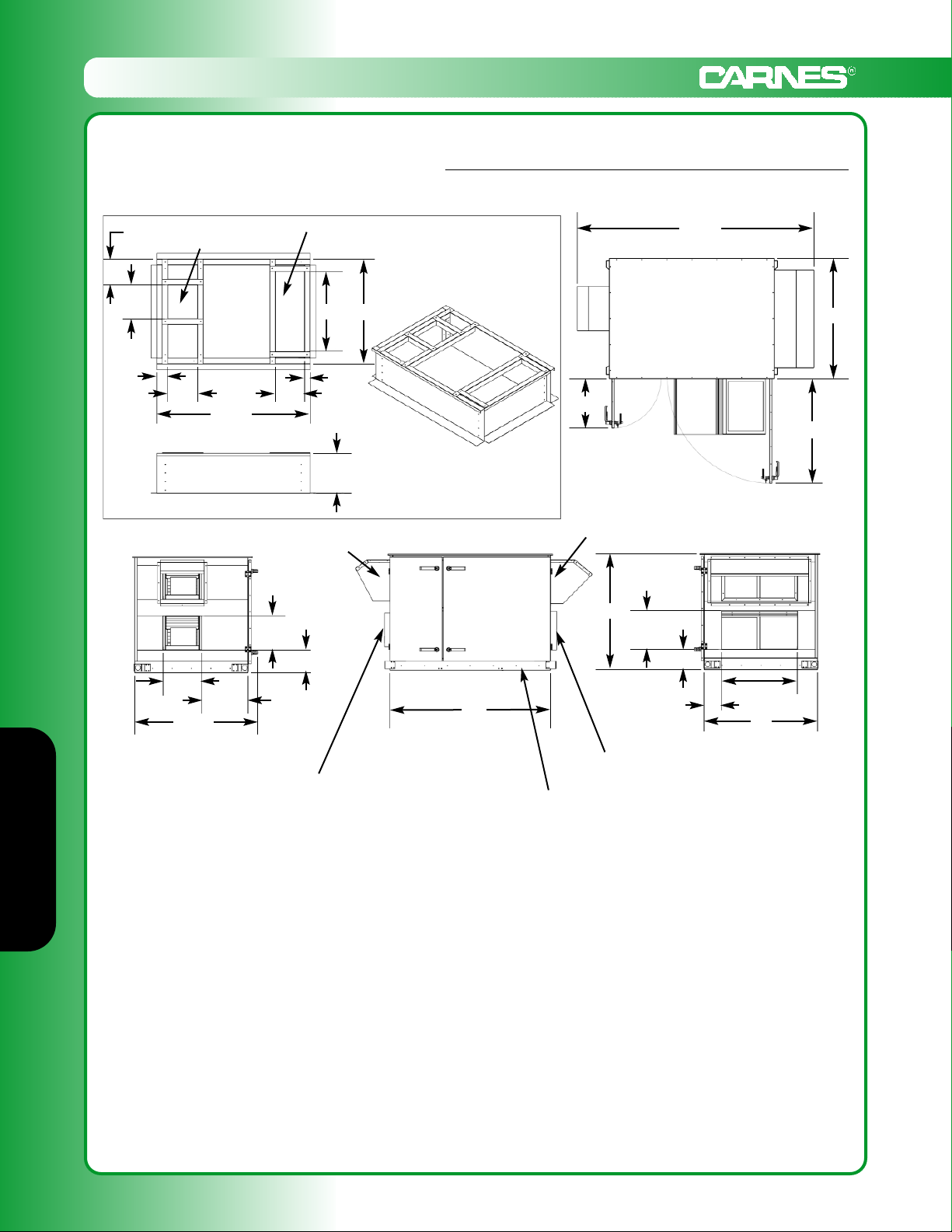

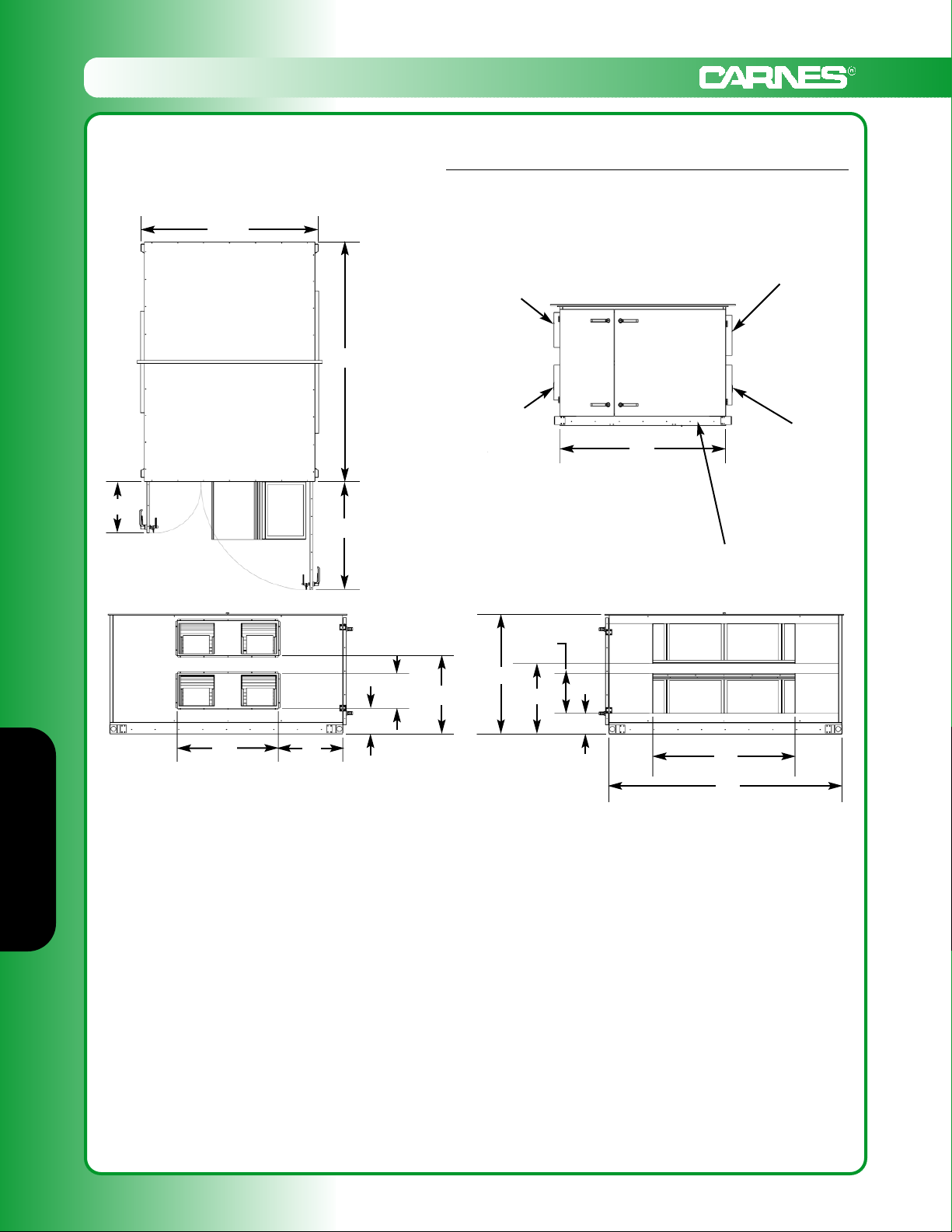

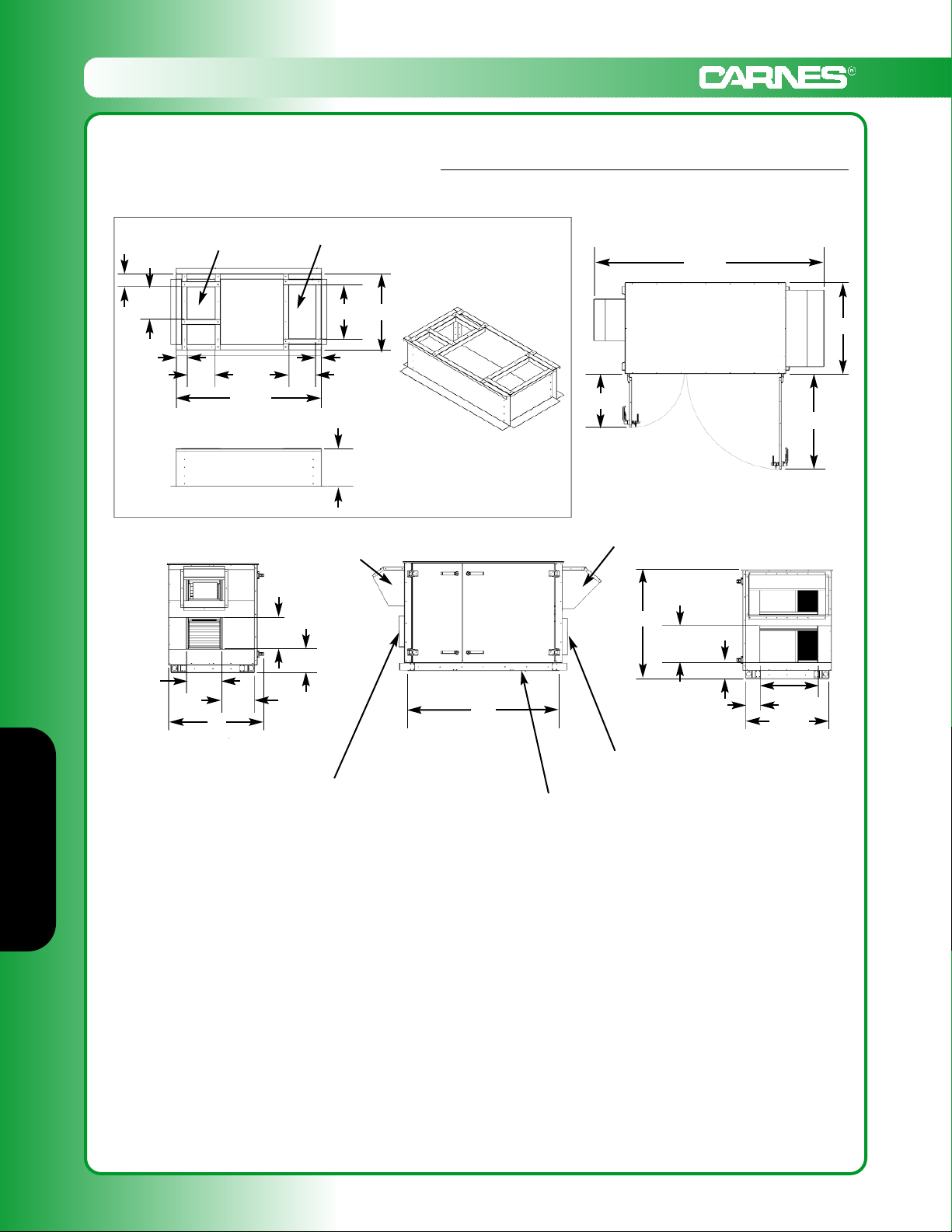

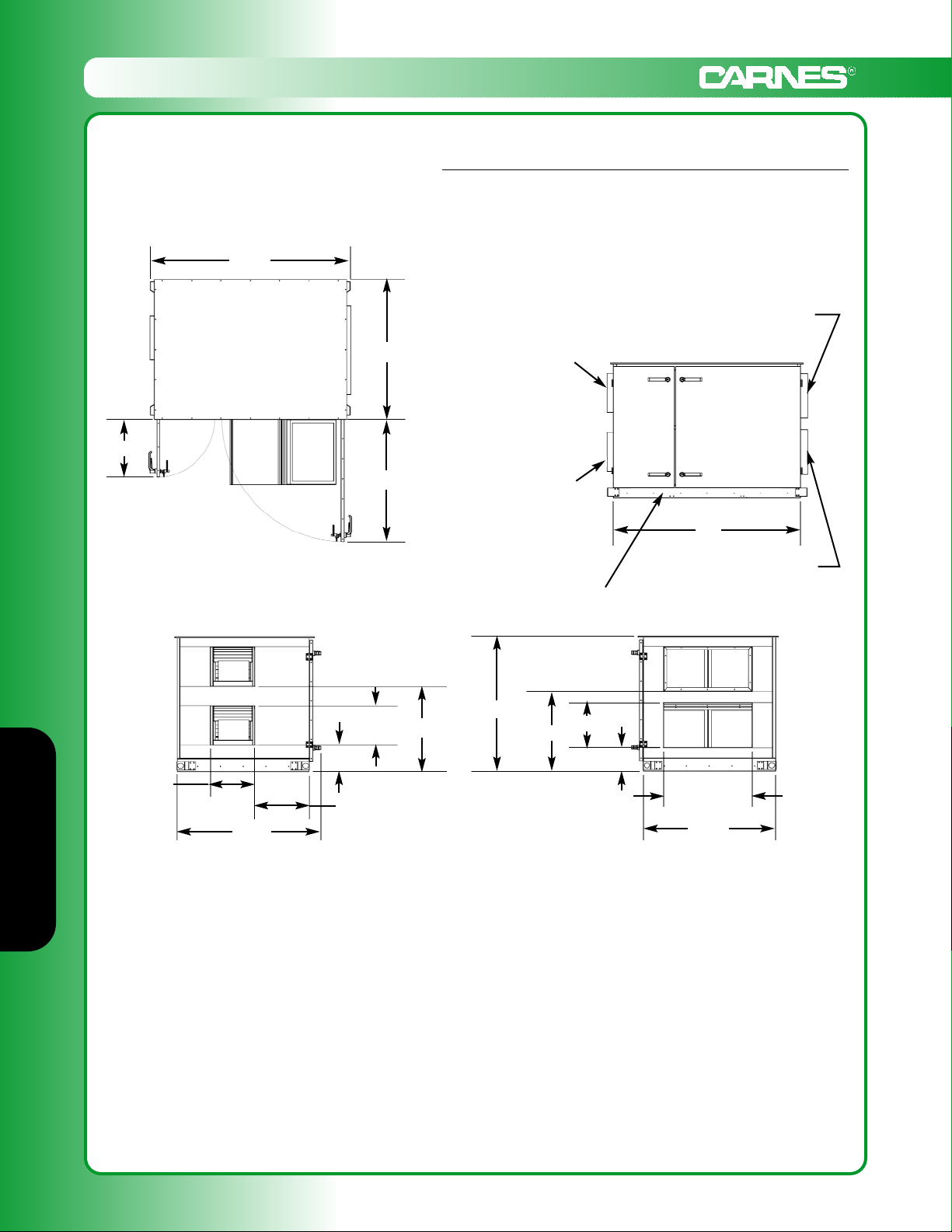

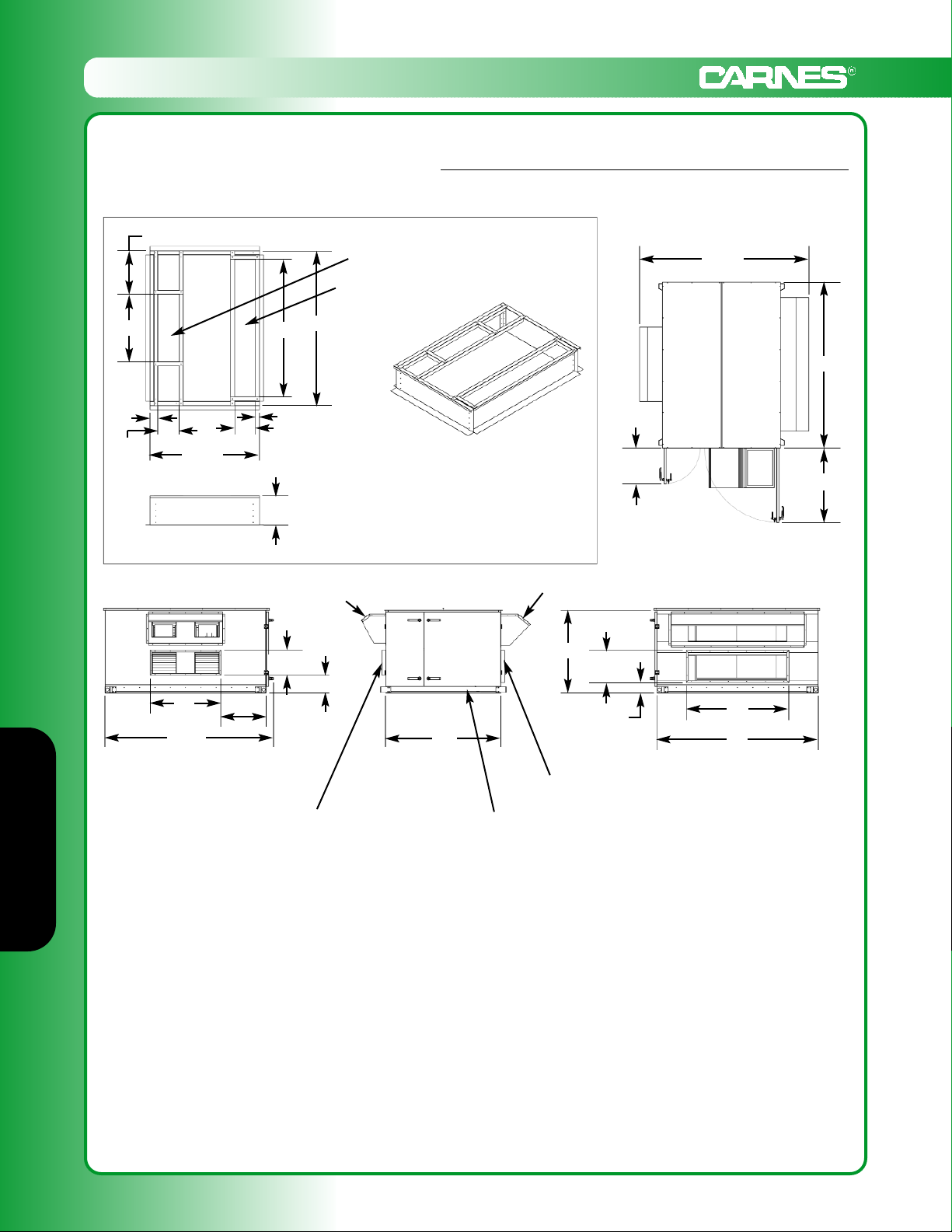

Dimensions

tt

Recovery Performances

WPDB07B Sensible Efficiency,

AHRI 1060 Certified

WPDB07B

Fan Curves

High Speed Medium Speed Low Speed

8”

OUTSIDE AIR

RETURN

AIR

EXHAUST AIR

SUPPLY

AIR

Opt Med Speed Opt Low Speed

36-1/4”

41-3/4”

40-3/4” Bolt Pattern (1/2” Dia)

1-5/8”

8”

15”

23-7/8”

4”

14”

10-1/2”

24-1/2” 32-1/8”

Recirculation Duct

Recovery Plate

www.carnes.com D-4

RECOVERY PLATE | WPDB11B Sensible Recovery

WPDB11B

The Carnes WPDB11B is a heat recovery ventilator of 1,100 CFM. This heat recovery ventilator is the ideal powerful unit for spacious homes, businesses, daycare centers, clinics, bars, restaurants, etc.

The Carnes WPDB11B is the ultimate solution to prevent excess humidity and improve air quality. Optional version with air recirculation system is available.

• High performance air flow

• Silent

• Highly cost effective and cost efficient

• ETL certified

LISTINGS AND CERTIFICATIONS

AHRI 1060 Certified

• C22.2 no113

• UL 507

Certified

CASING

Material: prepainted 22 ga steel Insulation: 1” foil faced fiberglass Drain Connection: 3/8” or 1/2” dia. Duct Diameter: 8” x 20” Height: 23-7/8” Width: 36-1/4” Depth: 47-1/4” Weight: 185 lbs.

FANS

Qty: 4 Type: backward curved centrifugal fans

MOUNT

Suspended by chains with anti-vibration springs or on a shelf.

ELECTRICAL SPECIFICATIONS

Voltage: 120 VAC — 230 VAC Frequency: 60 Hz Amperage: 10.5 A - 5.5 A Power: 1260 watt Electrical Wiring:

• Extension cord with a 3 prong plug (115V)

• Field wired (230V)

CONTROL

Low voltage dry contact (24 VAC 20VA) for:

• Occupancy control (start/stop)

• Speed selection

HEAT RECOVERY VENTILATOR Technical Data

• Exchange /recirculation

24VAC 10VA output for:

• Supply air damper

• Exhaust air damper

Compatible with:

• Liquid crystal display electronic humidistat

• Mode control (exchange or recirculation)

• Humidity control

•

Speed control (intermittent, high or low speed)

• Timer

DEFROST

Cycles controlled by temperature sensor

• Recirculation

• Exhaust only

DEFROST CYCLE TEMPERATURE

Outside Temperature Standard min. Extended min.

Celsius Fahrenheit Defrost/Outside Air Defrost/Outside Air

t > -5 t > 23 n.a. n.a.

-5 > t > -25 23 > t > -13 7/25 10/20

-25 > t -13 > t 10/22 10/15

FILTERS

Qty: 6 Type: Washable, aluminum Type Options: charcoal or high efficiency Dimensions: 13-3/4” x 15” x 7/8”

RECOVERY CORE

Material: aluminum (sensible recovery) Performance Certified: Qty: 3 Dimensions: 12”x12”x15” Step: 3.0 mm

WARRANTY

Appliance — limited two-years. Core Assembly — limited life time.

RECOVERY PLATE | WPDB11B

Recovery Plate

D-5 www.carnes.com

WPDB11B

HEAT RECOVERY VENTILATOR Technical Data

tt

Dimensions

tt

Recovery Performances

WPDB11B Sensible Efficiency,

AHRI 1060 Certified

WPDB11B

Fan Curves

High Speed Medium Speed Low Speed

OUTSIDE AIR

RETURN

AIR

EXHAUST AIR

SUPPLY

AIR

Opt Med Speed Opt Low Speed

36-1/4”

41-3/4”

40-3/4” Bolt Pattern (1/2” Dia)

1-5/8”

8”

15”

23-7/8”

4”

20”

13-5/8”

37-1/2” 47-1/4”

8”

Recirculation

Duct

Recovery Plate

www.carnes.com D-6

RECOVERY PLATE | WPDB07H Enthalpy Recovery

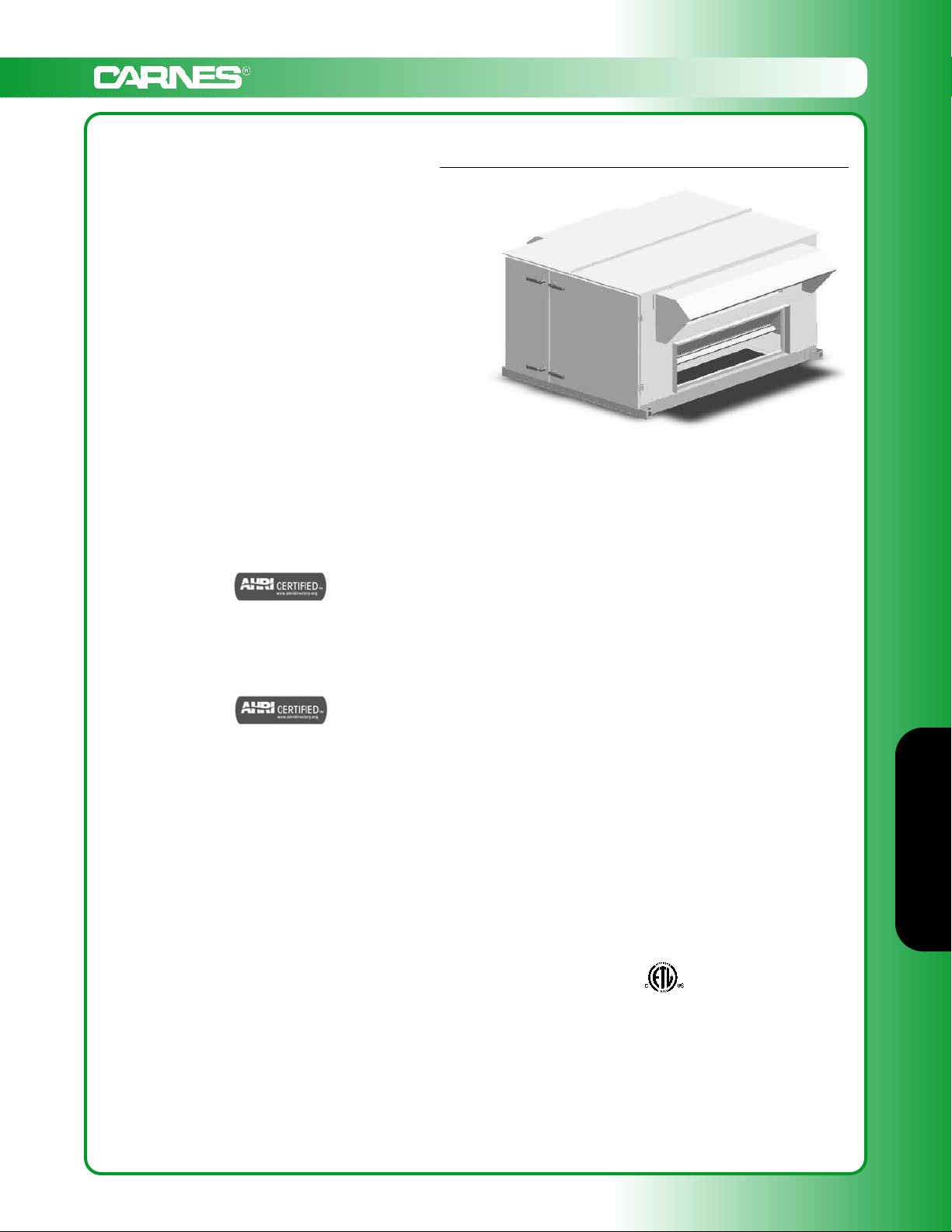

WPDB07H

The Carnes WPDB07H is a energy recovery ventilator of 700 CFM. This energy recovery ventilator is the ideal powerful unit for spacious homes, businesses, daycare centers, clinics, bars, restaurants, etc.

The Carnes WPDB07H is the ultimate solution to prevent excess humidity and improve air quality. Optional version with air recirculation system is available.

• High performance air flow

• Silent

• Highly cost effective and cost efficient

• ETL certified

LISTINGS AND CERTIFICATIONS

AHRI 1060 Certified

• C22.2 no113

• UL 507

Certified

CASING

Material: prepainted 22 ga steel Insulation: 1” foil faced fiberglass Drain Connection: 3/8” or 1/2” dia. Duct Diameter: 8” x 14” Height: 23-7/8” Width: 36-1/4” Depth: 32-1/4” Weight: 150 lbs.

FANS

Qty: 2 Type: backward curved centrifugal fans

MOUNT

Suspended by chains with anti-vibration springs or on a shelf.

ELECTRICAL SPECIFICATIONS

Voltage: 120 VAC — 230 VAC Frequency: 60 Hz Amperage: 5.5 A - 2.9 A Power: 660 watt Electrical Wiring:

• Extension cord with a 3 prong plug (115V)

• Field wired (230V)

CONTROL

Low voltage dry contact (24 VAC 20VA) for:

• Occupancy control (start/stop)

• Speed selection

ENERGY RECOVERY VENTILATOR Technical Data

• Exchange /recirculation

24VAC 10VA output for:

• Supply air damper

• Exhaust air damper

Compatible with:

• Liquid crystal display electronic humidistat

• Mode control (exchange or recirculation)

• Humidity control

•

Speed control (intermittent, high or low speed)

• Timer

DEFROST

Cycles controlled by temperature sensor

• Recirculation

• Exhaust only

DEFROST CYCLE TEMPERATURE

Outside Temperature Standard min. Extended min.

Celsius Fahrenheit Defrost/Outside Air Defrost/Outside Air

t > -5 t > 23 n.a. n.a.

-5 > t > -25 23 > t > -13 7/25 10/20

-25 > t -13 > t 10/22 10/15

FILTERS

Qty: 4 Type: Washable, aluminum Type Options: charcoal or high efficiency Dimensions: 13-3/4” x 15” x 7/8”

RECOVERY CORE

Material: polymeric membrane (enthalpy recovery) Performance Certified: Qty: 2 Dimensions: 12”x12”x15” Step: 2.5 mm

WARRANTY

Appliance — limited two-years. Core Assembly — limited life time.

RECOVERY PLATE | WPDB07H

Recovery Plate

D-7 www.carnes.com

WPDB07H

ENERGY RECOVERY VENTILATOR Technical Data

tt

Dimensions

tt

Recovery Performances

WPDB07H Enthalpy Efficiency,

AHRI 1060 Certified

WPDB07H

Fan Curves

High Speed Medium Speed Low Speed

OUTSIDE AIR

RETURN

AIR

EXHAUST AIR

SUPPLY

AIR

Opt Med Speed Opt Low Speed

36-1/4”

41-3/4”

40-3/4” Bolt Pattern (1/2” Dia)

1-5/8”

8”

15”

23-7/8”

4”

14”

10-1/2”

24-1/2” 32-1/8”

Recirculation Duct

Sensible (HEATING) Total (COOLING)

8”

Recovery Plate

www.carnes.com D-8

RECOVERY PLATE | WPDB11H Enthalpy Recovery

WPDB11H

The Carnes WPDB11H is a energy recovery ventilator of 1,100 CFM. This energy recovery ventilator is the ideal powerful unit for spacious homes, businesses, daycare centers, clinics, bars, restaurants, etc.

The Carnes WPDB11H is the ultimate solution to prevent excess humidity and improve air quality. Optional version with air recirculation system is available.

• High performance air flow

• Silent

• Highly cost effective and cost efficient

• ETL certified

LISTINGS AND CERTIFICATIONS

AHRI 1060 Certified

• C22.2 no113

• UL 507

Certified

CASING

Material: prepainted 22 ga steel Insulation: 1” foil faced fiberglass Drain Connection: 3/8” or 1/2” dia. Duct Diameter: 8” x 20” Height: 23-7/8” Width: 36-1/4” Depth: 47-1/4” Weight: 185 lbs.

FANS

Qty: 4 Type: backward curved centrifugal fans

MOUNT

Suspended by chains with anti-vibration springs or on a shelf.

ELECTRICAL SPECIFICATIONS

Voltage: 120 VAC — 230 VAC Frequency: 60 Hz Amperage: 10.5 A - 5.5 A Power: 1260 watt Electrical Wiring:

• Extension cord with a 3 prong plug (115V)

• Field wired (230V)

CONTROL

Low voltage dry contact (24 VAC 20VA) for:

• Occupancy control (start/stop)

• Speed selection

ENERGY RECOVERY VENTILATOR Technical Data

• Exchange /recirculation

24VAC 10VA output for:

• Supply air damper

• Exhaust air damper

Compatible with:

• Liquid crystal display electronic humidistat

• Mode control (exchange or recirculation)

• Humidity control

•

Speed control (intermittent, high or low speed)

• Timer

DEFROST

Cycles controlled by temperature sensor

• Recirculation

• Exhaust only

DEFROST CYCLE TEMPERATURE

Outside Temperature Standard min. Extended min.

Celsius Fahrenheit Defrost/Outside Air Defrost/Outside Air

t > -5 t > 23 n.a. n.a.

-5 > t > -25 23 > t > -13 7/25 10/20

-25 > t -13 > t 10/22 10/15

FILTERS

Qty: 6 Type: Washable, aluminum Type Options: charcoal or high efficiency Dimensions: 13-3/4” x 15” x 7/8”

RECOVERY CORE

Material: polymeric membrane (enthalpy recovery) Performance Certified: Qty: 3 Dimensions: 12”x12”x15” Step: 2.5 mm

WARRANTY

Appliance — limited two-years. Core Assembly — limited life time.

RECOVERY PLATE | WPDB11H

Recovery Plate

D-9 www.carnes.com

WPDB11H

ENERGY RECOVERY VENTILATOR Technical Data

tt

Dimensions

tt

Recovery Performances

WPDB11H Enthalpy Efficiency,

AHRI 1060 Certified

WPDB11H

Fan Curves

High Speed Medium Speed Low Speed

OUTSIDE AIR

RETURN

AIR

EXHAUST AIR

SUPPLY

AIR

Opt Med Speed Opt Low Speed

36-1/4”

41-3/4”

40-3/4” Bolt Pattern (1/2” Dia)

1-5/8”

8”

15”

23-7/8”

4”

20”

13-5/8”

37-1/2” 47-1/4”

8”

Recirculation

Duct

Sensible (HEATING) Total (COOLING)

Recovery Plate

www.carnes.com D-10

RECOVERY PLATE | WPDB06H Enthalpy Recovery

WPDB06H

AHRI 1060 CERTIFIED

PLATE EXCHANGER

Typical air flow range: 300 - 700 CFM Type: enthalpy (heat and humidity transfer) Dimensions: 12” x 12” x 13” Qty: 2

CASING

Single wall cabinet Material: pre-painted 22 ga Insulation: 1” fiberglass with aluminum foil Height: 25” Width: 33-7/8” Depth: 28-1/8” Unit Weight: 150 lbs. Shipping Weight: 165 lbs. Mounting: platform

BLOWERS

Qty: 2 Type: forward curved, direct drive

FILTERS

Qty: 2 supply, 2 exhaust Type: aluminum Dimensions: 13” x 12-7/8” x 3/8”

CONTROL

Control voltage available: 24 Volt

ELECTRICAL CHARACTERISTICS

Voltage: 120 Volt Current: 7.6 A - 5.6 A - 4.2 A (3 speed)

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

INDOOR UNIT Technical Data

WPDB06H Enthalpy AHRI 1060 Certified

WPDB06H Ventilation Performance

DIMENSIONS | WPDB06H

Recovery Plate

D-11 www.carnes.com

WPDB06H

INDOOR UNIT Technical Data

25”

8”

14-5/8”

8”

2-3/4”

14”

28-1/8”

13”

7-1/8”

2-1/2”

22-1/2”

33-7/8”

2-1/2”

16”

4-5/8”

OUTSIDE AIR

RETURN AIR

EXHAUST

AIR

SUPPLY

AIR

tt

Dimensions

Recovery Plate

www.carnes.com D-12

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB10_N

WPBB10_N

Capacity: 250 - 1,250 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 30-5/8” Unit Weight: 375 lbs. Shipping Weight: 425 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Polypropylene (sensible heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 4mm Qty: 1

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 1

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 1

BLOWERS

Qty: 2 Type: forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 1 supply, 1 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

INDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB10_N

Recovery Plate

D-13 www.carnes.com

WPBB10_N

INDOOR UNIT Technical Data

33-5/8”

56”

61-7/8”

35”

13-1/8”

11-1/2”

26-1/2”

19-3/4”

OUTSIDE AIR

RETURN AIR

EXHAUST

AIR

SUPPLY

AIR

40-3/8”

24”

21-1/2”

30-5/8”

HEAT RECOVERY

CORE AND FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

35-1/4”

11-7/8”

8-7/8”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

Recovery Plate

www.carnes.com D-14

CORE PERFORMANCES | WPBB10_N

WPBB10_N

INDOOR UNIT Technical Data

tt

Core Performances

WPBB10B Sensible Efficiency Aluminum

Core 4.2mm

WPBB10H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB10_N

Recovery Plate

D-15 www.carnes.com

WPBB10_N

INDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB10B, Aluminum Core, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

250 907 0.12 1037 0.18 1151 0.228 1254 0.288 1349 0.348 1437 0.42

500 1026 0.216 1150 0.288 1261 0.36 1362 0.444 1454 0.528 1541 0.612 1hp 750 1137 0.348 1258 0.444 1366 0.54 1465 0.636 1556 0.744 1641 0.852 2hp 1000 1262 0.552 1382 0.672 1490 0.804 1586 0.924 1674 1.044 1757 1.176 3hp 1250 1395 0.816 1506 0.972 1609 1.116 1704 1.272 1794 1.428 1879 1.596

WPBB10H, Enthalpy Core 2.5mm, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

250 967 0.144 1089 0.204 1198 0.252 1297 0.312 1389 0.384 1474 0.456

500 1118 0.264 1232 0.336 1335 0.42 1430 0.504 1517 0.588 1600 0.672 1hp 750 1263 0.444 1370 0.54 1469 0.648 1559 0.744 1644 0.852 1724 0.96 2hp 1000 1368 0.66 1478 0.78 1575 0.912 1664 1.032 1747 1.164 1826 1.284 3hp 1250 1462 0.912 1568 1.056 1667 1.212 1759 1.368 1845 1.524 1925 1.68

Recovery Plate

www.carnes.com D-16

RECOVERY PLATE | WPDB12H Enthalpy Recovery

WPDB12H

AHRI 1060 CERTIFIED

PLATE EXCHANGER

Typical air flow range: 500 - 1,200 CFM Type: enthalpy (heat and humidity transfer) Dimensions: 12” x 12” x 13” Qty: 3

CASING

Single wall cabinet (double wall avail. in option) Material: pre-painted 22 ga Insulation: 1” fiberglass with aluminum foil Height: 25” Width: 33-7/8” Depth: 41-1/8” Unit Weight: 185 lbs. Shipping Weight: 195 lbs. Mounting: platform

BLOWERS

Qty: 4 Type: forward curved, direct drive

FILTERS

Qty: 3 supply, 3 exhaust Type: aluminum Dimensions: 13” x 12-7/8” x 3/8”

CONTROL

Control voltage available: 24 Volt

ELECTRICAL CHARACTERISTICS

Voltage: 120 Volt Current: 11.8 A - 8.8 A - 7.0 A (3 speed)

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

INDOOR UNIT Technical Data

WPDB12H Enthalpy AHRI 1060 Certified

WPDB12H Ventilation Performance

DIMENSIONS | WPDB12H

Recovery Plate

D-17 www.carnes.com

WPDB12H

INDOOR UNIT Technical Data

8”

20”

41-1/8”

13”

10-5/8”

2-3/4”

33-7/8”

38-7/8”

16”

4-5/8”

OUTSIDE AIR

RETURN AIR

EXHAUST

AIR

SUPPLY

AIR

25”

14-5/8”

2-1/2”

22-1/2”

tt

Dimensions

Recovery Plate

www.carnes.com D-18

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB20_N

WPBB20_N

Capacity: 500 - 2,500 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 39” Unit Weight: 450 lbs. Shipping Weight: 500 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 2

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 2

BLOWERS

Qty: 2 Type: forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 2 supply, 2 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

INDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB20_N

Recovery Plate

D-19 www.carnes.com

WPBB20_N

INDOOR UNIT Technical Data

42”

56”

61-7/8”

43-1/2”

13-1/8”

11-1/2”

26-1/2”

19-3/4”

OUTSIDE AIR

RETURN AIR

EXHAUST

AIR

SUPPLY

AIR

40-3/8”

24”

26-1/2”

39”

HEAT RECOVERY

CORE AND FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

35-1/4”

16-1/4”

8-7/8”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

Recovery Plate

www.carnes.com D-20

CORE PERFORMANCES | WPBB20_N

WPBB20_N

INDOOR UNIT Technical Data

tt

Core Performances

WPBB20B Sensible Efficiency Aluminum

Core 4.2mm

WPBB20H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB20_N

Recovery Plate

D-21 www.carnes.com

WPBB20_N

INDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB20B, Aluminum Core, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

500 953 0.18 1088 0.252 1205 0.324 1310 0.396 1407 0.48 1497 0.564

1000 1030 0.36 1177 0.468 1306 0.588 1422 0.72 1526 0.84 1619 0.972 1hp 1500 1092 0.624 1220 0.756 1343 0.912 1458 1.068 1566 1.236 1666 1.404 2hp 2000 1224 1.128 1327 1.272 1429 1.44 1528 1.608 1623 1.8 1716 1.992 3hp 2500 1385 1.92 1472 2.088 1556 2.268 1639 2.448 1721 2.64 1802 2.856

WPBB20H, Enthalpy Core 2.5mm, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

500 1016 0.204 1142 0.276 1253 0.36 1354 0.432 1448 0.516 1534 0.6

1000 1139 0.444 1272 0.552 1391 0.684 1499 0.804 1593 0.936 1681 1.056 1hp 1500 1225 0.768 1348 0.912 1463 1.08 1570 1.236 1670 1.416 1764 1.584 2hp 2000 1315 1.26 1417 1.416 1516 1.596 1612 1.776 1705 1.968 1796 2.172 3hp 2500 1437 2.016 1522 2.196 1606 2.376 1688 2.556 1770 2.76 1850 2.976

Recovery Plate

www.carnes.com D-22

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB30_N

WPBB30_N

Capacity: 750 - 3,500 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 58-1/2” Unit Weight: 700 lbs. Shipping Weight: 750 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 3

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 3

BLOWERS

Qty: 2 Type: forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 3 supply, 3 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

INDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB30_N

Recovery Plate

D-23 www.carnes.com

WPBB30_N

INDOOR UNIT Technical Data

61-1/2”

56”

61-7/8”

63”

13-1/8”

11-1/2”

26-1/2”

19-3/4”

OUTSIDE AIR

RETURN AIR

EXHAUST

AIR

SUPPLY

AIR

40-3/8”

24”

37-1/2”

58-1/2”

HEAT RECOVERY

CORE AND FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

35-1/4”

27-1/8”

8-7/8”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

Recovery Plate

www.carnes.com D-24

CORE PERFORMANCES | WPBB30_N

WPBB30_N

INDOOR UNIT Technical Data

tt

Core Performances

WPBB30B Sensible Efficiency Aluminum

Core 4.2mm

WPBB30H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB30_N

Recovery Plate

D-25 www.carnes.com

WPBB30_N

INDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB30B, Aluminum Core, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

750 965 0.24 1116 0.336 1240 0.432 1350 0.528 1450 0.624 1542 0.72 1hp 1500 1005 0.552 1139 0.672 1265 0.816 1385 0.96 1498 1.128 1603 1.296 2hp

2250 1142 1.224 1244 1.392 1341 1.548 1434 1.716 1525 1.884 1616 2.064 3hp 3000 1359 2.46 1429 2.64 1503 2.844 1579 3.072 1656 3.288 1729 3.504 5hp 3500 1538 3.744 1595 3.948 1655 4.152 1717 4.38 1782 4.632 1848 4.896

WPBB30H, Enthalpy Core 2.5mm, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

750 1035 0.288 1173 0.372 1290 0.468 1395 0.564 1491 0.672 1580 0.768 1hp 1500 1103 0.636 1231 0.768 1353 0.924 1467 1.08 1574 1.248 1674 1.416 2hp

2250 1248 1.404 1344 1.56 1438 1.716 1529 1.884 1619 2.076 1707 2.268 3hp 3000 1420 2.616 1494 2.82 1570 3.036 1647 3.264 1720 3.48 1792 3.684 5hp 3500 1572 3.864 1631 4.068 1692 4.284 1756 4.536 1822 4.788 na na

Recovery Plate

www.carnes.com D-26

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB40_N

WPBB40_N

Capacity: 1,000 - 4,500 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 78” Unit Weight: 900 lbs. Shipping Weight: 950 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 4

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 4

BLOWERS

Qty: 2 Type: twin, forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 4 supply, 4 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

INDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB40_N

Recovery Plate

D-27 www.carnes.com

WPBB40_N

INDOOR UNIT Technical Data

81”

56”

61-7/8”

34”

11-1/2”

26-1/2”

19-3/4”

OUTSIDE AIR

RETURN AIR

EXHAUST

AIR

SUPPLY

AIR

40-3/8”

24”

48”

78”

HEAT RECOVERY

CORE AND FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

35-1/4”

22”

8-7/8”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

Recovery Plate

www.carnes.com D-28

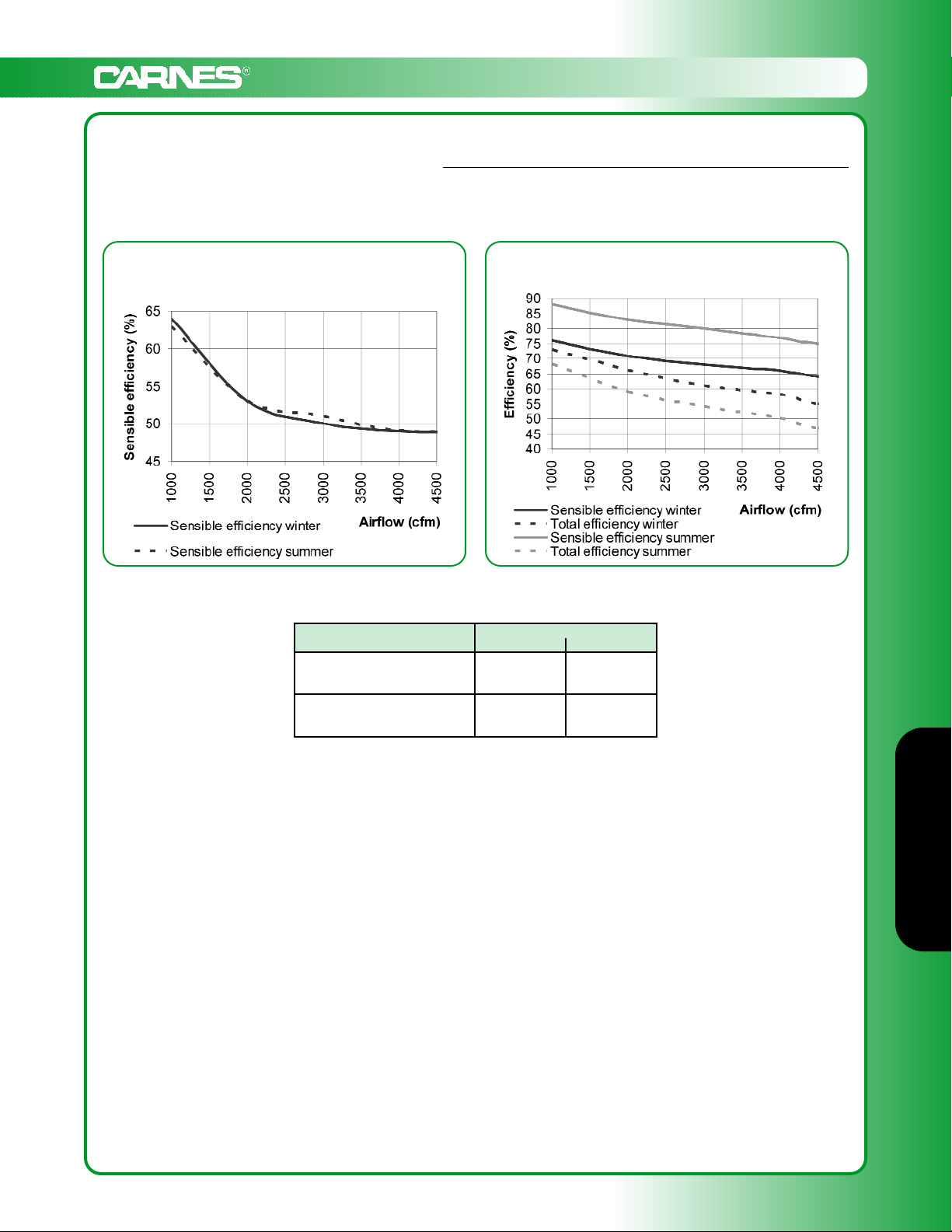

CORE PERFORMANCES | WPBB40_N

WPBB40_N

INDOOR UNIT Technical Data

tt

Core Performances

WPBB40B Sensible Efficiency Aluminum

Core 4.2mm

WPBB40H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB40_N

Recovery Plate

D-29 www.carnes.com

WPBB40_N

INDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB40B, Aluminum Core, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

1000 953 0.36 1088 0.492 1205 0.636 1310 0.792 1407 0.96 1497 1.128 1hp 2000 1030 0.708 1177 0.936 1306 1.188 1422 1.428 1526 1.692 1619 1.932 2hp

3000 1092 1.248 1220 1.524 1343 1.824 1458 2.136 1566 2.46 1666 2.808 3hp 4000 1224 2.268 1327 2.556 1429 2.88 1528 3.228 1623 3.588 1716 3.984 5hp 4500 1333 3.072 1427 3.396 1518 3.732 1609 4.104 1697 4.488 1783 4.896

WPBB40H, Enthalpy Core 2.5mm, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

1000 1016 0.42 1142 0.564 1253 0.708 1354 0.864 1448 1.032 1534 1.2 1hp 2000 1139 0.876 1272 1.116 1391 1.368 1499 1.62 1593 1.86 1681 2.112 2hp

3000 1225 1.536 1348 1.836 1463 2.148 1570 2.484 1670 2.82 1764 3.168 3hp 4000 1315 2.52 1417 2.832 1516 3.18 1612 3.552 1705 3.936 1796 4.332 5hp 4500 1390 3.264 1482 3.588 1573 3.948 1662 4.332 1749 4.728 na na

Recovery Plate

www.carnes.com D-30

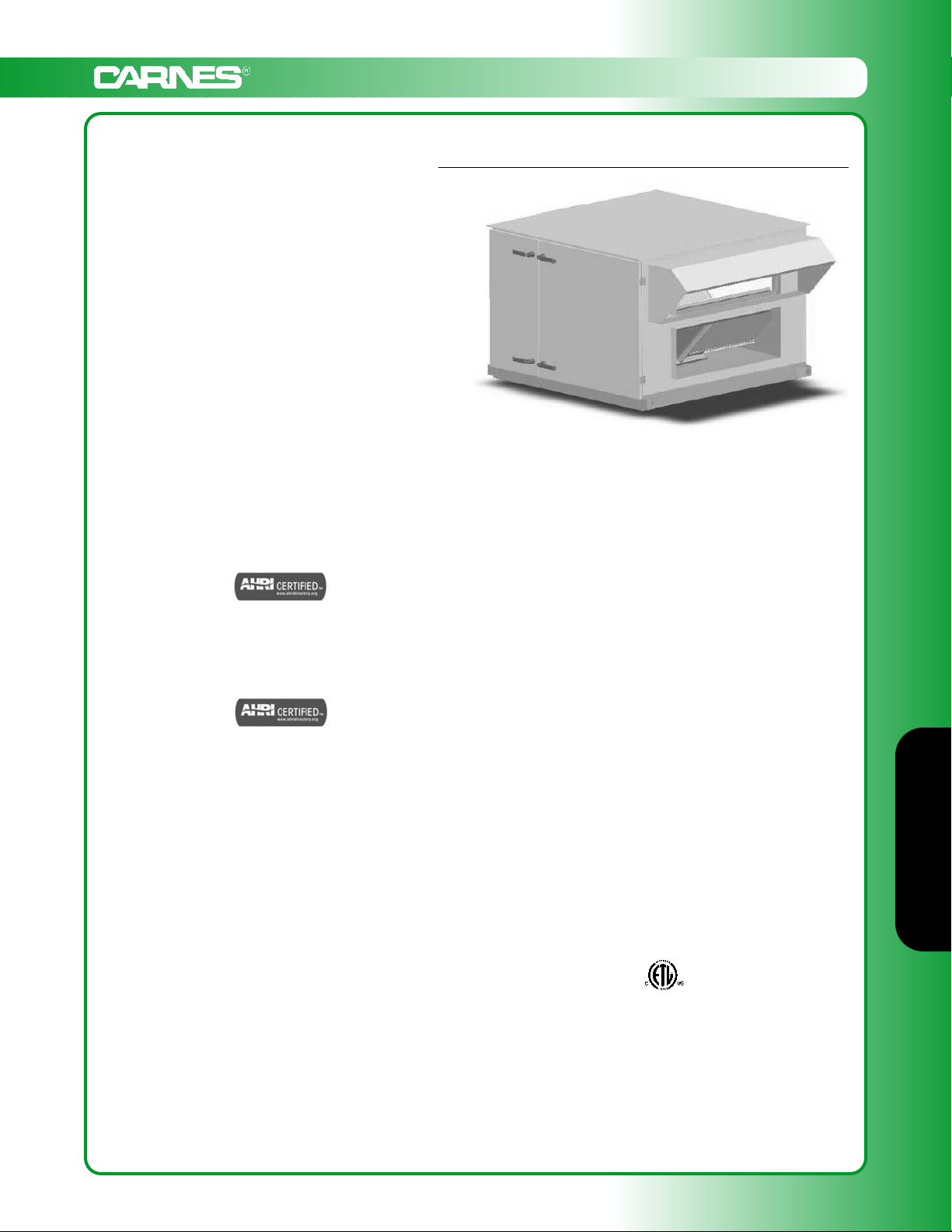

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB10_T

WPBB10_T

Capacity: 250 - 1,250 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 30-5/8” Unit Weight: 400 lbs. Shipping Weight: 450 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 1

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 1

BLOWERS

Qty: 2 Type: forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 1 supply, 1 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

OUTDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Vertical discharge.

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Roof curb (non-isolated).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB10_T

Recovery Plate

D-31 www.carnes.com

WPBB10_T

OUTDOOR UNIT Technical Data

28-1/8”

84-3/4”

53-1/2”

56”

33-5/8”

EXHAUST

AIR

OUTSIDE

AIR

35-1/4”

19-3/4”

21-1/2” 30-5/8”

HEAT

RECOVERY

CORE AND

FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

14”

35”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

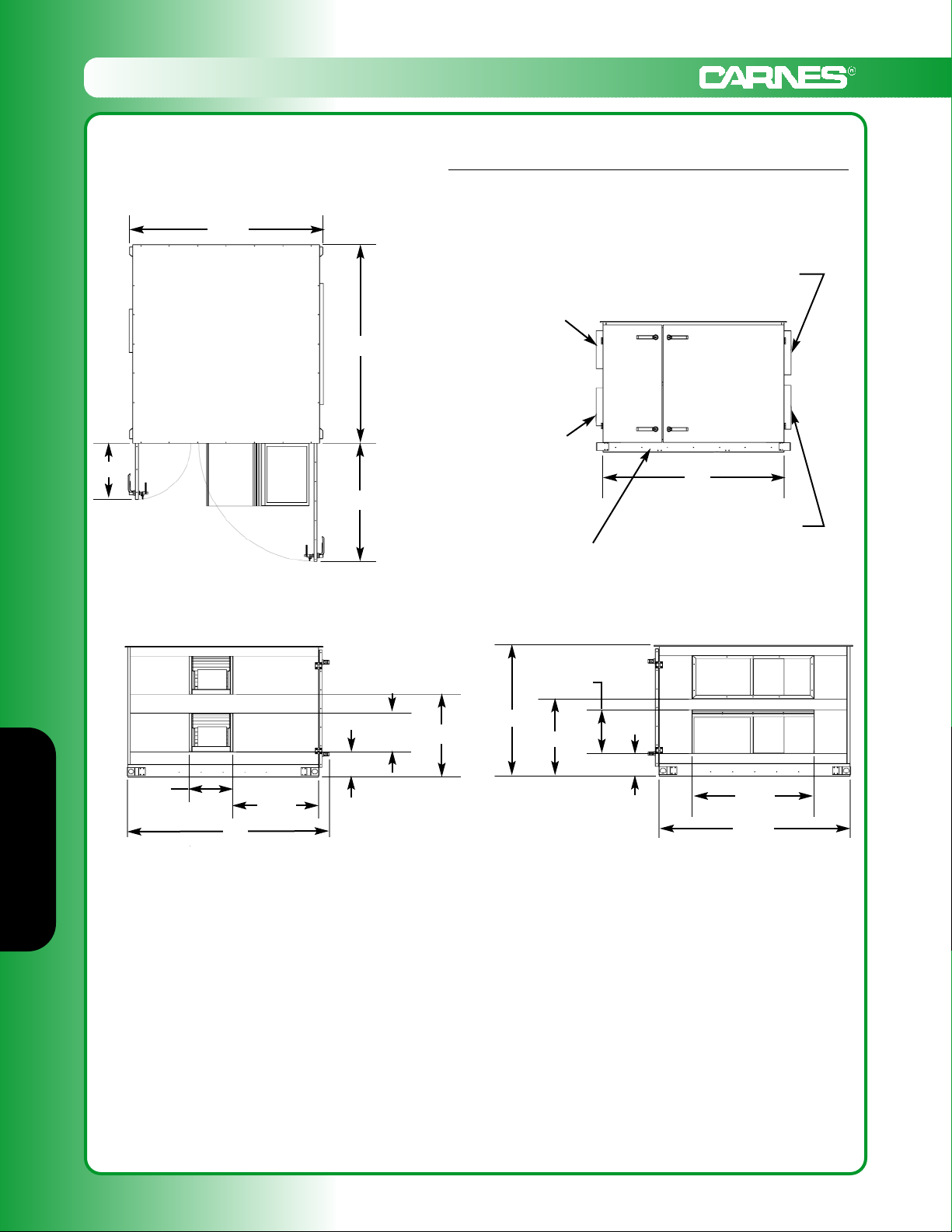

Dimensions

FACE VIEW

20”

ROOF CURB

10”

2”

10-3/8”

4”

5”

11-7/8”

OPTIONAL DOWNBLAST SUPPLY AIR

OPTIONAL DOWNBLAST RETURN AIR

TOP VIEW

40-3/8”

5-1/8”

RETURN AIR (OPTIONAL HORIZONTAL CONFIGURATION)

SUPPLY AIR (OPTIONAL

HORIZONTAL CONFIGURATION)

13-1/8”

11-7/8”

8-7/8”

11-1/2”

Recovery Plate

www.carnes.com D-32

CORE PERFORMANCES | WPBB10_T

WPBB10_T

OUTDOOR UNIT Technical Data

tt

Core Performances

WPBB10B Sensible Efficiency Aluminum

Core 4.2mm

WPBB10H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB10_T

Recovery Plate

D-33 www.carnes.com

WPBB10_T

OUTDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB10B, Aluminum Core, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

250 907 0.12 1037 0.18 1151 0.228 1254 0.288 1349 0.348 1437 0.42

500 1026 0.216 1150 0.288 1261 0.36 1362 0.444 1454 0.528 1541 0.612 1hp 750 1137 0.348 1258 0.444 1366 0.54 1465 0.636 1556 0.744 1641 0.852 2hp 1000 1262 0.552 1382 0.672 1490 0.804 1586 0.924 1674 1.044 1757 1.176 3hp 1250 1395 0.816 1506 0.972 1609 1.116 1704 1.272 1794 1.428 1879 1.596

WPBB10H, Enthalpy Core 2.5mm, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

250 967 0.144 1089 0.204 1198 0.252 1297 0.312 1389 0.384 1474 0.456

500 1118 0.264 1232 0.336 1335 0.42 1430 0.504 1517 0.588 1600 0.672 1hp 750 1263 0.444 1370 0.54 1469 0.648 1559 0.744 1644 0.852 1724 0.96 2hp 1000 1368 0.66 1478 0.78 1575 0.912 1664 1.032 1747 1.164 1826 1.284 3hp 1250 1462 0.912 1568 1.056 1667 1.212 1759 1.368 1845 1.524 1925 1.68

Recovery Plate

www.carnes.com D-34

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB20_T

WPBB20_T

Capacity: 500 - 2,500 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 39” Unit Weight: 475 lbs. Shipping Weight: 525 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 2

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 2

BLOWERS

Qty: 2 Type: forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 2 supply, 2 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

OUTDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Vertical discharge.

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Roof curb (non-fused).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB20_T

Recovery Plate

D-35 www.carnes.com

WPBB20_T

OUTDOOR UNIT Technical Data

36-1/2”

84-3/4”

53-1/2”

56”

42”

EXHAUST

AIR

OUTSIDE

AIR

35-1/4”

19-3/4”

26-1/2”

39”

HEAT

RECOVERY

CORE AND

FILTER

FAN AND

CONTROL BOX

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

14”

43-1/2”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

FACE VIEW

28”

ROOF CURB

10”

2”

10-3/8”

4”

8-7/8”

11-7/8”

TOP VIEW

40-3/8”

6-1/4”

RETURN AIR (OPTIONAL HORIZONTAL CONFIGURATION)

SUPPLY AIR (OPTIONAL

HORIZONTAL CONFIGURATION)

13-1/8”

16-1/4”

8-7/8”

11-1/2”

OPTIONAL DOWNBLAST SUPPLY AIR

OPTIONAL DOWNBLAST RETURN AIR

Recovery Plate

www.carnes.com D-36

CORE PERFORMANCES | WPBB20_T

WPBB20_T

OUTDOOR UNIT Technical Data

tt

Core Performances

WPBB20B Sensible Efficiency Aluminum

Core 4.2mm

WPBB20H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB20_T

Recovery Plate

D-37 www.carnes.com

WPBB20_T

OUTDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB20B, Aluminum Core, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

500 953 0.18 1088 0.252 1205 0.324 1310 0.396 1407 0.48 1497 0.564

1000 1030 0.36 1177 0.468 1306 0.588 1422 0.72 1526 0.84 1619 0.972 1hp 1500 1092 0.624 1220 0.756 1343 0.912 1458 1.068 1566 1.236 1666 1.404 2hp 2000 1224 1.128 1327 1.272 1429 1.44 1528 1.608 1623 1.8 1716 1.992 3hp 2500 1385 1.92 1472 2.088 1556 2.268 1639 2.448 1721 2.64 1802 2.856

WPBB20H, Enthalpy Core 2.5mm, Supply and Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

500 1016 0.204 1142 0.276 1253 0.36 1354 0.432 1448 0.516 1534 0.6

1000 1139 0.444 1272 0.552 1391 0.684 1499 0.804 1593 0.936 1681 1.056 1hp 1500 1225 0.768 1348 0.912 1463 1.08 1570 1.236 1670 1.416 1764 1.584 2hp 2000 1315 1.26 1417 1.416 1516 1.596 1612 1.776 1705 1.968 1796 2.172 3hp 2500 1437 2.016 1522 2.196 1606 2.376 1688 2.556 1770 2.76 1850 2.976

Recovery Plate

www.carnes.com D-38

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB30_T

WPBB30_T

Capacity: 750 - 3,500 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 58-1/2” Unit Weight: 725 lbs. Shipping Weight: 775 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 3

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 3

BLOWERS

Qty: 2 Type: forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 3 supply, 3 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

OUTDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Vertical discharge.

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Roof curb (non-isolated).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB30_T

Recovery Plate

D-39 www.carnes.com

WPBB30_T

OUTDOOR UNIT Technical Data

84-3/4”

53-1/2”

56”

61-1/2”

EXHAUST

AIR

OUTSIDE

AIR

35-1/4”

19-3/4”

37-1/2”

58-1/2”

HEAT

RECOVERY

CORE AND

FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

14”

63”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

FACE VIEW

56”

ROOF CURB

10”

2”

10-3/8”

4”

18-5/8”

11-7/8”

TOP VIEW

40-3/8”

10-3/4”

RETURN AIR (OPTIONAL HORIZONTAL CONFIGURATION)

SUPPLY AIR (OPTIONAL

HORIZONTAL CONFIGURATION)

13-1/8”

27-1/8”

8-7/8”

11-1/2”

47-1/2”

OPTIONAL DOWNBLAST SUPPLY AIR

OPTIONAL DOWNBLAST RETURN AIR

Recovery Plate

www.carnes.com D-40

CORE PERFORMANCES | WPBB30_T

WPBB30_T

OUTDOOR UNIT Technical Data

tt

Core Performances

WPBB30B Sensible Efficiency Aluminum

Core 4.2mm

WPBB30H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB30_T

Recovery Plate

D-41 www.carnes.com

WPBB30_T

OUTDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB30B, Aluminum Core, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

750 965 0.24 1116 0.336 1240 0.432 1350 0.528 1450 0.624 1542 0.72 1hp 1500 1005 0.552 1139 0.672 1265 0.816 1385 0.96 1498 1.128 1603 1.296 2hp

2250 1142 1.224 1244 1.392 1341 1.548 1434 1.716 1525 1.884 1616 2.064 3hp 3000 1359 2.46 1429 2.64 1503 2.844 1579 3.072 1656 3.288 1729 3.504 5hp 3500 1538 3.744 1595 3.948 1655 4.152 1717 4.38 1782 4.632 1848 4.896

WPBB30H, Enthalpy Core 2.5mm, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

750 1035 0.288 1173 0.372 1290 0.468 1395 0.564 1491 0.672 1580 0.768 1hp 1500 1103 0.636 1231 0.768 1353 0.924 1467 1.08 1574 1.248 1674 1.416 2hp

2250 1248 1.404 1344 1.56 1438 1.716 1529 1.884 1619 2.076 1707 2.268 3hp 3000 1420 2.616 1494 2.82 1570 3.036 1647 3.264 1720 3.48 1792 3.684 5hp 3500 1572 3.864 1631 4.068 1692 4.284 1756 4.536 1822 4.788 na na

Recovery Plate

www.carnes.com D-42

COMMERCIAL RECOVERY PLATE - BELT DRIVE | WPBB40_T

WPBB40_T

Capacity: 1,000 - 4,500 CFM

AHRI 1060 CERTIFIED

CASING

Double wall cabinet Configuration: horizontal discharge Material: galvanized 22 ga Insulation: 1” fiberglass Access door with 1/4 turn handle Height: 40-3/8” Width: 56” Depth: 78” Unit Weight: 925 lbs. Shipping Weight: 975 lbs. Mounting: platform or suspended

PLATE EXCHANGER

• Aluminum (sensible only heat transfer) Dimensions: 19-3/8” x 19-3/8” x 19-3/8” Pitch: 4.2mm Qty: 4

• Enthalpy (sensible and latent heat transfer) Dimensions: 21” x 21” x 19-3/8” Pitch: 2.5mm Qty: 4

BLOWERS

Qty: 2 Type: twin, forward curved, ball bearings, belt drive with adjustable pulleys Diameter: 9” Width: 9” Shaft: 1” Motor: ODP, 1725 rpm, inverter duty 10:1

FILTERS

Qty: 4 supply, 4 exhaust Efficiency: MERV 7 Dimensions: 20” x 20” x 2”

OUTDOOR UNIT Technical Data

FROST CONTROL

For outside temperatures below 23°F, frost control is required. Available options:

• Exhaust only defrost, drain pan connections 1 in NPT, comes with isolated and motorized insulated damper on fresh air intake).

• Preheat coil (3 sizes available).

OPTIONS

• Vertical discharge.

• Prepainted 22 ga outside finish.

• 115V/1ph/60Hz, 208V/1ph/60Hz, 208V/3ph/60Hz, 230V/1ph/60Hz, 230V/3ph/60Hz, 460V/3ph/60Hz, 575V/3ph/60Hz.

• 24 Volt contactors for motors (single or double) with start/stop dry contact.

• 24 Volt transformer for controls.

• Disconnect (fused or non-fused).

• Roof curb (fused or non-fused).

• Electrical protection.

• ETL certification.

WARRANTY

Core — limited ten-year warranty. All other covered components — limited twoyear warranty.

DIMENSIONS | WPBB40_T

Recovery Plate

D-43 www.carnes.com

WPBB40_T

OUTDOOR UNIT Technical Data

84-3/4”

53-1/2”

56”

81”

EXHAUST

AIR

OUTSIDE

AIR

35-1/4”

19-3/4”

48”

78”

HEAT

RECOVERY

CORE AND

FILTER

FANS AND

CONTROL

PANEL

OPTIONAL DRAIN CONNECTION UNDER UNIT (1” NPT)

14”

82-1/2”

RIGHT VIEW

LEFT VIEW

TOP VIEW

FRONT VIEW

13-1/2”

6”

tt

Dimensions

FACE VIEW

67”

ROOF CURB

10”

2”

10-3/8”

4”

21-1/4”

TOP VIEW

40-3/8”

RETURN AIR (OPTIONAL HORIZONTAL CONFIGURATION)

SUPPLY AIR (OPTIONAL

HORIZONTAL CONFIGURATION)

22”

8-7/8”

11-1/2”

75-1/2”

33”

34”

OPTIONAL DOWNBLAST SUPPLY AIR

OPTIONAL DOWNBLAST RETURN AIR

Recovery Plate

www.carnes.com D-44

CORE PERFORMANCES | WPBB40_T

WPBB40_T

OUTDOOR UNIT Technical Data

tt

Core Performances

WPBB40B Sensible Efficiency Aluminum

Core 4.2mm

WPBB40H Efficiency Enthalpy Core 2.5mm

AHRI 1060 Standard Conditions

Conditions

Heating Cooling

Outside Air Conditions

Dry Bulb 35°F (1.7°C) 95°F (35°C)

Wet Bulb 33°F (0.6°C) 78°F (26°C)

Exhaust Air Conditions

Dry Bulb 70°F (21°C) 75°F (24°C)

Wet Bulb 58°F (14°C) 63°F (17°C)

Note: The efficiency are based on AHRI standard conditions.

AIR FLOW PERFORMANCE CHARTS | WPBB40_T

Recovery Plate

D-45 www.carnes.com

WPBB40_T

OUTDOOR UNIT Technical Data

tt

Air Flow Performance Charts

WPBB40B, Aluminum Core, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

1000 953 0.36 1088 0.492 1205 0.636 1310 0.792 1407 0.96 1497 1.128 1hp 2000 1030 0.708 1177 0.936 1306 1.188 1422 1.428 1526 1.692 1619 1.932 2hp

3000 1092 1.248 1220 1.524 1343 1.824 1458 2.136 1566 2.46 1666 2.808 3hp 4000 1224 2.268 1327 2.556 1429 2.88 1528 3.228 1623 3.588 1716 3.984 5hp 4500 1333 3.072 1427 3.396 1518 3.732 1609 4.104 1697 4.488 1783 4.896

WPBB40H, Enthalpy Core 2.5mm, Supply or Exhaust

External Static Pressure (in H2O)

ESP 0.25 ESP 0.5 ESP 0.75 ESP 1 ESP 1.25 ESP 1.5

CFM RPM HP RPM HP RPM HP RPM HP RPM HP RPM HP

3/4hp

1000 1016 0.42 1142 0.564 1253 0.708 1354 0.864 1448 1.032 1534 1.2 1hp 2000 1139 0.876 1272 1.116 1391 1.368 1499 1.62 1593 1.86 1681 2.112 2hp

3000 1225 1.536 1348 1.836 1463 2.148 1570 2.484 1670 2.82 1764 3.168 3hp 4000 1315 2.52 1417 2.832 1516 3.18 1612 3.552 1705 3.936 1796 4.332 5hp 4500 1390 3.264 1482 3.588 1573 3.948 1662 4.332 1749 4.728 na na

Recovery Plate

www.carnes.com D-46

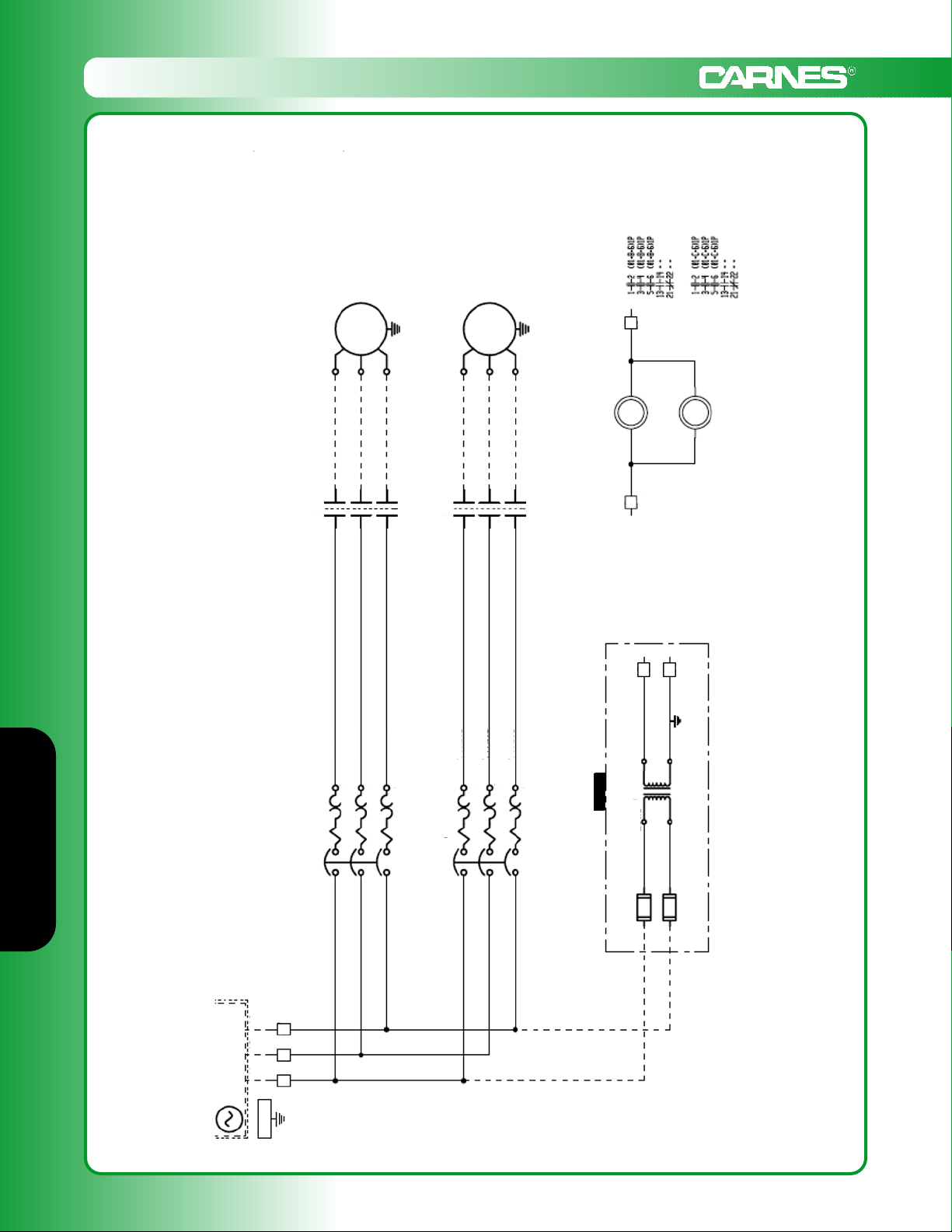

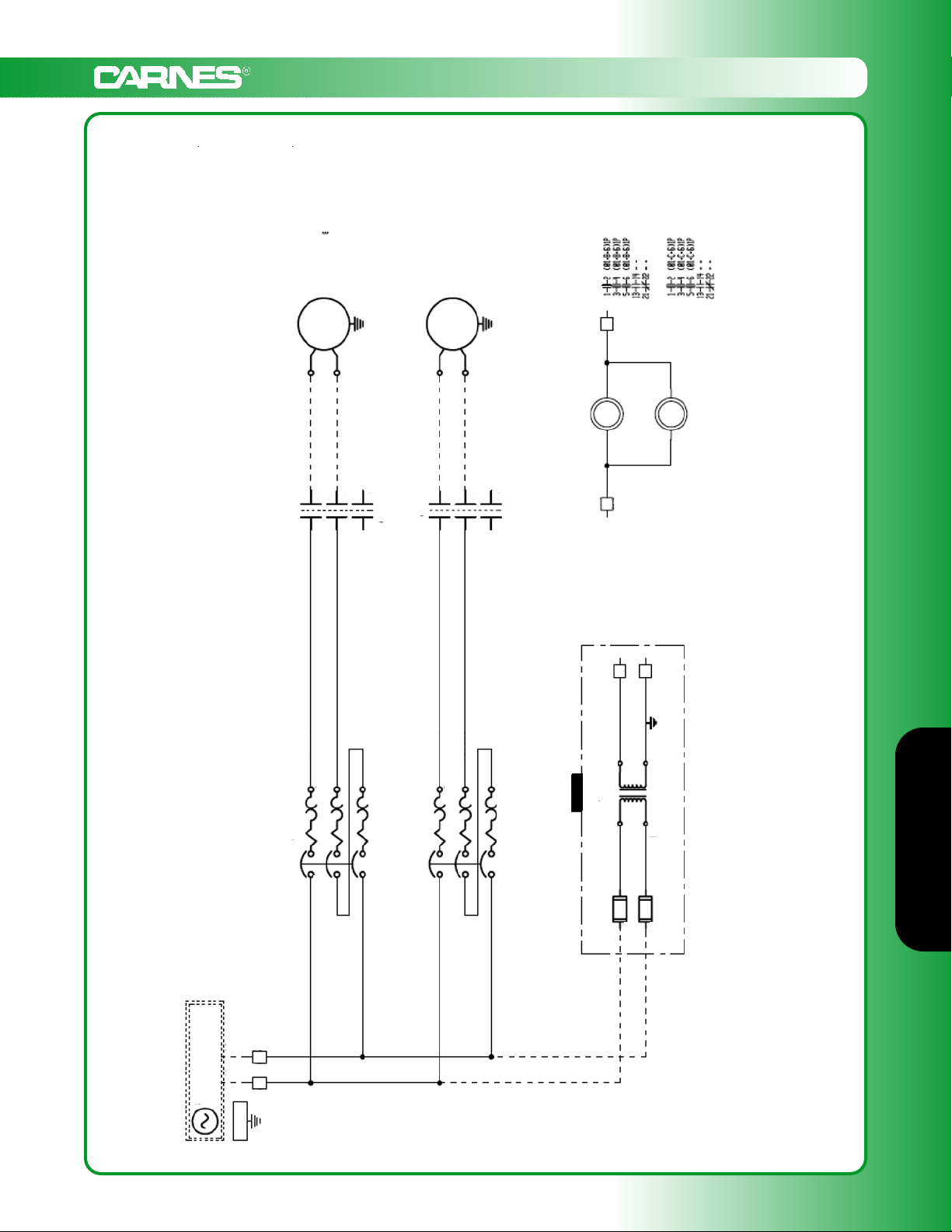

WIRING DIAGRAM | Single Phase

BLOWER SUPPLY

BLOWER EXHAUST

240 VAC

M1

M2

C1

C2

1

2

3

4

5

6

1

2

3 4

5 6

(01-E-7)

(01-F-7)

10 AWG

1

2

34

5

6

1

2

3

4

5

6

OL1

OL2

24-32A

L1

L2

SUPPLY / 125 AMP MAX

240V / 3PH / 60Hz

1

2

3 4

FU1

TX1

C1

C2

A1

A2

LC1D09G7

H1

X1

X2H2

240 VAC

24 VAC

60VA

OPTION

L1

L2

PE

TB1

GRB

2

TB1

GRB

1

TB1

GRB

3

TB1

GRB

4

WIRING DIAGRAM | Three Phase

Recovery Plate

D-47 www.carnes.com

BLOWER SUPPLY

BLOWER EXHAUST

600 VAC

M1

M2

T1

T2

T3

T1

T2

T3

C1

C2

1

2

3 4

5 6

1 2

3 4

5

6

(01-E-7)

(01-F-7)

14 AWG

1

2

3 4

5 6

1

2

345

6

OL1

OL2

463A

L1

L2

L3

SUPPLY / 125 AMP MAX

600V / 3PH / 60Hz

1

2

3

4

FU1

TX1

C1

C2

A1

A2

LC1D09G7

H1

X1

X2

H2

600 VAC

24 VAC

60VA

OPTION

L1

L2

PE

TB1

GRB

2

TB1

GRB

1

TB1

GRB

3

TB1

GRB

4

L3

TB1

GRB

Recovery Plate

www.carnes.com D-48

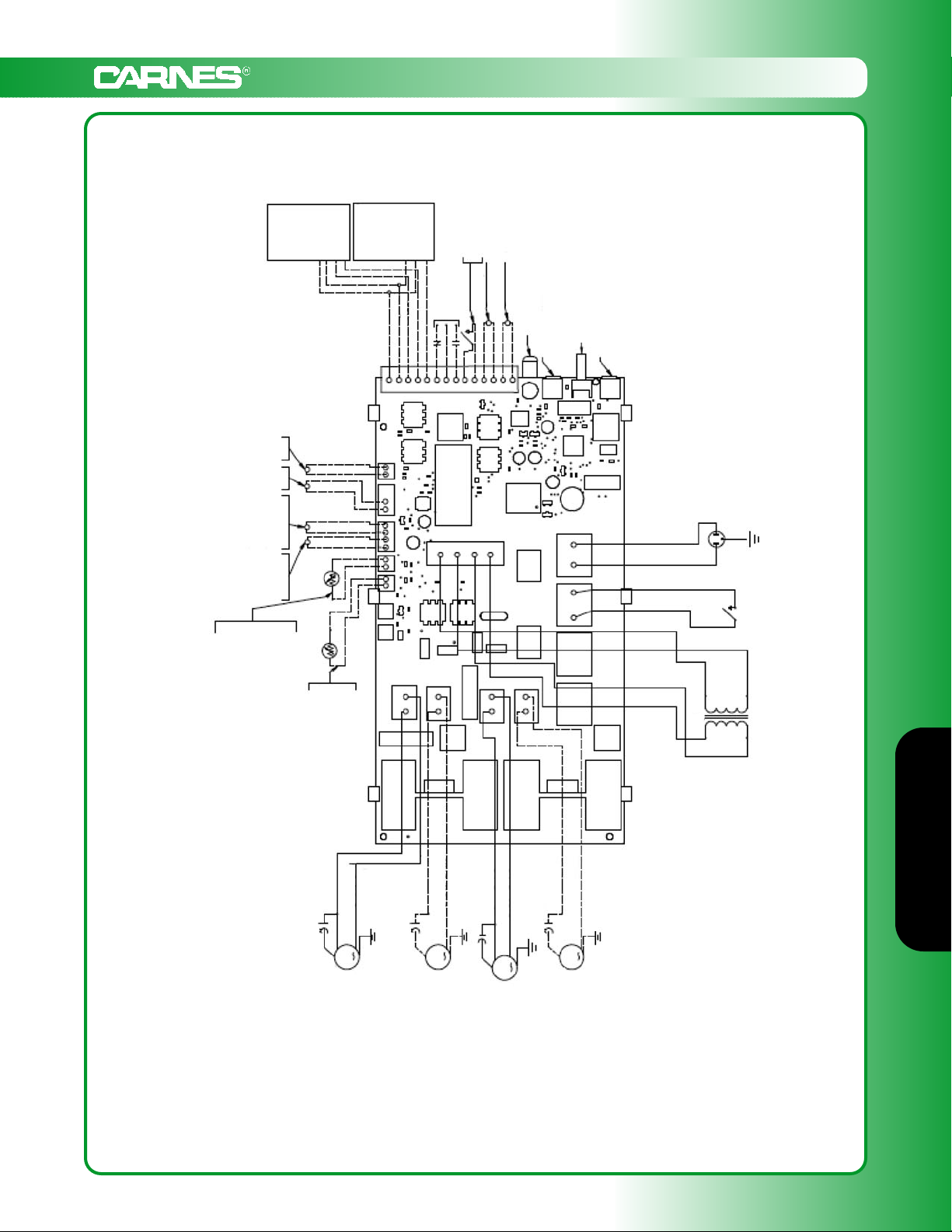

WIRING DIAGRAM - LIGHT COMMERCIAL | WPDB 07, 11

BLACK

BLUE

GREEN

FAN OUT

(1100 SERIES)

FAN OUT

FAN IN

(1100 SERIES)

FAN IN

DOOR

SWITCH

120V

24V

TEMPERATURE

SENSOR #2 (OPT)

TEMPERATURE SENSOR #1

DAMPER BYPASS (OPT)

DAMPER BYPASS (0-10V)

DAMPER #1 (OPT)

DAMPER #4 (OPT)

BLACK

GREEN

WHITE

RED

WALL

CONTROL

611227

611229

611230

TIMER

611228

FAN INTERLOCK

OCCUPENCY CONTROL

DAMPER #1

DAMPER #4

LED

FAN OUT

ADJUSTMENT

FAN OUT

ADJUSTMENT

MODE

N

BROWN

Recovery Plate

www.carnes.com D-49

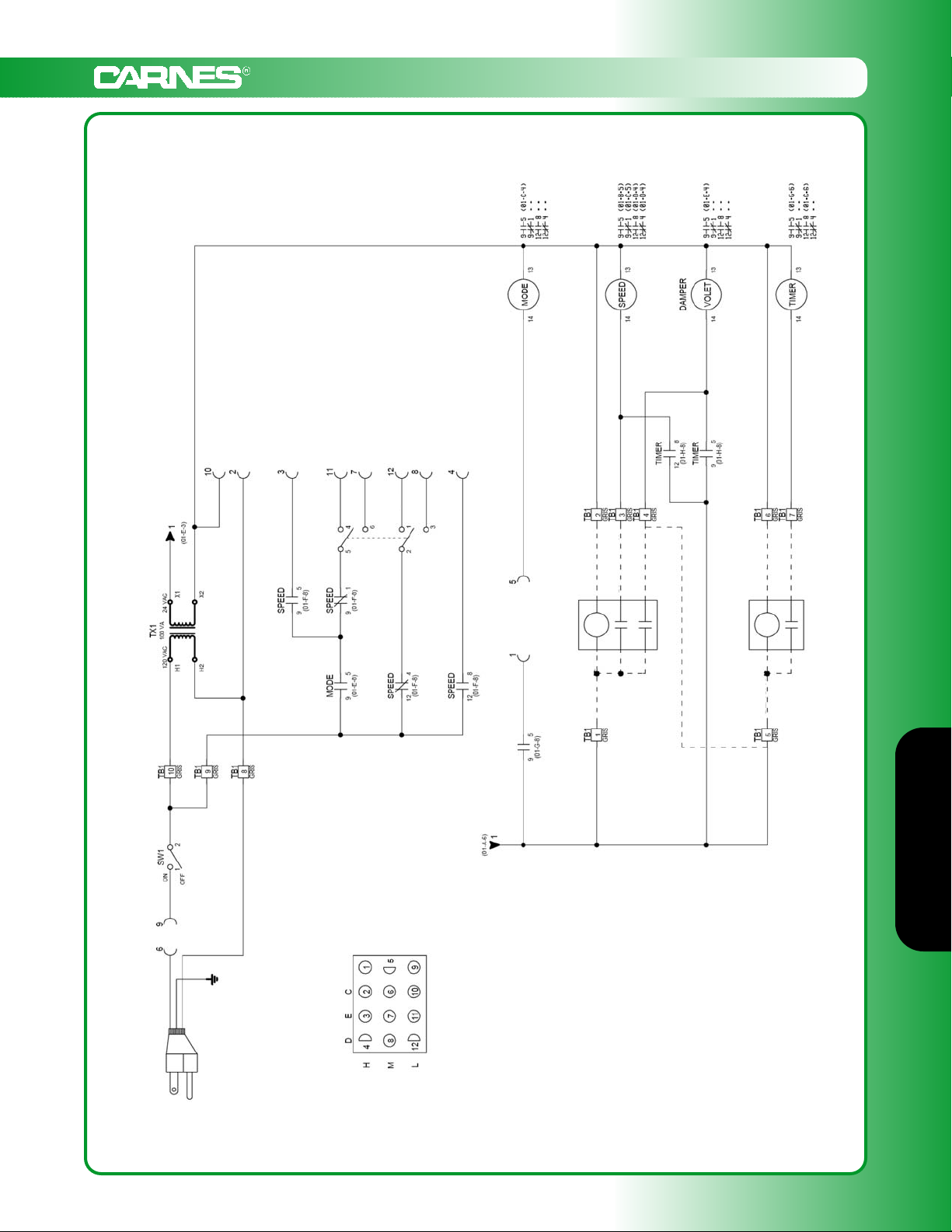

ELECTRICAL DIAGRAM | WPDB 115 V

NEUTRAL 24 VAC

HIGH SPEED

HUMIDISTAT

SUPPLY AIR

DAMPER

MANUAL SWITCH

GREEN

WHITE

RED

BLACK

CONNECTOR

NEUTRAL 120 VAC

HIGH SPEED

LOW SPEED

MEDIUM SPEED

LOW SPEED

MEDIUM SPEED

BLACK

GREEN

WHITE

TIMER

LOW

OFF

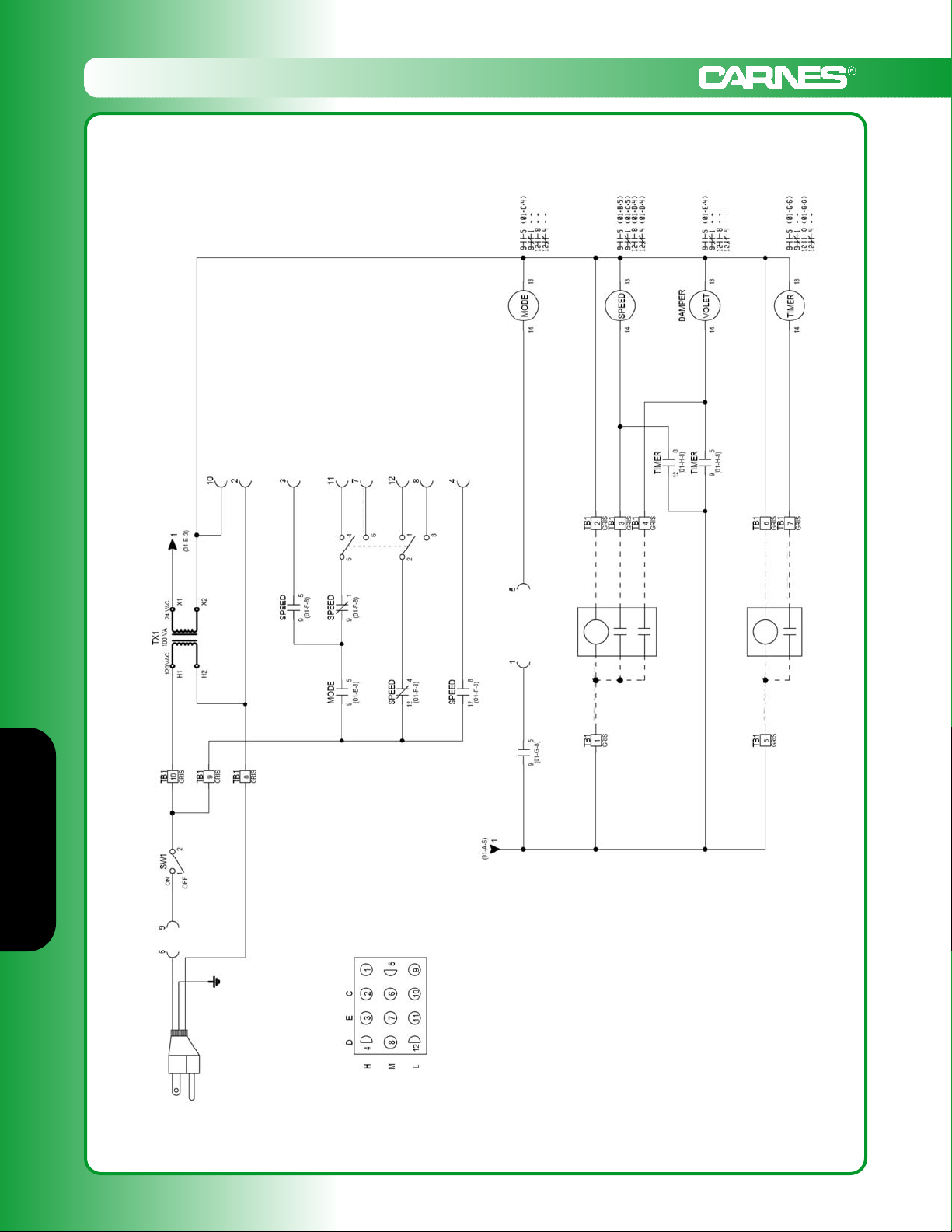

ELECTRICAL DIAGRAM | WPDB 115 V Recirculation Defrost

Recovery Plate

D-50 www.carnes.com

NEUTRAL 24 VAC

HIGH SPEED

HUMIDISTAT

SUPPLY AIR

DAMPER

MANUAL SWITCH

GREEN

WHITE

RED

BLACK

CONNECTOR

NEUTRAL 120 VAC

HIGH SPEED

LOW SPEED

MEDIUM SPEED

LOW SPEED

MEDIUM SPEED

BLACK

GREEN

WHITE

TIMER

LOW

OFF

Recovery Plate

www.carnes.com D-51

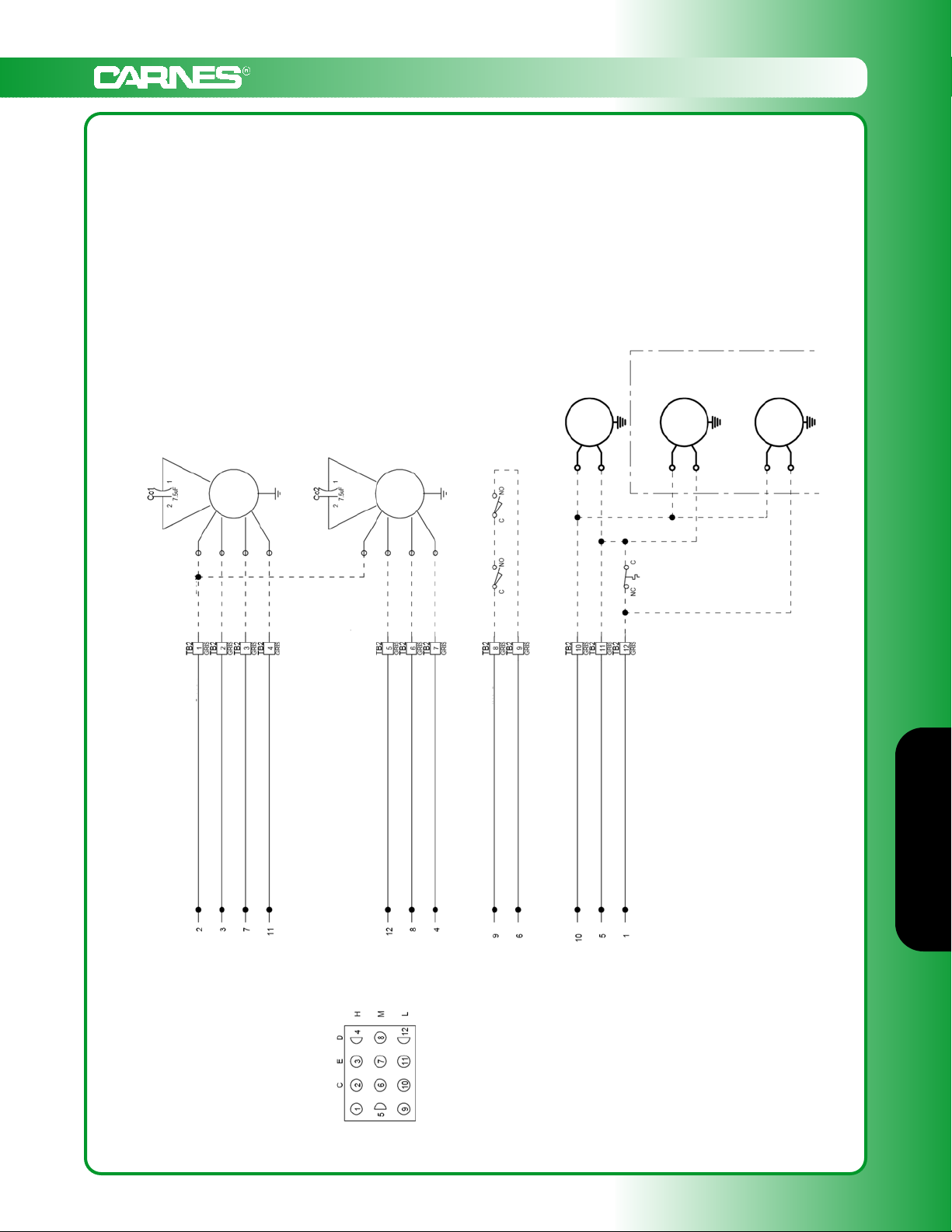

ELECTRICAL DIAGRAM | WPDB 230 V

DISTRIBUTION

M1

M2

EXHAUST

M3

M5

M4

AUXILIARY DAMPERS WIRING

(MAX 20 VA, 24 VAC)

SUPPLY AIR DAMPER

AUXILIARY SUPPLY AIR DAMPER

AUXILIARY EXHAUST AIR DAMPER

DOOR SWITCH

CAPACITOR

GREEN

WHITE

RED

BLUE

BLACK

PLUG

C 115 V

EL

EM

EH

DH

DM

DL

INT OUT

INT IN

B24

VOL TH

R24

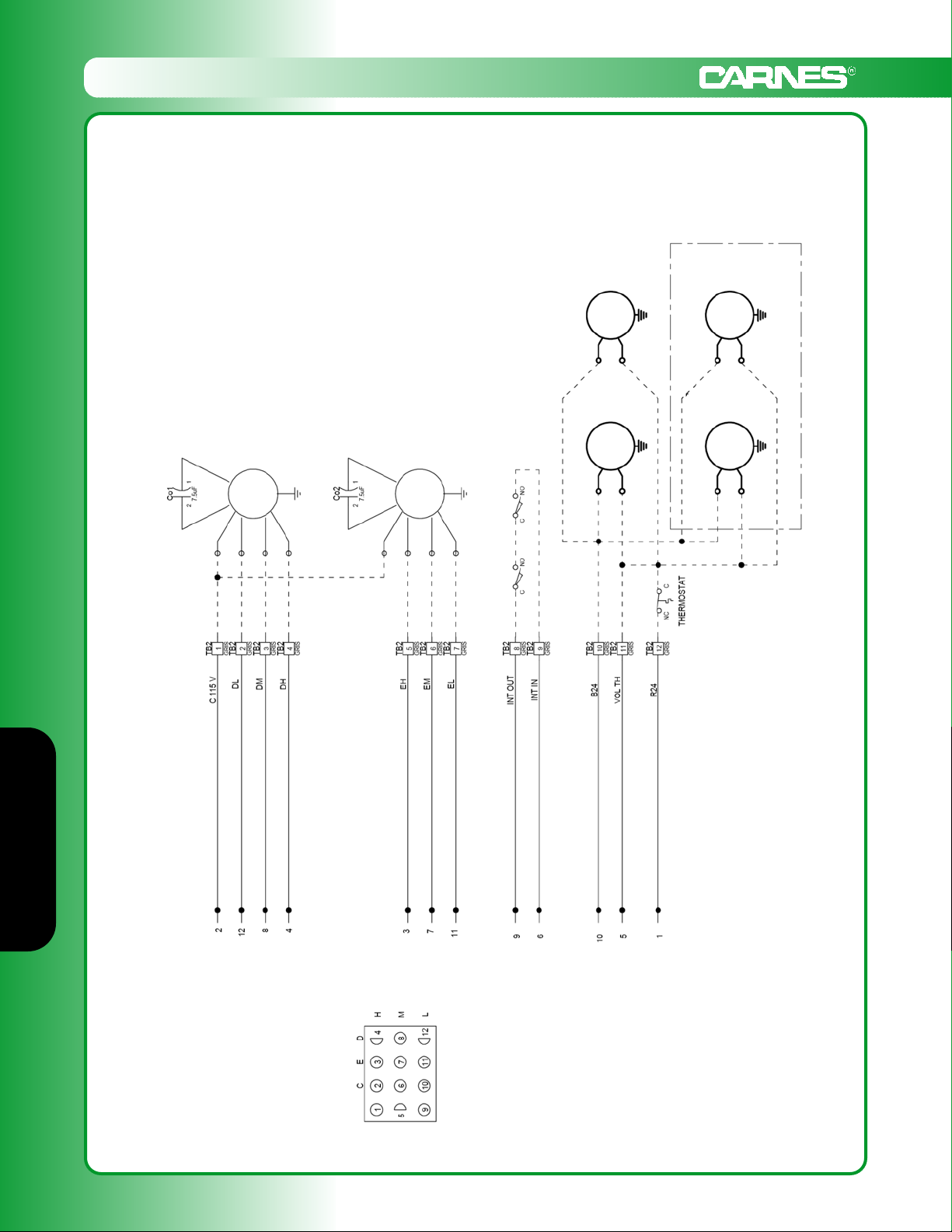

ELECTRICAL DIAGRAM | WPDB230 V Recirculation Defrost

Recovery Plate

D-52 www.carnes.com

DISTRIBUTION

M1

M2

EXHAUST

M3

M5

M4

M6

AUXILIARY

DAMPERS WIRING

(MAX 20 VA, 24 VAC)

RECIRCULATING

AIR DAMPER

SUPPLY AIR DAMPER

AUXILIARY SUPPLY AIR DAMPER

DOOR SWITCH

CAPACITOR

GREEN

WHITE

RED

BLUE

BLACK

PLUG

AUXILIARY EXHAUST AIR DAMPER

Recovery Plate

www.carnes.com D-52

ORDERING INFORMATION | Commercial Plate Type

Design Motor Drive Motor Drive Unit Motor

Model Series Unit Size Type Duct HP Range HP Range Volt. Type Listing OPTIONS

1 2 3 4 5 6 7 8 910 111213141516 1718

W C C A 0 6 N H S 1 S 1 G

1 N

W - Energy

Recovery

N - Nonlisted (Default) E - ETL Listed

1 2 3 4 5 6

C - Plate Type,

Commercial Design

B - Sensible Only, Aluminum Core C - Enthalpy Core D - Sensible Only, Polypropylene Core G - High Efficiency Enthalpy Core H - AHRI 1060 Certified Enthalpy Core

UNIT SIZE

20 30 50

N - Indoor T - Outdoor

H - Horizontal V - Vertical (Outdoor Only)

R - 3/4 HP S -1 HP T - 1-1/2 HP V -2 HP W -3 HP X -5 HP

ENERGY RECOVERY VENTILATOR — COMMERCIAL PLATE TYPE

Supply Fan

Exhaust Fan

A - 115V, 1 Ph B - 208V, 1 Ph C - 208V, 3 Ph D - 230V, 1 Ph E - 230V, 3 Ph G - 460V, 3 Ph H - 575V, 3 Ph

1 2 3 4 5 6

R - 3/4 HP S -1 HP T - 1-1/2 HP V -2 HP W -3 HP X -5 HP

R - Recirculation Defrost B - Bypass Defrost P - Preheat Defrost E - Exhaust Only Defrost

F - Filter Switches A - Air Flow Switches S - Filter Switch and

Air Flow Switch

1 - ODP 3 - 2-speed 4 - VFD

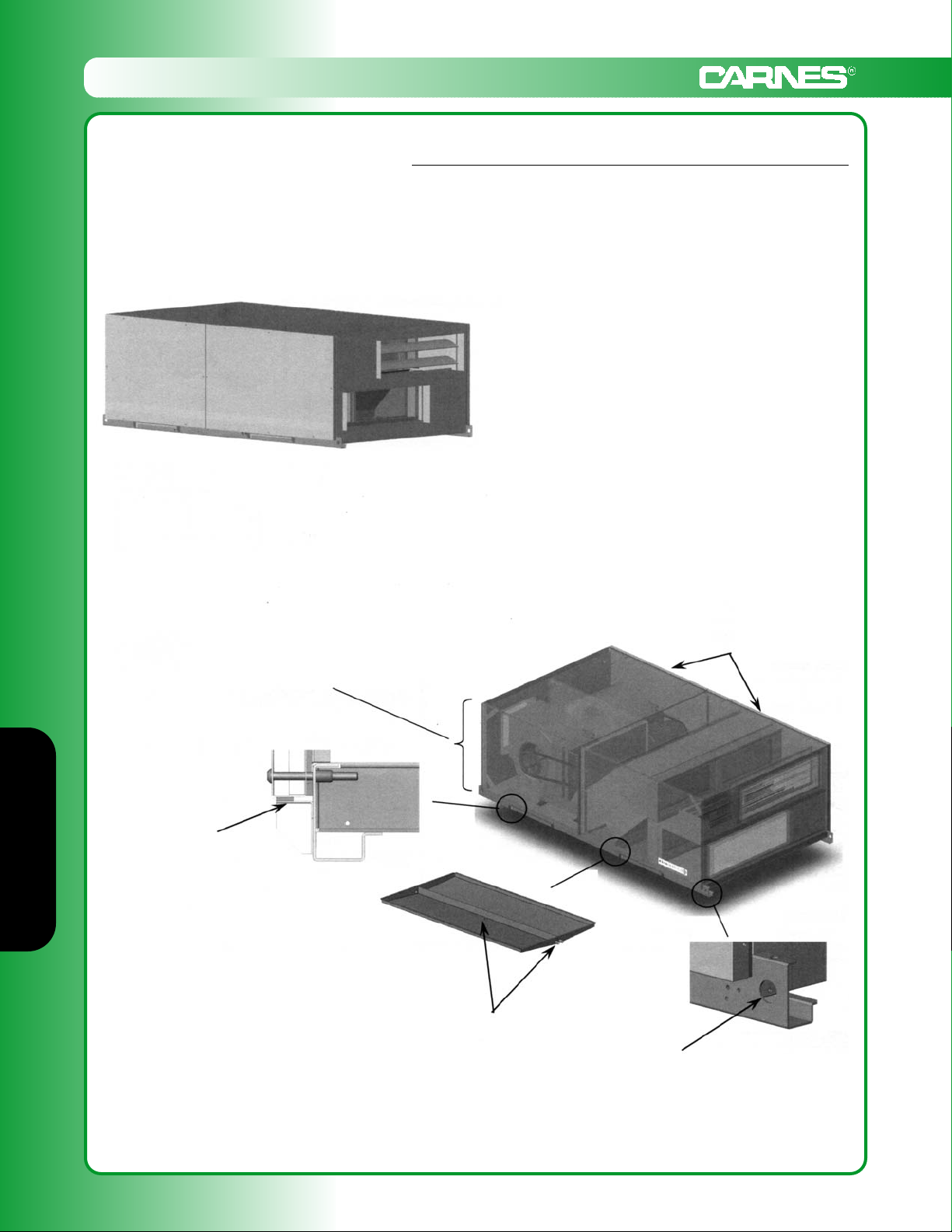

PLATE EXCHANGER | WC_AN

Recovery Plate

D-54 www.carnes.com

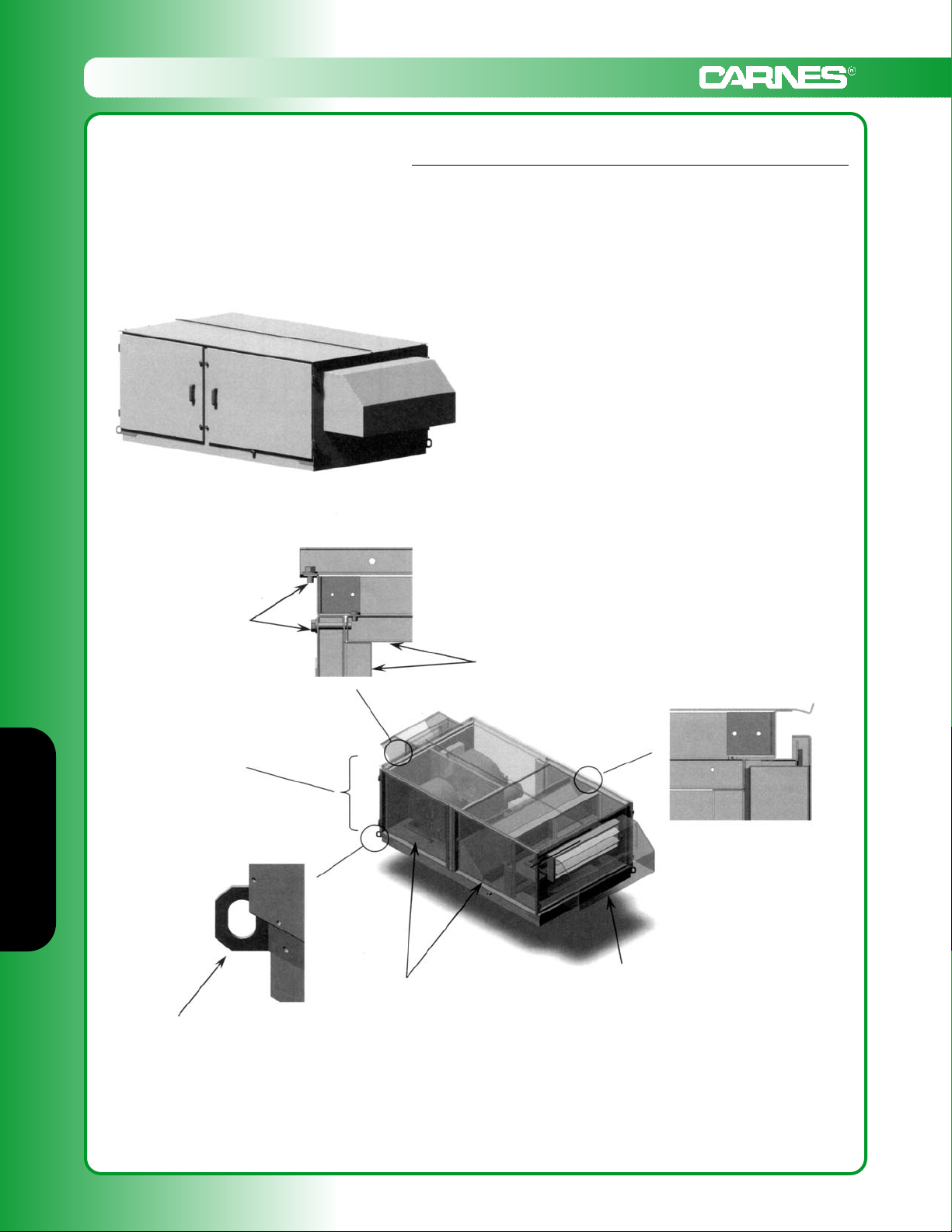

The WC_AN SERIES is a heat recovery ventilator with a choice of polypropylene, aluminum or enthalpy core for indoor installation. Four standard models are available to meet your needs from 400 CFM to 5500 CFM. All incorporate flat plate heat exchangers designed to transfer energy between the exhaust and the fresh air streams.

The aluminum plate exchanger is made from embossed aluminum plates increasing air turbulence inside the heat exchanger for maximum sensible heat transfer, ideal for applications that must meet the NFPA-90A requirement.

The polypropylene is the most cost effective way to recover sensible heat in a corrosive environment.

The enthalpy plate exchanger is the alternative solution to total energy recovery with less maintenance cost from a stationary core.

H

EAT RECOVERY VENTILATION WITH PLATE EXCHANGER

FOR INDOOR INSTALLATION

Low profile unit

• Compact installation

• Easy access thru standard door

Door holder

• Easy door installation

Sloped drain pan

• Prevent microbial growth

• Side or bottom connection

Unit rigging hole

• Easy unit installation

Large access door

• Facility of maintenance

WC_AN

INDOOR Commercial Series

Recovery Plate

www.carnes.com D-54

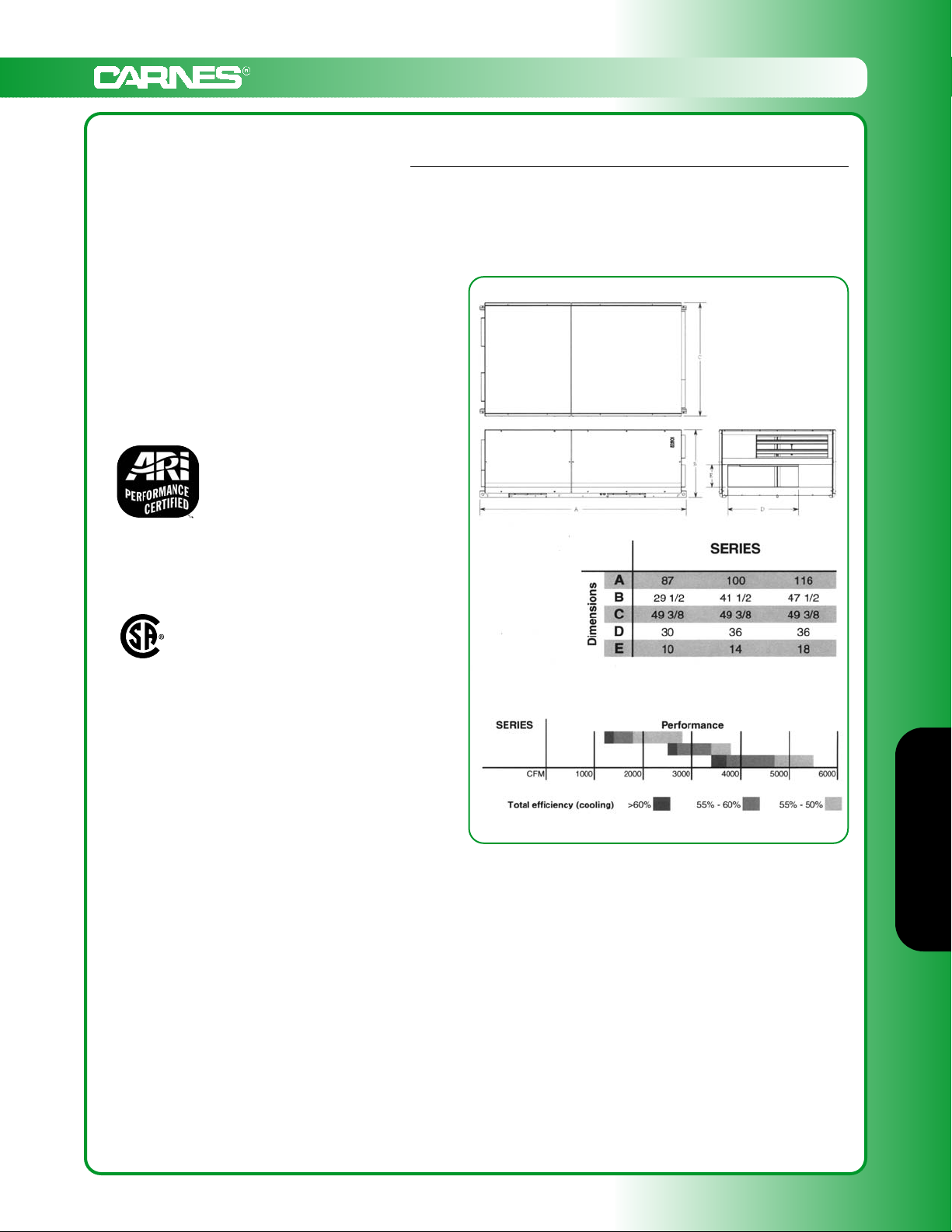

STANDARD FEATURES | WC_AN

tt

Standard Features

CASING

• Material: Pre-painted steel 22 ga (outside) Galvanized steel 26 ga (inside)

• Insulation: Aluminum faced fiberglass, 1”

• Damper: Motorized and insulated

• Pre-filter: 4” MERV 7 (35%) on both airstreams

PLATE EXCHANGER

• Material: Polypropylene, sensible recovery

• Corrosion resistant

•

CONTROLS

• Multiple voltages available

• Occupancy control capability

• Access door integrated circuit disconnect

• Certification

tt

Options

PLATE EXCHANGER OPTIONS

• Embossed aluminum plate for maximum sensible

recovery

• Enthalpy plate exchanger

CASING OPTIONS

• Construction: double wall

• 2 inch wall

• Different frost strategies available

 Recirculation  By-pass

• Post conditioning heating and cooling options

CONTROLS OPTIONS

• LCD electronic wall control

• Two speed and variable speed fans

• Back Net compatible microprocessor

• Dirty filter indicators

• Air flow switches

• Smoke detector alarm

•CO2detector

WARRANTY

• Core assembly — Limited ten year warranty

• All other covered components — Limited two year

warranty

HEAT RECOVERY VENTILATION WITH PLATE EXCHANGER

FOR

I

NDOOR INSTALLATION

WC_AN

INDOOR Commercial Series

WC_A20N WC_A30N WC_A50N

WC_A20N

WC_A30N

WC_A50N

PLATE EXCHANGER | WC_AT

Recovery Plate

D-56 www.carnes.com

The WC_AT SERIES is a heat recovery ventilator with a choice of polypropylene, aluminum, or enthalpy core for outdoor installation. Four standard models are available to meet your needs from 400 CFM to 5500 CFM. All incorporate flat plate heat exchangers designed to transfer energy between the exhaust and the fresh air streams.

The aluminum plate exchanger is made from embossed aluminum plates increasing air turbulence inside the heat exchanger for maximum sensible heat transfer, ideal for applications that must meet the NFPA-90A requirement.

The polypropylene is the most cost effective way to recover sensible heat in a corrosive environments.

The enthalpy plate exchanger is the alternative solution to total energy recovery with less maintenance cost from a stationary core.

H

EAT RECOVERY VENTILATION WITH PLATE EXCHANGER

FOR OUTDOOR INSTALLATION

No through screw hole conception

• Eliminates water leakage

• Easy to clean interior

Low profile unit

• Compact installation

• Easy access thru standard door

Unit rigging hole

• Easy unit installation

Large access door

• Ease of maintenance

Double wall construction

• 26ga galv steel

• Easy to clean

• Prevents microbial growth

Double sealed access door

• Prevent water infiltration

Oversized outdoor hood with synthetic filter

• Low air velocity to prevent moisture/snow infiltration

• Bird and insect protection

WC_AT

OUTDOOR Commercial Series

Recovery Plate

www.carnes.com D-56

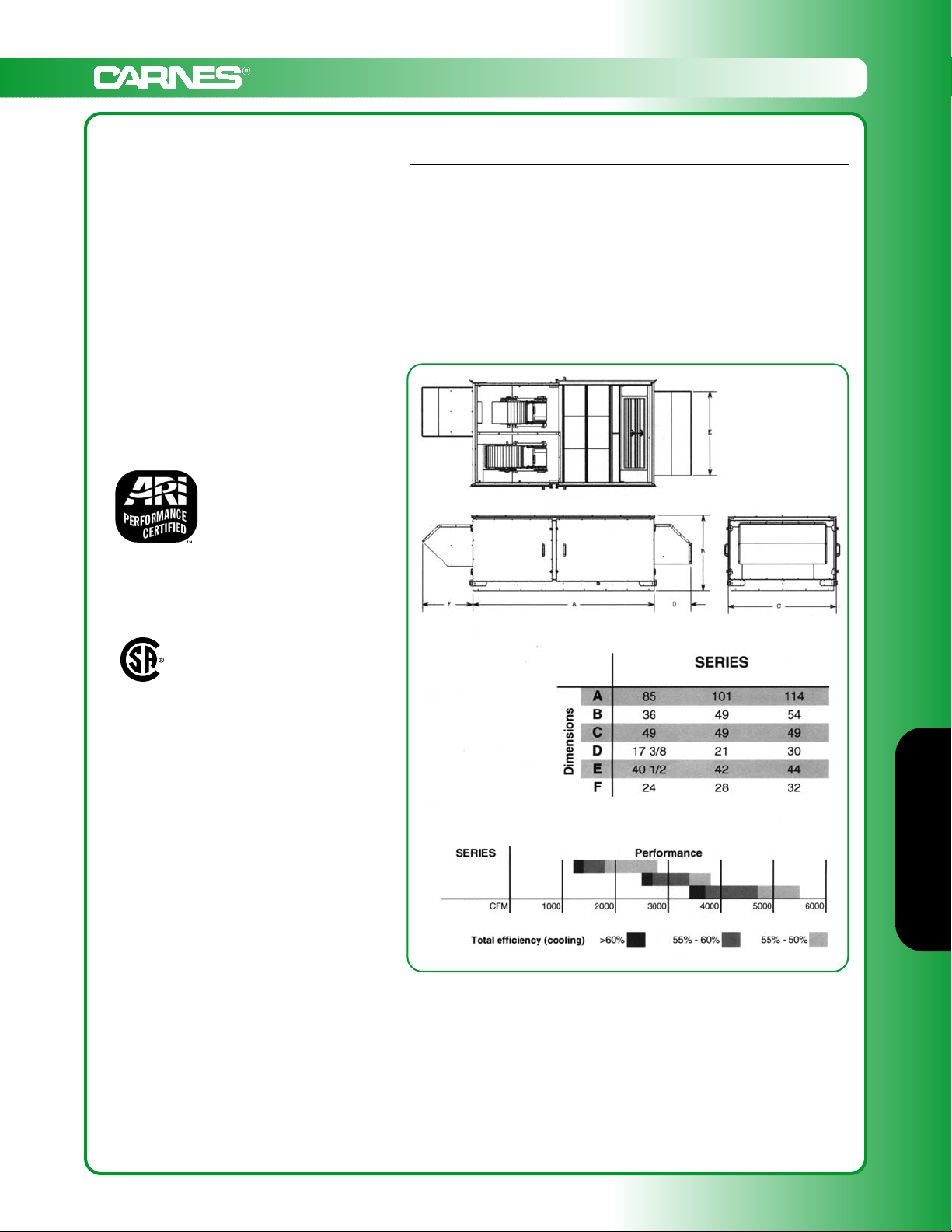

STANDARD FEATURES | WC_AT

tt

Standard Features

CASING

• Material: Pre-painted steel 20 ga (outside) Galvanized steel 26 ga (inside)

• Construction: double wall

• Insulation: Fiberglass, 2”

• Damper: Motorized and insulated

• Pre-filter: 4” MERV 7 (35%) on both airstreams

PLATE EXCHANGER

• Material: Polypropylene

• Corrosion resistant

•

CONTROLS

• Multiple voltages available

• Occupancy control capability

• Access door integrated circuit disconnect

• Certification

tt

Options

PLATE EXCHANGER OPTIONS

• Embossed aluminum plate for maximum

sensible recovery

• Enthalpy plate exchanger

CASING OPTIONS

• Different frost strategies available

 Recirculation  By-pass

• Post conditioning heating and cooling options

CONTROLS OPTIONS

• LCD electronic wall control

• Two speed and variable speed fans

• Back Net compatible microprocessor

• Dirty filter indicators

• Air flow switches

• Smoke detector alarm

•CO2detector

WARRANTY

• Core assembly — Limited ten year warranty

• All other covered components — Limited two

year warranty

HEAT RECOVERY VENTILATION WITH PLATE EXCHANGER

FOR

OUTDOOR INSTALLATION

WC_AT

OUTDOOR Commercial Series

WC_A20T WC_A30T WC_A50T

WC_A20T

WC_A30T

WC_A50T
