Imperial [IP] Dimensions

Listed in Inches

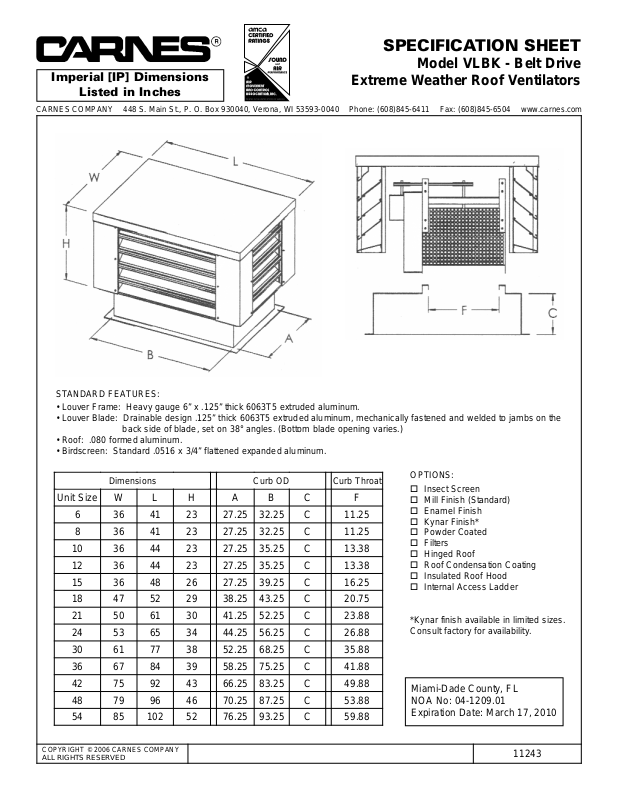

SPECIFICATION SHEET

Model VLBK - Belt Drive

Extreme Weather Roof Ventilators

Curb Throat

Unit Size W L H A B C F

6 36 41 23 27.25 32.25 C 11.25

8 36 41 23 27.25 32.25 C 11.25
10 36 44 23 27.25 35.25 C 13.38
12 36 44 23 27.25 35.25 C 13.38
15 36 48 26 27.25 39.25 C 16.25
18 47 52 29 38.25 43.25 C 20.75
21 50 61 30 41.25 52.25 C 23.88
24 53 65 34 44.25 56.25 C 26.88
30 61 77 38 52.25 68.25 C 35.88
36 67 84 39 58.25 75.25 C 41.88
42 75 92 43 66.25 83.25 C 49.88
48 79 96 46 70.25 87.25 C 53.88
54 85 102 52 76.25 93.25 C 59.88

STANDARD FEATURES:

• Louver Frame: Heavy gauge 6” x .125” thick 6063T5 extruded aluminum.

• Louver Blade: Drainable design .125” thick 6063T5 extruded aluminum, mechanically fastened and welded to jambs on the
back side of blade, set on 38° angles. (Bottom blade opening varies.)

• Roof: .080 formed aluminum.

• Birdscreen: Standard .0516 x 3/4” flattened expanded aluminum.

Dimensions

Curb OD

OPTIONS:

 Insect Screen
 Mill Finish (Standard)
 Enamel Finish
 Kynar Finish*
 Powder Coated
 Filters
 Hinged Roof
 Roof Condensation Coating
 Insulated Roof Hood
 Internal Access Ladder

*Kynar finish available in limited sizes.
Consult factory for availability.

Miami-Dade County, FL
NOA No: 04-1209.01
Expiration Date: March 17, 2010
