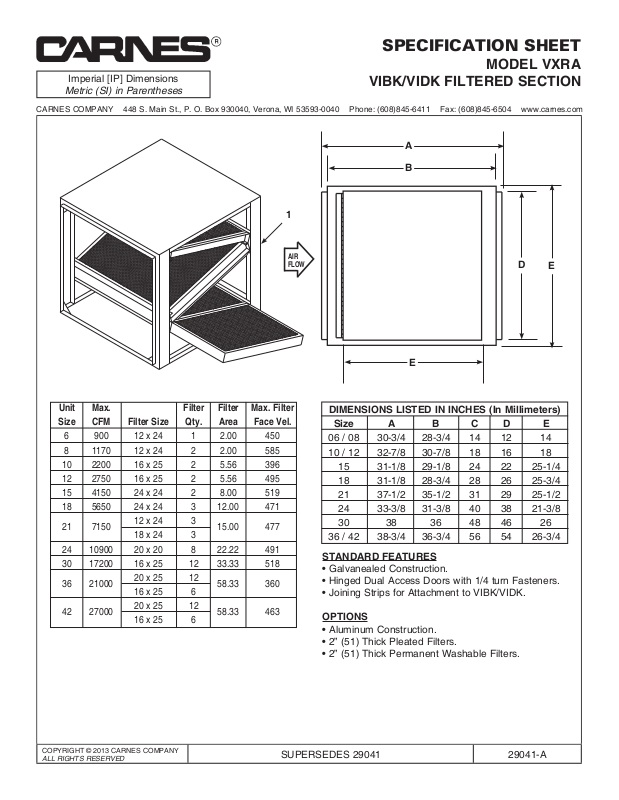

SPECIFICATION SHEET
MODEL VXRA
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
1
AIR
FLOW
VIBK/VIDK FILTERED SECTION
A
B
D
E
Unit Max. Filter Filter Max. Filter
Size CFM Filter Size Qty. Area Face Vel.
6 900 12 x 24 1 2.00 450
8 1170 12 x 24 2 2.00 585
10 2200 16 x 25 2 5.56 396
12 2750 16 x 25 2 5.56 495
15 4150 24 x 24 2 8.00 519
18 5650 24 x 24 3 12.00 471
21 7150
18 x 24 3
24 10900 20 x 20 8 22.22 491
30 17200 16 x 25 12 33.33 518
36 21000
16 x 25 6
42 27000
16 x 25 6
12 x 24 3
20 x 25 12
20 x 25 12
15.00 477
58.33 360
58.33 463
E
DIMENSIONS LISTED IN INCHES (In Millimeters)
Size A B C D E
06 / 08 30-3/4 28-3/4 14 12 14
10 / 12 32-7/8 30-7/8 18 16 18
15 31-1/8 29-1/8 24 22 25-1/4
18 31-1/8 28-3/4 28 26 25-3/4
21 37-1/2 35-1/2 31 29 25-1/2
24 33-3/8 31-3/8 40 38 21-3/8
30 38 36 48 46 26
36 / 42 38-3/4 36-3/4 56 54 26-3/4
STANDARD FEATURES
• Galvanealed Construction.
• Hinged Dual Access Doors with 1/4 turn Fasteners.
• Joining Strips for Attachment to VIBK/VIDK.
OPTIONS
• Aluminum Construction.
• 2” (51) Thick Pleated Filters.
• 2” (51) Thick Permanent Washable Filters.
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 29041 29041-A
