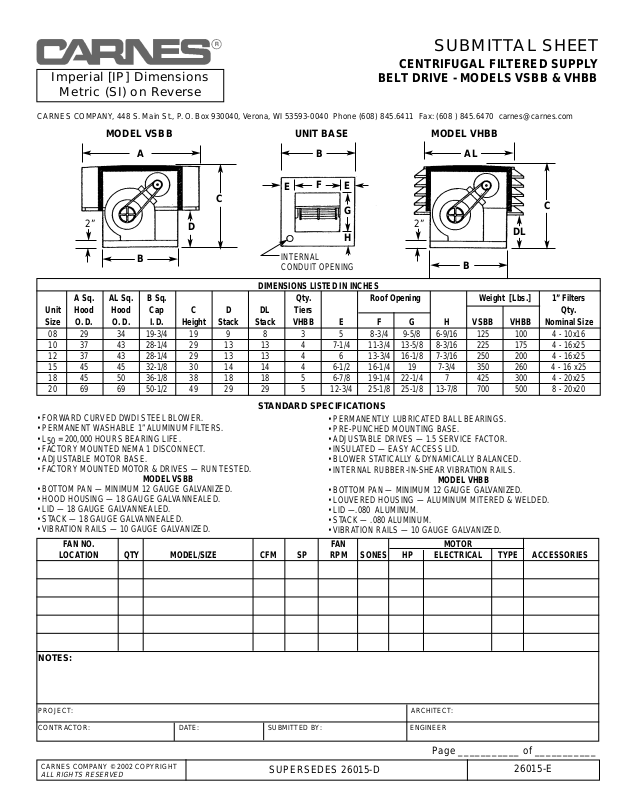

Carnes VHBB User Manual
Imperial [IP] Dimensions
Metric (SI) on Reverse
SUBMITTAL SHEET
CENTRIFUGAL FILTERED SUPPLY
BELT DRIVE - MODELS VSBB & VHBB
CARNES COMPANY, 448 S. Main St., P. O.Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax:(608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2002 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 26015-D
26015-E
MODEL VSBB UNIT BASE MODEL VHBB
A
D
C
B
F
E
G
H
E
AL
B
2”
2”
INTERNAL
CONDUIT OPENING
DL
C
B
DIMENSIONS LISTED IN INCHES
A Sq. AL Sq. B Sq. Qty. Roof Opening Weight [Lbs.] 1” Filters
Unit Hood Hood Cap C D DL Tiers Qty.
Size O. D. O. D. I. D. Height Stack Stack VHBB E F G H VSBB VHBB Nominal Size
08 29 34 19-3/4 19 9 8 3 5 8-3/4 9-5/8 6-9/16 125 100 4 - 10x16
10 37 43 28-1/4 29 13 13 4 7-1/4 11-3/4 13-5/8 8-3/16 225 175 4 - 16x25
12 37 43 28-1/4 29 13 13 4 6 13-3/4 16-1/8 7-3/16 250 200 4 - 16x25
15 45 45 32-1/8 30 14 14 4 6-1/2 16-1/4 19 7-3/4 350 260 4 - 16 x25
18 45 50 36-1/8 38 18 18 5 6-7/8 19-1/4 22-1/4 7 425 300 4 - 20x25
20 69 69 50-1/2 49 29 29 5 12-3/4 25-1/8 25-1/8 13-7/8 700 500 8 - 20x20
STANDARD SPECIFICATIONS
• FORWARD CURVED DWDI STEEL BLOWER.
• PERMANENT WASHABLE 1” ALUMINUM FILTERS.
• L50= 200,000 HOURS BEARING LIFE.
• FACTORY MOUNTED NEMA 1 DISCONNECT.
• ADJUSTABLE MOTOR BASE.
• FACTORY MOUNTED MOTOR & DRIVES — RUN TESTED.
MODEL VSBB
• BOTTOM PAN — MINIMUM 12 GAUGE GALVANIZED.
• HOOD HOUSING — 18 GAUGE GALVANNEALED.
• LID — 18 GAUGE GALVANNEALED.
• STACK — 18 GAUGE GALVANNEALED.
• VIBRATION RAILS — 10 GAUGE GALVANIZED.
• PERMANENTLY LUBRICATED BALL BEARINGS.
• PRE-PUNCHED MOUNTING BASE.
• ADJUSTABLE DRIVES — 1.5 SERVICE FACTOR.
• INSULATED — EASY ACCESS LID.
• BLOWER STATICALLY & DYNAMICALLY BALANCED.
• INTERNAL RUBBER-IN-SHEAR VIBRATION RAILS.
MODEL VHBB
• BOTTOM PAN — MINIMUM 12 GAUGE GALVANIZED.
• LOUVERED HOUSING — ALUMINUM MITERED & WELDED.
• LID —.080 ALUMINUM.
• STACK — .080 ALUMINUM.
• VIBRATION RAILS — 10 GAUGE GALVANIZED.
FAN NO. FAN MOTOR
LOCATION QTY MODEL/SIZE CFM SP RPM SONES HP ELECTRICAL TYPE ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER
Page ___________ of ___________
