IP [English] Dimensions
SI (Metric) on Reverse Side

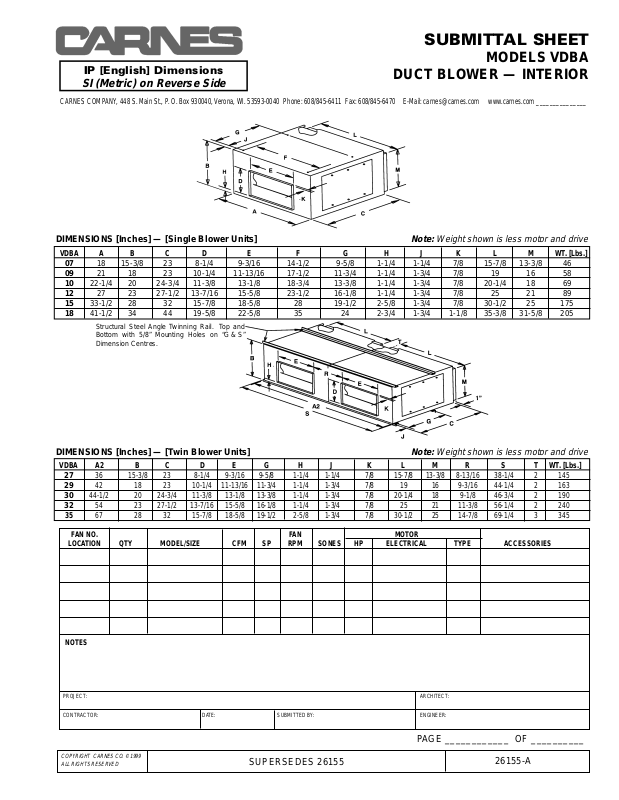

SUBMITTAL SHEET
MODELS VDBA
DUCT BLOWER — INTERIOR
VDBA A B C D E F G H J K L M WT.[Lbs.]
07 18 15-3/8 23 8-1/4 9-3/16 14-1/2 9-5/8 1-1/4 1-1/4 7/8 15-7/8 13-3/8 46
09 21 18 23 10-1/4 11-13/16 17-1/2 11-3/4 1-1/4 1-3/4 7/8 19 16 58
10 22-1/4 20 24-3/4 11-3/8 13-1/8 18-3/4 13-3/8 1-1/4 1-3/4 7/8 20-1/4 18 69
12 27 23 27-1/2 13-7/16 15-5/8 23-1/2 16-1/8 1-1/4 1-3/4 7/8 25 21 89
15 33-1/2 28 32 15-7/8 18-5/8 28 19-1/2 2-5/8 1-3/4 7/8 30-1/2 25 175
18 41-1/2 34 44 19-5/8 22-5/8 35 24 2-3/4 1-3/4 1-1/8 35-3/8 31-5/8 205
DIMENSIONS [Inches] — [Single Blower Units]
Note: Weight shown is less motor and drive
T
VDBA A2 B C D E G H J K L M R S T WT. [Lbs.]
27
36 15-3/8 23 8-1/4 9-3/16 9-5/8 1-1/4 1-1/4 7/8 15-7/8 13-3/8 8-13/16 38-1/4 2 145
29
42 18 23 10-1/4 11-13/16 11-3/4 1-1/4 1-3/4 7/8 19 16 9-3/16 44-1/4 2 163
30
44-1/2 20 24-3/4 11-3/8 13-1/8 13-3/8 1-1/4 1-3/4 7/8 20-1/4 18 9-1/8 46-3/4 2 190
32
54 23 27-1/2 13-7/16 15-5/8 16-1/8 1-1/4 1-3/4 7/8 25 21 11-3/8 56-1/4 2 240
35 67 28 32 15-7/8 18-5/8 19-1/2 2-5/8 1-3/4 7/8 30-1/2 25 14-7/8 69-1/4 3 345
DIMENSIONS [Inches] — [Twin Blower Units]
Note: Weight shown is less motor and drive
Structural Steel Angle Twinning Rail. Top and
Bottom with 5/8” Mounting Holes on “G & S”
Dimension Centres.
