IP [English] Dimensions
SI (Metric) in Parentheses

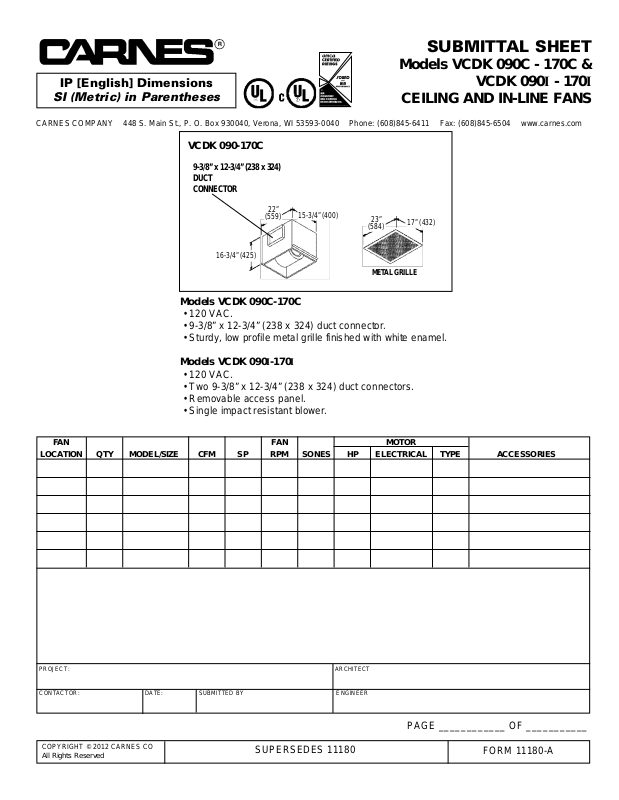

SUBMITTAL SHEET
Models VCDK 090C - 170C &
VCDK 090I - 170I
CEILING AND IN-LINE FANS
15-3/4” (400)
9-3/8” x 12-3/4” (238 x 324)
DUCT
CONNECTOR
VCDK 090-170C
22”
(559)
16-3/4” (425)
17” (432)
23”
(584)
METAL GRILLE
Models VCDK 090C-170C
• 120 VAC.
• 9-3/8” x 12-3/4” (238 x 324) duct connector.
• Sturdy, low profile metal grille finished with white enamel.
Models VCDK 090I-170I
• 120 VAC.
• Two 9-3/8” x 12-3/4” (238 x 324) duct connectors.
• Removable access panel.
• Single impact resistant blower.
FAN FAN MOTOR
LOCATION QTY MODEL/SIZE CFM SP RPM SONES HP ELECTRICAL TYPE ACCESSORIES
PROJECT: ARCHITECT
CONTACTOR: DATE: SUBMITTED BY ENGINEER
PAGE ____________ OF ___________
COPYRIGHT © 2012 CARNES CO
All Rights Reserved
SUPERSEDES 11180
FORM 11180-A
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
