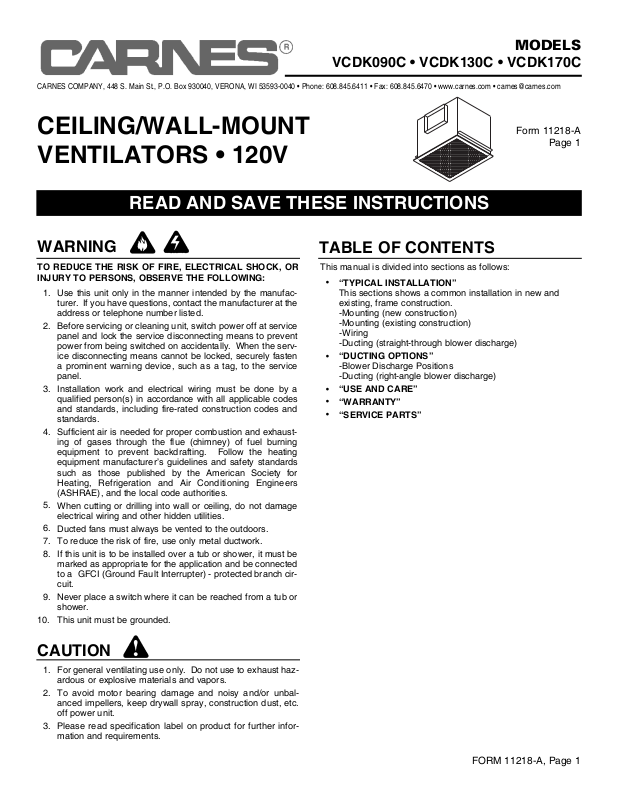

Carnes VCDK130C Installation Manual

MODELS

VCDK090C • VCDK130C • VCDK170C

CARNES COMPANY, 448 S. Main St., P.O. Box 930040, VERONA, WI 53593-0040 • Phone: [phone] • Fax: [phone] • www.carnes.com • [e-mail]

Form 11218-A

Page 1

CEILING/WALL-MOUNT
VENTILATORS • 120V

READ AND SAVE THESE INSTRUCTIONS

WARNING

CAUTION

TABLE OF CONTENTS

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

Use this unit only in the manner intended by the manufac­turer. If you have questions, contact the manufacturer at the
address or telephone number listed.

Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the serv­ice disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the service
panel.

Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.

Sufficient air is needed for proper combustion and exhaust­ing of gases through the flue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating
equipment manufacturer’s guidelines and safety standards
such as those published by the American Society for
Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.

When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.

Ducted fans must always be vented to the outdoors.
To reduce the risk of fire, use only metal ductwork.
If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected
to a GFCI (Ground Fault Interrupter) - protected branch cir­cuit.

Never place a switch where it can be reached from a tub or
shower.

This unit must be grounded.

1.

2.

3.

For general ventilating use only. Do not use to exhaust haz­ardous or explosive materials and vapors.

To avoid motor bearing damage and noisy and/or unbal­anced impellers, keep drywall spray, construction dust, etc.
off power unit.

Please read specification label on product for further infor­mation and requirements.

•

•

•

•

•

“TYPICAL INSTALLATION”

This sections shows a common installation in new and
existing, frame construction.

-Mounting (new construction)

-Mounting (existing construction)

-Wiring

-Ducting (straight-through blower discharge)

“DUCTING OPTIONS”

-Blower Discharge Positions

-Ducting (right-angle blower discharge)

“USE AND CARE”
“WARRANTY”

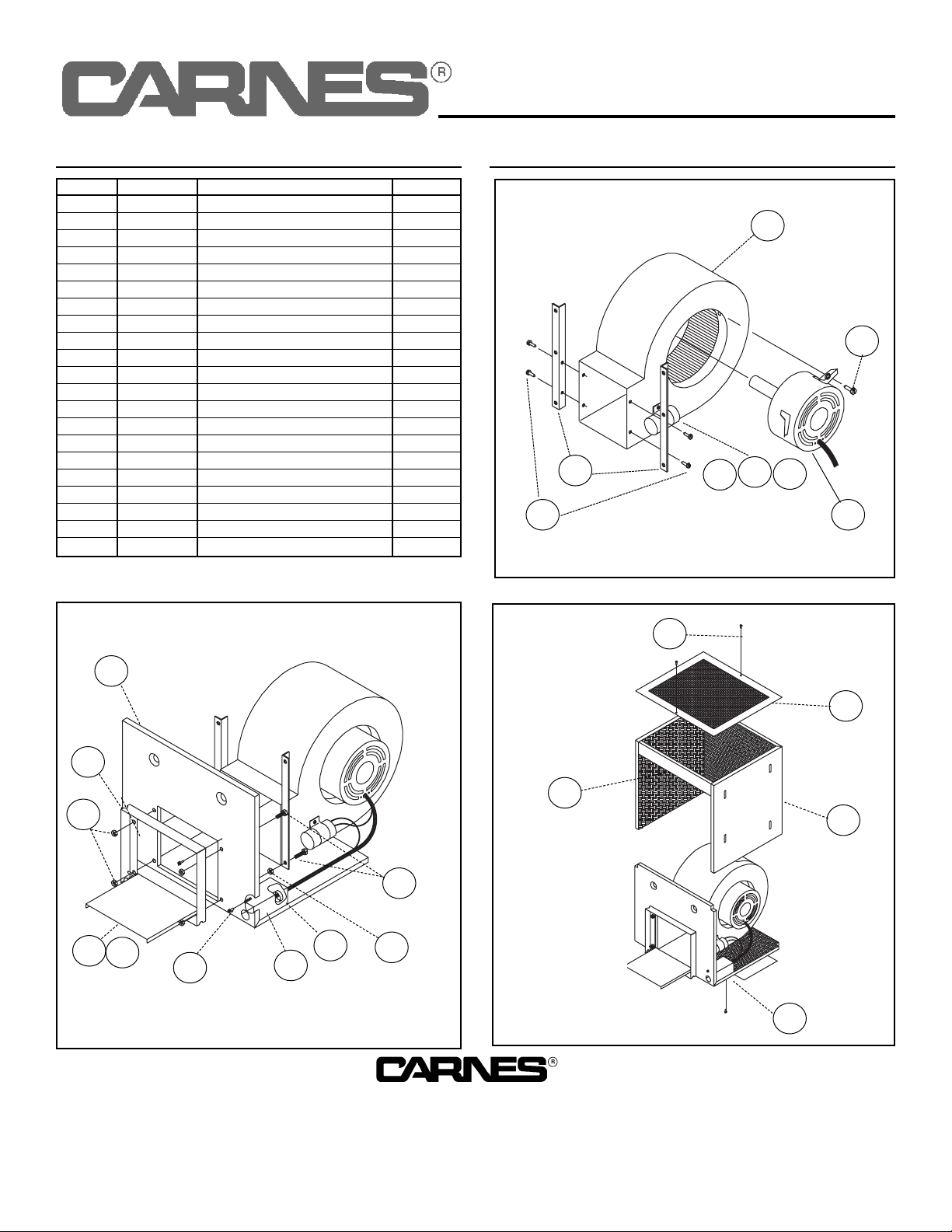

“SERVICE PARTS”

This manual is divided into sections as follows:

FORM 11218-A, Page 1

MODELS

VCDK090C • VCDK130C • VCDK170C

TYPICAL INSTALLATION

MOUNTING

(New Frame Construction)

TYPICAL INSTALLATION

WIRING - 115V, 60 Hz., 1 Phase

12” ROUND

DUCT

Grille

Screw

9-3/8” x 12-3/4” TO
10” ROUND TRANSITION

MOUNTING
BRACKETS

factory-shipped

in position for

1/2” ceiling

material.

CEILING

JOIST

(24” Centers

Shown)

Factory-shipped unit installed in new

construction.

FINISHED
CEILING
MATERIAL

9-3/8” x 12-3/4” TO

12” ROUND

TRANSITION

MOUNTING

SCREWS

CEILING

JOIST

(24” Centers

Shown)

Factory-shipped unit installed in existing construction.

MOUNTING

(Existing Frame Construction)

Ventilator factory-shipped

in horizontal

discharge position

2

Use U.L. approved connectors to wire per local codes. Connect
ground wire to bottom of conduit box.

IMPORTANT:

Remove shipping tape from damper.

Remove the shipping tape from the damper flap and make sure
that damper flap opens and closes freely inside the ductwork.
Use duct tape to make ductwork connections secure and air-tight.

Ventilator

factory-

Shipped

in horizontal

discharge

position

GRILLE

(Installs after ceiling finished)

MOUNTING BRACKETS

factory-shipped in position

for 1/2” ceiling material

GRILLE
SCREW

GRILLE

12” ROUND

DUCT

UNIT SIZE WIRE CONNECTION

YELLOW TO L1, ORANGE TO L2
SEPARATE BROWN AND INSULATE
SEPARATE BLUE AND INSULATE

YELLOW TO L1, BROWN TO L2
SEPARATE ORANGE AND INSULATE
SEPARATE BLUE AND INSULATE

YELLOW TO L1, BLUE TO L2
SEPARATE ORANGE AND INSULATE
SEPARATE BROWN AND INSULATE

INSTALL INLINE BETWEEN L2
AND ORANGE, BROWN OR BLUE
CORRESPONDING TO UNIT
SIZE

170

130

090

Speed

Control

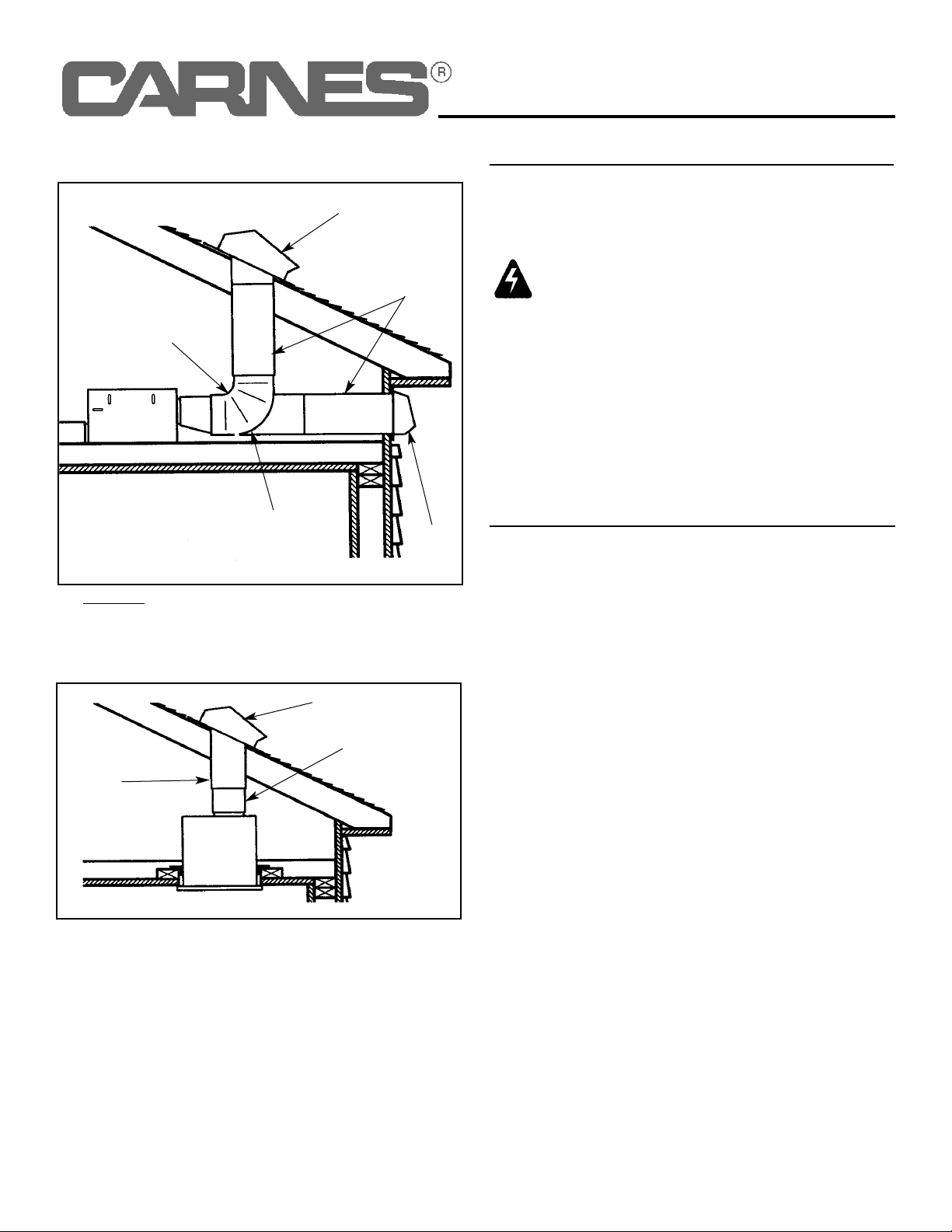

DUCTING OPTIONS

BLOWER DISCHARGE POSITIONS

Horizontal discharge

position. (Factory Shipped)

Vertical discharge

position.

DUCT CONNECTOR

(This Side)

DUCT
CONNECTOR
(This Side)

Cabinet Disassembled,

Rotated Then Reassembled

With Opening As Shown
