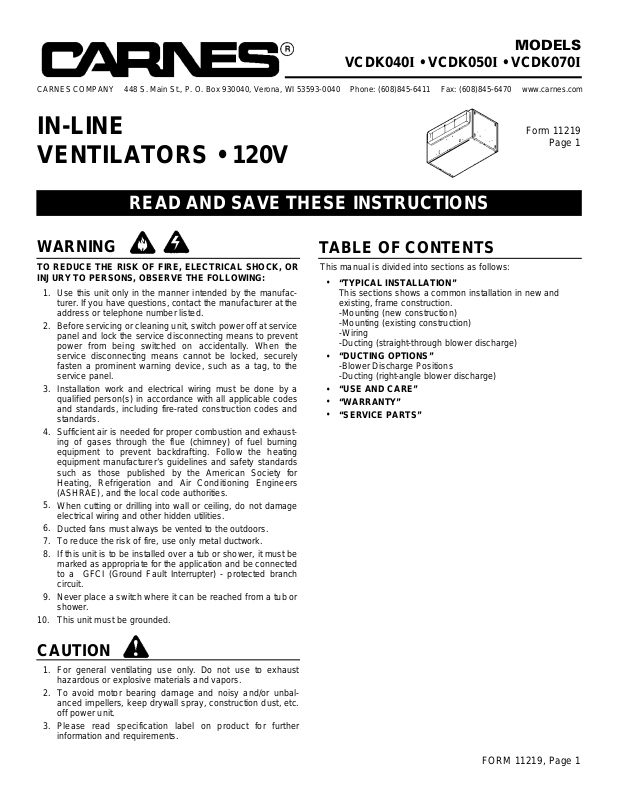

Carnes VCDK050I Installation Manual
MODELS
VCDK040
I
• VCDK050I• VCDK070
I
Form 11219
Page 1
IN-LINE
VENTILATORS • 120V
READ AND SAVE THESE INSTRUCTIONS
WARNING
CAUTION
TABLE OF CONTENTS
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the
address or telephone number listed.
Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the
service panel.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating
equipment manufacturer’s guidelines and safety standards
such as those published by the American Society for
Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
To reduce the risk of fire, use only metal ductwork.
If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Interrupter) - protected branch
circuit.
Never place a switch where it can be reached from a tub or
shower.
This unit must be grounded.
1.
2.
3.
For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc.
off power unit.
Please read specification label on product for further
information and requirements.
•
•
•
•
•
“TYPICAL INSTALLATION”
This sections shows a common installation in new and
existing, frame construction.
-Mounting (new construction)
-Mounting (existing construction)
-Wiring
-Ducting (straight-through blower discharge)
“DUCTING OPTIONS”
-Blower Discharge Positions
-Ducting (right-angle blower discharge)
“USE AND CARE”
“WARRANTY”

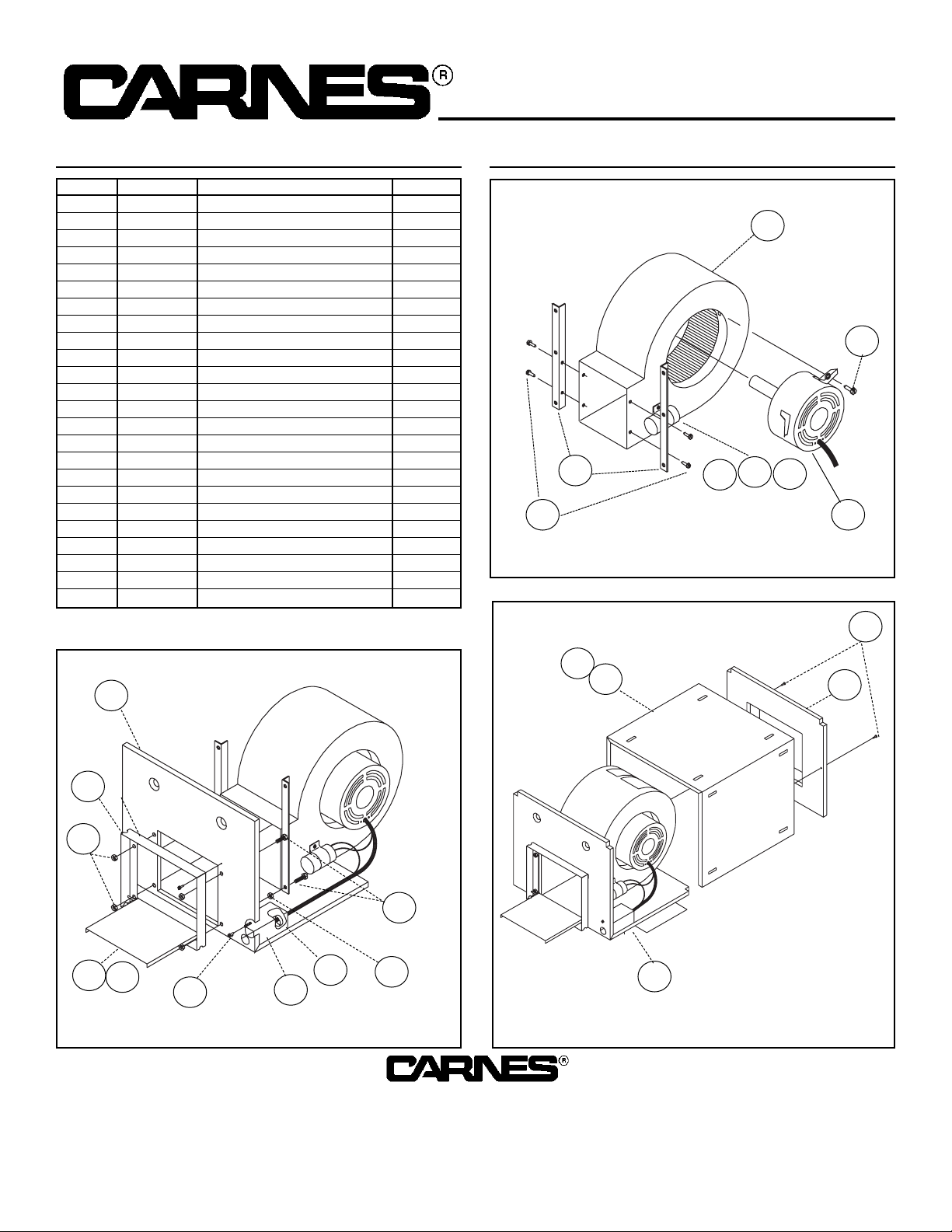

“SERVICE PARTS”
This manual is divided into sections as follows:
FORM 11219, Page 1
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
TYPICAL INSTALLATION
MOUNTING
(New Frame Construction)
TYPICAL INSTALLATION
WIRING
10” ROUND DUCT
10” ROUND
DUCT
7-1/2” x 11-1/4” TO
10” ROUND TRANSITION
MOUNTING
BRACKETS
MOUNTING FRAME
(Built on Site)
CEILING
JOIST
(24” Centers
Shown)
Factory-shipped unit installed in new
construction.
10” ROUND
DUCT
10” ROUND
DUCT
FINISHED CEILING
MATERIAL
7-1/2” x 11-1/4” TO
10” ROUND
TRANSITION
7-1/2” x 11-1/4” TO
10” ROUND
TRANSITION
MOUNTING FRAME
(Built On Site)
Factory-shipped unit installed in existing construction.
MOUNTING
(Existing Frame Construction)
IMPORTANT:
Remove shipping tape from damper.
Remove the shipping tape from the damper flap and make sure
that damper flap opens and closes freely inside the ductwork.
Use duct tape to make ductwork connections secure and air-tight.
COVER PLATE
WHITE
TO
WHITE
BLACK
TO
BLACK
120 VAC
LINE IN
2
Use U.L. approved connectors to wire per local codes. Connect
ground wire to bottom of conduit box.

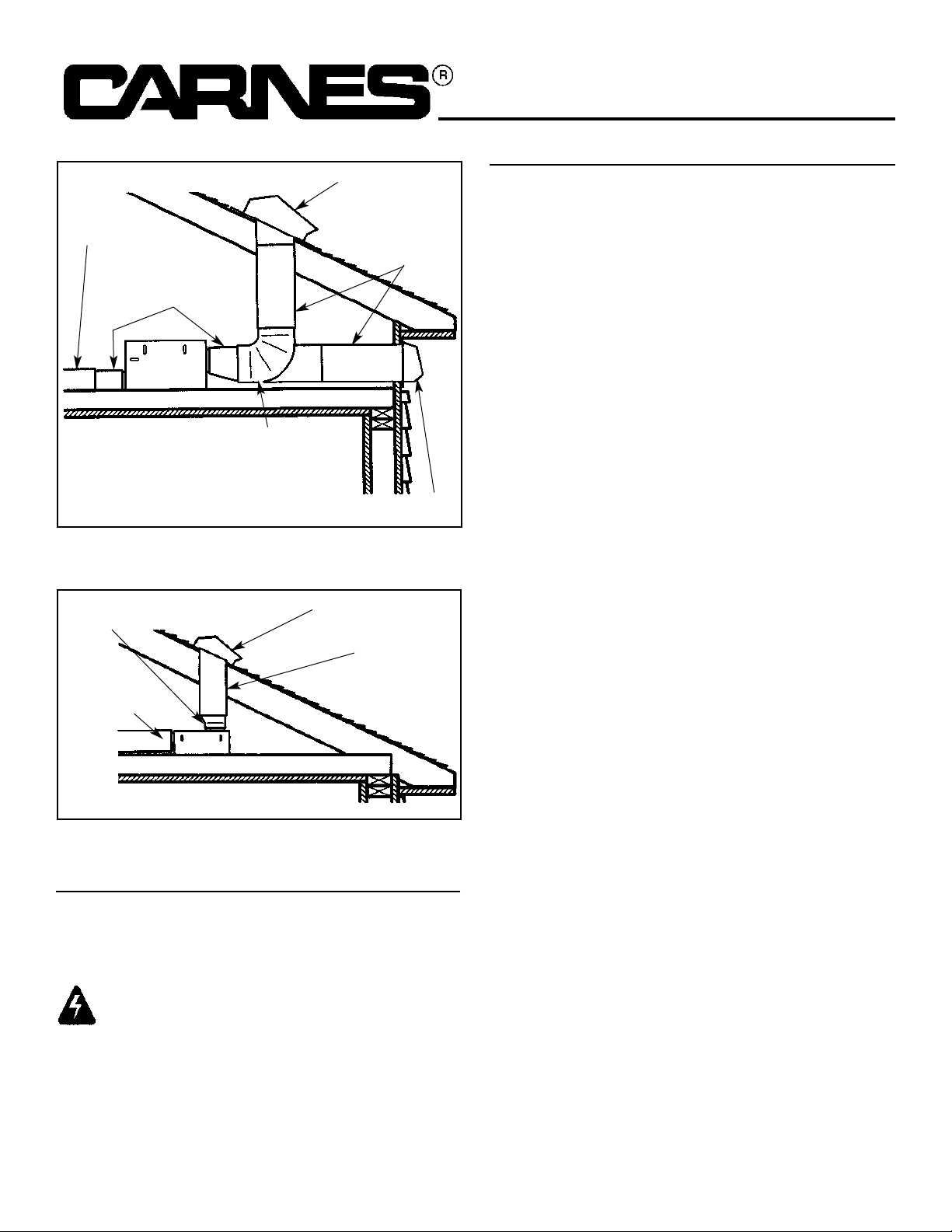

DUCTING OPTIONS
BLOWER DISCHARGE POSITIONS
Horizontal discharge position.
(Factory Shipped)
Vertical discharge
position.
DUCT CONNECTOR
(Intake)
DUCT
CONNECTOR
(Intake)
DUCT CONNECTOR
(Discharge)
DUCT
CONNECTOR
(Discharge)
Housing Disassembled and
Rotated To Be Re-Assembled
To Position Shown
FACTORY SHIPPED
MODELS
VCDK040
I
• VCDK050I• VCDK070
I
