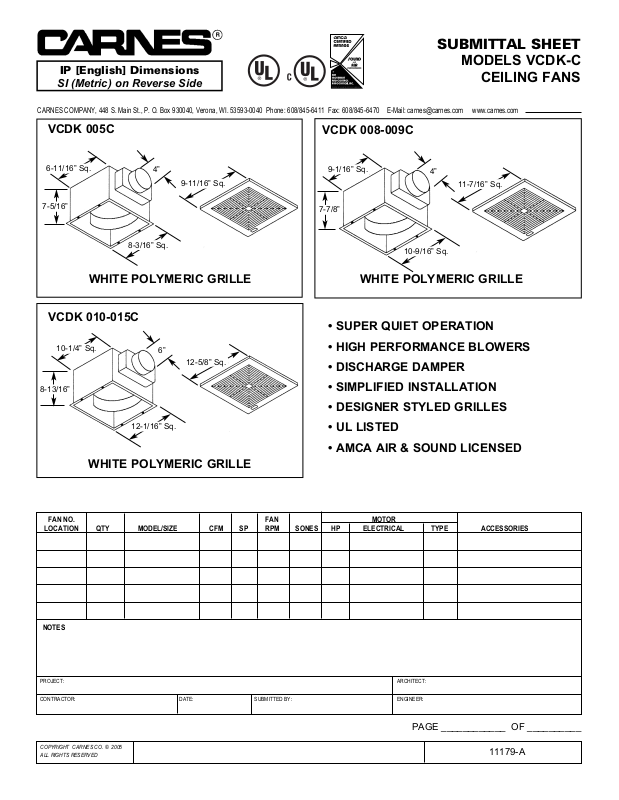

IP [English] Dimensions
SI (Metric) on Reverse Side
SUBMITTAL SHEET
MODELS VCDK-C
CEILING FANS
9-11/16” Sq.
6-11/16” Sq.
4”
7-5/16”
11-7/16” Sq.
9-1/16” Sq.
4”
7-7/8”
12-5/8” Sq.
10-1/4” Sq.
6”
8-13/16”
VCDK 008-009C
VCDK 005C
VCDK 010-015C
WHITE POLYMERIC GRILLE
WHITE POLYMERIC GRILLE
WHITE POLYMERIC GRILLE
• SUPER QUIET OPERATION
• HIGH PERFORMANCE BLOWERS
• DISCHARGE DAMPER
• SIMPLIFIED INSTALLATION
• DESIGNER STYLED GRILLES
• UL LISTED
• AMCA AIR & SOUND LICENSED
8-3/16” Sq.
10-9/16” Sq.
12-1/16” Sq.
