FACSIMILE EQUIPMENT
PARTS REFERENCE LIST
MODEL: FAX8070P / MFC9030 / MFC9070
(For Germany / United Kingdom / France /
Norway / Belgium / Netherlands /
Switzerland / Ireland / Finland / Denmark /
Austria / Spain / Italy / South Africa /
Sweden / Poland / Euro Generic )
© Copyright Brother 2001
All rights reserved
No part of this publication may be reproduced in any form
or by any means without permission in writing from the
publisher.
Specifications are subject to change without prior notice.
NOTES FOR USING THIS PARTS REFERENCE LIST
1. In the case of ordering parts, it needs mentioning the following items:
(1) Code
(2) Q' ty
(3) Description
Note: No orders without Parts Code or Tool No. can be accepted.
[Example]
(1) (2) (3)
REF.NO. CODE Q' TY DESCRIPTION
RECOMMEND
REMARKS
2. Parts change will be informed by the technical information.
COUNTRIES
GERMANY ---- GER
UNITED KINGDOM ---- UK
FRANCE ---- FRA
NORWAY ---- NOR
BELGIUM ---- BEL
NETHERLANDS ---- NLD
SWITZERLAND ---- CHE
IRELAND ---- IRE
FINLAND ---- FIN
DENMARK ---- DEN
AUSTRIA ---- AUS
SPAIN ---- SPA
ITALY ---- ITA
SOUTH AFRICA ---- ZAF
SWEDEN ---- SWE
POLAND ---- POL
EURO GENERIC ---- GER
LIST1(PAPER DRIVE)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE1793001 1 DRIVE UNIT
1-1 UL6573000 1 PAPER PICK-UP SOLENOID LEVER
1-2 UL6574000 1 CLUTCH RELEASE LEVER
1-3 UL6575001 1 SOLENOID LEVER RETURN SPRING
1-4 LE7280001 1 SOLENOID LEVER SHEET
1-5 LE7015001 1 PAPER FEED SOLENOID ASSY
1-6 LE7419001 1 CLUTCH GEAR SPRING
1-7 UL6579001 1 CLUTCH HOLDER SPRING
1-8 LE1806001 1 MAIN MOTOR ASSY
1-9 087320616 2 TAPTITE, CUP S M3X6
1-10 LE1807001 1 ELECTRODE
1-11 087311016 2 TAPTITE, CUP B M3X10
1-12 LE1795001 1 MOTOR BRACKET
1-13 087321615 2 TAPTITE, CUP S M3X16
2 087411415 4 TAPTITE, CUP B M4X14
FAX8070P, MFC9030, MFC9070
LIST2(LASER UNIT)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LE7197001
1
LASER SCANNER ASSY(SP)
1
1-1
UL6614001
1
SCANNER SHEET 1
1-2
UL6615001
1
SCANNER SHEET 2
2
LG3162001
1
TONER SENSOR PCB ASSY
3
087310815
1
TAPTITE, CUP B M3X8
4
085411215
3
SCREW, BIND B TITE 4X12
5
UU7043001
1
SCANNER SEAL SPONGE
6
UL6740001
1
LASER CAUTION LABEL
7
UL6741001
1
TONER CAUTION LABEL
FAX8070P, MFC9030, MFC9070
LIST3(PAPER FEED)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LE1833001
1
PAPER FEED BASE ASSY, GRAY(1495)
1-1
LE1844001
1
PLATE SPRING
1-2
LE1943001
1
SEPARATION PAD ASSY
1-3
UL5184001
1
SEPARATION PAD SPRING
1-4
LE1945001
1
PAPER PULL-IN ROLLER
1-5
UL6642000
1
PAWLED BUSHING L
1-6
LE1845001
1
REGISTRATION SENSOR ACTUATOR
1-7
UL6654001
1
PAPER FEED ROLLER
1-8
UF0026001
2
PAWLED BUSHING R
1-9
UL6659001
1
CHUTE FILM
1-10
LJ5219001
1
ANTI-STATIC BRUSH
1-11
U04887001
3
TAPTITE, BIND B M2.6X8
1-12
LE7019001
1
BLACK FILM
2
LE1834001
1
RELEASE LEVER, PURPLE(6255)
3
LE7136001
1
RELEASE LEVER LABEL
4
LE1835001
1
RELEASE LEVER SPRING
5
085411015
1
TAPTITE, BIND B M4X10
6
085411215
2
TAPTITE, BIND B M4X12
7
LE1837001
1
RELEASE CAM
FAX8070P, MFC9030, MFC9070

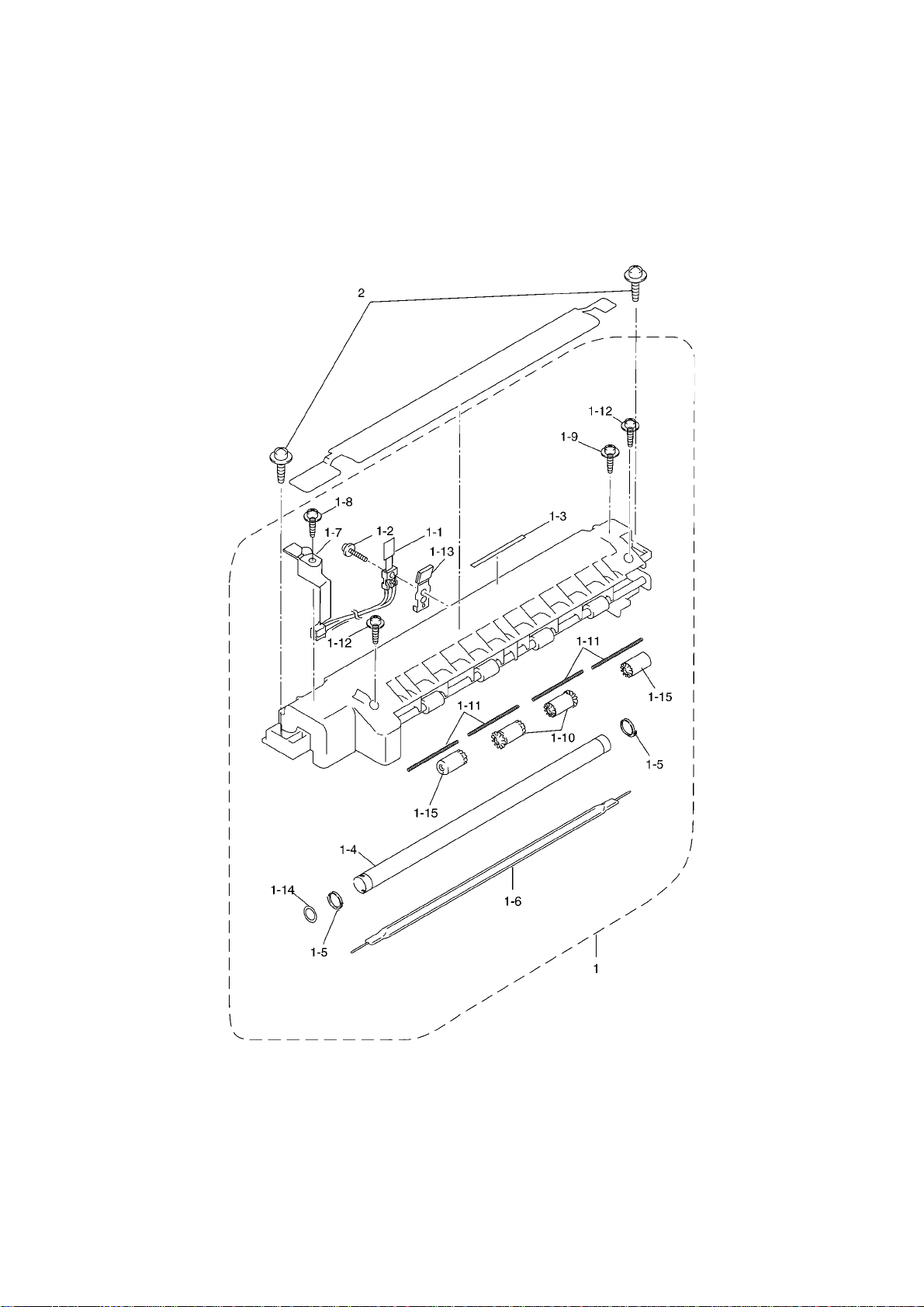

LIST4(FIXING UNIT)
REF No.
CODE
Q'TY
DESCRIPTION
RECOMMEND
REMARK
1
LE7343001
1
FIXING UNIT, 230V(SP)
1
1-1
LE1849001
1
THERMISTER ASSY
1-2
087311415
1
TAPTITE, CUP B M3X14
1-3
LE7302001
1
HEAT ROLLER CLEANER FELT
1-4
LE1850001
1
HEAT ROLLER
1-5
UH3178000
2
HEAT ROLLER SHAFT HOLDER
1-6
LE7133001
1
TUNGSTEN HOLOGEN LAMP, 230V
1-7
UH3182000
1
FEEDER ELECTRODE PLATE
1-8
083311017
1
TAPTITE, PAN B M3X10
1-9
LJ4820001
1
SCREW, PAN(WASHER) M2.6X6DA
1-10
UH3323001
2
EJECT PINCH ROLLER ASSY
1-11
UL6682001
4
PINCH SPRING
1-12
085311216
2
TAPTITE, BIND B M3X12
1-13
LE7043001
1
CLEANER ASSY
1-14
----
NOT USED
1-15
UH3324001
2
EJECTION PRESSURE ROLLER
2
087411616
2
TAPTITE, CUP B M4X16
FAX8070P, MFC9030, MFC9070
LIST5(MAIN COVER)
(
)
)
(
)
(
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE1786001 1 MAIN COVER, GRAY
1495
2 LE7299001 2 RUBBER FOOT(FRONT
3 LE1863001 1 EL BOARD
4 LE7059001 1 FAN MOTOR ASSY
5 LE1865001 1 HIGH-VOLTAGE INSULATOR SHEET
6 LE1866001 1 TOP COVER SENSOR ACTUATOR
7 LG3166001 1 SPEAKER UNIT
8 LE1868001 1 BOTTOM PLATE
9 LE1870001 1 PAPER EJECTION TRAY
10 LE1871001 1 PAPER EJECTION SUB TRAY
11 LJ5599001 1 PAPER STOPPER
12 LE1872001 2 PAPER EJECT TRAY HOLDER
13 UH2208001 2 RUBBER FOOT
REAR
14 085411215 12 SCREW, BIND B TITE 4X12
15 UF6559001 1 SCREW, PAN
WASHER) M4X8DB
16 LE1874001 1 PAPER EJECT SENSOR ACTUATOR
17 LE1968001 1 SCANNING GROUND SPRING
18 087310815 2 TAPTITE, CUP B M3X8
19 LE1876001 1 ANTI-STATIC BRUSH
20 LE1877001 1 BOARD ACCESS COVER
21 LG3168001 1 REGISTRATION SENSOR PCB ASSY
22 087320616 18 TAPTITE, CUP S M3X6
23 ---- NOT USED
24 LE1881001 1 LOW VOLTAGE INSULATOR SHEET
25 083321216 2 TAPTITE, PAN S M3X12
26 LE7141001 1 ACCESS COVER SHEET, FAX8070P
27 LE7898001 1 PROTECTION FILM
28 UF5745000 1 MJ COVER, EXT FOR
GER/UK/FRA/BEL/FIN/DEN/AUS/ITA/ZAF/SWE/GNR
FAX8070P, MFC9030, MFC9070

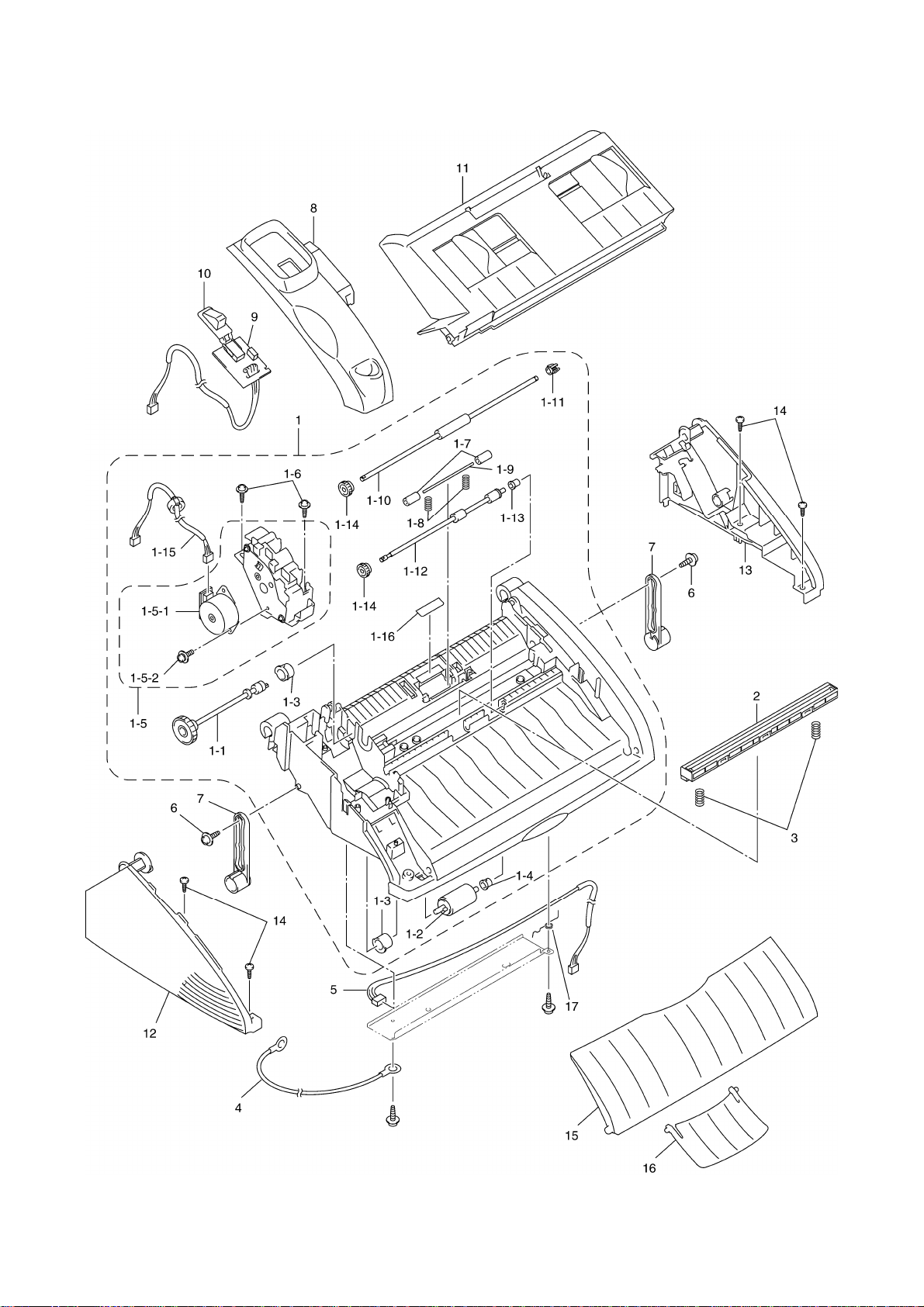

LIST6(TOP COVER)
(
)
(
)
REF No. CODE Q'TY DESCRIPTION RECOMMEND REMARK
1 LE1950001 1 TOP COVER ASSY, GRAY
1-1 LE1814001 1 SEPARATION ROLLER GEAR
1-2 LE7296001 1 SEPARATION ROLLER
1-3 LE6325001 2 BUSHING L
1-4 LE6326001 1 BUSHING R
1-5 LE1808001 1 SCANNER DRIVE UNIT
1-5-1 LE7039001 1 SCANNER MOTOR
1-5-2 0A4300605 1 SCREW, PAN
1-6 087310815 2 TAPTITE, CUP B M3X8
1-7 UF9009001 2 PRESSURE ROLLER
1-8 LE2472001 2 PRESSURE ROLLER SPRING
1-9 LE2471001 1 PRESSURE ROLLER SHAFT
1-10 LE1816001 1 DOCUMENT FEED ROLLER
1-11 UL6642000 1 PAWLED BUSHING
1-12 LE7135001 1 DOCUMENT EJECTION ROLLER ASSY
1-13 UF9949001 1 EJECTION ROLLER BUSHING
1-14 LE1196001 2 DOCUMENT FEED/EJECTION ROLLER GEAR
1-15 LG3171001 1 SCANNER MOTOR HARNESS
1-16 UU7364001 1 SEPARATION ROLLER FILM
2 LG3157001 1 CIS UNIT 1
3 UU2028001 2 CIS SPRING
4 LG3207001 1 FG WIRE
5 LG3741001 1 CIS HARNESS
6 LE4199001 2 TAPTITE, PAN B M4X6D10
7 LE1884001 2 LINK STOPPER
8 LE7134001 1 W/O HANDSET COVER
9 LG3397001 1 HOOK PCB ASSY, FAX8070P/MFC9070
9 LG3735001 1 HOOK PCB ASSY, MFC9030
10 UF8167008
11 LE1885001 1 DOCUMENT BASE ASSY, GRAY(1495
12 LE1889001 1 SIDE COVER L
13 LE1890001 1 SIDE COVER R
14 085411215 4 SCREW, BIND B TITE 4X12
15 LE1891001 1 DOCUMENT EJECTION TRAY
16 LE1892001 1 DOCUMENT EJECTION SUB TRAY
17 LE8109001 1 FEED ROLLER GROUNDING SPRING
1 ACTUATOR HOOK
S/P WASHER) M3X6
1495
FAX8070P, MFC9030, MFC9070
LIST7(CONTROL PANEL)
Y
K
K
A
A
A
R
A
A
A
A
S
A
A
R
R
D
A
A
A
A
(
)
)
)
)
)
)
REF No. CODE Q'T
DESCRIPTION RECOMMEND REMAR
1 LE7229001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR GER/AUS
1 LE8033001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9030 FOR GER
1 LE7244001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR GER/AUS
1 LE7235001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR UK/BEL/CHE/IRE/POL
1 LE8042001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9030 FOR U
1 LE7252001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR UK/BEL/CHE/IRE/ZAF/POL/GNR
1 LE7241001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR FR
1 LE8046001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9030 FOR FR
1 LE7255001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR FR
1 LE7507001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR NOR
1 LE7484001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR NO
1 LE7525001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR NLD
1 LE7497001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR NLD
1 LE7705001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR FIN
1 LE7544001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR DEN
1 LE7513001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR DEN
1 LE7549001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR SP
1 LE7520001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR SP
1 LE7553001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR IT
1 LE7529001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR IT
1 LE7557001 1 CONTROL PANEL ASSY, GRAY(1495),
FAX8070P FOR SWE
1 LE7534001 1 CONTROL PANEL ASSY, GRAY(1495),
MFC9070 FOR SWE
1-1 LE7126001 1 CONTROL PANEL, FAX8070P FOR GER/AU
1-1 LE7123001 1 CONTROL PANEL, MFC9030/MFC9070 FOR GER/AUS
1-1 LE7128001 1 CONTROL PANEL, FAX8070P
FOR UK/BEL/CHE/IRE/POL
1-1 LE7125001 1 CONTROL PANEL, MFC9030/MFC9070
FOR UK/BEL/CHE/IRE/ZAF/POL/GNR
1-1 LE7127001 1 CONTROL PANEL, FAX8070P FOR FR
1-1 LE7124001 1 CONTROL PANEL, MFC9030/MFC9070 FOR FR
1-1 LE7508001 1 CONTROL PANEL, FAX8070P FOR NO
1-1 LE7485001 1 CONTROL PANEL, MFC9070 FOR NO
1-1 LE7526001 1 CONTROL PANEL, FAX8070P FOR NL
1-1 LE7498001 1 CONTROL PANEL, MFC9070 FOR NLD
1-1 LE7706001 1 CONTROL PANEL, FAX8070P FOR FIN
1-1 LE7545001 1 CONTROL PANEL, FAX8070P FOR DEN
1-1 LE7514001 1 CONTROL PANEL, MFC9070 FOR DEN
1-1 LE7550001 1 CONTROL PANEL, FAX8070P FOR SP
1-1 LE7521001 1 CONTROL PANEL, MFC9070 FOR SP
1-1 LE7554001 1 CONTROL PANEL, FAX8070P FOR IT
1-1 LE7530001 1 CONTROL PANEL, MFC9070 FOR IT
1-1 LE7558001 1 CONTROL PANEL, FAX8070P FOR SWE
1-1 LE7535001 1 CONTROL PANEL, MFC9070 FOR SWE
1-2 LE4073003 1 KEY, TEN, GRAY
1495
1-3 LJ4285004 1 KEY, START, PURPLE(6255
1-4 LE6171002 1 KEY, COPY, GREEN(5159
1-5 LE6171004 1 KEY, STOP, PINK(2205
1-6 LE6168001 2 KEY, CURSOR L, PURPLE(6255
1-7 LE6169001 2 KEY, CURSOR S, PURPLE(6255
1-8 LE6350001 1 KEY, MENU FOR GER/AUS <GERMAN>
1-8 LE6079001 1 KEY, MENU
FOR UK/FRA/NOR/BEL/NLD/CHE/ IRE/FIN/DEN/SPA/
ITA/ZAF/POL/GNR <ENGLISH>
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
FAX8070P, MFC9030, MFC9070
LIST7(CONTROL PANEL)
Y
K
)
0
R
Y
R
A
A
R
R
T
A
A
REF No. CODE Q'T
DESCRIPTION RECOMMEND REMAR
1-9 LE7276001 13 KEY, CYLINDER 6, GRAY(1495
1-10 LG3394001 1 PANEL PCB ASSY, FAX8070P/MFC9070
1-10 LG3173001 1 PANEL PCB ASSY, MFC9030
1-11 LG3393001 1 LCD, FAX8070P/MFC9070
1-11 LG3393001 1 LCD, MFC9030
1-12 LE7129001 1 BACKLIGHT HOLDER, FAX8070P/MFC9030
1-13 LE7130001 1 BACKLIGHT DIFFUSER, FAX8070P/MFC903
1-14 LG3248001 1 KEY, FPC ASSY
1-15 LE1925001 1 PANEL REAR COVE
1-16 LE6342001 1 DOCUMENT PRESSURE BAR ASS
1-17 UU2057001 1 DOCUMENT PRESSURE BAR SPRING
1-18 LE1926001 1 SEPARATION RUBBE
1-19 UU7105001 1ADF PLATE SPRING
1-20 LE1961001 1 FRONT PLATE SPRING
1-21 UF5034001 1 TAPTITE, B 3X6
1-22 LE6176001 1
1-23 LE6177001 1
CTUATOR F
CTUATOR
1-24 UF9009001 2 PINCH ROLLE
1-25 LE1927001 1 PINCH ROLLER SPRING
1-26 LE2471001 1 PRESSURE ROLLER SHAF
1-27 LE1071001 1ANTI-STATIC BRUSH 79MM
1-28 LE7298001 1
NTI-STATIC BRUSH 65MM
1-29 087310815 2 TAPTITE, CUP B M3X8
2 LE7132001 1 PANEL SHEET, FAX8070P
2 LE8034001 1 PANEL SHEET, MFC9030
2 LE7131001 1 PANEL SHEET, MFC9070
3 LE5308001 1
DDRESS LABEL, FAX8070P
FAX8070P, MFC9030, MFC9070
LIST8(PCB)
Y
K
R
A
A
(9)
Y
REF No. CODE Q'T
DESCRIPTION RECOMMEND REMAR
1 LG3388001 1 MAIN PCB ASSY, FAX8070P 1
1 LG3736001 1 MAIN PCB ASSY, MFC9030 1
1 LG3385001 1 MAIN PCB ASSY, MFC9070 EXCEPT FOR GN
1 LG3385002 1 MAIN PCB ASSY, MFC9070 FOR GNR 1
2 LG3490031 1 NCU PCB ASSY FOR GER/CHE 1
2 LG2810014 1 NCU PCB ASSY FOR UK/NOR/FIN/DEN/ZAF/SWE/GNR 1
2 LG3490032 1 NCU PCB ASSY FOR FRA/BEL/NLD/IRE/AUS/SPA/IT
2 LG2821001 1 NCU PCB ASSY FOR POL 1
3 LG3491001 1 NCU HARNESS
4 LG3478001 1 LOW-VOLTAGE POWER SUPPLY PCB ASSY 1
5 LG3195001 1 LV HARNESS
6 LG3196001 1 HEATER HARNESS
7 LG3197001 1 HIGH-VOLTAGE POWER SUPPLY PCB ASSY 1
8 LG3198001 1 HV HARNESS
LG3429001 1 BATTER
1 CHG
DD
1
FAX8070P, MFC9030, MFC9070
LIST9(ACCESSORIES)
Y
K
R
F
A
R
R
A
(
)
A
(
)
A
)
A
)
A
)
A
)
(8)
(9)
(11)
A
(11)
(11)
REF No. CODE Q'T
1 ---- NOT USED
2 UG3625001 1 TELEPHONE LINE CORD FOR GE
2 UG3626001 1 TELEPHONE LINE CORD FOR UK/ZA
2 UG3627001 1 TELEPHONE LINE CORD FOR FR
2 UG3629001 1 TELEPHONE LINE CORD FOR NO
2 UG1575001 1 TELEPHONE LINE CORD FOR BEL
2 LG3077001 1 TELEPHONE LINE CORD FOR NLD/IRE/SPA/POL/GN
2 UG3469000 1 TELEPHONE LINE CORD FOR CHE
2 UG3632001 1 TELEPHONE LINE CORD FOR FIN
2 UG3633001 1 TELEPHONE LINE CORD FOR DEN
2 UG4205001 1 TELEPHONE LINE CORD FOR AUS
2 UG3634001 1 TELEPHONE LINE CORD FOR IT
2 UG3635001 1 TELEPHONE LINE CORD FOR SWE
3 UU2080008 2 DOCUMENT SET TRAY ASSY, CLEAR PURPLE
4 ---- NOT USED
5 LE8035001 1 CD-ROM ASSY, MFC9030 FOR GER/UK/FR
5 LE7899001 1 CD-ROM ASSY<GERMAN/ENGLISH/FRENCH>,
5 LE7499001 1 CD-ROM ASSY<DUTCH/FRENCH/ITALIAN/SPANISH>,
5 LE7486001 1 CD-ROM ASSY
6 LG2085001 1 AC CORD
6 LG2086001 1
6 LG2087001 1
6 LG2181001 1
6 LG3661001 1
7 ---- NOT USED
---- NOT USED
---- NOT USED
(10) UG4558001 1 PARALLEL INTERFACE CABLE,
LE8787001 1 CD-ROM ASSY XP, MFC9030 FOR GER/UK/FR
(11) LE8784001 1 CD-ROM ASSY XP, MFC9070 FOR
LE8786001 1 CD-ROM ASSY XP, MFC9070 FOR NOR/DEN/SWE/GNR
LE8785001 1 CD-ROM ASSY XP, MFC9070 FOR BEL/NLD/SPA/ITA added
MFC9070 FOR GER/UK/FRA/BEL/CHE/IRE/AUS/ZAF/
POL
MFC9070 FOR BEL/NLD/SPA/ITA
<ENGLISH/NORWEGIAN/DANISH/SWEDISH>,
MFC9070 FOR NOR/DEN/SWE/GNR
FOR GER/FRA/NOR/BEL/NLD/FIN/AUS/SPA/ITA/SWE/
POL/GNR
C CORD FOR UK/IRE(BS
C CORD FOR CHE(SEV
C CORD FOR DEN(DEMCO
C CORD FOR ZAF(SAF
MFC9070 FOR GER/UK/IRE/AUS/ZAF/POL/GNR
GER/UK/FRA/CHE/IRE/AUS/ZAF/POL
VDE
DESCRIPTION RECOMMEND REMAR
6342
1
1
1
1
added
added
added
FAX8070P, MFC9030, MFC9070
LIST10(PRINTED MATERIAL)
Y
K
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
,
)
)
,
)
,
)
,
)
,
)
,
)
,
)
)
,
)
REF No. CODE Q'T
DESCRIPTION RECOMMEND REMAR
(1) LE7231001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR GER/AUS (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE7248001 1 OWNER'S MANUAL ASSY, MFC9030/MFC9070
FOR GER/AUS (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7238001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR UK (INCLUDING OWNER'S MANUAL,
3 WARRANTY CARDS
ADDRESS LABEL
(1) LE8101001 1 OWNER'S MANUAL ASSY, MFC9030/MFC9070
FOR UK (INCLUDING OWNER'S MANUAL,
3 WARRANTY CARDS
LICENSE AGREEMENT SHEET
(1) LE7242001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR FRA (INCLUDING OWNER'S MANUAL,
2 WARRANTY CARDS
ADDRESS LABEL
(1) LE8105001 1 OWNER'S MANUAL ASSY, MFC9030/MFC9070
FOR FRA (INCLUDING OWNER'S MANUAL,
2 WARRANTY CARDS
LICENSE AGREEMENT SHEET
(1) LE7561001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR NOR (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE7489001 1 OWNER'S MANUAL ASSY, MFC9070
FOR NOR (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7562001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR BEL (INCLUDING 2 OWNER'S MANUALS,
WARRANTY CARD
ADDRESS LABEL
(1) LE7492001 1 OWNER'S MANUAL ASSY, MFC9070
FOR BEL (INCLUDING 2 OWNER'S MANUALS,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7563001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR NLD (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE7502001 1 OWNER'S MANUAL ASSY, MFC9070
FOR NLD (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7564001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR CHE (INCLUDING 2 OWNER'S MANUALS,
WARRANTY CARD
ADDRESS LABEL
(1) LE7504001 1 OWNER'S MANUAL ASSY, MFC9070
FOR CHE (INCLUDING 2 OWNER'S MANUALS,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7569001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR IRE (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE7511001 1 OWNER'S MANUAL ASSY, MFC9070
FOR IRE (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7707001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR FIN (INCLUDING OWNER'S MANUAL,
ADDRESS LABEL
(1) LE7565001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR DEN (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE7515001 1 OWNER'S MANUAL ASSY, MFC9070
FOR DEN (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7566001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR SPA (INCLUDING OWNER'S MANUAL,
2 WARRANTY CARDS
ADDRESS LABEL
(1) LE7522001 1 OWNER'S MANUAL ASSY, MFC9070
FOR SPA (INCLUDING OWNER'S MANUAL,
2 WARRANTY CARDS
LICENSE AGREEMENT SHEET
(1) LE7567001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR ITA (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE7531001 1 OWNER'S MANUAL ASSY, MFC9070
FOR ITA (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1) LE7539001 1 OWNER'S MANUAL ASSY, MFC9070
FOR ZAF/GNR (INCLUDING OWNER'S MANUAL,
LICENSE AGREEMENT SHEET
(1) LE7568001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR SWE (INCLUDING OWNER'S MANUAL,
2 WARRANTY CARDS
ADDRESS LABEL
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
FAX8070P, MFC9030, MFC9070
LIST10(PRINTED MATERIAL)
Y
K
,
)
,
)
,
)
/
REF No. CODE Q'T
DESCRIPTION RECOMMEND REMAR
(1) LE7536001 1 OWNER'S MANUAL ASSY, MFC9070
FOR SWE (INCLUDING OWNER'S MANUAL,
2 WARRANTY CARDS
LICENSE AGREEMENT SHEET
(1) LE8198001 1 OWNER'S MANUAL ASSY, FAX8070P
FOR POL (INCLUDING OWNER'S MANUAL,
WARRANTY CARD
ADDRESS LABEL
(1) LE8202001 1 OWNER'S MANUAL ASSY, MFC9070
FOR POL (INCLUDING OWNER'S MANUAL,
(1-1) LE7232001 1 OWNER'S MANUAL, FAX8070P FOR GER/AUS
WARRANTY CARD
LICENSE AGREEMENT SHEET
(1-1) LE7249001 1 OWNER'S MANUAL, MFC9030 FOR GER
(1-1) LE8086001 1 OWNER'S MANUAL, MFC9030
MFC9070 FOR GER/AUS
(1-1) LE8087004 1 OWNER'S MANUAL FOR UK/IRE/ZAF/GNR
(1-1) LE8087005 1 OWNER'S MANUAL FOR FRA
(1-1) LE7237007 1 OWNER'S MANUAL FOR NOR
(1-1) LE7237008 1 OWNER'S MANUAL FOR BEL <DUTCH>
(1-1) LE7493008 1 OWNER'S MANUAL FOR BEL/CHE <FRENCH>
(1-1) LE7237009 1 OWNER'S MANUAL FOR NLD
(1-1) LE7237010 1 OWNER'S MANUAL FOR CHE <GERMAN>
(1-1) LE7237012 1 OWNER'S MANUAL FOR FIN
(1-1) LE7237013 1 OWNER'S MANUAL FOR DEN
(1-1) LE7237015 1 OWNER'S MANUAL FOR SPA
(1-1) LE7237016 1 OWNER'S MANUAL FOR ITA
(1-1) LE7237026 1 OWNER'S MANUAL FOR SWE
(1-1) LE8087039 1 OWNER'S MANUAL FOR POL
1
1
1
FAX8070P, MFC9030, MFC9070
LIST11(PACKAGING)
Y
K
(1)
P
(1)
(1)
(2)
Y
(3)
)
(4)
(5)
(6)
)
(7)
S
(7)
R
(7)
(7)
(7)
(7)
(7)
A
(7)
A
(7)
A
(7)
R
(7)
R
(7)
>
(7)
>
(7)
>
(7)
>
(7)
D
(7)
(7)
>
(7)
(7)
(7)
(7)
(7)
A
(7)
A
(7)
A
(7)
A
(7)
(7)
(7)
(7)
L
(7)
(7)
R
(8)
)
R
(9)
R
(9)
g
(9)
A
(9)
A
(9)
g
(9)
g
REF No. CODE Q'T
DESCRIPTION RECOMMEND REMAR
LE7233001 1 CARTON, BROTHER, FAX8070
LE8038001 1 CARTON, BROTHER, MFC9030 1
LE7250001 1 CARTON, BROTHER, MFC9070 1
LE1938001 1 STYROFOAM ASS
LE7033001 1 PROTECTION SHEET(PANEL
LJ5584001 1 BAG, 700X800H
LE7046001 1 CARTON, FOR MANUAL
UU0456001 1 PROTECTION PAPER(ADF
LE7413001
LE8040001
LE7416001
LE7414001
LE8044001
LE7417001
LE7415001
LE8048001
LE7418001
LE7510001
LE7491001
LE7791001
LE7506001
LE7528001
LE7496001
LE7789001
LE7790001
LE7542001
LE7792001
LE7709001
LE7547001
LE7517001
LE7552001
LE7524001
LE7556001
LE7533001
LE7538001
LE7560001
LE7538001
LE8200001
LE8204001
LE7633001
START CARD, FAX8070P FOR GER/AU
1
START CARD, MFC9030 FOR GE
1
START CARD, MFC9070 FOR GER/AUS
1
START CARD, FAX8070P FOR UK/IRE
1
START CARD, MFC9030/MFC9070 FOR UK/IRE/ZAF
1
START CARD, MFC9070 FOR UK/IRE/ZAF
1
START CARD, FAX8070P FOR FR
1
START CARD, MFC9030/MFC9070 FOR FR
1
START CARD, MFC9070 FOR FR
1
START CARD, FAX8070P FOR NO
1
START CARD, MFC9070 FOR NO
1
START CARD, FAX8070P FOR BEL/CHE <FRENCH
1
START CARD, MFC9070 FOR BEL/CHE <FRENCH
1
START CARD, FAX8070P FOR BEL <DUTCH
1
START CARD, MFC9070 FOR BEL <DUTCH
1
START CARD, FAX8070P FOR NL
1
START CARD, MFC9070 FOR NLD
1
START CARD, FAX8070P FOR CHE <GERMAN
1
START CARD, MFC9070 FOR CHE <GERMAN>
1
START CARD, FAX8070P FOR FIN
1
START CARD, FAX8070P FOR DEN
1
START CARD, MFC9070 FOR DEN
1
START CARD, FAX8070P FOR SP
1
START CARD, MFC9070 FOR SP
1
START CARD, FAX8070P FOR IT
1
START CARD, MFC9070 FOR IT
1
START CARD, MFC9070 FOR SWE
1
START CARD, FAX8070P FOR SWE
1
START CARD, MFC9070 FOR SWE
1
START CARD, FAX8070P FOR PO
1
START CARD, MFC9070 FOR POL
1
START CARD, MFC9070 FOR GN
1
UL7932001 1 BAG 400X480(FOR TONER/DRUM
(9) LE8254001 1 QUICK SET UP GUIDE XP, MFC9030 FOR GER, MFC9070
FOR GER/CHE/AUS <GERMAN>
(9) LE8252001 1 QUICK SET UP GUIDE XP, MFC9030 FOR UK, MFC9070
FOR UK/IRE/ZAF/GN
(9) LE8253001 1 QUICK SET UP GUIDE XP, MFC9030 FOR FRA, MFC9070
FOR FRA/BEL/CHE <FRENCH>
LE8258001
1 QUICK SET UP GUIDE XP, MFC9070 FOR NO
(9) LE8255001 1 QUICK SET UP GUIDE XP, MFC9070 FOR BEL/NLD
<DUTCH>
LE8260001
LE8257001
LE8256001
LE8259001
LE8265001
1 QUICK SET UP GUIDE XP, MFC9070 FOR DEN chan
1 QUICK SET UP GUIDE XP, MFC9070 FOR SP
1 QUICK SET UP GUIDE XP, MFC9070 FOR IT
1 QUICK SET UP GUIDE XP, MFC9070 FOR SWE chan
1 QUICK SET UP GUIDE XP, MFC9070 FOR POL chan
1
changed
changed
changed
changed
changed
ed
changed
changed
ed
ed
FAX8070P, MFC9030, MFC9070
8X5631
PL-FAX016
Ver. K-1
Loading...
