Brother HL 3070CW User Manual

Multi-Protocol On-board Ethernet Print Server and Wireless (IEEE 802.11b/g) Ethernet Print Server

NETWORK USER’S GUIDE

HL-3040CN HL-3070CW

Please read this manual thoroughly before using the machine. Keep the CD-ROM in a convenient place so you can use it quickly if you need to.

Please visit us at http://solutions.brother.com/ product support, the latest driver updates and utilities, and answers to frequently asked questions (FAQs) and technical questions.

Note: Not all models are available in all countries.

where you can get

Version A

ENG

Symbols used in this guide

We use the following icons throughout this User’s Guide:

IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in damage to property or loss of product functionality.

Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd.

Brother is a registered trademark of Brother Industries, Ltd.

Microsoft, Windows, Windows Server, Outlook and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries.

Windows Vista is either a registered trademark or a trademark of Microsoft Corporation in the United States and other countries.

Apple, Macintosh, Safari and TrueType are trademarks of Apple Inc., registered in the United States and other countries.

Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.

UNIX is a registered trademark of The Open Group in the United States and other countries.

Adobe, Flash, Illustrator, Photoshop, PostScript and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

BROADCOM, SecureEasySetup and the SecureEasySetup logo are trademarks or registered trademarks of Broadcom Corporation in the United States and/or other countries.

WPA, WPA2, Wi-Fi Protected Access and Wi-Fi Protected Setup are either trademarks or registered trademarks of Wi-Fi Alliance in the United States and/or other countries.

Wi-Fi and Wi-Fi Alliance are registered trademarks of the Wi-Fi Alliance.

AOSS is a trademark of Buffalo Inc.

Any trade names and product names of companies appearing on Brother products, related documents and any other materials are all trademarks or registered trademarks of those respective companies.

Compilation and publication notice

Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest product’s descriptions and specifications.

The contents of this manual and the specifications of this product are subject to change without notice.

Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.

IMPORTANT NOTE

 This product is approved for use in the country of purchase only.

Do not use this product outside the country of purchase as it may violate the wireless telecommunication and power regulations of that country.

 Windows

Edition and Windows

 Windows Server

x64 Edition.

 Windows Server

R2.

 Windows Vista

 Windows

XP in this document represents Windows® XP Professional, Windows® XP Professional x64

XP Home Edition.

2003 in this document represents Windows Server® 2003 and Windows Server® 2003

2008 in this document represents Windows Server® 2008 and Windows Server® 2008

in this document represents all editions of Windows Vista®.

7 in this document represents all editions of Windows® 7.

 The printer illustration is based on HL-3070CW.

Brother numbers

IMPORTANT

For technical and operational assistance, you must call the country where you purchased the machine. Calls must be made from within that country.

For Customer Service

In USA 1-877-BROTHER (1-877-276-8437) In Canada 1-877-BROTHER In Brazil helpline@brother.com.br In Europe Visit http://www.brother.com/

 Service center locator (USA)

For the location of a Brother authorized service center, call 1-877-BROTHER (1-877-276-8437).

 Service center locations (Canada)

For the location of a Brother authorized service center, call 1-877-BROTHER.

for contact information on your local Brother office.

If you have any comments or suggestions, please write to us at:

In USA Printer Customer Support

Brother International Corporation 7905 North Brother Boulevard Bartlett, TN 38133

In Canada Brother International Corporation (Canada), Ltd.

- Marketing Dept.

1 Hôtel de Ville

Dollard des Ormeaux, QC

H9B 3H6

Canada

In Brazil Brother International Corporation do Brasil Ltda.

Av. Paulista, 854 - 15 and. - Ed. Top CenterCEP: 01310-100 - Sao Paulo - SP - Brasil

In Europe European Product & Service Support

1 Tame StreetAudenshaw

Manchester, M34 5JE, UK

iii

Internet address

Brother Global Website: http://www.brother.com/

For Frequently Asked Questions (FAQs), Product Support, Driver Updates and Utilities: http://solutions.brother.com/

Ordering accessories and supplies

In USA 1-877-552-MALL (1-877-552-6255)

1-800-947-1445 (fax)

http://www.brothermall.com/

In Canada 1-877-BROTHER

http://www.brother.ca/

1 Introduction

Overview....................................................................................................................................................1

Network features........................................................................................................................................2

Network printing...................................................................................................................................2

Management utilities............................................................................................................................2

Types of network connections ...................................................................................................................4

Network connection example ..............................................................................................................4

Wireless network connection examples (For HL-3070CW).................................................................6

Protocols....................................................................................................................................................7

TCP/IP protocols and functions ...........................................................................................................7

Other Protocol .....................................................................................................................................9

2 Configuring your machine for a network

Overview..................................................................................................................................................10

IP addresses, subnet masks and gateways ............................................................................................10

IP address .........................................................................................................................................10

Subnet mask......................................................................................................................................11

Gateway (and router).........................................................................................................................11

Step by step chart....................................................................................................................................12

Setting the IP address and subnet mask .................................................................................................13

Using the BRAdmin Light utility to configure your machine as a network printer ..............................13

Using the control panel to configure your machine for a network......................................................15

Using other methods to configure your machine for a network .........................................................15

Changing the print server settings ...........................................................................................................16

Using the BRAdmin Light utility to change the print server settings ..................................................16

Using the BRAdmin Professional 3 utility to change the print server settings (For

Windows

Using Web Based Management (web browser) to change the print server settings .........................17

Using the control panel to change the print server settings...............................................................17

Using other methods to change print server settings ........................................................................17

).....................................................................................................................................16

3 Configuring your machine for a wireless network (For HL-3070CW)

Overview..................................................................................................................................................18

Wireless network terms and concepts .....................................................................................................19

SSID (Service Set Identifier) and channels .......................................................................................19

Authentication and encryption ...........................................................................................................19

Step by step chart for wireless network configuration .............................................................................22

For Infrastructure mode .....................................................................................................................22

Confirm your network environment..........................................................................................................23

Connected to a computer with an access point in the network (Infrastructure mode).......................23

Confirm your wireless network setup method..........................................................................................24

Configuration using the Brother installer application on the CD-ROM to configure your

machine for a wireless network (Recommended) .........................................................................24

Configuration using SES/WPS or AOSS from the control panel menu to configure your

machine for a wireless network (Infrastructure mode only) ...........................................................26

Configuration using the PIN Method of Wi-Fi Protected Setup to configure your machine

for a wireless network (Infrastructure mode only)..........................................................................27

Configure your machine for a wireless network.......................................................................................28

Using the Brother installer application on the CD-ROM to configure your machine for a

wireless network (Recommended) ................................................................................................28

Using SES/WPS or AOSS from the control panel menu to configure your machine for a

wireless network ............................................................................................................................28

Using the PIN Method of Wi-Fi Protected Setup to configure your machine for a wireless

network..........................................................................................................................................28

4 Wireless configuration for Windows® using the Brother automatic installer

application (For HL-3070CW)

Configuration in Infrastructure mode .......................................................................................................29

Before configuring the wireless settings ............................................................................................29

Configure the wireless settings..........................................................................................................30

5 Wireless Configuration for Macintosh using the Brother installer

application (For HL-3070CW)

Configuration in Infrastructure mode .......................................................................................................31

Before configuring the wireless settings ............................................................................................31

Configure the wireless settings..........................................................................................................33

6 Wireless configuration using SES/WPS or AOSS from the control panel

(For HL-3070CW)

Overview..................................................................................................................................................41

How to configure your wireless machine, using SES/WPS or AOSS from the control panel

menu.....................................................................................................................................................42

7 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For

HL-3070CW)

Overview..................................................................................................................................................45

How to configure your wireless machine, using the PIN Method of Wi-Fi Protected Setup ....................45

For Windows

For Macintosh users ..........................................................................................................................51

users..........................................................................................................................47

8 Control panel features

Overview..................................................................................................................................................54

Network menu..........................................................................................................................................55

TCP/IP ...............................................................................................................................................55

Ethernet (wired network only)............................................................................................................63

Factory Reset ....................................................................................................................................63

Set to Default (For HL-3070CW) .......................................................................................................63

Wired Enable (For HL-3070CW wired network only).........................................................................64

WLAN Enable (For HL-3070CW wireless network only) ...................................................................64

SES/WPS or AOSS (For HL-3070CW wireless network only) ..........................................................64

WPS w/PIN Code (For HL-3070CW wireless network only) .............................................................65

WLAN Status (For HL-3070CW wireless network only) ....................................................................65

Reset the network settings to the factory default.....................................................................................69

Printing the Network Configuration page .................................................................................................70

9 Driver Deployment Wizard (Windows® only)

Overview..................................................................................................................................................71

Connection methods................................................................................................................................71

Peer-to-peer ......................................................................................................................................71

Network Shared.................................................................................................................................72

Local Printer (USB)............................................................................................................................72

How to install the Driver Deployment Wizard software............................................................................73

Using the Driver Deployment Wizard software ........................................................................................74

10 Web Based Management

Overview..................................................................................................................................................77

How to configure the print server settings using Web Based Management (web browser) ....................78

11 Network printing from Windows® basic TCP/IP Peer-to-Peer printing

Overview..................................................................................................................................................79

Configuring the standard TCP/IP port......................................................................................................80

Printer driver not yet installed ............................................................................................................80

Printer driver already installed ...........................................................................................................82

Other sources of information ...................................................................................................................82

vii

12 Internet printing for Windows

Overview..................................................................................................................................................83

IPP printing for Windows

For Windows Vista

For Windows

Specifying a different URL.................................................................................................................88

Other sources of information ...................................................................................................................88

.......................................................................................................................83

, Windows® 7 and Windows Server® 2008 .......................................................83

2000/XP and Windows Server® 2003 .......................................................................86

13 Network printing from Macintosh using the BR-Script 3 driver (For HL-

3070CW)

Overview..................................................................................................................................................89

How to choose the printer driver (TCP/IP)...............................................................................................89

14 Security features

Overview..................................................................................................................................................93

Security terms....................................................................................................................................93

Security protocols ..............................................................................................................................94

Security methods for E-mail notification ............................................................................................94

Configuring the protocol settings .............................................................................................................95

Managing your network printer securely..................................................................................................96

Secure Management using Web Based Management (web browser) ..............................................96

Secure Management using BRAdmin Professional 3 (for Windows

Secure Function Lock 2.0 (For HL-3070CW) ........................................................................................100

How to configure the Secure Function Lock 2.0 settings using Web Based Management

(web browser)..............................................................................................................................100

Printing documents securely using IPPS...............................................................................................103

Specifying a different URL...............................................................................................................103

Using E-mail notification with user authentication .................................................................................104

Creating and installing a certificate........................................................................................................106

Creating and installing a self-signed certificate ...............................................................................108

Creating CSR and installing a certificate .........................................................................................121

Import and export the certificate and private key.............................................................................123

) ..............................................99

viii

15 Troubleshooting

Overview................................................................................................................................................124

General problems ..................................................................................................................................124

Network print software installation problems .........................................................................................126

Printing problems...................................................................................................................................128

Protocol-specific troubleshooting...........................................................................................................129

Windows

Web Based Management (web browser) troubleshooting (TCP/IP)................................................129

Wireless network troubleshooting (For HL-3070CW) ............................................................................130

Wireless connection problem ..........................................................................................................130

2000/XP, Windows Vista®, Windows® 7 and Windows Server® 2003/2008

IPP troubleshooting .....................................................................................................................129

124

A Appendix

Using services .......................................................................................................................................131

Other ways to set the IP address (For advanced users and administrators).........................................131

Using DHCP to configure the IP address ........................................................................................131

Using BOOTP to configure the IP address......................................................................................132

Using RARP to configure the IP address ........................................................................................133

Using APIPA to configure the IP address........................................................................................133

Using ARP to configure the IP address ...........................................................................................134

Using the TELNET console to configure the IP address .................................................................135

Using the Brother Web BRAdmin server software for IIS to configure the IP address ....................136

Installation when using a Network Print Queue or Share ......................................................................137

Installation when using Web Services (For Windows Vista

B Appendix

Print server specifications......................................................................................................................139

Ethernet wired network....................................................................................................................139

Wireless network (for HL-3070CW).................................................................................................140

Function table and factory default settings ............................................................................................141

and Windows® 7 users) ..........................138

131

139

C Index

143

Introduction1

Introduction 1

Overview 1

Your Brother machine can be shared on a 10/100 MB wired or IEEE 802.11b/802.11g wireless Ethernet network using the internal network print server. The print server provides printing services for

Windows protocols and Macintosh supporting TCP/IP (Mac OS X 10.3.9 or greater). The following chart shows what network features and connections are supported by each operating system.

Operating Systems

10/100BASE-TX Wired Ethernet (TCP/IP)

IEEE 802.11b/g Wireless Ethernet

(TCP/IP)

Printing rr

BRAdmin Light rr

BRAdmin Professional 3

Web BRAdmin

BRPrint Auditor

Web Based Management (web browser)

Internet Printing (IPP) r

Status Monitor

Driver Deployment Wizard r

2000/XP, Windows Vista®, Windows® 7, Windows Server®2003/2008 supporting the TCP/IP

Windows® 2000/XP

Windows Vista

Windows Server® 2003/2008

Windows

Mac OS X 10.3.9 or greater

Only the HL-3070CW has IEEE 802.11b/g Wireless Ethernet (TCP/IP) available.

BRAdmin Professional 3, Web BRAdmin and BRPrint Auditor are available as a download from http://solutions.brother.com/.

Available when using BRAdmin Professional 3 or Web BRAdmin with devices that are connected to your client PC via USB.

For more information, see the User’s Guide on the CD-ROM.

To use the Brother machine through a network, you need to configure the print server, and set up the computers you use.

Introduction

Network features 1

Your Brother machine has the following basic network functions.

Network printing 1

The print server provides printing services for Windows® 2000/XP, Windows Vista®, Windows® 7 and

Windows Server

10.3.9 or greater).

Management utilities 1

BRAdmin Light 1

BRAdmin Light is a utility for initial setup of Brother network connected devices. This utility can search for Brother products on your network, view the status and configure basic network settings, such as IP address.

The BRAdmin Light utility is available for Windows Server

please see the Quick Setup Guide we provided with the machine. For Macintosh users, BRAdmin Light will be installed automatically when you install the printer driver. If you have already installed the printer driver, you don’t have to install it again.

2003/2008 and Mac OS X 10.3.9 (or greater) computers. For installing BRAdmin Light on Windows®,

2003/2008 supporting TCP/IP protocols and Macintosh supporting TCP/IP (Mac OS X

2000/XP, Windows Vista®, Windows® 7 and Windows

For more information on BRAdmin Light, visit us at http://solutions.brother.com/

BRAdmin Professional 3 (for Windows

BRAdmin Professional 3 is a utility for more advanced management of network connected Brother devices. This utility can search for Brother products on your network and view the device status from an easy to read explorer style window that changes color identifying the status of each device. You can configure network

and device settings along with the ability to update device firmware from a Windows BRAdmin Professional 3 can also log activity of brother devices on your network and export the log data in an HTML, CSV, TXT or SQL format.

For users who want to monitor locally connected printers, install the BRPrint Auditor software on the client PC. This utility allows you to monitor printers that are connected to a client PC via the USB from BRAdmin Professional 3.

For more information and downloading, visit us at http://solutions.brother.com/

) 1

computer on your LAN.

Introduction

Web BRAdmin (for Windows®) 1

Web BRAdmin is a utility for managing network connected Brother devices on your LAN and WAN. This utility can search for Brother products on your network, view the status and configure the network settings. Unlike

BRAdmin Professional 3, which is designed for Windows

only, Web BRAdmin is a server based utility that

can be accessed from any client PC with a web browser that supports JRE (Java Runtime Environment). By

installing the Web BRAdmin server utility on a PC running IIS

, connect to the Web BRAdmin server, which

then communicates with the device itself.

For more information and downloading, visit us at http://solutions.brother.com/

Internet Information Server 4.0 or Internet Information Services 5.0/5.1/6.0/7.0

BRPrint Auditor (for Windows®) 1

The BRPrint Auditor software brings the monitoring power of Brother network management tools to locally connected machines. This utility allows a client computer to collect usage and status information from a machine connected via the USB interface. The BRPrint Auditor can then pass this information to another computer on the network running BRAdmin Professional 3 or Web BRAdmin 1.45 or greater. This allows the administrator to check items such as page counts, toner and drum status and the firmware version. In addition to reporting to Brother network management applications this utility can E-mail the usage and status information directly to a predefined E-mail address in a CSV or XML file format (SMTP Mail support required). The BRPrint Auditor utility also supports E-mail notification for reporting warning and error conditions.

Web Based Management (web browser)

Web Based Management (web browser) is a utility for managing network connected Brother devices, using the HTTP (Hyper Text Transfer Protocol). This utility can view the status of Brother products on your network and configure the machine or network settings using a standard web browser that is installed on your computer.

For more information, see Chapter 10: Web Based Management.

For increased security Web Based Management also support HTTPS. For more information see Managing your network printer securely on page 96.

Introduction

Types of network connections 1

Network connection example 1

Peer-to-Peer printing using TCP/IP 1

In a Peer-to-Peer environment, each computer directly sends and receives data to each device. There is no central server controlling file access or printer sharing.

Windows

TCP/IP

1) Router

2) Network printer (your machine)

Windows

TCP/IP

 In a smaller network of 2 or 3 computers, we recommend the Peer-to-Peer printing method as it is easier

to configure than the Network Shared printing method. See Network Shared printing on page 5.

 Each computer must use the TCP/IP Protocol.

 The Brother machine needs to have an appropriate IP address configuration.

 If you are using a router, the Gateway address must be configured on the computers and the Brother

machine.

Introduction

Network Shared printing 1

In a Network Shared environment, each computer sends data via a centrally controlled computer. This type of computer is often called a “Server” or a “Print Server”. Its job is to control the printing of all print jobs.

Windows

TCP/IP

Windows

1) Client computer

2) Also known as “Server” or “Print server”

3) TCP/IP or USB

4) Printer (your machine)

 In a larger network, we recommend a Network Shared printing environment.

 The “Server” or the “Print server” must use the TCP/IP print protocol.

 The Brother machine needs to have an appropriate IP address configuration unless the machine is

connected via the USB interface at the server.

Introduction

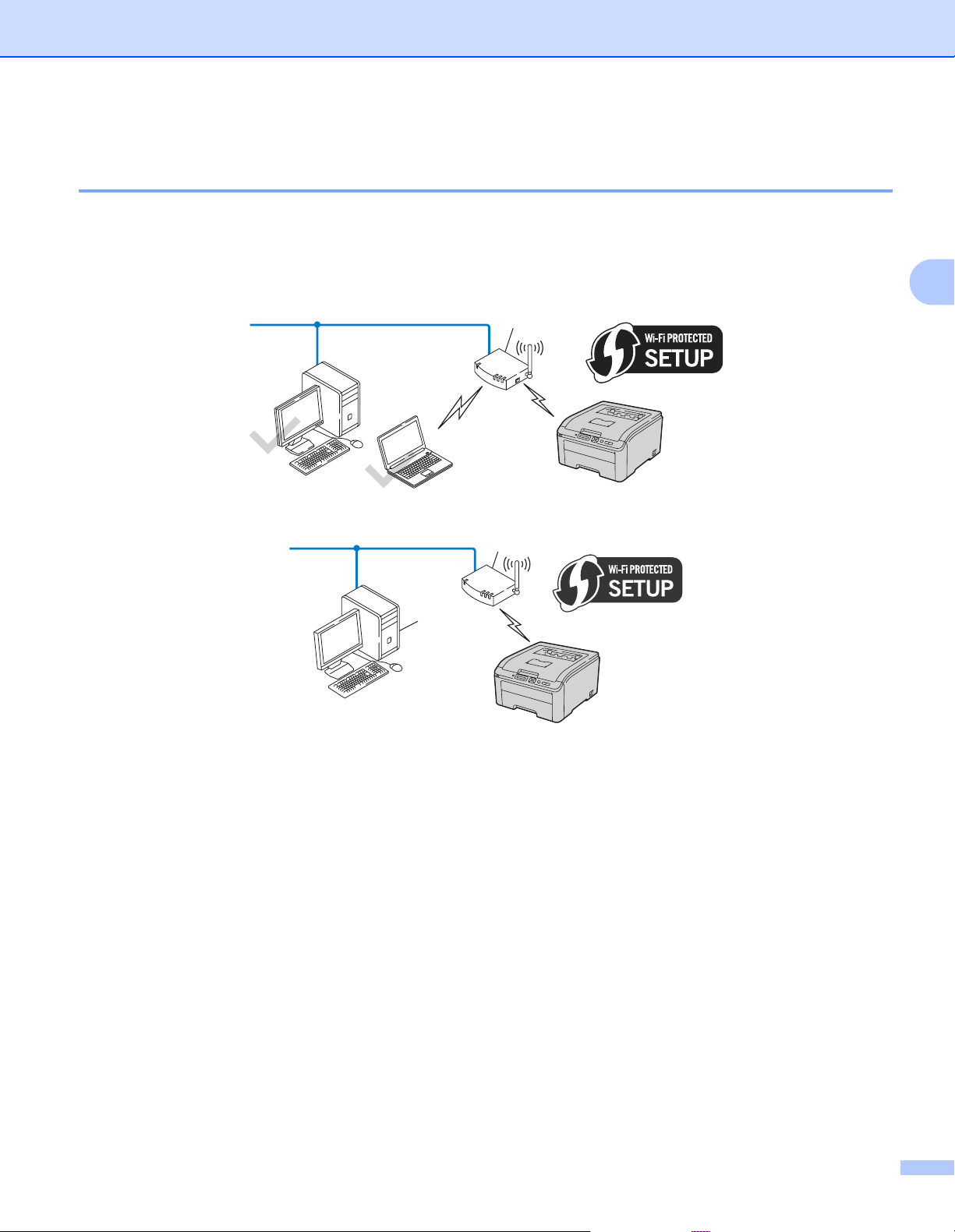

Wireless network connection examples (For HL-3070CW) 1

Connected to a computer with an access point on the network (Infrastructure mode) 1

This type of network has a central access point at the heart of the network. The access point can also act as a bridge or a gateway to a wired network. When the Brother wireless machine (your machine) is part of this network, it receives all print jobs via an access point.

1) Access point

2) Wireless network printer (your machine)

3) Wireless capable computer communicating with the access point

4) Wired computer which is not wireless capable connected to the access point with the Ethernet cable

Introduction

Protocols 1

TCP/IP protocols and functions 1

Protocols are the standardized sets of rules for transmitting data on a network. Protocols allow users to gain access to network connected resources.

The print server used on this Brother product supports the TCP/IP (Transmission Control Protocol/Internet Protocol) protocols.

TCP/IP is the most popular set of protocols used for communication such as Internet and E-mail. This protocol can be used in almost all operating systems such as Windows

The following TCP/IP protocols are available on this Brother product.

Note

• You can configure the protocol settings by using the HTTP interface (web browser).

See How to configure the print server settings using Web Based Management (web browser) on page 78.

• For information about the security protocols, see Security protocols on page 94.

, Windows Server®, Mac OS X and Linux®.

DHCP/BOOTP/RARP 1

By using the DHCP/BOOTP/RARP protocols, the IP address can be automatically configured.

Note

To use the DHCP/BOOTP/RARP protocols, please contact your network administrator.

APIPA 1

If you do not assign an IP address manually (using the control panel of the machine or the BRAdmin applications) or automatically (using a DHCP/BOOTP/RARP server), the Automatic Private IP Addressing (APIPA) protocol will automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255.

ARP 1

Address Resolution Protocol performs mapping of an IP address to MAC address in a TCP/IP network.

DNS client 1

The Brother print server supports the Domain Name System (DNS) client function. This function allows the print server to communicate with other devices by using its DNS name.

NetBIOS name resolution 1

Network Basic Input/Output System name resolution enables you to obtain the IP address of the other device using its NetBIOS name during the network connection.

Introduction

WINS 1

Windows Internet Name Service is an information providing service for the NetBIOS name resolution by consolidating an IP address and a NetBIOS name that is in the local network.

LPR/LPD 1

Commonly used printing protocols on a TCP/IP network.

SMTP client 1

Simple Mail Transfer Protocol (SMTP) client is used to send E-mails via the Internet or Intranet.

Custom Raw Port (default is Port9100) 1

Another commonly used printing protocol on a TCP/IP network. It enables interactive data transmission.

IPP 1

The Internet Printing Protocol (IPP Version 1.0) allows you to print documents directly to any accessible printer via the internet.

Note

For the IPPS protocol, see Security protocols on page 94.

mDNS 1

mDNS allows the Brother print server to automatically configure itself to work in a Mac OS X Simple Network Configured system. (Mac OS X 10.3.9 or greater).

Telnet 1

The Brother print server supports Telnet server for command line configuration.

SNMP 1

The Simple Network Management Protocol (SNMP) is used to manage network devices including computers, routers and Brother network ready machines. The Brother print server supports SNMPv1, SNMPv2c and SNMPv3.

Note

For the SNMPv3 protocol, see Security protocols on page 94.

LLMNR 1

The Link-Local Multicast Name Resolution protocol (LLMNR) resolves the names of neighboring computers, if the network does not have a Domain Name System (DNS) server. The LLMNR Responder function works in both the IPv4 or IPv6 environment when using a computer that has the LLMNR Sender function such as

Windows Vista

and Windows® 7.

Introduction

Web services 1

The Web Services protocol enables Windows Vista® and Windows® 7 users to install the Brother printer driver by right-clicking the machine icon from the Network folder.

See Installation when using Web Services (For Windows Vista

and Windows® 7 users) on page 138.

The Web Services also let you check the current status of the machine from your computer.

Web server (HTTP) 1

The Brother print server is equipped with a built in web server that allows you to monitor its status or change some of its configuration settings using a web browser.

Note

• We recommend Microsoft® Internet Explorer® 6.0 (or greater) or Firefox 1.0 (or greater) for Windows®

and Safari 1.3 (or greater) for Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used, make sure it is compatible with HTTP 1.0 and HTTP 1.1.

• For the HTTPS protocol, see Security protocols on page 94.

IPv6 1

This machine is compatible with the IPv6, the next generation internet protocol. For more information on the IPv6 protocol, visit http://solutions.brother.com/

Other Protocol 1

LLTD 1

The Link Layer Topology Discovery protocol (LLTD) lets you locate the Brother machine easily on the

Windows Vista and the node name. The default setting for this protocol is Off. You can activate LLTD using the BRAdmin Professional 3 utility software. Visit the download page for your model at http://solutions.brother.com/ download BRAdmin Professional 3.

and Windows® 7 Network Map. Your Brother machine will be shown with a distinctive icon

Configuring your machine for a network2

Configuring your machine for a network 2

Overview 2

Before using your Brother machine in a network environment, you must install the Brother software and also configure the appropriate TCP/IP network settings on the machine itself. In this chapter, you will learn the basic steps required to print over the network using TCP/IP protocol.

We recommend that you use the Brother installer on the Brother CD-ROM to install the Brother software as this will guide you through the software and network installation. Please follow the instructions in the supplied Quick Setup Guide.

Note

If you do not wish to, or are unable to use the automatic installer or any of Brother’s software tools, you can also use the machine’s control panel to change network settings. For more information, see Network menu on page 55.

IP addresses, subnet masks and gateways 2

To use the machine in a networked TCP/IP environment, you need to configure its IP address and subnet mask. The IP address you assign to the print server must be on the same logical network as your host computers. If it is not, you must properly configure the subnet mask and the gateway address.

IP address 2

An IP address is a series of numbers that identifies each device connected to a network. An IP address consists of four numbers separated by dots. Each number is between 0 and 255.

 Example: In a small network, you would normally change the final number.

• 192.168.1.1

• 192.168.1.2

• 192.168.1.3

How the IP address is assigned to your print server: 2

If you have a DHCP/BOOTP/RARP server in your network (typically UNIX®, Linux or Windows® 2000/XP,

Windows Vista obtain its IP address from that server.

Note

On smaller networks, the DHCP server may also be the Router.

For more information on DHCP, BOOTP and RARP, see:Using DHCP to configure the IP address on page 131

, Windows® 7 or Windows Server® 2003/2008 network) the print server will automatically

Configuring your machine for a network

Using BOOTP to configure the IP address on page 132 Using RARP to configure the IP address on page 133.

If you do not have a DHCP/BOOTP/RARP server, the Automatic Private IP Addressing (APIPA) protocol will automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255. For more information on APIPA, see Using APIPA to configure the IP address on page 133.

If the APIPA protocol is disabled, the default IP address of a Brother print server is 192.0.0.192. However, you can easily change this IP address number to match with the IP address details of your network. For information on how to change the IP address, see Setting the IP address and subnet mask on page 13.

Subnet mask 2

Subnet masks restrict network communication.

 Example: Computer 1 can talk to Computer 2

• Computer 1

IP Address: 192.168. 1. 2

Subnet Mask: 255.255.255.000

• Computer 2

IP Address: 192.168. 1. 3

Subnet Mask: 255.255.255.000

Where the 0 is in the Subnet mask, there is no limit to communication at this part of the address. What this means in the above example is, we can communicate with any device that has an IP address that begins with

192.168.1.x. (where x.x. are numbers between 0 and 255).

Gateway (and router) 2

A gateway is a network point that acts as an entrance to another network and sends data transmitted via the network to an exact destination. The router knows where to direct data that arrives at the gateway. If a destination is located at an external network, the router transmits data to the external network. If your network communicates with other networks, you may need to configure the Gateway IP address. If you do not know the Gateway IP address then contact your Network Administrator.

Configuring your machine for a network

Step by step chart 2

a Configure the TCP/IP settings.

o Configure the IP address i See page 13 o Configure the subnet mask i See page 13 o Configure the gateway i See page 13

b Change the print server settings.

o Using the BRAdmin Light utility i See page 16 o Using the BRAdmin Professional 3 utility i See page 16 o Using the Web Based Management (web

browser)

o Using the control panel i See page 17 o Using other methods i See page 17

i See page 17

Configuring your machine for a network

Setting the IP address and subnet mask 2

Using the BRAdmin Light utility to configure your machine as a network printer2

BRAdmin Light 2

The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It also can search for Brother products in a TCP/IP environment, view the status and configure basic network settings,

such as IP address. The BRAdmin Light utility is available for Windows Windows

7, Windows Server® 2003/2008 and Mac OS X 10.3.9 or greater.

How to configure your machine using the BRAdmin Light utility 2

Note

• Please use the BRAdmin Light utility that was supplied on the CD-ROM of your Brother product.

You can also download the latest Brother BRAdmin Light utility from http://solutions.brother.com/

• If you require more advanced printer management, use the latest BRAdmin Professional 3 utility that is

available as a download from http://solutions.brother.com/

. This utility is only available for Windows®

users.

• If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them.

Once you are sure that you can print, configure the software settings following the instructions.

• Node name: Node name appears in the current BRAdmin Light window. The default node name of the

print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

• The default password for Brother print servers is “access”.

a Start the BRAdmin Light utility.

 For Windows

Click Start / All Programs1 / Brother / BRAdmin Light / BRAdmin Light.

Programs for Windows® 2000 users

 For Macintosh

Double-click Macintosh HD (Startup Disk) / Library / Printers / Brother / Utilities / BRAdmin Light.jar file.

2000/XP, Windows Vista®,

b BRAdmin Light will search for new devices automatically.

c Double-click the unconfigured device.

Configuring your machine for a network

Windows

Macintosh

Note

• If the print server is set to its factory default settings (if you don’t use a DHCP/BOOTP/RARP server), the

device will appear as Unconfigured in the BRAdmin Light utility screen.

• You can find the node name and MAC Address (Ethernet Address) by printing out the Network

Configuration page. See Printing the Network Configuration page on page 70.

d Choose STATIC from Boot Method. Enter the IP Address, Subnet Mask and Gateway (if needed) of

your print server.

Windows

Macintosh

e Click OK. f With the correctly programmed IP address, you will see the Brother print server in the device list.

Configuring your machine for a network

Using the control panel to configure your machine for a network 2

You can configure your machine for a network using the control panel Network menu. See Network menu on page 55.

Using other methods to configure your machine for a network 2

You can configure your machine for a network using other methods. See Other ways to set the IP address (For advanced users and administrators) on page 131.

Configuring your machine for a network

Changing the print server settings 2

Note

For wireless network users, you need to configure the wireless settings to change the print server settings. See Configuring your machine for a wireless network (For HL-3070CW) in Chapter 3.

Using the BRAdmin Light utility to change the print server settings 2

a Start the BRAdmin Light utility.

 For Windows

Click Start/All Programs1/Brother/BRAdmin Light/BRAdmin Light.

Programs for Windows® 2000 users

 For Macintosh

Double-click Macintosh HD (Startup Disk) / Library / Printers / Brother / Utilities / BRAdmin Light.jar file.

b Choose the print server which you want to change the settings.

c Choose Network Configuration from the Control menu. d Enter a password. The default password is “access”. e You can now change the print server settings.

Note

If you want to change more advanced settings, use the BRAdmin Professional 3 utility that is available as a download from http://solutions.brother.com/

Using the BRAdmin Professional 3 utility to change the print server settings (For Windows®) 2

Note

• Please use the latest version of the BRAdmin Professional 3 utility that is available as a download from

http://solutions.brother.com/

• If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them.

Once you are sure that you can print, configure the software settings following the instructions.

• Node Name: Node name appears in the current BRAdmin Professional 3 window. The default node

name of the print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network. (“xxxxxxxxxxxx” is your machine’s MAC Address / Ethernet Address.)

. This utility is only available for Windows® users.

. (For Windows® only)

Configuring your machine for a network

a Start the BRAdmin Professional 3 utility (from Windows

Administrator Utilities/Brother BRAdmin Professional 3/BRAdmin Professional 3.

Programs for Windows® 2000 users

) by clicking Start/All Programs1/Brother

b Choose the print server which you want to configure. c Choose Configure Device from the Control menu. d Enter a password if you have set one. The default password is “access”. e You can now change the print server settings.

Note

• If the print server is set to its factory default settings without using a DHCP/BOOTP/RARP server, the

device will appear as APIPA in the BRAdmin Professional 3 utility screen.

• You can find the node name and MAC Address / Ethernet Address (IP Address above) by printing out

the Network Configuration page. See Printing the Network Configuration page on page 70.

Using Web Based Management (web browser) to change the print server settings 2

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol). See How to configure the print server settings using Web Based Management (web browser) on page 78.

Using the control panel to change the print server settings 2

You can configure and change the print server settings using the control panel Network menu. See Network menu on page 55.

Using other methods to change print server settings 2

You can configure your network printer using other methods. See Other ways to set the IP address (For advanced users and administrators) on page 131.

Configuring your machin e for a wireless n etwork (For HL-307 0CW)3

Configuring your machine for a wireless

network (For HL-3070CW)

Overview 3

To connect your printer to your wireless network, you need to follow the steps in the Quick Setup Guide or the Network User’s Guide. We recommend that you use the Brother installer application on the CD-ROM which we have provided with the printer. By using this application, you can easily connect your machine to your wireless network and install the network software and printer driver which you need to complete the configuration of your machine for a wireless network. You will be guided by the on-screen instructions until you are able to use your Brother wireless network machine.

If you want to configure your printer without using the Brother installer application, please read this chapter for more details on how to configure the wireless network settings. For information on TCP/IP settings, see Setting the IP address and subnet mask on page 13. For Wireless configuration using the SecureEasySetup, Wi-Fi Protected Setup or AOSS™ from the control panel menu, see Chapter 6. For Wireless configuration using the PIN Method of Wi-Fi Protected Setup, see Chapter 7.

Note

• To achieve optimum results with normal every day document printing, place the Brother machine as

close to the network access point/router as possible with minimal obstructions. Large objects and walls between the two devices as well as interference from other electronic devices can affect the data transfer speed of your documents.

Due to these factors, wireless may not be the best method of connection for all types of documents and applications. If you are printing large files, such as multi-page documents with mixed text and large graphics, you may want to consider choosing wired Ethernet for a faster data transfer, or USB for the fastest throughput speed.

• Although the Brother machine can be used in both a wired and wireless network, only one connection

method can be used at a time.

Configuring your machine for a wireless network (For HL-3070CW)

Wireless network terms and concepts 3

If you want to use your machine in a wireless network you must configure the machine to match the settings of the existing wireless network. This section provides some of the main terms and concepts of

these settings, which may be helpful when you configure your machine for a wireless network.

SSID (Service Set Identifier) and channels 3

You need to configure the SSID and a channel to specify the wireless network you want to connect to.

SSID 3

Each wireless network has its own unique network name and it is technically referred to as SSID or ESSID (Extended Service Set Identifier). The SSID is a 32-byte or less value and is assigned to the access point. The wireless network devices you want to associate to the wireless network should match the access point. The access point and wireless network devices regularly send wireless packets (referred to as a beacon) which has the SSID information. When your wireless network device receives a beacon, you can identify the wireless network that is close enough for the radio waves to reach your device.

Channels 3

Wireless networks use channels. Each wireless channel is on a different frequency. There are up to 14 different channels that can be used when using a wireless network. However, in many countries the number of channels available are restricted. For more information, see Wireless network (for HL-3070CW) on page 140.

Authentication and encryption 3

Most wireless networks use some kind of security settings. These security settings define the authentication (how the device identifies itself to the network) and encryption (how the data is encrypted as it is sent on the network). If you do not correctly specify these options when you are configuring your Brother wireless device, it will not be able to connect to the wireless network. Therefore care must be taken when configuring these options. Please refer to the information below to see which authentication and encryption methods your Brother wireless device supports.

Authentication methods 3

The Brother machine supports the following methods:

 Open System

Wireless devices are allowed to access the network without any authentication.

 Shared Key

A secret pre-determined key is shared by all devices that will access the wireless network. The Brother machine uses the WEP keys as the pre-determined key.

Configuring your machine for a wireless network (For HL-3070CW)

 WPA-PSK/WPA2-PSK

Enables a Wi-Fi Protected Access Pre-shared Key (WPA-PSK/WPA2-PSK), which enables the Brother wireless machine to associate with access points using TKIP for WPA-PSK or AES for WPA-PSK and WPA2-PSK encryption (WPA-Personal).

 LEAP

Cisco LEAP (Light Extensible Authentication Protocol) has been developed by Cisco Systems, Inc. which uses a user ID and password for authentication.

 EAP-FAST

EAP-FAST (Extensible Authentication Protocol - Flexible Authentication via Secured Tunnel) has been developed by Cisco Systems, Inc. which uses a user ID and password for authentication, and symmetric key algorithms to achieve a tunneled authentication process.

The Brother machine supports the following inner authentications:

• EAP-FAST/NONE

EAP-FAST authentication for CCXv3 networks. Does not use an inner authentication method.

• EAP-FAST/MS-CHAPv2

EAP-FAST authentication for CCXv4 networks. Uses MS-CHAPv2 for the inner authentication method.

• EAP-FAST/GTC

EAP-FAST authentication for CCXv4 networks. Uses GTC for the inner authentication method.

Encryption methods 3

Encryption is used to secure the data that is sent over the wireless network. The Brother machine supports the following encryption methods:

 None

No encryption method is used.

 WEP

By using WEP (Wired Equivalent Privacy), the data is transmitted and received with a secure key.

 TKIP

TKIP (Temporal Key Integrity Protocol) provides per-packet key mixing a message integrity check and rekeying mechanism.

 AES

AES (Advanced Encryption Standard) is Wi-Fi authorized strong encryption standard.

 CKIP

The original Key Integrity Protocol for LEAP by Cisco Systems, Inc.

Configuring your machine for a wireless network (For HL-3070CW)

Network Key 3

There are some rules for each security method:

 Open System/Shared Key with WEP

This key is a 64-bit or 128-bit value that must be entered in an ASCII or hexadecimal format.

• 64 (40) bit ASCII:

Uses 5 text characters. e.g. “WSLAN” (this is case sensitive)

• 64 (40) bit hexadecimal:

Uses 10 digits of hexadecimal data. e.g. “71f2234aba”

• 128 (104) bit ASCII:

Uses 13 text characters. e.g. “Wirelesscomms” (this is case sensitive)

• 128 (104) bit hexadecimal:

Uses 26 digits of hexadecimal data. e.g. “71f2234ab56cd709e5412aa2ba”

 WPA-PSK/WPA2-PSK and TKIP or AES

Uses a Pre-Shared Key (PSK) that is 8 or more characters in length, up to a maximum of 63 characters.

 LEAP

Uses User ID and Password.

• User ID: less than 64 characters in length.

• Password: less than 32 characters in length.

 EAP-FAST

Uses User ID and Password.

• User ID: less than 64 characters in length.

• Password: less than 32 characters in length.

Configuring your machine for a wireless network (For HL-3070CW)

Step by step chart for wireless network configuration 3

For Infrastructure mode 3

a Confirm your network environment. (See page 23.)

o Infrastructure mode

Connected to a computer with an access point

b Confirm your wireless network setup method. (See page 24.)

(Windows

Temporarily using a

USB cable

)

Using the Brother

installer application

(Recommended)

(Macintosh)

Temporarily using a

network cable

SES/WPS/AOSS control

(if your wireless access

Using the

panel menu

point supports either

SecureEasySetup,

Wi-Fi Protected Setup

or AOSS™)

c Configure your machine for a wireless network. (See page 28.)

Configuring your machine for a wireless network

See page 29. See page 31. See page 41. See page 45.

Installing the printer driver

See the Quick Setup Guide

See the Quick Setup

Guide

Using the PIN Method of

Wi-Fi Protected Setup

(if your wireless access

point supports Wi-Fi

Protected Setup)

(For Windows

See page 47.

(For Macintosh)

See page 51.

)

Wireless configuration and installing printer driver have been completed.

Configuring your machine for a wireless network (For HL-3070CW)

Confirm your network environment 3

Connected to a computer with an access point in the network (Infrastructure mode) 3

1) Access point

2) Wireless network printer (your machine)

3) Wireless capable computer connected to the access point

4) Wired computer which is not wireless capable connected to the access point with an Ethernet cable

Configuring your machine for a wireless network (For HL-3070CW)

Confirm your wireless network setup method 3

There are three methods to configure your wireless network machine. Use the Brother installer application on the CD-ROM (recommended). Use the one-push wireless setting mode or use the PIN Method of Wi-Fi Protected Setup. The setup process will be different depending on your network environment.

Configuration using the Brother installer application on the CD-ROM to configure your machine for a wireless network (Recommended) 3

We recommend that you use the Brother installer application on the CD-ROM we have provided with the machine. By using this application, you can easily connect your machine to your wireless network and install the network software and printer driver which you need to complete the configuration of your machine for a wireless network. You will be guided by the on-screen instructions until you are able to use your Brother wireless network machine. You must know your wireless network settings before you proceed with this installation.

Configuration temporarily using a USB or network cable 3

You can temporarily use a USB cable or network cable to configure your Brother machine for your wireless network.

USB method (For Windows

 You can remotely configure the machine from a computer that is also on the network using a USB cable

(A).

) 3

Configuring your machine for a wireless network (For HL-3070CW)

Ethernet cable method (For Macintosh) 3

 If there is an Ethernet Hub or Router on the same network as the WLAN access point(A), you can

temporarily connect the Hub or Router to the machine using a network cable(B). You can then remotely configure the machine from a computer on the network.

Configuring your machine for a wireless network (For HL-3070CW)

Configuration using SES/WPS or AOSS from the control panel menu to configure your machine for a wireless network (Infrastructure mode only) 3

If your wireless access point (A) supports either SecureEasySetup, Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine without a computer.

Push Button Configuration

Configuring your machine for a wireless network (For HL-3070CW)

Configuration using the PIN Method of Wi-Fi Protected Setup to configure your machine for a wireless network (Infrastructure mode only) 3

If your wireless access point (A) supports Wi-Fi Protected Setup, you can also configure using the PIN Method of Wi-Fi Protected Setup. (See Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW) in Chapter 7.)

 Connection when the wireless access point (router) (A) doubles as a Registrar

 Connection when another device (C), such as a computer is used as a Registrar

The Registrar is a device that manages the wireless LAN.

Configuring your machine for a wireless network (For HL-3070CW)

Configure your machine for a wireless network 3

Using the Brother installer application on the CD-ROM to configure your machine for a wireless network (Recommended) 3

For installation, see Wireless configuration for Windows® using the Brother automatic installer application (For HL-3070CW) in Chapter 4 or Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW) in Chapter 5.

Using SES/WPS or AOSS from the control panel menu to configure your machine for a wireless network 3

For installation, see Wireless configuration using SES/WPS or AOSS from the control panel (For HL3070CW) in Chapter 6.

Using the PIN Method of Wi-Fi Protected Setup to configure your machine for a wireless network 3

For installation, see Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL3070CW) in Chapter 7.

Wireless configuration for Windows® using the Brother autom atic installer appl ication (For HL-307 0CW)4

Wireless configuration for Windows®

using the Brother automatic installer application (For HL-3070CW)

Configuration in Infrastructure mode 4

Before configuring the wireless settings 4

IMPORTANT

The following instructions will install your Brother machine in a network environment using the Brother installer application for Windows

If you are using Windows® XP, or currently using a computer connected to an access point/router by network cable, you need to know the wireless settings.

Item Record the current wireless network settings

SSID (Network Name)

Network Key (Security Key/Encryption Key)

found on the CD-ROM we have provided with the machine.

If you have previously configured the wireless settings of the printer, you must reset the print server back to its factory default settings (see Reset the network settings to the factory default on page 69).

You need to temporarily use a USB cable during configuration.

Wireless configuration for Windows® using the Brother automatic installer application (For HL-3070CW)

Configure the wireless settings 4

a Put the supplied CD-ROM into your CD-ROM drive. b The opening screen will appear automatically.

Choose your machine and the language.

c The CD-ROM main menu will appear. Click Install Printer Driver.

Note

• If the opening screen does not appear, use Windows® Explorer to run the start.exe program from the

root folder of the Brother CD-ROM.

• When the User Account Control screen appears,

(Windows Vista®) click Allow. (Windows

7) click Yes.

d Click Wireless Network users. e Choose Wireless Setup and Driver Install (Recommended), and then click Next.

f Choose Temporarily use a USB cable (Recommended) and then click Next.

When the Important Notice screen appears, read the notice, check the box after you confirm the wireless setting is enabled and then click Next.

g Follow the screen instructions to configure the wireless settings.

After you have completed the wireless setup, you can proceed to the printer driver installation. Click Next in the installation dialog and follow the screen instructions.

Wireless Configuration for Ma cintosh using the Brother insta ller application (For HL-3 070CW)5

Wireless Configuration for Macintosh

using the Brother installer application (For HL-3070CW)

Configuration in Infrastructure mode 5

Before configuring the wireless settings 5

IMPORTANT

The following instructions will install your Brother machine in a network environment using the Brother installer application for Macintosh found on the CD-ROM we have provided with the machine.

You must know your wireless network settings before you proceed with this installation. Make sure you take notes on all the current settings such as the SSID, authentication and encryption of your wireless network environment. If you do not know them, contact your network administrator or the manufacturer of your access point/router.

Item Example Record the current wireless network settings

Communication mode: (Infrastructure) Infrastructure

Network name: (SSID, ESSID) HELLO

Authentication method:

(Open System, Shared key, WPA-PSK

WPA2-PSK

Encryption mode:

, LEAP, EAP-FAST)

WPA2-PSK

AES

(None, WEP, TKIP, AES, CKIP)

Network key: (Encryption key, WEP key Passphrase)

WPA/WPA2-PSK is a Wi-Fi Protected Access Pre-Shared Key, which lets the Brother wireless machine associate with access points using TKIP or AES encryption (WPA-Personal). WPA-PSK(TKIP or AES) and WPA2-PSK(AES) use a Pre-Shared Key (PSK) that is 8 or more characters in length, up to a maximum of 63 characters.

The WEP key is for 64-bit encrypted networks or 128-bit encrypted networks and can contain both numbers and letters. If you do not know this information you should see the documentation provided with your access point or wireless router. This key is a 64-bit or 128-bit value that must be entered in an ASCII or HEXADECIMAL format.

12345678

For example:

64-bit ASCII: Uses 5 text characters e.g. “Hello” (this is case sensitive) 64-bit Hexadecimal: Uses 10 digits of hexadecimal data e.g. “71f2234aba” 128-bit ASCII: Uses 13 text characters e.g. “Wirelesscomms” (this is case sensitive) 128-bit Hexadecimal: Uses 26 digits of hexadecimal data e.g.

“71f2234ab56cd709e5412aa3ba”

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

If you are using a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, configure the software settings following the instructions.

You need to temporarily use an Ethernet cable during configuration.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

Configure the wireless settings 5

a Make sure that the power cord is plugged in. b Turn on the machine and wait until the machine is in the Ready state. c Turn on your Macintosh. d Put the supplied CD-ROM into your CD-ROM drive. Double-click the HL3000 icon on your desktop.

Double-click the Start Here icon. Choose your printer model and the language.

e Click Install Printer Driver on the menu screen.

f Click Wireless Network users.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

g Choose Wireless Setup and Driver Install (Recommended) or Wireless Setup Only, and then click

Next.

h Choose Step by Step install (Recommended) and then click Next.

i Choose With cable (Recommended) and then click Next.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

j Connect the Brother wireless device to your access point using a network cable and click Next.

k Choose the machine you wish to configure, and click Next. If the list is blank, check if the access point

and the machine are powered on, and then click Refresh.

Note

• The default node name is “BRNxxxxxxxxxxxx”.

• You can find your printer’s MAC Address (Ethernet Address) and the IP Address by printing out the

Network Configuration page. See Printing the Network Configuration page on page 70.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

l The wizard will search for wireless networks available from your machine. Choose the access point you

wish to associate the machine with, and then click Next.

Note

•“SETUP” is the default SSID of the machine. Do not choose this SSID.

• If the list is blank, check that the access point has power and is broadcasting the SSID, and then see if

the machine and the access point are within range for wireless communication. Then, click Refresh.

• If your access point is set to not broadcast the SSID you can manually add it by clicking the Add button.

Follow the on-screen instructions for entering the Name (SSID) and then click Next.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

m If your network is not configured for Authentication and Encryption, the following screen will appear. To

continue configuration, click OK and go to o.

n If your network is configured for Authentication and Encryption, the following screen will appear. When

configuring your Brother wireless machine, you must configure your machine to match the Authentication and Encryption settings you wrote down on page 31 for your existing wireless network. Choose the Authentication Method and Encryption Mode from the pop-up menu in each setting box. Then enter the Network Key and Confirm Network Key, and then click Next.

Note

• If you want to setup or configure an additional WEP key indexes other than WEP key1, click Advanced.

• If you do not know the Authentication or Encryption settings for your network, contact your network

administrator or the manufacturer of your access point/router.

• If you are using WEP and the printed Network Configuration page in o shows Link OK in the Wireless

Link Status, but the machine is not found on your network, make sure you entered the WEP key correctly. The WEP key is case sensitive.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

o Click Next. The settings will be sent to your machine. The settings will remain unchanged if you click

Cancel. The Network Configuration page will be printed.

Note

• If you want to manually enter the IP address settings of your machine, click Change IP Address and

enter the necessary IP address settings for your network.

• The control panel settings will be automatically changed to WLAN Enable when the wireless settings

are sent to your machine.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

p Check the printed Network Configuration page. Choose the status as it is shown for the Wireless Link

Status on the Network Configuration page. Click Next.

If your status is "Link OK.", go to r. If your status is "Failed To Associate", go to q.

q Click Finish. Wireless setup was unable to associate with a wireless network. This is probably due to

incorrect security settings. Reset the print server back to its factory default settings (see Reset the network settings to the factory default on page 69). Confirm the security settings of your wireless network

and try starting from f again.

Wireless Configuration for Macintosh using the Brother installer application (For HL-3070CW)

r Disconnect the network cable between your access point (hub or router) and the machine, and click Next

or Finish.

You have completed the wireless setup. If you chose to install the printer driver in step g, follow the on-screen instructions.

Wireless configuration using SES/WPS or AO SS from the control panel(For HL-3070CW)6

Wireless configuration using SES/WPS or

AOSS from the control panel (For HL-3070CW)

Overview 6

If your wireless access point/router supports either SecureEasySetup, Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine easily without knowing your wireless network settings. Your Brother machine has the SES/WPS/AOSS menu on the control panel. This feature automatically detects which mode your access point uses, SecureEasySetup, Wi-Fi Protected Setup or AOSS™. By pushing a button on the wireless access point/router, you can setup the wireless network and security settings. See the user’s guide for your wireless access point/router for instructions on how to access one-push mode.

Push Button Configuration

Note

Routers or access points that support SecureEasySetup, Wi-Fi Protected Setup or AOSS™ have the symbols shown below.

Wireless configuration using SES/WPS or AOSS from the control panel (For HL-3070CW)

How to configure your wireless machine, using SES/WPS or AOSS from the control panel menu 6

IMPORTANT

If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation.

If you are using Windows® Firewall or a firewall function of anti-spyware or antivirus applications, temporarily disable them. Once you are sure that you can print, configure the software settings following the instructions.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose SES/WPS/AOSS.

Press OK.

Note

If your wireless access point supports Wi-Fi Protected Setup (PIN Method) and you want to configure your machine using the PIN (Personal Identification Number) Method, see How to configure your wireless machine, using the PIN Method of Wi-Fi Protected Setup on page 45.

e The machine searches for an access point that supports SecureEasySetup, Wi-Fi Protected Setup or

AOSS™ for 2 minutes.

f Put your access point in the SecureEasySetup mode, Wi-Fi Protected Setup mode or AOSS™ mode,

depending on what is supported by your access point. Please refer to the instruction manual that came with your access point.

Wireless configuration using SES/WPS or AOSS from the control panel (For HL-3070CW)

g If the LCD shows Connected, the machine has successfully connected to your access point/router. You

can now use your machine in a wireless network.

If the LCD shows Connection Error, a session overlap has been detected. The machine has detected more than one access point/router on your network with the SecureEasySetup mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Make sure that only one access point/router has the SecureEasySetup mode, the Wi-Fi Protected Setup mode or the AOSS™ mode enabled and try starting from a again.

If the LCD shows No Access Point, the machine has not detected your access point/router on your network with the SecureEasySetup mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled. Move the machine closer to your access point/router and try starting from a again.

If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router. Try starting from a again. If the same message is indicated again, reset the print server back to its factory default settings and try again. (For resetting, see Reset the network settings to the factory default on page 69.)

LCD messages when using the SES/WPS/AOSS control panel menu

LCD shows Connection status Action

Setting WLAN Searching or accessing the access point,

and downloading settings from the access point

Connecting SES

Connecting WPS

Connecting AOSS

Connected Connection succeeded. -

Connection Error Session overlap has been detected. Check that only one router or access

No Access Point The access point detection failed. 1 Move the machine closer to your

Connection Fail Connection failed. 1 Try starting from a again.

Connecting the access point

point has the SecureEasySetup mode, the Wi-Fi Protected Setup mode or AOSS™ mode enabled and try starting from a again.

access point/router and try starting from step a again.

2 If the same message continues,

reset the print server back to its factory default settings and try again.

2 If the same message continues,

reset the print server back to its factory default settings and try again.

Wireless configuration using SES/WPS or AOSS from the control panel (For HL-3070CW)

(Windows®) You have completed the wireless network setup. If you would like to continue installing the printer driver necessary for operating your device, please choose Install Printer Driver from the CD-ROM menu. (Macintosh) You have completed the wireless network setup. If you would like to continue installing the printer driver necessary for operating your device, please choose Start Here OSX from the CDROM.

Wireless configuration us ing the PIN Method of Wi-Fi Protected S etup(For HL-3070CW)7

Wireless configuration using the PIN

Method of Wi-Fi Protected Setup (For HL-3070CW)

Overview 7

If your wireless access point/router supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily. The PIN (Personal Identification Number) Method is one of the connection methods developed by the Wi-Fi Alliance. By inputting a PIN which is created by an Enrollee (your machine) to the Registrar (a device that manages the wireless LAN), you can setup the wireless network and security settings. See the user’s guide for your wireless access point/router for instructions on how to access the Wi-Fi Protected Setup mode.

Note

Routers or access points that support Wi-Fi Protected Setup have a symbol as shown below.

How to configure your wireless machine, using the PIN Method of Wi-Fi Protected Setup

IMPORTANT

If you are going to connect the Brother machine to your network, we recommend that you contact your system administrator prior to installation.

a Make sure that the power cord is plugged in. b Turn on the machine and wait until the machine is in the Ready state. c Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. d Press + or - to choose Network.

Press OK.

e Press + or - to choose WLAN.

Press OK.

f Press + or - to choose WPS w/PIN Code.

Press OK.

g The LCD will show an 8 digit PIN and the machine starts searching for an access point for 5 minutes.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

h Using a computer that is on the network, type “http://access point’s IP address/” into your browser.

(Where “access point’s IP address” is the IP address of the device that is used as the Registrar

.) Go to

the WPS (Wi-Fi Protected Setup) setting page and input the PIN which the LCD shows in g to the Registrar and follow the on-screen instruction.

The Registrar is normally the access point/router.

Note

The setting page is different, depending on the brand of access point/router. See the instruction manual that came with your access point/router.

If you are using your Windows Vista® and Windows® 7 computer as a Registrar, follow the instructions below.

Note

To use a Windows Vista® and Windows® 7 computer as a Registrar, you need to register it to your network in advance. See the instruction manual that came with your access point/router.

1 (Windows Vista®)

Click the button and then Network.

(Windows

Click the button and then Devices and Printers.

2 (Windows Vista

)

Click Add a wireless device. (Windows

Click Add a device. 3 Choose your machine and click Next. 4 Input the PIN from the printed page and then click Next. 5 Choose your network that you want to connect to, and then click Next. 6Click Close.

i If the LCD shows Connected, the machine has successfully connected to your access point/router. You

can now use your machine in a wireless network.

If the LCD shows Connection Fail, the machine has not successfully connected to your access point/router, or the entered PIN code is invalid. Make sure you enter the correct PIN code, and try starting from f again. If the same message is indicated again, reset the print server back to its factory default settings and try again. For resetting, see Reset the network settings to the factory default on page 69.

If the LCD shows No Access Point, the machine has detected no access point/router on your network. Make sure you place the Brother machine as close to the network access point/router as possible with minimal obstructions, and try starting from f again. If the same message is indicated again, reset the print server back to its factory default settings and try again. For resetting, see Reset the network settings to the factory default on page 69.

You have completed the wireless setup. To install the printer driver, Go to step a on page 47

for Windows

or page 51 for Macintosh.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

For Windows® users 7

IMPORTANT

DO NOT try to cancel any of the screens during this installation.

a Turn on your computer. (You must be logged on with Administrator rights.)

Close any applications running before configuration.

b Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically.

Choose your printer model and the language.

c Click Install Printer Driver on the menu screen.

Note

Choose the Install Printer Driver icon for your region.

d Click Wireless Network users.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

Note

When the User Account Control screen appears, (Windows Vista (Windows

) click Allow.

7) click Yes.

e Choose Driver Install Only, and then click Next.

f When the License Agreement window appears, click Yes if you agree to the License Agreement.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

g Choose Standard Installation, and then click Next.

h Choose Search the network for devices and choose from a list of discovered devices

(Recommended). Or enter your printer's IP address or its node name. Click Next.

Note

You can find your printer’s IP address and the node name by printing out the Network Configuration page. See Printing the Network Configuration page on page 70.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

i Choose your printer, and then click Next.

Note

If your printer takes a long time to appear on the list, 1 minute or more, then click Refresh.

j Click Finish.

Note

• If you want to register your product on-line, check On-Line Registration.

• If you do not want to set your printer as Default printer, uncheck Set as Default Printer.

• If you want to disable the Status Monitor, uncheck Enable Status Monitor.

Setup is now complete.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

For Macintosh users 7

IMPORTANT

DO NOT try to cancel any of the screens during this installation.

a Turn on your Macintosh. b Put the supplied CD-ROM into your CD-ROM drive. Double-click the HL3000 icon on your desktop.

Double-click the Start Here icon. Choose your printer model and the language.

c Click Install Printer Driver on the menu screen.

d Click Wireless Network users.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

e Choose Driver Install Only, and then click Next. Follow the on-screen instructions.

Then, restart your Macintosh. (Mac OS X 10.3.9 only)

f The Brother software will search for the Brother printer. During this time the following screen will appear.

g Choose the printer you wish to connect, and then click OK.

Note

• If there is more than one of the same printer model connected on your network, the MAC Address (Ethernet Address) will be displayed after the model name. You can also confirm your IP Address by scrolling to the right.

• You can find your printer’s MAC Address (Ethernet Address) and the IP Address by printing out the Network Configuration page. See Printing the Network Configuration page on page 70.

Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3070CW)

h When this screen appears, click OK.

Setup is now complete.

Control panel features8

Control panel features 8

Overview 8

This printer has one back lit Liquid Crystal Display (LCD), seven buttons and two Light Emitting Diodes (LEDs) on the control panel. The LCD is a 16 character single line display.

With the control panel you can do the following:

Change the print server settings using the control panel

See Network menu on page 55.

Print the Network Configuration page

See Printing the Network Configuration page on page 70.

Reset the network settings to the factory default

See Reset the network settings to the factory default on page 69.

Control panel features

Network menu 8

Before using your Brother product in a network environment, you need to configure the correct TCP/IP settings.

In this section, you will learn how to configure the network settings using the control panel, located on the front of the machine.

The Network menu selections of the control panel allow you to set up the Brother machine for your network configuration. Press any of the Menu buttons (+, -, OK or Back) to display the main menu. Then press + or - to choose Network. Proceed to the menu selection you wish to configure. For additional infomation on the menu see Function table and factory default settings on page 141.

Please note that the machine is supplied with the BRAdmin Light utility and Web Based Management (web browser), which also can be used to configure many aspects of the network. See Changing the print server settings on page 16.

TCP/IP 8

This menu has 7 sections: Boot Method, IP Address, Subnet Mask, Gateway, IP Boot Tries, APIPA and IPv6.

Boot Method 8

This selection controls how the machine obtains an IP address. The default setting is Auto.

Note

If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the Boot Method to Static so that the print server has a static IP address. This will prevent the print server from trying to obtain an IP address from any of these systems. To change the Boot Method, use the machine’s control panel, BRAdmin Light utility or Web Based Management (web browser).

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose Boot Method.

Press OK.

Control panel features

f Press + or - to choose Auto

, Static2, RARP3, BOOTP4 or DHCP5.

Press OK.

Auto mode In this mode, the machine will scan the network for a DHCP server, if it can find one, and if the DHCP server is configured to allocate an IP address to the machine, then the IP address supplied by the DHCP server will be used. If no DHCP server is available, then the machine will scan for a BOOTP server. If a BOOTP server is available, and it is configured correctly, the machine will take its IP address from the BOOTP server. If a BOOTP server is not available, the machine will scan for a RARP server. If a RARP server also does not answer, the IP Address is scanned through APIPA facility, see Using APIPA to configure the IP address on page 133. After it is initially powered ON, it may take a few minutes for the machine to scan the network for a server.

Static mode In this mode the machine’s IP address must be manually assigned. Once entered the IP address is locked to the assigned address.

RARP mode The Brother print server IP address can be configured using the Reverse ARP (RARP) service on your host computer. For more information on RARP, see Using RARP to configure the IP address on page 133.

BOOTP mode BOOTP is an alternative to RARP that has the advantage of allowing configuration of the subnet mask and gateway. For more information on BOOTP, see Using BOOTP to configure the IP address on page 132.

DHCP mode Dynamic Host Configuration Protocol (DHCP) is one of several automated mechanisms for IP address allocation. If you have a DHCP server in

your network (typically a UNIX, Windows from a DHCP server and register its name with any RFC 1001 and 1002 compliant dynamic name services.

2000/XP, Windows Vista®, Windows® 7 network) the print server will automatically obtain its IP address

Note

• If you do not want your print server configured via DHCP, BOOTP or RARP, you must set the BOOT Method to static so that the print server has a static IP address. This will prevent the print server from trying to obtain an IP address from any of these systems. To change the BOOT Method, use the machine’s control panel Network menu, BRAdmin applications or Web Based Management (web browser).

• On smaller networks, the DHCP server may be the router.

Control panel features

IP Address 8

This field displays the current IP address of the machine. If you have chosen a Boot Method of Static, enter the IP address that you wish to assign to the machine (check with your network administrator for the IP address to use). If you have chosen a method other than Static, the machine will attempt to determine its IP address using the DHCP or BOOTP protocols. The default IP address of your machine will probably be incompatible with the IP address numbering scheme of your network. We recommend that you contact your network administrator for an IP address for the network the unit will be connected on.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose IP Address.

Press OK. The first part of the number will be blinking.

f Press + or - to increase or decrease the number.

Press OK to go to the next number.

g Repeat this process until you have set your IP address. h Press OK to finish the IP address.

An asterisk appears at the end of the LCD.

Control panel features

Subnet Mask 8

This field displays the current subnet mask used by the machine. If you are not using DHCP or BOOTP to obtain the subnet mask, enter the desired subnet mask. Check with your network administrator for the subnet mask to use.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose Subnet Mask.

Press OK. The first part of the number will be blinking.

f Press + or - to increase or decrease the number.

Press OK to go to the next number.

g Repeat this process until you have set your Subnet Mask address. h Press OK to finish the Subnet Mask address.

An asterisk appears at the end of the LCD.

Control panel features

Gateway 8

This field displays the current gateway or router address used by the machine. If you are not using DHCP or BOOTP to obtain the gateway or router address, enter the address you wish to assign. If you do not have a gateway or router, leave this field blank. Check with your network administrator if you are unsure.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose Gateway.

Press OK. The first part of the number will be blinking.

f Press + or - to increase or decrease the number.

Press OK to go to the next number.

g Repeat this process until you have set your Gateway address. h Press OK to finish the Gateway address.

An asterisk appears at the end of the LCD.

Control panel features

IP Boot Tries 8

This field displays how many times the printer attempts to scan the network to obtain the IP address through the Boot Method you have set (see Boot Method on page 55). The default setting is 3.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose IP Boot Tries.

Press OK.

f Press + or - to set the number of times you wish to try to obtain the IP address.

Press OK.

Control panel features

APIPA 8

The setting of On will cause the print server to automatically allocate a Link-Local IP address in the range (169.254.1.0 - 169.254.254.255) when the print server cannot obtain an IP address through the Boot Method you have set (see Boot Method on page 55). Choosing Off means the IP address doesn’t change, when the print server cannot obtain an IP address through the Boot Method you have set. The default setting for APIPA is On.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose APIPA.

Press OK.

f Press + or - to choose On or Off.

Press OK.

Control panel features

IPv6 8

This machine is compatible with IPv6, the next generation internet protocol. If you want to use the IPv6 protocol, choose On. The default setting for IPv6 is Off. For more information on the IPv6 protocol, visit http://solutions.brother.com/

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c For HL-3070CW

(For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose TCP/IP.

Press OK.

e Press + or - to choose IPv6.

Press OK.

f Press + or - to choose On or Off.

Press OK.

Note

If you set IPv6 to On, turn off the power switch and then turn it back on to enable this protocol.

Control panel features

Ethernet (wired network only) 8

Ethernet link mode. Auto allows the print server to operate in 100BASE-TX full or half duplex, or in 10BASE-T full or half duplex mode by auto negotiation.

100 BASE-TX Full Duplex (100B-FD) or Half Duplex (100B-HD) and 10BASE-T Duplex (10B-FD) or Half Duplex (10B-HD) will fix the print server link mode. This change is valid after the print server has been reset. The default setting is Auto.

Note

If you incorrectly set this value, you may not be able to communicate with your print server.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose Wired LAN.

Press OK.

d Press + or - to choose Ethernet.

Press OK.

e Press + or - to choose Auto, 100B-FD, 100B-HD, 10B-FD or 10B-HD.

Press OK.

Factory Reset 8

The Factory Reset allows you to reset the print server back to its factory default settings. For more information and resetting, see Reset the network settings to the factory default on page 69.

Set to Default (For HL-3070CW) 8

The Set to Default allows you to reset each wired or wireless network setting to the factory default.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c (For wired) Press + or - to choose Wired LAN.

(For wireless) Press + or - to choose WLAN. Press OK.

d Press + or - to choose Set to Default.

Press OK.

e When OK? appears, press OK again.

Control panel features

Wired Enable (For HL-3070CW wired network only) 8

If you want to use the wired network connection, set Wired Enable to On.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose Wired LAN.

Press OK.

d Press + or - to choose Wired Enable.

Press OK.

e Press + or - to choose On or Off.

Press OK.

WLAN Enable (For HL-3070CW wireless network only) 8

If you want to use the wireless network connection, set WLAN Enable to On.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Enable.

Press OK.

e Press + or - to choose On.

Press OK.

SES/WPS or AOSS (For HL-3070CW wireless network only) 8

If your wireless access point/router supports either SecureEasySetup, Wi-Fi Protected Setup (PBC1) or AOSS™, you can configure the machine easily without a computer. Your Brother machine has the SES/WPS/AOSS menu on the control panel. This feature automatically detects which mode your access point uses, SecureEasySetup, Wi-Fi Protected Setup or AOSS™. By pushing a button on the wireless access point/router, you can setup the wireless network and security settings. See the user’s guide for your wireless access point/router for instructions on how to access one-push mode. (See Wireless configuration using SES/WPS or AOSS from the control panel (For HL-3070CW) in Chapter 6.)

Push Button Configuration

Control panel features

WPS w/PIN Code (For HL-3070CW wireless network only) 8

WLAN Status (For HL-3070CW wireless network only) 8

Status 8

This field displays the current wireless network status; Active(11b), Active(11g), Wired LAN Active, WLAN OFF, Connection Fail, or AOSS Active.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Status.

Press OK.

e Press + or - to choose Status.

Press OK.

f The current wireless network status will be displayed; Active(11b), Active(11g), Wired LAN

Active, WLAN OFF, Connection Fail, or AOSS Active.

g Press OK again.

Control panel features

Signal 8

This field displays the current wireless network status; Strong, Medium, Weak, or None.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Status.

Press OK.

e Press + or - to choose Signal.

Press OK.

f The current wireless network status will be displayed; Strong, Medium, Weak, or None. g Press OK again.

Channel

This field displays the current wireless network channel.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Status.

Press OK.

e Press + or - to choose Channel.

Press OK.

f The current wireless network channel will be displayed. g Press OK again.

Control panel features

Speed 8

This field displays the current wireless network speed.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Status.

Press OK.

e Press + or - to choose Speed.

Press OK.

f The current wireless network speed will be displayed. g Press OK again.

SSID

This field displays the current wireless network SSID. The display shows up to 32 characters of the SSID name.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Status.

Press OK.

e Press + or - to choose SSID.

Press OK.

f The current wireless network SSID will be displayed. g Press OK again.

Control panel features

Comm. Mode 8

This field displays the current wireless network communication mode; Ad-hoc or Infrastructure.

a Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. b Press + or - to choose Network.

Press OK.

c Press + or - to choose WLAN.

Press OK.

d Press + or - to choose WLAN Status.

Press OK.

e Press + or - to choose Comm. Mode.

Press OK.

f The current wireless network communication mode will be displayed; Ad-hoc or Infrastructure. g Press OK again.

Control panel features

Reset the network settings to the factory default 8

You can reset the print server back to its factory default settings (resetting all information such as the password and IP address information.)

Note

You can also reset the print server back to its factory default settings using the BRAdmin applications or Web Based Management (web browser). For more information, see Changing the print server settings on page 16.

machine off-line.

d Press + or - to choose Network.

Press OK.

e Press + or - to choose Factory Reset.

Press OK.

f When Restart Printer? appears, press OK again. The machine will restart.

Control panel features

Printing the Network Configuration page 8

Note

Node name: Node name appears on the Network Configuration page. The default node name of the print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network (For HL-3070CW).

The Network Configuration page prints a report listing all the current network settings. You can print the Network Configuration page using the control panel.

machine off-line.

d Press + or - to choose Machine Info..

Press OK.

e Press + or - to choose Print NetSetting.

Press OK.

Note

If the IP Address on the Network Configuration page shows 0.0.0.0, wait for one minute and try again.

Driver Deployment Wizard

(Windows

Driver Deployment Wizard

(Windows

Overview 9

The Driver Deployment Wizard software can be used to ease the installation or even automate the installation of a locally connected or network connected printer. The Driver Deployment Wizard can also be used to create self running executable files which when run on a remote PC, completely automates the installation of a printer driver. The remote PC does not have to be connected to a network.

Connection methods 9

The Driver Deployment Wizard supports the three connection methods.

Peer-to-peer 9

The device is connected to the network but each user prints directly to the printer WITHOUT printing through a central queue.

only) 9

only)9

Windows

1) Client computer

2) Network printer (your machine)

Windows

TCP/IP

Windows

Driver Deployment Wizard (Windows® only)

Network Shared 9

The device is connected to a network and a central print queue is used to manage all print jobs.

Windows

TCP/IP

Windows

1) Client computer

2) Also known as “Server” or “Print server”

3) TCP/IP or USB

4) Printer (your machine)

Local Printer (USB) 9

The device is connected to the computer using an USB cable.

Windows

1) Client computer

2) Printer (your machine)

3) USB

Driver Deployment Wizard (Windows® only)

How to install the Driver Deployment Wizard software 9

a Put the supplied CD-ROM into your CD-ROM drive. If the model name screen appears, choose your

machine. If the language screen appears, choose your language.

b The CD-ROM main menu will appear. Click Install Other Drivers or Utilities. c Choose the Driver Deployment Wizard installation program.

Note

When the User Account Control screen appears, (Windows Vista (Windows

d Click Next in response to the Welcome message. e Read the license agreement carefully. Then follow the on-screen instructions. f Click Finish. Now the Driver Deployment Wizard software has been installed.

) click Allow.

7) click Yes.

Driver Deployment Wizard (Windows® only)

Using the Driver Deployment Wizard software 9

a When you run the Wizard for the first time you will see a welcome screen. Click Next. b Choose Printer, and then click Next. c Choose your connection type to the printer that you want to print to. d Choose the option you require, and follow the on-screen instructions.

If you choose Brother Peer-to-Peer Network Printer, the following screen is displayed.

 Setting the IP Address

If the machine does not have an IP address, the Wizard will allow you to change the IP address by choosing the machine from the list and by choosing the Configure IP option. A dialog box then appears which allows you to specify information such as the IP address, subnet mask and also the gateway address.

e Choose the machine you wish to install.

 If the printer driver you wish to use is installed on your computer:

Check the box of Currently installed drivers and choose the machine you wish to install, and then click Next.

 If the driver you wish to use is not installed on your computer:

1Click Have Disk....

2 Choose the OS you wish to use, and then click OK. 3Click Browse... and choose the appropriate printer driver that is contained in the CD-ROM or in

the network share. Click Open.

4 For example, choose the “X:\install\your language\PCL\321” folder (where X is your drive letter).

Click OK.

32 folder for 32-bit OS users and 64 folder for 64-bit OS users

f Click Next after you choose the correct driver.

Driver Deployment Wizard (Windows® only)

g A summary screen will appear. Confirm the settings of the driver.

 Creating an executable file

The Driver Deployment Wizard software can also be used to create self running .EXE files. These self-running .EXE files can be saved to the network, copied to a CD-ROM, USB memory or even E-mailed to another user. Once run, the driver and its settings are automatically installed without any user intervention.

• Copy the Driver files to this PC and create an installation program for other users.

Choose this option if you wish to install the driver onto your computer and also create a self-running executable file for use with another computer using the same operating system as your own.

• Only create an Installation Program for other users.

Choose this option if the driver is already installed on your computer and you wish to create a self-running executable file without installing the driver again on your own computer.

Driver Deployment Wizard (Windows® only)

Note

• If you work in a “queue” based network and you create an executable file for another user who does not have access to the same printer queue that you define into the executable file, the driver when installed on the remote computer will default to LPT1 printing.

• If you check the box of Currently installed drivers in e, you can change the default settings of the

printer driver, such as paper size by clicking Custom....

h Click Finish. The driver is automatically installed to your computer.

Web Based Management10

Web Based Management 10

Overview 10

A standard Web Browser can be used to manage your machine using the HTTP (Hyper Text Transfer Protocol). You can get the following information from a machine on your network using a web browser.

 Machine status information

 Change network settings such as TCP/IP information

 Software version information of the machine and print server

 Change network and machine configuration details

Note

We recommend Microsoft® Internet Explorer® 6.0 (or greater) or Firefox 1.0 (or greater) for Windows® and Safari 1.3 ( or greater) for Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser you use. If a different web browser is used, make sure it is compatible with HTTP 1.0 and HTTP 1.1.

You must use the TCP/IP protocol on your network and have a valid IP address programmed into the print server and your computer.

Note

• To learn how to configure the IP address on your machine, see Setting the IP address and subnet mask on page 13.

• You can use a web browser on most computing platforms, for example, Macintosh and UNIX users are also able to connect to the machine and manage it.

• You can also use the BRAdmin applications to manage the machine and its network configuration.

• This print server also supports HTTPS for secure management using SSL. See Managing your network printer securely on page 96.

Web Based Management

How to configure the print server settings using Web Based Management (web browser) 10

A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol).

Note

To use a web browser, you will need to know the IP address or node name of the print server.

a Start your web browser. b Type “http://printer's IP address/” into your browser. (where “printer's IP address” is

the printer’s IP address)

 For example:

http://192.168.1.2/

Note

• If you have edited the hosts file on your computer or are using a Domain Name System (DNS), you can also enter the DNS name of the print server.

• For Windows NetBIOS name of the print server. The NetBIOS name can be seen on the Network Configuration page. To learn how to print the Network Configuration page, see Printing the Network Configuration page on page 70. The NetBIOS name assigned is the first 15 characters of the node name and by default it will appear as “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network.

• For Macintosh users, you can have easy access to the Web Based Management System by clicking the machine icon on Status Monitor screen. For more information, see the User’s Guide on the CD-ROM.

users, as the print server supports TCP/IP and NetBIOS names, you can also enter the

c Click Network Configuration. d Enter a user name and a password. The default User Name is “admin” and the default Password is

“access”.

e Click OK. f You can now change the print server settings.

Note

If you have changed the protocol settings, restart the printer after clicking Submit to activate the configuration.

Network printing from Windows® basic TCP/IP Peer-to-Peer printing11

Network printing from Windows® basic

TCP/IP Peer-to-Peer printing

Overview 11

To connect your machine to your network, you need to follow the steps in the Quick Setup Guide. We recommend that you use the Brother installer application on the CD-ROM which we have provided with the machine. By using this application, you can easily connect your machine to your network and install the network software and printer driver which you need to complete the configuration of your machine for a network. You will be guided by the on-screen instructions until you are able to use your Brother network machine.

If you are a Windows application, use the TCP/IP protocol in a Peer-to-Peer environment. Please follow the instructions in this chapter. This chapter explains how to install the network software and the printer driver which you will need to be able to print using your network machine.

Note

• You must configure the IP address on your machine before you proceed with this chapter. If you need to configure the IP address, see Chapter 2 first.

• Verify the host computer and the machine are either on the same subnet, or that the router is properly configured to pass data between the two devices.

• If you are connecting to a Network Print Queue or Share (printing only), see Installation when using a Network Print Queue or Share on page 137 for installation details.

• The default password for Brother print server is “access”.

user and want to configure your machine without using the Brother installer

Network printing from Windows® basic TCP/IP Peer-to-Peer printing

Configuring the standard TCP/IP port 11

Printer driver not yet installed 11

For Windows Vista®, Windows® 7 and Windows Server® 2008 11

a (For Windows Vista

(For Windows

(For Windows Server Printers.

) Click the button, Control Panel, Hardware and Sound, and then Printers.

7) Click the button, Devices and Printers.

2008) Click the Start button, Control Panel, Hardware and Sound, and then

b Click Add a printer. c Choose Add a local printer. d You must now choose the correct Network printing port. Choose Create a new port and then Standard

TCP/IP Port from the pull-down window, then click Next.

e Choose TCP/IP Device from the pull-down window of Device type. Enter the IP address, or the node

name you wish to configure. The Wizard will automatically enter the Port name information for you, then click Next.

f Windows Vista

If you did not specify the correct IP address or name then an error dialog will appear.

, Windows® 7 and Windows Server® 2008 will now contact the printer that you specified.

g Now that you have configured the port, you must specify which printer driver you wish to use. Choose

the appropriate driver from the list of supported printers. If you are using a driver supplied with the machine on the CD-ROM then choose the Have Disk option to browse to the CD-ROM.

h For example, choose the “X:\install\your language\PCL\32

Open.

32 folder for 32-bit OS users and 64 folder for 64-bit OS users

” folder (where X is your drive letter). Click

i Specify a name and click Next.

Note

• When the User Account Control screen appears, (Windows Vista (Windows

• If the printer driver that you are installing does not have a Digital Certificate you will see a warning message. Click Install this driver software anyway to continue with the installation.

) click Continue.

7) click Yes.

j Continue through the Wizard clicking Finish when complete.

Network printing from Windows® basic TCP/IP Peer-to-Peer printing

For Windows® 2000/XP and Windows Server® 2003 11

a For Windows

Click the Start button and choose Printers and Faxes. For Windows

Click the Start button, choose Settings and then Printers.

b For Windows

Click Add a printer to start the Add Printer Wizard. For Windows

Double-click the Add Printer icon to start the Add Printer Wizard.

XP and Windows Server® 2003:

2000:

XP and Windows Server® 2003:

2000:

c Click Next when you see the Welcome to the Add Printer Wizard screen. d Choose Local printer and deselect the Automatically detect and install my Plug and Play printer

option, then click Next.

e You must now choose the correct Network printing port. Choose Create a new port and choose

Standard TCP/IP Port from the pull-down window, then click Next.

f The Add Standard TCP/IP Printer Port Wizard will now appear. Click Next. g Enter the IP address, or the node name you wish to configure. The Wizard will automatically enter the

Port name information for you, then click Next.

h Windows

did not specify the correct IP address or name then an error dialog will appear.

2000/XP and Windows Server® 2003 will now contact the machine that you specified. If you

i Click Finish to complete the Wizard. j Now that you have configured the port, you must specify which printer driver you wish to use. Choose

the appropriate driver from the list of supported printers. If you are using a driver supplied with the machine on the CD-ROM then choose the Have Disk option to browse to the CD-ROM.

k For example, choose the “X:\install\your language\PCL\32

Open.

32 folder for 32-bit OS users and 64 folder for 64-bit OS users

” folder (where X is your drive letter). Click

l Specify a name and click Next. m Continue through the Wizard clicking Finish when complete.

Network printing from Windows® basic TCP/IP Peer-to-Peer printing

Printer driver already installed 11

If you have already installed the printer driver and wish to configure it for network printing, follow these steps:

a For Windows Vista

(For Windows Vista

(For Windows

(For Windows Server Printers.

For Windows Click the Start button and choose Printers and Faxes windows.

For Windows Click the Start button and choose Settings and then Printers.

, Windows® 7 and Windows Server® 2008:

) Click the button, Control Panel, Hardware and Sound, and then Printers.

7) Click the button, Devices and Printers.

2008) Click the Start button, Control Panel, Hardware and Sound, and then

XP and Windows Server® 2003:

2000:

b Right-click on the printer driver you wish to configure, and then choose Properties. c Click the Ports tab and click Add Port. d Choose the port that you wish to use. Typically this would be Standard TCP/IP Port. Then click the New

Port... button.

e The Add Standard TCP/IP Printer Port Wizard will start. Click Next. f Enter the IP address of your network printer. Click Next. g Click Finish. h Close Printer Ports and Properties dialog box.

Other sources of information 11

See Configuring your machine for a network on page 10 and Configuring your machine for a wireless network (For HL-3070CW) on page 18 to learn how to configure the IP address of the machine.

Internet printing for Windows®12

Internet printing for Windows

Overview 12

Windows® 2000/XP, Windows Vista®, Windows® 7 and Windows Server® 2003/2008 users can print using TCP/IP using the built in standard Internet Printing Protocol (IPP) software.

Note

• You must configure the IP address on your printer before you proceed with this chapter. If you need to configure the IP address, see Chapter 2 first.

• Verify the host computer and machine are either on the same subnet, or that the router is properly configured to pass data between the two devices.

• The default password for Brother print servers is “access”.

• This print server also supports the IPPS printing, see Printing documents securely using IPPS on page 103.

IPP printing for Windows

Use the following instructions if you wish to use the IPP printing capabilities of Windows® 2000/XP, Windows

Vista

The steps may vary depending on your operating system.

, Windows® 7 and Windows Server® 2003/2008.

For Windows Vista®, Windows® 7 and Windows Server® 2008 12

a (For Windows Vista

(For Windows

(For Windows Server Printers.

) Click the button, Control Panel, Hardware and Sound, and then Printers.

7) Click the button, Devices and Printers.

2008) Click the Start button, Control Panel, Hardware and Sound, and then

b Click Add a printer. c Choose Add a network, wireless or Bluetooth printer. d Click The printer that I want isn’t listed. e Choose Select a shared printer by name and then enter the following in the URL field:

http://printer's IP address:631/ipp (where “printer's IP address” is the printer's IP address or the node name.)

Internet printing for Windows

Note

If you have edited the hosts file on your computer or are using a Domain Name System (DNS), you can also enter the DNS name of the print server. As the print server supports TCP/IP and NetBIOS names, you can also enter the NetBIOS name of the print server. The NetBIOS name can be seen on the Network Configuration page. To learn how to print the Network Configuration page, see Printing the Network Configuration page on page 70. The NetBIOS name assigned is the first 15 characters of the node name and by default it will appear as “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network.

f When you click Next, Windows Vista

, Windows® 7 and Windows Server® 2008 will make a connection

with the URL that you specified.

 If the printer driver has already been installed:

You will see the printer selection screen in the Add Printer Wizard. Click OK. If the appropriate printer driver is already installed on your computer, Windows Vista and Windows Server

2008 will automatically use that driver. In this case, you will simply be asked if

, Windows® 7

you wish to make the driver the default printer, after which the Driver installation wizard will complete. You are now ready to print. Go to k.

 If the printer driver has NOT been installed:

One of the benefits of the IPP printing protocol is that it establishes the model name of the printer when you communicate with it. After successful communication you will see the model name of the

printer automatically. This means that you do not need to inform Windows Vista Windows Server

2008 about the type of printer driver to be used.

, Windows® 7 or

Go to g.

g If your printer is not in the list of supported printers, click Have Disk. You will then be asked to insert the

driver disk.

h Click Browse... and choose the appropriate Brother printer driver that is contained in the CD-ROM or in

the network share. Click Open.

For example, choose the “X:\install\your language\PCL\32 Open.

32 folder for 32-bit OS users and 64 folder for 64-bit OS users

” folder (where X is your drive letter). Click

i Click OK. j Specify the model name of the printer. Click OK.

Note

• When the User Account Control screen appears, click Continue or Yes.

• If the printer driver that you are installing does not have a Digital Certificate you will see a warning message. Click Install this driver software anyway to continue with the installation. The Add Printer

Wizard will then complete.

Internet printing for Windows

k You will see the Type a printer name screen in the Add Printer. Check the Set as the default printer

check box if you want to use this printer as the default printer, and then click Next.

l To test the printer connection, click Print a test page, and then click Finish and the printer is now

configured and ready to print.

Internet printing for Windows

For Windows® 2000/XP and Windows Server® 2003 12

a For Windows

XP and Windows Server® 2003:

Click the Start button and choose Printers and Faxes.

For Windows

2000:

Click the Start button and choose Settings and then Printers.

b For Windows

XP and Windows Server® 2003:

Click Add a printer to start the Add Printer Wizard.

For Windows

2000:

Double-click the Add Printer icon to start the Add Printer Wizard.

c Click Next when you see the Welcome to the Add Printer Wizard screen. d Choose Network Printer.

For Windows

XP and Windows Server® 2003:

Choose A network printer, or a printer attached to another computer.

For Windows

2000:

Choose Network Printer.

e Click Next. f For Windows

Choose Connect to a printer on the Internet or on a home or office network and then enter the following in the URL field: http://printer's IP address:631/ipp (where “printer's IP address” is the printer's IP address or the node name.)

For Windows Choose Connect to a printer on the Internet or on your intranet and then enter the following in the URL field: http://printer's IP address:631/ipp (Where “printer's IP address” is the printer's IP address or the node name).

XP and Windows Server® 2003:

2000:

Note

Internet printing for Windows

g When you click Next, Windows

2000/XP and Windows Server® 2003 will make a connection with the

URL that you specified.

 If the printer driver has already been installed:

If the appropriate printer driver is already installed on your computer, Windows Windows Server

2003 will automatically use that driver. In this case, you will simply be asked if you

2000/XP and

wish to make the driver the default printer, after which the Driver installation wizard will complete. You are now ready to print. Go to l.

 If the printer driver has NOT been installed:

One of the benefits of the IPP printing protocol is that it establishes the model name of the printer when you communicate with it. After successful communication you will see the model name of the

printer automatically. This means that you do not need to inform Windows

2000 about the type of

printer driver to be used. Go to h.

h The driver installation starts automatically.

Note

If the printer driver that you are installing does not have a Digital Certificate you will see a warning message.

Click Continue Anyway

Yes for Windows® 2000 users

to continue with the installation.

i Click OK when you see the Insert Disk screen. j Click Browse... and choose the appropriate Brother printer driver that is contained in the CD-ROM or in

the network share. Click Open.

For example, choose the “X:\install\your language\PCL\32

” folder (where X is your drive letter). Click

Open.

32 folder for 32-bit OS users and 64 folder for 64-bit OS users

k Click OK. l Check Yes if you want to use this printer as the default printer. Click Next. m Click Finish and the printer is now configured and ready to print. To test the printer connection, print a

test page.

Internet printing for Windows

Specifying a different URL 12

Please note that there are several possible entries that you can enter for the URL field.

http://printer's IP address:631/ipp

This is the default URL and we recommend that you use this URL.

http://printer's IP address:631/ipp/port1

This is for HP Jetdirect compatibility.

http://printer's IP address:631/

Note

If you forget the URL details, you can simply enter the above text (http://printer's IP address/) and the printer will still receive and process data.

Where “printer's IP address” is the printer’s IP address or the node name.

 For example:

http://192.168.1.2/

http://BRN123456765432/

Other sources of information 12

For how to configure the IP address of the printer, see Configuring your machine for a network in Chapter 2.

Network printing from Macintosh using the BR-Script 3 driver (For HL-3070CW)13

Network printing from Macintosh using

the BR-Script 3 driver (For HL-3070CW)

Overview 13

This chapter explains how to configure the BR-Script 3 (PostScript® 3™ language emulation) printer driver on a Network.

How to choose the printer driver (TCP/IP) 13

For Mac OS X 10.3.9 to 10.4.x users 13

a Turn on your Macintosh. b From the Go menu, choose Applications. c Open the Utilities folder. d Double-click the Printer Setup Utility icon. e Click Add.

f (Mac OS X 10.3.9) Choose IP Printing.

(Mac OS X 10.4.x) Choose IP Printer.

(Mac OS X 10.3.9) (Mac OS X 10.4.x)

Network printing from Macintosh using the BR-Script 3 driver (For HL-3070CW)

g (Mac OS X 10.3.9) Enter the IP address of the printer into the Printer Address box.

(Mac OS X 10.4.x) Enter the IP address of the printer into the Address box.

(Mac OS X 10.3.9) (Mac OS X 10.4.x)

Note

• The Network Configuration page will allow you to confirm the IP address. To learn how to print the Network Configuration page, see Printing the Network Configuration page on page 70.

• When specifying the Queue Name (Queue), use the PostScript

service "BRNxxxxxxxxxxxx_AT" for

Macintosh. Where "xxxxxxxxxxxx" is your machine's MAC Address (Ethernet Address).

h From the Printer Model (Print Using) pop-up menu, choose your model. For example, choose Brother

HL-3070CW BR-Script3.

(Mac OS X 10.3.9) (Mac OS X 10.4.x)

i Click Add and the printer will be available from the Printer List. The printer is now ready to print.

Brother HL 3070CW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction 1

Overview 1

Network features 1

Network printing 1

Management utilities 1

Types of network connections 1

Network connection example 1

Peer-to-Peer printing using TCP/IP 1

Network Shared printing 1

Wireless network connection examples (For HL-3070CW) 1

Connected to a computer with an access point on the network (Infrastructure mode) 1

Protocols 1

TCP/IP protocols and functions 1

DHCP/BOOTP/RARP 1

APIPA 1

DNS client 1

NetBIOS name resolution 1

WINS 1

LPR/LPD 1

SMTP client 1

Custom Raw Port (default is Port9100) 1

mDNS 1

Telnet 1

SNMP 1

LLMNR 1

Web services 1

Web server (HTTP) 1

IPv6 1

Other Protocol 1

LLTD 1
