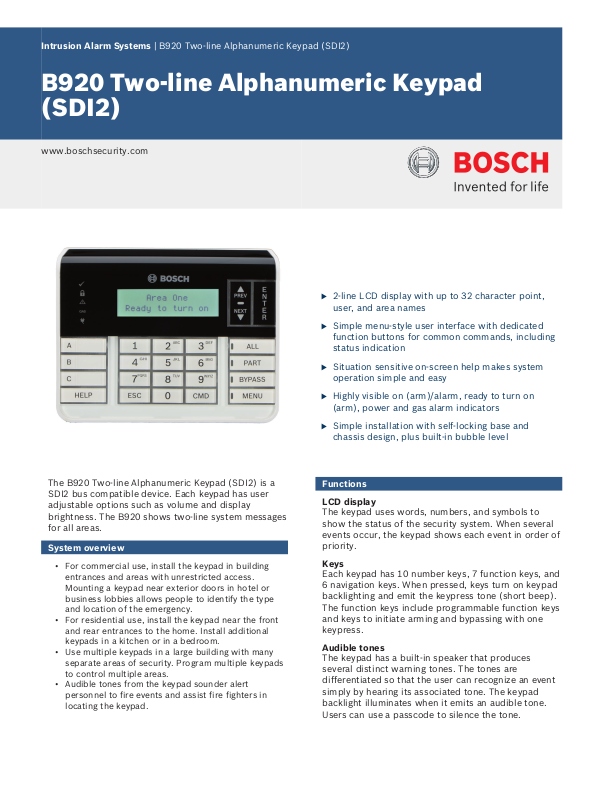

Intrusion Alarm Systems | B920 Two-line Alphanumeric Keypad (SDI2)
B920 Two-line Alphanumeric Keypad
(SDI2)
www.boschsecurity.com
u 2-line LCD display with up to 32 character point,
user, and area names
The B920 Two-line Alphanumeric Keypad (SDI2) is a
SDI2 bus compatible device. Each keypad has user
adjustable options such as volume and display
brightness. The B920 shows two-line system messages
for all areas.
System overview
• For commercial use, install the keypad in building
entrances and areas with unrestricted access.
Mounting a keypad near exterior doors in hotel or
business lobbies allows people to identify the type
and location of the emergency.
• For residential use, install the keypad near the front
and rear entrances to the home. Install additional
keypads in a kitchen or in a bedroom.
• Use multiple keypads in a large building with many
separate areas of security. Program multiple keypads
to control multiple areas.
• Audible tones from the keypad sounder alert
personnel to fire events and assist fire fighters in
locating the keypad.
u Simple menu-style user interface with dedicated
function buttons for common commands, including
status indication
u Situation sensitive on-screen help makes system
operation simple and easy
u Highly visible on (arm)/alarm, ready to turn on
(arm), power and gas alarm indicators
u Simple installation with self-locking base and
chassis design, plus built-in bubble level
Functions
LCD display
The keypad uses words, numbers, and symbols to
show the status of the security system. When several
events occur, the keypad shows each event in order of
priority.
Keys
Each keypad has 10 number keys, 7 function keys, and
6 navigation keys. When pressed, keys turn on keypad
backlighting and emit the keypress tone (short beep).
The function keys include programmable function keys
and keys to initiate arming and bypassing with one
keypress.
Audible tones
The keypad has a built-in speaker that produces
several distinct warning tones. The tones are
differentiated so that the user can recognize an event
simply by hearing its associated tone. The keypad
backlight illuminates when it emits an audible tone.
Users can use a passcode to silence the tone.
2 | B920 Two-line Alphanumeric Keypad (SDI2)
Status indicators
The status indicators on the keypad provide a quick
visual reference for system status.
The indicator lights when the system is ready to turn on (arm).
The indicator lights when the system is on (armed).
The indicator lights when there is a trouble condition.
The indicator lights when dangerous gases are present including
carbon monoxide (NFPA 720).
The indicator lights when the system has power.
Certifications and approvals
Region Certification
Australia RCM ACMA
Europe CE EMC, RoHS
USA UL
UL UL 365 - Police Station Connected Bur-
glar Alarm Units
UL UL 609 - Standard for Local Burglar
Alarm Units and Systems
UL UL 636 - Holdup Alarm Units and Sys-
tems
UL UL 985 - Household Fire Warning Sys-
tem Units
UL UL 1023 - Household Burglar Alarm Sys-
tem Units
UL UL 1076 - Proprietary Burglar Alarm
Units and Systems
UL UL 1610 - Central Station Burglar Alarm
Units
CSFM see our website
FCC Part 15 Class B
Canada ULC CAN/ULC S303 - Local Burglar Alarm
Units and Systems
ULC CAN/ULC S304 - Standard for Signal Re-
ceiving Center and Premise Burglar
Alarm
ULC CAN/ULC S545 - Residential Fire Warn-
ing System Control Units
ULC CAN/ULC S559 - Fire Signal Receiving
Centres and Systems
ULC ULC-ORD C1023 - Household Burglar
Alarm System Units
ULC ULC-ORD C1076 - Proprietary Burglar
Alarm Units and Systems
IC ICES-003 - Information Technology
Equipment (ITE)
Installation/configuration notes
Mounting considerations
Mount in indoor, dry locations.
Power supply
A compatible control panel supplies the power and
data requirements to the keypad through a four-wire
connection.
Enclosure and wiring
The sliding self-locking enclosure has an integrated
bubble level and custom gap-free, lift-gate style
terminal blocks to make installation easier.
Compatible control panels
B9512G/B9512G-E
B8512G/B8512G-E
B6512
B5512/B5512E firmware v2.02 and higher
B4512/B4512E firmware v2.02 and higher
B3512/B3512E firmware v2.02 and higher
D9412GV4/D7412GV4 firmware v2.02 and higher
Parts included
Quantity Component
1 Keypad
1 Hardware pack
1 Set of ABC key labels
1 Installation Guide
1 User’s Quick Reference Guide
Technical specifications
Properties
Dimensions 6.2 in x 4.7 in x 1 in (158 mm x 120
mm x 26 mm)
Weight 11.3 oz (0.32 kg)
Material Acrylonitrile butadiene styrene (ABS)
Poly(methyl methacrylate) (PMMA)
Display window 2 line display
18 characters per line
Indicators Illuminated keys
Status indicators
Warning and indicating tones
Environmental considerations
Relative humidity 5% to 93% at +32°C (+90°F) non-
condensing
Temperature (operating) 0°C to +50°C (+32°F to +122°F)
3 | B920 Two-line Alphanumeric Keypad (SDI2)
Represented by:
Europe, Middle East, Africa: Germany: North America: Asia-Pacific:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
emea.securitysystems@bosch.com
emea.boschsecurity.com
Bosch Sicherheitssysteme GmbH
Robert-Bosch-Ring 5
85630 Grasbrunn
Germany
www.boschsecurity.com
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
onlinehelp@us.bosch.com
www.boschsecurity.us
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
apr.securitysystems@bosch.com
www.boschsecurity.asia
© Bosch Security Systems 2017 | Data subject to change without notice
9973643275 | en, V16, 17. Feb 2017
Power requirements
Current Standby:35 mA
Alarm: 70 mA
Voltage (input) 12 VDC nominal
Wiring
Terminal wire size 12 AWG to 22 AWG (2.0 mm to 0.65
mm)
SDI2 wiring Maximum distance – wire size
(unshielded wire only):
1000 ft (305 m) – 22 AWG (0.65 mm)
Ordering information
B920 Two-line Alphanumeric Keypad (SDI2)
Two-line alphanumeric keypad
Order number B920
Accessories
B56 Keypad Surface Mount Box
Surface mount box for mounting a keypad to concrete
or block.
Order number B56
B96 Keypad Trim Bezel
Cover the wall footprint of previous keypads when
replacing them with the new, slim design of B Series
keypads. The white trim bezel is 8.6 in x 6.3 in x 0.12
in (22 mm x 16 mm x 3 mm).
Order number B96
