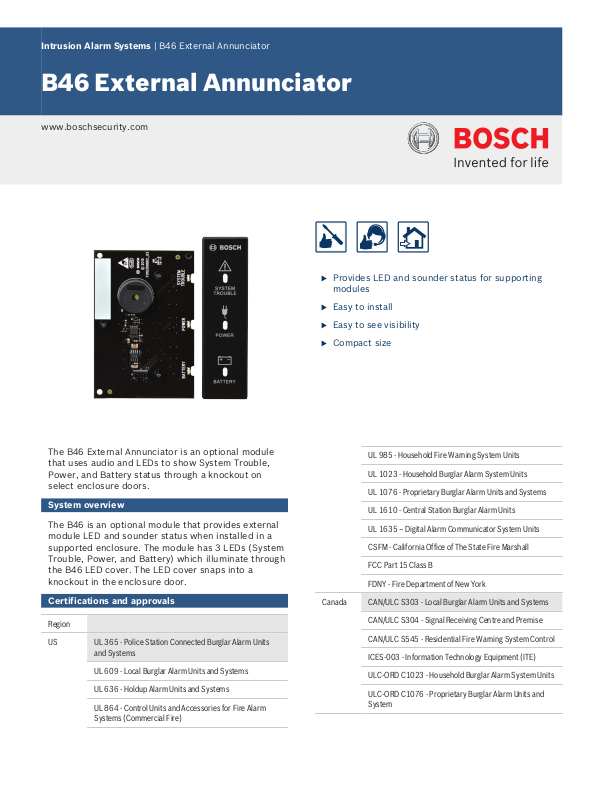

Intrusion Alarm Systems | B46 External Annunciator
B46 External Annunciator
www.boschsecurity.com
u Provides LED and sounder status for supporting
modules
u Easy to install
The B46 External Annunciator is an optional module
that uses audio and LEDs to show System Trouble,
Power, and Battery status through a knockout on
select enclosure doors.
System overview
The B46 is an optional module that provides external
module LED and sounder status when installed in a
supported enclosure. The module has 3 LEDs (System
Trouble, Power, and Battery) which illuminate through
the B46 LED cover. The LED cover snaps into a
knockout in the enclosure door.
Certifications and approvals
u Easy to see visibility
u Compact size
UL 985 - Household Fire Warning System Units
UL 1023 - Household Burglar Alarm System Units
UL 1076 - Proprietary Burglar Alarm Units and Systems
UL 1610 - Central Station Burglar Alarm Units
UL 1635 – Digital Alarm Communicator System Units
CSFM - California Office of The State Fire Marshall
FCC Part 15 Class B
FDNY - Fire Department of New York
Canada CAN/ULC S303 - Local Burglar Alarm Units and Systems
Region
US UL 365 - Police Station Connected Burglar Alarm Units
and Systems
UL 609 - Local Burglar Alarm Units and Systems
UL 636 - Holdup Alarm Units and Systems
UL 864 - Control Units and Accessories for Fire Alarm
Systems (Commercial Fire)
CAN/ULC S304 - Signal Receiving Centre and Premise
CAN/ULC S545 - Residential Fire Warning System Control
ICES-003 - Information Technology Equipment (ITE)
ULC-ORD C1023 - Household Burglar Alarm System Units
ULC-ORD C1076 - Proprietary Burglar Alarm Units and
System
Page 2
2 | B46 External Annunciator
Installation/configuration notes
Mounting
Mount the module into the enclosure’s 3-hole
mounting pattern using the supplied screws and
mounting bracket. The module installs into the
exterior, upper-right side of the enclosure. The
mounting of the LED cover requires a rectangular
knock out removed from the front of the enclosure
door. Remove the knockout area and insert the LED
cover into place.
Connecting
Use the supplied module cable to easily connect the
B46 to a supporting module.
Parts included
Quantity Component
1 B46 module
1 Hardware pack
1 Literature pack
1 Enclosure plate
1 B46 module cable
Ordering information
B46 External Annunciator
An optional module that uses audio and LEDs to show
System Trouble, Power, and Battery status through a
knockout on select enclosure doors
Order number B46
Technical specifications
Properties
Dimensions 5.5 in x 4.1 in x 1.7 in
(140 mm x 105 mm x 44mm)
Environmental considerations
Relative humidity 5% to 93% at +32°C (+90°F)
Temperature (operating) 0°C to +49°C (+32°F to +120°F)
Mounting considerations Mount in dry indoor locations.
Power requirements
Current Standby: 23 mA
Alarm: 23 mA
Voltage (operating) 12 VDC nominal
Wiring
Wiring B46 module cable (included)
Compatibility
Enclosures B10 Medium Control Panel Enclosure
B10R Medium Control Panel Enclosure
(Red)
D8103 Universal (requires a B12
mounting plate)
Modules B465 Conettix Universal Dual Path
Communicator
