Bosch B930, B4512-C-930 User Manual

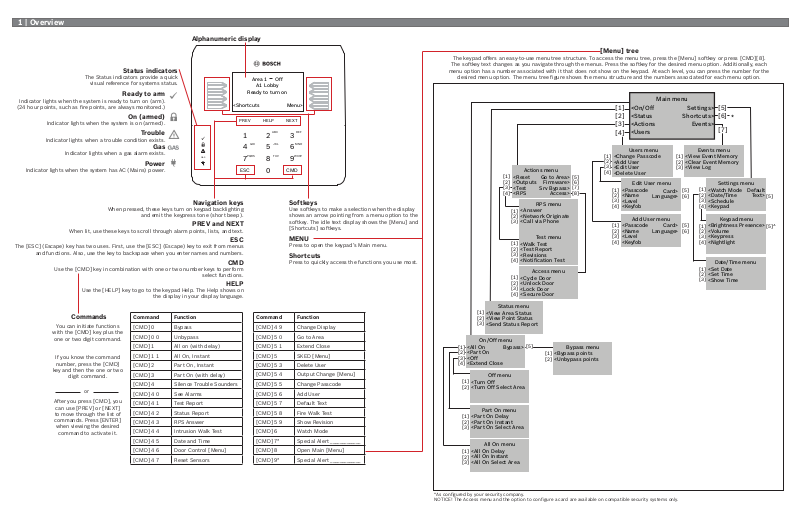

1 | Overview

Alphanumeric display

The Status indicators provide a quick

visual reference for systems status.

Indicator lights when the system is ready to turn on (arm).

(24 hour points, such as ﬁ re points, are always monitored.)

Indicator lights when the system is on (armed).

Indicator lights when a trouble condition exists.

Indicator lights when a gas alarm exists.

Indicator lights when the system has AC (Mains) power.

When lit, use these keys to scroll through alarm points, lists, and text.

The [ESC] (Escape) key has two uses. First, use the [ESC] (Escape) key to exit from menus

and functions. Also, use the key to backspace when you enter names and numbers.

Use the [CMD] key in combination with one or two number keys to perform

Use the [HELP] key to go to the keypad Help. The Help shows on

Commands

You can initiate functions

with the [CMD] key plus the

one or two digit command.

If you know the command

number, press the [CMD]

key and then the one or two

digit command.

After you press [CMD], you

can use [PREV] or [NEXT]

to move through the list of

commands. Press [ENTER]

when viewing the desired

command to activate it.

Status indicators

Ready to arm

<Shortcuts

On (armed)

Trouble

Gas

GAS

Power

Navigation keys

When pressed, these keys turn on keypad backlighting

and emit the keypress tone (short beep).

PREV and NEXT

ESC

CMD

select functions.

HELP

the display in your display language.

Command Function

[CMD] 0 Bypass

[CMD] 0 0 Unbypass

[CMD] 1 All on (with delay)

[CMD] 1 1 All On, Instant

[CMD] 2 Part On, Instant

[CMD] 3 Part On (with delay)

[CMD] 4 Silence Trouble Sounders

[CMD] 4 0 See Alarms

[CMD] 4 1 Test Report

[CMD] 4 2 Status Report

[CMD] 4 3 RPS Answer

[CMD] 4 4 Intrusion Walk Test

[CMD] 4 5 Date and Time

[CMD] 4 6 Door Control [Menu]

[CMD] 4 7 Reset Sensors

Area 1 Off

A1 Lobby

Ready to turn on

Menu>

1 4

4 7

ESC

PQRS PQRS

HELPPREV

GHI GHI

5 8

ABC ABC

JKL JKL

TUV TUV

3 6

CMD

DEF DEF

MNO MNO

WXYZ WXYZ

Softkeys

Use softkeys to make a selection when the display shows an arrow pointing from a menu option to the softkey. The idle text display shows the [Menu] and [Shortcuts] softkeys.

Press to open the keypad’s Main menu.

Shortcuts

Press to quickly access the functions you use most.

Command Function

[CMD] 4 9 Change Display

[CMD] 5 0 Go to Area

[CMD] 5 1 Extend Close

[CMD] 5 SKED [Menu]

[CMD] 5 3 Delete User

[CMD] 5 4 Output Change [Menu]

[CMD] 5 5 Change Passcode

[CMD] 5 6 Add User

[CMD] 5 7 Default Text

[CMD] 5 8 Fire Walk Test

[CMD] 5 9 Show Revision

[CMD] 6 Watch Mode

[CMD] 7* Special Alert _____________

[CMD] 8 Open Main [Menu]

[CMD] 9* Special Alert _____________

[Menu] tree

The keypad offers an easy-to-use menu tree structure. To access the menu tree, press the [Menu] softkey or press [CMD][8].

The softkey text changes as you navigate through the menus. Press the softkey for the desired menu option. Additionally, each

menu option has a number associated with it that does not show on the keypad. At each level, you can press the number for the

desired menu option. The menu tree ﬁ gure shows the menu structure and the numbers associated for each menu option.

Main menu

[1]

<View Area Status <View Point Status

[2] [3]

<Send Status Report

[1] [2] [3] [4]

On/Off menu

<All On <Part On <Off <Extend Close

[1] [2]

[1] [2] [3]

Off menu

<Turn Off <Turn Off Select Area

Part On menu

<Part On Delay <Part On Instant <Part On Select Area

All On menu

<All On Delay <All On Instant <All On Select Area

[1] [2] [3] [4]

Status menu

Bypass>

Actions menu

<Reset <Outputs <Test <RPS

<Answer

[1]

<Network Originate

[2] [3]

<Call via Phone

[1]

<Walk Test

[2]

<Test Report

[3]

<Revisions

[4]

<Notification Test

[1]

<Cycle Door <Unlock Door

[2] [3]

<Lock Door

[4]

<Secure Door

Go to A r e a >

Firmware>

Srv Bypass>

RPS menu

Test menu

Access menu

[5]

[1] [2]

[5] [6] [7]

Access>

[8]

Bypass menu

<Bypass points <Unbypass points

[1]

<On/Off

[2]

<Status <Actions

[3]

<Users

[4]

[1] [2] [3] [4]

Users menu

<Change Passcode <Add User <Edit User <Delete User

[1] [2] [3] [4]

Edit User menu

<Passcode <Name <Level <Keyfob

Add User menu

<Passcode <Name <Level <Keyfob

Card>

Language>

Card>

Language>

Settings>

Shortcuts>

Events>

Events menu

<View Event Memory

[1]

<Clear Event Memory

[2]

<View Log

[3]

[5] [6]

[7]

Settings menu

[1]

<Watch Mode

[2]

<Date/Time

[3]

<Schedule

[4]

<Keypad

<Brightness

[1]

<Volume

[2]

<Keypress

[3]

<Nightlight

[4]

Date/Time menu

[1]

<Set Date <Set Time

[2] [3]

<Show Time

Default

Keypad menu

Presence>

Text>

[5]

*As conﬁ gured by your security company. NOTICE! The Access menu and the option to conﬁ gure a card are available on compatible security systems only.

2 | Turn on (arm) your system

You can turn on (arm) your system using different methods. Do one of the following:

Enter your passcode and press [ENTER] to turn All On with a delay.

Use one of the available commands: For All On (with delay): [CMD][1] For All On, Instant: [CMD][1][1] For Part On, Instant: [CMD][2] For Part On (with delay): [CMD][3]

Use the menus. Begin by For All On: Go to [1] On/Off > [1] All On > [1] All On Delay. For All On, Instant: Go to [1] On/Off > [1] All On > [2] All On Instant. For Part On: Go to [1] On/Off > [2] Part On > [1] Part On Delay For Part On, Instant: Go to [1] On/Off > [2] Part On > [2] Part On Instant.

The menu options also allow you to choose individual areas to turn on. Open the All On or Part On menu, press [3] to open the Select menu, and then use [NEXT] and [ENTER] to choose On Instant or On Delay and the area to turn on.

pressing [Menu] or by pressing [CMD][8].

5 | Conﬁ gure users

You can change passcodes for other users, and you can add, remove, and replace keyfobs and cards.

5 .1 | Add users

Use the command or the menu to open the Add User option, and then follow the prompts to conﬁ gure the user’s passcode, name, authority level, keyfob (if desired), language (when applicable), and card (when applicable).

Use the command: [CMD][5][6]

Use the menus: Begin by Go to [4] Users > [2] Add User.

pressing [Menu] or by pressing [CMD][8].

5.2 | Edit Users

Use the menu to open the Edit User option, and then follow the prompts to conﬁ gure the user’s passcode, name, authority level, keyfob (if desired), language (when applicable), and card (when applicable).

6 | Alarms

When the security system is in alarm, the number of alarms shows on the display. Enter your passcode to silence alarms. If the system is on (armed), silencing the alarm also turns the system off. The system now shows Alarm Silenced, and then the number of points in alarm, and the names of all the points in alarm, in the order of occurrence.

7 | Shortcuts

You can access your shortcuts through the menu: Begin by Go to [6] Shortcuts and then press the softkey for the you wish to run.

pressing [Menu] or by pressing [CMD][8].

8 | Keypad cleaning

Use a soft cloth and non-abrasive cleaning solution to clean your keypad (for example, microﬁ ber cloth and eyeglass cleaner). Spray the cleaner onto the cloth. Do not spray cleaners directly onto the keypad.

Two-line Alphanumeric Keypad

B930

3 | Turn off (disarm) your intrusion system

You can turn off your system using different methods. Do one of the following:

Enter your passcode.

Use the menus. Begin by For Turn Off: Go to [1] On/Off > [3] Off > [1] Off. For Turn Off Select: Go to [1] On/Off > [3] Off > [2] Off Select. Then use [NEXT] and [ENTER] to choose the area to turn off.

pressing [Menu] or by pressing [CMD][8].

4 | Change your passcode

You can change your own passcode. Do one of the following:

Use the command: [CMD][5][5], and then follow the prompts.

Begin by Go to [4] Users > [1] Change Passcode, and then follow the prompts.

pressing [Menu] or by pressing [CMD][8].

Use the menus: Begin by Go to [4] Users > [3] Edit User.

pressing [Menu] or by pressing [CMD][8].

5.3 | Delete users

Use the command or the menu to open the Delete User option, and then follow the prompts to delete the user.

Use the command: [CMD][5][3]

Use the menus: Begin by Go to [4] Users > [4] Delete User.

pressing [Menu] or by pressing [CMD][8].
