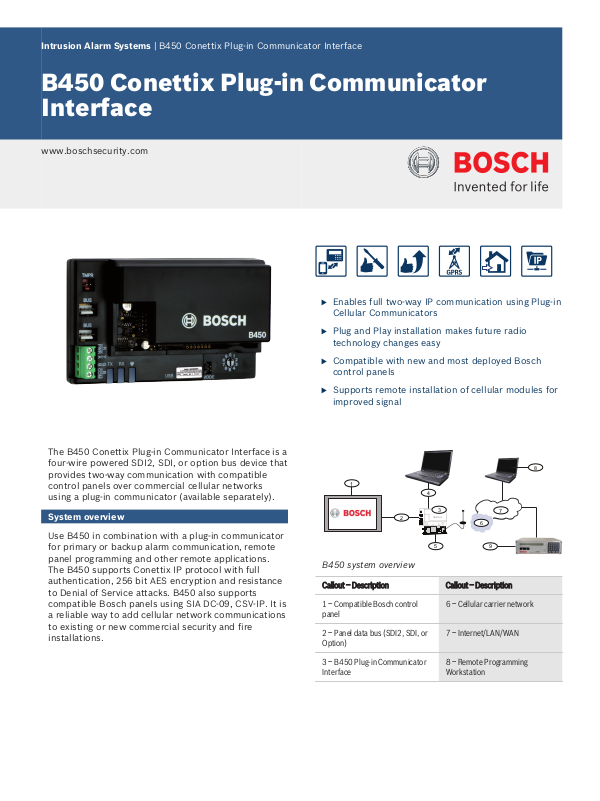

Intrusion Alarm Systems | B450 Conettix Plug-in Communicator Interface

B450 Conettix Plug-in Communicator Interface

www.boschsecurity.com

u Enables full two-way IP communication using Plug-in

Cellular Communicators

The B450 Conettix Plug-in Communicator Interface is a four-wire powered SDI2, SDI, or option bus device that provides two-way communication with compatible control panels over commercial cellular networks using a plug-in communicator (available separately).

System overview

Use B450 in combination with a plug-in communicator for primary or backup alarm communication, remote panel programming and other remote applications. The B450 supports Conettix IP protocol with full authentication, 256 bit AES encryption and resistance to Denial of Service attacks. B450 also supports compatible Bosch panels using SIA DC-09, CSV-IP. It is a reliable way to add cellular network communications to existing or new commercial security and fire installations.

u Plug and Play installation makes future radio

technology changes easy

u Compatible with new and most deployed Bosch

control panels

u Supports remote installation of cellular modules for

improved signal

B450 system overview

Callout ￚ Description Callout ￚ Description

1 ￚ Compatible Bosch control

6 ￚ Cellular carrier network

panel

2 ￚ Panel data bus (SDI2, SDI, or

7 ￚ Internet/LAN/WAN

Option)

3 ￚ B450 Plug-in Communicator Interface

8 ￚ Remote Programming Workstation

| B450 Conettix Plug-in Communicator Interface

4 ￚ USB connection for B450 configuration

5 ￚ B44x Plug-in Cellular Communicator (available separately)

9 ￚ Compatible IP receiver (Bosch D6100IPv6 shown)

Functions

IP communication supported

The following features are supported with the B450 via BOSCH Conettix IP protocol and SIA DC-09 UDP, CSVIP on supported control panels including:

• IP Alarm communication

• Remote programing

• Personal notification via text or email on supported panels:

Switch addressing

Use the address switch to easily assign a bus address or setup for USB or SMS configuration where required.

Easy configuration

For most installations, the default B450 settings allow installation with no device programming required. An address switch allows easy bus address selection. For customized network settings, the B450 supports a USB configuration menu, or configuration via SMS. B Series and GV4 Series control panels support limited keypad and remote programming of B450 settings.

LEDs

Three LEDs provide status and troubleshooting information about the module and its connection.

LED Description

Heartbeat Indicates the system status of the B450 and its

connection to the panel.

RX Indicates when an inbound packet is received on the

bus.

UL 1610

SIA CP-01:2010 False Alarm Reduction

California State Fire Marshall (CSFM) - Certified

Fire Department of New York (FDNY) - Certified

Canada CAN/ULC S303

CAN/ULC S304

ULC S545

ULC-ORD C1023

ULC-ORD C1076

ICES-003 – Digital Apparatus

Rogers - Certified

North America

Europe CE - EN50130-4, EN61000-6-3, EN60950

Australia A-tick - Certified

Region Certification

Europe CE 2014/30/EU EMC Directive (EMC);

USA CSFM see our website

Brazil ANATEL 2708-14-1855

PTCRB - Certified

FDNYCoA

2014/35/EU Low-Voltage Directive (LVD); 2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS)

6174

6196

TX Indicates when an outbound packet is transmitted on

the bus.

Certifications and approvals

Region

US NIST FIPS 197

FCC Part 15 Class B

UL 365

UL 636

UL 864

UL985

UL 1023

UL 1076

Installation/configuration notes

Mounting considerations

Find a location with acceptable signal strength on your wireless network. Mount the B450 Conettix Plug-in Communicator Interface into the interior of a compatible enclosure via the 3-hole mounting pattern using the supplied mounting screws.

Wiring considerations

The B450 connects to a control panel using a data bus connection via the module’s terminal strip, or the module’s interconnect wiring connectors. For data bus powered installations outside the compatible control panel enclosure, follow the maximum wiring distances in the technical specifications. For further installations power from a compatible auxiliary power supply.
