To prevent accidents and/or machine damage, read these instructions before installation or use. Use the dryer only as instructed in this owner’s guide and installation instructions manual included with your dryer. Keep this guide for future reference
Front-Loading Dryer
DV 17540 NBL00
DV 17542
Owner’s Guide & Installation Instructions
Please read this manual first!
Dear Customer,
We hope that your product, which has been manufactured in modern facilities and passed through strict quality control procedures, will give you the best results. Therefore, we advise you to read this manual thoroughly before using your product and keep it for future reference.
This operation manual will …
…help you use your machine in a fast and safe way.
•Please read the operating manual before installing and starting your machine.
•Particularly follow the instructions related to safety.
•Keep this operating manual handy. You may need it in the future.
•Please read all additional documentation supplied with this machine.
•Please note that this operation manual may be applicable for several models. Differences between models will be identified in the manual.
Explanation of symbols
Throughout this Operation Manual the following symbols are used:
A Important safety information
This is the general warning sign. It is used to alert the user to potential hazards. All safety messages that follow this sign shall be obeyed to avoid possible harm to the user.
B Caution, risk of electric shock
Caution, risk of fire
Caution, hot surface
Read the instructions
C Useful information
Important information or useful hints for use.
EN_01022013/2960310298 indd.
3 - EN
TABLE OF CONTENTS
1 Your Dryer |
5 |
7 Troubleshooting |
23 |
|
|
|
|
|
|
Overview.............................................. |
5 |
|
|
|
2 Important Safety Instructions6 |
|
|
|
|
|
|
|
||
|
|
|
|
|
3 Installation Instructions |
8 |
|
|
|
|
|
|
|
|
Electrical connection............................ |
8 |
|
|
|
Grounding Instructions......................... |
9 |
|
|
|
Appropriate installation location............ |
9 |
|
|
|

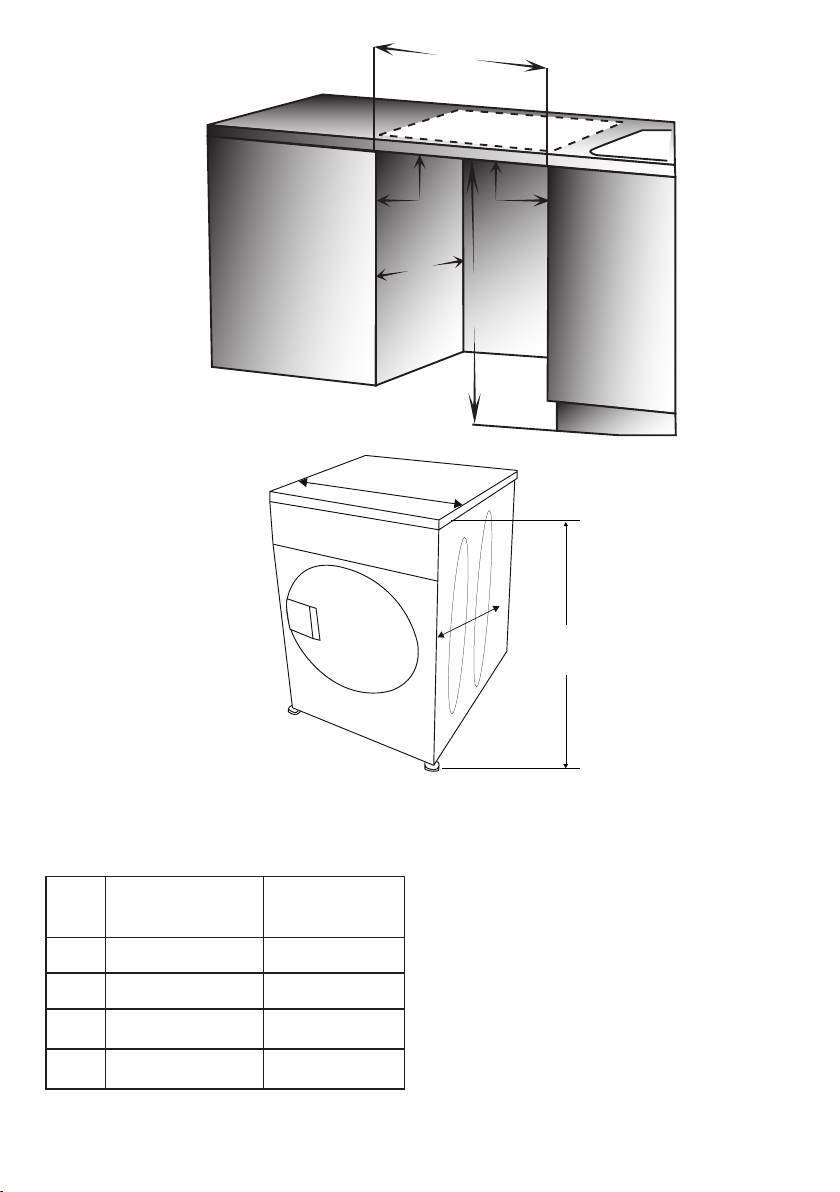

Minimum Installation Clearances........ |
10 |
|
|
|
Use on top of a washing machine...... |
10 |
|
|
|
Adjusting the feet............................... |
11 |
|
|
|
Ventilation duct and connection ........ |
11 |
|
|
|
4 Operating Instructions |
13 |
|
|
|
|
|
|
|
|
First Use............................................. |
13 |
|
|
|
Garments suitable for drying in the |
|
|
|
|
machine............................................. |
13 |
|
|
|
Garments unsuitable for drying in the |
|
|
|
|
machine............................................. |
13 |
|
|
|
Preparing clothes to be dried............. |
13 |
|
|
|
Correct load capacity......................... |
13 |
|
|
|
Control panel..................................... |
15 |
|
|
|
Turning on the dryer .......................... |
16 |
|
|
|
Starting the Program.......................... |
18 |
|
|
|
Progress of program.......................... |
18 |
|
|
|
Changing the program after the program |
|
|
|
|
has started......................................... |
18 |
|
|
|
Technical Specifications..................... |
20 |
|
|
|

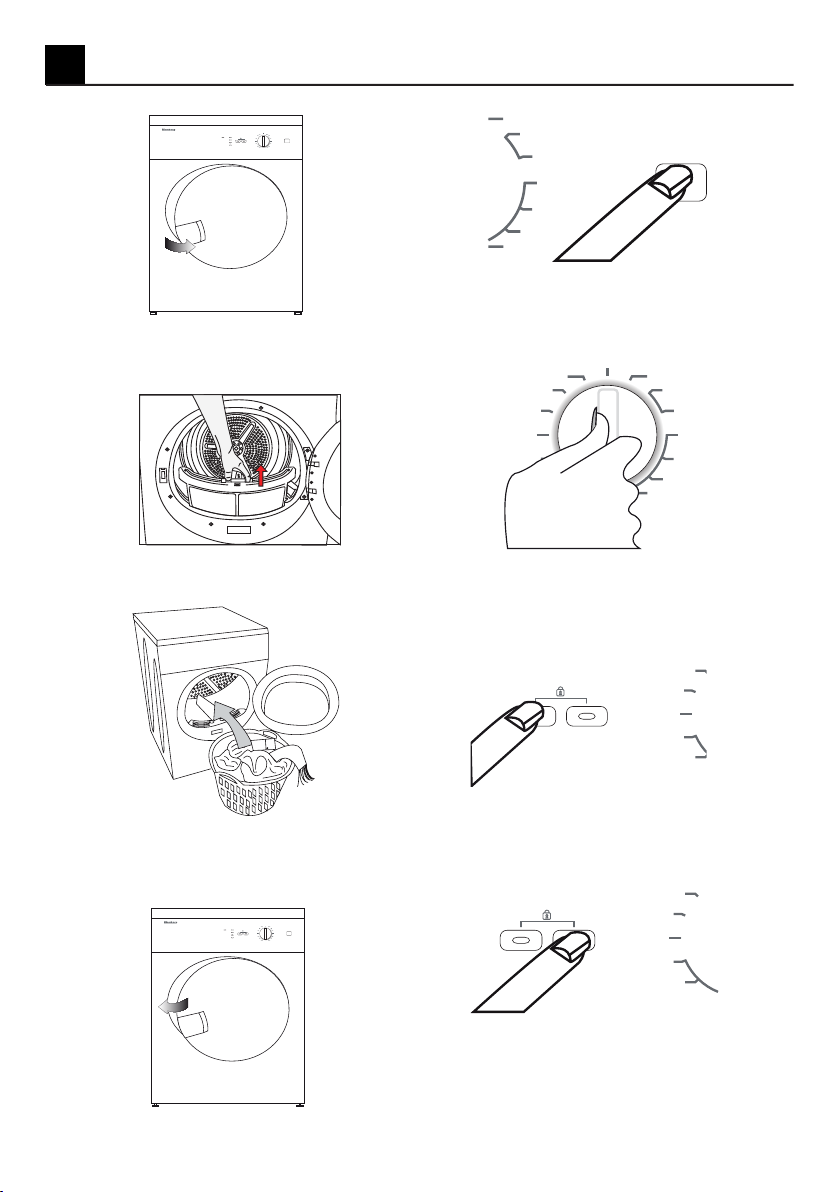

5Quick Start-up Instructions 21
6User maintenance and cleaning
instructions |
22 |
Lint filter ............................................ |
22 |
4 - EN
1
Your Dryer
Overview
Figure 1
1
3 |
2 |
4 |
|
5
1 |
Control Panel |
4 |
Type label |
|
|
|
|
2 |
Loading Door |
5 |
Adjustable Feet |
|
|
|
|
3 |
Lint Filter |
|
|
Specifications of this appliance may change without notice to improve the quality of the product. Drawings in this manual are schematic and may not match your product exactly.
Values stated on the machine labels or in the documentation accompanying it are obtained in the laboratory in accordance with relevant standards. Depending on operational and environmental conditions of the appliance, values may vary.
5 - EN
|
WARNING: To reduce the risk of fire, |
|
the risk of electric shock by providing |
||
A |
|
||||
electric shock, or personal injury when |
|
a path of least resistance for electric |
|||
using this appliance, follow the basic |
|
current. This appliance is equipped |
|||
precautions including the following: |
|
with a cord having an equipment- |
|||
|
|
|
|
grounding conductor and a grounded |
|
• |
Read all instructions before using the |
|
plug. The plug must be plugged into |
||
|
an appropriate outlet that is properly |
||||
appliance. Otherwise, there may be the |
|
||||
|
installed and grounded in accordance |
||||
risk of personal injury or material damage. |
|
||||
|
with all local codes and ordinances. |
||||
Additionally, any warranty and reliability |
|
||||
BWARNING: Improper connection of |
|||||
commitment will become void. |
|||||
AThis product has been designed for |
the equipment-grounding conductor can |
||||
result in a risk of electric shock. Check |
|||||
home use only. |
with a qualified electrician or service |
||||
• |
The appliance must be operated at |
representative or personnel if you are |
|||
in doubt as to whether the appliance is |
|||||
|
temperatures between +5°C and |
properly grounded. |
|||
|
+35°C. |
||||
|
|
|
|||
• |
The appliance must not be installed |
• |
Power cord plug must be within easy |
||
|
behind a lockable door, a sliding |
||||
|
|
reach after installation. |
|||
|
door or a door with the hinges on the |
|
|||
|
• |
To reduce the risk of fire or electric |
|||
|
opposite side to that of the tumble |
||||
|
|
shock, do not use extension cords, |
|||
|
dryer. |
|
|||
|
|
multi-plugs or an adapter to connect |
|||
• |
Do not install or store this appliance |
|
|||
|
the dryer to electrical mains. |
||||
|
where it will be exposed to weather. |
|
|||
|
• |
Do not modify the plug provided with |
|||
• |
Do not tamper with the controls. |
||||
|
the appliance: if it will not fit the |
||||
• |
Do not repair or replace any part of the |
|
|||
|
outlet, have a proper outlet installed |
||||
|
appliance or attempt any servicing |
|
|||
|
|
by a qualified electrician. |
|||
|
unless specifically recommended in |
|
|||
|
• |
If the power supply cord is damaged, |
|||
|
the user-maintenance instructions or |
||||
|
|
it must be replaced by the |
|||
|
in published user-repair instructions |
|
|||
|
|
manufacturer, its service agent or |
|||
|
that you understand and have the |
|
|||
|
|
similarly qualified persons in order to |
|||
|
skills to carry out. |
|
|||
|
|
avoid an electrical hazard. |
|||
• |
Unplug the machine when it is not in |
|
|||
• |
The appliance must not be operated |
||||
|
use. |
||||
|
|
unless it is repaired! There is the risk |
|||
• |
Never wash the appliance with water! |
|
|||
|
of electric shock! |
||||
|
There is the risk of electric shock! |
|
|||
|
• |
Ventilation openings in the base must |
|||
• |
Never touch the plug with wet hands. |
||||
|
not be obstructed by carpets, etc. |
||||
• |
Never pull from the cable to unplug the |
|
|||
• |
Exhaust air must not be discharged |
||||
|
machine. |
||||
|
|
into a flue used for exhausting fumes |
|||
• |
Do not operate the appliance if the |
|
|||
|
from appliances burning gas or other |
||||
|
power cord or plug is damaged. |
|
|||
|
|
fuels. |
|||
• |
Never attempt to repair the machine |
|
|||
• |
Adequate ventilation must be provided |
||||
|
yourself. |
||||
|
|
to avoid the back flow of gases into |
|||
• |
For malfunctions that cannot be solved |
|
|||
|
the room from appliances burning |
||||
|
by information in the operating |
|
|||
|
|
other fuels, including open fires. |
|||
|
manual: Turn off and unplug the |
|
|||
|
• |
Do not dry articles that have been |
|||
|
appliance and call an authorized |
||||
|
|
previously cleaned in, washed in, |
|||
|
service.. |
|
|||
|
|
soaked in or spotted with gasoline, |
|||
• |
This appliance must be grounded. |
|
|||
|
|
|
|
dry-cleaning solvents or other |
|
|
2 Important Safety Instructions |
In the event of malfunction or |
flammable or explosive substances as |
|
breakdown, grounding will reduce |
||
they give off vapors that could ignite |
||
|
||
|
6 - EN |
or explode.
•Do not use the tumble dryer if industrial chemicals have been used for cleaning.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as cooking oil, acetone, alcohol, gas, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber-backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
•Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
•The appliance may only be used for the drying of textiles that are marked accordingly.
•Undergarments that contain metal reinforcements should not be placed in a tumble dryer. Damage to the tumble dryer can result if the metal reinforcement come loose during drying.
•Before loading check all garments for lighters, coins, metal pieces, needles, etc.
•Fabric softeners, or similar products, should be used as specified by the fabric softener’s instructions. The use of fabric softener sheets is not recommended.
•The final part of a tumble dryer cycle occurs without heat (the cool-down cycle) to ensure that the items are left at a temperature that ensures the items will not be damaged.
AWARNING: Never stop the tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out dissipate heat.
• Do not reach into the appliance if the drum is moving.
•Do not allow children to play on or in the appliance.Close supervision of children is necessary when the appliance is used near children.
•Young children should be supervised to ensure that they do not play with the appliance.
•Keep pets away from the appliance during the drying cycle.
•Before the appliance is removed from service or discarded, remove the door to the drying compartment.
•Close the loading door when you
leave the area where the machine is located.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instructions concerning the use of the appliance by a person responsible for their safety.
•Clean lint filter before or after each load.
•Keep area around the exhaust vent and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.
•The interior of the appliance and exhaust ductwork should be cleaned periodically by qualified service personnel.
•Never use the dryer without the lint filter.
•At times when your dryer is not in
use or after the laundry is taken out following the completion of drying process, turn off by using the On/ Off button. In cases when the On/ Off button is on (while the dryer is
energized), keep the door of the dryer closed.
• For power saving in models with lamps, at times when your dryer is not in use, keep the door closed if the On/ Off button is pressed (if the dryer is energized).
SAVETHESE INSTRUCTIONS
7 - EN
3 Installation Instructions
AWARNING - Risk of fire
•The clothes dryer (“appliance‘) installation must be performed by a qualified installer.
•Install the appliance according to the manufacturer’s instructions and local codes.
•Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the ap pliance manufacturer as suitable for use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct the clothes dryer’s airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
SAVE THESE INSTRUCTIONS
Electrical connection
Connect the appliance to a grounded outlet protected by a fuse or circuit breaker of suitable capacity.
Dryer shipped with cord to fit this type 4 -wire receptacle
4-wire receptacle
(14 -30R)
If yo u have 3-wir e receptacle, like this , a 3-wire dryer cord mu st be purc hased locall y.
3-wire receptacle
(10 -30R)
3-Wire Electrical Connection
If your receptacle is a 3-wire receptacle as shown below, you must obtain a 3-wire dryer cord. A dryer cord can usually be found at your local hardware supply, electrical supply or home center. Cord should have closed loop or upturned end wire terminating connectors.
3- wire receptacle ( 10-30R)
Typical 3- Wire Dryer Cord 240V/30 amp NEMA 10-30 Type SRDT
A If the dryer is installed in a mobile home, recreational vehicles, new branch-circuit installations or in areas where local codes do not permit grounding, only a 4-wire power supply cord shall be used.
To change the cord:
1. Make sure that the dryer is not plugged into any power outlet.
B DO NOT plug end of dryer power cord into a live receptacle before connecting dryer power cord to dryer terminals and closing junction/splitter box as described below.
B DO NOT repair old power supply cords. Power cord must be changed only by a qualified person. There is a risk of electric shock!
2.Remove the screw from the cover of the junction box located at the top rear of the dryer.
3.Remove the red, white and black wire from the terminal block.
4.Remove the green ground wire from the ground terminal.
5.Loosen the strain relief clamp holding the 4-wire cable.
6.Thread the 4-wire cable out through the strain relief clamp.
7.Thread the new 3-wire dryer cord through the strain relief clamp.
8.Attach the power cord Ground conductor
(the center wire) to the terminal labeled N.
8 - EN
