BlackBerry Enterprise Server for

Microsoft Exchange

Version: 5.0

Service Pack: 4

Feature and Technical

Overview

Published: 2013-11-07

SWD-20131107160132924

Contents

1 Document revision history.................................................................................................................6

2 What's New in BlackBerry Enterprise Server 5.0 SP4.........................................................................7

3 Overview: BlackBerry Enterprise Server.............................................................................................9

4 BlackBerry Enterprise Server architecture.......................................................................................10

Architecture: BlackBerry Enterprise Server.........................................................................................................................10

Architecture: Remote BlackBerry Collaboration Service......................................................................................................14

Architecture: Remote BlackBerry MDS Connection Service................................................................................................ 16

Architecture: Remote BlackBerry Router............................................................................................................................17

Architecture: Remote BlackBerry Administration Service....................................................................................................19

Architecture: Remote BlackBerry Attachment Service........................................................................................................20

Architecture: BlackBerry Web Desktop Manager................................................................................................................ 22

5 BlackBerry Enterprise Server components and features.................................................................. 24

BlackBerry Administration Service..................................................................................................................................... 24

BlackBerry Configuration Panel..........................................................................................................................................25

BlackBerry Mail Store Service............................................................................................................................................ 25

Database tables in the BlackBerry Configuration Database that store contact information ........................................... 26

Contact information that the BlackBerry Mail Store Service stores in the BlackBerry Configuration Database ............... 26

How the BlackBerry Mail Store Service accesses contact information that is stored on the messaging server ............... 27

Configuring the BlackBerry Mail Store Service instance that updates the contact list ................................................... 27

BlackBerry messaging and collaboration services .............................................................................................................. 28

BlackBerry Messaging Agent.......................................................................................................................................28

BlackBerry Collaboration Service.................................................................................................................................31

BlackBerry Synchronization Service............................................................................................................................ 34

BlackBerry Attachment Service...................................................................................................................................35

BlackBerry MDS Connection Service.................................................................................................................................. 36

BlackBerry Applications.....................................................................................................................................................38

BlackBerry Browser Applications.................................................................................................................................38

BlackBerry Java Applications...................................................................................................................................... 38

Managing BlackBerry Java Applications and BlackBerry Device Software........................................................................... 39

BlackBerry device management.........................................................................................................................................40

Controlling third-party applications on BlackBerry devices........................................................................................... 40

BlackBerry Policy Service...................................................................................................................................................40

BlackBerry Router............................................................................................................................................................. 41

BlackBerry Web Desktop Manager .................................................................................................................................... 42

Comparison of BlackBerry Web Desktop Manager and BlackBerry Desktop Software features...................................... 43

Managing a distributed environment for BlackBerry Enterprise Server components ............................................................47

Wireless activation ............................................................................................................................................................ 47

6 BlackBerry Enterprise Solution security...........................................................................................48

Security features of the BlackBerry Enterprise Solution.......................................................................................................49

Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other .................................... 50

Algorithms that the BlackBerry Enterprise Solution uses to encrypt data...................................................................... 50

Extending messaging security to a BlackBerry device ........................................................................................................ 51

Encrypting user data on a locked device............................................................................................................................. 51

Encrypting the device transport key on a locked device.......................................................................................................52

Managing device access to the BlackBerry Enterprise Server..............................................................................................52

Using an IT policy to manage BlackBerry Enterprise Solution security................................................................................. 53

Using IT administration commands to protect a lost or stolen device................................................................................... 54

7 BlackBerry Enterprise Server high availability..................................................................................56

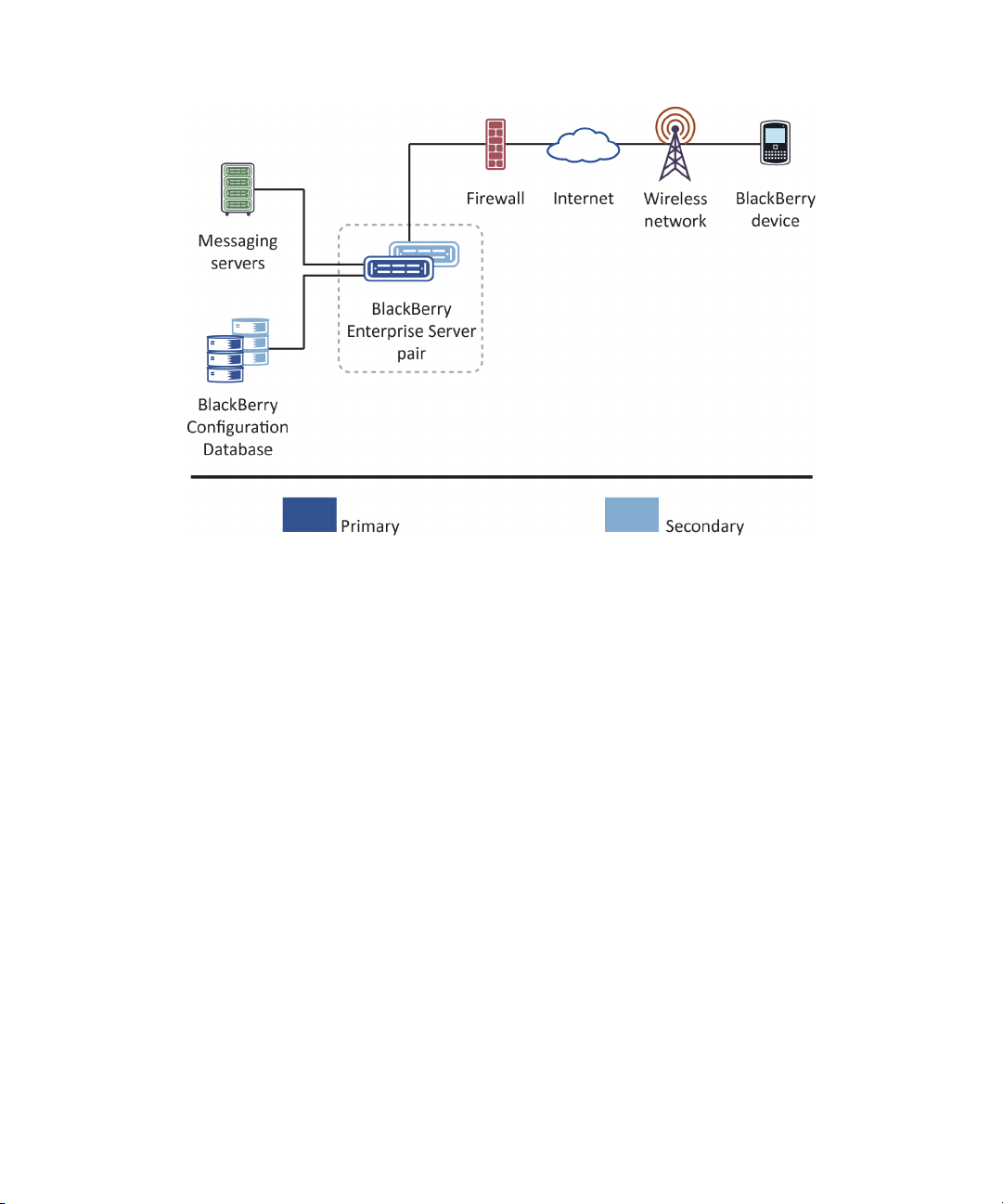

BlackBerry Enterprise Server high availability in a small-scale environment.........................................................................56

How the BlackBerry Enterprise Server calculates health scores ..........................................................................................57

Conditions for failover to a standby BlackBerry Enterprise Server ....................................................................................... 58

How a primary BlackBerry Enterprise Server self-demotes ................................................................................................. 58

Scenario: What happens after a primary BlackBerry Enterprise Server stops responding..................................................... 59

Scenario: What happens after the health score of a primary BlackBerry Enterprise Server falls below the failover

threshold........................................................................................................................................................................... 60

BlackBerry Configuration Database high availability............................................................................................................60

BlackBerry Configuration Database mirroring ............................................................................................................. 61

Scenario: What happens after the principal BlackBerry Configuration Database stops responding................................ 62

High availability in a distributed environment......................................................................................................................63

Wi-Fi enabled devices.....................................................................................................................65

Types of Wi-Fi networks .....................................................................................................................................................65

Wireless access points....................................................................................................................................................... 66

Connections that BlackBerry devices make to mobile and Wi-Fi networks........................................................................... 67

Connecting Wi-Fi enabled BlackBerry devices to the BlackBerry Enterprise Server over a Wi-Fi connection......................... 68

Direct connections between BlackBerry devices and the BlackBerry Router over an enterprise Wi-Fi network...............68

Wi-Fi connection when a VPN connection or direct connection between BlackBerry devices and the BlackBerry

Router is not possible.................................................................................................................................................. 69

Priority for connections that BlackBerry devices make over a Wi-Fi network................................................................. 69

BlackBerry services that are available over Wi-Fi connections.............................................................................................70

IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support................................................ 72

Characteristics of the IEEE 802.11a wireless networking standard that Wi-Fi enabled BlackBerry devices support........ 72

Characteristics of the IEEE 802.11b wireless networking standard that Wi-Fi enabled BlackBerry devices support........73

Characteristics of the IEEE 802.11g wireless networking standard that Wi-Fi enabled BlackBerry devices support........ 74

Security features of a Wi-Fi enabled device.........................................................................................................................74

BlackBerry Enterprise Server process flows.....................................................................................76

Messaging process flows....................................................................................................................................................76

Process flow: Sending a message to a BlackBerry device............................................................................................. 76

Process flow: Sending a message from a BlackBerry device......................................................................................... 77

Process flow: Sending a message that contains an attachment from a BlackBerry device............................................. 78

Process flow: Searching an organization's address book from a BlackBerry device....................................................... 79

Instant messaging process flows........................................................................................................................................ 80

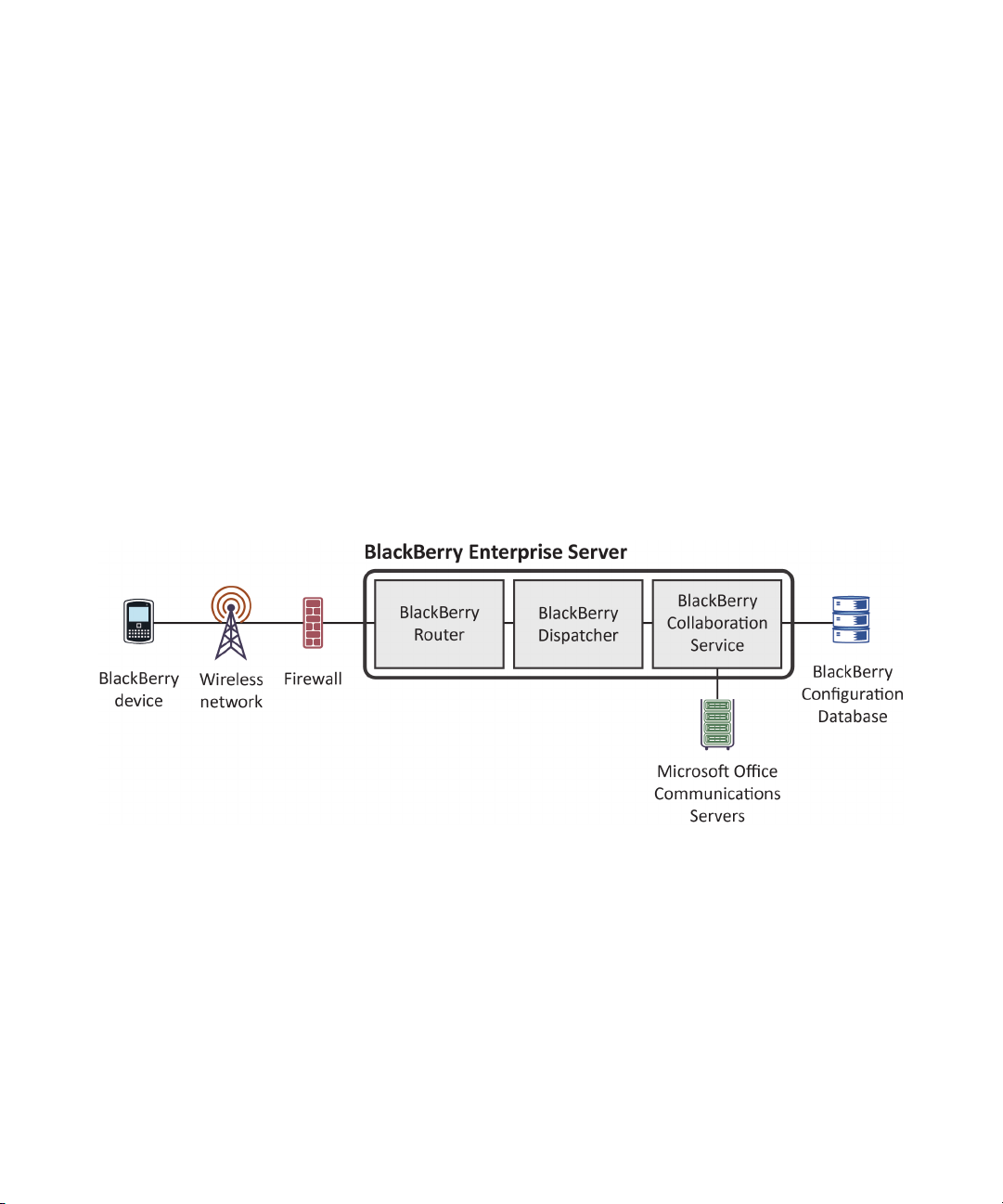

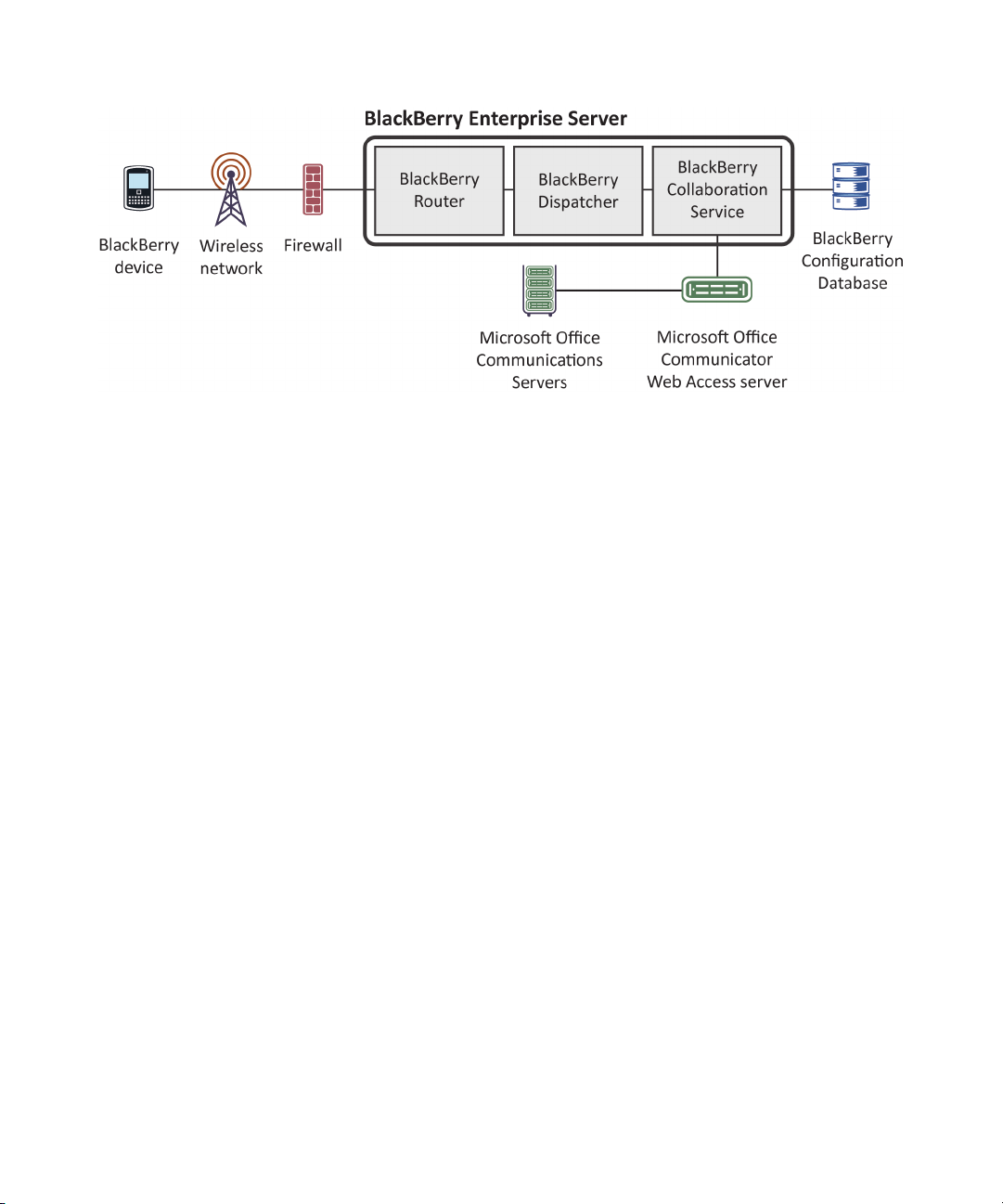

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office Live

Communications Server 2005 (Microsoft Office Communicator)...................................................................................80

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office

Communications Server 2007..................................................................................................................................... 81

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office

Communications Server 2007 R2 or

Process flow: Starting an instant messaging session using the BlackBerry Client for IBM Sametime.............................. 84

Process flow: Starting an instant messaging session using the BlackBerry Client for Novell GroupWise Messenger........ 85

Process flow: Sending a file to a contact using the BlackBerry Client for IBM Sametime................................................ 87

Message attachment process flows.................................................................................................................................... 88

Process flow: Viewing a message attachment...............................................................................................................88

Process flow: Viewing an attachment using a link......................................................................................................... 89

Organizer data process flows..............................................................................................................................................91

Process flow: Synchronizing organizer data for the first time on a BlackBerry device.....................................................91

Process flow: Synchronizing subsequent changes to organizer data............................................................................. 92

Process flow: Adding a contact picture on a BlackBerry device.................................................................................... 93

Mobile data process flows.................................................................................................................................................. 94

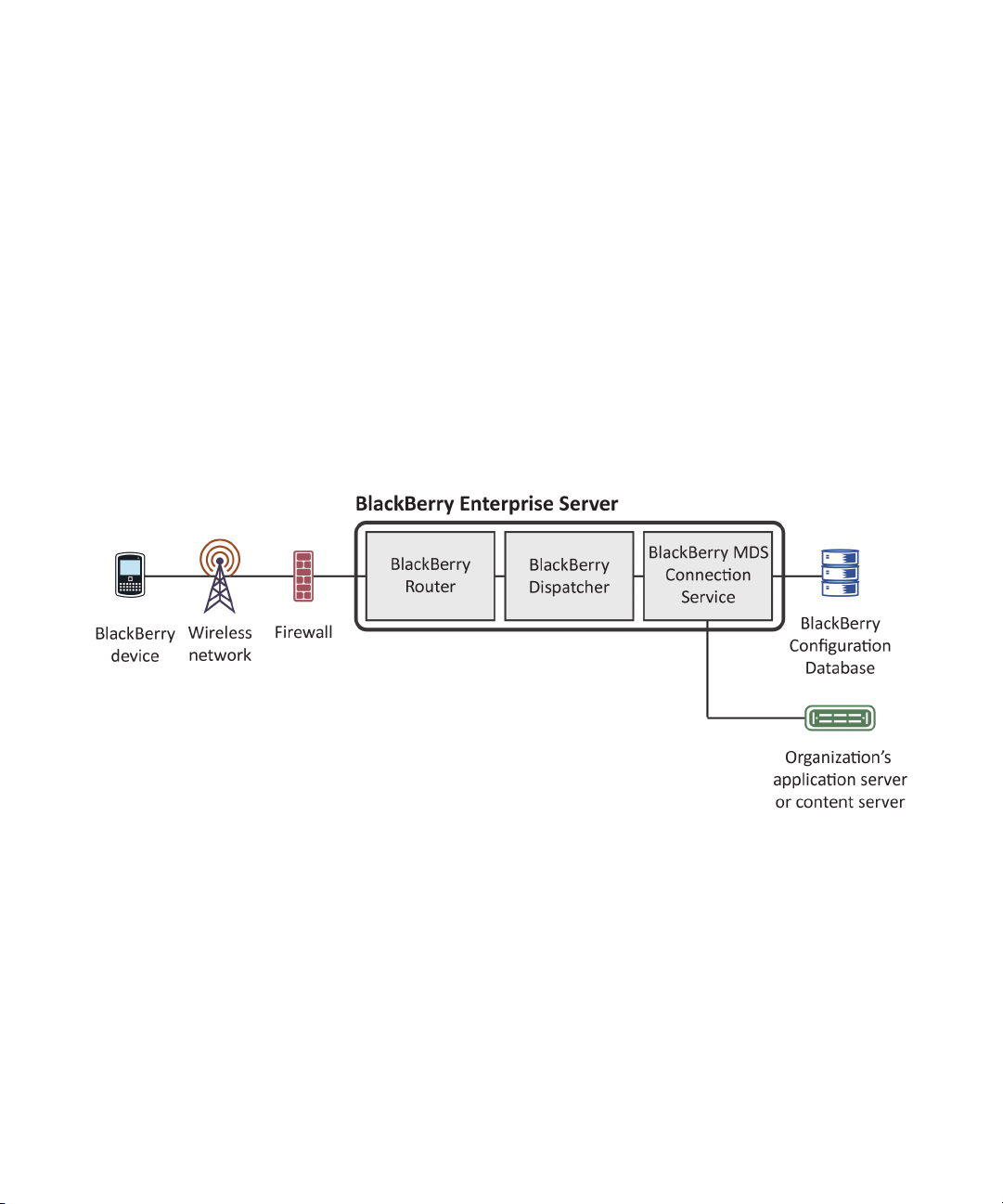

Process flow: Requesting BlackBerry Browser content on a BlackBerry device.............................................................94

Process flow: Requesting BlackBerry Browser content while access control is turned on for the BlackBerry MDS

Connection Service

Process flow: Requesting BlackBerry Browser content with two-factor authentication turned on...................................97

Process flow: Pushing application content to a BlackBerry device................................................................................ 98

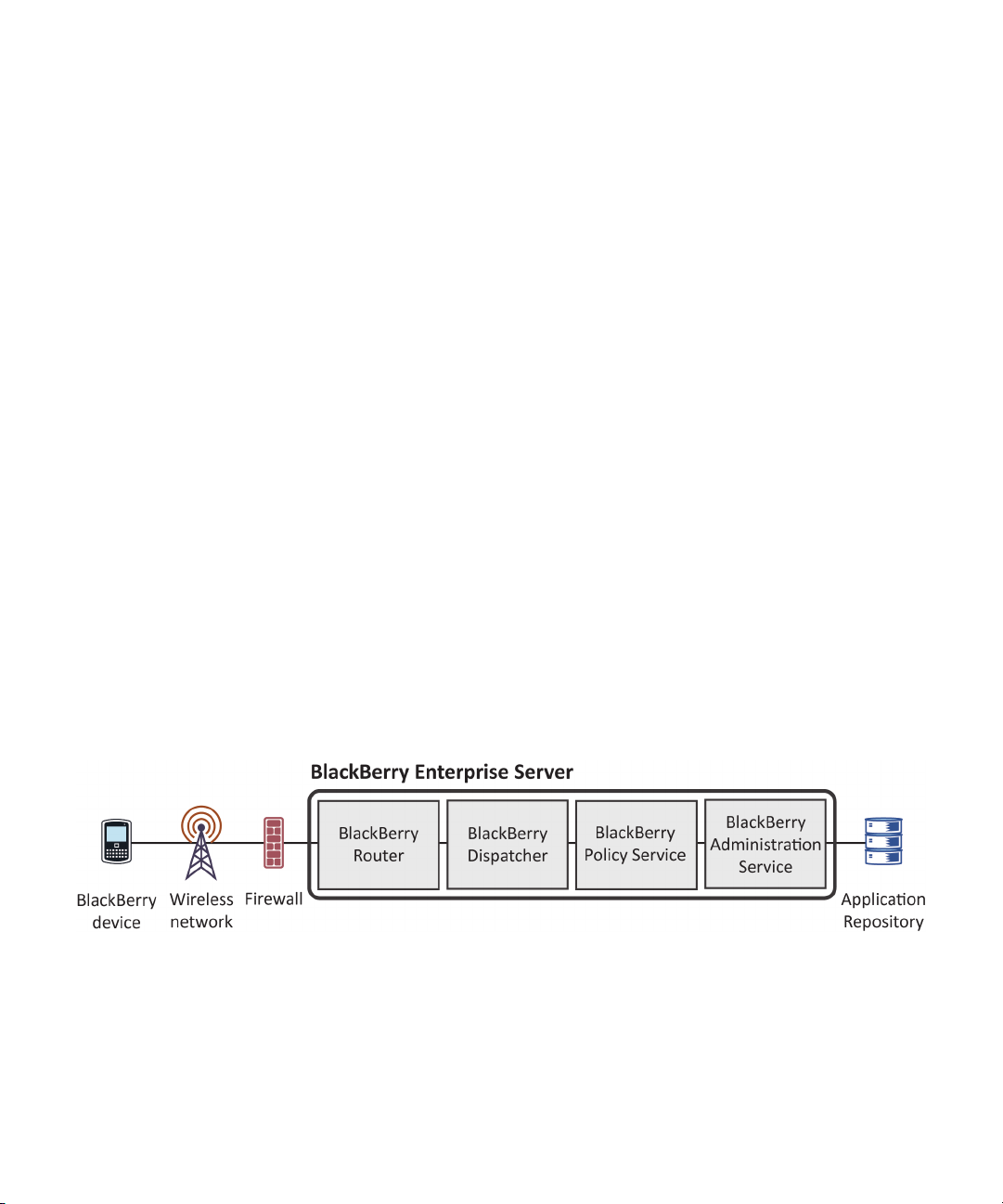

Process flow: Installing a BlackBerry Java Application on a BlackBerry device over the wireless network.......................99

BlackBerry device management process flows................................................................................................................. 101

Process flow: Activating a BlackBerry device over the wireless network...................................................................... 101

Process flow: Resending an IT policy to a BlackBerry device manually........................................................................102

Process flow: Authenticating data on a BlackBerry device without connecting to the BlackBerry Infrastructure ..........102

..................................................................................................................................................... 96

Glossary....................................................................................................................................... 103

Microsoft Lync Server 2010..................................................................................83

11 Provide feedback..........................................................................................................................107

12 Legal notice .................................................................................................................................108

Feature and Technical Overview Document revision history

Document revision history

Date Description

14 February 2013 Initial version

7 November 2013 Updated for maintenance release 6

Feature and Technical Overview What's New in BlackBerry Enterprise Server 5.0 SP4

What's New in BlackBerry

Enterprise Server 5.0 SP4

Feature Description

Upgrade paths Administrators can upgrade to BlackBerry Enterprise Server 5.0 SP4 from the

following software versions:

• BlackBerry Enterprise Server 5.0 SP2

• BlackBerry Enterprise Server 5.0 SP3

Administrators can upgrade to BlackBerry Enterprise Server 5.0 SP4 for Novell GroupWise

There is no direct upgrade path from BlackBerry Enterprise Server 4.x.

Upgraded Java support BlackBerry Enterprise Server 5.0 SP4 supports JRE v6.31 or higher

BlackBerry Monitoring Service removed

Character set support BlackBerry Enterprise Server 5.0 SP4 includes support for sending messages

BlackBerry Enterprise Server 5.0 SP4 does not include the BlackBerry Monitoring Service. No version of the BlackBerry Monitoring Service works with BlackBerry Enterprise Server 5.0 SP4.

that use Latin characters along with Hebrew or Arabic characters.

from BlackBerry Enterprise Server 5.0 SP1 for Novell GroupWise.

Increased message size limit BlackBerry Enterprise Server 5.0 SP4 increases the maximum size of HTML

email messages from 32KB to 300KB.

Increased attachment size limit BlackBerry Enterprise Server 5.0 SP4 increases the default maximum

attachment size from 3MB to 10MB.

Enhancements to email prepopulation

BlackBerry Enterprise Server 5.0 SP4 enhances the email prepopulation process in the following ways:

• Includes both header and body information in prepopulated messages

• Increases the default number of messages to prepopulate to 1000 or 14 days of messages

• Performs prepopulation at every activation, not just when a PIN changes (for example if all data and applications are deleted and the smartphone is activated again)

Feature and Technical Overview What's New in BlackBerry Enterprise Server 5.0 SP4

Feature Description

Increased efficiency of reconciliation process

BlackBerry Enterprise Server 5.0 SP4 includes enhancements that reduce the workload on the computer that hosts the BlackBerry Configuration Database.

Enhancements to security features BlackBerry Enterprise Server 5.0 SP4 includes security enhancements that are

designed to allow verification of data integrity and authenticity for organizations that use multiple layers of encryption.

Full synchronization of sent email messages

BlackBerry Enterprise Server 5.0 SP4 synchronizes the full body of sent messages to the BlackBerry smartphone.

Canceled meeting options BlackBerry Enterprise Server 5.0 SP4 allows you to leave canceled meetings in

the calendar on your BlackBerry smartphone instead of automatically removing them.

Enhancements to access control policies

Support for password-protected attachments

BlackBerry Enterprise Server 5.0 SP4 allows administrators to assign access control policies to both individuals and groups.

The BlackBerry Attachment Service in BlackBerry Enterprise Server 5.0 SP4 supports password-protected attachments.

Changes to sent message timestamps BlackBerry Enterprise Server 5.0 SP4 uses the time from the BlackBerry

smartphone to indicate the time a message was sent instead of using the time on the server. Sent messages now display the correct sent time even if the BlackBerry smartphone is in a time zone that is different from the BlackBerry

Support for additional shapes in Microsoft PowerPoint

Online help for BlackBerry Enterprise Transporter

Enterprise Server

The BlackBerry Attachment Service for BlackBerry Enterprise Server 5.0 SP4 displays more shapes from Microsoft PowerPoint attachments.

The BlackBerry Enterprise Transporter, a tool available in the BlackBerry Enterprise Server Resource Kit 5.0 SP4 includes online help.

BlackBerry Domain Search tool removed

Improvements to certificate administration

The BlackBerry Enterprise Server Resource Kit 5.0 SP4 does not include the BlackBerry Domain Search tool because BlackBerry Management Studio includes the features the tool offered.

Administrators can configure VPN profile certificates for BlackBerry smartphones so that the user does not need to perform this task.

Feature and Technical Overview Overview: BlackBerry Enterprise Server

Overview: BlackBerry

Enterprise Server

The BlackBerry Enterprise Server is designed to be a secure, centralized link between an organization's wireless network, communications software, applications, and your organization's existing infrastructure to provide smartphone users with mobile access to your organization's resources.

You can manage the BlackBerry Enterprise Server, smartphones, and user accounts using the BlackBerry Administration Service. You can access the BlackBerry Administration Service web application from any computer that can access the computer that hosts the BlackBerry Administration Service.

You can optionally install BlackBerry Management Studio in your organization's environment to provide a simplified administrative console for your organization's helpdesk administrators and an integrated view of the BlackBerry Enterprise Server and other MDM domains. For more information, visit http://www.blackberry.com/go/serverdocs to see the BlackBerry Management Studio Feature and Technical Overview.

BlackBerry smartphones. The BlackBerry Enterprise Server integrates with

Feature and Technical Overview BlackBerry Enterprise Server architecture

BlackBerry Enterprise Server

architecture

Architecture: BlackBerry Enterprise Server

The BlackBerry Enterprise Server consists of various components that are designed to perform the following actions:

• Permit BlackBerry device users to access your organization's tools and data from BlackBerry devices and run your organization's applications on devices

• Process, route, compress, and encrypt data

• Communicate with the wireless network

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

BlackBerry Administration Service The BlackBerry Administration Service connects to the BlackBerry

Configuration Database. You can use the BlackBerry Administration Service to manage the BlackBerry Domain, which includes BlackBerry Enterprise Server components, user accounts, and features for BlackBerry device administration.

BlackBerry Mail Store Service The BlackBerry Mail Store Service connects to the messaging servers in your

organization's environment and retrieves the contact information that the BlackBerry Administration Service requires to search for user accounts on the messaging servers.

You install a BlackBerry Mail Store Service when you install a BlackBerry Enterprise Server. The BlackBerry Mail Store Service connects to the messaging server using the same connection information that the BlackBerry Enterprise Server uses. The BlackBerry Administration Service is designed to communicate with the BlackBerry Mail Store Service using RPC.

BlackBerry Attachment Service The BlackBerry Attachment Service converts supported message attachments

to a format that users can view on their devices.

BlackBerry Collaboration Service The BlackBerry Collaboration Service provides a connection between your

organization's instant messaging server and the collaboration client on devices.

BlackBerry Configuration Database The BlackBerry Configuration Database is a relational database that contains

configuration information that BlackBerry Enterprise Server components use. For example, the BlackBerry Configuration Database includes the following information:

• details about the connection from a BlackBerry Enterprise Server to the wireless network

• user list

• address mappings between PINs and email addresses for BlackBerry MDS Connection Service

push features

BlackBerry Controller The BlackBerry Controller monitors the BlackBerry Enterprise Server

components and restarts them if they stop responding.

BlackBerry Dispatcher The BlackBerry Dispatcher compresses and encrypts all data that devices send

and receive. The BlackBerry Dispatcher sends the data through the BlackBerry Router, to and from the wireless network.

BlackBerry MDS Connection Service The BlackBerry MDS Connection Service permits users to access web content,

the Internet, or your organization's intranet, and also permits applications on devices to connect to your organization's application servers or content servers for application data and updates.

BlackBerry Messaging Agent The BlackBerry Messaging Agent connects to the IMAP server so that users can

activate their devices over the wireless network. The BlackBerry Messaging

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

Agent connects to your organization's messaging server to provide messaging services, calendar management, address lookups, attachment viewing, attachment downloading, and encryption key generation. The BlackBerry Messaging Agent also acts as a gateway so that the BlackBerry Synchronization Service

can access organizer data on the messaging server. The BlackBerry Messaging Agent Configuration Database

synchronizes configuration data between the BlackBerry

and the BlackBerry profiles database. The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry Configuration Database and user mailboxes. The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry Configuration Database and the message store databases.

BlackBerry Policy Service The BlackBerry Policy Service performs administration services over the

wireless network. It sends IT policies and IT administration commands and provisions service books. IT policies and IT administration commands specify security, settings for synchronizing data over the wireless network, and other configuration settings on devices. The

BlackBerry Policy Service also sends service books to devices to configure settings for features and components on devices.

BlackBerry Router The BlackBerry Router connects to the wireless network to send data to and

from devices. It also sends data over your organization's network to devices that users connected to computers that host the BlackBerry Device Manager.

BlackBerry Synchronization Service The BlackBerry Synchronization Service synchronizes organizer data between

BlackBerry devices and the messaging server over the wireless network.

BlackBerry Web Desktop Manager

The BlackBerry Web Desktop Manager is a web-based application that permits users to manage their devices. For example, users can activate devices, back up and restore data, select messaging options, synchronize data, and install applications. The BlackBerry Web Desktop Manager includes the BlackBerry

organization's application server or content server

Device Manager

Your organization's application server or content server provides push applications and intranet content that the BlackBerry MDS Services use.

instant messaging server The instant messaging server stores instant messaging accounts.

messaging server The messaging server stores email accounts.

user's computer that hosts the BlackBerry Device Manager

The user's computer that hosts the BlackBerry Device Manager permits users to connect their devices to their computers using a serial connection or USB connection. The BlackBerry Enterprise Server and devices use the connection to send data between each other.

Data traffic from devices bypasses the wireless network when devices are connected to users' computers. The BlackBerry Device Manager connects to the BlackBerry Router, which sends data directly to devices.

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

Users can install the BlackBerry Device Manager when they install the BlackBerry Desktop Software or at another time. The BlackBerry Device Manager is an optional component, but it is required to support a bypass connection to the BlackBerry Router.

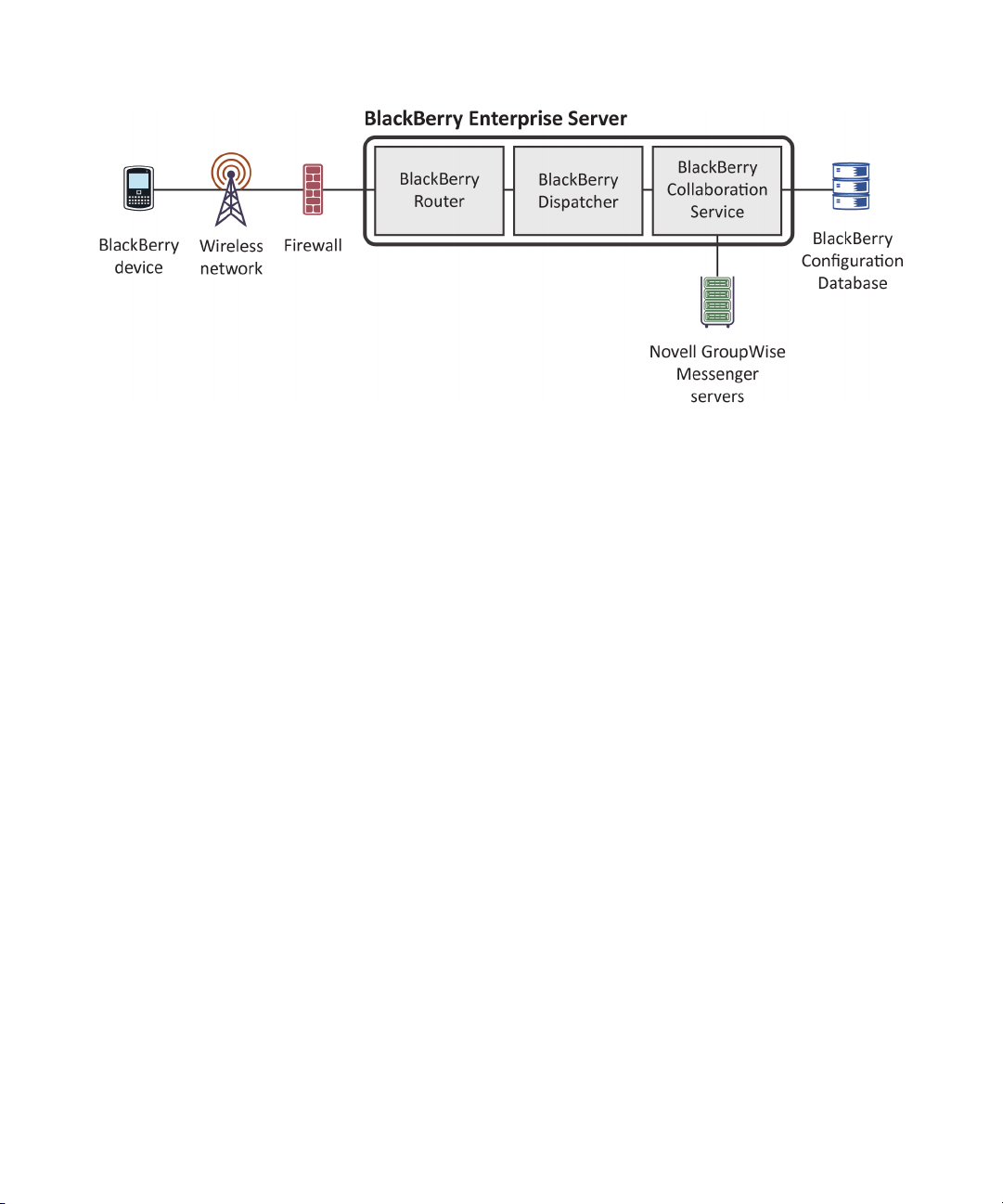

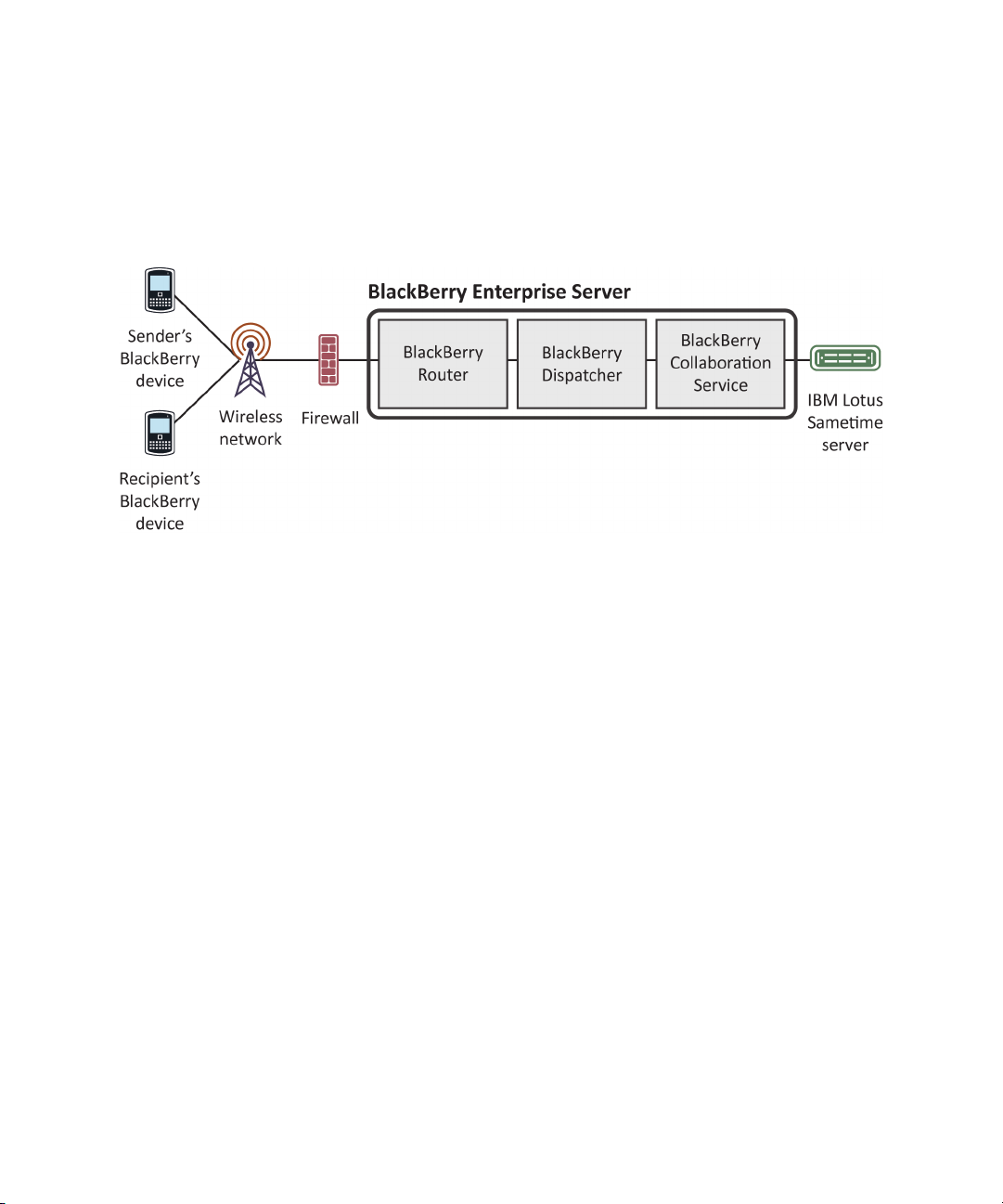

Architecture: Remote BlackBerry Collaboration Service

You can install the BlackBerry Collaboration Service on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server. You can install the BlackBerry Collaboration Service on a remote computer to support multiple BlackBerry Enterprise Server instances, configure high availability for the BlackBerry Enterprise Server but exclude the BlackBerry Collaboration Service, or create a BlackBerry Collaboration Service pool that can support multiple BlackBerry Enterprise Server instances. For more information about configuring the BlackBerry Collaboration Service high availability, see the BlackBerry Enterprise Server Planning Guide.

The BlackBerry Collaboration Service uses a persistent socket connection for each instant messaging session. You can install the BlackBerry Collaboration Service on a remote computer to maximize the number of available sockets.

You can install only one type of BlackBerry Collaboration Service (for example, IBM Sametime). Users can use only one type of collaboration client on their BlackBerry devices.

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

BlackBerry Administration Service The BlackBerry Administration Service permits you to manage the BlackBerry

Collaboration Service and configure instant messaging features.

BlackBerry Collaboration Service The BlackBerry Collaboration Service delivers messages between the instant

messaging server, BlackBerry Enterprise Server, and BlackBerry devices.

BlackBerry Configuration Database The BlackBerry Configuration Database contains configuration data that the

BlackBerry Collaboration Service uses.

BlackBerry Enterprise Server The BlackBerry Enterprise Server encrypts and compresses instant messaging

data that BlackBerry devices receive, and decompresses and decrypts instant messaging data that BlackBerry devices send.

BlackBerry Router The BlackBerry Router connects to the wireless network to send instant

messaging data to and from BlackBerry devices.

Feature and Technical Overview BlackBerry Enterprise Server architecture

Architecture: Remote BlackBerry MDS Connection Service

You can install the BlackBerry MDS Connection Service on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server. The BlackBerry MDS Connection Service can use increased system resources when it processes requests for content. You can install the BlackBerry MDS Connection Service on a remote computer to minimize the impact on the delivery of messages and data, support multiple BlackBerry MDS Connection Service pool that can support multiple BlackBerry Enterprise Server instances.

For information about configuring BlackBerry MDS Connection Service high availability, see the BlackBerry Enterprise Server Planning Guide.

BlackBerry Enterprise Server instances, or create a

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

BlackBerry Administration Service The BlackBerry Administration Service permits you to manage the BlackBerry

MDS Connection Service, configure the central push server, and configure the browsing and application features.

BlackBerry Configuration Database The BlackBerry Configuration Database contains the configuration data that the

BlackBerry MDS Connection Service uses.

BlackBerry Enterprise Server The BlackBerry Enterprise Server encrypts and compresses content data that

BlackBerry devices receive, and decompresses and decrypts content data that BlackBerry devices send.

BlackBerry MDS Connection Service

BlackBerry Router The BlackBerry Router connects to the wireless network to send content to and

The BlackBerry MDS Connection Service processes requests for web content from the BlackBerry Browser or a BlackBerry Java Application, and it manages the connections between a BlackBerry Application and the application that is located on your organization’s application servers, web servers, or databases.

from BlackBerry devices.

organization's application servers or content servers

proxy servers Proxy servers authenticate the BlackBerry Browser or a BlackBerry Java

Your organization's application servers or content server provide push applications and intranet content for the BlackBerry MDS Services.

Application before they can access push applications or content data.

Architecture: Remote BlackBerry Router

You can install the BlackBerry Router on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server. You can install the BlackBerry Router on a remote computer if you want to support multiple BlackBerry Enterprise Server internal systems cannot make connections directly to the Internet and all systems must connect through another system in the DMZ.

The BlackBerry Router does not use many system resources, but it is a critical connection point for the BlackBerry Enterprise Solution. You can install multiple BlackBerry Router instances for high availability if the primary BlackBerry Router becomes unavailable.

If you install the BlackBerry Router in the DMZ, you can permit users to log in to your organization's LAN remotely and you can deploy BlackBerry devices through a computer that is running the BlackBerry Device Manager.

instances, create a remote BlackBerry Router pool, or if your organization's security policy requires that

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

BlackBerry Configuration Database The BlackBerry Configuration Database contains configuration data that the

BlackBerry Administration Service manages.

BlackBerry Device Manager The BlackBerry Device Manager permits BlackBerry devices to connect to the

BlackBerry Router.

BlackBerry Enterprise Server The BlackBerry Enterprise Server encrypts and compresses data that

BlackBerry devices receive, and decompresses and decrypts data that BlackBerry devices send.

BlackBerry Router The BlackBerry Router connects to the wireless network to send data to and

from BlackBerry devices.

Feature and Technical Overview BlackBerry Enterprise Server architecture

Architecture: Remote BlackBerry Administration Service

You can install the BlackBerry Administration Service on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server. The BlackBerry Administration Service can use increased system resources when it processes requests. You can install the BlackBerry Administration Service remotely to minimize the impact on the delivery of messages and data, or to create a Server instances.

For more information about configuring BlackBerry Administration Service high availability, see the BlackBerry Enterprise Server Planning Guide.

You can install the BlackBerry Web Desktop Manager with the BlackBerry Administration Service. You can install the BlackBerry Web Desktop Manager separately to make sure that BlackBerry device users cannot access the computer that hosts the BlackBerry Enterprise Server.

BlackBerry Administration Service pool to support multiple BlackBerry Enterprise

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

BlackBerry Administration Service The BlackBerry Administration Service permits you to manage the BlackBerry

Enterprise Server, user accounts, and BlackBerry devices.

BlackBerry Configuration Database The BlackBerry Configuration Database contains configuration data that the

BlackBerry Administration Service manages.

BlackBerry Enterprise Server The BlackBerry Enterprise Server encrypts and compresses data that

BlackBerry devices receive, and decompresses and decrypts data that BlackBerry devices send.

BlackBerry Router The BlackBerry Router connects to the wireless network to send data to and

from BlackBerry devices.

BlackBerry Web Desktop Manager The BlackBerry Web Desktop Manager permits users to activate and manage

their BlackBerry devices, back up and restore data, configure email settings, update the BlackBerry Device Software, and install new applications.

Architecture: Remote BlackBerry Attachment Service

You can install the BlackBerry Attachment Service on a computer that is separate from the computer that hosts the BlackBerry Enterprise Server. You can install the BlackBerry Attachment Service remotely if you want to increase the number of conversion requests that can occur concurrently without impacting message delivery, support multiple BlackBerry Enterprise Server instances, or create a BlackBerry Attachment Service pool that can support multiple BlackBerry Enterprise Server instances.

For more information about how to configure the BlackBerry Attachment Service for high availability, see the BlackBerry

Enterprise Server Planning Guide

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

BlackBerry Administration Service The BlackBerry Administration Service permits you to manage the BlackBerry

Attachment Service instances and set up attachment conversion features.

BlackBerry Attachment Service The BlackBerry Attachment Service converts the attachment and returns the

attachment data to the BlackBerry Attachment Connector.

BlackBerry Configuration Database The BlackBerry Configuration Database contains the conversion data that the

BlackBerry Attachment Service uses when processing attachment data.

BlackBerry Enterprise Server The BlackBerry Enterprise Server receives requests to convert message

attachments from BlackBerry devices and uses the BlackBerry Attachment Connector to send the attachment data to a BlackBerry Attachment Service instance for conversion. After the BlackBerry Attachment Service instance returns the converted attachment to the

BlackBerry Attachment Connector, the BlackBerry Enterprise Server sends the attachment data to the user's BlackBerry device for viewing.

BlackBerry Router The BlackBerry Router connects to the wireless network to send email

messages and attachments to and from BlackBerry devices.

Feature and Technical Overview BlackBerry Enterprise Server architecture

Architecture: BlackBerry Web Desktop Manager

The BlackBerry Web Desktop Manager consists of server-side services that are installed with the BlackBerry Administration Service computer. HTTPS authentication secures the connection between the server and the browser.

and Microsoft ActiveX controls that are installed on the browser of the BlackBerry device user's

Component Description

BlackBerry Administration Service The BlackBerry Administration Service is a web application that is a required

component of the BlackBerry Enterprise Server. Administrators use the BlackBerry Administration Service to manage user accounts; assign user groups, administrator roles, software configurations, and IT policies to user accounts; and manage servers and components in a

BlackBerry Enterprise Server The BlackBerry Enterprise Server encrypts and compresses data that

BlackBerry devices receive, and decompresses and decrypts data that BlackBerry devices send.

BlackBerry Configuration Database The BlackBerry Configuration Database is a relational database that contains

configuration information, such as BlackBerry Enterprise Server connection details and user information.

messaging server The messaging server stores the email accounts of the BlackBerry device users.

BlackBerry Domain.

Feature and Technical Overview BlackBerry Enterprise Server architecture

Component Description

user's computer with BlackBerry Web Desktop Manager browser application

BlackBerry Administration Service and BlackBerry Web Desktop Manager services

The BlackBerry Web Desktop Manager browser application is the Microsoft ActiveX controls that a user installs in a browser to manage the BlackBerry device.

The BlackBerry Administration Service and BlackBerry Web Desktop Manager services provide the server-side services for the BlackBerry Web Desktop Manager browser application.

Feature and Technical Overview BlackBerry Enterprise Server components and features

BlackBerry Enterprise Server

components and features

BlackBerry Administration Service

The BlackBerry Administration Service is a web application you use to manage user accounts; assign user groups, administrative roles, and software configurations and apply IT policies to user accounts; and manage servers and component instances in a BlackBerry Domain. You can open the BlackBerry Administration Service in a browser on any computer that can access the computer that hosts the duties with multiple administrators who can access the BlackBerry Administration Service simultaneously using unique user names and passwords. When Microsoft ActiveX controls are turned on in your browser, you can connect BlackBerry devices to your computers and manage the BlackBerry devices while you are logged in to the BlackBerry Administration

Service

Feature Description

high availability of BlackBerry Enterprise Server components

ability to assign users to multiple groups

You can install standby instances of BlackBerry Enterprise Server components and configure a manual or automatic failover to a standby instance.

Groups permit you to share administrative roles, IT policies, and other configuration settings among similar user accounts so that properties can be set once instead of for every user. You can assign a user account to more than one group so that the user inherits the properties of every group that the user belongs to. You can also assign groups to other groups to share the properties of the parent group with all of the user accounts in the child groups.

BlackBerry Administration Service. You can share administrative

custom server and component names using friendly names

custom administrative roles Each action that you perform in the BlackBerry Administration Service is

BlackBerry Administration Service authentication or external authentication

To help you identify servers and component instances, you can define a friendly name for each BlackBerry Enterprise Server and component instance that displays in the BlackBerry Administration Service. Each regional language that the BlackBerry Administration Service supports can have unique friendly names.

associated with a privilege. You can specify the actions that administrators can perform by changing the privilege that you assign to administrative roles.

Administrators that log in to the BlackBerry Administration Service must provide their user names and passwords. A user name and a password is a unique combination that is stored securely in the BlackBerry Configuration Database

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

and known only to the BlackBerry Administration Service. Alternatively, you can use external authentication, which permits administrators to log in to the BlackBerry Administration Service using the same information that administrators use to access your organization's messaging server.

options for viewing the BlackBerry Domain

You can find and manage BlackBerry Enterprise Server component instances using the server view or component view.

BlackBerry Configuration Panel

The BlackBerry Configuration Panel displays data, such as BlackBerry Configuration Database settings, that the BlackBerry Enterprise Server setup application detected during the installation process. You can use the BlackBerry Configuration Panel to change configuration data after you install the BlackBerry Enterprise Server.

BlackBerry Mail Store Service

The BlackBerry Mail Store Service connects to the messaging servers in your organization's environment and retrieves the contact information that the servers.

The BlackBerry Mail Store Service performs the following actions:

• synchronizes your organization's contact list to the BlackBerry Configuration Database

• updates the contact list in the BlackBerry Configuration Database every 24 hours automatically

• permits the BlackBerry Administration Service to access user account information that is stored in the mailbox or mail file on the messaging servers

• exposes an API that the BlackBerry Administration Service can use to connect to the BlackBerry Mail Store Service

• searches for contact information on behalf of the BlackBerry Administration Service

BlackBerry Administration Service requires to search for user accounts on the messaging

Feature and Technical Overview BlackBerry Enterprise Server components and features

Database tables in the BlackBerry Configuration Database that store contact information

The BlackBerry Mail Store Service synchronizes contact information to two database tables in the BlackBerry Configuration Database.

Table name Description

MsDomains This table contains a list of domains and messaging servers that are located in

your organization's environment.

MsAddresses This table contains a list of the email addresses that are included in your

organization's contact list.

Contact information that the BlackBerry Mail Store Service stores in the BlackBerry Configuration Database

The BlackBerry Mail Store Service synchronizes contact information that is stored in the messaging environment to the BlackBerry Configuration Database. To compare the contact information changes that occurred between synchronization processes, the BlackBerry Mail Store Service maintains two copies of the contact information.

The BlackBerry Mail Store Service synchronizes contact information that is stored in the messaging environment to the BlackBerry Configuration Database. The contact information is stored in database properties in the BlackBerry Configuration Database.

Database property name

Contact information

address type Type — This property specifies whether this is the

display name DisplayName UserConfig.DisplayName This property specifies the display name for

email address MailboxSMTP UserConfig.MailboxSMTP

Database property name

in BlackBerry Configuration Database version 4.1

Addr

Description

address for a user or distribution list.

the user account.

This property specifies the email address for the user account.

Feature and Technical Overview BlackBerry Enterprise Server components and features

Database property name

Contact information

mailbox path MailboxKey UserConfig.MailboxDN This property specifies the unique mailbox

Database property name

in BlackBerry Configuration Database version 4.1

Description

path.

messaging server path

ServerName UserConfig.ServerDN This property specifies the path to the

messaging server.

How the BlackBerry Mail Store Service accesses contact information that is stored on the messaging server

In a Microsoft Exchange environment, the BlackBerry Mail Store Service can connect to the messaging server and search for contact information using MAPI or LDAP. By default, the information. If you configure the BlackBerry Enterprise Server to use LDAP to search for contact information, the BlackBerry Mail Store Service can also use LDAP to search for contact information.

For more information about how the BlackBerry Enterprise Server uses LDAP, visit www.blackberry.com/support to read article KB05174.

BlackBerry Mail Store Service uses MAPI to search for contact

Configuring the BlackBerry Mail Store Service instance that updates the contact list

The BlackBerry Configuration Database contains your organization's contact list and a list of BlackBerry Enterprise Server instances. By default, the BlackBerry Mail Store Service instance that you installed with the first BlackBerry Enterprise Server instance that appears in the list updates the contact list. If you prevent the BlackBerry Mail Store Service that you installed with the first BlackBerry Enterprise Server instance from updating the contact list, the next available BlackBerry Mail Store Service instance in the list updates the contact list.

By default, if you install multiple BlackBerry Mail Store Service instances, each instance can update the contact list in the BlackBerry Configuration Database. The first BlackBerry Mail Store Service instance that updates the contact list prevents the other instances from also updating the contact list. Each stamp information in the BlackBerry Configuration Database to determine if another BlackBerry Mail Store Service instance is updating the contact list already before it starts to update the contact list.

You must verify that at least one BlackBerry Mail Store Service instance can update the contact list in the BlackBerry Configuration Database so that the BlackBerry Administration Service can access the latest contact list information when you create and manage user accounts. If you prevent all of the BlackBerry Mail Store Service instances from updating the

BlackBerry Mail Store Service instance searches for time

Feature and Technical Overview BlackBerry Enterprise Server components and features

contact list, the BlackBerry Configuration Database might not contain the contact information for all user accounts on your organization's messaging server.

If the BlackBerry Configuration Database does not contain contact information for a user account, you cannot create the user account by searching for the contact information in the BlackBerry Administration Service. You can only create the user account if you use the Add from company directory option in the BlackBerry Administration Service. The Add from company directory option permits the messaging environment so that you can create the user account even if the BlackBerry Configuration Database does not contain the contact information for the user account.

BlackBerry Mail Store Service to search the contact information that is stored in the

BlackBerry messaging and collaboration services

The BlackBerry messaging and collaboration services provide a wireless extension of your organization's messaging environment. These services include the BlackBerry Messaging Agent, BlackBerry Collaboration Service, BlackBerry Synchronization Service

, and BlackBerry Attachment Service.

BlackBerry Messaging Agent

The BlackBerry Messaging Agent connects to your organization's messaging server and provides messaging services, calendar management, address lookups, attachment viewing, attachment downloading, and encryption key generation. The BlackBerry Messaging Agent acts as a gateway for the BlackBerry Synchronization Service to access organizer data on the messaging server. Configuration Database and user mailboxes.

The BlackBerry Messaging Agent integrates with existing email accounts in your organization. The BlackBerry Messaging Agent redirects messages from users’ email applications to their BlackBerry devices automatically. If users configure identical signatures on their BlackBerry devices and in their email accounts, recipients cannot distinguish between messages that users send from BlackBerry devices and messages that they send from email applications.

When users move or delete messages or mark messages as read or unread on their BlackBerry devices or in their email applications, the BlackBerry Messaging Agent reconciles changes over the wireless network between BlackBerry devices and email applications. By default, over the wireless network.

Wireless messaging features

BlackBerry device users can use many of the same messaging features that are available in the email applications on their computers.

The BlackBerry Messaging Agent synchronizes configuration data between the BlackBerry

BlackBerry devices and the BlackBerry Enterprise Server reconcile email messages

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

email reconciliation The BlackBerry Enterprise Server reconciles the status of messages between

users' BlackBerry devices and their email applications. If users delete, archive, or move messages to personal folders in their email applications, the messages are deleted from the message list on the users' BlackBerry devices. If users mark messages as read or unread in their email applications, the messages appear with the same status on their BlackBerry devices.

You can turn off wireless email reconciliation.

email message filters You or users can create and change email message filters. Email message filters

determine the actions that the BlackBerry Enterprise Server takes if incoming messages match specific criteria: forward, forward with priority, or do not forward to BlackBerry devices. For example, users can create email message filters to forward messages from specific senders to their

BlackBerry devices

with high priority.

message forwarding Users can turn off message forwarding to their BlackBerry devices (for example,

if users are outside of a wireless coverage area). You can also turn off message forwarding to users' BlackBerry devices.

signature Users can add a signature to all messages that they send from their BlackBerry

devices. You can add a signature and disclaimers to all messages that the members of a user group send or a specific user sends.

out-of-office reply Users can set and change their out-of-office replies using their BlackBerry

devices.

contact lookup Users can search for a contact’s first name, last name, or both in their

organization's directory. The BlackBerry Enterprise Server returns results for a maximum of 20 of the closest matches.

contact list updates When users select contacts from the contact lookup results, they can add the

contacts to the contact lists on their BlackBerry devices.

custom fields in the contact list If your organization maintains custom fields in users’ personal contact lists, you

can map these fields to corresponding fields that appear in the contact list on BlackBerry devices. Users can use these custom fields to search for contacts on their BlackBerry devices.

attachments Users can send messages that contain attachments from their BlackBerry

devices. The BlackBerry Attachment Service does not convert these messages; the BlackBerry Messaging Agent processes them only. Attachments must meet the following requirements:

• If a user sends one attachment in a message, the file size of the attachment cannot exceed 3 MB.

• If a user sends multiple attachments in a message, the total file size of the attachments cannot exceed 5 MB.

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

• If an attachment exceeds 64 KB, the BlackBerry device sends the attachment in multiple data packets.

Users can send messages with attachments only from supported BlackBerry devices that are running BlackBerry Device Software version 4.2 or later. If you want to manage the system resources that the

BlackBerry Messaging Agent uses to upload and send attachments, you can limit the file size of attachments or prevent users from attaching files to messages. For example, if too many users are sending large attachments, such as pictures or videos, you might want to limit the file size of supported attachments or turn off support for message attachments.

downloading attachments Users with BlackBerry devices that are running BlackBerry Device Software

version 4.5 or later can download attachments and store them on their BlackBerry devices. Users can open and make changes to the downloaded attachments using an appropriate third-party application on their BlackBerry devices. Users can open supported attachment file formats using the media application on their

BlackBerry devices.

To manage network resources in your organization's environment, you can change the maximum file size of attachments that users can download to their BlackBerry devices.

save sent messages Users can configure their BlackBerry devices to save copies of messages that

they send from their BlackBerry devices in the sent items folder in their email applications.

personal distribution lists Users with BlackBerry Device Software version 5.0 or later can view personal

distribution lists in their contact lists. Users can send messages to the personal distribution lists and delete personal distribution lists from their BlackBerry devices.

public folders Users with BlackBerry Device Software version 5.0 or later can view and use

contacts in public folders from their BlackBerry devices, and copy the contacts to their contact lists. Users can only view the public folders that they have the appropriate permissions for.

Users can specify which public folders they want to synchronize to their BlackBerry devices using the BlackBerry Desktop Manager or BlackBerry Web Desktop Manager. You can limit the number of public folders that users can synchronize to their BlackBerry devices.

personal folders Users with BlackBerry devices that are running BlackBerry Device Software

version 5.0 or later can add, delete, move, and rename personal folders from their BlackBerry devices.

follow up flag Users with BlackBerry devices that are running BlackBerry Device Software

version 5.0 or later can flag messages from their BlackBerry devices and set reminder times.

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

personal contact subfolders Users with BlackBerry devices that are running BlackBerry Device Software

version 5.0 or later can view personal contact subfolders on their BlackBerry devices and change contact information.

Users can specify which contact subfolders that they want to synchronize to their BlackBerry devices using BlackBerry Desktop Manager or BlackBerry Web Desktop Manager. You can limit the number of contact subfolders that a user can synchronize to their BlackBerry devices.

forwarding calendar entries Users with BlackBerry devices that are running BlackBerry Device Software

version 5.0 or later can forward meeting invitations and calendar entries from their BlackBerry devices.

availability of meeting participants Users with BlackBerry devices that are running BlackBerry Device Software

version 4.5 or later can view the availability of meeting invitees on their BlackBerry devices. You can turn off this feature using the BlackBerry Administration Service.

remote search for email messages Users with BlackBerry devices that are running BlackBerry Device Software

version 4.5 or later can search for email messages that are located on the messaging server from their BlackBerry devices. You can turn off this feature using the BlackBerry Administration Service.

rich content email messages Users with BlackBerry devices that are running BlackBerry Device Software

version 4.5 or later can view HTML and rich content email messages. You can turn off this feature using the BlackBerry Administration Service.

Access to documents on a network from BlackBerry devices

Users with BlackBerry devices that are running BlackBerry Device Software version 5.0 or later can use a file browser on their BlackBerry devices to access documents that are located in a shared location such as a network drive. Users can view document information such as the file name, file type, file size, author, and date the file was last changed. Users must have access to the shared location using their network credentials, or you must configure the access the documents for the users.

Users can send the documents as attachments in messages or instant messages, view supported document types using the attachment viewer, download copies of the documents, or open and make changes to the documents using an appropriate third-party application on their BlackBerry devices. They can also add attachments from messages or documents that they access using the BlackBerry Browser to the network drive.

BlackBerry Enterprise Server to

BlackBerry Collaboration Service

The BlackBerry Collaboration Service provides a connection between your organization's instant messaging server and the collaboration client on applications. The BlackBerry Enterprise Server supports the following collaboration clients:

• BlackBerry Client for use with Microsoft Office Live Communications Server 2005

BlackBerry devices. The BlackBerry Collaboration Service integrates with existing instant messaging

Feature and Technical Overview BlackBerry Enterprise Server components and features

• BlackBerry Client for use with Microsoft Office Communications Server 2007

• BlackBerry Client for use with Microsoft Office Communications Server 2007 R2

• BlackBerry Client for use with Microsoft Lync Server 2010

• BlackBerry Client for IBM Sametime

• BlackBerry Client for Novell GroupWise Messenger

The BlackBerry Collaboration Service sends instant messages between your organization's instant messaging server, BlackBerry Enterprise Server, and devices using public APIs, a Research In Motion proprietary protocol, and protocols that IBM, Microsoft, and Novell specify.

Instant messaging features

Using the collaboration clients on their BlackBerry devices, users can use many of the same features that are available in the instant messaging applications on their computers.

Feature Description

session management You can specify the number of simultaneous instant messaging sessions that

the BlackBerry Collaboration Service supports. You can also specify a timeout threshold, after which the BlackBerry Collaboration Service ends inactive sessions automatically and permits new sessions to start.

You can control whether users of specific versions of the BlackBerry Client for IBM Sametime or the BlackBerry Client for Novell GroupWise Messenger can see an icon on their BlackBerry devices when contacts in their contact lists are using the same collaboration clients. By default, the icon appears.

conversations with multiple contacts Users can start and manage conversations with multiple instant messaging

contacts on their BlackBerry devices.

availability status Users can change their availability status when they are logged in to their

collaboration clients. For example, users can set their availability status to away or busy.

presence updates Using the latest versions of the collaboration clients, users can set their

availability status to display as away if they do not use their BlackBerry devices for a specified period of time.

access levels Using the latest version of the BlackBerry Client for use with Microsoft Office

Communications Server 2007, users can set the access level of contacts in their contact lists. Each access level consists of rules that define how contacts can interact with a user through the instant messaging application. For example, users can assign the Personal access level to their contacts.

contact pictures Using the latest versions of the collaboration clients, users can add pictures to

the contacts in their contact lists. The pictures that users add using the collaboration clients on their BlackBerry devices are not synchronized with the instant messaging applications on users' computers.

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

synchronized contact lists The instant messaging contact lists on users' BlackBerry devices are

synchronized with the contact lists in their organization's instant messaging application.

contact alerts Users can request alerts when specific contacts become available.

file transfer Using the latest version of the BlackBerry Client for IBM Sametime, users can

send files to contacts in their contact lists. Recipients can open supported file formats on their BlackBerry devices.

link instant messaging contacts to the contact list on BlackBerry devices

Using the latest versions of the collaboration clients, users can link instant messaging contacts to existing contact list entries on their BlackBerry devices. They can also create new contact list entries for instant messaging contacts and populate them with information from their organization's messaging server.

send email messages from contact list Using the latest versions of the collaboration clients, users can send email

messages to contacts directly from their contact lists.

call contacts Using the latest versions of the collaboration clients, users can call instant

messaging contacts directly from their contact lists. After a user starts an instant messaging conversation with a contact, the user can make a call to that contact from the conversation window. Phone numbers for contacts are retrieved from the messaging server or from the contact list on the

BlackBerry device if the

user is linked to an existing contact list entry.

email conversation history Using the latest versions of the collaboration clients, users who participate in an

instant messaging conversation can send the history of the conversation as an email message to other participants of the conversation and to additional contacts from their contact lists on their BlackBerry devices.

embedded links Users can click phone numbers in instant messages to make calls. They can

also click links in instant messages to view web pages.

public groups Using the latest version of the BlackBerry Client for IBM Sametime, users can

add public groups to their instant messaging contact lists.

location information Using the latest version of the BlackBerry Client for IBM Sametime or the

BlackBerry Client for use with Microsoft Office Communications Server 2007, users can set their current location to display in their contact information. For example, users can set their current location to "In the office". This feature is not available if your organization's environment uses

IBM Sametime version

6.5.1.

announcements Using the latest version of the BlackBerry Client for IBM Sametime or

BlackBerry Client for Novell GroupWise Messenger, users can send announcements to groups or multiple contacts in their contact lists.

send messages to contacts who are not included in a contact list

Using the latest version of the BlackBerry Client for IBM Sametime, BlackBerry Client for use with Microsoft Office Live Communications Server 2005, or

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

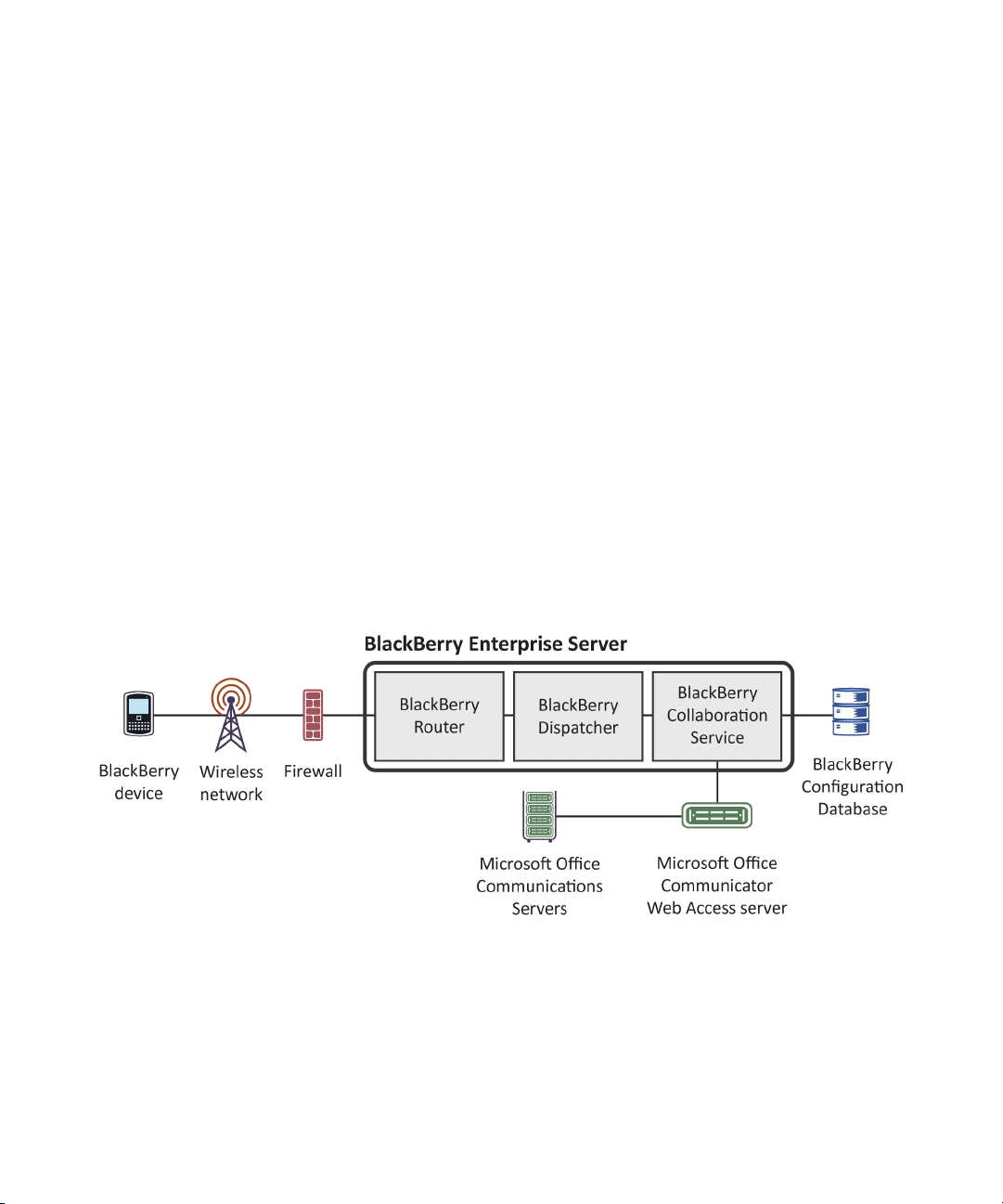

BlackBerry Client for use with Microsoft Office Communications Server 2007, users can send instant messages to contacts that are not included in their contact lists.

dormant mode The collaboration clients enter dormant mode after five minutes of inactivity. In

dormant mode, the applications do not receive presence updates for contacts. Dormant mode is designed to reduce wireless network traffic in an organization's messaging environment. The collaboration clients turn off dormant mode when users open or use the applications, or receive conference requests, alerts, or messages from contacts.

BlackBerry Synchronization Service

The BlackBerry Synchronization Service synchronizes organizer data such as tasks, memos, and contacts over the wireless network so that the entries on data synchronization and wireless email reconciliation, users are not required to connect their BlackBerry devices to the BlackBerry Desktop Software to synchronize organizer data and reconcile email messages.

The BlackBerry Synchronization Service backs up user settings and data over the wireless network from BlackBerry devices to the BlackBerry Configuration Database. You can restore the user settings and data to BlackBerry devices when the BlackBerry devices are activated over the wireless network. By default, the BlackBerry Enterprise Server automatically backs up the user settings and data over the wireless network.

BlackBerry devices are consistent with the entries in the email applications. With wireless

Synchronization features

You can change the settings for synchronization features so that users can manage the user experience and system resources in your organization's environment.

Feature Description

initial synchronization When the BlackBerry Enterprise Server sends service books to BlackBerry

devices to turn on wireless data synchronization, an initial data synchronization process starts. The process synchronizes the data for calendar items and messages between users' BlackBerry devices and the email applications on their computers. It also resolves conflicting or duplicate entries to prevent data loss.

By default, the calendar on the BlackBerry device synchronizes up to 31 days in the past from the activation date, and up to 28 years into the future from the activation date.

synchronization settings You can configure settings for wireless data synchronization that apply to

specific users, user groups, or all users on all BlackBerry Enterprise Server instances. You can define which organizer data items the BlackBerry Synchronization Service synchronizes, how data conflicts are resolved, and whether changes are synchronized in both directions or in one direction only

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

between BlackBerry devices and email applications. You can use IT policies to configure the settings for wireless data synchronization.

support for different types of user access

synchronization of contact pictures The BlackBerry Synchronization Service synchronizes contact pictures between

The BlackBerry Enterprise Server requires access to the organizer application databases for all users. You can define the location of the database replicas in each user’s profile, create roaming user profiles, or use web access templates in your organization's messaging environment.

users’ BlackBerry devices and the email applications on their computers. If users use their BlackBerry devices to add, change, or delete contact pictures, the contact lists in their email applications reflect the changes.

The BlackBerry Synchronization Service cannot synchronize contact pictures that exceed 32 KB.

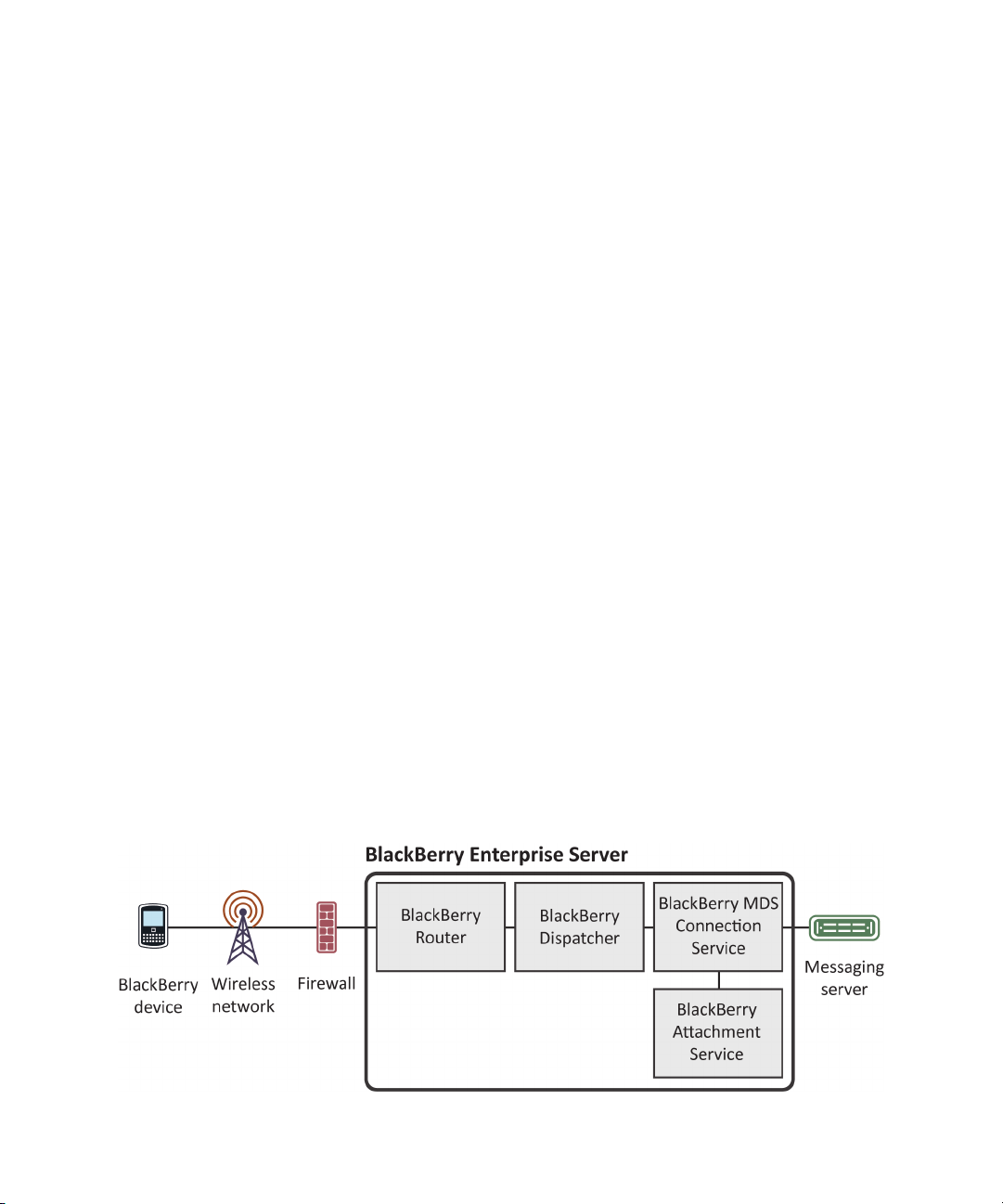

BlackBerry Attachment Service

The BlackBerry Attachment Service converts supported message attachments into a format that users can view on their BlackBerry devices. The BlackBerry Attachment Service processes attachments and converts them into a binary format that retains most of the layout, appearance, and navigation of the original attachments. You do not have to install the applications that are associated with the attachment formats on BlackBerry devices. The attachment viewer installs automatically with the

The BlackBerry Attachment Service receives attachments that are embedded in messages from the messaging server, through the accessed through links in the BlackBerry Browser.

The BlackBerry Attachment Service enables users to play supported audio attachments on supported BlackBerry devices that are running BlackBerry Device Software version 4.2 or later. The BlackBerry Attachment Service can convert .wav files into an audio format that a BlackBerry device series supports (for example, .mp3 files on BlackBerry 8700 Series devices).

If the BlackBerry Attachment Service is hosted on a computer that uses Windows Server 2008, the BlackBerry Attachment Service does not support .mp3 audio files on BlackBerry devices, and the BlackBerry Attachment Service does not support any audio file formats on BlackBerry 7100 Series devices that support CDMA networks. You must host the BlackBerry Attachment Service support .mp3 audio files on BlackBerry devices and all audio formats on BlackBerry 7100 Series devices that support CDMA networks.

BlackBerry Messaging Agent. The BlackBerry Attachment Service also receives attachments that are

BlackBerry Device Software.

on a computer that uses Windows Server 2003 if you want the BlackBerry Attachment Service to

Attachment file formats that the BlackBerry Attachment Service supports

Format Extension

Adobe Acrobat .pdf

ASCII text .txt

Feature and Technical Overview BlackBerry Enterprise Server components and features

Format Extension

audio .amr, .mp3, .wav, .wma

Corel WordPerfect 7-10 .wpd

HTML .htm, .html

images .bmp, .gif, .jpeg, .jpg, .png, .ppm, .tif, .t

iff, .wmf

Microsoft Excel 97-2003, 2007, 2013*, and XP .xls, .xlsx

Microsoft PowerPoint 97-2003, 2007, 2013*, and XP .pps, .ppsx, .ppt, .pptx

Microsoft Word 97-2003, 2007, 2013*, and XP .doc, .dot, .dotx, .docx

OpenOffice Format version 1.1 .odp, .ods, .odt, .ott

RTF .rtf

ZIP archives .zip

* Some new features in Microsoft Office 2013 attachment files may not be viewable with BlackBerry devices. BlackBerry will provide limited support for Microsoft Office 2013 attachment files.

BlackBerry MDS Connection Service

The BlackBerry MDS Connection Service connects wireless applications on BlackBerry devices to the applications on an organization’s application servers or web servers. After a wireless application is installed on BlackBerry devices, the application can receive data from push applications that are located on application servers or web servers. The application can also receive data by sending pull requests from servers or web servers. The BlackBerry MDS Connection Service processes push and pull requests and delivers data and updates to BlackBerry Applications.

The BlackBerry MDS Connection Service also receives and responds to web requests from the BlackBerry Browser and other BlackBerry Applications, so that users can view Internet and intranet content on their BlackBerry devices. The BlackBerry MDS Connection Service sends login requests and requests for instant messaging sessions from BlackBerry devices to the BlackBerry Collaboration Service. If you stop the BlackBerry MDS Connection Service, you also stop the BlackBerry Collaboration Service.

BlackBerry devices to applications that are located on application

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

protocol connections You can define connections to the web servers on your organization’s intranet or

the Internet using standard Internet protocols such as HTTP, HTTPS, and TCP/IP.

encrypted communications The BlackBerry MDS Connection Service encrypts content using the same

standard BlackBerry encryption that the BlackBerry Dispatcher uses to encrypt messages and other data.

data conversion The BlackBerry MDS Connection Service converts data from application servers

and web servers to a format that BlackBerry Applications can interpret and display.

data optimization The BlackBerry MDS Connection Service processes content that users can view

in the BlackBerry Browser. For example, the BlackBerry MDS Connection Service can change the data format or remove extraneous data to reduce network traffic.

authentication methods You can configure authentication requirements that match your organization's

sign-on scheme using standard methods such as NTLM, Kerberos, and LTPA. You can also define a period of time after which the BlackBerry MDS Connection Service requests user information and caches cookies.

You can use two-factor authentication to create VPN connections between wireless applications on BlackBerry devices and your organization’s application servers and web servers.

integration with proxy servers You can provide access to specific content through your organization's proxy

servers using the following items:

• proxy exclusion list, which defines the organization-specific URLs that the

BlackBerry MDS Connection Service uses to connect directly to external web services instead of routing the connections through your organization's proxy server

• proxy auto-configuration (.pac) file

access control You can configure push initiators and push rules that define which server-side

push applications can send application data and updates to BlackBerry devices, and which users can receive push requests. You can configure pull rules to specify which web servers users can access using the BlackBerry Browser and other applications on

BlackBerry devices.

media content management You can control which media files users can receive and access using the

BlackBerry Browser and BlackBerry Applications. You can prevent users from receiving specific media types (for example, video files) or specific subtypes of media (for example, .mp3 files). You can also configure size limits for media files that users can receive on their

BlackBerry devices.

Feature and Technical Overview BlackBerry Enterprise Server components and features

BlackBerry Applications

BlackBerry devices support BlackBerry Applications and BlackBerry Browser Applications. Application developers in your organization can create can install and manage BlackBerry Java Applications on BlackBerry devices using the BlackBerry Administration Service.

For more information about the options for developing BlackBerry Applications, visit www.blackberry.com/developers.

BlackBerry Browser Applications

BlackBerry Browser Applications are simplified, web-based applications that you can use to push web content to the BlackBerry Browser on BlackBerry devices. Developers can create BlackBerry Browser Applications using BlackBerry templates or standard web development tools.

The BlackBerry Enterprise Server supports the following types of BlackBerry Browser Applications.

Type Description

browser channel push applications An icon displays on the Home screens of users' BlackBerry devices to indicate

BlackBerry Applications using BlackBerry development tools or third-party development tools. You

whether users viewed the latest version of the web content that the Browser Push Engine has pushed to their BlackBerry devices.

browser cache push applications The Browser Push Engine pushes web content to the cache of the BlackBerry

Browser on users' BlackBerry devices. To view the web content, users browse to the appropriate web address using the BlackBerry Browser.

browser message push applications A message appears in the message list on users' BlackBerry devices to provide a

link to new or updated web content.

For more information about developing BlackBerry Browser Applications and sending BlackBerry Browser Applications to BlackBerry devices, visit www.blackberry.com/developers.

BlackBerry Java Applications

BlackBerry Applications can range from simple applications, such as a game on BlackBerry devices, to complex applications with advanced UIs and various options for data management, storage, and network communication. BlackBerry Java Applications can use a client-only architecture (the applications do not send data to or receive data from a content server) or they can use a client/server application model (the applications send data to and receive data from a content server). For example, a developer can create a receive data from a central sales database.

BlackBerry Java Application so that users can send data to and

Feature and Technical Overview BlackBerry Enterprise Server components and features

Developers can create BlackBerry Java Applications using BlackBerry developer tools or other Java authoring tools. BlackBerry devices run BlackBerry Java Applications using BlackBerry APIs and Java ME, which are standard on BlackBerry devices.

For more information about developing and customizing BlackBerry Applications, visit www.blackberry.com/developers.

Managing BlackBerry Java Applications and BlackBerry Device Software

You can use the BlackBerry Administration Service to install and manage the BlackBerry Device Software and BlackBerry Java Applications on BlackBerry devices.

To send BlackBerry Java Applications to devices, you must first add the applications to the application repository. You can use the application repository to store and manage all versions of the on, update on, or remove from devices.

In the BlackBerry Administration Service, you create software configurations to specify the versions of the BlackBerry Device Software and BlackBerry Java Applications that you want to install on, update on, or remove from devices. You also use software configurations to specify which applications are required, optional, or not permitted. When you create a software configuration, you must also specify whether users can install applications that are not listed in the software configuration.

When you add a BlackBerry Java Application to a software configuration, you must assign an application control policy to the application to specify what resources the application can access. You can use default application control policies or you can create and use custom application control policies. If you permit users to install unlisted applications, you must create an application control policy for unlisted applications that specifies what resources the applications can access.

When you assign a software configuration to a group or individual user accounts, the BlackBerry Administration Service creates a deployment job to install the BlackBerry Device Software and BlackBerry Java Applications on devices and to apply application control policies to the devices. A deployment job consists of a number of tasks. Each task manages the delivery of a specific object (for example, a BlackBerry Java Application or an application control policy) by communicating with the appropriate BlackBerry Enterprise Server components.

If you assign more than one software configuration to a user account, all of the settings in the multiple software configurations are applied to the user's device. The BlackBerry Enterprise Server resolves conflicting settings using predefined reconciliation rules and prioritized rankings that you can specify using the After you install the BlackBerry Device Software and BlackBerry Java Applications on devices, you can view details about how the BlackBerry Administration Service resolved software configuration conflicts.

For more information about installing and managing the BlackBerry Device Software on devices, visit

www.blackberry.com/go/serverdocs to see the BlackBerry Device Software Update Guide.

BlackBerry Java Applications that you want to install

BlackBerry Administration Service.

Feature and Technical Overview BlackBerry Enterprise Server components and features

BlackBerry device management

You can use the BlackBerry Enterprise Server to control how you implement, maintain, and upgrade BlackBerry devices across your organization.

Controlling third-party applications on BlackBerry devices

Feature Description

control the installation and removal of third-party applications

control the resources that third-party applications can access

You can use the BlackBerry Administration Service to install applications on BlackBerry devices over the wireless network, or you can permit users to download and install third-party applications on their BlackBerry devices. You can remove applications from BlackBerry devices over the wireless network, and you can also prevent users from downloading applications.

You can use standard application control policies or create custom application control policies to specify the resources that third-party applications can access on BlackBerry devices (for example, message, phone, and key store).

You can create IT policies that specify the types of connections that third-party applications on BlackBerry devices can establish (for example, opening network connections inside the firewall).

BlackBerry Policy Service

The BlackBerry Policy Service sends IT policies and IT administration commands to BlackBerry devices and provisions service books over the wireless network. When you activate a BlackBerry device, change an IT policy, or request that a BlackBerry Enterprise Server resend service books, the BlackBerry Enterprise Server uses the BlackBerry Policy Service to send the updates to the BlackBerry device.

An IT policy consists of rules that define BlackBerry device security, settings for synchronizing data over the wireless network, and other behaviors for the individual groups or user accounts that you define. You can configure IT policies using

BlackBerry Administration Service.

the

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

wireless delivery When you configure an IT policy, all rules take effect when the BlackBerry

Policy Service delivers the IT policy to a BlackBerry device over the wireless network. The BlackBerry device stores new IT policy rule values in the user configurations on the BlackBerry device automatically.

To keep the IT policy rules current, a BlackBerry Enterprise Server sends the IT policy to the BlackBerry device over the wireless network periodically.

IT policy coverage When you add a user account to a BlackBerry Enterprise Server, the

BlackBerry Policy Service applies the Default IT policy to the user account automatically. The user account is not active on the BlackBerry Enterprise Server until a BlackBerry device accepts the IT policy.

You can apply a different IT policy to a user account. If you delete an IT policy that you applied to a user account, the BlackBerry Policy Service applies the user account to the Default IT policy automatically.

IT policy assignment You can apply an IT policy to a group or an individual user account.

resend options If a BlackBerry Enterprise Server cannot send an updated IT policy to a

BlackBerry device immediately (for example, if a user is outside of a wireless coverage area), you can resend the IT policy manually or configure when the BlackBerry Policy Service resends the IT policy. The BlackBerry Enterprise Server

continues to resend the IT policy until it delivers the IT policy.

security enforcement You can configure IT polices that define security settings for BlackBerry

devices, the BlackBerry Desktop Software and the BlackBerry Web Desktop Manager, and that override security settings that users define on their BlackBerry devices. For example, you can configure whether a password is required for a exist before it becomes invalid, and the length and composition of the password. You can also use IT policies to specify encryption key details.

BlackBerry device, the length of time that the password can

BlackBerry Router

The BlackBerry Router connects to the wireless network and sends data to and receives data from the BlackBerry Infrastructure on behalf of the BlackBerry Enterprise Server. The BlackBerry Router also sends data to and receives data from BlackBerry devices that are connected to the BlackBerry Device Manager or a Wi-Fi network. The BlackBerry Device Manager is included with the BlackBerry Device Software, BlackBerry Web Desktop Manager, and BlackBerry Administration Service

Feature and Technical Overview BlackBerry Enterprise Server components and features

When the BlackBerry Enterprise Server detects a BlackBerry Router, it identifies the IP address of the computer that hosts

BlackBerry Router and writes the IP address to the BlackBerry Configuration Database. When BlackBerry device users

the activate devices that are running BlackBerry Device Software 4.0 or later, the BlackBerry Router sends the IP address to the devices in a service book.

If you change the IP address of the computer that hosts the BlackBerry Router, devices detect the change automatically. Users do not need to reconnect devices to the book. However, a delay occurs before devices detect the change. During the delay, devices cannot connect to the BlackBerry Device Manager or a Wi-Fi network.

The BlackBerry Router supports the use of multiple network cards on users’ computers, which is also known as multihoming.

BlackBerry Device Manager to receive the new IP address and a new service

BlackBerry Web Desktop Manager

The BlackBerry Web Desktop Manager is a web application that provides many of the same features that the BlackBerry Desktop Manager Bluetooth connection, and log in to BlackBerry Web Desktop Manager to activate and manage their BlackBerry devices, back up and restore data, define email settings, and update the BlackBerry Device Software.

Feature Description

access Users can access device management and configuration capabilities from any

application management Users can use the BlackBerry Web Desktop Manager to install, manage, and

does. Users can connect their BlackBerry devices to their computers using a USB connection or

computer that can access the intranet.

remove the applications that are installed on their BlackBerry devices.

Feature and Technical Overview BlackBerry Enterprise Server components and features

Feature Description

BlackBerry Device Software management

control user's access to features You can specify the BlackBerry Web Desktop Manager features that users can

customizable interface You can customize the appearance of the UI to match your organization's

device activation Users can use the BlackBerry Web Desktop Manager to set activation

switch devices Users can use the BlackBerry Web Desktop Manager to switch BlackBerry

folder redirection Users can use the BlackBerry Web Desktop Manager to select the folders that

language support The BlackBerry Web Desktop Manager is available in English, French, German,

simplified administration The web UI does not require you to deploy, support, and maintain client-side

service statistics The BlackBerry Web Desktop Manager provides users with statistics about the

Users can use the BlackBerry Web Desktop Manager to update the BlackBerry Device Software on their BlackBerry devices.

access using IT policies and settings in the BlackBerry Administration Service.

requirements. You can customize the font colors, logo, and the help.

passwords and activate their BlackBerry devices.

devices, and migrate from third-party devices that have BlackBerry Application Suite installed, to BlackBerry devices.

the BlackBerry Enterprise Server redirects messages from.

Italian, Spanish, and Japanese. Users can select a language before they log in to the BlackBerry Web Desktop Manager.

software such as the BlackBerry Desktop Manager.

message status (forwarded, sent, pending, expired, filtered), last contact time, and information about the last message sent or received.

synchronization of contact folders Users can use the BlackBerry Web Desktop Manager to select the public or

private contact folders that they want to synchronize to their BlackBerry devices over the wireless network.

Comparison of BlackBerry Web Desktop Manager and BlackBerry Desktop Software features

Supported feature BlackBerry Web Desktop Manager BlackBerry Desktop Software

ability to view the BlackBerry Desktop Software that is installed on the users' computers

application loader tool supported with the following

supported supported

supported with the following

conditions:

Feature and Technical Overview BlackBerry Enterprise Server components and features

Supported feature BlackBerry Web Desktop Manager BlackBerry Desktop Software

• option to choose not to save the

backup file

• BlackBerry services are not

maintained if the users disconnect their

BlackBerry devices before

completing the process

• no option to choose whether to save the backup file

• BlackBerry services are maintained if the users disconnect their BlackBerry devices before clicking the Close button in the Load was successful dialog box

BlackBerry Desktop Redirector

BlackBerry Device Software updates supported with the following

not included included

supported with the following

conditions:

• you install the software on a shared network drive

• BlackBerry Web Desktop Manager forces users to update the BlackBerry Device Software when a software configuration is assigned to the user accounts

conditions:

• users install the software on their computers and run the application loader tool

• BlackBerry Desktop Manager notifies the users when a newer version of Software is available on their computers

certificate synchronization not supported supported

changing the email profile options not supported supported

connections to BlackBerry devices supported with the following

conditions:

supported with the following conditions:

BlackBerry Device

• users can connect to multiple BlackBerry devices at the same time

• BlackBerry Web Desktop Manager does not prompt users if they want to switch from using a connection to using a USB connection

device activation supported with the following

conditions:

• occurs automatically for new users

• if users without active BlackBerry devices connect BlackBerry

Bluetooth

• users can connect to only one BlackBerry device at a time

• BlackBerry Desktop Software prompts users if they want to switch from using a Bluetooth connection to using a USB connection

supported with the following conditions:

• occurs automatically each time users plug in a BlackBerry device

Feature and Technical Overview BlackBerry Enterprise Server components and features

Supported feature BlackBerry Web Desktop Manager BlackBerry Desktop Software

devices that belong to other users, the BlackBerry Web Desktop Manager prompts the users who connected the BlackBerry devices if they want to switch to the BlackBerry devices

switching devices supported with the following

conditions:

• users can switch from third-party devices that are running BlackBerry Application Suite to BlackBerry devices

• users can switch between BlackBerry devices

• BlackBerry services are not maintained if users disconnect their BlackBerry devices before completing the process

email message settings supported with the following

conditions:

• if users without active BlackBerry devices connect BlackBerry devices that belong to other users, the BlackBerry Desktop Software notifies the users who connected

BlackBerry devices that an

the activation process is underway by asking the users whether an encryption key should be created

supported with the following conditions:

• users can switch from third-party devices to BlackBerry devices

• BlackBerry services are maintained if users disconnect their BlackBerry devices before clicking the Close button in the Switch was successful dialog box

supported with the following conditions:

• users can import data from the address book when creating or changing a filter

• users cannot turn off message redirection while their BlackBerry devices are connected

• users cannot generate encryption

• users can import data for filtering

• users can turn off message redirection while their device are connected

• users can generate encryption keys

• users can override email addresses

keys

• users cannot override email addresses

media management not supported supported

modem support for devices not supported supported

BlackBerry

Feature and Technical Overview BlackBerry Enterprise Server components and features

Supported feature BlackBerry Web Desktop Manager BlackBerry Desktop Software

prompt for BlackBerry device password

BlackBerry devices can connect without a prompt for the device password

statistics for user accounts supported with the following

conditions:

• all supported messaging environments

• users cannot clear the redirection queue

• users cannot clear the redirection statistics

supported BlackBerry Device Software versions

supported IT policies

BlackBerry Device Software version

4.0 and later

• Auto Backup Enabled

• Auto Backup Exclude Messages

• Auto Backup Exclude Sync

• Auto Backup Frequency

• Auto Backup Include All

• Desktop Allow Device Switch

• Desktop Password Cache Timeout

• Do Not Save Sent Messages

• Force Load Message

required before BlackBerry devices can connect to the users' computers

supported with the following conditions:

• Microsoft Exchange environments only

• users can clear the redirection queue

• users can clear the redirection statistics

all

• Auto Backup Enabled

• Auto Backup Exclude Messages

• Auto Backup Exclude Sync

• Auto Backup Frequency

• Auto Backup Include All

• Desktop Allow Device Switch

• Desktop Password Cache Timeout

• Disable Media Manager

• Do Not Save Sent Messages

• Force Load Count

• Forward Message In Cradle

• Message Prompt

• Show AppLoader

• Show Web Link

synchronization over a serial connection

users cannot synchronize the following data over a serial connection:

• organizer data

• email messages

• third-party application data

• date and time

users can synchronize the following data over a serial connection:

• organizer data

• email messages

• third-party application data

• date and time

Feature and Technical Overview BlackBerry Enterprise Server components and features

Managing a distributed environment for BlackBerry Enterprise Server components

You can install the BlackBerry Enterprise Server components on multiple computers so that you can manage the size of your organization's MDS Connection Service on separate computers to provide the computer that hosts the BlackBerry Enterprise Server with additional resources that the

BlackBerry Domain. For example, you can install the BlackBerry Attachment Service and BlackBerry

BlackBerry Enterprise Server can use to process email messages.

Wireless activation

The wireless activation process activates BlackBerry devices that are associated with a BlackBerry Enterprise Server over the wireless network. Neither you nor the BlackBerry device users are required to connect the BlackBerry devices to a computer in your organization's network to complete the activation process.

You can use wireless activation to activate a large number of BlackBerry devices over the wireless network. When BlackBerry device users want to activate new or replacement BlackBerry devices that are associated with the BlackBerry Enterprise Server over the wireless network, they must notify you or access the provisioning server console. You or the BlackBerry device user can create activation passwords.

The BlackBerry Enterprise Solution can begin the wireless activation process automatically or when BlackBerry device users open the activation application on their BlackBerry devices and type their activation passwords and email addresses. When the activation process completes, the receive email messages on their BlackBerry devices.

If users purchase BlackBerry devices, you must make sure that the BlackBerry devices can be associated with the BlackBerry Enterprise Server and not the BlackBerry Internet Service. You must create user accounts and activate BlackBerry devices so that you can associate the BlackBerry devices with a BlackBerry Enterprise Server.

BlackBerry device users are activated and can send email messages from and

Feature and Technical Overview BlackBerry Enterprise Solution security

BlackBerry Enterprise Solution

security

The BlackBerry Enterprise Solution consists of various products and components that are designed to extend your organization’s communication methods to protect data that is in transit at all points between a device and the BlackBerry Enterprise Server. To help protect data that is in transit over the wireless network, the encrypt the data sent between them. The BlackBerry Enterprise Solution is designed to prevent third parties, including wireless service providers, from accessing your organization's potentially sensitive information in a decrypted format.

The BlackBerry Enterprise Solution uses confidentiality, integrity, and authenticity, which are principles for information security, to help protect your organization from data loss or alteration.

Principles Description

confidentiality The BlackBerry Enterprise Solution uses symmetric key cryptography to help

integrity The BlackBerry Enterprise Solution uses symmetric key cryptography to help

BlackBerry devices. The BlackBerry Enterprise Solution is designed to help

BlackBerry Enterprise Server and device use symmetric key cryptography to

make sure that only intended recipients can view the contents of email messages.

protect every email message that the device sends and to help prevent third parties from decrypting or altering the message data.

Only the BlackBerry Enterprise Server and the device know the value of the keys that they use to encrypt messages and recognize the format of a decrypted and decompressed message. The BlackBerry Enterprise Server or the device rejects a message automatically if it is not encrypted with keys that they recognize as valid.

authenticity Before the BlackBerry Enterprise Server sends data to the device, the device

authenticates with the BlackBerry Enterprise Server to prove that the device knows the device transport key that is used to encrypt data.

Feature and Technical Overview BlackBerry Enterprise Solution security

Security features of the BlackBerry Enterprise Solution

Feature Description

data protection The BlackBerry Enterprise Solution is designed to protect data that is in transit

between the BlackBerry Enterprise Server and a BlackBerry device and data that is in transit between your organization’s messaging server and the email application on a user’s computer. The BlackBerry Enterprise Solution encrypts data that is stored on the device and in the To help protect data that is stored on the device, you can require a user to authenticate to the device using a password, a smart card, or both.

encryption key protection The device is designed to protect the encryption keys that are stored on the

device. The device encrypts the encryption keys when the device is locked.

control of device connections The BlackBerry Enterprise Solution is designed to control the following

connections:

BlackBerry Configuration Database.

control of the behavior of the device and BlackBerry Desktop Software

• connections using Bluetooth technology to and from the device

• connections from a Wi-Fi enabled device to enterprise Wi-Fi networks

The BlackBerry Enterprise Solution is designed to control which devices can connect to the

To control the behavior of the device and BlackBerry Desktop Software, you can send IT administration commands, IT policies, and application control policies to the device. You can use IT administration commands, IT policies, and application control policies to perform the following actions:

• You can send IT administration commands to lock the device, permanently delete work data, permanently delete user information and application data, and return the device settings to the default values.

• You can send an IT policy to a device to change security settings. You can use the IT policy to enforce the device password and BlackBerry Smart Card Reader password.

• You can send an application control policy to a device to control whether third-party applications are available and can connect to the device and whether third-party applications or add-on applications developed by Research In Motion can access work data.

BlackBerry Enterprise Server.

Feature and Technical Overview BlackBerry Enterprise Solution security

Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other

To encrypt data that is in transit between the BlackBerry Enterprise Server and a BlackBerry device in your organization, the BlackBerry Enterprise Solution uses BlackBerry transport layer encryption. BlackBerry transport layer encryption is designed to encrypt data from the time that a BlackBerry device user sends a message from the BlackBerry device to when

BlackBerry Enterprise Server receives the message, and from the time that the BlackBerry Enterprise Server sends a

the message to when the BlackBerry device receives the message.

Before the BlackBerry device sends a message, it compresses and encrypts the message using the device transport key. When the BlackBerry Enterprise Server receives a message from the BlackBerry device, the BlackBerry Dispatcher decrypts the message using the device transport key, and then decompresses the message.

Algorithms that the BlackBerry Enterprise Solution uses to encrypt data

The BlackBerry Enterprise Solution uses AES or Triple DES as the symmetric key cryptographic algorithm for encrypting data. By default, the and the BlackBerry device support for BlackBerry transport layer encryption.

If you configure the BlackBerry Enterprise Server to support AES and Triple DES, by default, the BlackBerry Enterprise Solution generates device transport keys using AES encryption. If a BlackBerry device uses BlackBerry Device Software version 3.7 or earlier or BlackBerry Desktop Software version 3.7 or earlier, the BlackBerry Enterprise Solution generates the device transport keys of the BlackBerry device using Triple DES.

How the BlackBerry Enterprise Solution uses AES to encrypt data

By default, when a BlackBerry device supports AES, the BlackBerry Enterprise Solution uses AES for BlackBerry transport layer encryption. The BlackBerry Enterprise Solution uses AES in CBC mode to generate the message keys and device transport keys. The keys consist of 256 bits of data.

BlackBerry Enterprise Server version 4.0 or later, BlackBerry Device Software version 4.0 or later, and BlackBerry Desktop Software version 4.0 or later support AES.

For more information about how the BlackBerry Enterprise Server uses AES for BlackBerry transport layer encryption to communicate with BlackBerry devices, visit www.blackberry.com/support to read article KB05429.

BlackBerry Enterprise Server uses the strongest algorithm that both the BlackBerry Enterprise Server

Feature and Technical Overview BlackBerry Enterprise Solution security

How the BlackBerry Enterprise Solution uses Triple DES to encrypt data

The BlackBerry Enterprise Solution uses a two-key Triple DES encryption algorithm to generate message keys and device transport keys. In the three iterations of the DES algorithm, the first 56-bit key in outer CBC mode encrypts the data, the second 56-bit key decrypts the data, and the first key encrypts the data again.

The BlackBerry Enterprise Solution stores the message keys and device transport keys as 128-bit binary strings with each parity bit in the least significant bit of each of the 8 bytes of key data. The message keys and device transport keys have overall key lengths of 112 bits and include 16 bits of parity data.

All versions of the BlackBerry Enterprise Server, BlackBerry Device Software, and BlackBerry Desktop Software support Triple DES.

For more information about Triple DES, see Federal Information Processing Standard - FIPS PUB 81 [3].

Extending messaging security to a BlackBerry device

If your organization's messaging environment supports secure messaging technology such as PGP encryption or S/MIME encryption, you can configure the BlackBerry Enterprise Solution to encrypt a message using PGP encryption or S/MIME encryption so that the message remains encrypted when the BlackBerry Enterprise Server forwards the message to the email applications of recipients. To extend messaging security, the sender and recipient must install highly secure messaging technology on the computers that host the email applications and on their configure the BlackBerry devices to use the highly secure messaging technology.

BlackBerry devices, and you must

Encrypting user data on a locked device

If you or a BlackBerry device user turns on content protection, you or the user can configure a locked device to encrypt stored user data and data that the locked device receives. When you or a user turns on content protection, a locked device is designed to use AES-256 encryption to encrypt stored data and an ECC public key to encrypt data that the locked device receives.

For example, the locked device uses content protection to encrypt the following items:

• subject, location, meeting organizer, attendees, and any notes in all appointments or meeting requests

• all contact information in the contact list except for the contact title and category

• subject, email addresses of intended recipients, message body, and attachments in all email messages

• title and information that is included in the body of a note for all memos (also known as posted messages)

• subject and all information that is included in the body of tasks (also known as posted all day appointments)

Feature and Technical Overview BlackBerry Enterprise Solution security

• if you use software tokens, contents of the .sdtid file seed that is stored in flash memory

• all data that is associated with third-party applications that a user installs on the device

• in the BlackBerry Browser, content that web sites or third-party applications push to the device, any web sites that the user saves on the device, and the browser cache

• all text that replaces the text automatically that the user types on the device

You can change the Content Protection of Contact List IT policy rule to Required to prevent the user from turning off content protection for the contact list on the device. If you change the Content Protection of Contact List IT policy rule to Required, the device does not permit call display and does not share contacts over a Bluetooth connection when the device is locked.

Encrypting the device transport key on a locked device

If you turn on content protection for device transport keys, a BlackBerry device uses the principal encryption key to encrypt the device transport keys that are stored in flash memory. The device encrypts the principal encryption key using the content protection key. When a locked device receives data that is encrypted using the device transport key, it uses the decrypted principal encryption key to decrypt the device transport key in flash memory and then uses the decrypted device transport key to decrypt data.

When you, a user, or a password timeout locks the device, the wireless transceiver remains on and the device does not delete the memory that is associated with the principal encryption key or device transport key. The device is designed to prevent the decrypted principal encryption key and the decrypted device transport key from appearing in flash memory.

You can turn on content protection for device transport keys on the device when you configure the Force Content Protection of Master Keys IT policy rule. When you turn on content protection of device transport keys, the device uses the ECC key strength that you specified in the Content Protection Strength IT policy rule to encrypt the device transport keys.

Managing device access to the BlackBerry Enterprise Server

You can use the Enterprise Service Policy to control which BlackBerry devices can connect to a BlackBerry Enterprise Server. By default, after you turn on the Enterprise Service Policy, the BlackBerry Enterprise Server permits connections from any device that you previously associated with the also prevents connections from any device that you associate with the BlackBerry Enterprise Server after you turn on the Enterprise Service Policy.

BlackBerry Enterprise Server. The BlackBerry Enterprise Server

Feature and Technical Overview BlackBerry Enterprise Solution security

You can configure an allowed list to determine which devices can access a BlackBerry Enterprise Server. A device that meets the criteria that you specify in the allowed list can associate with the BlackBerry Enterprise Server when the device activates over the wireless network.

You can define the following types of criteria:

• specific device PINs

• range of device PINs

• specific manufacturers

• specific device models

The BlackBerry Administration Service includes lists of permitted manufacturers and models of devices that you associated with the

You can permit a user to override the Enterprise Service Policy so that a device can connect to the BlackBerry Enterprise

even if you configure the allowed list with criteria that exclude that device.

Server For more information, see the BlackBerry Enterprise Server Administration Guide.

BlackBerry Enterprise Server previously.

Using an IT policy to manage BlackBerry Enterprise Solution security

You can use an IT policy to control and manage BlackBerry devices, the BlackBerry Desktop Software, and the BlackBerry Web Desktop Manager in your organization's environment. An IT policy consists of multiple IT policy rules that manage the security and behavior of the following security features and behaviors of the device:

• encryption (for example, encryption of user data and messages that the BlackBerry Enterprise Server forwards to message recipients) and encryption strength

• use of a password or pass phrase

• connections that use Bluetooth wireless technology

• protection of user data and device transport keys on the device

• control of device resources, such as the camera or GPS, that are available to third-party applications

The BlackBerry Enterprise Server includes preconfigured IT policies that you can use to manage the security of the BlackBerry Enterprise Solution. The Default IT policy includes IT policy rules that are configured to indicate the default behavior of the device or BlackBerry Desktop Software.

After a device user activates a device, the BlackBerry Enterprise Server automatically sends to the device the IT policy that you assigned to the user account or group. By default, if you do not assign an IT policy to the user account or group, the BlackBerry Enterprise Server sends the Default IT policy. If you delete an IT policy that you assigned to the user account or group, the BlackBerry Enterprise Server automatically re-assigns the Default IT policy to the user account and resends the Default IT policy to the device.

BlackBerry Enterprise Solution. For example, you can use IT policy rules to manage the

Feature and Technical Overview BlackBerry Enterprise Solution security

For more information, see the BlackBerry Enterprise Server Policy Reference Guide.

Using IT administration commands to protect a lost or stolen device

The BlackBerry Enterprise Server includes IT administration commands that you can send over the wireless network to protect sensitive data on a BlackBerry device. You can use the commands to lock the device, permanently delete work data, permanently delete user information and application data, and return the device settings to the default values.

IT administration command Description

Specify new device password and lock device

Delete only the organization data and remove device

Delete all device data and remove device

This command creates a new password and locks a device over the wireless network. You can communicate the new password to the user verbally when the BlackBerry device user locates the device. When the user unlocks the device, the device prompts the user to accept or reject the new password.

You can use this command if the device is lost. If you or a user turned on content protection and a device is running BlackBerry Device Software 4.3.0 or later, you can use this command. If you or a user turned on two-factor content protection, you cannot use this command.

This command permanently deletes all work data that the device stores and removes the device from the BlackBerry Enterprise Server. All personal data remains on the device.

You can send this command to a personal device when a user no longer works at your organization and you want to delete work data from the device.

You can also specify whether you want to delete or disable a user account from the BlackBerry Enterprise Server after the device deletes all work data.

This command permanently deletes all user information and application data that the device stores. You can configure the following options when you use this command:

• specify a delay, in hours, that must occur before the device starts to delete all the user information and application data

• require the device to return to its factory default settings when it receives this command

• specify whether to permit the user to stop permanently deleting data from the device and making the device unavailable during the delay period

You can send this command to a device that you want to distribute to another user in your organization, or to a device that is lost and that the user might not recover.

Feature and Technical Overview BlackBerry Enterprise Solution security

IT administration command Description

You can also specify whether you want to delete or disable a user account from the BlackBerry Enterprise Server after the device deletes all user information and application data.

Feature and Technical Overview BlackBerry Enterprise Server high availability

BlackBerry Enterprise Server

high availability

High availability permits you to provide minimum downtime for BlackBerry services if BlackBerry Enterprise Server components stop responding or if they require maintenance. BlackBerry Enterprise Server high availability consists of a minimum of two BlackBerry Enterprise Server instances and the BlackBerry Configuration Database which is replicated across two database servers. High availability is designed so that no single point of failure exists in the Enterprise Solution that could break the messaging data flow and application data flow to and from BlackBerry devices.

When you configure the BlackBerry Enterprise Server for high availability, you install a primary BlackBerry Enterprise Server and a standby BlackBerry Enterprise Server on different computers within the same network segment. These BlackBerry Enterprise Server instances create a BlackBerry Enterprise Server pair. Both BlackBerry Enterprise Server instances use the same SRP credentials and BlackBerry Configuration Database. You can configure an automatic failover process or a manual failover process.

The standby BlackBerry Enterprise Server connects to the primary BlackBerry Enterprise Server and checks periodically that the primary BlackBerry Enterprise Server is healthy. The health of a BlackBerry Enterprise Server is determined by thresholds that you can configure. If the health of the primary BlackBerry Enterprise Server falls below the failover threshold or if the primary to promote itself. If the messaging server and the BlackBerry Configuration Database remain available during the failover process, the message delays that device users might experience are similar to the delays that users experience when you start a BlackBerry Enterprise Server instance.

BlackBerry Enterprise Server stops responding, the standby BlackBerry Enterprise Server tries

BlackBerry

BlackBerry Enterprise Server high availability in a small-scale environment

The following diagram shows how you can configure a BlackBerry Enterprise Server for high availability in a small-scale environment. Each primary instance. You install the primary BlackBerry Enterprise Server and standby BlackBerry Enterprise Server on different computers. You can install all BlackBerry Enterprise Server components on both computers to minimize the number of computers that the BlackBerry Enterprise Server environment requires.

BlackBerry Enterprise Server instance requires its own standby BlackBerry Enterprise Server

Feature and Technical Overview BlackBerry Enterprise Server high availability

Both BlackBerry Enterprise Server instances in the BlackBerry Enterprise Server pair include, by default, the BlackBerry Attachment Service, BlackBerry Dispatcher, BlackBerry MDS Connection Service, BlackBerry Messaging Agent, BlackBerry Policy Service, BlackBerry Router, and BlackBerry Synchronization Service. By default, if you choose to install the BlackBerry Collaboration Service with both instances, the BlackBerry Collaboration Service is included in the BlackBerry Enterprise Server pair.

To administer the BlackBerry Enterprise Server pair, you can install the BlackBerry Administration Service with both BlackBerry Enterprise Server instances and configure high availability for the BlackBerry Administration Service separately.

In a large-scale environment, you can add any number of BlackBerry Enterprise Server pairs that use the same BlackBerry Configuration Database.

How the BlackBerry Enterprise Server calculates health scores

Certain BlackBerry Enterprise Server components calculate a health score that indicates how well the component can provide specific services. The components send their health scores to the BlackBerry Dispatcher, which combines the health scores of the components to calculate the overall health score of the BlackBerry Enterprise Server. The BlackBerry Dispatcher writes the information to the BlackBerry Configuration Database, and it provides the information to a BlackBerry Enterprise Server that requests it.

Feature and Technical Overview BlackBerry Enterprise Server high availability

The BlackBerry Enterprise Server components calculate their health scores by examining their operating health, the stability of their connections to other components, and the health scores of the other components.

The health score of the BlackBerry Enterprise Server consists of various health parameters. Each health parameter indicates whether a particular service or feature is available. If you turn on the automatic failover feature for the BlackBerry Enterprise Server, you can configure health parameters so that the BlackBerry Enterprise Server fails over automatically when critical services or features are no longer available.

Conditions for failover to a standby BlackBerry Enterprise Server

Failover between the primary and standby BlackBerry Enterprise Server instances occurs when the standby BlackBerry Enterprise Server determines that its health score is above the promotion threshold and one or more of the following events occurred:

• The standby BlackBerry Enterprise Server receives a health score from the primary BlackBerry Enterprise Server that is below the failover threshold.

• The standby BlackBerry Enterprise Server reads, in the BlackBerry Configuration Database, a health score for the primary BlackBerry Enterprise Server that is below the failover threshold.

• The standby BlackBerry Enterprise Server does not receive a response when it checks the BlackBerry Dispatcher for the health score of the primary

• The standby BlackBerry Enterprise Server pings the BlackBerry Dispatcher on the network but cannot determine whether the primary BlackBerry Enterprise Server is running.

BlackBerry Enterprise Server.

How a primary BlackBerry Enterprise Server self-demotes

After the primary BlackBerry Enterprise Server receives a request from a standby BlackBerry Enterprise Server to selfdemote, the primary BlackBerry Enterprise Server performs the following actions:

• closes its SRP connection to the BlackBerry Infrastructure

• stops the flow of all messages

• stops the Novell GroupWise SOAP connector if your organization's environment includes the BlackBerry Enterprise

for Novell GroupWise

Server

• demotes its connections to the messaging server and BlackBerry Configuration Database to standby connections

Feature and Technical Overview BlackBerry Enterprise Server high availability

• informs the standby BlackBerry Enterprise Server that it self-demoted

Scenario: What happens after a primary BlackBerry Enterprise Server stops responding

If a primary BlackBerry Enterprise Server stops responding, the standby BlackBerry Enterprise Server performs one of two actions depending on whether its health score is above or below the promotion threshold.

The standby BlackBerry Enterprise Server can perform the following actions if the messaging server, BlackBerry Infrastructure, and BlackBerry Configuration Database are available.

Action that the standby BlackBerry Enterprise Server performs when its health score is above the promotion threshold

1. The standby BlackBerry Enterprise Server determines that the primary BlackBerry Enterprise Server stopped responding.

2. The standby BlackBerry Enterprise Server checks its own health score and determines that the health score is above the promotion threshold.

3. The standby BlackBerry Enterprise Server opens active connections to the BlackBerry Configuration Database and messaging server.

4. If your organization's environment includes the BlackBerry Enterprise Server for Novell GroupWise, the standby BlackBerry Enterprise Server starts the GroupWise SOAP connector.

5. The standby BlackBerry Enterprise Server tries to open an SRP connection to the BlackBerry Infrastructure.

6. When the connection to the BlackBerry Infrastructure is stable, the standby BlackBerry Enterprise Server writes its identity as the primary BlackBerry Enterprise Server to the BlackBerry Configuration Database.

Action that the standby BlackBerry Enterprise Server performs when its health score is below the promotion threshold

1. The standby BlackBerry Enterprise Server determines that the primary BlackBerry Enterprise Server stopped responding.

2. The standby BlackBerry Enterprise Server checks its own health score and determines that the health score is below the promotion threshold.

The standby BlackBerry Enterprise Server cannot become the primary instance. You must resolve any issues before the standby BlackBerry Enterprise Server can recover.

Feature and Technical Overview BlackBerry Enterprise Server high availability

Scenario: What happens after the health score of a primary BlackBerry Enterprise Server falls below the failover threshold

The following scenario can occur if the messaging server, BlackBerry Infrastructure, and BlackBerry Configuration Database are available.

1. The standby BlackBerry Enterprise Server determines that the health score of the primary BlackBerry Enterprise Server fell below the failover threshold.

2. The standby BlackBerry Enterprise Server checks its own health score and determines that its health score is above the promotion threshold and higher than the health score of the primary BlackBerry Enterprise Server.

3. The standby BlackBerry Enterprise Server sends a demotion request to the primary BlackBerry Enterprise Server.

4. The primary BlackBerry Enterprise Server self-demotes.

5. If your organization's environment includes the BlackBerry Enterprise Server for Novell GroupWise, the primary BlackBerry Enterprise Server stops the Novell GroupWise SOAP connector.

6. The standby BlackBerry Enterprise Server opens active connections to the BlackBerry Configuration Database and messaging server.

7. If your organization's environment includes the BlackBerry Enterprise Server for Novell GroupWise, the standby BlackBerry Enterprise Server starts the GroupWise SOAP connector.

8. The standby BlackBerry Enterprise Server tries to open an SRP connection to the BlackBerry Infrastructure.

9. The standby BlackBerry Enterprise Server writes its identity as the primary BlackBerry Enterprise Server to the BlackBerry Configuration Database.

BlackBerry Configuration Database high availability

The type of BlackBerry Configuration Database high availability that you can configure depends on the type of database server that is in your organization's environment.

If your organization's environment includes Microsoft SQL Server 2005 SP2 or later, you can configure database mirroring. Database mirroring requires a principal database, a mirror database, and a witness. Although the BlackBerry Enterprise Server can contact the mirror database, it opens active connections to the principal database only. If the principal

Feature and Technical Overview BlackBerry Enterprise Server high availability

database stops responding, the BlackBerry Enterprise Server opens an active connection to the mirror database automatically. Database mirroring provides fault tolerance for the BlackBerry Enterprise Solution.

If your organization's environment includes a version of Microsoft SQL Server that is earlier than version 2005 SP2, you can configure transactional replication of the BlackBerry Configuration Database and create a replicated BlackBerry Configuration Database. If the BlackBerry Configuration Database stops responding, you must fail over the BlackBerry Enterprise Server

For more information about database mirroring, visit www.microsoft.com.

to the replicated BlackBerry Configuration Database manually.

BlackBerry Configuration Database mirroring

The following diagram shows how you can configure the BlackBerry Configuration Database with principal and mirror instances and a witness for high availability. The BlackBerry Enterprise Server connects to the principal BlackBerry Configuration Database directly, and can fail over to the mirror BlackBerry Configuration Database if the principal BlackBerry Configuration Database stops responding.

The primary BlackBerry Enterprise Server connects to the principal BlackBerry Configuration Database and accesses data from it. The name of the mirror BlackBerry Configuration Database is stored in the Windows registry of the computers that hosts the primary and standby connect to the mirror BlackBerry Configuration Database until after the principal BlackBerry Configuration Database stops responding.

BlackBerry Enterprise Server instances. The BlackBerry Enterprise Server instances do not

Feature and Technical Overview BlackBerry Enterprise Server high availability

The primary BlackBerry Enterprise Server connects to the messaging server and processes the messaging data that it sends to and receives from BlackBerry devices.

The standby BlackBerry Enterprise Server opens standby connections to the principal BlackBerry Configuration Database and the messaging server.

Scenario: What happens after the principal BlackBerry Configuration Database stops responding

If a principal BlackBerry Configuration Database stops responding, the response of the primary BlackBerry Enterprise Server depends on whether it can connect to the mirror BlackBerry Configuration Database.

The following responses assume that the messaging server and BlackBerry Infrastructure are available.

Response of a primary BlackBerry Enterprise Server that can connect to the mirror BlackBerry Configuration Database

1. The primary BlackBerry Enterprise Server loses its connection to the principal BlackBerry Configuration Database.

2. The primary BlackBerry Enterprise Server connects to the mirror BlackBerry Configuration Database.

3. The primary BlackBerry Enterprise Server remains the primary instance.

Response of a primary BlackBerry Enterprise Server that cannot connect to the mirror BlackBerry Configuration Database

1. The primary BlackBerry Enterprise Server loses its connection to the principal BlackBerry Configuration Database.

2. The primary BlackBerry Enterprise Server tries to connect to the mirror BlackBerry Configuration Database, but is unsuccessful.

3. The primary BlackBerry Enterprise Server lowers its health score and continues to provide limited services. One of the following events occurs:

• If the standby BlackBerry Enterprise Server can open a connection to the principal or mirror BlackBerry

Configuration Database, it demotes the primary BlackBerry Enterprise Server and promotes itself to become the primary instance.

• If the standby BlackBerry Enterprise Server cannot open a connection to the principal or mirror BlackBerry

Configuration Database, it cannot promote itself. You must resolve any issues before the BlackBerry Enterprise Server pair can recover.

Feature and Technical Overview BlackBerry Enterprise Server high availability

High availability in a distributed environment

If you install multiple BlackBerry Enterprise Server components on different computers to create a distributed environment, you can configure the components for high availability. High availability for a distributed component requires that you install two or more instances of the component in your organization's environment. When an instance stops responding, the other instances can take over.

When you install multiple BlackBerry Enterprise Server components in a distributed environment, each BlackBerry Enterprise Server

Component High availability type Description

component implements high availablility differently.

BlackBerry Administration Service

BlackBerry Attachment Service

BlackBerry Collaboration Service

load balancing using DNS round robin, or a hardware load balancer

load-balancing with primary and secondary groups

failover with an active connection to one instance and standby connections to other instances

When you install two or more BlackBerry Administration Service instances, you can create a BlackBerry Administration Service pool. You can access the BlackBerry Administration Service instances using a single web address. The load is distributed across the instances. If a BlackBerry Administration Service instance stops responding, the pool routes requests to the available instances.

When you install two or more BlackBerry Attachment Service instances, you can create a BlackBerry Attachment Service pool for each BlackBerry Enterprise Server instance. You can configure a pool with a primary group of instances and, optionally, a secondary group of instances. The BlackBerry Enterprise Server sends all requests to the primary group. If the primary group cannot convert a specific file format, the forwards conversion requests for the specific file format to the secondary group.

When you install two or more BlackBerry Collaboration Service instances, you can create a BlackBerry Collaboration Service pool for each BlackBerry Enterprise Server instance. Each BlackBerry Enterprise Server assigns one of the connections to the

instances as the active connection, and the other

Service connections as standby connections. If the Collaboration Service that the active connection is assigned to stops responding, the BlackBerry Enterprise Server

BlackBerry Enterprise Server

BlackBerry Collaboration

BlackBerry

Feature and Technical Overview BlackBerry Enterprise Server high availability

Component High availability type Description

assigns the active connection to another BlackBerry Collaboration Service instance.

BlackBerry Configuration Database

database mirroring If you install the BlackBerry Configuration Database on

Microsoft SQL Server 2005 SP2 or later, you can configure database mirroring. If the principal BlackBerry Configuration Database stops responding, the BlackBerry

BlackBerry MDS Connection Service

failover with an active connection to one instance and standby connections to other instances

Enterprise Server Configuration Database

When you install two or more BlackBerry MDS Connection Service instances, you can create a BlackBerry MDS Connection Service pool for each BlackBerry Enterprise Server instance. Each BlackBerry Enterprise Server assigns one of the connections to the

instances as the active connection, and the other

Service connections as standby connections. If the

fails over to the mirror BlackBerry

BlackBerry MDS Connection

BlackBerry MDS Connection Service that the active connection is assigned to stops responding, the BlackBerry Enterprise Server assigns the active connection to another BlackBerry MDS Connection Service instance.

BlackBerry Router failover When you install two or more BlackBerry Router instances,

you can create a BlackBerry Router pool for each BlackBerry Enterprise Server or BlackBerry Enterprise Server pair. If a BlackBerry Router stops responding, the BlackBerry Enterprise Server selects another instance using information that is stored in the Configuration Database

BlackBerry

Feature and Technical Overview Wi-Fi enabled devices

Wi-Fi enabled devices

Wi-Fi enabled BlackBerry devices permit users with qualifying data plans to access BlackBerry services over a mobile network,

When users can access a mobile network and Wi-Fi network simulaneously, users can perform multiple tasks over both networks. For example, a user with a BlackBerry 8820 smartphone can send messages over a Wi-Fi network and can make a call over the mobile network at the same time.

If users' mobile network providers make UMA technology (GAN technology) available, and users have subscribed to the UMA feature, Wi-Fi enabled devices can access the mobile network providers' voice services and data services over a mobile network or a

Wi-Fi enabled devices can open a Wi-Fi connection from an enterprise Wi-Fi network or, with a VPN session, from a home Wi-Fi network or Wi-Fi hotspot to connect directly to the BlackBerry Router.

Wi-Fi enabled devices are designed to open a connection to the BlackBerry Internet Service to access the BlackBerry MDS Connection Service, BlackBerry Messenger, and other devices for PIN messaging. You can verify with your organization's wireless service provider whether your organization's service plan provides access to these services over a Wi-Fi network.

Wi-Fi network, or both networks simultaneously.

Wi-Fi network.

Types of Wi-Fi networks

Wi-Fi enabled BlackBerry devices can access BlackBerry services using enterprise Wi-Fi networks, home Wi-Fi networks, or hotspots.

Type Description

Enterprise Wi-Fi networks An enterprise Wi-Fi network has multiple wireless access points to provide

ubiquitous coverage, hotspot coverage, or ubiquitous and hotspot coverage. You can use a Wi-Fi enabled BlackBerry device in any coverage area.

You can configure an enterprise Wi-Fi network to require layer 2 authentication. An organization might consider an enterprise Wi-Fi network to be untrusted and require that all Wi-Fi connections to the organization's network occur through a VPN concentrator. You must configure Wi-Fi enabled BlackBerry devices to support the authentication type that your organization uses.

An enterprise Wi-Fi network permits optimized access to the BlackBerry Enterprise Server over a direct IP connection to the BlackBerry Router.

Home Wi-Fi networks A home Wi-Fi network uses a single access point to provide Internet access

through a broadband gateway. The broadband gateway can implement NAT and

Feature and Technical Overview Wi-Fi enabled devices

Type Description

permit VPN connections through the firewall. You can configure a home Wi-Fi network with layer 2 security and password authentication. You must configure BlackBerry devices to support the authentication that the home Wi-Fi network requires.

A home Wi-Fi network permits users to access all BlackBerry services from Wi-Fi enabled BlackBerry devices using the BlackBerry Infrastructure.

Hotspots A hotspot offered by an ISP, a mobile network provider, or a property owner can

provide a Wi-Fi connection in public and semipublic areas. The network can be an open network without layer 2 security and use a captive portal for authentication. The captive portal blocks all network traffic except traffic that uses HTTP and it redirects HTTP requests to a login page.

After a user logs in to the hotspot, the captive portal permits the user to access wireless network services.

Hotspots can use a firewall and they can permit VPN connections. A hotspot permits users to access all BlackBerry devices using the BlackBerry Infrastructure.

BlackBerry services from their Wi-Fi enabled

Wireless access points

Wi-Fi enabled BlackBerry devices use wireless access points to connect to the Wi-Fi network. An access point must conform to the

Type Description

thin access point A thin access point (or controller-based access point) is part of an enterprise Wi-

thick access point A thick access point (or intelligent or autonomous access point), has the

IEEE 802.11a, IEEE 802.11b, or IEEE 802.11g wireless networking standard.

Fi network that you can manage from a central location. This type of access point requires an external controller to manage network traffic. You can administer one or more thin access points through the controller.

Thin access points with an external controller can provide a more seamless roaming experience for users with Wi-Fi enabled BlackBerry devices during data and voice sessions.

intelligence to operate as a standalone component without a controller.

Feature and Technical Overview Wi-Fi enabled devices

Connections that BlackBerry devices make to mobile and Wi-Fi networks

Wi-Fi enabled BlackBerry devices connect to different components in the mobile and Wi-Fi networks so that they can communicate with the

BlackBerry Enterprise Server and provide BlackBerry services for users.

Component Description

BlackBerry Enterprise Server The BlackBerry Enterprise Server provides productivity tools and data from an

organization's applications to BlackBerry devices over the wireless network, and processes, routes, compresses, and encrypts data.

BlackBerry Infrastructure The BlackBerry Infrastructure is designed to communicate with the BlackBerry

Enterprise Server using a RIM proprietary protocol SRP.

Feature and Technical Overview Wi-Fi enabled devices

Component Description

BlackBerry Internet Service The BlackBerry Internet Service is an email and Internet service for BlackBerry

devices that is designed to provide subscribers with automatic delivery of email messages, mobile access to email message attachments, and convenient access to Internet content.

UNC/GANC The UNC/GANC is the gateway for Wi-Fi or mobile communications. The UNC/GANC

exists in your organization’s gateway only if the wireless service provider supports UMA.

wireless access point for a home Wi-Fi network or hotspot

wireless access point for an enterprise Wi-Fi network

wireless service provider A wireless service provider is a telephone company that provides services for

Wi-Fi enabled BlackBerry device A Wi-Fi enabled BlackBerry device permits a user to access voice and data services

An access point for a home Wi-Fi network or hotspot permits the BlackBerry device to connect to a home Wi-Fi network or hotspot.

An access point for an enterprise Wi-Fi network permits a BlackBerry device to connect to an enterprise Wi-Fi network using strong authentication and link layer security.

BlackBerry devices.

across multiple radio technologies.

Connecting Wi-Fi enabled BlackBerry devices to the BlackBerry Enterprise Server over a Wi-Fi connection

Direct connections between BlackBerry devices and the BlackBerry Router over an enterprise Wi-Fi network

Wi-Fi enabled BlackBerry devices can open a direct connection to the BlackBerry Router over an enterprise Wi-Fi network after you configured a Wi-Fi profile for the user accounts. You can use direct connections to the BlackBerry Router when Wi-Fi enabled BlackBerry devices are located in your organization’s existing Wi-Fi environment. When BlackBerry devices connect to the BlackBerry Router, they can bypass SRP connectivity and authentication to connect to the BlackBerry Enterprise Server

directly.

Feature and Technical Overview Wi-Fi enabled devices

After BlackBerry devices connect to the Wi-Fi network using a Wi-Fi profile, the BlackBerry devices try to make a direct IP connection to the BlackBerry Router. With some network architectures, a VPN session might be required to complete the direct connection to the BlackBerry Router.

Wi-Fi enabled BlackBerry devices include a built-in VPN client that you can configure and assign to any Wi-Fi profile on the BlackBerry devices. If a direct connection to the BlackBerry Router is possible (with or without a VPN session), the BlackBerry Enterprise Server starts sending data.

Wi-Fi connection when a VPN connection or direct connection between BlackBerry devices and the BlackBerry Router is not possible

If Wi-Fi enabled BlackBerry devices cannot connect directly to the BlackBerry Router (with or without a VPN connection)

Wi-Fi network that can access the Internet (for example, a home Wi-Fi network or hotspot), the Wi-Fi enabled

over a BlackBerry devices open SSL connections over the Internet to the BlackBerry Infrastructure. After the Wi-Fi enabled BlackBerry devices connect to the BlackBerry Infrastructure, the users' provisioned data services start to send data to the Wi-Fi enabled BlackBerry devices.

Priority for connections that BlackBerry devices make over a Wi-Fi network

Wi-Fi enabled BlackBerry devices connect over a Wi-Fi network to the BlackBerry Router or BlackBerry Infrastructure using the best possible connection or combination of available connections in the following order:

• connection to the BlackBerry Enterprise Server or BlackBerry MDS Connection Service over a serial, USB, or Bluetooth connection that uses the BlackBerry Device Manager

• connection to the BlackBerry Router from a Wi-Fi network, with or without a VPN connection

• SSL connection through the Internet to the BlackBerry Infrastructure over a Wi-Fi network

• connection to the BlackBerry Infrastructure provided by a wireless service provider that uses the GSM network, EDGE network, or UMA

The order of connections assumes that all routes to the BlackBerry Router and Internet are available when the Wi-Fi enabled BlackBerry devices connect to the Wi-Fi network.

Feature and Technical Overview Wi-Fi enabled devices

BlackBerry services that are available over Wi-Fi connections

For more information about supported services and features, contact your organization's wireless service provider. Not all BlackBerry data plans support Wi-Fi access to BlackBerry data services.

When you configure a Wi-Fi network to open a connection (with or without a VPN connection) to the BlackBerry Router, you can keep all data transfers entirely within the enterprise Wi-Fi network and reduce the routing required.

BlackBerry services

services from the BlackBerry Enterprise Server (for example, messaging, organizer data synchronization)

services from the BlackBerry Internet Service (for example, messaging, browsing)

services from the BlackBerry MDS Connection Service (for example, application push, application access, browsing)

Service provider with GSM/EDGE network or UMA network

X X X X X

Wi-Fi network and service provider with GSM/EDGE network

Wi-Fi network and no service provider with GSM/EDGE network or UMA, and no UMA available

Enterprise Wi-Fi network and service provider with GSM/EDGE network, and no UMA, and no UMA available

Enterprise Wi-Fi network and no service provider with GSM/EDGE network, and no UMA available

Feature and Technical Overview Wi-Fi enabled devices

BlackBerry services

BlackBerry

Service provider with GSM/EDGE network or UMA network

Wi-Fi network and service provider with GSM/EDGE network

Wi-Fi network and no service provider with GSM/EDGE network or UMA, and no UMA available

Enterprise Wi-Fi network and service provider with GSM/EDGE network, and no UMA, and no UMA available

X X X X X

Messenger

PIN messaging X X X X X

instant messaging

X X X X X using a collaboration client (for example, Microsoft Office Live Communications Server)

instant messaging

X X X X X using a third-party instant messaging application (for example, Windows Messenger)

Enterprise Wi-Fi network and no service provider with GSM/EDGE network, and no UMA available

BlackBerry Maps X X X X X

service provider

X X X messaging (for example, SMS)

content

X X X downloading provided by a wireless service provider (for example, ring tones)

web browsing

X X X provided by a

Feature and Technical Overview Wi-Fi enabled devices

BlackBerry services

wireless service provider (for example, WAP)

voice plan provided by a wireless service provider

Service provider

with GSM/EDGE

network or UMA

network

X X X

Wi-Fi network and service provider with GSM/EDGE network

Wi-Fi network and no service provider with GSM/EDGE network or UMA, and no UMA available

Enterprise Wi-Fi network and service provider with GSM/EDGE network, and no UMA, and no UMA available

Enterprise Wi-Fi network and no service provider with GSM/EDGE network, and no UMA available

IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support

Wi-Fi enabled BlackBerry devices support the IEEE 802.11a, IEEE 802.11b, and IEEE 802.11g wireless networking standards.

Characteristics of the IEEE 802.11a wireless networking standard that Wi-Fi enabled BlackBerry devices support

Characteristic Description

fallback speeds 48, 36, 24, 18, 12, 9, and 6 Mbps

frequency 5 GHz

maximum speed 54 Mbps

Feature and Technical Overview Wi-Fi enabled devices

Characteristic Description

nonoverlapping channels up to 19

sources of interference

throughput speed 23 Mbps

• Bluetooth wireless technology

• some satellite systems

• 5 GHz cordless phones

Characteristics of the IEEE 802.11b wireless networking standard that Wi-Fi enabled BlackBerry devices support

Characteristic Description

fallback speeds 5.5, 2, and 1 Mbps

frequency 2.4 GHz

maximum speed 11 Mbps

nonoverlapping channels 3

sources of interference

• Bluetooth wireless technology

• microwave ovens

• 2.4 GHz cordless phones

throughput speed 4.5 Mbps

Feature and Technical Overview Wi-Fi enabled devices

Characteristics of the IEEE 802.11g wireless networking standard that Wi-Fi enabled BlackBerry devices support

Characteristic Description

fallback speeds 48, 36, 24, 18, 12, 9, and 6 Mbps

frequency 2.4 GHz

maximum speed 54 Mbps

nonoverlapping channels 3

sources of interference

throughput speed 19 Mbps

• Bluetooth wireless technology

• microwave ovens

• 2.4 GHz cordless phones

Security features of a Wi-Fi enabled device

Feature Description

Activation of BlackBerry devices over an enterprise Wi-Fi network

Authenticated connection with BlackBerry Router

BlackBerry transport layer encryption BlackBerry transport layer encryption is designed to encrypt messages that the

Activation of devices over an enterprise Wi-Fi network is designed to simplify the actions of activating or updating devices.

An authenticated connection with a BlackBerry Router permits devices to open a direct connection to the BlackBerry Enterprise Server after they authenticate with the BlackBerry Router.

Devices connected to an enterprise Wi-Fi network do not use an SRP connection to send data to the BlackBerry Enterprise Server.

device and the BlackBerry Enterprise Server send between each other after they open an authenticated connection.

Feature and Technical Overview Wi-Fi enabled devices

Feature Description

Direct access to the BlackBerry Infrastructure over a Wi-Fi connection

Direct access to the BlackBerry Infrastructure over a Wi-Fi connection permits Wi-Fi enabled devices to access BlackBerry services over the Internet, even if UMA is not available.

You can verify with your organization's wireless service provider that your organization's service plan supports access to BlackBerry services over a Wi-Fi connection.

Encrypted communication over the WiFi network

Devices support multiple security methods that are designed to encrypt communication over the enterprise Wi-Fi network between the device and wireless access points or a network firewall on the enterprise Wi-Fi network.

Expanded groups of Wi-Fi and VPN configuration settings

Expanded groups of Wi-Fi and VPN configuration settings permit you to control Wi-Fi connections from devices.

Limited connections Wi-Fi enabled devices are designed to reject incoming connections, to support

limited connections in infrastructure mode only, and to prevent ad-hoc mode (also known as peer-to-peer) connections.

Multiple Wi-Fi and VPN profiles Multiple Wi-Fi and VPN profiles are designed to address user requirements in a

variety of different environments.

Proxy server Devices supports the use of a transparent proxy server that you can configure

between the enterprise Wi-Fi network and the device.

Software token provisioning Software token provisioning is designed to permit you to provision and manage

the seed for software token authentication on devices. You can use software token authentication for VPN connections.

The BlackBerry Enterprise Server is designed to work with the RSA Authentication Manager to provide software token support for use with layer 2 and layer 3 authentication on supported devices.

User-specific configuration settings and IT policy rules

Wireless backup of Wi-Fi and VPN profiles

User-specific configuration settings and IT policy rules are designed to simplify the configuration of user-specific Wi-Fi and VPN information (such as user IDs and passwords).

Backup of Wi-Fi and VPN profiles on devices over a Wi-Fi connection permits users to restore the profiles, if necessary.

Feature and Technical Overview BlackBerry Enterprise Server process flows

BlackBerry Enterprise Server process flows

Messaging process flows

Process flow: Sending a message to a BlackBerry device

1. A message arrives in a user’s mailbox. Microsoft Exchange notifies the BlackBerry Messaging Agent.

2. The BlackBerry Messaging Agent applies global filter rules to the messages in the user’s mailbox and filters the messages that match the filter criteria.

If global filter rules do not apply, the BlackBerry Messaging Agent applies filter rules that the user specified to the messages in the user’s mailbox.

3. The BlackBerry Messaging Agent sends the first 2 KB of the message (plain text, or in an HTML message, the equivalent to 2 KB of plain text) to the BlackBerry Dispatcher.

4. The BlackBerry Dispatcher compresses the first 2 KB of the message, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted data to the BlackBerry Router.

5. The BlackBerry Router sends the encrypted data to the wireless network over port 3101, or over port 4101 if the BlackBerry device is a Wi-Fi enabled BlackBerry device that is connected to the enterprise Wi-Fi network.

6. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network, and sends the message data to the BlackBerry device.

Feature and Technical Overview BlackBerry Enterprise Server process flows

7. The BlackBerry device sends a delivery confirmation to the BlackBerry Dispatcher. The BlackBerry Dispatcher sends the delivery confirmation to the BlackBerry Messaging Agent.

If the BlackBerry Messaging Agent does not receive a delivery confirmation within four hours, it sends the message to the wireless network again.

The delivery confirmation verifies that the wireless network delivered the message to the BlackBerry device, but it does not verify that the user received or opened the message.

8. The BlackBerry device decrypts and decompresses the message so that the user can view it, and notifies the user that the message arrived.

Process flow: Sending a message from a BlackBerry device

This process flow applies to new messages, reconciled messages (messages that a user moved, deleted, or marked as read or unread), and wireless calendar entries.

1. A user sends a message from a BlackBerry device. The BlackBerry device assigns a RefId to the message. If the message is a meeting invitation or calendar entry, the

BlackBerry device appends the calendar information to the message. The BlackBerry device compresses and encrypts the message, and sends the message to the wireless network over port 3101, or over port 4101 if the BlackBerry device

Wi-Fi enabled BlackBerry device that is connected to the enterprise Wi-Fi network.

is a

2. The wireless network sends the message to the BlackBerry Enterprise Server. The BlackBerry Enterprise Server accepts only encrypted messages from the BlackBerry device.

3. The BlackBerry Dispatcher uses the device transport key of the BlackBerry device to decrypt and decompress the message.

If the BlackBerry Dispatcher cannot decrypt the message using the device transport key, the BlackBerry Enterprise Server ignores the message and sends an error message to the BlackBerry device.

4. The BlackBerry Messaging Agent sends the message to the user’s email application.

5. The BlackBerry Messaging Agent sends a copy of the message to the Sent Items view in the user’s email application.

6. The messaging server delivers the message to the recipients.

Feature and Technical Overview BlackBerry Enterprise Server process flows

Process flow: Sending a message that contains an attachment from a BlackBerry device

1. A user attaches a file to a message on a BlackBerry device and sends the message.

• If the BlackBerry device is not running BlackBerry Device Software version 4.2 or later, and if the BlackBerry device

does not have a CMIME service book that indicates that the BlackBerry Enterprise Server supports attachment uploads, the Add Attachment menu item does not appear on the BlackBerry device.

• If the user tries to attach a file that exceeds the maximum file size that you specified, a notification appears and the

user cannot attach the file.

2. The BlackBerry device compresses and encrypts the message, and sends the message to the wireless network over port 3101.

The BlackBerry device formats the header of the message to indicate that a large attachment is part of the message. The BlackBerry device does not send the attachment content.

3. The wireless network sends the message to the BlackBerry Enterprise Server.

4. The BlackBerry Dispatcher decrypts and decompresses the message using the device transport key of the BlackBerry device.

If the BlackBerry Dispatcher cannot decrypt the message using the device transport key, the BlackBerry Enterprise Server ignores the message and sends an error message to the BlackBerry device.

5. The BlackBerry Messaging Agent stores the message properties in the user’s mailbox. The BlackBerry Messaging Agent sends a request for the attachment content through the BlackBerry Dispatcher to the

BlackBerry device.

6. The BlackBerry device sends the attachment content through the BlackBerry Dispatcher to the BlackBerry Messaging Agent.

If the file size of the attachment content exceeds a single data packet, the BlackBerry device divides the content into multiple data packets and sends the data packets to the

BlackBerry Messaging Agent.

Feature and Technical Overview BlackBerry Enterprise Server process flows

7. The BlackBerry Messaging Agent verifies the validity of the attachment content, and stores the content in memory as the content arrives.

During the delivery of the attachment content, if the BlackBerry Messaging Agent does not receive content from the BlackBerry device for 15 minutes, the BlackBerry Messaging Agent cancels the message, deletes the partial attachment content from temporary storage, and sends an error message to the BlackBerry device.

After all of the attachment content arrives, the BlackBerry Messaging Agent checks for other attachments that might be part of the same message.

• If other attachments exist, the BlackBerry Messaging Agent requests the attachment content.

• If no additional attachments exist, the BlackBerry Messaging Agent finishes processing the message and sends the

message to the user’s email application.

The messaging server delivers the message to the intended recipients.

Process flow: Searching an organization's address book from a BlackBerry device

1. A user searches for a contact on a BlackBerry device.

2. The BlackBerry device assigns a RefId to the search request, compresses and encrypts the request, and sends the request to the

3. The BlackBerry Dispatcher decrypts and decompresses the request using the device transport key of the BlackBerry device, and sends the request to the BlackBerry Messaging Agent.

4. The BlackBerry Messaging Agent searches the GAL on the Microsoft Exchange server and retrieves the 20 closest matches for the contact lookup request.

The BlackBerry Messaging Agent sends the contact lookup results to the BlackBerry Dispatcher.

5. The BlackBerry Dispatcher encrypts the results using the device transport key of the BlackBerry device, compresses the encrypted data, and sends it to the BlackBerry Router for delivery to the BlackBerry device.

6. The BlackBerry Router sends the encrypted data to the wireless network over port 3101.

7. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network, and sends the encrypted data to the BlackBerry device.

BlackBerry Enterprise Server over port 3101.

Feature and Technical Overview BlackBerry Enterprise Server process flows

8. The BlackBerry device sends a delivery confirmation to the BlackBerry Dispatcher, which sends it to the BlackBerry Messaging Agent.

If the BlackBerry Enterprise Server does not receive a delivery confirmation within four hours, it resubmits the contact lookup results to the wireless network.

9. The BlackBerry device decrypts and decompresses the contact lookup results with the device transport key so that the user can view them on the BlackBerry device or add them to the contact list on the BlackBerry device.

Instant messaging process flows

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office Live Communications Server 2005 (Microsoft Office Communicator)

1. A user logs in to a collaboration client on a BlackBerry device.

2. The device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

3. The BlackBerry Dispatcher sends the request to the BlackBerry Collaboration Service over port 3200. If the BlackBerry Collaboration Service is located on a remote computer, the request remains encrypted using a Research In Motion proprietary protocol.

Feature and Technical Overview BlackBerry Enterprise Server process flows

4. The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration

Service logs out any instant messaging sessions on devices that are out of coverage, and any instant messaging sessions that are no longer sending status messages to the

• If no idle sessions exist, the BlackBerry Collaboration Service sends a Server Busy status message to the device and

rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the HTTP

persistent connection supports, the BlackBerry Collaboration Service sends a Failed status message to the device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and tries to authenticate the user using Integrated Windows Authentication. If the authentication is not successful, the BlackBerry Collaboration Service tries a forms-based login process instead.

BlackBerry Collaboration Service sends a login request in JSON, a lightweight data-interchange format, to the

The Microsoft Office Communicator Web Access server.

The BlackBerry Collaboration Service opens the connection using HTTPS over port 443. You can also configure the connection to use HTTP, the transport protocol that the AJAX service uses, or a custom port number.

5. The Microsoft Office Communicator Web Access server formats the request using a Microsoft API and sends the request to the

6. The Microsoft Office Live Communications Server accepts the request, processes the login information, and sends the acceptance to the Microsoft Office Communicator Web Access server.

7. The Microsoft Office Communicator Web Access server sends the acceptance to the BlackBerry Collaboration Service.

8. The BlackBerry Collaboration Service sends the acceptance message, in encrypted and compressed format, through

BlackBerry Dispatcher to the device, and creates a cache of the connectivity information to maintain the instant

the messaging session.

Microsoft Office Live Communications Server over an MTLS connection.

BlackBerry Collaboration Service.

The BlackBerry Collaboration Service receives events that the server initiates from the Microsoft Office Communicator Web

server using an HTTP GET or HTTPS GET request, and sends the events to the collaboration client over the session.

Access The BlackBerry Collaboration Service sends events that the BlackBerry device initiates to the Microsoft Office Communicator Web Access server using an HTTP POST or HTTPS POST request.

Process flow: Starting an instant messaging session using the BlackBerry Client for use with Microsoft Office Communications Server 2007

Feature and Technical Overview BlackBerry Enterprise Server process flows

1. A user logs in to a collaboration client on a BlackBerry device.

2. The device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

4. The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration

logs out any instant messaging sessions on devices that are out of coverage, and any instant messaging

Service sessions that are no longer sending status messages to the BlackBerry Collaboration Service.

• If no idle sessions exist, the BlackBerry Collaboration Service sends a Server Busy status message to the device and

rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the HTTP

persistent connection supports, the BlackBerry Collaboration Service sends a Failed status message to the device and rejects the login request.

Windows Authentication. If the authentication is not successful, the BlackBerry Collaboration Service tries a forms-based login process instead. The BlackBerry Collaboration Service sends a login request in XML format to the Microsoft Office Communicator Web Access server.

5. The Microsoft Office Communicator Web Access server formats the request using a Microsoft API and sends the request to the

Microsoft Office Communications Server 2007 over an MTLS connection.

6. The Microsoft Office Communications Server 2007 accepts the request, processes the login information, and sends the acceptance to the Microsoft Office Communicator Web Access server.

Feature and Technical Overview BlackBerry Enterprise Server process flows

7. The Microsoft Office Communicator Web Access server sends the acceptance to the BlackBerry Collaboration Service.

8. The BlackBerry Collaboration Service sends the acceptance message, in encrypted and compressed format, through the BlackBerry Dispatcher to the device, and creates a cache of the connectivity information to maintain the instant messaging session.

The BlackBerry Collaboration Service receives events that the server initates from the Microsoft Office Communicator Web Access

server using an HTTP GET or HTTPS GET request, and sends the events to the collaboration client over the session. The BlackBerry Collaboration Service sends events that the device initiates to the Microsoft Office Communicator Web Access server using an HTTP POST or HTTPS POST request.

Process flow: Starting an instant messaging session using the

BlackBerry Client for use with Microsoft Office Communications Server 2007 R2 or Microsoft Lync Server 2010

1. A BlackBerry device user logs in to a collaboration client on a BlackBerry device.

2. The device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the

BlackBerry Dispatcher over port 3101.

3. The BlackBerry Dispatcher sends the request to the BlackBerry Collaboration Service over port 3200. If the BlackBerry

Collaboration Service is located on a remote computer, the request remains encrypted using a Research In Motion proprietary protocol.

4. The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum

number of sessions was reached, and performs one of the following actions:

Feature and Technical Overview BlackBerry Enterprise Server process flows

• If the maximum number of sessions was reached and you configured a timeout limit, the BlackBerry Collaboration Service logs out any instant messaging sessions on devices that are outside of a wireless coverage area, and any instant messaging sessions that are no longer sending status messages to the BlackBerry Collaboration Service.

• If no idle sessions exist, the BlackBerry Collaboration Service sends a Server Busy status message to the device and rejects the login request.

• If you did not configure a maximum number of sessions and the number of sessions equals the total number that the HTTP persistent connection supports, the BlackBerry Collaboration Service sends a Failed status message to the device and rejects the login request.

BlackBerry Collaboration Service sends a login request in SIP format to the Microsoft Communication server and,

The for Microsoft Office Communications Server 2007 R2, sends a login request to Microsoft Active Directory directly.

The BlackBerry Collaboration Service opens the connection using TLS over port 5061.You can also configure the connection to use TCP for Microsoft Office Communications Server 2007 R2.

5. The BlackBerry Collaboration Service formats the request using a Microsoft API and sends the request to the Microsoft Communication server over an MTLS connection.

6. The Microsoft Communications Server accepts the request, processes the login information, and sends the acceptance

BlackBerry Collaboration Service.

to the

7. The BlackBerry Collaboration Service sends the message that contains the acceptance through the BlackBerry Dispatcher to the device in encrypted and compressed format, and creates a cache of the connectivity information to maintain the instant messaging session.

Windows authentication.

Process flow: Starting an instant messaging session using the BlackBerry Client for IBM Sametime

Feature and Technical Overview BlackBerry Enterprise Server process flows

1. A user logs in to a collaboration client on a BlackBerry device.

2. The BlackBerry device compresses and encrypts the user ID and password, and sends them through the BlackBerry Router to the BlackBerry Dispatcher over port 3101.

4. The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration

Service

logs out any instant messaging sessions on BlackBerry devices that are out of coverage, and any instant

messaging sessions that are no longer sending status messages to the

• If no idle sessions exist, the BlackBerry Configuration Database sends a Server Busy status message to the

BlackBerry device and rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the IBM

Sametime API supports, the BlackBerry Configuration Database sends a Failed status message to the BlackBerry device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and connects to the IBM Sametime server. The BlackBerry Collaboration

starts an encrypted proxy connection over TCP/IP using the IBM Sametime API, reformats the request from the

Service RIM proprietary protocol format into one that the IBM Sametime API supports, and sends the request.

By default, the BlackBerry Collaboration Service starts the connection over port 1533 unless you specify a custom port number.

BlackBerry Collaboration Service.

5. The IBM Sametime server accepts the login request from the BlackBerry device, starts a dedicated TCP/IP connection for the session, and listens for requests from the

6. The BlackBerry Collaboration Service sends the acceptance, in encrypted and compressed format, through the BlackBerry Dispatcher to the BlackBerry device, and creates a cache of the connectivity information to maintain the instant messaging session.

BlackBerry device for the session.

Process flow: Starting an instant messaging session using the BlackBerry Client for Novell GroupWise Messenger

Feature and Technical Overview BlackBerry Enterprise Server process flows

1. A user logs in to a collaboration client on a BlackBerry device.

2. The BlackBerry device compresses and encrypts the user ID and password and sends them through the BlackBerry

to the BlackBerry Dispatcher over port 3101.

Router

4. The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to find out if the maximum number of sessions has been reached, and performs one of the following actions:

• If the maximum number of sessions has been reached and a timeout limit is set, the BlackBerry Collaboration

Service logs out any instant messaging sessions on BlackBerry devices that are out of coverage, and any instant messaging sessions that are no longer sending status messages to the

BlackBerry Collaboration Service.

• If there are no idle sessions, the BlackBerry Configuration Database sends a Server Busy status message to the

BlackBerry device and rejects the login request.

• If the maximum number of sessions is not set and the number of sessions equals the total number that the Novell

GroupWise protocol supports, the BlackBerry device sends a Failed (300) status message to the BlackBerry device and rejects the login request.

The BlackBerry Collaboration Service checks the BlackBerry Configuration Database to verify that the user has permission to use the collaboration client, and connects to the Novell GroupWise Messenger server.

The BlackBerry Collaboration Service starts an encrypted proxy (SSL) connection using the Novell GroupWise protocol and sends the request. By default, the BlackBerry Collaboration Service opens the connection over port 8300, but it can also open the connection over a custom port number.

5. The Novell GroupWise Messenger server accepts the login request from the BlackBerry device, opens a dedicated SSL connection for the session, and listens for requests from the BlackBerry device.

Feature and Technical Overview BlackBerry Enterprise Server process flows

Process flow: Sending a file to a contact using the BlackBerry Client for IBM Sametime

1. A user opens a conversation with a contact, clicks Send File on the menu, and selects a file to send to the contact.

2. The BlackBerry Client for IBM Sametime creates an invitation request and sends it to the BlackBerry Collaboration Service.

3. The BlackBerry Collaboration Service checks the size of the file to verify that it does not exceed the maximum file size that you configure on the invitation request, and sends the request to the IBM Sametime server.

4. The IBM Sametime server checks the file size to verify that it does not exceed the maximum file size that you configured on the IBM Sametime server (by default, 1 MB), associates the file with the conversation that is open between the sender and recipient, and sends the request to the BlackBerry Collaboration Service.

5. The BlackBerry Collaboration Service converts the request into an instant messaging invitation and sends it to the client on the recipient's BlackBerry device.

6. In the conversation window on the recipient's client, the recipient receives a request to accept or decline the file. The recipient can also select an option to optimize the file for viewing on the

The BlackBerry Collaboration Service can optimize files for viewing on the BlackBerry device only if it has access to the BlackBerry Attachment Service in your organization's environment.

BlackBerry Enterprise Server, associates the file extension and the conversation ID with the

BlackBerry device.

7. The recipient accepts the request. If the recipient selected the optimize option, the file will be downloaded to the memory of the BlackBerry device. If the

recipient did not select the optimize option, the client prompts the recipient to save the file to a location in the file system on the BlackBerry device.

8. The recipient's client sends a content request packet to the BlackBerry Collaboration Service.

Feature and Technical Overview BlackBerry Enterprise Server process flows

9. The BlackBerry Collaboration Service requests the file size from the IBM Sametime server, and sends data to the IBM Sametime server to begin the file transfer process.

By default, the media transfer state on the BlackBerry Collaboration Service is set to transfer.

10. The sender's client sends the data for the file in content message packets to the BlackBerry Collaboration Service.

11. The BlackBerry Collaboration Service checks the order of the content message packets and sends them to the recipient's client using a BlackBerry instant messaging protocol.

12. The recipient's client receives the first content message packet, sends an acknowledgement message to the BlackBerry Collaboration Service, and requests the next content message packet from the BlackBerry Collaboration Service. This continues until the client receives all of the content message packets.

If the recipient selected the option to optimize the file for viewing, the BlackBerry Attachment Service converts the file into a format that is optimized for viewing on the BlackBerry device.

13. When the BlackBerry Collaboration Service receives an acknowledgement message for the last content message packet from the recipient's client, it changes its media transfer state to done and stops the file transfer process on the IBM Sametime server.

14. In the conversation window, the client notifies the recipient that the file has been received. The recipient can open the file from the conversation window or from the file system on the BlackBerry device. The

BlackBerry device uses the BlackBerry Browser to render supported files. If the recipient selected the option to optimize the file for viewing, the recipient can open and view supported files in the attachment viewer on the BlackBerry device. The recipient can also save the optimized file to a location in the file system on the BlackBerry device.

Message attachment process flows

Process flow: Viewing a message attachment

Feature and Technical Overview BlackBerry Enterprise Server process flows

1. A user receives a message with an attachment on a BlackBerry device.

2. The BlackBerry Messaging Agent verifies that the format of the attachment is valid for conversion. If the format is not valid and the user’s BlackBerry device is based, the Open Attachment menu item does not appear

on the user’s BlackBerry device.

3. The user clicks the Open Attachment menu item to view the attachment on the BlackBerry device.

4. The attachment viewer sends the request to the BlackBerry Messaging Agent.

5. The BlackBerry Messaging Agent connects to the BlackBerry Attachment Service over port 1900.

6. The BlackBerry Attachment Service retrieves the attachment in binary format from the user’s message store using the BlackBerry Messaging Agent link to the messaging server.

The BlackBerry Attachment Service distills the attachment and extracts the content, layout, appearance, and navigation information from the attachment.

The BlackBerry Attachment Service organizes, stores, and links the information in a proprietary DOM in a binary XML style.

The BlackBerry Attachment Service formats the attachment for the BlackBerry device and converts it to UCS format. The formatting is based on the request for content (for example, page and paragraph information, or search words) and the available BlackBerry device information (for example, screen size, display, or available space).

The BlackBerry Attachment Service sends the UCS data to the BlackBerry Messaging Agent using a TCP/IP connection over port 1900.

7. The BlackBerry Messaging Agent sends the converted attachment to the BlackBerry Dispatcher.

8. The BlackBerry Dispatcher compresses the first portion of the attachment, encrypts it using the device transport key of the BlackBerry device, and sends the first portion of the attachment to the BlackBerry Router.

9. The BlackBerry Router sends the first portion of the attachment to the wireless network over port 3101.

10. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network.

11. The wireless network delivers the attachment to the BlackBerry device.

12. The BlackBerry device sends a delivery confirmation to the BlackBerry Dispatcher, which sends it to the BlackBerry Messaging Agent. If the BlackBerry Enterprise Server does not receive a delivery confirmation within 4 hours, it sends the attachment data to the wireless network again.

13. The BlackBerry device uses its device transport key to decrypt and decompress the attachment so that the user can view the attachment.

14. The user views the attachment on the BlackBerry device by selecting a section from the table of contents, or by viewing the full attachment. The original formatting of the attachment, including indents, tables, fonts, and bullets, is reflected

BlackBerry device.

on the

Process flow: Viewing an attachment using a link

Feature and Technical Overview BlackBerry Enterprise Server process flows

1. A user clicks the Get Link menu item to view an attachment on a BlackBerry device.

2. The BlackBerry device sends the request to the BlackBerry Enterprise Server over port 3101.

3. The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4. The BlackBerry MDS Connection Service creates an HTTP session for the user and sends the request to the web server. The BlackBerry MDS Connection Service retrieves the requested content and sends it to the BlackBerry Attachment

Service.

5. The BlackBerry Attachment Service extracts the content, layout, appearance, and navigation information from the attachment and organizes, stores, and links the information in a proprietary DOM in a binary XML style.

6. The BlackBerry Attachment Service formats the attachment for the BlackBerry device and converts it to UCS format. The formatting is based on the request for content (for example, page and paragraph information, or search words) and

the available BlackBerry device information (for example, screen size, display, or available space).

7. The BlackBerry Attachment Service sends the converted attachment to the BlackBerry MDS Connection Service using HTTP.

8. The BlackBerry MDS Connection Service sends the first 250 KB of content to the BlackBerry Dispatcher over port

3200.

9. The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

10. The BlackBerry Router sends the encrypted content to the BlackBerry device.

11. The BlackBerry device uses its device transport key to decrypt and decompress the attachment content so that the user can view the attachment.

12. The user views the attachment on the BlackBerry device using the browser plug-in for the attachment viewer. The attachment viewer processes 3 KB at a time.

Feature and Technical Overview BlackBerry Enterprise Server process flows

Organizer data process flows

Process flow: Synchronizing organizer data for the first time on a BlackBerry device

1. A user activates a new BlackBerry device or upgrades an existing BlackBerry device and receives the service book for the BlackBerry Synchronization Service.

2. The BlackBerry device requests the synchronization configuration information from the BlackBerry Synchronization Service.

The configuration information indicates whether wireless data synchronization on the BlackBerry Enterprise Server is turned on, and which database can be synchronized. The configuration information also provides database synchronization types and conflict resolution settings. All data that the Server send between each other is compressed and encrypted.

3. The BlackBerry Synchronization Service returns the configuration information and synchronizes the databases using that information.

A synchronization agent on the BlackBerry device tracks which databases can be synchronized over the wireless network. If data already exists on both the BlackBerry device and BlackBerry Enterprise Server, the BlackBerry Synchronization Service merges, adds, or updates the records during the synchronization process. If data exists on only

BlackBerry device or BlackBerry Enterprise Server, the BlackBerry Synchronization Service restores the data from

the

BlackBerry device and BlackBerry Enterprise

Feature and Technical Overview BlackBerry Enterprise Server process flows

the appropriate location. The BlackBerry device and BlackBerry Enterprise Server do not delete records during the initial synchronization process.

After the BlackBerry Synchronization Service registers a database for wireless data synchronization, it can no longer be synchronized or restored using the BlackBerry Desktop Software.

The initial synchronization process is complete when the data on the BlackBerry device and the data on the BlackBerry Enterprise Server are synchronized. Future changes on the BlackBerry device or BlackBerry Enterprise Server are synchronized over the wireless network.

If the user changes data on the BlackBerry device or in the organizer application on the user's computer during the initial synchronization process, the BlackBerry Synchronization Service synchronizes the changes after the initial synchronization completes.

If the user connects the BlackBerry device to a computer that is running the BlackBerry Device Manager, the initial synchronization process can occur over the connection to the BlackBerry Router instead of over the wireless network.

Process flow: Synchronizing subsequent changes to organizer data

1. A user saves a change to the organizer data or BlackBerry device settings (for example, a new AutoText entry) on a BlackBerry device or in the organizer application on the user's computer.

2. Depending on where the user made the change, the BlackBerry device or the BlackBerry Enterprise Server adds the change to a changelist and sends the changelist to the

The changelist includes the target database and record information for the organizer application.

3. The BlackBerry Synchronization Service sends a change to organizer data over the wireless network, along with other entries in the changelist for the user.

BlackBerry Synchronization Service.

Feature and Technical Overview BlackBerry Enterprise Server process flows

The BlackBerry Synchronization Service sends other changes, including BlackBerry device information, time zone information, and backup and restore data, at the batch synchronization interval that is set on the BlackBerry Enterprise Server. By default, the batch synchronization interval is 10 minutes.

To prevent synchronization errors, the BlackBerry Enterprise Server and BlackBerry device can send only a single changelist at a time for a user account.

The BlackBerry Synchronization Service writes a synchronization request entry to the SynchRequest table of the BlackBerry Configuration Database, and sends the changed records to the BlackBerry Dispatcher.

4. The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router for delivery to the BlackBerry device.

5. The BlackBerry device sends a delivery confirmation to the BlackBerry Synchronization Service for each record that it receives.

6. The BlackBerry Synchronization Service receives delivery confirmations, deletes the corresponding synchronization request entries from the SyncRequest table, and writes an entry to the SyncRecordState table for each delivery confirmation.

Each organizer database record has a unique identifier that is mapped to a corresponding record on the BlackBerry device.

Process flow: Adding a contact picture on a BlackBerry device

1. A user adds a picture to a contact in the address book on a BlackBerry device and saves the change.

2. The BlackBerry device creates a changelist request to synchronize the changed record. The changelist request includes the updated record information and identifies the address book as the target for the update.

Feature and Technical Overview BlackBerry Enterprise Server process flows

The BlackBerry device compresses and encrypts the request, and sends the request to the BlackBerry Dispatcher over port 3101.

3. The BlackBerry Dispatcher uses the device transport key of the BlackBerry device to decrypt and decompress the request, and sends the request to the BlackBerry Synchronization Service.

4. The BlackBerry Synchronization Service receives the changelist request, writes a synchronization request entry in the SynchRequest table of the Dispatcher.

5. The BlackBerry Dispatcher sends the changed record, in XML format, to the BlackBerry Messaging Agent. If the file size of the picture exceeds 32 KB, the BlackBerry Messaging Agent rejects the synchronization request.

6. The BlackBerry Messaging Agent sends the changed record to the messaging server.

7. The messaging server updates the user’s personal contact list.

8. The BlackBerry Messaging Agent sends a delivery confirmation to the BlackBerry Dispatcher.

9. The BlackBerry Dispatcher sends the delivery confirmation to the BlackBerry Synchronization Service.

10. The BlackBerry Synchronization Service deletes the synchronization request entry from the SyncRequest table, writes an entry in the SyncRecordState table, and sends the delivery confirmation to the BlackBerry Dispatcher.

11. The BlackBerry Dispatcher encrypts the results using the device transport key of the BlackBerry device, compresses them, and sends them to the

12. The BlackBerry Router sends the results to the wireless network over port 3101.

13. The wireless network verifies that the PIN belongs to a valid BlackBerry device and sends the delivery confirmation to the BlackBerry device.

If the BlackBerry device does not receive the delivery confirmation from the wireless network within 20 minutes, it sends the synchronization request to the wireless network again. If the BlackBerry device does not receive the delivery confirmation within 8 hours, it stops resending the synchronization request to the wireless network.

BlackBerry Configuration Database, and sends the changed record to the BlackBerry

BlackBerry Router.

Mobile data process flows

Process flow: Requesting BlackBerry Browser content on a BlackBerry device

Feature and Technical Overview BlackBerry Enterprise Server process flows

1. A user requests Internet or intranet content from your organization's content server using the BlackBerry Browser on a BlackBerry device.

2. The BlackBerry device sends the request to the BlackBerry Enterprise Server over port 3101.

3. The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4. The BlackBerry MDS Connection Service creates an HTTP session for the user and retrieves the requested Internet or intranet content from the content server.

The BlackBerry MDS Connection Service converts the content so that the user can view it on the BlackBerry device, and sends the content to the

BlackBerry Dispatcher over port 3200.

5. The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

6. The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

7. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network and sends the encrypted content to the BlackBerry device.

8. The BlackBerry device sends a delivery confirmation to the BlackBerry Router, and decrypts and decompresses the content so that the user can view it in the BlackBerry Browser.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

Feature and Technical Overview BlackBerry Enterprise Server process flows

Process flow: Requesting BlackBerry Browser content while access control is turned on for the BlackBerry MDS Connection Service

1. A user requests Internet or intranet content from your organization's content server using the BlackBerry Browser on a BlackBerry device.

2. The BlackBerry device sends the request to the BlackBerry Enterprise Server over port 3101.

3. The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4. The BlackBerry MDS Connection Service checks the BlackBerry Configuration Database to verify whether pull authorization is turned on, and whether the user has permission to pull content from the specified content server.

If the user does not have permission to pull content from the specified content server, the BlackBerry MDS Connection

rejects the request and sends an error message to the BlackBerry device.

Service

5. The BlackBerry MDS Connection Service creates an HTTP session for the user and sends the user’s authentication credentials to the content server. If the user authenticates, the BlackBerry MDS Connection Service sends the HTTP request to the content server. If the user does not authenticate, the BlackBerry Browser displays an HTTP 403 Error message, and prompts the user to type the correct credentials.

6. The BlackBerry MDS Connection Service retrieves the content from the content server, converts it so that the user can view it on the

7. The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

8. The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

Feature and Technical Overview BlackBerry Enterprise Server process flows

9. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network and sends the encrypted content to the BlackBerry device.

10. The BlackBerry device sends a delivery confirmation to the BlackBerry Router, and decrypts and decompresses the content so that the user can view it in the BlackBerry Browser.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

Process flow: Requesting BlackBerry Browser content with two-factor authentication turned on

1. A user requests Internet or intranet content from your organization's content server using the BlackBerry Browser on a BlackBerry device.

2. The BlackBerry device sends the request to the BlackBerry Enterprise Server over port 3101.

3. The BlackBerry Dispatcher sends the request to the BlackBerry MDS Connection Service over port 3200.

4. The BlackBerry MDS Connection Service checks whether the user's BlackBerry device is running an authenticated connection that can support the content request.

If the BlackBerry device is not running an authenticated connection, the BlackBerry MDS Connection Service redirects the user to a login web page. If the user logs in, using an Connection Service creates a connection to the content server. By default, the BlackBerry device caches the user’s information for 24 hours of activity on the authenticated connection, or 60 minutes of inactivity.

The BlackBerry MDS Connection Service creates an HTTP session for the user and retrieves the Internet or intranet content from the content server. The BlackBerry MDS Connection Service converts the content so that the user can view it on the BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

RSA SecurID user name and passcode, the BlackBerry MDS

Feature and Technical Overview BlackBerry Enterprise Server process flows

5. The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

6. The BlackBerry Router sends the encrypted content to the wireless network over port 3101.

7. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless network and sends the encrypted content to the BlackBerry device.

8. The BlackBerry device sends a delivery confirmation to the BlackBerry Router, and decrypts and decompresses the content so that the user can view it in the BlackBerry Browser.

If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit, it sends a message to the wireless network to delete the pending content.

Process flow: Pushing application content to a BlackBerry device

1. A push application on an application server or a content server behind your organization's firewall sends an HTTP POST request to a central push server over the listen port for the content server. The default port number is 8080.

You can define one or more instances of the BlackBerry MDS Connection Service in a BlackBerry Domain as a central push server. A push application specifies the BlackBerry Enterprise Server host name and the connection port number that the BlackBerry MDS Connection Service listens on.

2. The central push server checks the BlackBerry Configuration Database for the following information about the intended recipients of the application content: the PINs that are associated with the user accounts, whether the PINs are enabled for the users are located on.

BlackBerry MDS Connection Service, and the active BlackBerry Enterprise Server instances that the

Feature and Technical Overview BlackBerry Enterprise Server process flows

User accounts that do not appear in the BlackBerry Configuration Database, or that are pending deletion, cannot receive the push content.

The central push server responds to the push application to acknowledge that it is processing the request, and sends the push content to the BlackBerry MDS Connection Service instances that have active, primary connections to the BlackBerry Enterprise Server instances.

3. The BlackBerry MDS Connection Service converts the content so that the user can view it on the BlackBerry device, and sends the content to the BlackBerry Dispatcher over port 3200.

4. The BlackBerry Dispatcher compresses the content, encrypts it using the device transport key of the BlackBerry device, and sends the encrypted content to the BlackBerry Router.

5. The BlackBerry Router sends the encrypted content to the wireless network over port 3101. The wireless network verifies that the PIN belongs to a valid BlackBerry device that is registered with the wireless

network, and sends the encrypted content to the BlackBerry device.

6. The BlackBerry device sends a delivery confirmation to the BlackBerry Router. If the BlackBerry MDS Connection Service does not receive a delivery confirmation within the flow control timeout limit,

it sends a message to the wireless network to delete the pending content.

7. The BlackBerry device decrypts and decompresses the content. The BlackBerry Application detects the incoming content by listening on a port number that the application developer

specified. For example, the BlackBerry Browser listens for push application connections on port 7874. The application displays the content on the BlackBerry device when the user runs the application.

Process flow: Installing a BlackBerry Java Application on a BlackBerry device over the wireless network

1. A developer creates a BlackBerry Java Application using the BlackBerry Java Development Environment or another Java authoring tool. The developer produces an application bundle.

The application bundle contains an .alx file that stores information about the attributes of the BlackBerry Java Application, including the author name, a description of the application, and copyright information.

2. In the BlackBerry Administration Service, you publish the application bundle to the application repository.

Feature and Technical Overview BlackBerry Enterprise Server process flows

3. You create a software configuration and add the BlackBerry Java Application to the software configuration. You specify that the application is required, assign an application control policy to the application, and specify wireless delivery to BlackBerry devices.

You assign the software configuration to a group.

4. The BlackBerry Administration Service creates a deployment job. A deployment job represents the objects that must be sent to each user's BlackBerry device and consists of multiple

tasks. Each task manages the delivery of an object (for example, a

BlackBerry Java Application, an access control

policy, or an IT policy) to a BlackBerry device.

5. The delivery manager component of the BlackBerry Administration Service receives tasks to send a BlackBerry Java Application

to BlackBerry devices.

6. The BlackBerry Administration Service exports the files for the BlackBerry Java Application to a shared network folder.

7. The delivery manager converts the tasks into send module commands, queues send module commands into logical groups for each user, and sends the send module commands to the BlackBerry Policy Service. Separate applications are queued in separate groups.

8. The BlackBerry Policy Service processes the send module commands in the queue in sequence. When the BlackBerry Policy Service processes a group of send module commands, it retrieves the data for the BlackBerry Java Application from the shared network folder, and sends the send module commands with the application data to the BlackBerry Dispatcher.

If the send module commands are less than 56 KB, the BlackBerry Policy Service sends them in one data packet. If the send module commands exceed 56 KB, the BlackBerry Policy Service sends them in multiple data packets.

9. The BlackBerry Dispatcher sends the send module commands to the BlackBerry Router.

10. The BlackBerry Router sends the send module commands to a BlackBerry device over the wireless network.

11. The BlackBerry device installs the BlackBerry Java Application. The BlackBerry device sends an acknowledgement packet for the

BlackBerry Java Application to the BlackBerry Router.

12. The BlackBerry Router sends the acknowledgement packet to the BlackBerry Dispatcher.

13. The BlackBerry Dispatcher delivers the acknowledgement packet to the BlackBerry Policy Service.

14. The BlackBerry Policy Service clears the send module commands for the BlackBerry device from the queue and processes the next group of send module commands that are in the queue.

15. The BlackBerry Administration Service displays that the BlackBerry Java Application was delivered to the BlackBerry device.

If the BlackBerry device does not receive all of the send module commands within 4 hours, the BlackBerry device sends a failure acknowledgement packet to the BlackBerry Policy Service. The BlackBerry Administration Service detects the failure acknowledgement packet and displays an installation failure message for the BlackBerry device.

100

Blackberry Wireless Handset User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Document revision history

Feature and Technical Overview What's New in BlackBerry Enterprise Server 5.0 SP4

Feature and Technical Overview Overview: BlackBerry Enterprise Server

Feature and Technical Overview BlackBerry Enterprise Server architecture

Architecture: BlackBerry Enterprise Server

Architecture: Remote BlackBerry Collaboration Service

Architecture: Remote BlackBerry MDS Connection Service

Architecture: Remote BlackBerry Router

Architecture: Remote BlackBerry Administration Service

Architecture: Remote BlackBerry Attachment Service

Architecture: BlackBerry Web Desktop Manager

Feature and Technical Overview BlackBerry Enterprise Server components and features

BlackBerry Administration Service

BlackBerry Configuration Panel

BlackBerry Mail Store Service

Database tables in the BlackBerry Configuration Database that store contact information

Contact information that the BlackBerry Mail Store Service stores in the BlackBerry Configuration Database

How the BlackBerry Mail Store Service accesses contact information that is stored on the messaging server

Configuring the BlackBerry Mail Store Service instance that updates the contact list

BlackBerry messaging and collaboration services

BlackBerry Messaging Agent

Wireless messaging features

Access to documents on a network from BlackBerry devices

BlackBerry Collaboration Service

Instant messaging features

BlackBerry Synchronization Service

Synchronization features

BlackBerry Attachment Service

Attachment file formats that the BlackBerry Attachment Service supports

BlackBerry MDS Connection Service

BlackBerry Applications

BlackBerry Browser Applications

BlackBerry Java Applications

Managing BlackBerry Java Applications and BlackBerry Device Software

BlackBerry device management

Controlling third-party applications on BlackBerry devices

BlackBerry Policy Service

BlackBerry Router

BlackBerry Web Desktop Manager

Comparison of BlackBerry Web Desktop Manager and BlackBerry Desktop Software features

Managing a distributed environment for BlackBerry Enterprise Server components

Wireless activation

Feature and Technical Overview BlackBerry Enterprise Solution security

Security features of the BlackBerry Enterprise Solution

Encrypting data that the BlackBerry Enterprise Server and a BlackBerry device send to each other

Algorithms that the BlackBerry Enterprise Solution uses to encrypt data

How the BlackBerry Enterprise Solution uses AES to encrypt data

How the BlackBerry Enterprise Solution uses Triple DES to encrypt data

Extending messaging security to a BlackBerry device

Encrypting user data on a locked device

Encrypting the device transport key on a locked device

Managing device access to the BlackBerry Enterprise Server

Using an IT policy to manage BlackBerry Enterprise Solution security

Using IT administration commands to protect a lost or stolen device

Feature and Technical Overview BlackBerry Enterprise Server high availability

BlackBerry Enterprise Server high availability in a small-scale environment

How the BlackBerry Enterprise Server calculates health scores

Conditions for failover to a standby BlackBerry Enterprise Server

How a primary BlackBerry Enterprise Server self-demotes

Scenario: What happens after a primary BlackBerry Enterprise Server stops responding

Scenario: What happens after the health score of a primary BlackBerry Enterprise Server falls below the failover threshold

BlackBerry Configuration Database high availability

BlackBerry Configuration Database mirroring

Scenario: What happens after the principal BlackBerry Configuration Database stops responding

High availability in a distributed environment

Wi-Fi enabled devices

Types of Wi-Fi networks

Wireless access points

Connections that BlackBerry devices make to mobile and Wi-Fi networks

Connecting Wi-Fi enabled BlackBerry devices to the BlackBerry Enterprise Server over a Wi-Fi connection

Direct connections between BlackBerry devices and the BlackBerry Router over an enterprise Wi-Fi network

Wi-Fi connection when a VPN connection or direct connection between BlackBerry devices and the BlackBerry Router is not possible

Priority for connections that BlackBerry devices make over a Wi-Fi network

BlackBerry services that are available over Wi-Fi connections

IEEE 802.11 wireless networking standards that Wi-Fi enabled BlackBerry devices support

Characteristics of the IEEE 802.11a wireless networking standard that Wi-Fi enabled BlackBerry devices support
