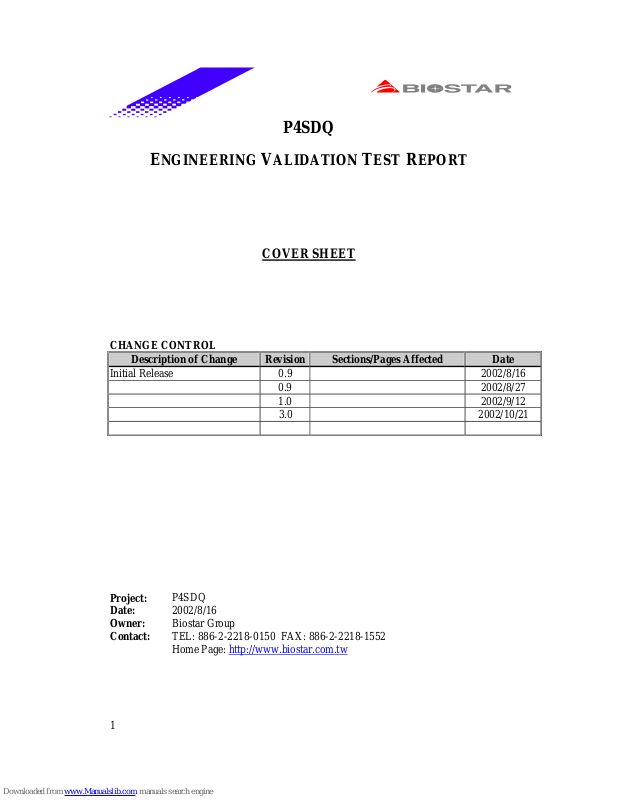

NGINEERING VALIDATION TEST REPORT
COVER SHEET
CHANGE CONTROL
Description of Change Revision Sections/Pages Affected Date
Initial Release 0.9 2002/8/16
0.9 2002/8/27
1.0 2002/9/12
3.0 2002/10/21
Project:
P4SDQ
Date:
2002/8/16
Owner:
Biostar Group
Contact:
TEL: 886-2-2218-0150 FAX: 886-2-2218-1552
Home Page: http://www.biostar.com.tw
2
CONTENTS
PRODUCT INFORMATION.................................... ............................... 4
Motherboard G e n e ral Information
..................................................................... 4
Chipset Details
........................................................................................................ 4
BIOS Det ails
............................................................................................................ 4
CPU Supports
.......................................................................................................... 4
Memory Supports
................................................................................................... 4
On-board Features and Devices
.......................................................................... 4
Mechanical
............................................................................................................... 5
DESIGN REVIEW Ver1.0........................ ................................................ 7
Mainboard Voltag e Measurement
...................................................................... 7
Bus Clock
.................................................................................................................7
UIRED BIOS DEFAULT SETTINGS................. ..................................... 8
BIOS FEATURES SETUP
..................................................................................8
CHIPSET FEATURES SETUP
......................................................................... 8
POWER MANAGEMENT SETUP
.................................................................. 8
PnP / PCI CONFIGURATION
........................................................................... 9
INTEGRATED PERIPHERALS
....................................................................... 9
PC Health Statues
................................................................................................. 10
FUNCTIONALITY ................................................................................. 12
Setup Installati on Test Of Operating System
................................................ 12
Basic On-board Function Test
.......................................................................... 12
MS-DOS Operating
............................................................................................. 12
Windows ME Operating
..................................................................................... 15
Windows2000 Oper ating
................................................................................... 18
Windows XP (Home Edition ) Operating
...................................................... 21
Windows XP (Professional ) Operat ing
......................................................... 27
Linux (Red Hat 7.3) Operating
......................................................................... 29
PERFORMANCE TEST......................................................................... 30
Windows ME
........................................................................................................ 30
Windows 2000
...................................................................................................... 31
Windows XP
.......................................................................................................... 32
Display Card
Performance .................................................................................... 33
HARDWARE COMPATIBILITY LIST........................ ........................ 34
CPU
......................................................................................................................... 34
CD-ROM
................................................................................................................ 34
Camera Device
...................................................................................................... 34
DVD-ROM
............................................................................................................ 35
Display Card
.......................................................................................................... 35
3
FDD
......................................................................................................................... 36
HDD
........................................................................................................................ 36
Joystick
................................................................................................................... 37
Keyboard
................................................................................................................ 38
LAN Card
............................................................................................................... 38
LAN HUB
.............................................................................................................. 39
Memory
.................................................................................................................. 39
Modem Card
.......................................................................................................... 40
Mouse
...................................................................................................................... 40
Monitor
................................................................................................................... 41
Power Supply
........................................................................................................ 41
Printer
...................................................................................................................... 41
Scanner
................................................................................................................... 42
SCSI Card
.............................................................................................................. 42
Sound Card
............................................................................................................ 42
USB HUB & USB 2.0 DEVICE
...................................................................... 43
ZIP/LS120
.............................................................................................................. 43
1394
......................................................................................................................... 43
SOFTWA RE COMPATIBILITY LIST.......................................... ....... 44
DOS
......................................................................................................................... 44
Windows
................................................................................................................. 44
FOUR CORNER TEST-Ver 1.0 ................. ............................................ 45
V
CORE
OCP & OVP TEST-Ver1.0........................................................... 46
THERMAL IMAGE TEST..................................................................... 47
4
PRODUCT INFORMATION
Motherboard General Information
Vendor
Biostar
Model Number P4 SDQ
Version Number V0.90/V1.0/V3.0
Platform ! AT ! ATX " Micro ATX ! Flex A TX
Chipset Details
System Chipset Vendor
SiS
North Bridge Revision 651
South Bridge Revision 962L
Super I/O Chip Vendor ITE
Super I/O Revision Num ber IT8705F
Clock Generator Vendor ICS
Clock Generator Revision UA730164
VGA Chipset Vendor SiS
Audio Chipset Vendor C-Media
Audio Chipset Revision CMI 9739A
LAN Chipset Vendor VIA
LAN Chipset Revision VT6103
BIOS Details
BIOS Vendor ! AMI " Award ! Phoenix ! Others
BIOS Revision Number SDQ1024x
BIOS Memory Size ! 1M " 2M ! 4M
Flash EPROM BIOS " Yes ! No
CPU Supports
Type CPU CPU Frequency Front Side Bus Comments:
Socket 478 Intel Pentium 4 Max =2800Mhz Max =133Mhz
Socket 478 Intel Pentium 4 Max =2600Nhz Max =100Mhz
Socket 478 Intel Celeron Max =2000Mhz Max =100Mhz
Memory Supports
Maximum Memory Support DDR 1G (MB)
Number of Memory Slots " DDR 2 .
Type of Memory Supported ! VCM ! SDRAM ! RDRAM " DDR RAM
Parity Support ! Yes " No ! N/A
ECC Support ! Yes " No ! N/A
On-board Features and Devices
No of PCI Full Leng th Slots ! 2 " 3 ! 4 ! 5
AMR Slot Support ! Yes " No
CNR Slot Support " Yes ! No
ACR Slot Support ! Yes " No
Number of Shared Slots " 1 ! None
5
66/100/133 MHz Front Side Bus Supports " Yes ! No
PC 133 Support " Yes ! No
DDR 266 Support " Yes ! No
PCI v2.2 Compliance " Yes ! No
ATA-3 Compliance " Yes ! No
ATAPI Compliance " Yes ! No
Ultra DMA 33 Support " Yes ! No
Ultra DMA 66 Support " Yes ! No
ATA-133 Support " Yes ! No
USB 1.1 Connector Support " Yes ! No
USB 2.0 Connector Support " Yes ! No
AGP (2X/4X) Slot Support " Yes ! No
Support AGP SideBand Addressing Mode " Yes ! No
Infrare d Support " Yes ! No
Enhanced Parallel Port " Yes ! No
DMI Compliance " Yes ! No
Hardware Monitor Support " Yes ! No
ACPI v1.0B/APM v1.2 Compliance " Yes ! No
On-board Graphics Controller " Yes ! No
On-board Network Adapter ! 1Mb ! 10Mb " 100Mb ! No
On-board Audio Device ! Hardware " AC97 CODEC ! No
Digital Video Connector Support ! Yes " No
Other Function Support
Mechanical
Board Dimensions Length 24.4 cm Width 22.9 cm
Visual Inspection of Soldering " Excellent ! Fair ! Poor
Visual Inspection of Layout Placement Connectors Quality
Screw Holes Line Up with Case " Yes ! No " Excellent ! Fair ! Poor
Power Connector placement in PCB
"
Yes ! No
"
Excellent ! Fair ! Poor
DIMM/RIMM Socket placement in PCB " Yes ! No " Excellent ! Fair ! Poor
CPU Socket placement in PCB " Yes ! No " Excellent ! Fair ! Poor
FAN Connector placement in PCB " Yes ! No " Excellent ! Fair ! Poor
FDD Connector placement in PCB " Yes ! No " Excellent ! Fair ! Poor
IDE Connector placement in PCB " Yes ! No " Excellent ! Fair ! Poor
Front Panel Connectors in PCB " Yes ! No ! None " Excellent ! Fair ! Poor
PS/2 Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
USB Port Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
COM Port Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
Printer Port Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
VGA Port Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
Audio Port Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
Game Port Connectors Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
6
AGP Slot(Card) Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
PCI Slots(Card) Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
AMR Slot(Card) Line Up in Case ! Yes ! No " None ! Excellent ! Fair ! Poor
CNR Slot(Card) Line Up in Case " Yes ! No ! None " Excellent ! Fair ! Poor
ACR Slot(Card) Line Up in Case ! Yes ! No " None ! Excellent ! Fair ! Poor
Daughter Card Slot in PCB ! Yes ! No " None ! Excellent ! Fair ! Poor
Wake-on LAN connector in PCB " Yes ! No ! None " Excellent ! Fair ! Poor
Wake-on Modem connector in PCB ! Yes ! No " None ! Excellent ! Fair ! Poor
CD Audio-in Connector in PCB " Yes ! No ! None " Excellent ! Fair ! Poor
AUX Audio-in Connector in PCB ! Yes ! No " None ! Excellent ! Fair ! Poor
Telephony Connector in PCB ! Yes ! No " None ! Excellent ! Fair ! Poor
Digital Video Connector ! Yes ! No " None ! Excellent ! Fair ! Poor
Other Jumper in PCB " Yes ! No ! None " Excellent ! Fair ! Poor
Comments:
7
DESIGN REVIEW Ver1.0
Mainboard Voltage Measurement
Voltage List Voltage SPEC Voltage Measured Result
Battery Voltage 3.0V 3.13V Pass
Battery Current 7uA 2uA Pass
+5V 5.0V+-5% 5.13V Pass
+12V 12.0V+-5% 11.74V Pass
-5V -5.0V+-5% -5.08V Pass
-12V -12.0V+-10% -11.88V Pass
+3.3V +3.3V+-5% 3.3V Pass
Bus Clock
Clock Frequency Spec Value
(MHz)
Measured Value
(MHz)
Pass/Fail
CPU and Clock Host 100.00 101.6 Pass
133.33 132.3 Pass
DDR_RAM Clock 100.00 99.21 Pa ss
133.33 133 Pass
PCI Clock 33.33 33.33 Pass
AGP Clock 66.67 66.49 Pass
USB Clock 48 48.26 Pass
Reference Clock 14.31818 14.20 Pass
Clock Voltage Level Spec Value (v) Measured Value Pass/Fail
CPU and Host Clock Voltag e Level 0.7~1.2v 0.98V Pass
DDR_RAM Clock Voltage Level 2.5v 2.57V Pass
PCI Clock Voltage Level 3.3v 3.44V Pass
AGP Clock Voltage Level 3.3v 3.42V Pass
Reference Clock V oltage Level 3.3v 2.88V Pass
Clock Timing Spec Value (v) Measured Value Pass/Fail
CPU Clock High Time 100.00 Min 2.5ns 4.32 Pass
(90%) 133.33 Min 1.4ns 3.64 Pass
CPU Clock Low Time 100.00 Min 2.4ns 4.48 Pass
(10%) 133.33 Min 1.4ns 3.28 Pass
CPU Clock Rising Time 100.00 ~1.6ns 0.56 Pass
(10%~90%) 133.33 ~1.6ns 0.24 Pass
CPU Clock Falling Time 100.00 0.4ns~1.6ns 0.56 Pass
(90%~10%) 133.33 0.4ns~1.6ns 0.4 Pass
PCI Clock High Time Min.11ns 15 Pass
PCI Clock Low Time Min.11ns 14.2 Pass
PCI Clock Rising Time ~4ns 0.4 Pass
PCI Clock Falling Time ~4ns 0.4 Pass
8
UIRED BIOS DEFAULT SETTINGS
Lists Specification Result
BIOS FEATURES SETUP
Virus Warning Disabled Pass
CPU L1 & L2 Cache Enabled Pass
CPU L2 Cache ECC Checking Enabled Pass
Quick Power On Self Test Enabled Pass
First Boot Device Floppy Pass
Second Boot Device HDD-0 Pass
Third Boot Device LS120 Pass
Boot Other Device Enabled Pass
Swap Floppy Seek Disabled Pass
Boot Up Floppy Seek Disabled Pass
Boot Up NumLock Status On Pass
Gate A20 Option Fast Pass
Typematic Rate Setting Disabled Pass
Typematic Rate(Chars/Sec) 6 Pass
Typema tic Delay(MSEC) 250 Pass
Security Option Setup Pass
APIC Mode Enabled Pass
MPS Version Control For OS 1.4 Pass
OS Select For DRAM>64MB Non-OS2 Pass
HDD S.M.A.R.T. Capability Disabled Pass
Report NO FDD For WIN95 NO Pass
Video BIOS Shadow Enabled Pass
Summary Screen Show Disabled Pass
CHIPSET FEATURES SETUP
Advanced DRAM Control Press Enter Pass
DRAM Timing Control By SPD Pass
RAS Precharge Time(tRP) 3T Pass
RAS Active Time(tRAS) 6T Pass
RAS to CAS Delay(tRCD) 3T Pass
CAS Latency Setting By SPD Pass
DRAM Addr/Cmd Rate AUTO Pass
CAS Latency Setting Auto Pass
DRAM Addr/Cmd Rate Auto Pass
Prefetch Caching Enabled Pass
Memory Hole at 15M-16M Disabled Pass
AGP Aperture Size 64MB Pass
Graphic Window WR Combin Disabled Pass
POWER MANAGEMENT SETUP
ACPI Function Enabled Pass
9
ACPI Suspend Type S1(POS) Pass
Power Management User Define Pass
Suspend Mode Disabled Pass
Video Off Option Susp,Stby -> Off Pass
Video Off Method DPM S Su pp orted Pass
Switch Function Break/Wake Pass
Modem Use IRQ Auto Pass
Hot Key Function As Power Off Pass
HDD Off After Disable Pass
Power Button Override Instant Off Pass
Power State Resume Control Always Off Pass
PM Wake Up Events Press Enter Pass
IRQ [3-7,9-15],NMI Enabled Pass
IRQ 8 Break Suspend Disabled Pass
RING/WOL Power Up Control Disabled Pass
MACPME Power Up Control Disabled Pass
PCIPME Power Up Control Disabled Pass
Power Up by Alarm Disabled Pass
X Month Alarm NA Pass
X Date(of Month) Alarm 0 Pass
X Time(hh:mm :ss)Alarm 0 0 0 Pass
PnP / PCI CONFIGURATION
Reset Configuration Data Disabled Pass
Resources Controlled By Auto(ESCD) Pass
X IRQ Resources Press Enter Pass
PCI/VGA Palette Snoop Disabled Pass
INTEGRATED PERIPHERALS
SIS OnChip IDE Device Press Enter Pass
Internal PCI/IDE Both Pass
IDE Primary Master PIO Auto Pass
IDE Primary Slave PIO Auto Pass
IDE Secondary Master PIO Auto Pass
IDE Secondary Slave PIO Auto Pass
Primary Master UltraDMA Auto Pass
Primary Slave UltraDMA Auto Pass
Secondary MasterUltraDMA Auto Pass
Secondary Slave UltraDMA Auto Pass
IDE Burst Mode Enabled Pass
SIS OnChip PCI Device Press Enter Pass
SIS USB Controller Enabled Pass
USB Ports Number 6 Ports Pass
USB 2.0 Supports Enabled Pass
USB Keyboard Support Disabled Pass
10
SIS AC97 AUDIO Auto Pass
SIS S/W Modem Auto Pass
SIS 10/100M ETHERNET Auto Pass
SiS MAC Address Input Press Enter Pass
Onboard SuperIO Device Press Enter Pass
Onboard FDC Controller Enabled Pass
Onboard Serial Port 1 3F8/IRQ4 Pass
Onboard Serial Port 2 Disabled Pass
UART Mode Select IrDA Pass
RxD , TxD Active Hi,Lo Pass
IR Transmission Delay Enabled Pass
UR2 Duplex Mode Half Pass
Onboard Parallel Port 378/IRQ7 Pass
Parallel Port Mode SPP Pass
EPP Mode Select EPP1.7 Pass
ECP Mode Use DMA 3 Pass
Game Port Address 201 Pass
Midi Port Address 330 Pass
Midi Port IRQ 10 Pass
IDE HDD Block Mode Enabled Pass
Init Display First PCI Slot Pass
AGP Auto Calibration Enabled Pass
System Share Memory Size 32 MB Pass
IDECH0 Access Interface EDB Bus Pass
IDECH1 Access Interface EDB Bus Pass
USB0 Access Interface EDB Bus Pass
USB1 Access Interface EDB Bus Pass
USB2 Access Interface EDB Bus Pass
USB2.0 Access Interface EDB Bus Pass
MAC Access Interface EDB Bus Pass
Audio Access Interface EDB Bus Pass
PC Health Statues Write Actual Values
Shutdown Temperature Disabled
CPU Vcore 1.40 V
AGP Voltage 3.42 V
+ 3.3 V 3.44 V
+ 5.0 V 5.13 V
+12.0 V 11.58 V
-12.0 V (-) 11.62 V
- 5.0 V (-) 5.05 V
5V(SB) 4.94 V
Voltage Battery 3.13 V
11
Current CPU Temp
35℃
Current CPU FAN Speed 4440 RPM
Current SYS FAN Speed 4687 RPM
Show H/W Monitor in POST Enabled
Comments:
12
FUNCTIONALITY
Setup Installation Test Of Operating System Pass/Fail
Windows ME Pass
Windows 2000 Professional Pass
Windows XP Home Edition Pass
Windows XP Professional Pass
Linux (Red Hat 7.3) Pass
Basic On-board Function Test
Test Platform MS-DOS Operating Comment
CPU P4 2.53 G
Memory HYNIX / 128* 2 / HY5DU28822BT-H
HDD QUANTUM 40 G
DVD-ROM PIONNER -DVD 116
Sound Card Onboard /CMI 9739A
Video Card Onboard / SIS650
LAN Card Intel 82557 , 82559
Test Item Pass/Fail
Clear CMOS with Jumper Pass
Cold Boot (Power Turn on ) Pass
CMOS Load Default Setup Pass
Memory Size Counter Check Pass
Warm Boot (HW/SW Reset) Pass
System Configuration Review (CPU Type/Cache/SDRAM/HDD Pass
Power Fail Function Test Pass
Prompt Into DOS Mode Pass
Typing Some DOS Comment Pass
Run Scandisk Pass
PS/2 Keyboard Test Pass
USB Keyboard Legacy Support Test Pass
Boot Floppy Driver A Pass
FDISK Hard Disk Driver Pass
Format Hard Disk Driver Pass
Boot Hard Disk Driver C Pass
Power LED Check Pass
HDD LED Check Pass
Systems Speaker Pass
Buzz None
BIOS / Update BIOS Utility Test Pass
SMI Function Test --SMI Pin Function Test Pass
Time Out Function Test Pass
13
Power LED Flash Check Pass
Power On Control --Power On By RTC Test Pass
Power On By LAN Test Pass
Power On By Modem Test Pass
Boot Management --Boot Form CD-ROM Pass
Boot From SCSI HDD Pass
Boot From ATAPI ZIP/LS120 Drive Pass
Boot From LAN Pass
RTC Test
---
CMOS RTC Date Check Pass
Windows ME RTC Date Check Pass
CMOS RTC Time Out Test Pass
Windows ME RTC Time Out Test Pass
Checkit 4.0 --System Board Test Pass
Memory Test Pass
Hard Disk Test Pass
Floppy Test Pass
Serial Port Test Pass
Parallel Port Test Pass
Modem Test Pass
Video Card Test Pass
Printer Test Pass
Keyboard Test Pass
AMIDiag 6.0 ---
System --Processor Test Pass
DMA Controller Test Pass
Interrupt Controller Test Pass
Timer Test Pass
Real Time Clock Test Pass
CMOS Validity Test Pass
Speaker Test Pass
PCI System Test Pass
Plug-n-Play Test Pass
Memory --BIOS ROM Test Pass
Parity Test Pass
Pattern Test Pass
Extended Pattern Test Pass
Walking 1’s Test Pass
14
Walking 0’s Test Pass
Random Memory Test Pass
Address Test Pass
Refresh Test Pass
Data Bus Test Pass
Cache Memory Test Pass
L2 Cache Test Pass
IDE --IDE HDD Test Pass
IDE CD Test Pass
FDD --Drive Speed Test Pass
Random R/W Test Pass
Sequential R/W Test Pass
Elevator Seek Test Pass
Disk Change L ine Test Pass
KBD --Controller Test Pass
Scan/ASCII code test Pass
Keyboard LED Test Pass
Keyboard Clock Line Test Pass
Keyboard Data Line Test Pass
Video --Video Memory Test Pass
Attribute Test Pass
Page Selection Test Pass
Color Test Pass
Text Mode Test Pass
Graphics Mode Test Pass
VESA Video Mode Test Pass
VESA Monitor Test Pass
Misc. --Serial Port Test Pass
Parallel Port Test Pass
PS/2 Mouse Test Pass
APM Functionality Test Pass
Device APM Test Pass
ACPI Test Pass
I82557 Ethernet chip Pass
Comments:
15
Test Platform Windows ME Operating Comment
CPU P4-2600
Memory SAMSUNG 256M X2
HDD IBM DTLA-307030
CDROM LITEON 52X
Sound Card On board
Video Card On board
LAN Card On board
Test Item Pass/Fail
System Comparability Test ---
Windows ME Setup Installation Test Pass
Supports Driver Installation Test Pass
System Properties Information Review (System Device Manager) Pass
Standby Mode Test Pass
Shut Down Test Pass
Restart Test Pass
Scandisk Test Pass
Reboot The Windows Test For Over Night Pass
Suspend To RAM (S3) Test
---
Standby Button for S3 (Enter) Pass
Power Button for S3 (Enter and Wake up) Pass
Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Power LED Flash check Pass
Onboard Audio For S3 Function Supports Test (Play CD/DVD) Pass
Hibernate(S4) Test
---
Standby Button for S4 (Enter) Pass
Power Button for S4 (Enter and Wake up) Pass
Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboard Test Pass
PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse PnP Test Pass
Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass
FDD Connector Test
---
Create Windows ME Startup Disk Pass
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
CD-ROM Data Read Test Pass
16
DVD-ROM Data Read Test Pass
Ultra DMA 100/133 Hard Disk Test Pass
USB Ports Test --Add Keyboar d PnP Test Pass
Add Mouse PnP Test Pass
PCI Slots Test ---
Add LAN Cards Test
---
Boot ROM Function Test Pass
Add LAN Card Test Pass
Login Server Test Pass
Power On By LAN Test (Intel 82558B) Pass
Shut Down By LAN Test Pass
ADSL Link Test Pass
Add SCSI Cards Test
---
Add SCSI Cards For PnP Function Test Pass
Add Sound Card Test
---
Add Sound Cards For PnP Function Test Pass
Audio Drivers Setup Installation Test Pass
System Properties Information Review Pass
Audio Control Panel Function Test Pass
Game Port Test Pass
Sound Recorder Test Pass
Speaker Out Quality Test Pass
Playing Audio CD Te st Pass
Playing Wave Test Pass
Playing MP3 Test Pass
CNR Slots Test
---
Add LAN Card Test Pass
Add Sound Card Test Pass
Add Home PNA Card Test Pass
Add CNR Software Modem Card Test Pass
Connect Performance Check Pass
VGA Function Test ---
VGA Drivers Setup Installation Test Pass
Display Properties Informa tion Review Pass
Run 3D Screen Saver Pass
VGA Resolution Test ( Monitor : ViewSonic GF775 /AGP: on-board )
---
Resolution Color Depth Optimal 75 Hz 85 Hz 100 Hz
---
640x480 16 bit
√
√
√
√
Pass
640x480 32 bit
√ √ √ √
Pass
800x600 16 bit
√ √ √ √
Pass
800x600 32 bit
√ √ √ √
Pass
17
1024x768 16 bit
√ √ √ √
Pass
1024x768 32 bit
√
√
√
√
Pass
1280x1024 16 bit
√ √
none none Pass
1280x1024 32 bit
√ √
none none Pass
Check Screen Have No Any Shadow Or Garbage Pass
Audio Function Test ---
Audio Drivers Setup Installation Test Pass
System Properties Information Review Pass
Audio Control Panel Function Test Pass
Sound Recorder Test Pass
Run MPG Files Pass
Speaker Out Quality Test Pass
Playing Audio CD Test Pass
Playing Wave Test Pass
Playing MIDI Test Pass
Playing Video Test Pass
Playing MP3 Test Pass
Onboard Audio For S1 Function Supports Test Pass
Windows Utility Test ---
BCM Diagnostics
---
System Info Pass
DMI Info Pass
Processor Test Pass
Memory Test Pass
Audio Test Pass
Video Test Pass
Graphics Test Pass
Hard Disk Test Pass
Floppy Disk Test Pass
CD-ROM Test Pass
Stress Test –Loop 100 Pass
MS Mouse Pass
MS Joystick Pass
MS ScanDisk Pass
Winstone 2001
---
Business Winstone 2001 Pass
Content Creation Winstone 2002 Pass
Winbench 99 V1.2
---
Business Disk WinMark 99 Pass
Business Graphics WinMark 99 Pass
DirectDraw Tests Pass
Disk Inspection Tests Pass
18
Disk WinMark Pass
GDI/USER Inspection Tests Pass
High-End Disk WinMark 99 Pass
High-End Graphics WinMark 99 Pass
Video Tests Pass
3D Mark 2001 SE
---
3D Marks Pass
Demo Mode Pass
PC Mark 2002
---
CPU SCORE Pass
MEMORY SCORE Pass
HDD SCORE Pass
Others
---
Final Reality Pass
USBready Pass
WinDVD 2000 Pass
Wintune 98 Test Pass
Comments:
Test Platform Windows2000 Operating Comment
CPU P4 2.53G
Memory APACER / SAMSUNG 256M * 2
HDD QUANTUM 40 G
CDROM TEAC 40X
Sound Card Onboard /CMI 9739
Video Card ELSA / GLADIAC 525 128M
LAN Card 3COM 10/100M / 3C905C
Test Item Pass/Fail
System Comparability Test ---
Windows 2000 Setup Installation Test Pass
Supports Driver Installation Test Pass
System Properties Information Review Pass
S1 , S3 , S4 Mode Test Pass
Shut Down Test Pass
Restart Test Pass
Scandisk Test Pass
Setup installation Microsoft Office 2000 Test Pass
Hibernate(S4) Test
---
Standby Button for S4 (Enter) Pass
Power Button for S4 (Enter and Wake up) Pass
19
Windows Set RTC Time out for S4 (Enter and Wake up) Pass
Enter S4 mode For 1/5/10/30/60/120 Minutes Then To Do Wake Up Test. Pass
Wake Up By LAN Test Pass
Wake Up By Ring Test Pass
Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Device Comparability Test ---
PS/2 Connector Test
---
PS/2 Keyboard Test Pass
PS/2 Mouse Test Pass
COM Port Test
---
Add Serial Mouse PnP Test Pass
Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass
FDD Connector Test
---
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
Ultra DMA 33 Hard Disk Test Pass
Ultra DMA 66 Hard Disk Test Pass
Ultra DMA 100 Hard Disk Test Pass
CD-ROM Test Pass
DVD-ROM Data Read Test Pass
ZIP Device Driver Test Pass
Format ZIP Driver With Floppy A Type Pass
LS120 Device Driver Test Pass
LAN Cards Test
---
Boot ROM Function Test Pass
Login Server Test Pass
Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass
Power On By LAN Test Pass
Wake On LAN Test (Standby Mode) Pass
ADSL Link Test Pass
PCI Slots Test --Add SCSI Card Test Pass
Add LAN Card Test Pass
Wake On LAN Test (Standby Mode) Pass
Add Sound Card Test Pass
Add Modem Card Test Pass
Wake On Modem Test (Standby Mode) Pass
CNR Slots Test
---
Add Modem Card Test Pass
VGA Function Test ---
VGA Drivers Setup Installation Test Pass
20
Display Properties Informa tion Review Pass
VGA Resolution All Test Pass
Screen Saver Test Pass
Check Screen Have No Any Shadow Or Garbage Pass
Playing MPEG Files Test Pass
Playing VCD Test Pass
Playing DVD Test(With WinDVD 2000) Pass
Audio Function Test --Audio Drivers Setup Installation Test Pass
System Properties Information Review Pass
Speaker Out Quality Test Pass
R/L Channel Check Pass
CD-In Function Check Pass
Line-In Function Check Pass
Mic-In Function Check Pass
Audio Control Panel Function Test Pass
Sound Recorder Test Pass
Playing Audio CD Te st Pass
Playing Wave Test Pass
Playing MIDI Test Pass
Playing Video Test Pass
Playing MP3 Test Pass
Game Port Test Pass
Windows2000 Utility Test Pass/Fail
BCM Diagnostics
---
System Info Pass
DMI Info Pass
Processor Test Pass
Memory Test Pass
Audio Test Pass
Video Test Pass
Graphics Test Pass
Hard Disk Test Pass
Floppy Disk Test Pass
CD-ROM Test Pass
Stress Test –Loop 100 Pass
MS Mouse Pass
MS Joystick Pass
BurnIn Test
---
CPU-Maths Pass
CPU-MMX/SSE Pass
Memory (RAM) Pass
2D Graphics Pass
21
3D Graphics Pass
Hard Disk Test Pass
Floppy Disk Pass
Network Test Pass
CD-ROM Pass
Winbench 99 (1.2)
---
Business Disk WinMark 99 Pass
Business Graphics WinMark 99 Pass
DirectDraw Tests Pass
Disk Inspection Tests Pass
Disk WinMark Pass
GDI/USER Inspection Tests Pass
High-End Disk WinMark 99 Pass
High-End Graphics WinMark 99 Pass
Video Tests Pass
Winstone 2002
---
Business Winstone 200 1 Pass
Content Creation Winstone 2002 Pass
SYSMark2002
---
Internet Content Creation Pass
Office Productivity Pass
Others
---
PC-MARK 2002 Pass
XL-R8R Pass
3D MARK2001SE Pro Pass
Game Test --3D Pinball Pa ss
Freecell Pass
Minesweeper Pass
Solitaire Pass
Age of Empire Pas s
Comments:
Test Platform Windows XP (Home Edition ) Operating Comment
CPU P4-2.53G
Memory KINGMAX / 256M * 2 DDR400
HDD IBM 18.2G / DDYS-T18350
DVD-ROM ASUS / E616
Sound Card Onboard / CMI9739A
Video Card Onboard / SIS 650
LAN Card Onboard LAN / VIA VT6103
22
Test Item Pass/Fail
System Comparability Test ---
Windows XP Setup Installation Test Pass
Supports Driver Installation Test Pass
Standby Mode Test Pass
Shut Down Test Pass
Restart Test Pass
Scandisk Test Pass
S3 and S4 Mode Test Pass
Setup installation Microsoft Office 2000 Test Pass
System Information Review ---
Hardware Resources Pass
Components Pass
Software Environment Pass
Internet Setting Pass
Net Diagnostics Pass
System restore Pass
File Signature Verification Utility Pass
DirectX Diagnostics Tool Pass
Hardware Device Manager review Pass
System Event Review Pass
Suspend To RAM (S3) Test
---
Standby Button for S3 (Enter) Pass
Power Button for S3 (Enter and Wake up) Pass
Suspend Test (Microsoft Utility) Pass
Wake Up By LAN Test Pass
Wake Up By Ring Test Pass
Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Power LED Flash check Pass
Onboard Audio For S3 Function Supports Test (Play CD/VCD/DVD/AVI) Pass
Hibernate(S4) Test
---
Standby Button for S4 (Enter) Pass
Power Button for S4 (Enter and Wake up) Pass
Windows Set RTC Time out for S4 (Enter and Wake up) Pass
Wake Up By LAN Test Pass
Wake Up By Ring Test Pass
Enable Scheduled Task Runs at Specified time Test (RTC wake up) Pass
Device Comparability Test
---
PS/2 Connector Test Pass
PS/2 Keyboard Test Pass
PS/2 Mouse Test Pass
COM Port Test
---
23
Add Serial Mouse PnP Test Pass
Add Modem PnP Test Pass
Print Port Test
---
Add Printer PnP Test Pass
Add ZIP Device Test Pass
IrDA Function Test
---
Add IR Printer Test Pass
Peer to Peer Data Transfer Test (Ir-In/Ir-Out) Pass
FDD Connector Test
---
Format 1.44 Floppy Driver Pass
IDE Connectors Test
---
CD-ROM Data Read Test Pass
DVD-ROM Data Read Test Pass
Format ZIP Driver With Floppy A Type Pass
LS120 Device Driver Test Pass
Ultra DMA 66 Hard Disk Test Pass
Ultra DMA 100 Hard Disk Test Pass
Ultra DMA 133 Hard Disk Test Pass
ZIP Device Driver Test Pass
USB Ports Test --Add Keyboar d PnP Test Pass
Add Mouse PnP Test Pass
Add Printer PnP Test Pass
Add Scanner PnP Test Pass
Add Camera PnP Test Pass
Add Modem PnP Test Pass
Add Joystick PnP Test Pass
Add ZIP PnP Test Pass
Add LAN PnP Test Pass
LAN Port Test
---
Boot ROM Function Test Pass
Login Server Te st Pass
Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass
Setup Installation Winstone By The LAN Pass
Setup Installation 3D Mark2001 SE By The L A N Pass
ADSL Link Test Pass
PCI Slots Test ---
Add LAN Cards Test
---
Boot ROM Function Test Pass
Login Serv er Test Pass
Peer to Peer 10Mbps or 100Mbps Data Transfer Test Pass
Power On By LAN Test Pass
Wake On LAN Test (Standby Mode) Pass
24
Playing AVI Files By The LAN Pass
Setup Installation W i nstone 2001 By The LAN Pass
Setup Installation Winbench 99 By The LAN Pass
Setup Installation 3D Mar k2001 By The LAN Pass
ADSL Link Test Pass
Add SCSI Cards Test
---
Add SCSI Cards For PnP Function Test Pass
Setup installation the Windows from SCSI HDD Pass
Scandisk Test Pass
Disk Defragmenter Test Pass
System Properties Information Review (System Device Manager) Pass
Setup installation Microsoft Office 2000 Test Pass
Reboot The Windows Test For Over Night Pass
Add Sound Card Test
---
Add Sound Cards For PnP Function Test Pass
Audio Drivers Setup Installation Test Pass
System Properties Information Review Pass
Audio Control Panel Function Test Pass
Game Port Test Pass
Sound Recorder Test Pass
Run MPG Files Pass
Speaker Out Quality Test Pass
Playing Audio CD Te st Pass
Playing Wave Test Pass
Playing MIDI Test Pass
Playing Video Test Pass
Playing MP3 Test Pass
CNR Slots Test
---
Add CNR Software Modem Card Test Pass
Connect Performance Check Pass
Internet Explorer Test Pass
Netscape Browser Test Pass
Connect to ISP For 12 hours Pass
Download Files From Internet I SP Server (Over 10MB) Pass
Modem Fax Function Test (Transmit a fax to Fax Machine) Pass
Modem Fax Function Test (Transmit a fax to Mode m) Pass
Modem Fax Function Test (Receive a fax from Fax Machine) Pass
Modem Fax Function Test (Receive a fax from Modem) Pass
Send & Receive e-mail Test Pass
Recording a MP3 File From I nternet ISP Server Pass
FTP Transport Test (Download and Up load T est ) Pass
VGA Function Test ---
VGA Drivers Setup Installation Test Pass
25
Display Properties Information Review Pass
Run 3D Screen Saver Pass
Run 3D Mark2001 Pass
Run XL-R8R Pass
Check Screen Have No Any Shadow Or Garbage Pass
Playing MPEG Files Test Pass
Playing VCD Test Pass
Playing DVD Test Pass
3D Winbench 2000
---
3D Performance Pass
3D Processing Pass
3D Quality Pass
3D WinMark Pass
Audio Function Test
--Audio Drivers Setup Installation Test Pass
System Properties Information Review Pass
Audio Control Panel Function Test Pass
CD-In Function Check Pass
Game Port Test Pass
Line-In Function Check Pass
Mic-In Function Check Pass
R/L Channel Check Pass
Sound Recorder Test Pass
Run MPG Files Pass
Speaker Out Quality Test Pass
Playing Audio CD Te st Pass
Playing Wave Test Pass
Playing MIDI Test Pass
Playing Video Test Pass
Playing MP3 Test Pass
Onboard Audio For S1 Function Supports Test Pass
Audio Winbench99 (Based onboard So un d con troller)
---
Direct Sound CPU Util 44.1 kHz 16bit Static
---
Hardware Voices 16
Voice 8 1.87
Voice 16 3.26
Voice 32 5.17
DirectSound CPU Util , 44.1 kHz , 16 bits Streaming
---
Hardware Voice 16
Voice 8 1.75
Voice 16 3.14
Voice 32 5.12
DirectSound CPU Util , 22 kHz , 8 bits Static
---
26
Hardware Voice 16
Voice 8 2.52
Voice 16 3.04
Voice 32 4.64
DirectSound CPU Util , 22 kHz , 8 bits Steaming
---
Hardware Voice 16
Voice 8 11.7
Voice 16 10.5
Voice 32 8.48
DirectSound3D CPU Util , 44.1 kHz , 16 bits Static
---
Hardware Voice 16
Voice 8 4.1
Voice 16 6.34
Voice 32 8.17
DirectSound3D CPU Util , 44.1 kHz , 16 bits Streaming
---
Hardware Voice 16
Voice 8 4.26
Voice 16 6.29
Voice 32 8.12
DirectSound3D CPU Util , 22 kHz , 8 bits Static
---
Hardware Voice 16
Voice 8 3.94
Voice 16 5.42
Voice 32 7.1
DirectSound3D CPU Util , 22 kHz , 8 bits Streaming
---
Hardware Voice 16
Voice 8 3.91
Voice 16 5.47
Voice 32 7.05
Windows Utility Test ---
BCM Diagnostics
---
System Info Pass
DMI Info Pass
Processor Test Pass
Memory Test Pass
Audio Test Pass
Video Test Pass
Graphics Test Pass
Hard Disk Test Pass
Floppy Disk Test Pass
CD-ROM Test Pass
Stress Test –Loop 100 Pass
MS Mouse Pass
27
MS Joystick Pass
MS ScanDisk Pass
BurnIn Test --CPU-Maths Pass
CPU-MMX/SSE Pass
Memory (RAM) Pass
2D Graphics Pass
3D Graphics Pass
Hard Disk Test Pass
Floppy Disk Pass
Network Test Pass
CD-ROM Pass
Winstone 2001 --Business Winstone 200 1 Pass
Content Creation Winstone 2002 Pass
PC Mark2002
---
CPU Score Pass
Memory Score Pass
HDD Score Pass
3D Mark 2001 SE --3D Marks Pass
Demo Mode Pass
Others
---
Power DVD Test Pass
WinDVD 2000 Pass
CPU Stability Test Pass
Game Test
---
3D Pinball Pass
Freecell Pass
Minesweeper Pass
Solitaire Pass
Age of Empire Pass
Comments:
Test Platform Windows XP (Professional ) Operating Comment
CPU P4-2.4G
Memory KI NGMAX / 256M * 2 DDR400
HDD QUANTUM 80G / ATA 133
DVD-ROM BENQ / DVP1648A
Sound Card Onboard / CMI9739A
Video Card Onboard / SIS 650
28
LAN Card INTEL 82559
Test Item Pass/Fail
System Comparability Test ---
Windows XP Setup Installation Test Pass
Supports Driver Installation Test Pass
Standby Mode Test Pass
Shut Down Test Pass
Restart Test Pass
Scandisk Test Pass
Setup installation Microsoft Office 2000 Test Pass
System Information Review
--Hardware Resources Pass
Components Pass
Software Environment Pass
Internet Setting Pass
Net Diagnostics Pass
System restore Pass
File Signature Verification Utility Pass
DirectX Diagnostics Tool Pass
Hardware Device Manager review Pass
System Event Review Pass
Windows XP Utility Test
---
BurnIn Test
---
CPU-Maths Pass
CPU-MMX/SSE Pass
Memory (RAM) Pass
2D Graphics Pass
3D Graphics Pass
Hard Disk Test Pass
Floppy Disk Pass
Network Test Pass
CD-ROM Pass
Winstone 2001 --Business Winstone 2001 Pass
Content Creation Winstone 2002 Pass
PC Mark 2002
---
CPU Score Pass
Memory Score Pass
HDD Score Pass
3D Mark 2001 SE
---
BenchMark Pass
Demo Mode Pass
29
Comments:
Test Platform Linux (Red Hat 7.3) Operating Comment
CPU P4-2.53G
Memory HYNIX / 128* 2 / HY5DU28822BT-H
HDD QUANTUM 40G
DVD-ROM PIONNER –DVD 116
Sound Card CREATIVE -CT4750
Video Card PROLINK - TNT2-M64
LAN Card 3COM -3C905C
Test Item Pass/Fail
System Comparability Test ---
Linux Setup Installation Test Pass
Shut Down Test Pass
Restart Test Pass
Device Comparability Test
---
PS/2 Connector Test Pass
PS/2 Keyboard Test Pass
PS/2 Mouse Test Pass
COM Port Test --Add Serial Mouse Test Pass
Add Modem Test Pass
FDD Connector Test --Read 1.44 Floppy Disk Pass
Format 1.44 Floppy Driver Pass
IDE Connectors Test ---CD-ROM Data Read Test Pass
DVD-ROM Data Read Test Pass
LAN Ports Test ---
Peer to Peer Data Transfer Test Pass
PCI Slots Test --Add SCSI Card Test Pass
Add LAN Card Test Pass
Add Sound Card Test Pass
Comments:
30
PERFORMANCE TEST
Test Platform Windows ME
Memory SAMSUNG 128M X2
HDD MAXTOR 80G
CD-ROM LITEON 52X
Sound Card On board
Video Card On board
CPU C1800
(100X18)
P1900
(100X19)
P2400
(133X18)
PC Mark 2002
CPU Score 3905 4363 5578
Memory Score 2891 2960 3717
HDD Score 934 1051 958
Comments:
Winstone 2001
Business Winstone 2001 35.2 45.1 53
Content Creation Winstone2002 16.7 19.1 24
Comments:
3D Mark 2001 SE
Overall 901 1039 1131
Comments:
3D WinBenc h 2000
Overall 25.2 27.6 28.6
Comments:
31
Test Platform Windows 200 0
Memory WINBOND 512M X2 (DDR-400)
HDD MAXTOR 80G
CD-ROM BENQ 52X
Sound Card On board
Video Card On board
CPU C1700
(100X17)
P4-2400
(100X24)
P4-2660
(133X20)
PC Mark 2002
CPU Score 3964 5771 6466
Memory Score 3391 4536 5042
HDD Score 896 909 907
Comments:
Winstone 2001
Business Winstone 2001 43.1 73.6 81.8
Content Creation Winstone2002 27 42.2 47.2
Comments:
3D Mark 2001 SE
Overall 1219 1463 1478
Comments:
3D WinBenc h 2000
Overall 33 36.1 36.3
Comments:
32
Test Platform Windows XP
Memory HYNIX 256M X2 (DDR-333)
HDD MAXTOR 80G
CD-ROM BENQ 52X
Sound Card On board
Video Card On board
CPU C2000
(100X20)
P2600
(100X26)
P2800
(133X21)
PC Mark 2002
CPU Score 4566 6226 6750
Memory Score 3514 4708 5069
HDD Score 1025 1005 984
Comments:
Winstone 2001
Business Winstone 2001 X 67.5 71.2
Content Creation Winstone2002 25.4 40.1 43
Comments:
3D Mark 2001 SE
Overall 1189 1474 1491
Comments:
3D WinBenc h 2000
Overall 31.7 31.8 33.4
Comments:
33
Display Card Display Card
Performance
Vendor Model Chips Result
ASUS AGP-V 3800M RIVA TNT2 M64 1726
ASUS AGP-V6800 DDR Geforce 256 3526
ATI ALL-IN-WONDER 128 3605
ATI
1025-G4424
RADEON DDR 32M 2560
ATI RADEON 8500 RADEON 8500 9226
ATI RADEON 9000 RADEON 9000 8026
TRANSCEND RADEON 7500 ATI RADEON7500 5586
GIGABYTE GV-AR64S-H ATI RADEON7500 4285
ELSA ERAZOR III LT-A32 RIVA TNT2 M64 902
ELSA GLADIAC 511 Geforce 2 MX400 3355
ELSA SYNERGY III Quadro 2 MXR 3165
ELSA GLORIA II Quadro 2810
ELSA GLADIAC 920 NVIDIA Geforce3 7686
ELSA GLADIAC 517 Geforce 4 MX460 6751
ELSA GLADIAC 525 Geforce 4 Ti 4200 9992
MSI G4 MX420 Geforce 4 MX420 4203
MSI G4Ti4600 Geforce 4 Ti 4600 11341
GAINWARD 440T Geforce 4 MX440 5802
GARNET GV-MX400 Geforce 2 MX400 2923
SIGMA Geforce 2 MX400 Geforce 2 MX400 2920
SUMA PLATINUM Geforce 2 MX400 2917
Matrox G400 16 MB 1256
Matrox G450 1188
Matrox G550 DDR 32M 1357
PROLINK Geforce Ti 200 Geforce Ti 200 6990
Winfast Geforce256 Geforce 256 2638
Winfast Geforce 2 Ti Geforce 2 Ti 4782
Winfast A250 Geforce 4 Ti 4400 10804
Colorful G4Ti4600 Geforce 4 Ti 4600 11326
Comments:
For WinXP & Run 3Dmark2001se
34
HARDWARE COMPATIBILITY LIST
CPU
Vendor Model Frequency Type Result
Intel Pentium 4 1.5 GHz Socket 478 Pass
Intel Pentium 4 1.7 GHz Socket 478 Pass
Intel Pentium 4 1.8 GHz Socket 478 Pass
Intel Pentium 4 1.9 GHz Socket 478 Pass
Intel Pentium 4 2.0 GHz Socket 478 Pass
Intel Pentium 4 2.2 GHz Socket 478 Pass
Intel Pentium 4 2.26 GHz Socket 478 Pass
Intel Pentium 4 2.4 GHz Socket 478 Pass
Intel Pentium 4 2.5 GHz Socket 478 Pass
Intel Pentium 4 2.53 GHz Socket 478 Pass
Intel Pentium 4 2.6 GHz Socket 478 Pass
Intel Pentium 4 2.66 GHz Socket 478 Pass
Intel Pentium 4 2.8 GHz Socket 478 Pass
Intel Celeron 1.7 GHz Socket 478 Pass
Intel Celeron 1.8 GHz Socket 478 Pass
Intel Celeron 2.0 GHz Socket 478 Pass
Comments:
CD-ROM
Vendor Model Tra nsfer Rate Type Result
AFREEY CD-2052E 52X ATA-33 Pass
BTC BCD F562 52X ATA-33 Pass
TEAC CD-540E 40X ATA-33 Pass
TEAC CD-532E 32X ATA-33 Pass
YAMAHA BCD F563E 52X ATA-33 Pass
YAMAHA KHS 5238E 52X ATA-33 Pass
BEN –Q 652A674 52X ATA-33 Pass
A-OPEN CD-952E 52X ATA-33 Pass
LITEON LIN-526D 52X ATA-33 Pass
NEC CDR-1901A ATA-33 Pass
Comment s:
Camera Device
Vendor Model Type Drivers Result
3COM 3718 USB 6.6.0.21 Pass
Logitech QUICK CAM USB CD-Ver 4.1 Pass
Kodak DC240 USB Pass
35
O’RIT M-318 USB CD-Ver 0.91 Pass
Comments:
DVD-ROM
Vendor Model Transfer Rate Type Result
MATSHITA DVD-ROM SR-8587 ATA 33 Pass
PIONEER DVD-114 12X ATAPI Pass
PIONEER DVD-115 16X ATAPI Pass
PIONEER DVD-117 16X ATA66 Pass
PIONEER DVD-105S 16X ATAPI Pass
PIONEER DVD-116 16X ATA-66 Pass
PIONEER DVD-117 16X ATA-33 Pass
Panasonic SR-8587-B 16X ATAPI Pass
SAMSUNG SD-612 12X ATA-33 Pass
SONY DDU-1621 16X ATA-33 Pass
CREATIVE DVD1242E 12X ATA-33 Pass
BENQ DVD-1648A 16X ATA-66 Pass
LITEON LIN-526D 52X ATA-33 Pass
ASUS E616 16X ATA-100 Pass
Comments:
Display Card
Vendor Model Chips Drivers Result
ASUS AGP-V 3800M RIVA TNT2 M64 28.32 Pass
ASUS AGP-V6800 DDR Geforce 256 28.32 Pass
ATI ALL-IN-WONDER 128 6.13.10.6043 Pass
ATI
1025-G4424
RADEON DDR 32M 6.13.10.6043 Pass
ATI RADEON 8500 RADEON 8500 6.13.10.6166 Pass
ATI RADEON 9000 RADEON 9000 6 .13 .1 0 .61 6 6 Pass
TRANSCEND RADEON 7500 ATI RADEON7500 6.13.10.6043 Pass
GIGABYTE GV-AR64S-H ATI RADEON7500 6.13.10.6043 Pass
ELSA ERAZOR III LT-A32 RIVA TNT2 M64 28.32 Pass
ELSA GLADIAC 511 Geforce 2 MX400 28.32 Pass
ELSA SYNERGY III Quadro 2 MXR 28.32 Pass
ELSA GLORIA II Quadro 28.32 Pass
ELSA GLADIAC 920 NVIDIA Geforce3 28.32 Pass
ELSA GLADIAC 517 Geforce 4 MX460 30.82 Pass
ELSA GLADIAC 525 Geforce 4 Ti 4200 30.82 Pass
MSI G4 MX420 Geforce 4 MX420 30.82 Pass
MSI G4Ti4600 Geforce 4 Ti 4600 30.82 Pass
36
GAINW ARD 440T Geforce 4 MX440 30.82 Pass
GARNET GV-MX400 Geforce 2 MX400 28.32 Pass
SIGMA Geforce 2 MX400 Geforce 2 MX4 00 28.32 Pass
SUMA PLATINUM Geforce 2 MX400 28.32 Pass
Matrox G400 16 MB 5.72.21.0 Pass
Matrox G450 5.72.21.0 Pass
Matrox G550 DDR 32M 5.72.21.0 Pass
PROLINK Geforce Ti 200 Geforce Ti 200 28.32 Pass
Winfast Geforce256 Geforce 256 28.32 Pass
Winfast Geforce 2 Ti Geforce 2 Ti 28.32 Pass
Winfast A250 Geforce 4 Ti 4400 30.82 Pass
Colorful G4Ti4600 Geforce 4 Ti 4600 30.82 Pass
Comments:
FDD
Vendor Model Size Type Result
MITSUMI D359T5 1.44 Pass
MITSUMI D359T6 1.44 Pass
MITSUMI D353T6 1.44 Pass
MITSUMI D359M3 1.44 Pass
MITSUMI D353M3 1.44 Pass
NEC FD1231H 1.44 Pass
TEAC FD-235HF 1.44 Pass
SONY MPF920-E 1.44 Pass
Panasonic JU257A606P 1.44 Pass
SUMSUNG SFD-321B 1.44 Pass
Comments:
HDD
Vendor Model Size Type Result
FUJITSU MPD3108AT 10.8G ATAPI Pass
FUJITSU MPG3307AT 30.7G ATA-100 Pass
IBM DJNA-370910 9.1G ATA-66 Pass
IBM DPTA-372050 20G ATA-100 Pass
IBM DNES-309170 9.1G SCSI Pass
IBM DCAS-34330 4.3G WIDE SCSI Pass
IBM DHEA-36481 6.4G ATA-33 Pass
IBM DHEA-DPTA-372050 20G ATA-33 Pass
IBM DTLA-307030 30G ATA-100 Pass
IBM DTLA-307020 20G ATA-100 Pass
37
IBM DTLA-307075 76.8 G ATA-100 Pass
IBM DTLA-307015 15G ATA-100 Pass
Maxtor 91360D8 Ultra33 13G ATA-33 Pass
Maxtor 86480D6 Ultra33 6.4G ATA-33 Pass
Maxtor 91190D7 Ultra33 11G ATA-33 Pass
Maxtor 91024U3 10G ATA-66 Pass
Maxtor 82560A4 2.5G 2.5G ATA-33 Pass
Maxtor 54098U8 40G ATA-66 Pass
Maxtor 31536H2 15G ATA-100 Pass
Maxtor D740X-6L/7200 RPM 80G ATA-133 Pass
Maxtor D740X-6L/7200 RPM 60G ATA-133 Pass
Maxtor D740X-6L/7200 RPM 40G ATA-133 Pass
Maxtor 33073H4 30G ATA-100 Pass
Maxtor 4W100H6 100G ATA-100 Pass
Maxtor 4G160J8 160G ATA-133 Pass
QUANTUM AS40A0110-01-A 40 G ATA-100 Pass
QUANTUM BIGFOOT 4.0G PIO-4 Pass
QUANTUM EX3200AT 3.2G ATA-33 Pass
QUANTUM E5100AT 5.1G ATA-33 Pass
QUANTUM CR6400AT 6.4G ATA-33 Pass
QUANTUM CX6400AT 6.4G ATA-33 Pass
QUANTUM 6.4G SCSI 6.4G 6.4G Pass
QUANTUM KA9100AT 9.1G ATA-66 Pass
QUANTUM KA13600AT 13G ATA-66 Pass
QUANTUM KX13600AT 13G ATA-66 Pass
QUANTUM LM15000AT 15G ATA-66 Pass
QUANTUM LM20500AT 20G ATA-66 Pass
QUANTUM 18.4G SCSI 18G SCSI Pass
QUANTUM AS30000AT 30G ATA-100 Pass
QUANTUM AS40000AT 40G ATA-100 Pass
QUANTUM AS60000AT 60G ATA-100 Pass
SEAGATE ST313032A 13G ATA-100 Pass
SEAGATE ST340016A 40G ATA-100 Pass
WD WD800JB 80G ATA-100 Pass
128M USB HDD Pass
Comments:
Joystick
Vendor Model Type Result
Logitech Wingman USB Pass
Logitech Wingman Formula Force USB Pass
38
Logitech Wingman extreme digital 3D Game Port Pass
Microsoft Side Winder Feedback Pro Game Port Pass
Microsoft Side Winder 3D Pro Game Port Pass
Microsoft Side Winder Dual Strike USB Pass
Microsoft Side W inder Joystick USB Pass
Comments:
Keyboard
Vendor Model Type Result
Microsoft X03-51764 USB / PS/2 Pass
Microsoft RT9401 USB / PS/2 Pass
BTC 8110M USB Pass
LEMEL KB-5201P USB Pass
LEMEL AK-208 USB Pass
SAMPO F-21YQ (SPK-2000) USB Pass
BTC 5126 PS2 Pass
BUS LOGIC BA81C15 PS2 Pass
K.A.CHEN KB-7000 PS/2 Pass
SAMPO F-21BQ PS/2 Pass
Logitech Y-SA2 PS/2 Pass
ACER 6511-TA PS/2 Pass
Logitech (IR) Y-RA1 IR Pass
WIRELESS 5110 IR Pass
Comments:
LAN Card
Vendor Model Drivers Type Result
3COM 3C905-TX PCI Pass
3COM 3C905C PCI Pass
3COM 3C905B-TX PCI Pass
DLINK 530TX PCI Pass
Intel SB82558B PCI Pass
Intel GD82559 PCI Pass
Intel PRO / 100S PCI Pass
RealTek 8139C PCI Pass
D-LINK DWL-120 WireLess-LAN Pass
Comments:
39
LAN HUB
Vendor Model Transfer Rate Result
3COM 100/10 Switch office400 100/10 Pass
BUFFLO LSW 10/100-8H 100/10 Pass
D-Link DE-812TP+ 10-Base Pass
D-Link DE-805TP 10-Base Pass
D-Link DE-809TC 10-Base Pass
D-Link DES-1016 100/10 Pass
Comments:
Memory
Vendor Model Size Type Result
ELIXIR N2DS12880AT-75B 256M PC-266 Pass
HYNIX HY5DU28822AT-K 128M PC-266 Pass
HYNIX HY5DU28822BT-H 128M PC-266 Pass
HYNIX HY5DU28822AT-K 256M PC-333 Pass
HYNIX HY5DU28822BT-H 256M PC-266 Pass
KINGMAX KDL684T4AA-60 256M PC-333 Pass
KINGMAX KDL684T4AA-50 256M PC-400 Pass
NANYA NT5DS16M8AT-7K 128M PC-266 Pass
NANYA NT5DS16M8AT-7K 256M PC-266 Pass
NANYA NT5DS32M8AT-6 256M PC-333 Pass
NANYA NT5DS32M8AT-7K 512M PC-266 Pass
NANYA NT5DS32M8AT-6 512M PC-333 Pass
MT 46V16M8-75A 128M PC-266 Pass
MT 46V32M8-75B 512M PC-266 Pass
MOSEL V58C2128804SAT75 256M PC-266 Pass
SAMSUNG K4H280838B-TCB0 128M PC-266 Pass
SAMSUNG K4H280838C-TCB0 128M PC-266 Pass
SAMSUNG K4H280838B-TCB0 256M PC-266 Pass
SAMSUNG K4H280838C-TCB0 256M PC-266 Pass
SAMSUNG K4H560838C-TCB0 256M PC-266 Pass
SAMSUNG K4H560838C-TCB3 256M PC-333 Pass
SAMSUNG K4H560838C-TCB3 512M PC-333 Pass
SAMSUNG K4H560838D-TCB4 256M PC-400 Pass
TWINMOS TMD7608F8E50B 256M PC-400 Pass
WINBOND W942508AH-75 512M PC-266 Pass
WINBOND W942508BH-5 256M PC-400 Pass
WINBOND W942508BH-5 512M PC-400 Pass
40
Comments:
Modem Card
Vendor Model Drivers Type Result
AZTECH MDP 3858SP-UE vxd 2.1.2135.7.1 PCI Pass
AZTECH MDP 7800U 4.90.3000 PCI Pass
3Com U.S Robotics 0637 vxd v1.00.017 PCI Pass
Lectron I56LVP-F1 7.66-9K-03 PCI Pass
ADI MDX-56KRE COM Pass
LEMEL MD-56KVC COM Pass
WELL FM-56CNR-SL vxd v2.84 CNR Pass
Lectron PCT303W 2.40.0004 CNR Pass
D-LINK CNR-LM vxd v2.84 CNR Pass
Archtek IMRS-A CNR Pass
Classic Voice FAX Modem USB Pass
Rock MODEM V.90 vxd v2.01 USB Pass
JATON CommunicationV90 V1.00 USB Pass
Comments:
Mouse
Vendor Model Drivers Type Result
ARTEC UM500P PS/2 Pass
Logitech M-BE55 USB Pass
Logitech M-BB48 USB Pass
Logitech M-BA47 USB Pass
Logitech M-S34 PS/2 Pass
Logitech M-M30 PS/2 Pass
Logitech M-S43 PS/2 Pass
Logitech M-CAA43 PS/2 Pass
Logitech M-CAB48A PS/2 Pass
Logitech M-MM35 Serial Pass
Logitech M-MM43 Serial Pass
Logitech M-RG45 IR Pass
Microsoft IntelliMouse X04-91790 USB/PS2 Pass
Microsoft
IntelliMouse B75-00006
USB/PS2 Pass
Seagate IOWCM-B700 PS/2 Pass
Comments:
41
Monitor
Vendor Model Size Type Result
GENUINE G585
14″
CRT Pass
ViewSonic View Panel VPD150
15″
LCD Pass
ViewSonic E653
15″
CRT Pass
SAMPO AlphaScan 521a 15” CRT Pass
ViewSonic View Panel VG175
17″
LCD Pass
ViewSonic View Panel VE170
17″
LCD Pass
Mozo M7++
17.4″
LCD Pass
ViewSonic 17GA
17″
CRT Pass
ViewSonic GF775
17″
CRT Pass
View Sonic PS775 17” CRT Pass
View Sonic E70 17” CRT Pass
PHILIPS 107MP 17” CRT Pass
SAMPO AlphaScan 761 17” CRT Pass
SAMPO AlphaScan 712 a 17” CRT Pass
SAMPO PD-80ASQ 17” LCD Pass
SAMPO AlphaScan 950 19” CRT Pass
OPTIQUEST Q100 19” CRT Pass
View Sonic E790 19” CRT Pass
View Sonic E810 19” CRT Pass
HITACHI SUPERSCAN 811 19” CRT Pass
Comments:
Power Supply
Model Type Result
ATX Power 250W Pass
ATX Power 300W Pass
ATX Power 350W Pass
ATX Power 400W Pass
Comments:
Printer
Vendor Model Drivers Type Result
CANON BJ-80K Ver 2.0 IR Pass
EPSON STYLUS PHOTO 750 2.00.2452 USB /LPT Pass
HP DeskJet 970Cxi
1.16.1.0 USB Pass
HP Deskjet 990 cxi V13.0 IrDA/LPT/USB Pass
HP DeskJet 695C
LPT Pass
42
Comments:
Scanner
Vendor Model Drivers Type Result
HP Scan Jet 4200C CD-Ver 2.01 USB Pass
MUSTEK 1200USB 4.10.1998 USB Pass
UMAX Astra 1220U CD-Ver 2.1 Pass
UMAX Astra 2000U CD-Ver 3.52u Pass
Comments:
SCSI Card
Vendor Model Drivers Type Result
ADAPTEC 2940U PCI Pass
ADAPTEC 2940UW PCI-WIDE Pass
ADAPTEC 2940U2W (LVD) PCI-WIDE Pass
ADAPTEC 3940AUW PCI-WIDE Pass
ADAPTEC 29160 PCI SCSI3 LVD Pass
Bus Logic PCI BT-930R PCI Pass
DOMEX 636UW PCI Pass
I-Will SIDE-2935UW PCI Pass
I-Will DU-280 PCI SCSI3 LVD Pass
SYMBIOS 53C875 PCI Pass
Tekram DC-390
PCI Pass
Tekram DC-390U3W
PCI Pass
Comments:
Sound Card
Vendor Model Drivers Type Result
AVORTEX AU8820B2 4.05.0110 PCI Pass
CREATIVE Sound Blaster CT4670 Ver 2.0 PCI Pass
CREATIVE Sound Blaster SB0060 Ver 2.4 PCI Pass
CREATIVE CT4750 Ver 2.4 PCI Pass
CREATIVE ES1371 4.05.1119 PCI Pass
CREATIVE CT4750 5.12.01.2041 PCI Pass
Ensoniq ES1370 4.02.1033 PCI Pass
Comments:
43
USB HUB & USB 2.0 DEVICE
Vendor Model Version Result
KOUWEL 580H 1.1 Pass
SIIG UH-144 1.1 Pass
PCI UH-400 1.1 Pass
D-Link DU-H4 1.1 Pass
ATEN UH-204 2.0 Pass
TEAC CD-W28PU 2.0 Pass
VIPOWER VP-8258 2.0 Pass
TERASYS YMMAHA CD-RW 2.0 Pass
Comments:
ZIP/LS120
Vendor Model Size Type Result
PANASONIC JU-811T012 100M IDE Pass
Iomega Z250ATAPI 250M IDE Pass
Iomega Z100P 100M LPT Pass
Iomega Z250P 250M LPT Pass
Iomega ZIP 100 USB 100M USB Pass
Iomega ZIP 250 USB 250M USB Pass
MATSUSHITA LKM-F734-1 (LS-120) 120M IDE Pass
Comments:
1394
Vendor Model Size Type Result
DATAFAB MD3A-FW11-USB2 Pass
IBOT PC KIT IEEE 1394 Pass
44
SOFTWARE COMPATIBILITY LIST
DOS Version Result
MS-DOS 6.22 Pass
Windows --- ---
Windows ME 4.90.3000 Pass
Windows 2000 Profession Release Pass
Windows XP Home Edition 2002 Pass
Windows XP Professional 2002 Pass
Linux Red hat 7.3 Pass
Comments:
45
FOUR CORNER TEST-Ver 1.0
Test Equipment & Environment
M/B TYPE P4SDQ CPU Level P4-2.0G
RAM TYPE SYNNEX 256M*2 VGA TYPE ASUS V8710DDR/64M
Power Supply FSP-350-60BN Floppy PANASONIC JU-257
IDE1 Primary Maxtor 80G dma-133 IDE1 Secondary Maxtor 80G DMA-133
IDE2 Primary PIONEER DVD ROM IDE2 Secondary IOMEGA ZIP250
PCI 1 AHA 29160 PCI 2 AHA-29160
PCI 3 Creative SB live! BIOS Version SDQ0924
Win98 Version WindowsXP Driver CD Ver. S1.23B-1R
BCM Version 2.01 Usb device 3COM HOME VIDEO
BCM Stress Test (30 min.)
Normal (Standard Power Voltage & Room Temperature)
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS
Corner 1 : 45℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS
Corner 2 : 45℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS
Corner 3 : 10℃ & 3.13V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS
Corner 4 : 10℃ & 3.46V
Audio Processor Video CD-ROM DOS Disk Floppy Graphics Memory WinApp
PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS
46
V
CORE
OCP & OVP TEST-Ver1.0
Test Environ ment
M/B SDQ/1.0 Power Supply US POWER
VID Setting 1.75 PWM Hip 6302
Electronic Loading Chroma 63030 Engineer Signature Yi-hung
O.C.P test Over 50A Pass/Fail Pass O.V.P test None Pass/Fail
47

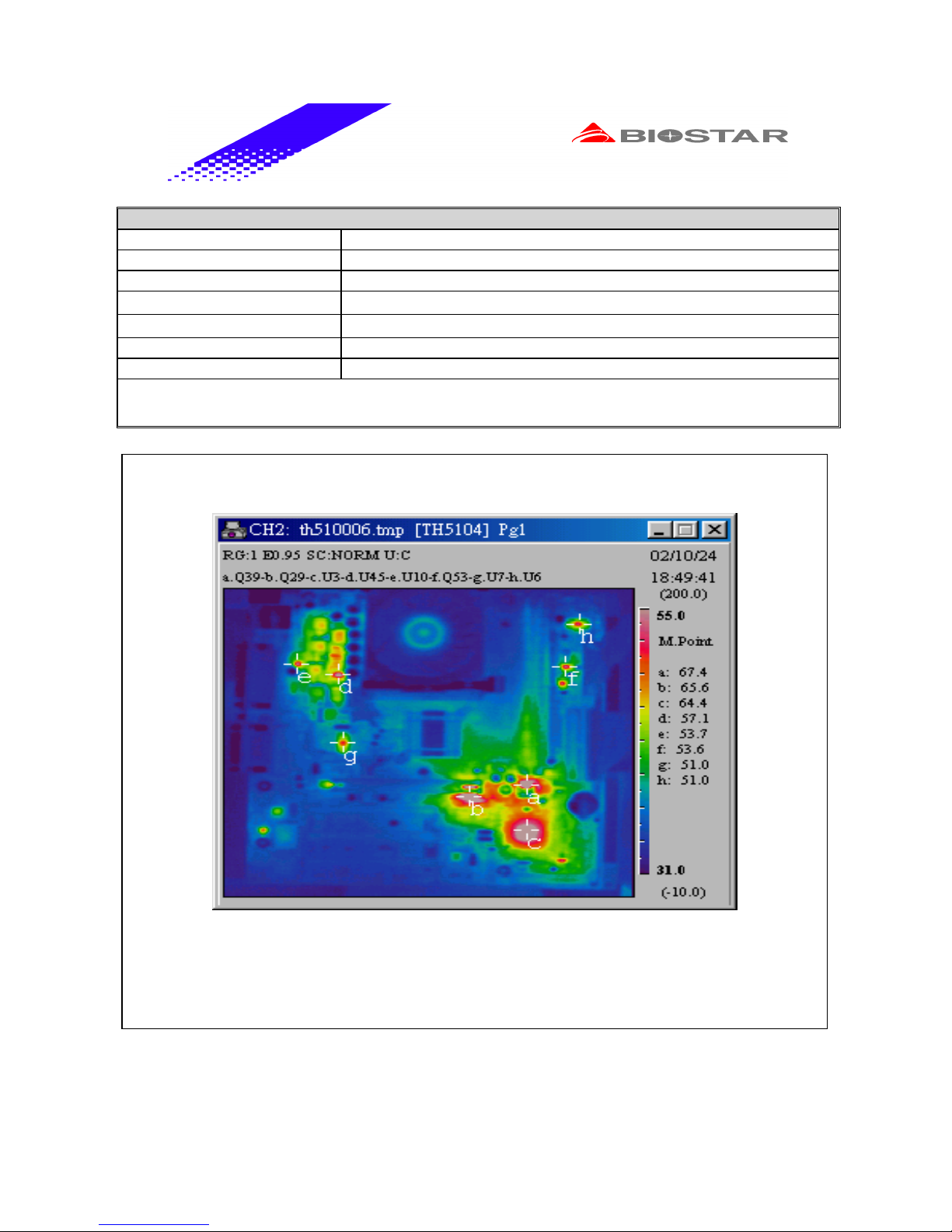

THERMAL IMAGE TEST
Motherboard General Information
Vendor Biostar
Model Number P4SDQ
Revision 3.0
Temperature ( ℃ ) 35 ℃
Humidity rate ( % )
0 ~ 60 %
Thermo Tracer NEC TH5104
Test Program 3Dmark2001
Comments:
The component temperature measured value was based on 35℃ check in the chamber
and the system during in the 3Dmark2001 Looping testing.
Loading...
