Bg Radia R-18i Specifications
R-18i
radia
S E R I E S
O n - W a l l A p p l i c a t i o n s L o u d s p e a k e r
T H E R A D I A S E R I E S

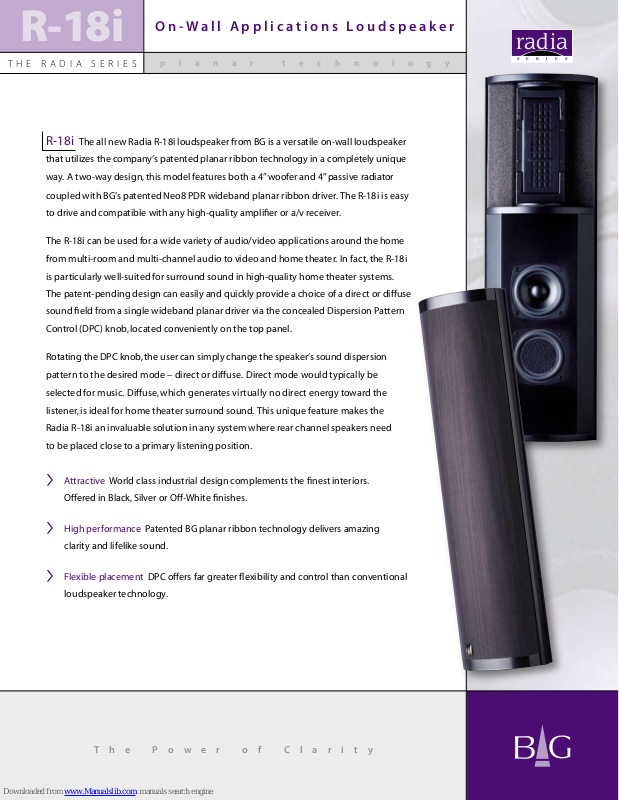

R-18i The all new Radia R-18i loudspeaker from BG is a versatile on-wall loudspeaker
that utilizes the company’s patented planar ribbon technology in a completely unique
way. A two-way design, this model features both a 4” woofer and 4” passive radiator
coupled with BG’s patented Neo8 PDR wideband planar ribbon driver. The R-18i is easy
to drive and compatible with any high-quality amplifier or a/v receiver.
The R-18i can be used for a wide variety of audio/video applications around the home
from multi-room and multi-channel audio to video and home theater. In fact, the R-18i
is particularly well-suited for surround sound in high-quality home theater systems.
The patent-pending design can easily and quickly provide a choice of a direct or diffuse
sound field from a single wideband planar driver via the concealed Dispersion Pattern
Control (DPC) knob, located conveniently on the top panel.
p l a n a r t e c h n o l o g y
Rotating the DPC knob, the user can simply change the speaker’s sound dispersion
pattern to the desired mode – direct or diffuse. Direct mode would typically be
selected for music. Diffuse, which generates virtually no direct energy toward the
listener, is ideal for home theater surround sound. This unique feature makes the
Radia R-18i an invaluable solution in any system where rear channel speakers need
to be placed close to a primary listening position.
Attractive World class industrial design complements the finest interiors.
›
Offered in Black, Silver or Off-White finishes.
High performance Patented BG planar ribbon technology delivers amazing
›
clarity and lifelike sound.
Flexible placement DPC offers far greater flexibility and control than conventional
›
loudspeaker technology.
T h e P o w e r o f C l a r i t y
radia
S E R I E S
O n - W a l l A p p l i c a t i o n s L o u d s p e a k e r
2IDIMENSIONS
WITHWALLBRACKET
R-18i
p l a n a r t e c h n o l o g y
The Dispersion Pattern Control (DPC) feature of
the Radia R-18i loudspeaker can readily provide either type
of surround sound (Direct or Diffuse) depending on the
application, the system’s layout and/or personal preference.
This unique attribute is so compelling that BG has a patent
pending on DPC.
The R-18i is a recipient of both the CES Innovations Design
and Engineering award and Product of the Year from Electronic
House magazine. These prestigious awards recognize the
best designed and engineered products in the world.
T H E R A D I A S E R I E S
M A X I M U M P O W E R H A N D L I N G :
›
100 watt RMS
F R E Q U E N C Y R E S P O N S E :
›
(-6 dB, half space)
60 Hz – 20 kHz
R A T E D I M P E D A N CE :
›
8 ohms
S E N S I T I V I T Y :
›
88 dB
D R I V E R C O M P L E M E N T :
›
1 - 4” woofer
1 - 4” passive radiator
1 - Neo8 PDR
planar ribbon driver
D I M E N S I O N S :
›
H E I G H T 26.4”(670 mm)
W I D T H 8.4”(213mm)
D E P T H 4.6” (118 mm)
8.23
209.0
26.38
670.0
4.86
123.5
W E I G H T :
›
12 lbs ( 5.5 kg)
F I N I S H E S :
›
Black, Silver or O-White
W A R R A N T Y :
›
Lifetime (limited)
3535 Arrowhead Drive · Carson City, NV 89706 ·
phone:
internet:
www.bgcorp.com ·
© Copyrigh t 2006 BG Corp. All rights res erved. Products, features and spe cications sub ject to change without notice.
775-884-1900 ·
email:
sales@bgcorp.com
toll free:
888-8PLANAR (888-875-2627)
03/06
