Bertazzoni KU30 PRO User Manual

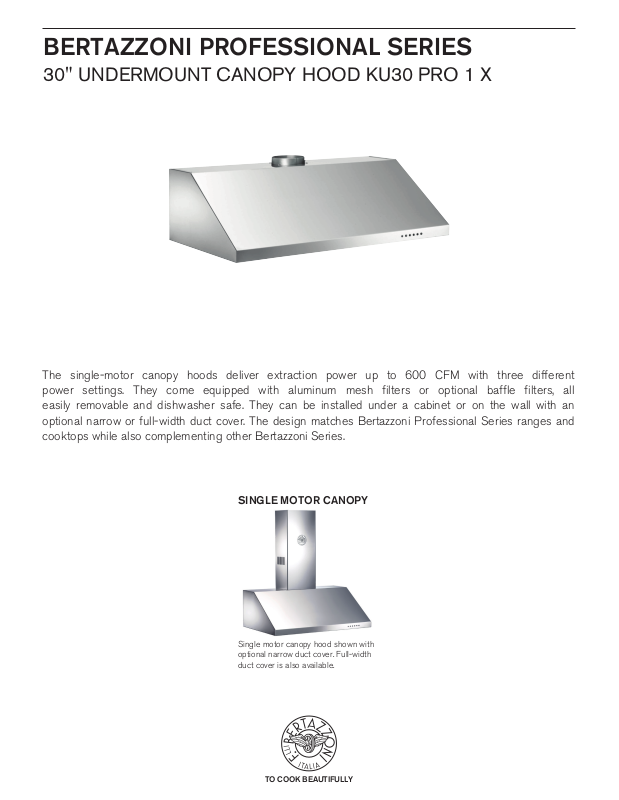

BERTAZZONI PROFESSIONAL SERIES
30" underMOunT CanOPY HOOd ku30 PrO 1 X
The single-motor canopy hoods deliver extraction power up to 600 CFM with three different
power settings. They come equipped with aluminum mesh filters or optional baffle filters, all
easily removable and dishwasher safe. They can be installed under a cabinet or on the wall with an
optional narrow or full-width duct cover. The design matches Bertazzoni Professional Series ranges and
cooktops while also complementing other Bertazzoni Series.
SINGLE MOTOR CANOPY
Single motor canopy hood shown with
optional narrow duct cover. Full-width
duct cover is also available.
TO COOK BEAUTIFULLY
BERTAZZONI PROFESSIONAL SERIES
29" 15⁄16
19"
5
⁄16
10" 1⁄8
1" 9⁄16
KU 30 PRO 1X
min 4" 59⁄64
max 5" 29⁄32
901266
901262
901281
KU 30 PRO 1X
30" underMOunT CanOPY HOOd ku30 PrO 1 X
FEATURES
Hood finishing stainless steel
Motor 1
Speed 3
Hood control electronic with buttons
Halogen lights 2
Filters aluminum mesh
Max extraction power 600 cfm
min 4" 59⁄64
max 5" 29⁄32
10" 1⁄8
19"
5
⁄16
29" 15⁄16
1" 9⁄16
TECHNICAL SPECIFICATIONS
Electrical Requirements 120 V 60 Hz
Max Amp usage, power rating 3.3 A - 400 W
Certification cETLus
Warranty 2 years parts and labor
ACCESSORIES
Recirculation Kit code 901154
Narrow duct cover code 901262
Full-width duct cover code 901266
Narrow duct cover
for ceiling height 8-10 ft
European Baffle Filter code 901253
This model is not suited for recirculation
22" 7⁄8 min
44" 7⁄8 max
code 901281
29" 15⁄16
12"
11
⁄16
3"
19" 5⁄16
1" 9⁄16
10" 1⁄8
INSTALLATION INSTRUCTIONS
Bertazzoni recomends to operate the appliance after it has been
properly installed. Please refer to the installation manual for further
details.
max
72"
9" 7⁄16
1
⁄2
min
36"
1
⁄4
11" 13⁄16
6" 11⁄16
72" 1⁄2
36" 1⁄4
6" 11⁄16
Disclaimer: while every effort has been made to insure the accuracy of the information contained in
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
9" 7⁄16
29" 15⁄16
bertazzoni.com
