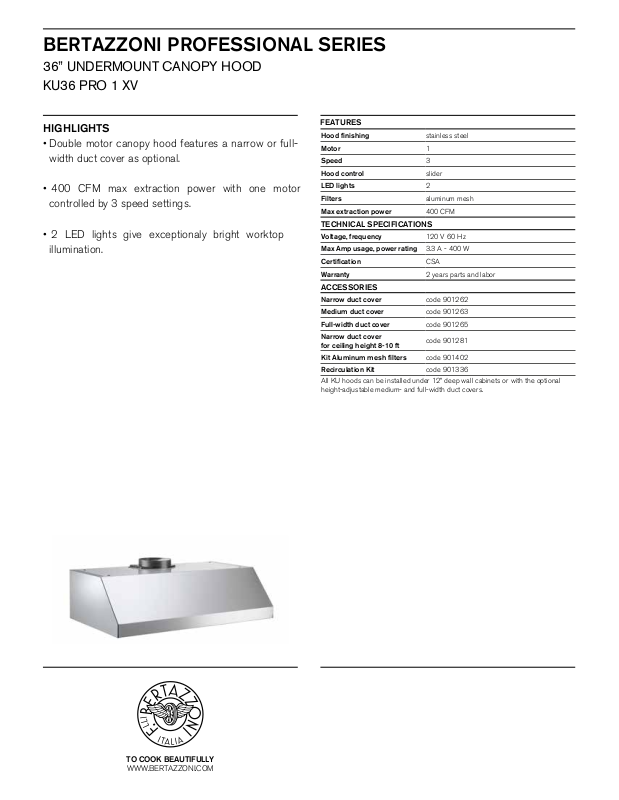

BERTAZZONI PROFESSIONAL SERIES
36” UNDERMOUNT CANOPY HOOD
KU36 PRO 1 XV
HIGHLIGHTS
• Double motor canopy hood features a narrow or fullwidth duct cover as optional.
• 400 CFM max extraction power with one motor
controlled by 3 speed settings.
• 2 LED lights give exceptionaly bright worktop
illumination.
FEATURES
Hood finishing stainless steel
Motor 1
Speed 3
Hood control slider
LED lights
Filters aluminum mesh
Max extraction power 400 CFM
TECHNICAL SPECIFICATIONS
Voltage, frequency 120 V 60 Hz
Max Amp usage, power rating 3.3 A - 400 W
Certification CSA
Warranty 2 years parts and labor
ACCESSORIES
Narrow duct cover code 901262
Medium duct cover code 901263
Full-width duct cover code 901265
Narrow duct cover
for ceiling height 8-10 ft
Kit Aluminum mesh filters code 901402
Recirculation Kit code 901336
All KU hoods can be installed under 12” deep wall cabinets or with the optional
height-adjustable medium- and full-width duct covers.
2
code 901281
TO COOK BEAUTIFULLY
WWW.BERTAZZONI.COM
901265
901262
901281
KU36 PRO 1 XV
901263
INSTALLATION INSTRUCTIONS
33
⁄64
36"
1"
9
⁄16
5" 29⁄32
12"
KU36 PRO 1 XV
12"
5" 29⁄32
1"
9
⁄16
8" 17⁄64
17" 33⁄64
12"
35
3"
⁄64
36"
36"
72" 1⁄2
6" 11⁄16
36" 1⁄4
9" 7⁄16
22" 7⁄8 min
7
⁄8 max
44"
max
72"
max
72"
1
⁄2
min
36"
1
⁄2
min
36"
11" 13⁄16
1
⁄4
1
⁄4
22" 1⁄8
17"
1" 9⁄16
33
⁄64
8" 17⁄64
Bertazzoni recomends to operate the appliance after it has been
properly installed. Please refer to the installation manual for further
details.
6" 11⁄16
Disclaimer: while every effort has been made to insure the accuracy of the information contained in
this brochure, Fratelli Bertazzoni reserves the right to change any part of the information at any time
without notice.
Fratelli Bertazzoni, Bertazzoni and the winged wheel brand icon are registered trademarks of
Bertazzoni Spa.
WWW.BERTAZZONI.COM
9" 7⁄16
11" 13⁄16
35" 7⁄8
