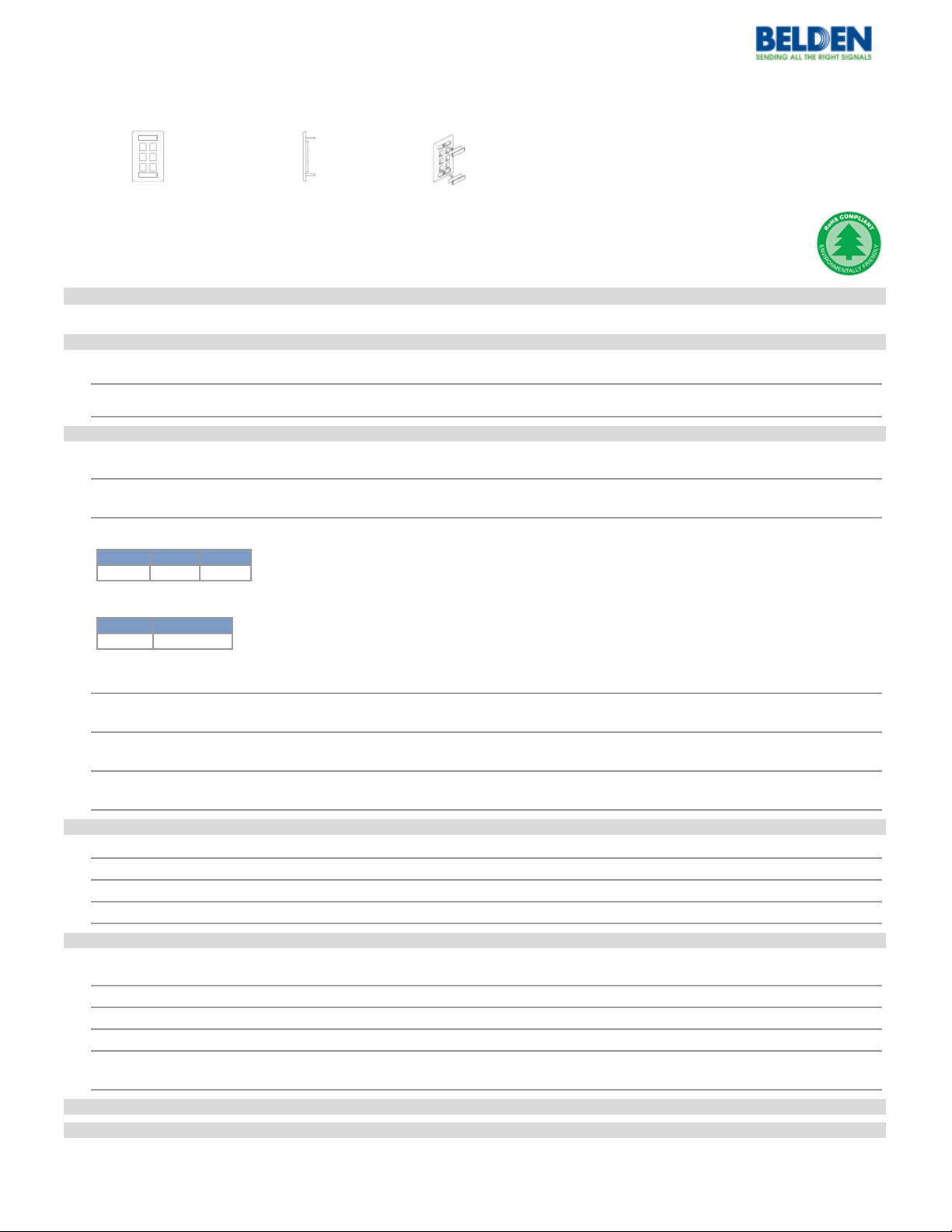

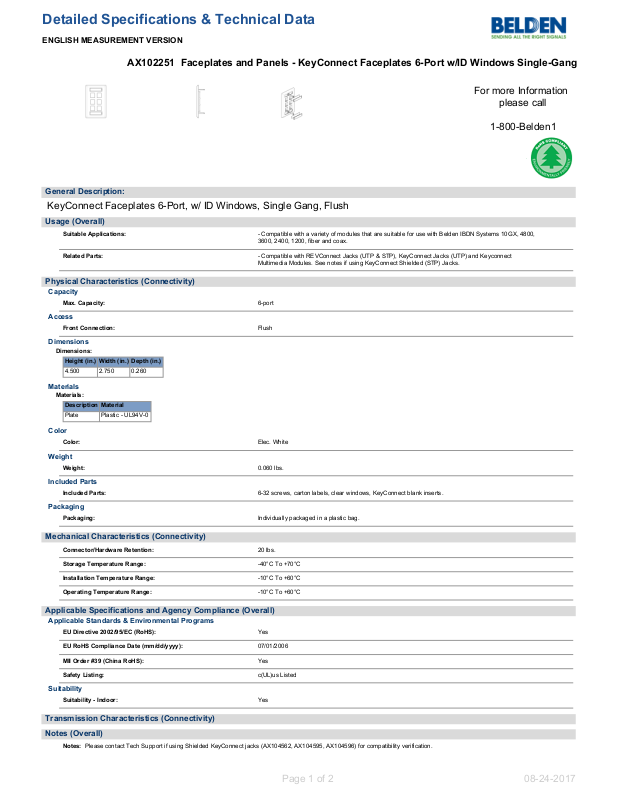

General Description:
KeyConnect Faceplates 6-Port, w/ ID Windows, Single Gang, Flush
Usage (Overall)
Suitable Applications: - Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,
3600, 2400, 1200, fiber and coax.
Related Parts: - Compatible with REVConnect Jacks (UTP & STP), KeyConnect Jacks (UTP) and Keyconnect
Multimedia Modules. See notes if using KeyConnect Shielded (STP) Jacks.
Physical Characteristics (Connectivity)
Capacity
Max. Capacity: 6-port
Access
Front Connection: Flush
Dimensions
Dimensions:
Height (in.) Width (in.) Depth (in.)
4.500 2.750 0.260
Materials
Materials:
Description Material
Plate Plastic - UL94V-0
Color
Color: Elec. White
Weight
Weight: 0.060 lbs.
Included Parts
Included Parts: 6-32 screws, carton labels, clear windows, KeyConnect blank inserts.
Packaging
Packaging: Individually packaged in a plastic bag.
Mechanical Characteristics (Connectivity)
Connector/Hardware Retention: 20 lbs.
Storage Temperature Range: -40°C To +70°C
Installation Temperature Range: -10°C To +60°C
Operating Temperature Range: -10°C To +60°C
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 07/01/2006
MII Order #39 (China RoHS): Yes
Safety Listing: c(UL)us Listed
Suitability
Suitability - Indoor: Yes
Transmission Characteristics (Connectivity)
Notes (Overall)
Notes: Please contact Tech Support if using Shielded KeyConnect jacks (AX104562, AX104595, AX104596) for compatibility verification.
Page 1 of 2 08-24-2017
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
AX102251 Faceplates and Panels - KeyConnect Faceplates 6-Port w/ID Windows Single-Gang
Product Family
Part Numbers:
Item Number Stainless Steel __Dark Gray__ ___Almond___ ____Black____ ____Ivory____ __Elec. White__ __Gray__
1-Port w/ ID Windows Single-gang AX104230 - AX103922 AX104160 AX104565 AX102660 AX107021
2-Port w/ ID Windows Single-gang AX104231 AX104455 AX103923 AX104161 AX104197 AX102655 AX107022
3-Port w/ ID Windows Single-gang - - AX103924 AX104162 - AX102661 -
4-Port w/ ID Windows Single-gang AX104232 AX104464 AX102248 AX104163 AX104198 AX102249 AX107023
6-Port w/ ID Windows Single-gang AX104233 - AX102250 AX104164 AX104199 AX102251 AX107024
4-Port w/ ID Windows Double-gang AX104479 - - - - - -
6-Port w/ ID Windows Double-gang AX104480 AX106594 AX102670 AX104165 AX104566 AX102671 AX107025
12-Port w/ ID Windows Double-gang AX104234 - AX102256 AX104166 AX104200 AX102257 -
1-Port Single-gang AX102006 - - - - - -
2-Port Single-gang AX102007 - - - - - -
4-Port Single-gang AX102009 - - - - - -
6-Port Single-gang AX102010 - - - - - -
6-Port Double-gang AX102012 - - - - - -
12-Port Double-gang AX102013 - - - - - -
Wall Mount Phone Plate AX104126 - - - - AX102902 -
Single-gang Back Box 1.89 in. - - AX104127 - - AX102657 -
Double-gang Back Box 1.89 in. - - AX104130 AX106684 - AX104131 AX106685
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
AX102251 1 EA 0.111 LB KCONN FACEPLATE 6-P SG WHITE
Revision Number: 1 Revision Date: 08-16-2017
