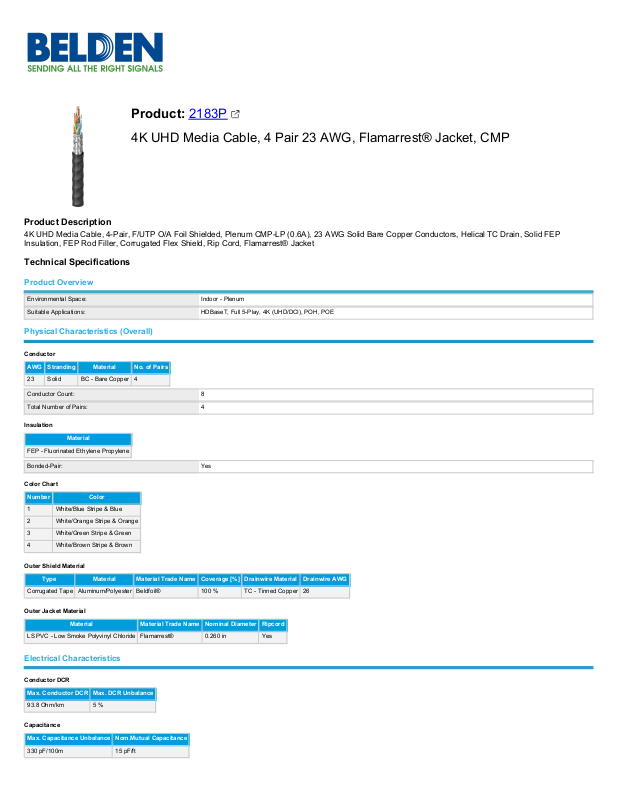

Product: 2183P
4K UHD Media Cable, 4 Pair 23 AWG, Flamarrest® Jacket, CMP
Product Description
4K UHD Media Cable, 4-Pair, F/UTP O/A Foil Shielded, Plenum CMP-LP (0.6A), 23 AWG Solid Bare Copper Conductors, Helical TC Drain, Solid FEP
Insulation, FEP Rod Filler, Corrugated Flex Shield, Rip Cord, Flamarrest® Jacket
Technical Specifications
Product Overview
Environmental Space: Indoor - Plenum
Suitable Applications: HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
23 Solid BC - Bare Copper 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material
FEP - Fluorinated Ethylene Propylene
Bonded-Pair: Yes
Color Chart
Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown
Outer Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Corrugated Tape Aluminum/Polyester Beldfoil® 100 % TC - Tinned Copper 26
Outer Jacket Material
Material Material Trade Name Nominal Diameter Ripcord
LS PVC - Low Smoke Polyvinyl Chloride Flamarrest® 0.260 in Yes
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 15 pF/ft
Page 2
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 2 dB/100m
4 MHz 3.8 dB/100m
8 MHz 4.3 dB/100m
10 MHz 5.9 dB/100m
16 MHz 7.5 dB/100m
20 MHz 8.3 dB/100m
25 MHz 9.3 dB/100m
31.2 MHz 10.4 dB/100m
62.5 MHz 14.8 dB/100m
100 MHz 18.8 dB/100m
125 MHz 21 dB/100m
155 MHz 23 dB/100m
175 MHz 24.9 dB/100m
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 72 %
High Freq
Frequency
[MHz]
Max. Insertion Loss
(Attenuation)
Min. NEXT
[dB]
Min. PSNEXT
[dB]
Min. ACR
[dB]
Min. PSACR
[dB]
Min. ACRF
(ELFEXT) [dB]
Min. PSACRF
(PSELFEXT) [dB]
Min. RL (Return
Loss) [dB]
Max./Min. Input Impedance
(unFitted)
1 MHz 2.0 dB/100m 65.3 dB 62.3 dB 63.3 dB 60.3 dB 63.8 dB 60.8 dB 20.0 dB 100 +/- 15
4 MHz 3.8 dB/100m 56.3 dB 53.3 dB 52.5 dB 49.5 dB 51.8 dB 48.8 dB 23.0 dB 100 +/- 15
8 MHz 5.3 dB/100m 51.8 dB 48.8 dB 46.5 dB 43.5 dB 45.7 dB 42.7 dB 24.5 dB 100 +/- 15
10 MHz 5.9 dB/100m 50.3 dB 47.3 dB 44.4 dB 41.4 dB 43.8 dB 40.8 dB 25.0 dB 100 +/- 15
16 MHz 7.5 dB/100m 47.2 dB 44.2 dB 39.8 dB 36.8 dB 39.7 dB 36.7 dB 25.0 dB 100 +/- 15
20 MHz 8.4 dB/100m 45.8 dB 42.8 dB 37.4 dB 34.4 dB 37.8 dB 34.8 dB 25.0 dB 100 +/- 15
25 MHz 9.3 dB/100m 44.3 dB 41.3 dB 35.0 dB 32.0 dB 35.8 dB 32.8 dB 24.3 dB 100 +/- 15
31.25 MHz 10.5 dB/100m 42.9 dB 39.9 dB 32.4 dB 29.4 dB 33.9 dB 30.9 dB 23.6 dB 100 +/- 15
62.5 MHz 14.8 dB/100m 38.4 dB 35.4 dB 23.6 dB 20.6 dB 27.9 dB 24.9 dB 21.5 dB 100 +/- 15
100 MHz 18.8 dB/100m 35.3 dB 32.3 dB 16.5 dB 13.5 dB 23.8 dB 20.8 dB 20.1 dB 100 +/- 15
125 MHz 21.0 dB/100m 33.8 dB 30.8 dB 12.8 dB 9.8 dB 21.9 dB 18.9 dB 19.4 dB 100 +/- 22
155 MHz 23.4 dB/100m 32.4 dB 29.4 dB 9.0 dB 6.0 dB 20.0 dB 17.0 dB 18.8 dB 100 +/- 22
175 MHz 24.9 dB/100m 31.7 dB 28.7 dB 6.8 dB 3.8 dB 18.9 dB 15.9 dB 18.4 dB 100 +/- 22
200 MHz 26.6 dB/100m 30.8 dB 27.8 dB 4.1 dB 1.1 dB 17.8 dB 14.8 dB 18.0 dB 100 +/- 22
250 MHz 29.8 dB/100m 29.3 dB 26.3 dB 15.8 dB 12.8 dB 17.3 dB 100 +/- 22
300 MHz 32.7 dB/100m 28.1 dB 25.1 dB 14.3 dB 11.3 dB 16.8 dB 100 +/- 22
400 MHz 35.4 dB/100m 27.1 dB 24.1 dB 12.9 dB 9.9 dB 16.3 dB 100 +/- 22
450 MHz 37.9 dB/100m 26.3 dB 23.3 dB 11.8 dB 8.8 dB 15.9 dB 100 +/- 32
500 MHz 42.5 dB/100m 24.8 dB 21.8 dB 9.8 dB 6.8 dB 15.2 dB 100 +/- 32
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Installation Temp Range: 0°C To +75°C
UL Temp Rating: 90°C
Storage Temp Range: -20°C To +75°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Cold Bend Test: -20°C Compliance per UL 1581
Bulk Cable Weight: 36 lbs/1000ft
Max Recommended Pulling Tension: 45 lbs
Min Bend Radius During Installation: 2.75 in
Min Bend Radius/Minor Axis: 1.0 in
Standards
Page 3
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class D
IEEE Specification: POE per 802.3af & POE+ 802.3at-2009
Other Standards: C(UL)US CMP 90C OR (UL) CMR-LP (0.6A) OR CL3R-LP (0.6A) OR POH, HDBaseT Recommended Cable
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Non-Halogenated: No
Suitability - Oil Resistance: No
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No
Flammability, LS0H, Toxicity Testing
UL Flammability: NFPA 262 Plenum (UL 910)
CSA Flammability: FT6
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Yes
Part Number
Non-Plenum Number: 2183R
Variants
Item # Color UPC Length
2183P 0101000 Black 612825391678 1,000 ft
2183P 010A1000 Black 612825391708 1,000 ft
2183P 010A250 Black 612825392958 250 ft
2183P 010Z1000 Black 612825433231 1,000 ft
2183P D15A1000 Blue 612825391685 1,000 ft
2183P D15Z1000 Blue 612825433286 1,000 ft
2183P 009A1000 White 612825391692 1,000 ft
2183P 009Z1000 White 612825433187 1,000 ft
Product Notes
Notes: Values Above 100 MHz are for Engineering Information Only. Print Includes Descending Footage Markings.
