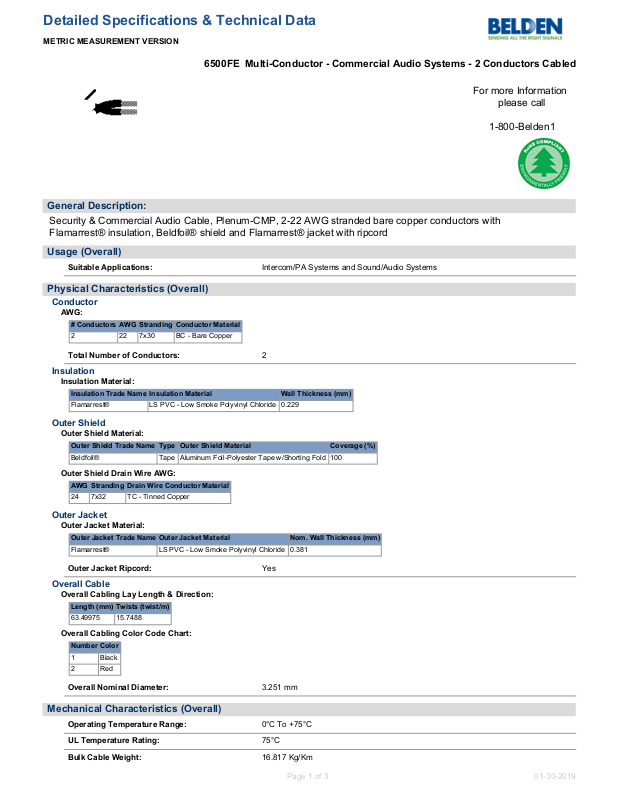

General Description:
Security & Commercial Audio Cable, Plenum-CMP, 2-22 AWG stranded bare copper conductors with
Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
Usage (Overall)
Suitable Applications: Intercom/PA Systems and Sound/Audio Systems
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors AWG Stranding Conductor Material
2 22 7x30 BC - Bare Copper
Total Number of Conductors: 2
Insulation
Insulation Material:
Insulation Trade Name Insulation Material Wall Thickness (mm)
Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride 0.229
Outer Shield
Outer Shield Material:
Outer Shield Trade Name Type Outer Shield Material Coverage (%)
Beldfoil® Tape Aluminum Foil-Polyester Tape w/Shorting Fold 100
Outer Shield Drain Wire AWG:
AWG Stranding Drain Wire Conductor Material
24 7x32 TC - Tinned Copper
Outer Jacket
Outer Jacket Material:
Outer Jacket Trade Name Outer Jacket Material Nom. Wall Thickness (mm)
Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride 0.381
Outer Jacket Ripcord: Yes
Overall Cable
Overall Cabling Lay Length & Direction:
Length (mm) Twists (twist/m)
63.49975 15.7488
Overall Cabling Color Code Chart:
Number Color
1 Black
2 Red
Overall Nominal Diameter: 3.251 mm
Mechanical Characteristics (Overall)
Operating Temperature Range: 0°C To +75°C
UL Temperature Rating: 75°C
Bulk Cable Weight: 16.817 Kg/Km
Page 1 of 3 01-30-2019
Detailed Specifications & Technical Data
METRIC MEASUREMENT VERSION
6500FE Multi-Conductor - Commercial Audio Systems - 2 Conductors Cabled
Page 2
Max. Recommended Pulling Tension: 106.757 N
Min. Bend Radius/Minor Axis: 33.020 mm
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CMP
NEC Articles: 800
CEC/C(UL) Specification: CMP
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Flame Test
UL Flame Test: NFPA 262
C(UL) Flame Test: FT6
Suitability
Suitability - Indoor: Yes
Plenum/Non-Plenum
Plenum (Y/N): Yes
Non-Plenum Number: 5500FE
Electrical Characteristics (Overall)
Nom. Inductance:
Inductance (µH/m)
0.55777
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/m)
180.455
Nom. Capacitance Cond. to Other Conductor & Shield:
Capacitance (pF/m)
324.819
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/km)
53.8084
Nominal Outer Shield DC Resistance:
DCR @ 20°C (Ohm/km)
50.1993
Max. Operating Voltage - UL:
Voltage
300 V RMS
Max. Recommended Current:
Description Current
10C Temperature Rise 2.8 Amps per conductor @ 25°C ambient
Page 2 of 3 01-30-2019
Detailed Specifications & Technical Data
METRIC MEASUREMENT VERSION
6500FE Multi-Conductor - Commercial Audio Systems - 2 Conductors Cabled
Page 3
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
6500FE 003U1000 1,000 FT 13.000 LB ORANGE 2 #22 FLRST FS FLRST
6500FE 003Z1000 1,000 FT 14.000 LB ORANGE 2 #22 FLRST FS FLRST
6500FE 0031000 1,000 FT 12.000 LB ORANGE 2 #22 FLRST FS FLRST
6500FE 008U1000 1,000 FT 12.000 LB GRAY 2 #22 FLRST FS FLRST
6500FE 008Z1000 1,000 FT 14.000 LB GRAY 2 #22 FLRST FS FLRST
6500FE 009U1000 1,000 FT 12.000 LB WHITE 2 #22 FLRST FS FLRST
6500FE 009U250 250 FT 3.750 LB WHITE 2 #22 FLRST FS FLRST
6500FE 009Z1000 1,000 FT 14.000 LB WHITE 2 #22 FLRST FS FLRST
6500FE 010U1000 1,000 FT 12.000 LB BLACK 2 #22 FLRST FS FLRST
6500FE 010U250 250 FT 3.750 LB BLACK 2 #22 FLRST FS FLRST
6500FE 010U500 500 FT 6.500 LB BLACK 2 #22 FLRST FS FLRST
6500FE 010Z1000 1,000 FT 14.000 LB BLACK 2 #22 FLRST FS FLRST
6500FE 877C500 500 FT 5.500 LB NATURAL 2 #22 FLRST FS FLRST
6500FE 877U1000 1,000 FT 12.000 LB NATURAL 2 #22 FLRST FS FLRST
6500FE 877U250 250 FT 3.750 LB NATURAL 2 #22 FLRST FS FLRST
6500FE 877U500 500 FT 6.500 LB NATURAL 2 #22 FLRST FS FLRST
6500FE 877Z1000 1,000 FT 14.000 LB NATURAL 2 #22 FLRST FS FLRST
6500FE 8771000 1,000 FT 12.000 LB NATURAL C 2 #22 FLRST FS FLRST
6500FE 877500 500 FT 6.000 LB NATURAL 2 #22 FLRST FS FLRST
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 3 Revision Date: 03-19-2015
