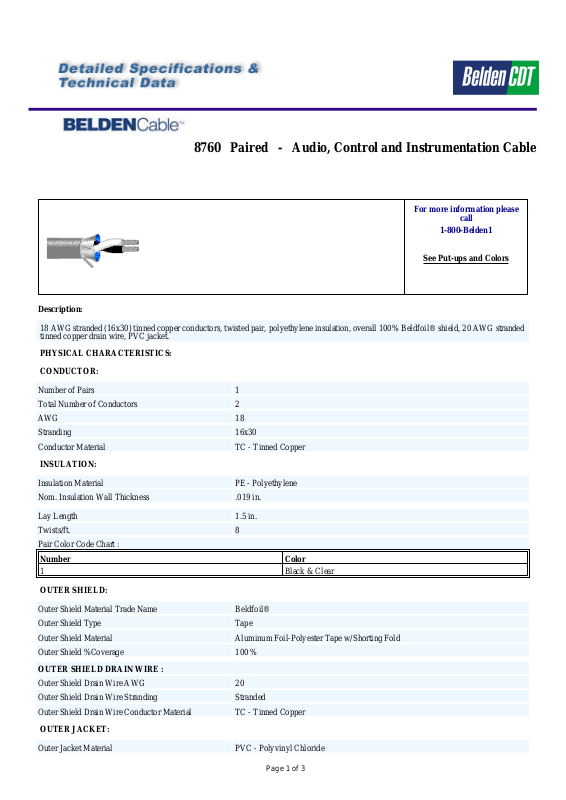

8760 Paired - Audio, Control and Instrumentation Cable
3
For more information please
call
1-800-Belden1
See Put-ups and Colors
Description:
18 AWG stranded (16x30) tinned copper conductors, twisted pair, polyethylene insulation, overall 100% Beldfoil® shield, 20 AWG stranded
tinned copper drain wire, PVC jacket.
PHYSICAL CHARACTERISTICS:
CONDUCTOR:
Number of Pairs 1
Total Number of Conductors 2
AWG 18
Stranding 16x30
Conductor Material TC - Tinned Copper
INSULATION:
Insulation Material PE - Polyethylene
Nom. Insulation Wall Thickness .019 in.
Lay Length 1.5 in.
Twists/ft. 8
Pair Color Code Chart :
Number Color
1 Black & Clear
OUTER SHIELD:
Outer Shield Material Trade Name Beldfoil®
Outer Shield Type Tape
Outer Shield Material Aluminum Foil-Polyester Tape w/Shorting Fold
Outer Shield %Coverage 100 %
OUTER SHIELD DRAIN WIRE :
Outer Shield Drain Wire AWG 20
Outer Shield Drain Wire Stranding Stranded
Outer Shield Drain Wire Conductor Material TC - Tinned Copper
OUTER JACKET:
Outer Jacket Material PVC - Polyvinyl Chloride
Page 1 of
Page 2
8760 Paired - Audio, Control and Instrumentation Cable
3
Outer Jacket Nominal Wall Thickness .028 in.
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .222 in.
MECHANICAL CHARACTERISTICS:
Operating Temperature Range -20°C To +60°C
UL Temperature Rating 60°C (UL AWM Style 2092)
Bulk Cable Weight 26.6 lbs/1000 ft.
Max. Recommended Pulling Tension 62 lbs.
Min. Bend Radius (Install) 2.25 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE:
APPLICABLE STANDARDS:
NEC/(UL) Specification CM
CEC/C(UL) Specification CM
AWM Specification UL Style 2092 (300 V 60°C)
FLAME TEST:
UL Flame Test UL1685 UL Loading
PLENUM/NON-PLENUM:
Plenum (Y/N) N
Plenum Number 88760, 87760 or 82760
ELECTRICAL CHARACTERISTICS:
Nom. Characteristic Impedance 60 Ohms
Nom. Inductance .18 µH/ft
Nom. Capacitance Conductor to Conductor @ 1 KHz 24 pF/ft
Nom. Cap. Cond. to Other Cond. & Shield @ 1 KHz 44 pF/ft
Nom. Conductor DC Resistance @ 20 Deg. C 6.5 Ohms/1000 ft
Max. Operating Voltage - UL 300 V RMS (UL AWM Style 2092)
Max. Recommended Current 5.2 Amps per conductor @ 25°C
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
8760 0601000 2 #18 LDPE SH PVC
8760 06010000 2 #18 LDPE SH PVC
8760 0602000 2 #18 LDPE SH PVC
8760 060250 2 #18 LDPE SH PVC
1000 26 CHROME
10000 260 CHROME
2000 50 CHROME
250 6.75 CHROME
Page 2 of
C
C Y
C
Page 3
8760 Paired - Audio, Control and Instrumentation Cable
3
8760 060500 2 #18 LDPE SH PVC
8760 0605000 2 #18 LDPE SH PVC
8760 060U1000 2 #18 LDPE SH PVC
8760 060U500 2 #18 LDPE SH PVC
C = CRATE REEL PUT-UP.
Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM
LENGTH OF ANY ONE PIECE IS 1500'.
Revision Number: 1 Revision Date: 02-16-2005
© 2005 Belden Wire & Cable Company
All Rights Reserved.
Although Belden Electronics Division ("Belden") makes every reasonable effort to ensure their accuracy at the time of this publication,
information and specifications described herein are subject to error or omission and to change without notice, and the listing of such
information and specifications does not ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described
herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
500 13 CHROME
5000 135 CHROME
U1000 25 CHROME
U500 13 CHROME
C
C
Page 3 of
