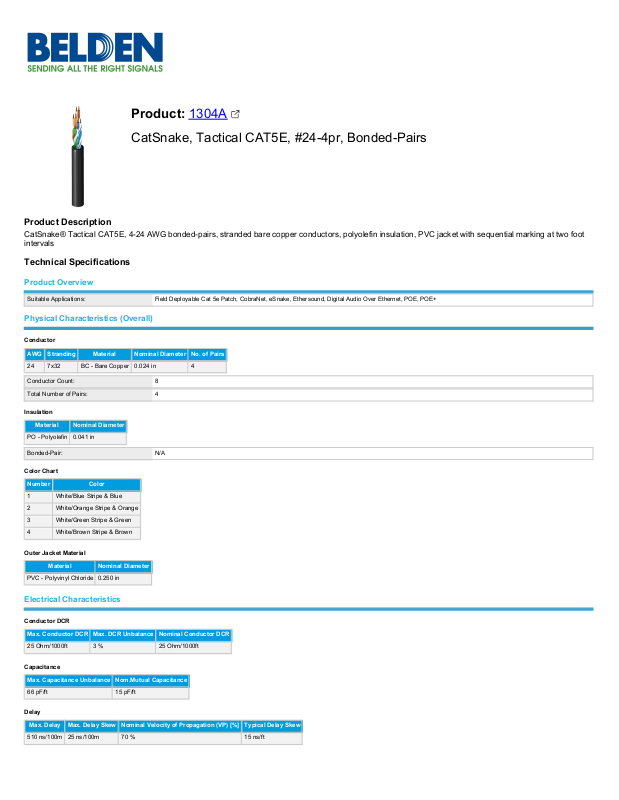

Belden 1304A Datasheet

Page 1

Product: 1304A

CatSnake, Tactical CAT5E, #24-4pr, Bonded-Pairs

Product Description

CatSnake® Tactical CAT5E, 4-24 AWG bonded-pairs, stranded bare copper conductors, polyolefin insulation, PVC jacket with sequential marking at two foot intervals

Technical Specifications

Product Overview

Suitable Applications: Field Deployable Cat 5e Patch, CobraNet, eSnake, Ethersound, Digital Audio Over Ethernet, POE, POE+

Physical Characteristics (Overall)

Conductor

AWG Stranding Material Nominal Diameter No. of Pairs

24 7x32 BC - Bare Copper 0.024 in 4

Conductor Count: 8

Total Number of Pairs: 4

Insulation

Material Nominal Diameter

PO - Polyolefin 0.041 in

Bonded-Pair: N/A

Color Chart

Number Color

1 White/Blue Stripe & Blue

2 White/Orange Stripe & Orange

3 White/Green Stripe & Green

4 White/Brown Stripe & Brown

Outer Jacket Material

Material Nominal Diameter

PVC - Polyvinyl Chloride 0.250 in

Electrical Characteristics

Conductor DCR

Max. Conductor DCR Max. DCR Unbalance Nominal Conductor DCR

25 Ohm/1000ft 3 % 25 Ohm/1000ft

Capacitance

Max. Capacitance Unbalance Nom.Mutual Capacitance

66 pF/ft 15 pF/ft

Delay

Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%] Typical Delay Skew

510 ns/100m 25 ns/100m 70 % 15 ns/ft

Page 2

High Freq

Frequency

[MHz]

Max. Insertion Loss

(Attenuation)

Min.

NEXT [dB]

Min.

PSNEXT [dB]

Min.

ACR [dB]

Min.

PSACR [dB]

Min. ACRF

(ELFEXT) [dB]

Min. PSACRF

(PSELFEXT) [dB]

Min. RL (Return

Loss) [dB]

Max./Min. Input

Impedance (unFitted)

Max./Min. Fitted

Impedance

1 MHz 2.0 dB/100m 65.3 dB 65.3 dB 63.3 dB 62.9 dB 63.8 dB 60.8 dB 20.0 dB 100 +/- 12 105 +/- 10

4 MHz 4.1 dB/100m 56.3 dB 56.3 dB 52.2 dB 51.5 dB 51.8 dB 48.8 dB 23.0 dB 100 +/- 12 100 +/- 10

8 MHz 5.8 dB/100m 51.8 dB 51.8 dB 46.0 dB 45.0 dB 45.7 dB 42.7 dB 24.5 dB 100 +/- 12 100 +/- 10

10 MHz 6.5 dB/100m 50.3 dB 50.3 dB 43.8 dB 42.6 dB 43.8 dB 40.8 dB 25.0 dB 100 +/- 12 100 +/- 10

16 MHz 8.2 dB/100m 47.2 dB 47.2 dB 39.0 dB 37.5 dB 39.7 dB 36.7 dB 25.0 dB 100 +/- 12 100 +/- 10

20 MHz 9.3 dB/100m 45.8 dB 45.8 dB 36.5 dB 34.8 dB 37.8 dB 34.8 dB 25.0 dB 100 +/- 12 100 +/- 10

25 MHz 10.4 dB/100m 44.3 dB 44.3 dB 33.9 dB 31.9 dB 35.8 dB 32.8 dB 24.3 dB 100 +/- 15 100 +/- 10

31.25 MHz 11.7 dB/100m 42.9 dB 41.9 dB 31.2 dB 29.0 dB 33.9 dB 30.9 dB 23.6 dB 100 +/- 15 100 +/- 10

62.5 MHz 17.0 dB/100m 38.4 dB 38.4 dB 21.4 dB 18.3 dB 27.9 dB 24.9 dB 21.5 dB 100 +/- 15 100 +/- 10

100 MHz 22.0 dB/100m 35.3 dB 35.3 dB 13.3 dB 9.2 dB 23.8 dB 20.8 dB 20.1 dB 100 +/- 18 100 +/- 10

155 MHz 28.1 dB/100m 32.4 dB 32.4 dB 4.4 dB 0.0 dB 20.0 dB 17.0 dB 18.8 dB 100 +/- 18 100 +/- 10

200 MHz 32.4 dB/100m 30.8 dB 30.8 dB 9.2 dB 17.8 dB 14.8 dB 18.0 dB 100 +/- 18 100 +/- 10

250 MHz 44.2 dB/100m 29.3 dB 29.3 dB 0 dB 15.8 dB 12.8 dB 17.3 dB 100 +/- 18 100 +/- 10

310 MHz 50.1 dB/100m 27.9 dB 27.9 dB 14.0 dB 11.0 dB 16.7 dB 100 +/- 18 100 +/- 10

350 MHz 53.8 dB/100m 27.1 dB 27.1 dB 12.9 dB 9.9 dB 16.3 dB 100 +/- 18 100 +/- 10

300 MHz 48.6 dB/100m 28.2 dB 28.2 dB 12.9 dB 9.9 dB 18 dB 100 ± 22 Ohm 100 ± 10 Ohm

310 MHz 49.5 dB/100m 27.9 dB 27.9 dB 18 dB

350 MHz 53.2 dB/100m 27.2 dB 27.2 dB 17 dB

Voltage

UL Voltage Rating

300 V RMS

Temperature Range

Installation Temp Range: -0 To 60C

Non-UL Temp Rating: +75°C

Storage Temp Range: -30°C To +75°C

Operating Temp Range: -30°C To +75°C

Mechanical Characteristics

Cold Bend Test: -30°C Compliance per UL 1581

Bulk Cable Weight: 26 lbs

Max Recommended Pulling Tension: 40 lbs

Min Bend Radius During Installation: 2.5 in

Min Bend Radius/Minor Axis: 1.0 in

Standards

NEC/(UL) Specification: N/A

ISO/IEC Compliance: 11801 Category 5e Patch

Data Category: Category 5e

ANSI Compliance: S-90-661-2012 Category 5e Patch, ANSI/NEMA WC-63.1 Category 5e Patch

Telecommunications Standards: TIA/EIA-568-B.2

IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3

Other Specification: NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e

Other Standards: NEMA WC-63.1 Category 5e Patch, ANSI/ICEA 661 Individually Unshielded Twisted Pair Indoor Cable

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor

EU Directive 2000/53/EC (ELV): Yes

EU Directive 2002/96/EC (WEEE): Yes

EU Directive 2003/11/EC (BFR): Yes

EU Directive 2003/96/EC (BFR): Yes

EU Directive 2011/65/EU (ROHS II): Yes

EU Directive 2012/19/EU (WEEE): Yes

EU Directive Compliance: EU Directive 2003/11/EC (BFR)

EU CE Mark: No

Page 3

EU REACH SVHC Compliance (yyyy-mm-dd):

2017-07-10

EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-20

CA Prop 65 (CJ for Wire & Cable): Yes

MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: No

Suitability - Burial: No

Suitability - Hazardous Locations: No

Suitability - Indoor: Yes

Suitability - Non-Halogenated: No

Suitability - Oil Resistance: No

Suitability - Outdoor: Yes

Suitability - Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: 60332-1

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): N

Part Number

Variants

Item # Color UPC Length

1304A B591000 Black, Matte 612825111108 1,000 ft

1304A B59500 Black, Matte 612825111115 500 ft

Patent: https://www.belden.com/resources/patents

Product Notes

Notes:

EtherNet/IP is a Trademark of ControlNet Internation, Ltd. Under License by Open DeviceNet Vendor Association, Inc. Operating Temperatures Are Subject to Length De-rating.

History

Update and Revision: Revision Number: 0.322 Revision Date: 01-31-2020

Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability.

Belden provides the information and specifications herein on an "ASIS" basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.

All sales of Belden products are subject to Belden's standard terms and conditions of sale.

Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden's knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
