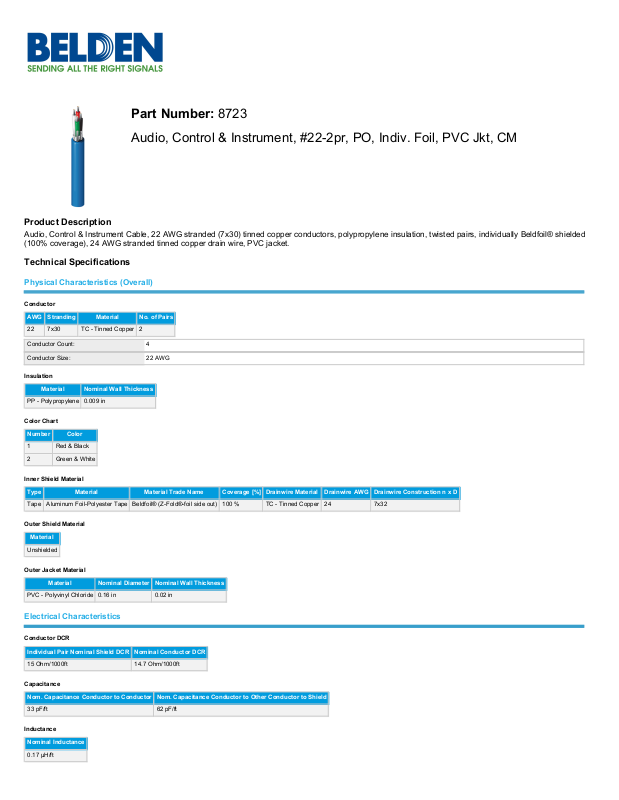

Page 1
Part Number: 8723
Audio, Control & Instrument, #22-2pr, PO, Indiv. Foil, PVC Jkt, CM
Product Description
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil® shielded
(100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
22 7x30 TC - Tinned Copper 2
Conductor Count: 4
Conductor Size: 22 AWG
Insulation
Material Nominal Wall Thickness
PP - Polypropylene 0.009 in
Color Chart
Number Color
1 Red & Black
2 Green & White
Inner Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Aluminum Foil-Polyester Tape Beldfoil® (Z-Fold®-foil side out) 100 % TC - Tinned Copper 24 7x32
Outer Shield Material
Material
Unshielded
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.16 in 0.02 in
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR
15 Ohm/1000ft 14.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
33 pF/ft 62 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Page 2
Impedance
Nominal Characteristic Impedance
52 Ohm
High Frequency (Nominal/Typical)
Nom. Insertion Loss
10 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
Per conductor @ 25°C (10C temperature rise): 2.3 A
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating: 60°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
Bulk Cable Weight: 17 lbs/1000ft
Max Recommended Pulling Tension: 42 lbs
Min Bend Radius/Minor Axis: 1.75 in
Standards
NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Suitability - Outdoor: No
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1685 (UL Loading)
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Plenum Number: 82723, 87723, 88723
Page 3
Part Number
Variants
Item # Color UPC Length Footnote
8723.001000 Chrome 1,000 m
8723.0030 Chrome 30 m
8723.00U152 Chrome 152 m
8723.00U305 Chrome 305 m
8723.01152 Chrome 152 m
8723.011524 Chrome 1,524 m
8723.013048 Chrome 3,048 m
8723.01305 Chrome 305 m
8723.013050 Chrome 3,050 m
8723.01610 Chrome 610 m
8723.02500 Chrome 500 m
8723 060100 Chrome 612825214441 100 ft
8723 0601000 Chrome 612825214458 1,000 ft C
8723 06010000 Chrome 612825214465 10,000 ft C Y
8723 06010001 Chrome 612825214472 10,000 ft C
8723 06015000 Chrome 612825214489 15,000 ft
8723 0601640 Chrome 612825214496 1,640 ft
8723 0602000 Chrome 612825214502 2,000 ft C
8723 0603280 Chrome 612825214519 3,280 ft C
8723 060500 Chrome 612825214526 500 ft
8723 0605000 Chrome 612825214533 5,000 ft C
8723 0609999 Chrome 612825214540 10,000 ft C Y
8723 060U1000 Chrome 612825214410 1,000 ft
8723 060U2000 Chrome 612825214427 2,000 ft
8723 060U500 Chrome 612825214434 500 ft
8723.K1305 Chrome 305 m
8723.00100 Chrome 100 m
Footnote: C - CRATE REEL PUT-UP.
Footnote: Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.
History
Update and Revision: Revision Number: 0.307 Revision Date: 07-11-2019
