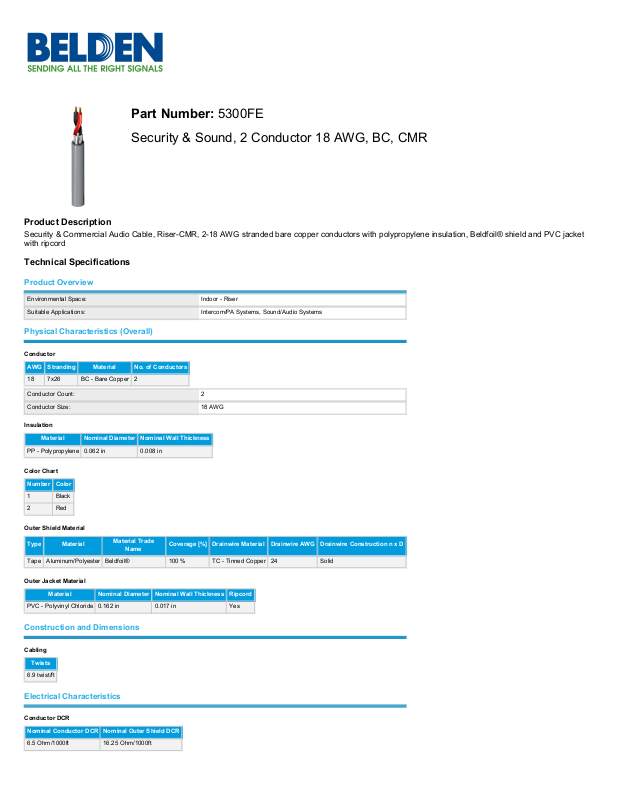

Belden 5300FE Datasheet

Page 1

Part Number: 5300FE

Security & Sound, 2 Conductor 18 AWG, BC, CMR

Product Description

Security & Commercial Audio Cable, Riser-CMR, 2-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Technical Specifications

Product Overview

Environmental Space: Indoor - Riser

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor

AWG Stranding Material No. of Conductors

18 7x26 BC - Bare Copper 2

Conductor Count: 2

Conductor Size: 18 AWG

Insulation

Material Nominal Diameter Nominal Wall Thickness

PP - Polypropylene 0.062 in 0.008 in

Color Chart

Number Color

1 Black

2 Red

Outer Shield Material

Type Material

Material Trade

Name

Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D

Tape Aluminum/Polyester Beldfoil® 100 % TC - Tinned Copper 24 Solid

Outer Jacket Material

Material Nominal Diameter Nominal Wall Thickness Ripcord

PVC - Polyvinyl Chloride 0.162 in 0.017 in Yes

Construction and Dimensions

Cabling

Twists

6.9 twist/ft

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR Nominal Outer Shield DCR

6.5 Ohm/1000ft 16.25 Ohm/1000ft

Page 2

Capacitance

Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield

53 pF/ft 95.5 pF/ft

Inductance

Nominal Inductance

0.145 µH/ft

Current

Max. Recommended Current [A]

Per conductor @ 25°C: 5 A

Voltage

UL Voltage Rating

300 V RMS

Temperature Range

UL Temp Rating: 75°C

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 18 lbs/1000ft

Max Recommended Pulling Tension: 57.5 lbs

Min Bend Radius/Minor Axis: 1.75 in

Standards

NEC Articles: 800

NEC/(UL) Specification: CMR

CEC/C(UL) Specification: CMG

CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes

EU Directive 2003/96/EC (BFR): Yes

EU Directive 2011/65/EU (ROHS II): Yes

EU Directive 2012/19/EU (WEEE): Yes

EU Directive 2015/863/EU: Yes

EU Directive Compliance: EU Directive 2003/11/EC (BFR)

EU CE Mark: Yes

EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01

CA Prop 65 (CJ for Wire & Cable): Yes

MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: No

Suitability - Burial: No

Suitability - Hazardous Locations: No

Suitability - Indoor: Yes

Suitability - Outdoor: No

Suitability - Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4

UL Flammability: UL1666 Vertical Shaft

ISO/IEC Flammability: IEC 60332-1-2

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Page 3

Plenum Number: 6300FH

Part Number

Variants

Item # Color UPC Length Footnote

5300FE 0101000 Black 612825158981 1,000 ft

5300FE 010U1000 Black 612825423362 1,000 ft

5300FE 010Z1000 Black 612825159025 1,000 ft

5300FE 0061000 Blue, Light 612825350323 1,000 ft

5300FE.00152 Chrome 152 m

5300FE.00305 Chrome 305 m

5300FE.K0305 Chrome 305 m

5300FE 0081000 Gray 612825158974 1,000 ft C

5300FE 008500 Gray 612825336754 500 ft

5300FE 008U1000 Gray 612825158950 1,000 ft

5300FE 008U500 Gray 612825423348 500 ft

5300FE 008Z1000 Gray 612825350330 1,000 ft

5300FE 0031000 Orange 612825350309 1,000 ft

5300FE 0021000 Red 612825423331 1,000 ft

5300FE 002Z1000 Red 612825350293 1,000 ft

5300FE 0071000 Violet 612825158967 1,000 ft

5300FE 0091000 White 612825423355 1,000 ft

5300FE 009Z1000 White 612825158998 1,000 ft

5300FE 0041000 Yellow 612825350316 1,000 ft

Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.290 Revision Date: 07-11-2019
