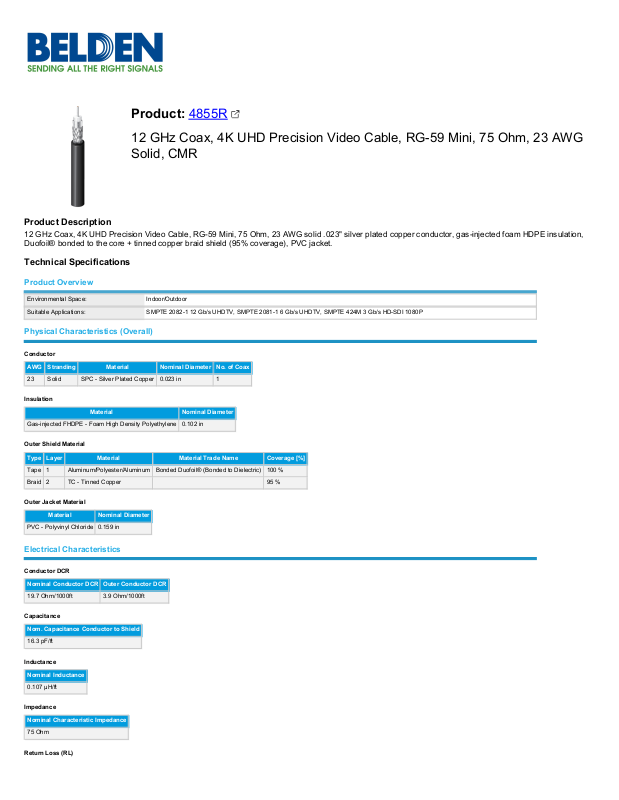

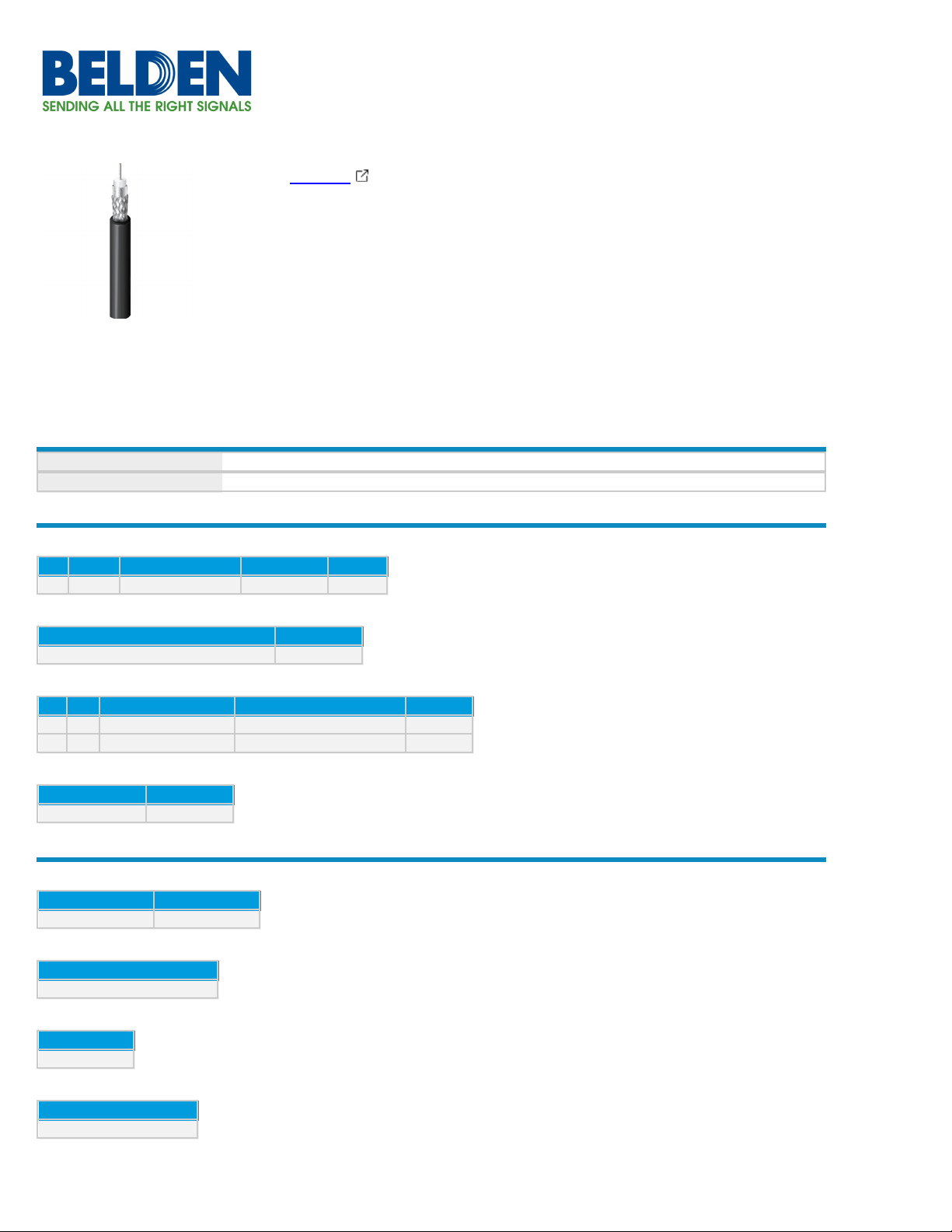

Page 1
Product: 4855R
12 GHz Coax, 4K UHD Precision Video Cable, RG-59 Mini, 75 Ohm, 23 AWG
Solid, CMR
Product Description
12 GHz Coax, 4K UHD Precision Video Cable, RG-59 Mini, 75 Ohm, 23 AWG solid .023" silver plated copper conductor, gas-injected foam HDPE insulation,
Duofoil® bonded to the core + tinned copper braid shield (95% coverage), PVC jacket.
Technical Specifications
Product Overview
Environmental Space: Indoor/Outdoor
Suitable Applications: SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
23 Solid SPC - Silver Plated Copper 0.023 in 1
Insulation
Material Nominal Diameter
Gas-injected FHDPE - Foam High Density Polyethylene 0.102 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Bonded Duofoil® (Bonded to Dielectric) 100 %
Braid 2 TC - Tinned Copper 95 %
Outer Jacket Material
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.159 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Outer Conductor DCR
19.7 Ohm/1000ft 3.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.107 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Page 2
Frequency [MHz] Minimum Return (RL)
5 MHz - 1600 MHz 23 dB
1600 MHz - 4500 MHz 21 dB
4500 MHz - 12000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.39 dB/100ft
3.58 MHz 0.78 dB/100ft
5 MHz 0.92 dB/100ft
6 MHz 1 dB/100ft
7 MHz 1.08 dB/100ft
10 MHz 1.2 dB/100ft
12 MHz 1.3 dB/100ft
25 MHz 1.8 dB/100ft
55 MHz 2.6 dB/100ft
67.5 MHz 2.83 dB/100ft
71.5 MHz 2.93 dB/100ft
88.5 MHz 3.22 dB/100ft
100 MHz 3.39 dB/100ft
135 MHz 3.84 dB/100ft
143 MHz 4.00 dB/100ft
180 MHz 4.41 dB/100ft
270 MHz 5.44 dB/100ft
360 MHz 6.34 dB/100ft
540 MHz 7.85 dB/100ft
720 MHz 9.09 dB/100ft
750 MHz 9.28 dB/100ft
1000 MHz 10.8 dB/100ft
1500 MHz 13.2 dB/100ft
2000 MHz 15.3 dB/100ft
2250 MHz 16.3 dB/100ft
3000 MHz 19.0 dB/100ft
4500 MHz 23.6 dB/100ft
6000 MHz 27.7 dB/100ft
12000 MHz 41.2 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82 %
Voltage
UL Voltage Rating
300 V RMS
Electrical Characteristics Notes: Return Loss: Fixed bridge and termination
Other Electrical Characteristic 2: Percent test
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -30°C To +75°C
Mechanical Characteristics
UV Resistance: Yes
Bulk Cable Weight: 17 lbs/1000ft
Max Recommended Pulling Tension: 40 lbs
Min Bend Radius/Minor Axis: 1.6 in
Standards
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca
Page 3
RG Type: Mini 59/U Type
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
Suitability
Suitability - Aerial: Yes - Black only, when supported by messenger wire
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: Yes - Black only
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Item # Color UPC Length Footnote
4855R 0101000 Black 612825390572 1,000 ft
4855R 0105000 Black 612825390589 5,000 ft C Z
4855R 01010000 Black 612825436362 10,000 ft
4855R 0061000 Blue, Light 612825395362 1,000 ft
4855R 00610000 Blue, Light 612825436218 10,000 ft
4855R 0065000 Blue, Light 612825436591 5,000 ft
4855R N3U5000 Green, Mil 612825436652 5,000 ft
4855R N3U10000 Green, Mil 612825436447 10,000 ft
4855R N3U1000 Mil Green 612825395355 1,000 ft
4855R 0031000 Orange 612825395249 1,000 ft
4855R 0035000 Orange 612825436560 5,000 ft
4855R 00310000 Orange 612825436195 10,000 ft
4855R 0071000 Purple 612825395263 1,000 ft
4855R 0021000 Red 612825395232 1,000 ft
4855R 0025000 Red 612825436522 5,000 ft
4855R 00210000 Red 612825436164 10,000 ft
4855R 0075000 Violet 612825436607 5,000 ft
4855R 00710000 Violet 612825436225 10,000 ft
4855R 0095000 White 612825436645 5,000 ft
4855R 00910000 White 612825436461 10,000 ft
4855R 0041000 Yellow 612825395256 1,000 ft
4855R 00410000 Yellow 612825436201 10,000 ft
4855R 0045000 Yellow 612825436584 5,000 ft
Footnote: C - CRATE REEL PUT-UP.
Footnote: Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
Product Notes
Page 4
Notes: Print legend includes sequential footage marks.
History
Update and Revision: Revision Number: 0.206 Revision Date: 01-31-2020
