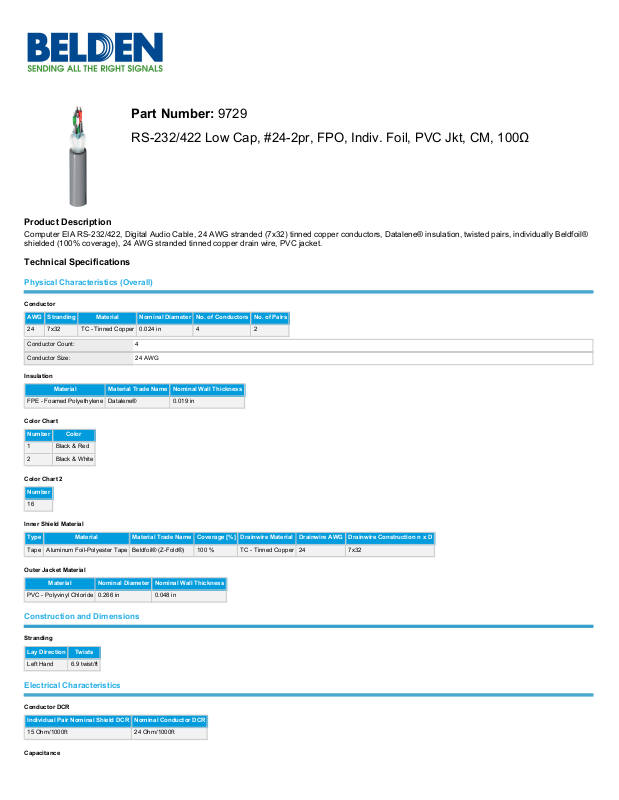

Part Number: 9729
RS-232/422 Low Cap, #24-2pr, FPO, Indiv. Foil, PVC Jkt, CM, 100Ω
Product Description
Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs, individually Beldfoil®
shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Technical Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors No. of Pairs
24 7x32 TC - Tinned Copper 0.024 in 4 2
Conductor Count: 4
Conductor Size: 24 AWG
Insulation
Material Material Trade Name Nominal Wall Thickness
FPE - Foamed Polyethylene Datalene® 0.019 in
Color Chart
Number Color
1 Black & Red
2 Black & White
Color Chart 2
Number
16
Inner Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Aluminum Foil-Polyester Tape Beldfoil® (Z-Fold®) 100 % TC - Tinned Copper 24 7x32
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.266 in 0.048 in
Construction and Dimensions
Stranding
Lay Direction Twists
Left Hand 6.9 twist/ft
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR
15 Ohm/1000ft 24 Ohm/1000ft
Capacitance
Page 2
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
12.5 pF/ft 23.2 pF/ft
Inductance
Nominal Inductance
0.23 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
0.384 MHz 0.74 dB/100m
0.7056 MHz 0.87 dB/100m
0.768 MHz 0.88 dB/100m
1.024 MHz 0.94 dB/100m
1.4112 MHz 1.01 dB/100m
1.536 MHz 1.03 dB/100m
2.048 MHz 1.13 dB/100m
2.8224 MHz 1.29 dB/100m
3.072 MHz 1.35 dB/100m
4.096 MHz 1.57 dB/100m
5.6448 MHz 1.78 dB/100m
6.144 MHz 1.84 dB/100m
8.192 MHz 2.13 dB/100m
11.2896 MHz 2.45 dB/100ft
12.288 MHz 2.57 dB/100ft
24.576 MHz 3.57 dB/100ft
Delay
Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
76 ns/100m 76 %
High Freq
Frequency [MHz]
0.384 MHz
0.7056 MHz
0.768 MHz
1.024 MHz
1.4112 MHz
1.536 MHz
2.048 MHz
2.8224 MHz
3.072 MHz
4.096 MHz
5.6448 MHz
6.144 MHz
8.192 MHz
11.2896 MHz
12.288 MHz
24.576 MHz
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 1 A
Current Table Note: 10C Temperature Rise
Voltage
UL Voltage Rating
300 V RMS
Electrical Characteristics Notes: Attenuation @ 1 MHz: 0.94 dB/100 ft nom
Page 3
Temperature Range
UL Temp Rating: 80°C (UL AWM Style 2919)
Operating Temp Range: -20°C To +80°C
Mechanical Characteristics
Bulk Cable Weight: 35 lbs/1000ft
Max Recommended Pulling Tension: 22 lbs
Min Bend Radius/Minor Axis: 2.75 in
Standards
NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: 2919 (30 V 80°C)
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date
(yyyy-mm-dd):
2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Hazardous Locations: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: No
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1685 (UL Loading)
CSA Flammability: FT1
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Plenum Number: 89729, 82729
Part Number
Variants
Item # Color UPC Length Footnote
9729.001100 Chrome 1,100 m
9729.002000 Chrome 2,000 m
9729.0030 Chrome 30 m
9729.00305 Chrome 305 m
9729.00500 Chrome 500 m
9729.01152 Chrome 152 m
9729 060100 Chrome 612825257530 100 ft
9729 0601000 Chrome 612825257547 1,000 ft C
9729 06010000 Chrome 612825257554 10,000 ft C Y
9729 060500 Chrome 612825257561 500 ft C
9729 0605000 Chrome 612825257578 5,000 ft C
Page 4
9729.K0305 Chrome 305 m
Footnote: C - CRATE REEL PUT-UP.
Footnote: Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'.
Product Notes
Notes:
Datalene« insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush
