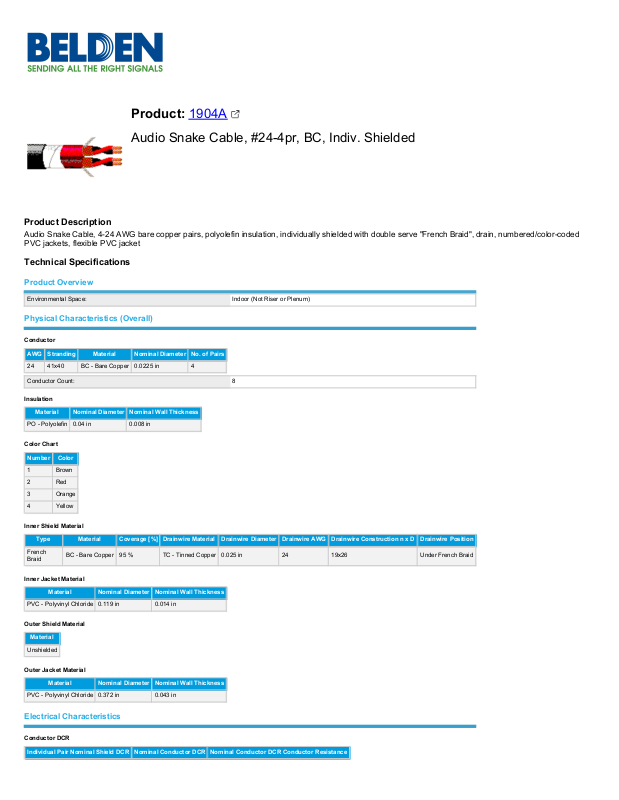

Page 1
Product: 1904A
Audio Snake Cable, #24-4pr, BC, Indiv. Shielded
Product Description
Audio Snake Cable, 4-24 AWG bare copper pairs, polyolefin insulation, individually shielded with double serve "French Braid", drain, numbered/color-coded
PVC jackets, flexible PVC jacket
Technical Specifications
Product Overview
Environmental Space: Indoor (Not Riser or Plenum)
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
24 41x40 BC - Bare Copper 0.0225 in 4
Conductor Count: 8
Insulation
Material Nominal Diameter Nominal Wall Thickness
PO - Polyolefin 0.04 in 0.008 in
Color Chart
Number Color
1 Brown
2 Red
3 Orange
4 Yellow
Inner Shield Material
Type Material Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D Drainwire Position
French
Braid
BC - Bare Copper 95 % TC - Tinned Copper 0.025 in 24 19x26 Under French Braid
Inner Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.119 in 0.014 in
Outer Shield Material
Material
Unshielded
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.372 in 0.043 in
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
Page 2
7.2 Ohm/1000ft 25.5 Ohm/1000ft 25.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
26.1 pF/ft 47.5 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
60 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
1.05 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
Operating Temp Range: -20°C To +60°C
Mechanical Characteristics
Bulk Cable Weight: 73 lbs/1000ft
Max Recommended Pulling Tension: 120 lbs
Min Bend Radius/Minor Axis: 3.75 in
Standards
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Page 3
Item # Color UPC Length Footnote
1904A B591000 Black, Matte 612825126386 1,000 ft C
1904A B59250 Black, Matte 612825126393 250 ft C
1904A B59500 Black, Matte 612825126409 500 ft C
Footnote: C - CRATE REEL PUT-UP.
History
Update and Revision: Revision Number: 0.257 Revision Date: 01-31-2020
