For more Information
please call
1-800-Belden1

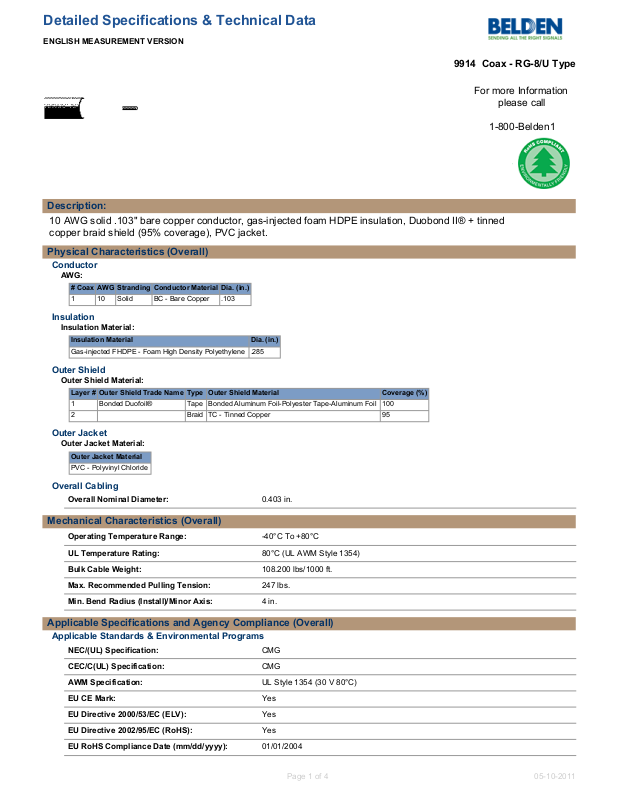

Description:
10 AWG solid .103" bare copper conductor, gas-injected foam HDPE insulation, Duobond II® + tinned
copper braid shield (95% coverage), PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
# Coax AWG Stranding Conductor Material Dia. (in.)
1 10 Solid BC - Bare Copper .103
Insulation
Insulation Material:
Insulation Material Dia. (in.)
Gas-injected FHDPE - Foam High Density Polyethylene .285
Outer Shield
Outer Shield Material:
Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
1 Bonded Duofoil® Tape Bonded Aluminum Foil-Polyester Tape-Aluminum Foil 100
2 Braid TC - Tinned Copper 95
Outer Jacket
Outer Jacket Material:
Outer Jacket Material
PVC - Polyvinyl Chloride
Overall Cabling
Overall Nominal Diameter: 0.403 in.
Mechanical Characteristics (Overall)
Operating Temperature Range: -40°C To +80°C
UL Temperature Rating: 80°C (UL AWM Style 1354)
Bulk Cable Weight: 108.200 lbs/1000 ft.
Max. Recommended Pulling Tension: 247 lbs.
Min. Bend Radius (Install)/Minor Axis: 4 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
AWM Specification: UL Style 1354 (30 V 80°C)
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
Page 1 of 4 05-10-2011
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
9914 Coax - RG-8/U Type
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
RG Type: 8/U
Flame Test
UL Flame Test: UL1685 FT4 Loading
C(UL) Flame Test: FT4
Suitability
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Aerial: Yes
Plenum/Non-Plenum
Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
Impedance (Ohm)
50
Nom. Inductance:
Inductance (µH/ft)
.065
Nom. Capacitance Conductor to Shield:
Capacitance (pF/ft)
24.8
Nominal Velocity of Propagation:
VP (%)
82
Nominal Delay:
Delay (ns/ft)
1.24
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
1.2
Nominal Outer Shield DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
1.1
Maximum VSWR:
Start Freq. (MHz) Stop Freq. (MHz) Max. VSWR
5.000 2250.000 1.43:1
Nom. Attenuation:
Freq. (MHz) Attenuation (dB/100 ft.)
5 .4
10 .5
50 1.0
100 1.4
200 1.8
400 2.6
700 3.6
900 4.1
1000 4.4
Page 2 of 4 05-10-2011
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
9914 Coax - RG-8/U Type
1500 5.5
1800 6.1
2000 6.5
2500 7.5
3000 8.3
4000 9.9
Max. Power Rating:
Freq. (MHz) Rating (W)
5 4021
10 3217
50 1609
100 1149
200 894
400 619
700 447
900 393
1000 366
1500 293
1800 264
2000 248
2500 215
3000 194
4000 163
Max. Operating Voltage - UL:
Voltage
30 V RMS (UL AWM Style 1354)
Max. Operating Voltage - Non-UL:
Voltage
300 V RMS
Notes (Overall)
Notes: Low Loss
Related Documents:
No related documents are available for this product
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
9914 0101000 1,000 FT 114.000 LB BLACK C RG-8/U TYPE COAX
9914 010500 500 FT 56.000 LB BLACK C RG-8/U TYPE COAX
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 2 Revision Date: 09-30-2009
