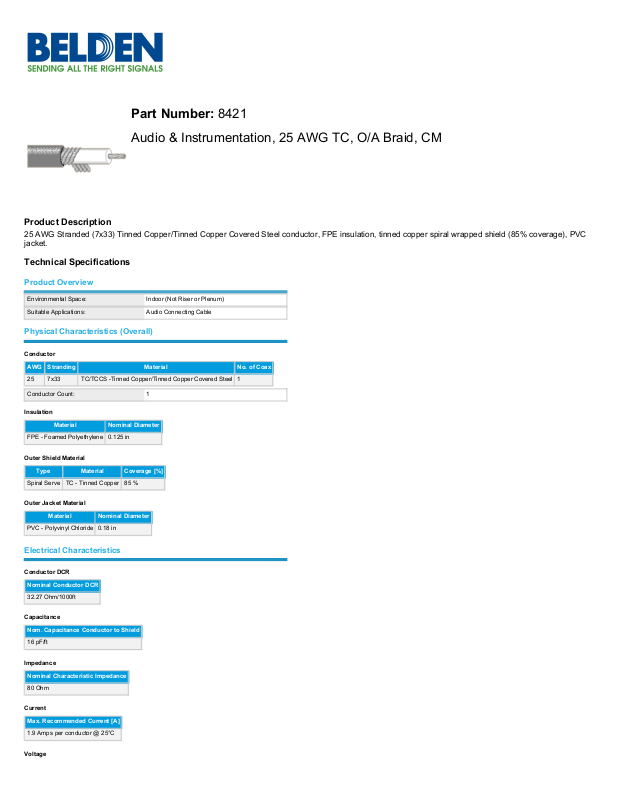

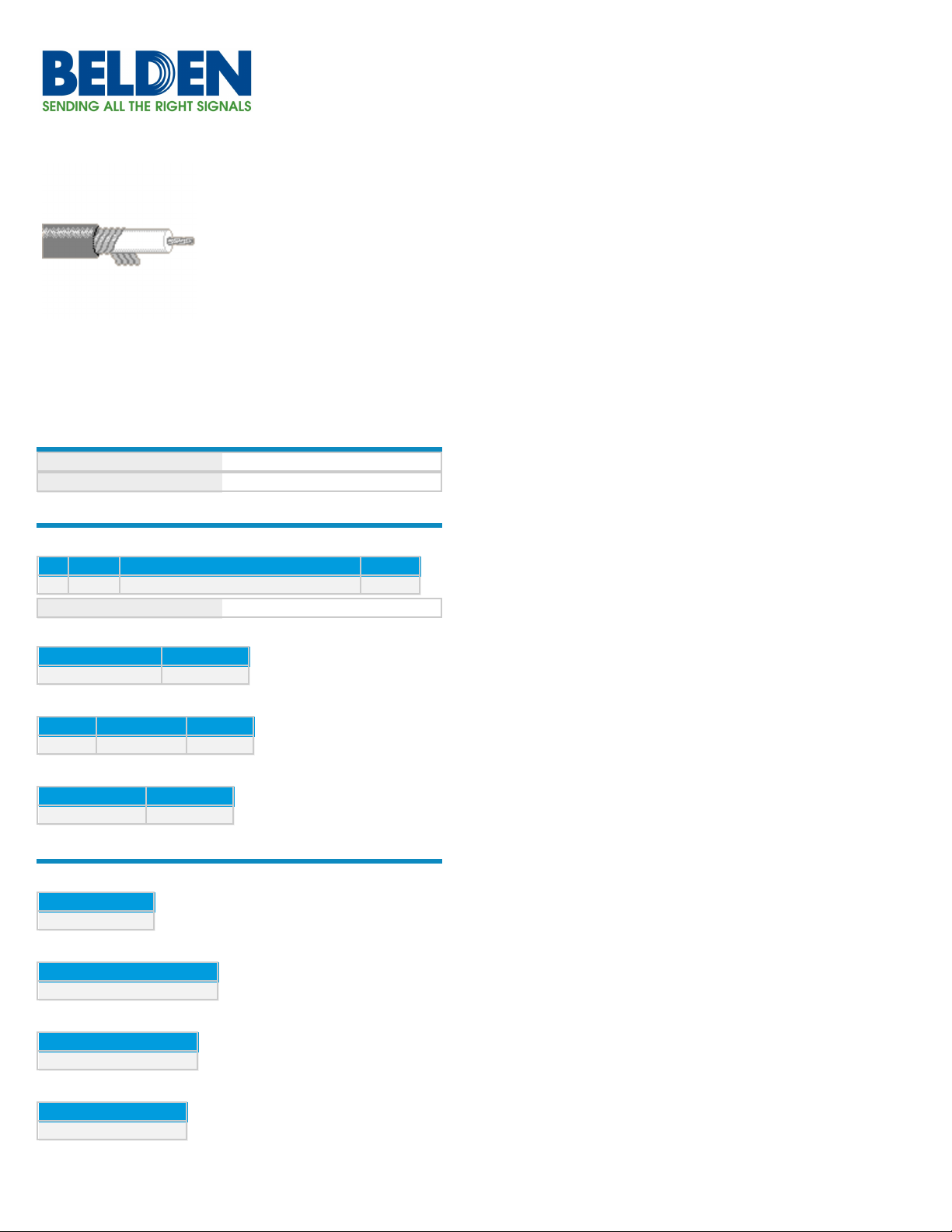

Page 1
Part Number: 8421
Audio & Instrumentation, 25 AWG TC, O/A Braid, CM
Product Description
25 AWG Stranded (7x33) Tinned Copper/Tinned Copper Covered Steel conductor, FPE insulation, tinned copper spiral wrapped shield (85% coverage), PVC
jacket.
Technical Specifications
Product Overview
Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: Audio Connecting Cable
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Coax
25 7x33 TC/TCCS -Tinned Copper/Tinned Copper Covered Steel 1
Conductor Count: 1
Insulation
Material Nominal Diameter
FPE - Foamed Polyethylene 0.125 in
Outer Shield Material
Type Material Coverage [%]
Spiral Serve TC - Tinned Copper 85 %
Outer Jacket Material
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.18 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
32.27 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16 pF/ft
Impedance
Nominal Characteristic Impedance
80 Ohm
Current
Max. Recommended Current [A]
1.9 Amps per conductor @ 25°C
Voltage
Page 2
Non-UL Voltage Rating
300 V RMS
Temperature Range
Non-UL Temp Rating: 80°C
Operating Temp Range: -20°C To +80°C
Mechanical Characteristics
Bulk Cable Weight: 15 lbs/1000ft
Max Recommended Pulling Tension: 5 lbs
Min Bend Radius (Overall): 2 in
Standards
CPR Euroclass: Fca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Item # Color UPC Length
8421 060250 Black 612825206538 250 ft
History
Update and Revision: Revision Number: 0.245 Revision Date: 08-22-2019
