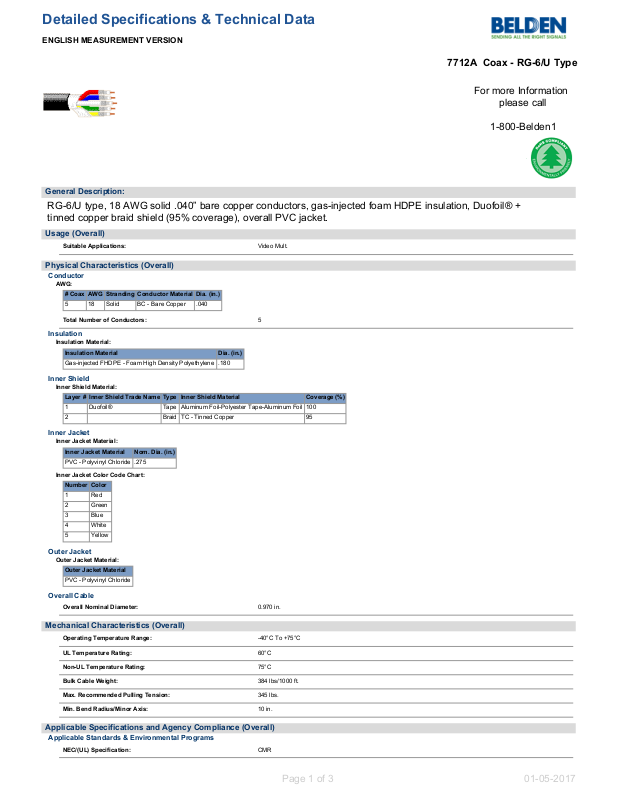

General Description:
RG-6/U type, 18 AWG solid .040” bare copper conductors, gas-injected foam HDPE insulation, Duofoil® +
tinned copper braid shield (95% coverage), overall PVC jacket.
Usage (Overall)
Suitable Applications: Video Mult.
Physical Characteristics (Overall)
Conductor
AWG:
# Coax AWG Stranding Conductor Material Dia. (in.)
5 18 Solid BC - Bare Copper .040
Total Number of Conductors: 5
Insulation
Insulation Material:
Insulation Material Dia. (in.)
Gas-injected FHDPE - Foam High Density Polyethylene .180
Inner Shield
Inner Shield Material:
Layer # Inner Shield Trade Name Type Inner Shield Material Coverage (%)
1 Duofoil® Tape Aluminum Foil-Polyester Tape-Aluminum Foil 100
2 Braid TC - Tinned Copper 95
Inner Jacket
Inner Jacket Material:
Inner Jacket Material Nom. Dia. (in.)
PVC - Polyvinyl Chloride .275
Inner Jacket Color Code Chart:
Number Color
1 Red
2 Green
3 Blue
4 White
5 Yellow
Outer Jacket
Outer Jacket Material:
Outer Jacket Material
PVC - Polyvinyl Chloride
Overall Cable
Overall Nominal Diameter: 0.970 in.
Mechanical Characteristics (Overall)
Operating Temperature Range: -40°C To +75°C
UL Temperature Rating: 60°C
Non-UL Temperature Rating: 75°C
Bulk Cable Weight: 384 lbs/1000 ft.
Max. Recommended Pulling Tension: 345 lbs.
Min. Bend Radius/Minor Axis: 10 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CMR
Page 1 of 3 01-05-2017
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
7712A Coax - RG-6/U Type
Page 2
CEC/C(UL) Specification: CMG
AWM Specification: UL Style 1354 (each coax); UL Style 2688 (overall)
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: No
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
RG Type: 6/U
Flame Test
UL Flame Test: UL1666 Vertical Shaft
CSA Flame Test: FT4
Suitability
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Plenum/Non-Plenum
Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
Impedance (Ohm)
75
Nom. Capacitance Conductor to Shield:
Capacitance (pF/ft)
16.2
Nominal Velocity of Propagation:
VP (%)
82
Nominal Delay:
Delay (ns/ft)
1.24
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
6.4
Nom. Inner Shield DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
3.0
Nom. Attenuation:
Freq. (MHz) Attenuation (dB/100 ft.)
1.000 0.240
3.580 0.440
5.000 0.520
7.000 0.610
10.000 0.710
67.500 1.650
71.500 1.690
88.500 1.860
100.000 1.950
135.000 2.240
143.000 2.300
180.000 2.570
270.000 3.170
360.000 3.690
540.000 4.600
720.000 5.380
750.000 5.500
Page 2 of 3 01-05-2017
Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
7712A Coax - RG-6/U Type
Page 3
1000.000 6.420
1500.000 7.990
2000.000 9.370
2250.000 10.010
3000.000 11.780
4500.000 14.700
Max. Operating Voltage - UL:
Voltage
300 V RMS
Other Electrical Characteristic 1: Impedance tested in accordance with ASTM D-4566 paragraph 43.2, option 2 using a 75 Ohm fixed bridge
and termination.
Other Electrical Characteristic 2: Return Loss tested in accordance with ASTM D-4566 paragraph 45.3, using a 75 Ohm fixed bridge and
termination.
Minimum Structural Return Loss:
Start Freq. (MHz) Stop Freq. (MHz) Min. SRL (dB)
5.000 1600.000 23.000
1600.000 4500.000 21.000
Sweep Test
Sweep Testing: Sweep tested 5 MHz to 4.5 GHz.
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
7712A B591000 1,000 FT 454.000 LB BLACK, MATTE C 5 #18 PE SH PVC FRTPE
7712A B59500 500 FT 216.500 LB BLACK, MATTE C 5 #18 PE SH PVC FRTPE
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 6 Revision Date: 05-01-2013
