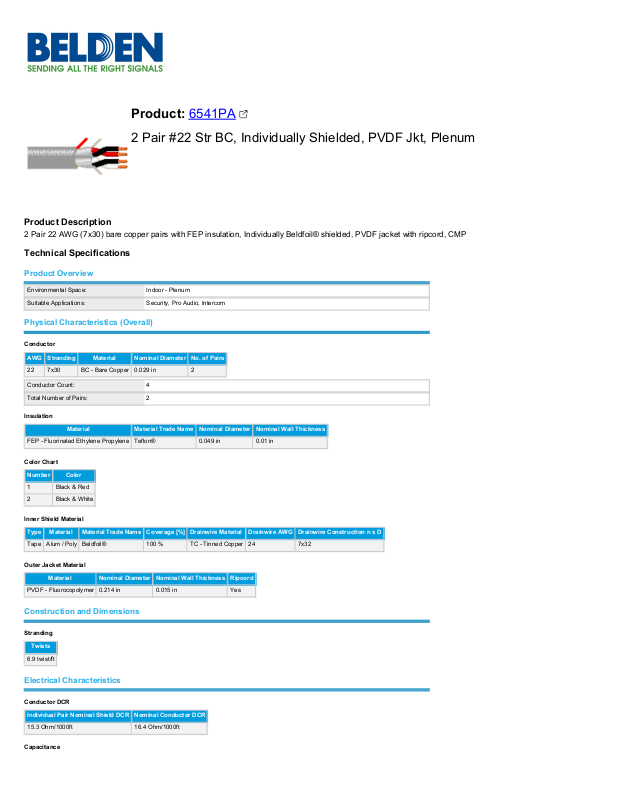

Product: 6541PA
2 Pair #22 Str BC, Individually Shielded, PVDF Jkt, Plenum
Product Description
2 Pair 22 AWG (7x30) bare copper pairs with FEP insulation, Individually Beldfoil® shielded, PVDF jacket with ripcord, CMP
Technical Specifications
Product Overview
Environmental Space: Indoor - Plenum
Suitable Applications: Security, Pro Audio, Intercom
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 7x30 BC - Bare Copper 0.029 in 2
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Material Material Trade Name Nominal Diameter Nominal Wall Thickness
FEP - Fluorinated Ethylene Propylene Teflon® 0.049 in 0.01 in
Color Chart
Number Color
1 Black & Red
2 Black & White
Inner Shield Material
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Alum / Poly Beldfoil® 100 % TC - Tinned Copper 24 7x32
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness Ripcord
PVDF - Fluorocopolymer 0.214 in 0.015 in Yes
Construction and Dimensions
Stranding
Twists
6.9 twist/ft
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR
15.3 Ohm/1000ft 16.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
27.5 pF/ft 49.5 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
69 %
Current
Max. Recommended Current [A]
2.2 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -20°C To +150°C
Mechanical Characteristics
Bulk Cable Weight: 23.7 lbs/1000ft
Max Recommended Pulling Tension: 47.4 lbs
Min Bend Radius/Minor Axis: 2.1 in
Standards
NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes
Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Yes
Part Number
Variants
Item # Color UPC Length Footnote
6541PA 0081000 Gray 612825430025 1,000 ft C
6541PA 008U1000 Gray 612825178378 1,000 ft
6541PA 0085000 Gray 612825178255 5,000 ft
Footnote: C - CRATE REEL PUT-UP.
Product Notes
Notes: Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
History
Update and Revision: Revision Number: 0.300 Revision Date: 02-21-2020
