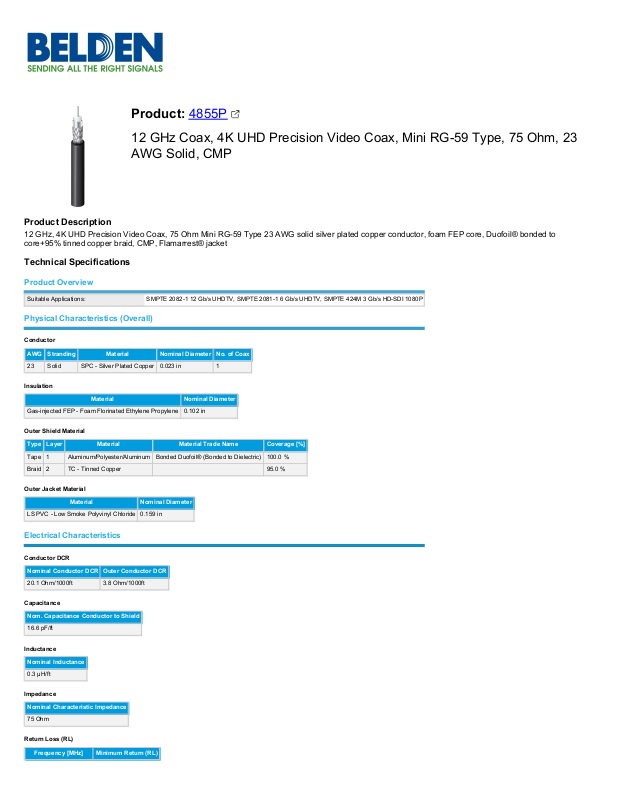

Page 1
Product: 4855P
12 GHz Coax, 4K UHD Precision Video Coax, Mini RG-59 Type, 75 Ohm, 23
AWG Solid, CMP
Product Description
12 GHz, 4K UHD Precision Video Coax, 75 Ohm Mini RG-59 Type 23 AWG solid silver plated copper conductor, foam FEP core, Duofoil® bonded to
core+95% tinned copper braid, CMP, Flamarrest® jacket
Technical Specifications
Product Overview
Suitable Applications: SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
23 Solid SPC - Silver Plated Copper 0.023 in 1
Insulation
Material Nominal Diameter
Gas-injected FEP - Foam Florinated Ethylene Propylene 0.102 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum/Polyester/Aluminum Bonded Duofoil® (Bonded to Dielectric) 100.0 %
Braid 2 TC - Tinned Copper 95.0 %
Outer Jacket Material
Material Nominal Diameter
LS PVC - Low Smoke Polyvinyl Chloride 0.159 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Outer Conductor DCR
20.1 Ohm/1000ft 3.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.6 pF/ft
Inductance
Nominal Inductance
0.3 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
Page 2
5 MHz - 1600 MHz 23 dB
1600 MHz - 4500 MHz 21 dB
4500 MHz - 12000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.39 dB/100ft
3.58 MHz 0.78 dB/100ft
5 MHz 0.91 dB/100ft
6 MHz 1.00 dB/100ft
7 MHz 1.07 dB/100ft
10 MHz 1.26 dB/100ft
12 MHz 1.37 dB/100ft
25 MHz 1.91 dB/100ft
55 MHz 2.72 dB/100ft
67.5 MHz 2.99 dB/100ft
71.5 MHz 3.06 dB/100ft
88.5 MHz 3.38 dB/100ft
100 MHz 3.58 dB/100ft
135 MHz 4.13 dB/100ft
143 MHz 4.25 dB/100ft
180 MHz 4.75 dB/100ft
270 MHz 5.86 dB/100ft
360 MHz 6.85 dB/100ft
540 MHz 8.58 dB/100ft
720 MHz 10.11 dB/100ft
750 MHz 10.34 dB/100ft
1000 MHz 12.17 dB/100ft
1500 MHz 15.25 dB/100ft
2000 MHz 17.94 dB/100ft
2250 MHz 19.17 dB/100ft
3000 MHz 22.65 dB/100ft
4500 MHz 28.71 dB/100ft
6000 MHz 33.96 dB/100ft
12000 MHz 50.95 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.27 ns/ft 80.0 %
Voltage
UL Voltage Rating
300 V RMS
Electrical Characteristics Notes: Return Loss: Fixed bridge and termination
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C
Mechanical Characteristics
UV Resistance: No
Bulk Cable Weight: 18 lbs/1000ft
Max Recommended Pulling Tension: 40 lbs
Min Bend Radius/Minor Axis: 1.5 in
Standards
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
RG Type: Mini 59/U Type
Applicable Environmental and Other Programs
Page 3
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2018-03-26
CA Prop 65 (CJ for Wire & Cable): Yes
Suitability
Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No
Flammability, LS0H, Toxicity Testing
UL Flammability: NFPA 262
CSA Flammability: FT6
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): Yes
Part Number
Non-Plenum Number: 4855R
Variants
Item # Color UPC Length
4855P 0101000 Black 612825419785 1,000 ft
4855P 0061000 Blue 612825419761 1,000 ft
4855P 0051000 Green 612825419754 1,000 ft
4855P 0031000 Orange 612825419747 1,000 ft
4855P 0021000 Red 612825419730 1,000 ft
4855P 0071000 Violet 612825419778 1,000 ft
History
Update and Revision: Revision Number: 0.41 Revision Date: 01-31-2020
