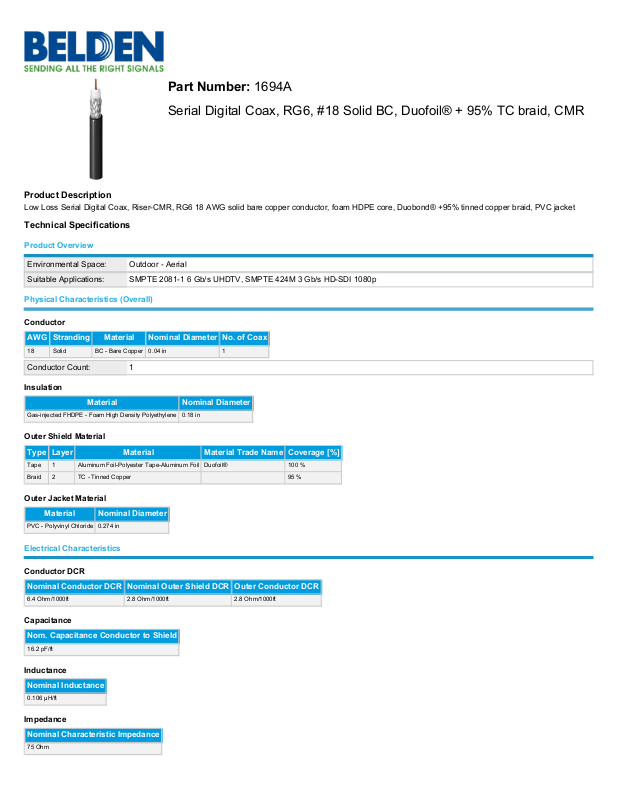

Part Number: 1694A
Serial Digital Coax, RG6, #18 Solid BC, Duofoil® + 95% TC braid, CMR
Product Description
Low Loss Serial Digital Coax, Riser-CMR, RG6 18 AWG solid bare copper conductor, foam HDPE core, Duobond® +95% tinned copper braid, PVC jacket
Technical Specifications
Product Overview
Environmental Space: Outdoor - Aerial
Suitable Applications: SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC - Bare Copper 0.04 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
Gas-injected FHDPE - Foam High Density Polyethylene 0.18 in
Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Aluminum Foil-Polyester Tape-Aluminum Foil Duofoil® 100 %
Braid 2 TC - Tinned Copper 95 %
Outer Jacket Material
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.274 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 2.8 Ohm/1000ft 2.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5 - 1600 MHz 23 dB
1600 - 4500 MHz 21 dB
4500 - 6000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.24 dB/100ft
3.58 MHz 0.44 dB/100ft
5 MHz 0.52 dB/100ft
6 MHz 0.57 dB/100ft
7 MHz 0.61 dB/100ft
10 MHz 0.71 dB/100ft
12 MHz 0.78 dB/100ft
25 MHz 1.08 dB/100ft
67.5 MHz 1.65 dB/100ft
71.5 MHz 1.69 dB/100ft
88.5 MHz 1.86 dB/100ft
100 MHz 1.95 dB/100ft
135 MHz 2.24 dB/100ft
143 MHz 2.3 dB/100ft
180 MHz 2.57 dB/100ft
270 MHz 3.17 dB/100ft
360 MHz 3.69 dB/100ft
540 MHz 4.5 dB/100ft
720 MHz 5.3 dB/100ft
750 MHz 5.4 dB/100ft
1000 MHz 6.3 dB/100ft
1500 MHz 7.8 dB/100ft
2000 MHz 9.2 dB/100ft
2250 MHz 9.8 dB/100ft
3000 MHz 11.5 dB/100ft
4500 MHz 14.5 dB/100ft
6000 MHz 17.7 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82 %
Voltage
UL Voltage Rating
300V RMS
Temperature Range
UL Temp Rating: 75°C
Operating Temp Range: -30°C To +75°C
Mechanical Characteristics
UV Resistance: Yes
Bulk Cable Weight: 41 lbs/1000ft
Max Recommended
Pulling Tension:
69 lbs
Min Bend Radius/Minor
Axis:
2.75 in
Standards
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca
RG Type: RG-6/U Type
Applicable Environmental and Other Programs
EU Directive 2000/53/EC
(ELV):
Yes
EU Directive 2003/96/EC
(BFR):
Yes
EU Directive 2011/65/EU
(ROHS II):
Yes
EU Directive 2012/19/EU
(WEEE):
Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance
Date (yyyy-mm-dd):
2004-01-01
CA Prop 65 (CJ for Wire &
Cable):
Yes
MII Order #39 (China
RoHS):
Yes
Suitability
Suitability - Aerial: Yes - Black only, when supported by messenger wire
Suitability - Burial: No
Suitability - Hazardous
Locations:
No
Suitability - Indoor: Yes
Suitability - Outdoor: Yes - Black only
Flammability, LS0H, Toxicity Testing
UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
Part Number
Plenum (Y/N): No
Plenum Number: 1695A
Suggested Connectors:
AMP 221185-1 Dual Crimp Gold Pin BNC (75 Ohms); Amphenol 31-70000 Dual Crimp Gold Pin BNC (75 Ohms); Kings
2065-10-9 Dual Crimp Gold Pin (75 Ohms); Trompeter UPL220-20 Dual Crimp Gold Pin BNC (75 Ohm); ADC BNC-1694D Dual
Crimp Gold Pin BNC (75 Ohm)
Related Parts: 1694ABHD3
Variants
Item # Color
1694A.001000 BLACK
1694A.001372 BLACK
1694A.00152 BLACK
1694A.00305 BLACK
1694A.00500 BLACK
1694A 0101000 BLACK
1694A 010500 BLACK
1694A 0105000 BLACK
1694A 010N1000 BLACK
1694A 010N1000 BLACK
1694A 0061000 BLUE, LIGHT
1694A 0065000 BLUE, LIGHT
1694A.051372 BLUE, RAL 5015
1694A.05305 BLUE, RAL 5015
1694A 0011000 BROWN
1694A 0015000 BROWN
1694A.09500 CREAM
1694A 0081000 GRAY
1694A 0085000 GRAY
1694A.081372 GRAY, SLATE
1694A.08305 GRAY, SLATE
1694A.061219 GREEN
1694A.061372 GREEN
1694A.06152 GREEN
1694A.06305 GREEN
1694A.064000 GREEN
1694A N3U1000 GREEN, MIL
1694A N3U5000 GREEN, MIL
1694A N3UN1000 GREEN, MIL
1694A N3UN1000 GREEN, MIL
1694A 0031000 ORANGE
1694A.031372 ORANGE, RAL 2003
1694A.03305 ORANGE, RAL 2003
1694A 0021000 RED
1694A 0025000 RED
1694A.011372 RED, RAL 3000
1694A.01305 RED, RAL 3000
1694A.021372 VIOLET
1694A.02305 VIOLET
1694A 0071000 VIOLET
1694A 0075000 VIOLET
1694A.021000 VIOLET
1694A 007N1000 VIOLET
1694A 007N1000 VIOLET
1694A.071372 WHITE
1694A.07305 WHITE
1694A 0091000 WHITE
1694A 009N1000 WHITE
1694A 009N1000 WHITE
1694A 0041000 YELLOW
1694A 004N1000 YELLOW
1694A 004N1000 YELLOW
1694A.041372 YELLOW, RAL 1021
1694A.04305 YELLOW, RAL 1021
Product Notes
Notes: Also available in 6 GHz multi-coax bundled versions. See 7710A through 7713A. Print legend includes sequential footage marks.
Footnote: CRATE REEL PUT-UP.
Footnote: FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
